MERCEDES-BENZ C320 2005 W203 Owner's Manual
Manufacturer: MERCEDES-BENZ, Model Year: 2005, Model line: C320, Model: MERCEDES-BENZ C320 2005 W203Pages: 442, PDF Size: 4.62 MB
Page 301 of 442

299 Operation
Vehicle care
Steering wheel and gear selector lever
Wipe with a damp cloth and dry thoroughly
or clean with Mercedes-Benz approved
Leather Care.
Cup holders
Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution. Wipe with a cloth moist-
ened in lukewarm solution. Do not use
scouring agents.
Hard plastic trim items
Pour Mercedes-Benz approved Interior
Care onto soft lint-free cloth and apply
with light pressure.Headliner and rear window shelf
Clean with soft bristle brush, or use a
dry-shampoo cleaner in case of excessive
dirt.
Seat belts
The webbing must not be treated with
chemical cleaning agents. Only use clear,
lukewarm water and soap. Do not dry the
webbing at temperatures above 176°F
(80°C) or in direct sunlight.Upholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.
Leather upholstery
Wipe leather upholstery with a damp cloth
and dry thoroughly or clean with
Mercedes-Benz approved Leather Care.
Exercise particular care when cleaning
perforated leather as its underside should
not become wet.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Page 302 of 442

300 OperationVehicle careCloth upholstery
Clean with soft bristle brush, or use a
dry-shampoo cleaner in case of excessive
dirt.
MB Tex upholstery
Pour Mercedes-Benz approved Interior
Care onto soft lint-free cloth and apply
with light pressure.
Plastic and rubber parts
Do not use oil or wax on these parts.
Wood trims
Dampen cloth using water and use damp
cloth to clean wood trims in your vehicle.
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as
these may be abrasive.

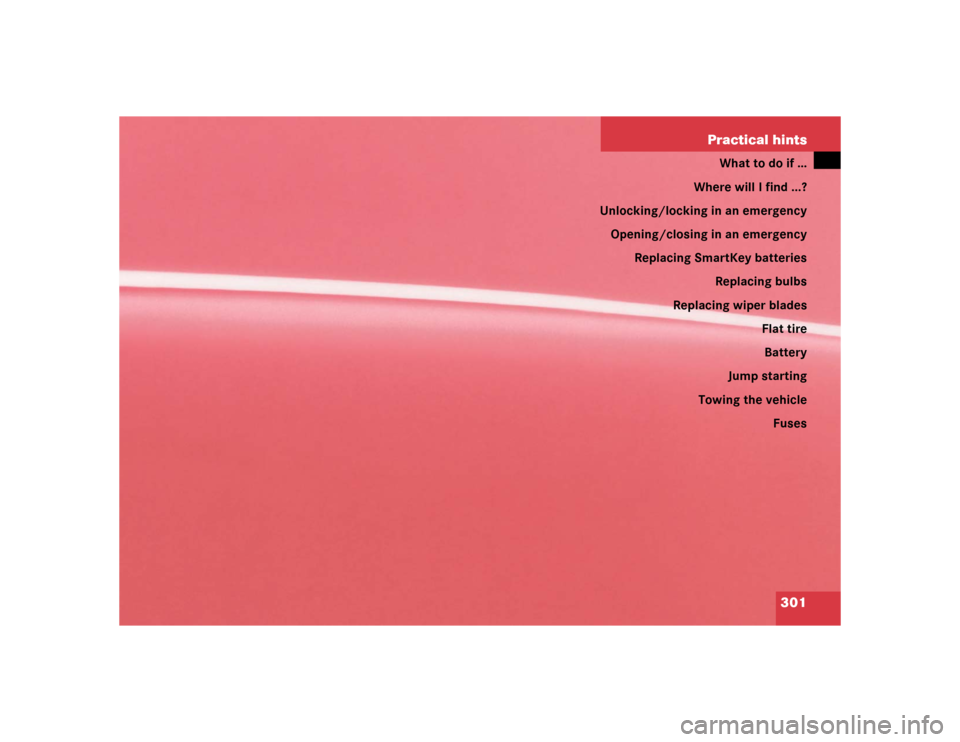

Page 303 of 442

301 Practical hints
What to do if …
Where will I find ...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

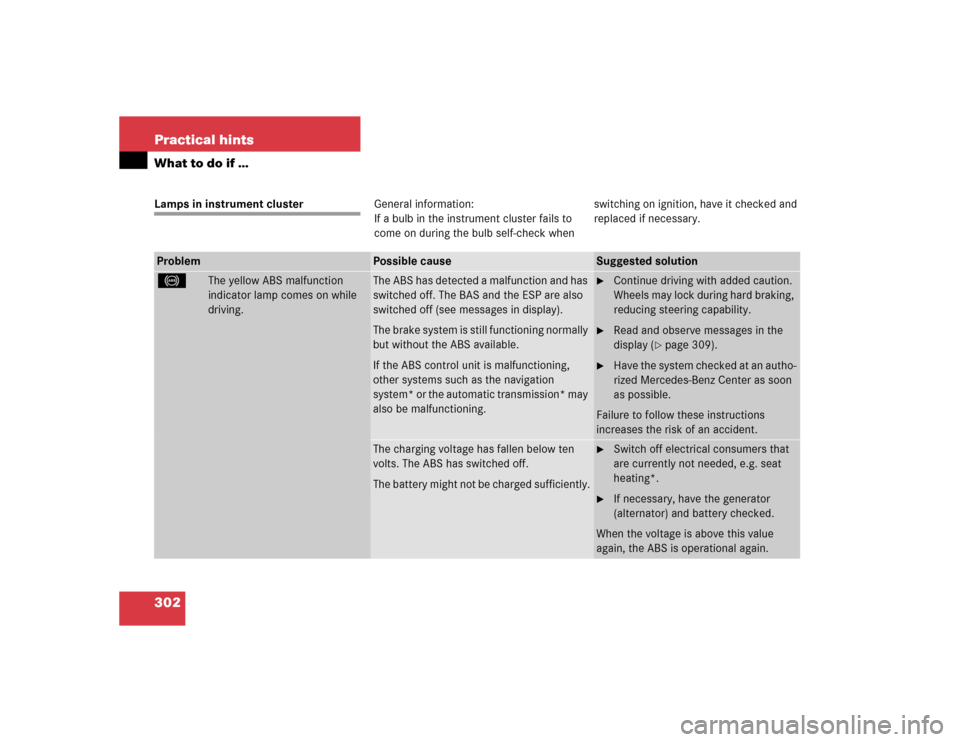

Page 304 of 442

302 Practical hintsWhat to do if …Lamps in instrument clusterGeneral information:
If a bulb in the instrument cluster fails to
come on during the bulb self-check when switching on ignition, have it checked and
replaced if necessary.Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction
indicator lamp comes on while
driving.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as the navigation
system* or the automatic transmission* may
also be malfunctioning.
Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.
Read and observe messages in the
display (
page 309).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions
increases the risk of an accident.
The charging voltage has fallen below ten
volts. The ABS has switched off.
The battery might not be charged sufficiently.
Switch off electrical consumers that
are currently not needed, e.g. seat
heating*.
If necessary, have the generator
(alternator) and battery checked.
When the voltage is above this value
again, the ABS is operational again.

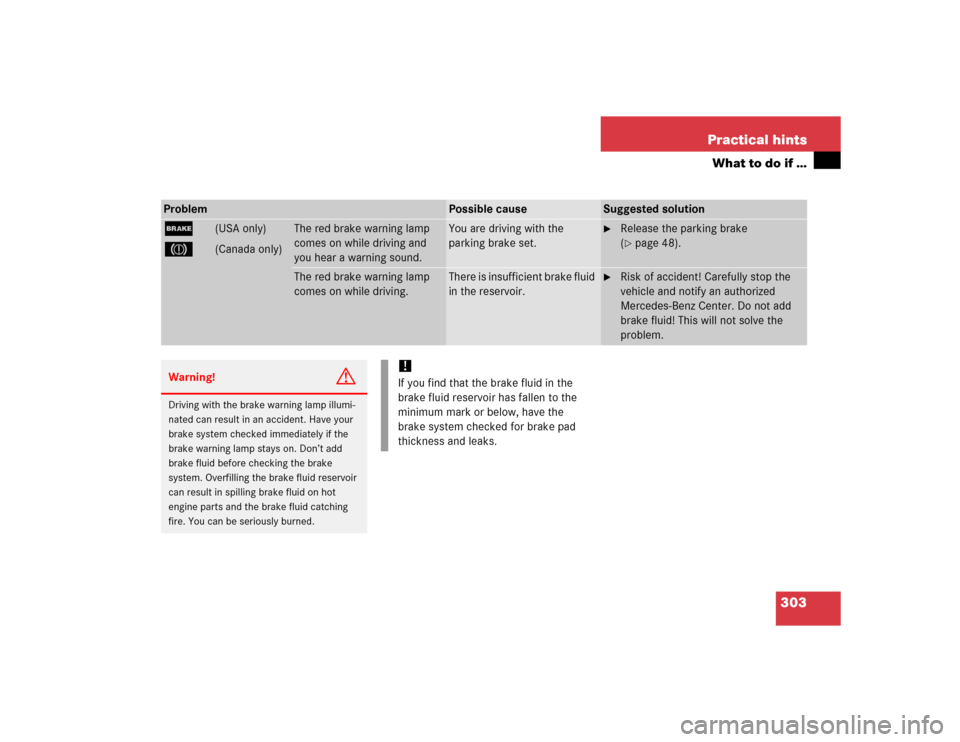

Page 305 of 442

303 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
;
(USA only)
3
(Canada only)
The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the
parking brake set.
Release the parking brake
(page 48).
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid
in the reservoir.
Risk of accident! Carefully stop the
vehicle and notify an authorized
Mercedes-Benz Center. Do not add
brake fluid! This will not solve the
problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Don’t add
brake fluid before checking the brake
system. Overfilling the brake fluid reservoir
can result in spilling brake fluid on hot
engine parts and the brake fluid catching
fire. You can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.

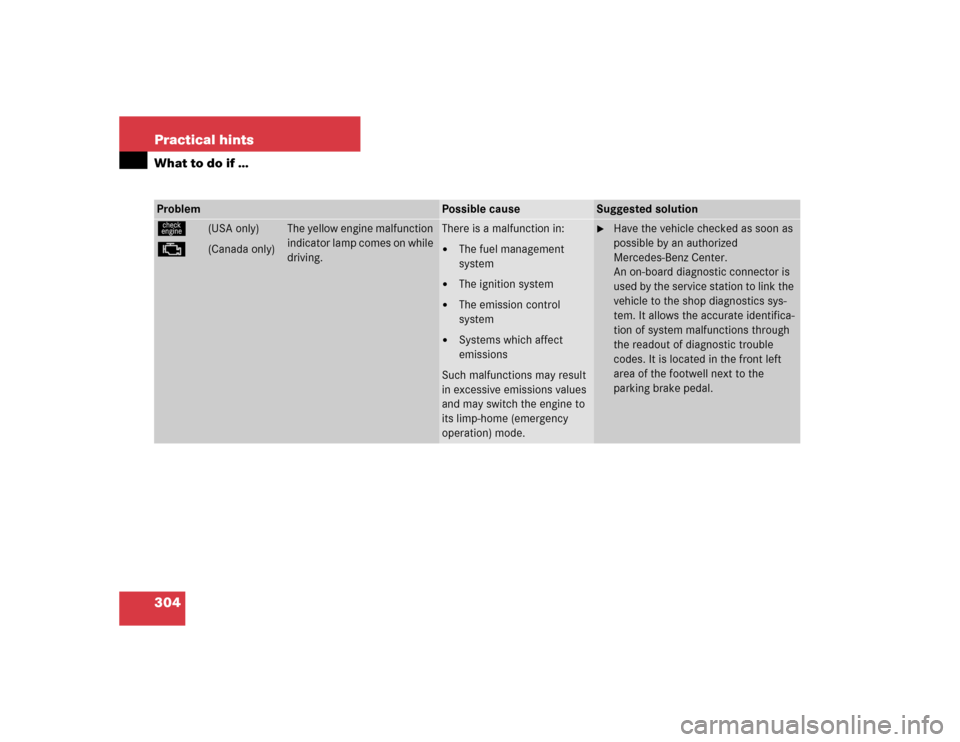

Page 306 of 442

304 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
ú
(USA only)
±
(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.
There is a malfunction in:
The fuel management
system
The ignition system
The emission control
system
Systems which affect
emissions
Such malfunctions may result
in excessive emissions values
and may switch the engine to
its limp-home (emergency
operation) mode.
Have the vehicle checked as soon as
possible by an authorized
Mercedes-Benz Center.
An on-board diagnostic connector is
used by the service station to link the
vehicle to the shop diagnostics sys-
tem. It allows the accurate identifica-
tion of system malfunctions through
the readout of diagnostic trouble
codes. It is located in the front left
area of the footwell next to the
parking brake pedal.

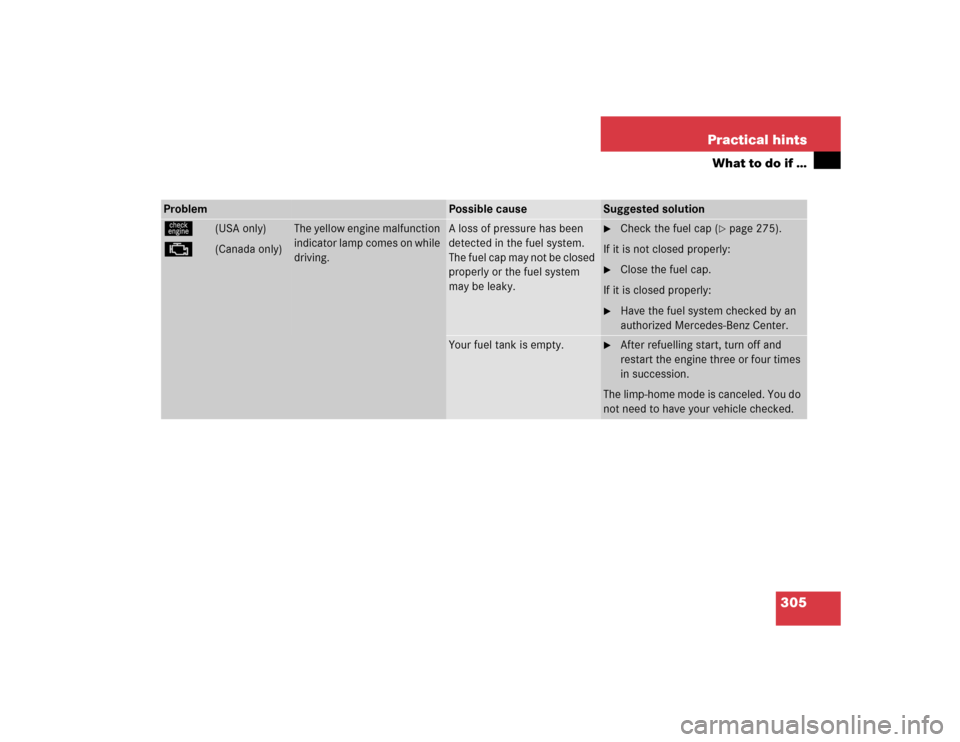

Page 307 of 442

305 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
ú
(USA only)
±
(Canada only)
The yellow engine malfunction
indicator lamp comes on while
driving.
A loss of pressure has been
detected in the fuel system.
The fuel cap may not be closed
properly or the fuel system
may be leaky.
Check the fuel cap (
page 275).
If it is not closed properly:
Close the fuel cap.
If it is closed properly:
Have the fuel system checked by an
authorized Mercedes-Benz Center.
Your fuel tank is empty.
After refuelling start, turn off and
restart the engine three or four times
in succession.
The limp-home mode is canceled. You do
not need to have your vehicle checked.
Page 308 of 442

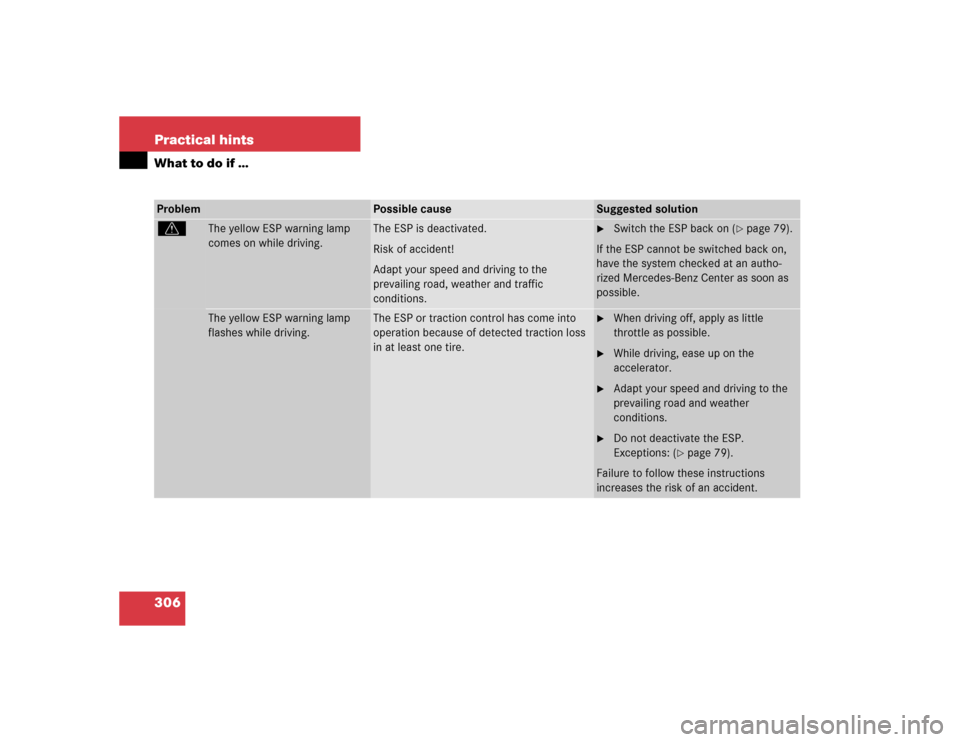

306 Practical hintsWhat to do if …Problem
Possible cause
Suggested solution
v
The yellow ESP warning lamp
comes on while driving.
The ESP is deactivated.
Risk of accident!
Adapt your speed and driving to the
prevailing road, weather and traffic
conditions.
Switch the ESP back on (
page 79).
If the ESP cannot be switched back on,
have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
The yellow ESP warning lamp
flashes while driving.
The ESP or traction control has come into
operation because of detected traction loss
in at least one tire.
When driving off, apply as little
throttle as possible.
While driving, ease up on the
accelerator.
Adapt your speed and driving to the
prevailing road and weather
conditions.
Do not deactivate the ESP.
Exceptions: (
page 79).
Failure to follow these instructions
increases the risk of an accident.

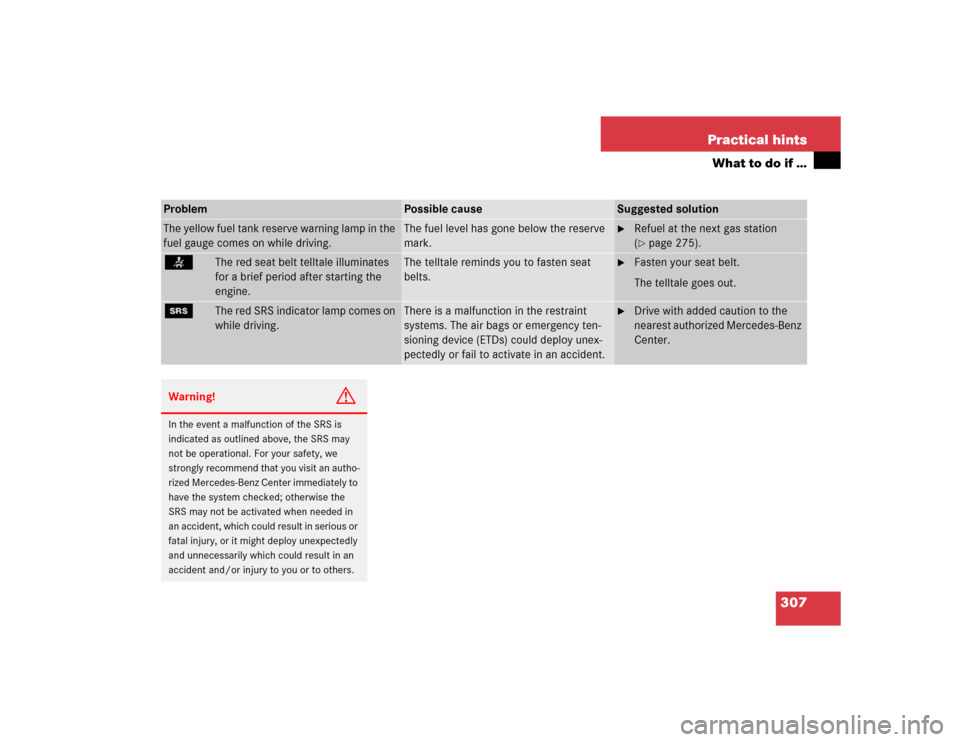

Page 309 of 442

307 Practical hints
What to do if …
Problem
Possible cause
Suggested solution
The yellow fuel tank reserve warning lamp in the
fuel gauge comes on while driving.
The fuel level has gone below the reserve
mark.
Refuel at the next gas station
(page 275).
<
The red seat belt telltale illuminates
for a brief period after starting the
engine.
The telltale reminds you to fasten seat
belts.
Fasten your seat belt.
The telltale goes out.
1
The red SRS indicator lamp comes on
while driving.
There is a malfunction in the restraint
systems. The air bags or emergency ten-
sioning device (ETDs) could deploy unex-
pectedly or fail to activate in an accident.
Drive with added caution to the
nearest authorized Mercedes-Benz
Center.
Warning!
G
In the event a malfunction of the SRS is
indicated as outlined above, the SRS may
not be operational. For your safety, we
strongly recommend that you visit an autho-
rized Mercedes-Benz Center immediately to
have the system checked; otherwise the
SRS may not be activated when needed in
an accident, which could result in serious or
fatal injury, or it might deploy unexpectedly
and unnecessarily which could result in an
accident and/or injury to you or to others.
Page 310 of 442

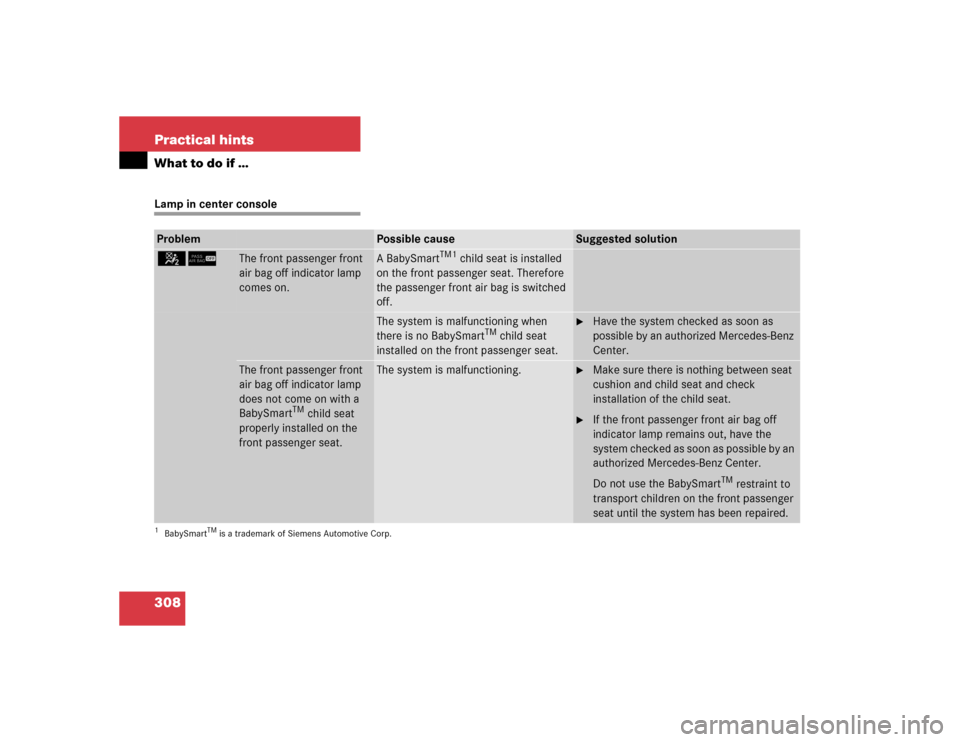

308 Practical hintsWhat to do if …Lamp in center consoleProblem
Possible cause
Suggested solution
56
The front passenger front
air bag off indicator lamp
comes on.
A BabySmart
TM1
child seat is installed
on the front passenger seat. Therefore
the passenger front air bag is switched
off.
1BabySmart
TM is a trademark of Siemens Automotive Corp.
The system is malfunctioning when
there is no BabySmart
TM child seat
installed on the front passenger seat.
Have the system checked as soon as
possible by an authorized Mercedes-Benz
Center.
The front passenger front
air bag off indicator lamp
does not come on with a
BabySmart
TM child seat
properly installed on the
front passenger seat.
The system is malfunctioning.
Make sure there is nothing between seat
cushion and child seat and check
installation of the child seat.
If the front passenger front air bag off
indicator lamp remains out, have the
system checked as soon as possible by an
authorized Mercedes-Benz Center.
Do not use the BabySmart
TM restraint to
transport children on the front passenger
seat until the system has been repaired.
