MERCEDES-BENZ C32AMG 2003 W203 Owner's Manual

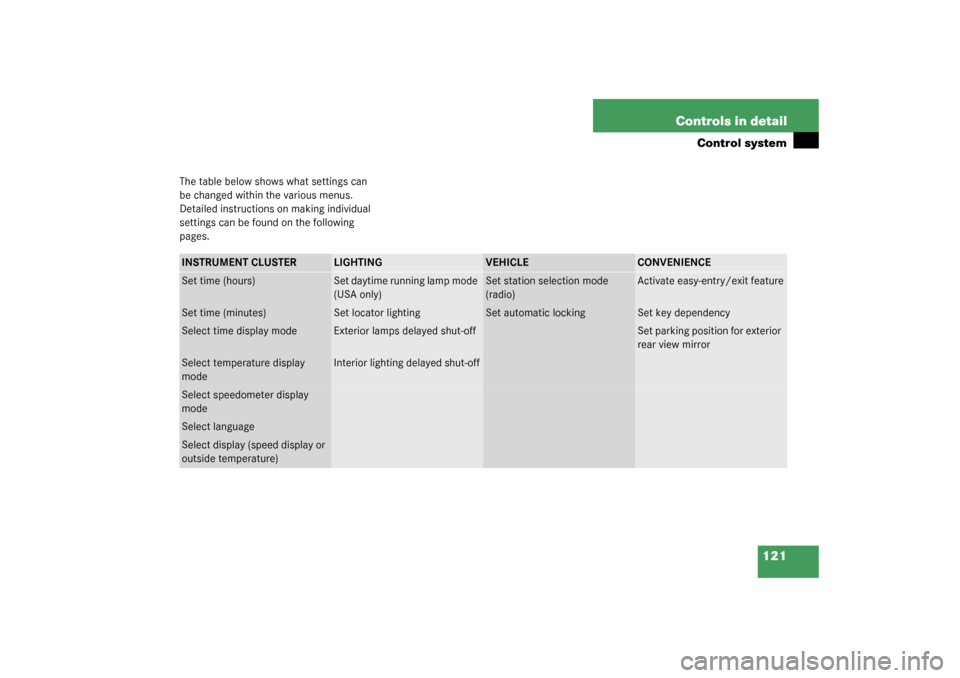

121 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus.
Detailed instructions on making individual
settings can be found on the following
pages.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Set time (hours)
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Set time (minutes)
Set locator lighting
Set automatic locking
Set key dependency
Select time display mode
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirror
Select temperature display
mode
Interior lighting delayed shut-off
Select speedometer display
modeSelect languageSelect display (speed display or
outside temperature)

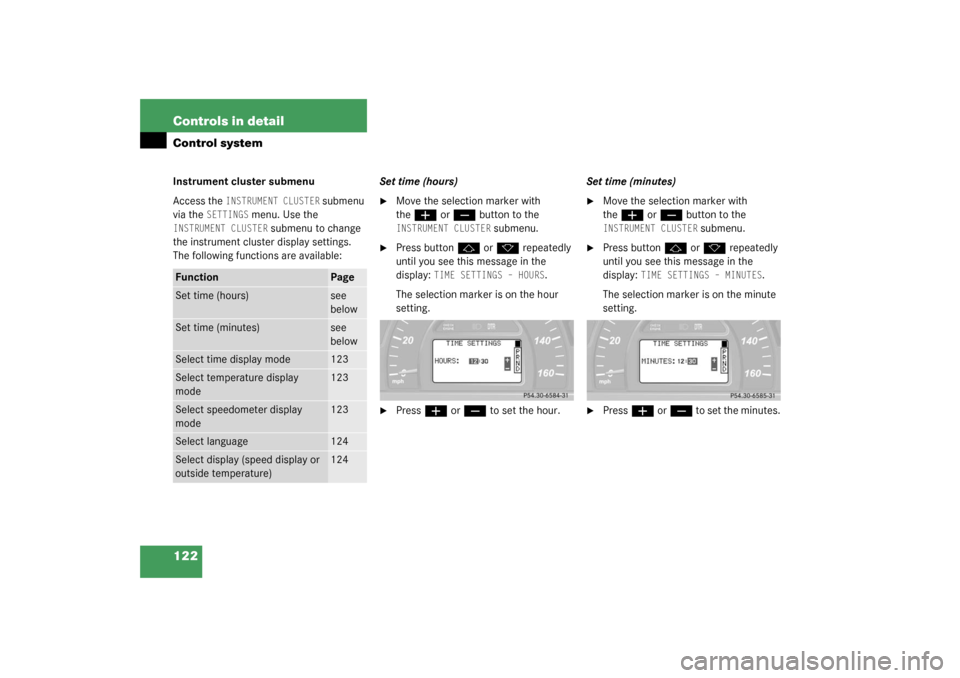

122 Controls in detailControl systemInstrument cluster submenu
Access the
INSTRUMENT CLUSTER
submenu
via the
SETTINGS
menu. Use the
INSTRUMENT CLUSTER
submenu to change
the instrument cluster display settings.
The following functions are available:Set time (hours)

Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
TIME SETTINGS – HOURS
.
The selection marker is on the hour
setting.

Press
æ
or
ç
to set the hour.Set time (minutes)

Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
TIME SETTINGS – MINUTES
.
The selection marker is on the minute
setting.

Press
æ
or
ç
to set the minutes.
Function
Page
Set time (hours)
see
below
Set time (minutes)
see
below
Select time display mode
123
Select temperature display
mode
123
Select speedometer display
mode
123
Select language
124
Select display (speed display or
outside temperature)
124

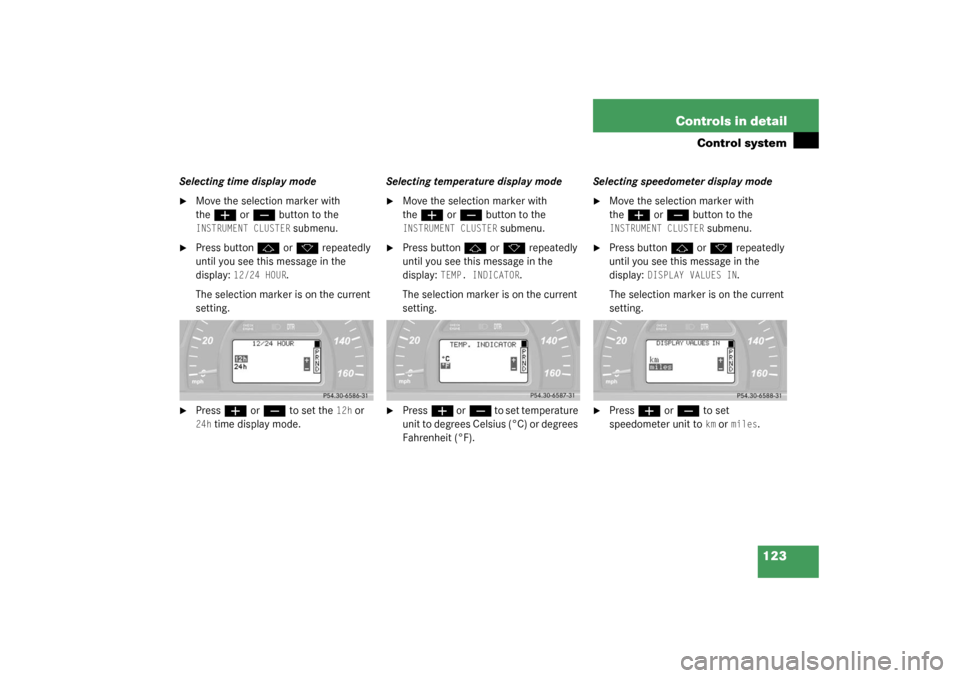

123 Controls in detail
Control system
Selecting time display mode
Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
12/24 HOUR
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set the
12h
or
24h
time display mode.Selecting temperature display mode

Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
TEMP. INDICATOR
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set temperature
unit to degrees Celsius (°C) or degrees
Fahrenheit (°F).Selecting speedometer display mode

Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
DISPLAY VALUES IN
.
The selection marker is on the current
setting.

Press
æ
or
ç
to set
speedometer unit to km or
miles
.

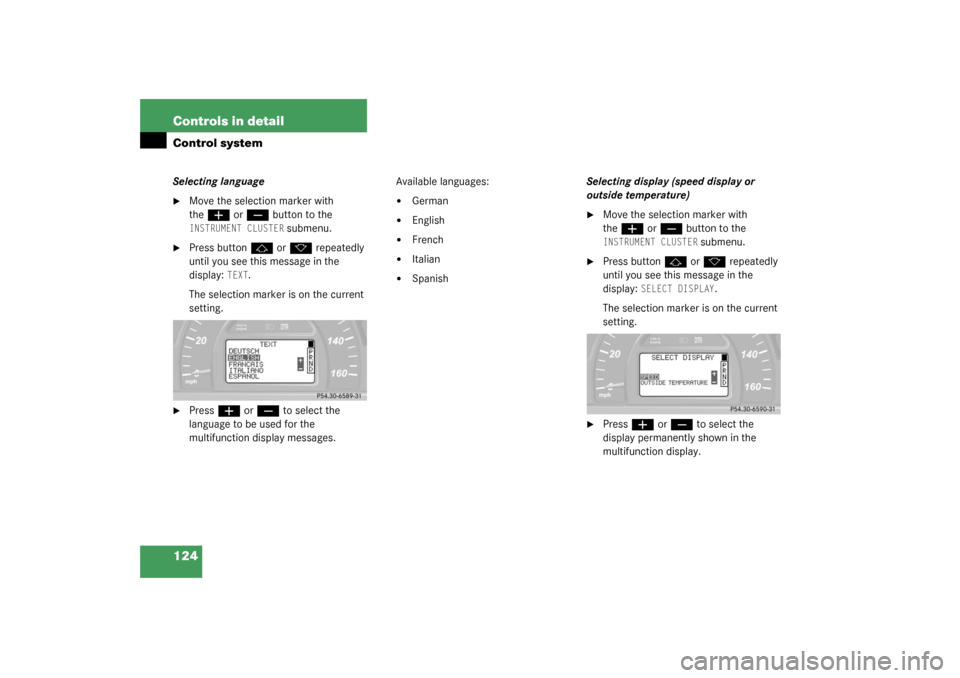

124 Controls in detailControl systemSelecting language
Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
TEXT
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the
language to be used for the
multifunction display messages.Available languages:


German


English


French


Italian


SpanishSelecting display (speed display or
outside temperature)

Move the selection marker with
the
æ
or
ç
button to the
INSTRUMENT CLUSTER
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
SELECT DISPLAY
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the
display permanently shown in the
multifunction display.

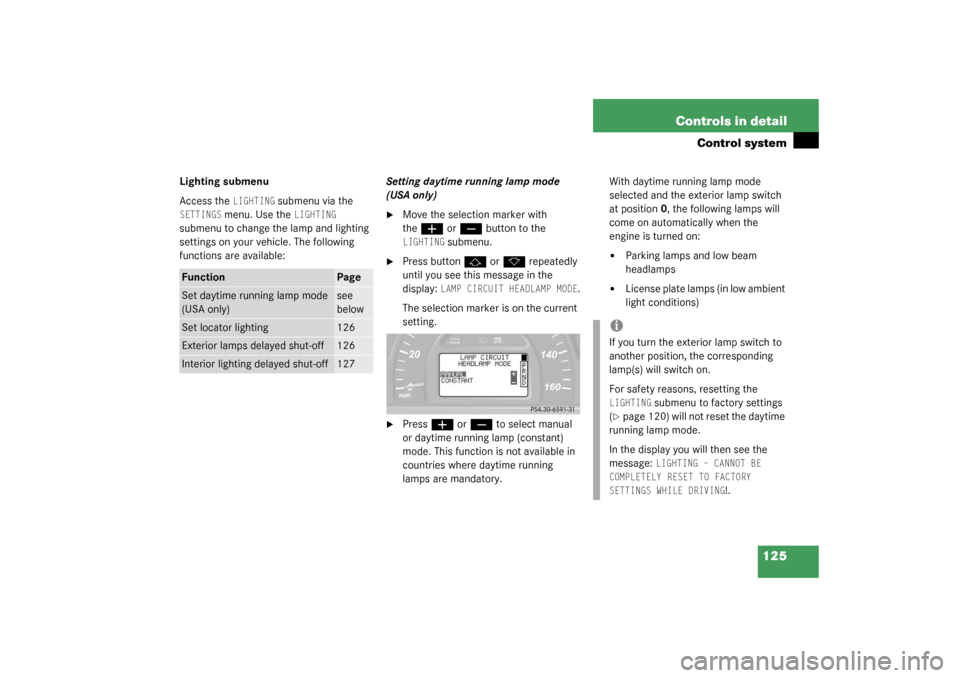

125 Controls in detail
Control system
Lighting submenu
Access the
LIGHTING
submenu via the
SETTINGS
menu. Use the
LIGHTING
submenu to change the lamp and lighting
settings on your vehicle. The following
functions are available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
the
æ
or
ç
button to the
LIGHTING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
LAMP CIRCUIT HEADLAMP MODE
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select manual
or daytime running lamp (constant)
mode. This function is not available in
countries where daytime running
lamps are mandatory.With daytime running lamp mode
selected and the exterior lamp switch
at position0, the following lamps will
come on automatically when the
engine is turned on:


Parking lamps and low beam
headlamps


License plate lamps (in low ambient
light conditions)
Function
Page
Set daytime running lamp mode
(USA only)
see
below
Set locator lighting
126
Exterior lamps delayed shut-off
126
Interior lighting delayed shut-off
127
iIf you turn the exterior lamp switch to
another position, the corresponding
lamp(s) will switch on.
For safety reasons, resetting the LIGHTING
submenu to factory settings
(
page 120) will not reset the daytime
running lamp mode.
In the display you will then see the
message:
LIGHTING – CANNOT BE
COMPLETELY RESET TO FACTORY
SETTINGS WHILE DRIVING
!.

126 Controls in detailControl systemSetting locator lighting
During darkness, the following lamps will
come on when the exterior lamp switch is
in position
U
, the locator lighting
feature is activated, and the vehicle is
unlocked by remote control:


Parking lamps


Tail lamps


License plate lamps


Front fog lamps
The locator lighting switches off when the
driver’s door is opened. It switches off
automatically after a period of approxi-
mately 40 seconds.

Move the selection marker with
the
æ
or
ç
button to the
LIGHTING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
LOCATOR LIGHTING
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the
desired setting.
The locator lighting will be switched on
or off.Setting night security illumination
(Exterior lamps delayed shut-off)
Use the
HEADLAMPS DELAYED SHUT-OFF

function to set whether and for how long
you would like the exterior lamps to illumi-
nate during darkness after all doors are
closed. When the delayed shut-off feature
is activated and the exterior lamp switch is
in position
U
, the following lamps will
remain lit after you remove the key from
the starter switch:


Parking lamps


Tail lamps


License plate lamps


Front fog lampsiYou can reactivate this function within
ten minutes by opening a door.
If you do not open a door after
removing the key, the lamps will
automatically switch off after
60 seconds.

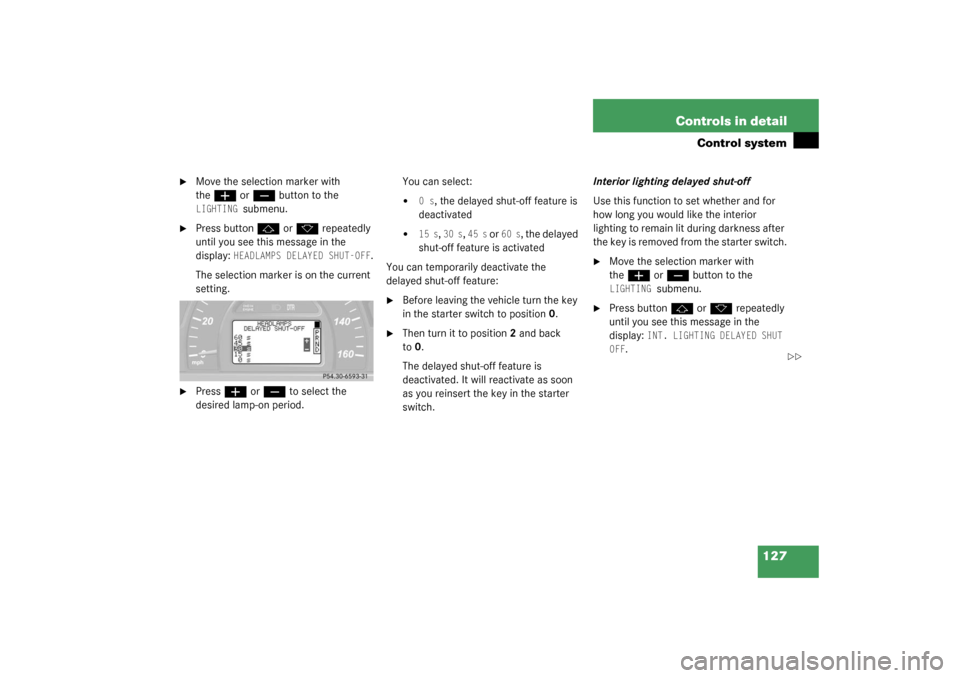

127 Controls in detail
Control system

Move the selection marker with
the
æ
or
ç
button to the
LIGHTING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
HEADLAMPS DELAYED SHUT-OFF
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the
desired lamp-on period.You can select:


0 s
, the delayed shut-off feature is
deactivated


15 s
, 30 s
, 45 s
or
60 s
, the delayed
shut-off feature is activated
You can temporarily deactivate the
delayed shut-off feature:

Before leaving the vehicle turn the key
in the starter switch to position0.

Then turn it to position2 and back
to0.
The delayed shut-off feature is
deactivated. It will reactivate as soon
as you reinsert the key in the starter
switch.Interior lighting delayed shut-off
Use this function to set whether and for
how long you would like the interior
lighting to remain lit during darkness after
the key is removed from the starter switch.

Move the selection marker with
the
æ
or
ç
button to the
LIGHTING
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
INT. LIGHTING DELAYED SHUT
OFF
.

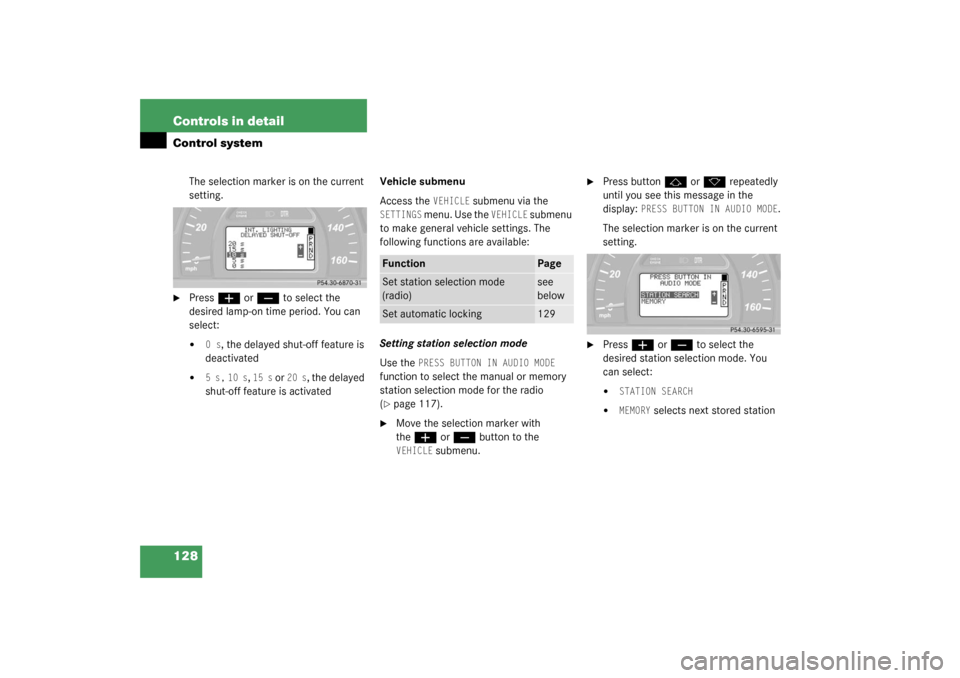

128 Controls in detailControl system
The selection marker is on the current
setting.

Press
æ
or
ç
to select the
desired lamp-on time period. You can
select:


0 s
, the delayed shut-off feature is
deactivated


5 s,
10 s
, 15 s
or
20 s
, the delayed
shut-off feature is activatedVehicle submenu
Access the
VEHICLE
submenu via the
SETTINGS
menu. Use the
VEHICLE
submenu
to make general vehicle settings. The
following functions are available:
Setting station selection mode
Use the
PRESS BUTTON IN AUDIO MODE
function to select the manual or memory
station selection mode for the radio
(page 117).

Move the selection marker with
the
æ
or
ç
button to the
VEHICLE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
PRESS BUTTON IN AUDIO MODE
.
The selection marker is on the current
setting.

Press
æ
or
ç
to select the
desired station selection mode. You
can select:


STATION SEARCH


MEMORY
selects next stored station
Function
Page
Set station selection mode
(radio)
see
below
Set automatic locking
129

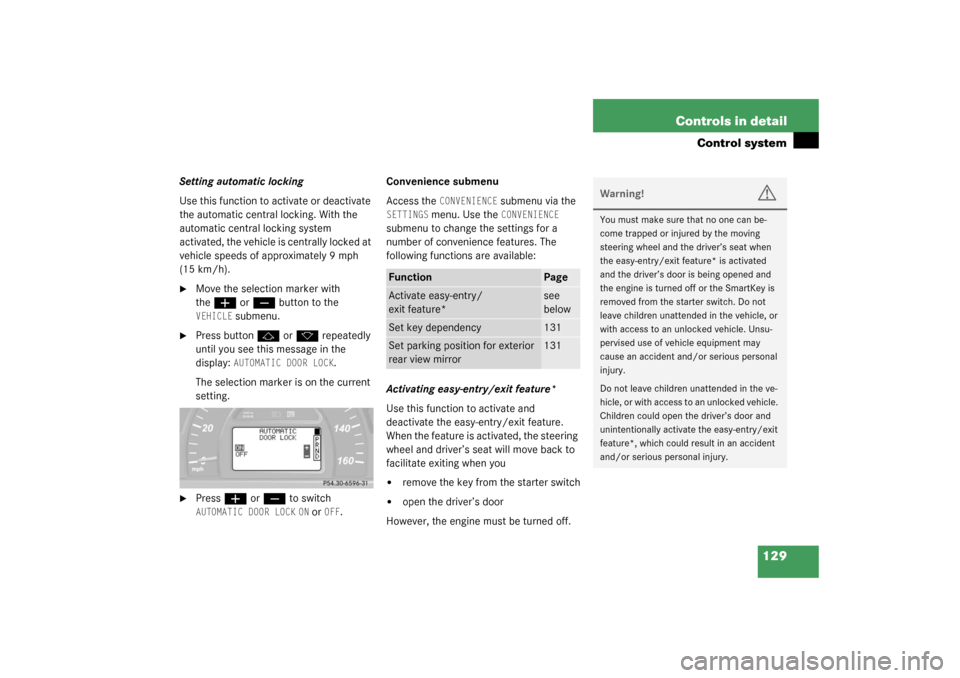

129 Controls in detail
Control system
Setting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the
automatic central locking system
activated, the vehicle is centrally locked at
vehicle speeds of approximately 9 mph
(15 km/h).
Move the selection marker with
the
æ
or
ç
button to the
VEHICLE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Press
æ
or
ç
to switch
AUTOMATIC DOOR LOCK
ON or
OFF
.Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE

submenu to change the settings for a
number of convenience features. The
following functions are available:

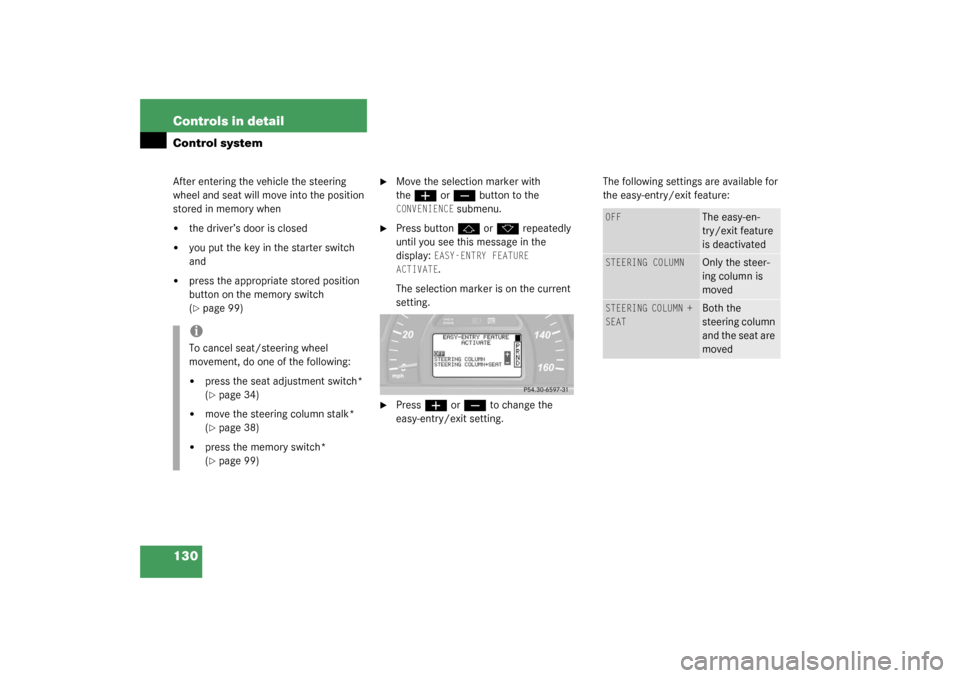

Activating easy-entry/exit feature*
Use this function to activate and
deactivate the easy-entry/exit feature.
When the feature is activated, the steering
wheel and driver’s seat will move back to
facilitate exiting when you


remove the key from the starter switch


open the driver’s door
However, the engine must be turned off.
Function
Page
Activate easy-entry/
exit feature*
see
below
Set key dependency
131
Set parking position for exterior
rear view mirror
131
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature* is activated
and the driver’s door is being opened and
the engine is turned off or the SmartKey is
removed from the starter switch. Do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature*, which could result in an accident
and/or serious personal injury.

130 Controls in detailControl systemAfter entering the vehicle the steering
wheel and seat will move into the position
stored in memory when

the driver’s door is closed


you put the key in the starter switch
and


press the appropriate stored position
button on the memory switch
(page 99)

Move the selection marker with
the
æ
or
ç
button to the
CONVENIENCE
submenu.

Press button
j
or
k
repeatedly
until you see this message in the
display:
EASY-ENTRY FEATURE
ACTIVATE.
The selection marker is on the current
setting.

Press
æ
or
ç
to change the
easy-entry/exit setting.The following settings are available for
the easy-entry/exit feature:
iTo cancel seat/steering wheel
movement, do one of the following:

press the seat adjustment switch*
(page 34)


move the steering column stalk*
(page 38)


press the memory switch*
(page 99)
OFF
The easy-en-
try/exit feature
is deactivated
STEERING COLUMN
Only the steer-
ing column is
moved
STEERING COLUMN +
SEAT
Both the
steering column
and the seat are
moved
