MERCEDES-BENZ C32AMG 2003 W203 Owner's Manual

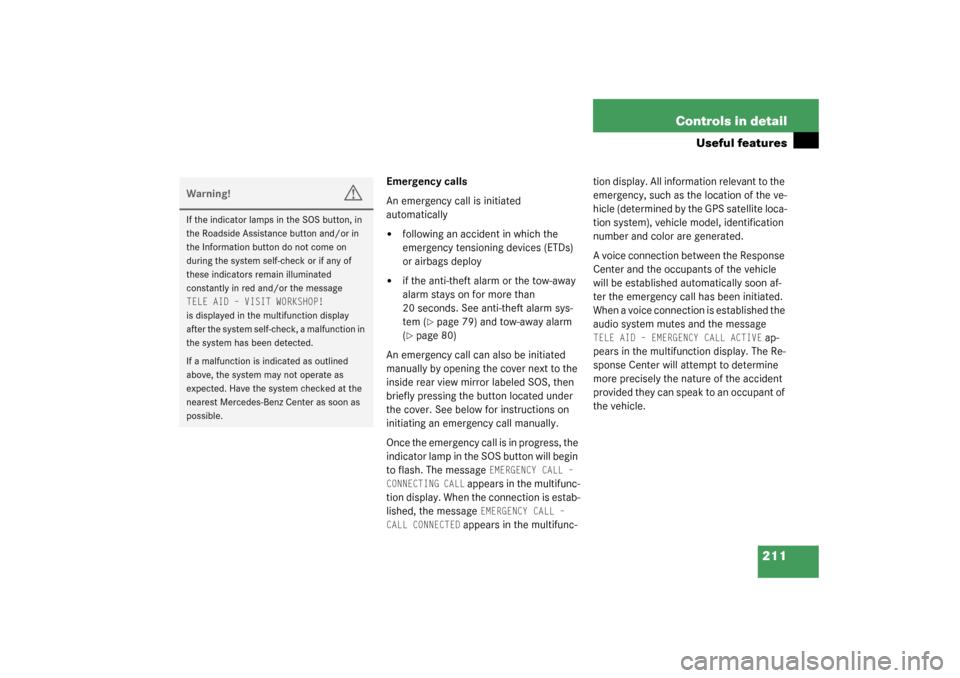

211 Controls in detail
Useful features
Emergency calls
An emergency call is initiated
automatically

following an accident in which the
emergency tensioning devices (ETDs)
or airbags deploy


if the anti-theft alarm or the tow-away
alarm stays on for more than
20 seconds. See anti-theft alarm sys-
tem (
page 79) and tow-away alarm
(
page 80)
An emergency call can also be initiated
manually by opening the cover next to the
inside rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See below for instructions on
initiating an emergency call manually.
Once the emergency call is in progress, the
indicator lamp in the SOS button will begin
to flash. The message
EMERGENCY CALL –
CONNECTING CALL
appears in the multifunc-
tion display. When the connection is estab-
lished, the message
EMERGENCY CALL –
CALL CONNECTED
appears in the multifunc-tion display. All information relevant to the
emergency, such as the location of the ve-
hicle (determined by the GPS satellite loca-
tion system), vehicle model, identification
number and color are generated.
A voice connection between the Response
Center and the occupants of the vehicle
will be established automatically soon af-
ter the emergency call has been initiated.
When a voice connection is established the
audio system mutes and the message
TELE AID – EMERGENCY CALL ACTIVE
ap-
pears in the multifunction display. The Re-
sponse Center will attempt to determine
more precisely the nature of the accident
pr ovi de d they can s pea k to a n occu pa nt of
the vehicle.
Warning!
G
If the indicator lamps in the SOS button, in
the Roadside Assistance button and/or in
the Information button do not come on
during the system self-check or if any of
these indicators remain illuminated
constantly in red and/or the message TELE AID – VISIT WORKSHOP!

is displayed in the multifunction display
after the system self-check, a malfunction in
the system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.

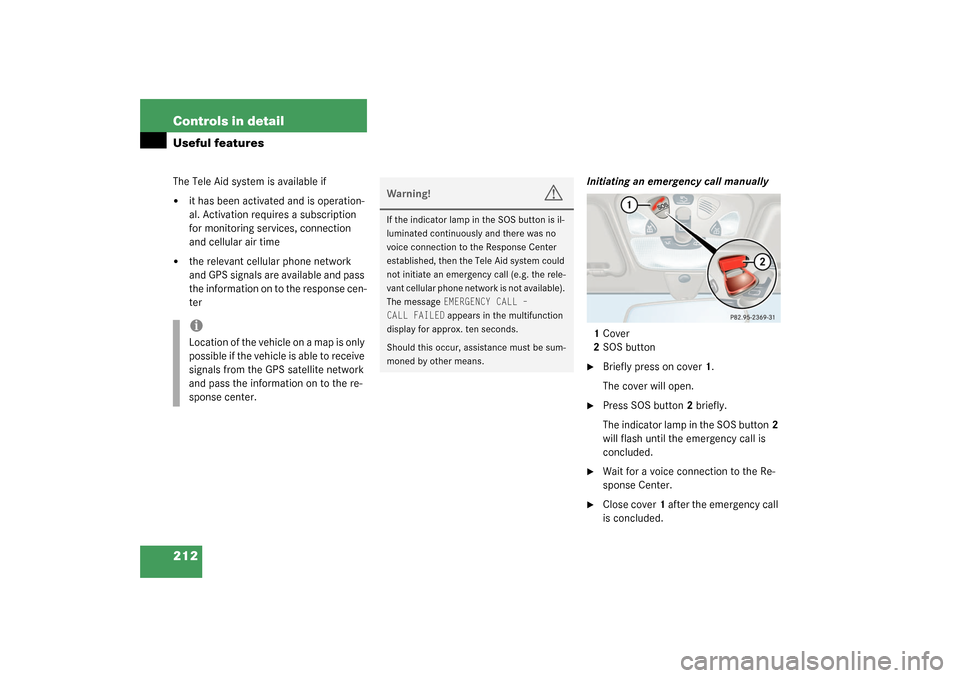

212 Controls in detailUseful featuresThe Tele Aid system is available if

it has been activated and is operation-
al. Activation requires a subscription
for monitoring services, connection
and cellular air time


the relevant cellular phone network
and GPS signals are available and pass
the information on to the response cen-
terInitiating an emergency call manually
1Cover
2SOS button

Briefly press on cover1.
The cover will open.

Press SOS button2 briefly.
The indicator lamp in the SOS button2
will flash until the emergency call is
concluded.

Wait for a voice connection to the Re-
sponse Center.

Close cover1 after the emergency call
is concluded.
iLocation of the vehicle on a map is only
possible if the vehicle is able to receive
signals from the GPS satellite network
and pass the information on to the re-
sponse center.
Warning!
G
If the indicator lamp in the SOS button is il-
luminated continuously and there was no
voice connection to the Response Center
established, then the Tele Aid system could
not initiate an emergency call (e.g. the rele-
vant cellular phone network is not available).
The message
EMERGENCY CALL –
CALL FAILED appears in the multifunction
display for approx. ten seconds.
Should this occur, assistance must be sum-
moned by other means.

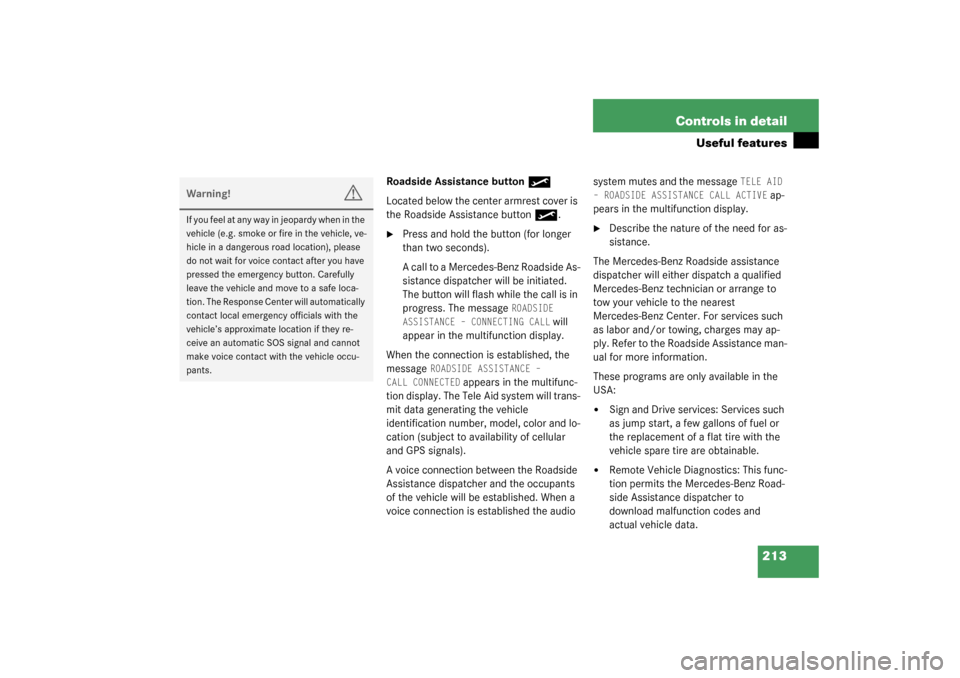

213 Controls in detail
Useful features
Roadside Assistance button
•
Located below the center armrest cover is
the Roadside Assistance button
•
.

Press and hold the button (for longer
than two seconds).
A call to a Mercedes-Benz Roadside As-
sistance dispatcher will be initiated.
The button will flash while the call is in
progress. The message
ROADSIDE
ASSISTANCE – CONNECTING CALL
will
appear in the multifunction display.
When the connection is established, the
message
ROADSIDE ASSISTANCE –
CALL CONNECTED
appears in the multifunc-
tion display. The Tele Aid system will trans-
mit data generating the vehicle
identification number, model, color and lo-
cation (subject to availability of cellular
and GPS signals).
A voice connection between the Roadside
Assistance dispatcher and the occupants
of the vehicle will be established. When a
voice connection is established the audio system mutes and the message
TELE AID
– ROADSIDE ASSISTANCE CALL ACTIVE
ap-
pears in the multifunction display.

Describe the nature of the need for as-
sistance.
The Mercedes-Benz Roadside assistance
dispatcher will either dispatch a qualified
Mercedes-Benz technician or arrange to
tow your vehicle to the nearest
Mercedes-Benz Center. For services such
as labor and/or towing, charges may ap-
ply. Refer to the Roadside Assistance man-
ual for more information.
These programs are only available in the
USA:


Sign and Drive services: Services such
as jump start, a few gallons of fuel or
the replacement of a flat tire with the
vehicle spare tire are obtainable.


Remote Vehicle Diagnostics: This func-
tion permits the Mercedes-Benz Road-
side Assistance dispatcher to
download malfunction codes and
actual vehicle data.
Warning!
G
If you feel at any way in jeopardy when in the
vehicle (e.g. smoke or fire in the vehicle, ve-
hicle in a dangerous road location), please
do not wait for voice contact after you have
pressed the emergency button. Carefully
leave the vehicle and move to a safe loca-
tion. The Response Center will automatically
contact local emergency officials with the
vehicle’s approximate location if they re-
ceive an automatic SOS signal and cannot
make voice contact with the vehicle occu-
pants.

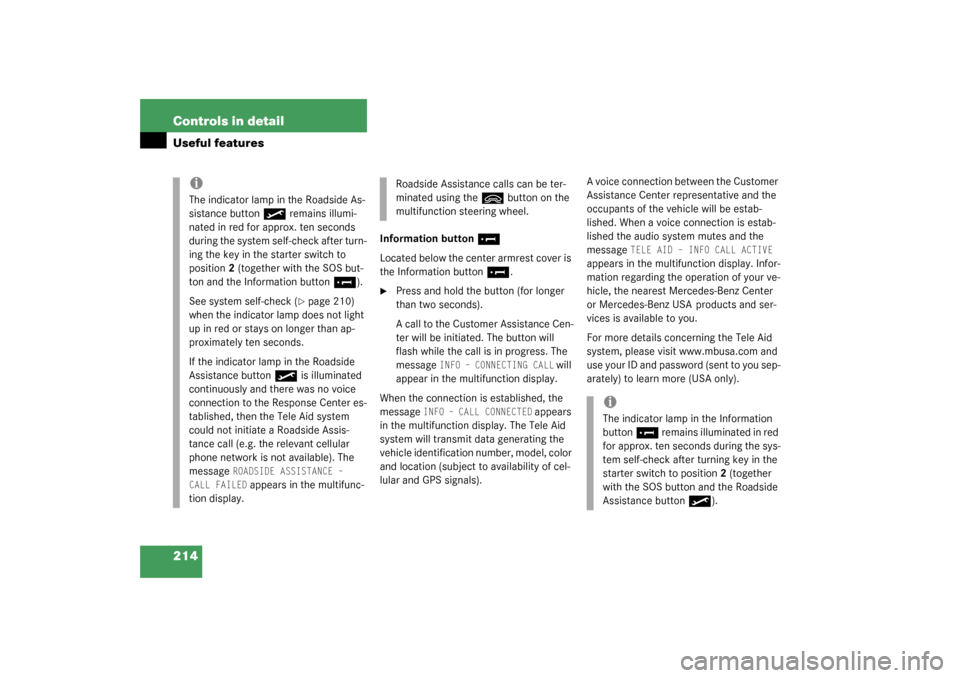

214 Controls in detailUseful features
Information button
¡
Located below the center armrest cover is
the Information button
¡
.

Press and hold the button (for longer
than two seconds).
A call to the Customer Assistance Cen-
ter will be initiated. The button will
flash while the call is in progress. The
message
INFO – CONNECTING CALL
will
appear in the multifunction display.
When the connection is established, the
message
INFO – CALL CONNECTED
appears
in the multifunction display. The Tele Aid
system will transmit data generating the
vehicle identification number, model, color
and location (subject to availability of cel-
lular and GPS signals).A voice connection between the Customer
Assistance Center representative and the
occupants of the vehicle will be estab-
lished. When a voice connection is estab-
lished the audio system mutes and the
message
TELE AID – INFO CALL ACTIVE

appears in the multifunction display. Infor-
mation regarding the operation of your ve-
hicle, the nearest Mercedes-Benz Center
or Mercedes-Benz USA products and ser-
vices is available to you.
For more details concerning the Tele Aid
system, please visit www.mbusa.com and
use your ID and password (sent to you sep-
arately) to learn more (USA only).
iThe indicator lamp in the Roadside As-
sistance button
•
remains illumi-
nated in red for approx. ten seconds
during the system self-check after turn-
ing the key in the starter switch to
position2 (together with the SOS but-
ton and the Information button
¡
).
See system self-check (
page 210)
when the indicator lamp does not light
up in red or stays on longer than ap-
proximately ten seconds.
If the indicator lamp in the Roadside
Assistance button
•
is illuminated
continuously and there was no voice
connection to the Response Center es-
tablished, then the Tele Aid system
could not initiate a Roadside Assis-
tance call (e.g. the relevant cellular
phone network is not available). The
message
ROADSIDE ASSISTANCE –
CALL FAILED
appears in the multifunc-
tion display.
Roadside Assistance calls can be ter-
minated using the
ì
button on the
multifunction steering wheel.
iThe indicator lamp in the Information
button
¡
remains illuminated in red
for approx. ten seconds during the sys-
tem self-check after turning key in the
starter switch to position2 (together
with the SOS button and the Roadside
Assistance button
•
).

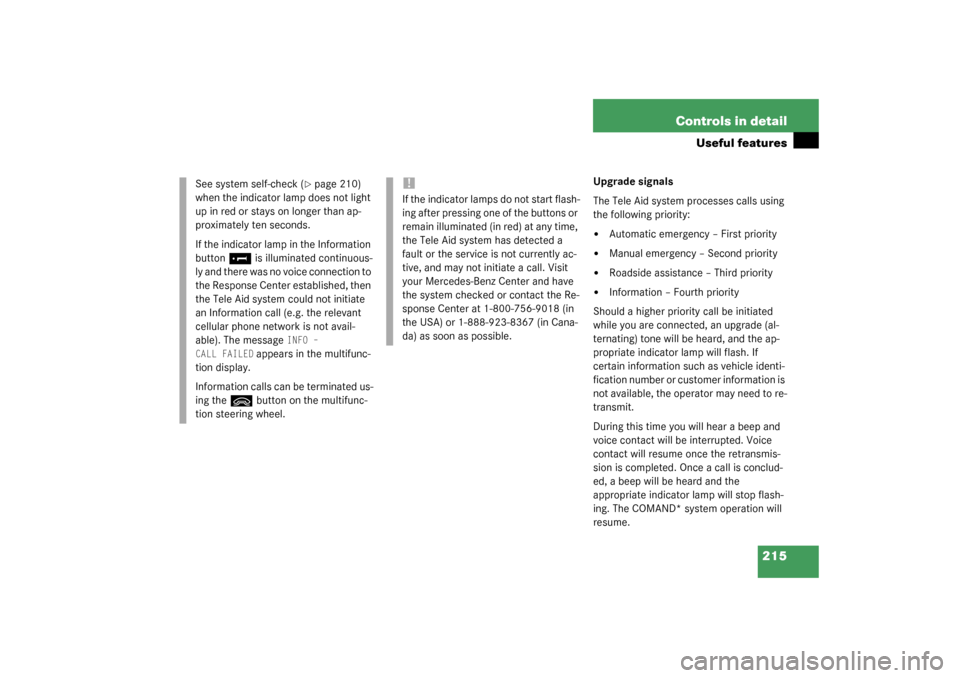

215 Controls in detail
Useful features
Upgrade signals
The Tele Aid system processes calls using
the following priority:

Automatic emergency – First priority


Manual emergency – Second priority


Roadside assistance – Third priority


Information – Fourth priority
Should a higher priority call be initiated
while you are connected, an upgrade (al-
ternating) tone will be heard, and the ap-
propriate indicator lamp will flash. If
certain information such as vehicle identi-
fication number or customer information is
not available, the operator may need to re-
transmit.
During this time you will hear a beep and
voice contact will be interrupted. Voice
contact will resume once the retransmis-
sion is completed. Once a call is conclud-
ed, a beep will be heard and the
appropriate indicator lamp will stop flash-
ing. The COMAND* system operation will
resume. See system self-check (
page 210)
when the indicator lamp does not light
up in red or stays on longer than ap-
proximately ten seconds.
If the indicator lamp in the Information
button
¡
is illuminated continuous-
ly and there was no voice connection to
the Response Center established, then
the Tele Aid system could not initiate
an Information call (e.g. the relevant
cellular phone network is not avail-
able). The message
INFO –
CALL FAILED
appears in the multifunc-
tion display.
Information calls can be terminated us-
ing the
ì
button on the multifunc-
tion steering wheel.
!If the indicator lamps do not start flash-
ing after pressing one of the buttons or
remain illuminated (in red) at any time,
the Tele Aid system has detected a
fault or the service is not currently ac-
tive, and may not initiate a call. Visit
your Mercedes-Benz Center and have
the system checked or contact the Re-
sponse Center at 1-800-756-9018 (in
the USA) or 1-888-923-8367 (in Cana-
da) as soon as possible.

216 Controls in detailUseful features
Remote door unlock
In case you have locked your vehicle unin-
tentionally (e.g. key inside vehicle), and the
reserve key is not handy:
Contact the Mercedes-Benz Response
Center at 1-800-756-9018 (in the USA)
or 1-888-923-8367 (in Canada).
You will be asked to provide your pass-
word which you provided when you
completed the subscriber agreement.

Then return to your vehicle and pull the
trunk recessed handle for minimum
of 20 seconds until the SOS button is
flashing.
The message
EMERGENCY CALL –
CALL CONNECTED appears in the multi-
function display.
As an alternative, you may unlock the vehi-
cle via Internet using the ID and password
sent to you shortly after the completion of
your Acquaintance Call.
!If the indicator lamp continues to flash
or the system does not reset, contact
the Response Center at
1-800-756-9018 (in the USA) or
1-888-923-8367 (in Canada), or
Mercedes-Benz Customer Assistance
at 1-800-FOR-MERCedes
(1-800-367-6372) in the USA or Cus-
tomer Service at 1-800-387-0100 in
Canada.iThe indicator lamp in the respective
button flashes until the call is conclud-
ed. Calls can only be terminated by a
Response Center or Customer Assis-
tance Center representative except
Roadside Assistance and Information
calls, which can also be terminated by
pressing button
ì
on the multifunc-
tion steering wheel.
iWhen a Tele Aid call has been initiated,
the audio system or the COMAND* sys-
tem audio is muted and the selected
mode (radio, tape or CD) pauses. The
optional cellular phone (if installed)
switches off. If you must use this
phone, the vehicle must be parked. Dis-
connect the coiled cord and place the
call. The COMAND* navigation system
(if engaged) will continue to run. The
display in the instrument cluster is
available for use and spoken com-
mands are only available by pressing
the RPT button on the COMAND* unit.
A pop-up window will appear in the CO-
MAND* display to indicate that a
Tele Aid call is in progress.

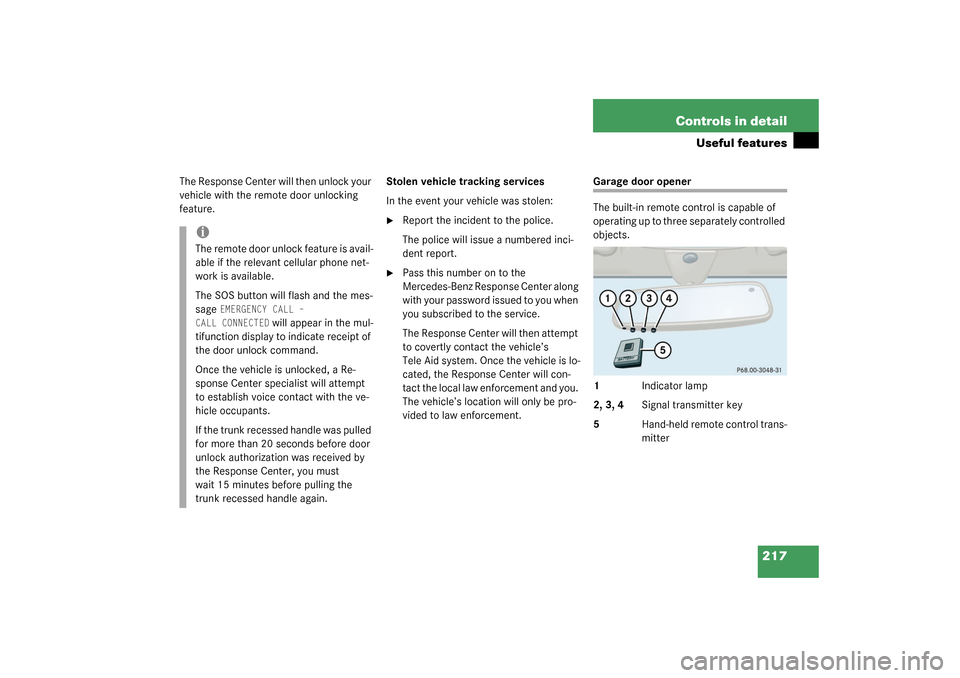

217 Controls in detail
Useful features
The Response Center will then unlock your
vehicle with the remote door unlocking
feature.Stolen vehicle tracking services
In the event your vehicle was stolen:

Report the incident to the police.
The police will issue a numbered inci-
dent report.

Pass this number on to the
Mercedes-Benz Response Center along
with your password issued to you when
you subscribed to the service.
The Response Center will then attempt
to covertly contact the vehicle’s
Tele Aid system. Once the vehicle is lo-
cated, the Response Center will con-
tact the local law enforcement and you.
The vehicle’s location will only be pro-
vided to law enforcement.
Garage door opener
The built-in remote control is capable of
operating up to three separately controlled
objects.
1Indicator lamp
2, 3, 4Signal transmitter key
5Hand-held remote control trans-
mitter
iThe remote door unlock feature is avail-
able if the relevant cellular phone net-
work is available.
The SOS button will flash and the mes-
sage
EMERGENCY CALL –
CALL CONNECTED
will appear in the mul-
tifunction display to indicate receipt of
the door unlock command.
Once the vehicle is unlocked, a Re-
sponse Center specialist will attempt
to establish voice contact with the ve-
hicle occupants.
If the trunk recessed handle was pulled
for more than 20 seconds before door
unlock authorization was received by
the Response Center, you must
wait 15 minutes before pulling the
trunk recessed handle again.

218 Controls in detailUseful features

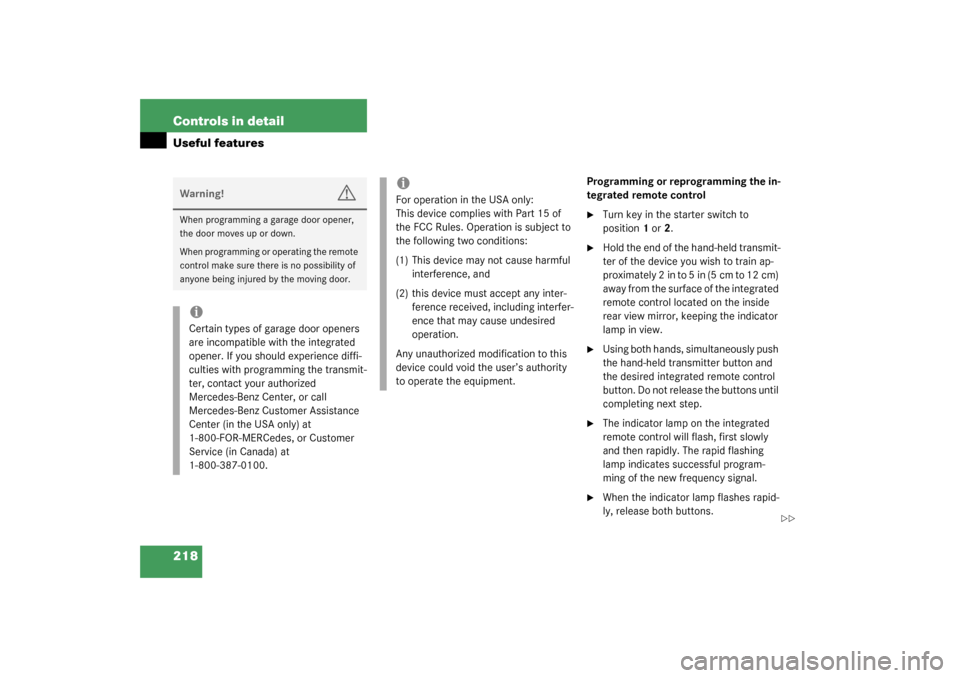

Programming or reprogramming the in-
tegrated remote control
Turn key in the starter switch to
position1 or2.

Hold the end of the hand-held transmit-
ter of the device you wish to train ap-
proximately 2in to 5in (5cm to 12cm)
away from the surface of the integrated
remote control located on the inside
rear view mirror, keeping the indicator
lamp in view.

Using both hands, simultaneously push
the hand-held transmitter button and
the desired integrated remote control
button. Do not release the buttons until
completing next step.

The indicator lamp on the integrated
remote control will flash, first slowly
and then rapidly. The rapid flashing
lamp indicates successful program-
ming of the new frequency signal.

When the indicator lamp flashes rapid-
ly, release both buttons.
Warning!
G
When programming a garage door opener,
the door moves up or down.
When programming or operating the remote
control make sure there is no possibility of
anyone being injured by the moving door.iCertain types of garage door openers
are incompatible with the integrated
opener. If you should experience diffi-
culties with programming the transmit-
ter, contact your authorized
Mercedes-Benz Center, or call
Mercedes-Benz Customer Assistance
Center (in the USA only) at
1-800-FOR-MERCedes, or Customer
Service (in Canada) at
1-800-387-0100.
iFor operation in the USA only:
This device complies with Part 15 of
the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any inter-
ference received, including interfer-
ence that may cause undesired
operation.
Any unauthorized modification to this
device could void the user’s authority
to operate the equipment.


219 Controls in detail
Useful features

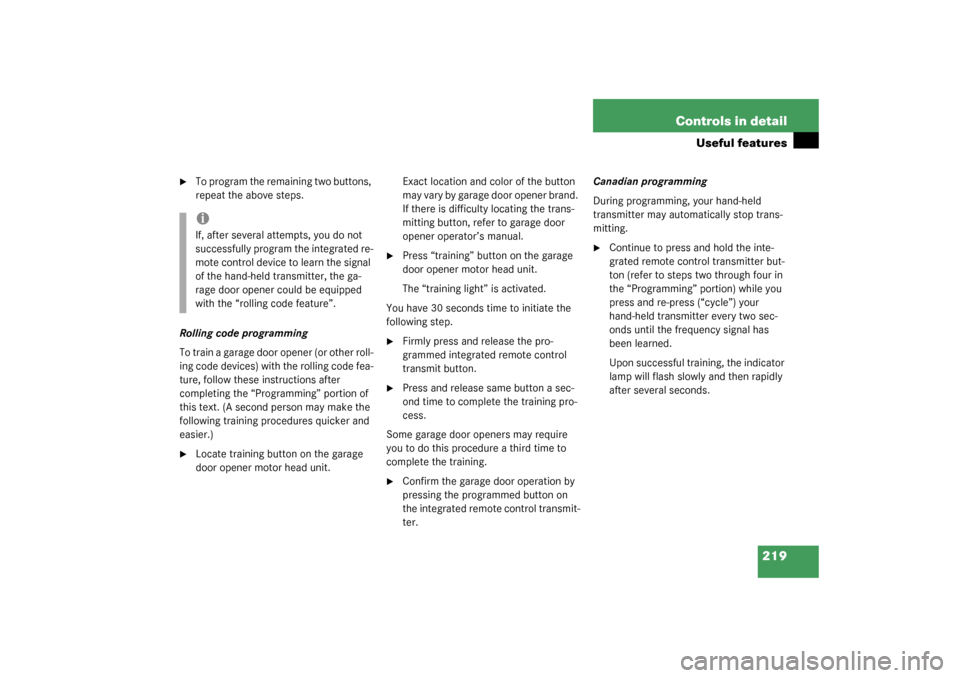

To program the remaining two buttons,
repeat the above steps.
Rolling code programming
To train a garage door opener (or other roll-
ing code devices) with the rolling code fea-
ture, follow these instructions after
completing the “Programming” portion of
this text. (A second person may make the
following training procedures quicker and
easier.)

Locate training button on the garage
door opener motor head unit. Exact location and color of the button
may vary by garage door opener brand.
If there is difficulty locating the trans-
mitting button, refer to garage door
opener operator’s manual.

Press “training” button on the garage
door opener motor head unit.
The “training light” is activated.
You have 30 seconds time to initiate the
following step.

Firmly press and release the pro-
grammed integrated remote control
transmit button.

Press and release same button a sec-
ond time to complete the training pro-
cess.
Some garage door openers may require
you to do this procedure a third time to
complete the training.

Confirm the garage door operation by
pressing the programmed button on
the integrated remote control transmit-
ter. Canadian programming
During programming, your hand-held
transmitter may automatically stop trans-
mitting.

Continue to press and hold the inte-
grated remote control transmitter but-
ton (refer to steps two through four in
the “Programming” portion) while you
press and re-press (“cycle”) your
hand-held transmitter every two sec-
onds until the frequency signal has
been learned.
Upon successful training, the indicator
lamp will flash slowly and then rapidly
after several seconds.
iIf, after several attempts, you do not
successfully program the integrated re-
mote control device to learn the signal
of the hand-held transmitter, the ga-
rage door opener could be equipped
with the “rolling code feature”.

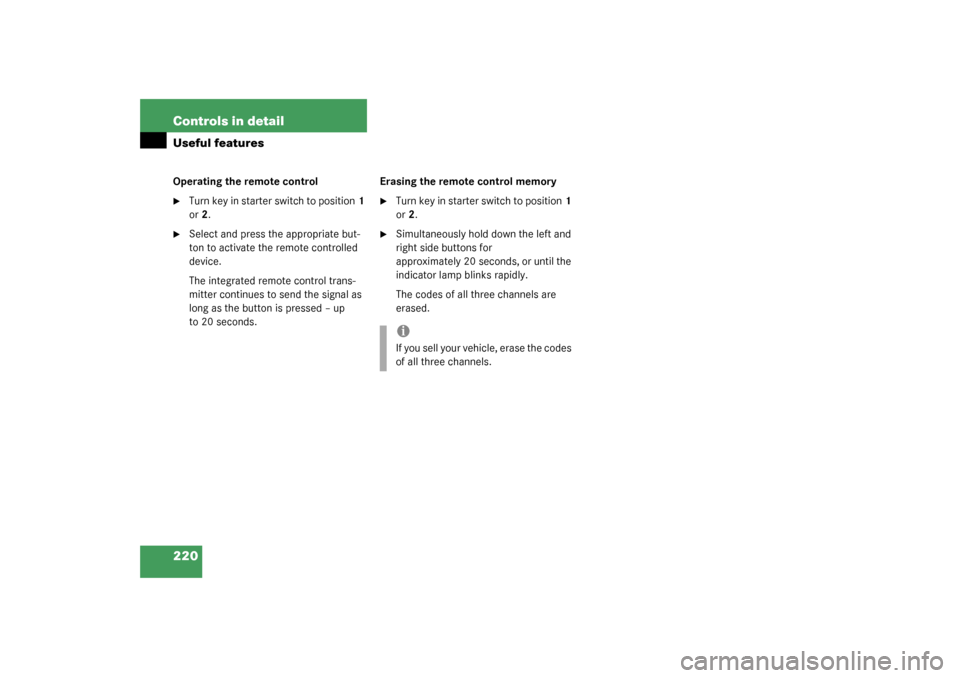

220 Controls in detailUseful featuresOperating the remote control
Turn key in starter switch to position1
or2.

Select and press the appropriate but-
ton to activate the remote controlled
device.
The integrated remote control trans-
mitter continues to send the signal as
long as the button is pressed – up
to 20 seconds.Erasing the remote control memory

Turn key in starter switch to position1
or2.

Simultaneously hold down the left and
right side buttons for
approximately 20 seconds, or until the
indicator lamp blinks rapidly.
The codes of all three channels are
erased.iIf you sell your vehicle, erase the codes
of all three channels.
