MERCEDES-BENZ C32AMG 2003 W203 Owner's Manual

321 Technical data
Engine
Model
C 320 (203.064)
1
C 320 4MATIC (203.084)
1
C 320 Sport (203.064)
1
C 320 4MATIC Sport (203.084)
1
C 32 AMG (203.065)
1
Engine
112
112
Mode of operation
4-stroke engine, gasoline injection
4-stroke engine, gasoline injection
No. of cylinders
6
6
Bore
3.54 in (89.90 mm)
3.54 in (89.90 mm)
Stroke
3.31 in (84.00 mm)
3.31 in (84.00 mm)
Total piston displacement
195.2cu.in. (3199cm
3)
195.2 cu.in. (3 199 cm
3)
Compression ratio
10:1
9:1
Output acc. to SAE J 1349
214 hp / 5 700 rpm
(160 kW / 5 700 rpm)
348 hp / 6 100 rpm
(260 kW / 6 100 rpm)
Maximum torque
acc. to SAE J 1349
229 ft.lb / 3 000 rpm
(310 Nm / 3 000 rpm)
333ft.lb/4400rpm
(450 Nm / 4 400 rpm)
Maximum engine speed
6000 rpm
6200 rpm
Firing order
1-4-3-6-2-5
1-4-3-6-2-5
Poly-V-belt
7ft 10in (2390mm)
9ft 6in (2902mm)
1The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the corresponding data of all special bodies and
special equipment.

322 Technical dataRims and Tires
Rims and TiresUse only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
under load that could cause them to
come into contact with the vehicle
body or axle parts. Damage to the tires
or the vehicle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

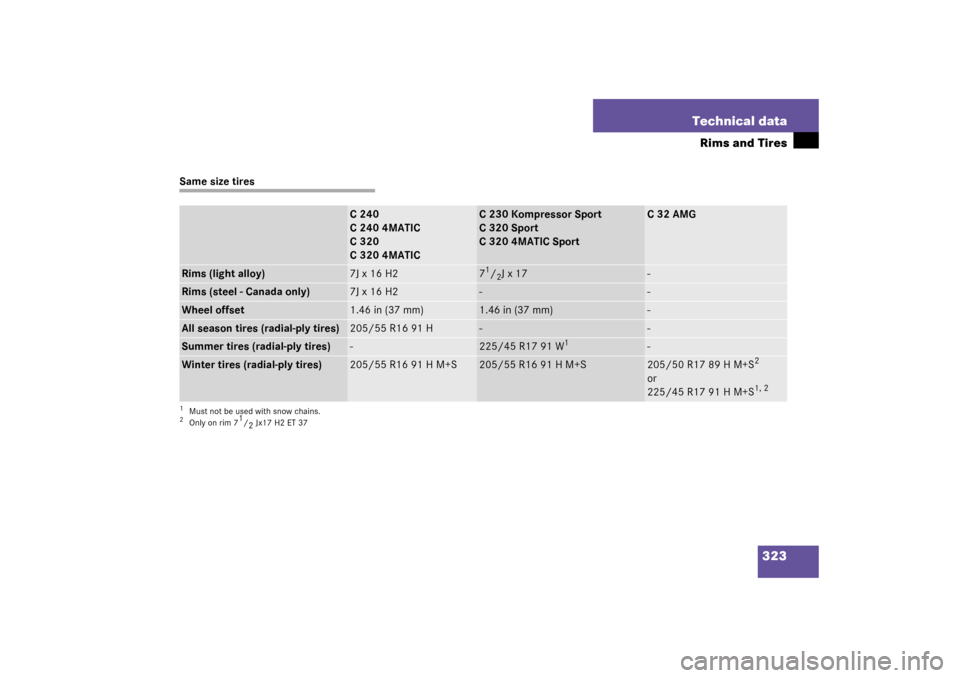

323 Technical data
Rims and Tires
Same size tires
C240
C2404MATIC
C320
C3204MATIC
C 230 Kompressor Sport
C320Sport
C 320 4MATIC Sport
C32AMG
Rims (light alloy)
7J x 16 H2
71/2J x 17
-
Rims (steel - Canada only)
7J x 16 H2
-
-
Wheel offset
1.46 in (37 mm)
1.46 in (37 mm)
-
All season tires (radial-ply tires)
205/55 R16 91 H
-
-
Summer tires (radial-ply tires)
-
225/45 R17 91 W
1
1Must not be used with snow chains.
-
Winter tires (radial-ply tires)
205/55 R16 91 H M+S
205/55 R16 91 H M+S
205/50 R17 89 H M+S
2
or
225/45 R17 91 H M+S1, 2
2Only on rim 71
/
2 Jx17 H2 ET 37

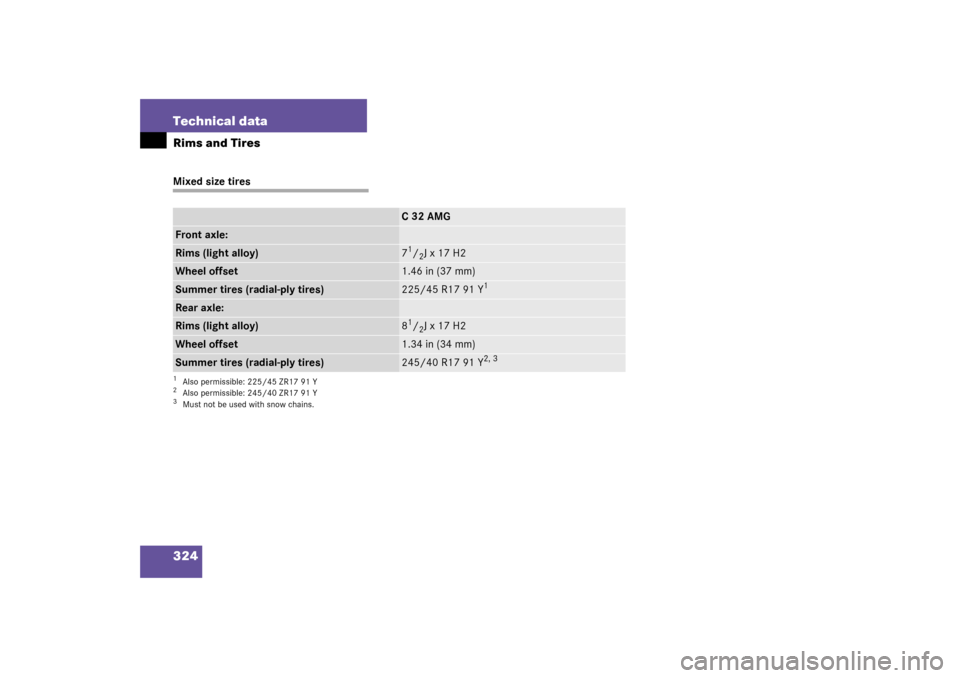

324 Technical dataRims and TiresMixed size tires
C32AMG
Front axle:Rims (light alloy)
71/2J x 17 H2
Wheel offset
1.46 in (37 mm)
Summer tires (radial-ply tires)
225/45 R17 91 Y
1
Rear axle:Rims (light alloy)
81/2J x 17 H2
Wheel offset
1.34 in (34 mm)
Summer tires (radial-ply tires)
245/40 R17 91 Y
2, 3
1Also permissible: 225/45 ZR17 91 Y2Also permissible: 245/40 ZR17 91 Y3Must not be used with snow chains.

325 Technical data
Rims and Tires
Spare wheel
Your vehicle is equipped with either a spare wheel with full size tire or Minispare wheel.
Spare wheel with full size tire
Minispare wheel
C 230 Kompressor Sport
C 240 (all models)
C 320 (all models)
C32AMG
Rim (light alloy)
-
71/2J x 17 H2
Rim (steel)
7J x 16 H2
-
Wheel offset
1.46 in (37 mm)
1.42 in (36 mm)
All season tire (radial-ply tire)
205/55 R16 91 H
225/45 R17 91 Y
C 230 Kompressor Sport
C 240 (all models)
C 320 (all models)
Rim (steel)
3.5B x 16 H2
Wheel offset
0.67 in (17 mm)
All season tire (radial-ply tire)
T 125/90 R16 M 98
1
1Must not be used with snow chains.

326 Technical dataElectrical system
Electrical system
C230KompressorSport
C 240 / C 320 (all models)
C32AMG
Generator (alternator)
14 V/120 A
14 V/120 A
14 V/120 A
Starter motor
12 V/1.1 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/100 Ah
12 V/100 Ah
12 V/100 Ah
Spark plugs
Bosch F 6 MPP 332
Bosch F 8 DPP332
NGK PFR 5 R-11
NGK IFR 6 D 10
Electrode gap
0.031 in (0.8 mm)
0.039 in (1.0 mm)
0.039 in (1.0 mm)
Tightening torque
18–22ft.lb (25–30Nm)
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)

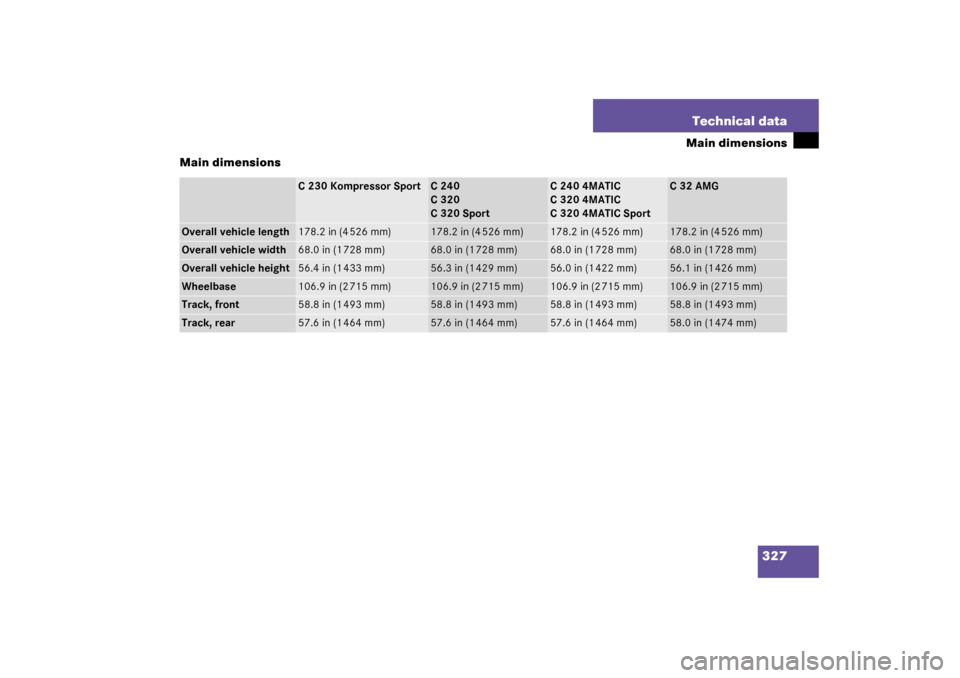

327 Technical data
Main dimensions
Main dimensions
C230KompressorSport
C240
C320
C320Sport
C2404MATIC
C3204MATIC
C3204MATICSport
C32AMG
Overall vehicle length
178.2 in (4 526 mm)
178.2 in (4 526 mm)
178.2 in (4 526 mm)
178.2 in (4 526 mm)
Overall vehicle width
68.0 in (1 728 mm)
68.0 in (1 728 mm)
68.0 in (1 728 mm)
68.0 in (1 728 mm)
Overall vehicle height
56.4 in (1 433 mm)
56.3 in (1 429 mm)
56.0 in (1 422 mm)
56.1 in (1 426 mm)
Wheelbase
106.9 in (2 715 mm)
106.9 in (2 715 mm)
106.9 in (2 715 mm)
106.9 in (2 715 mm)
Track, front
58.8 in (1 493 mm)
58.8 in (1 493 mm)
58.8 in (1 493 mm)
58.8 in (1 493 mm)
Track, rear
57.6 in (1 464 mm)
57.6 in (1 464 mm)
57.6 in (1 464 mm)
58.0 in (1 474 mm)

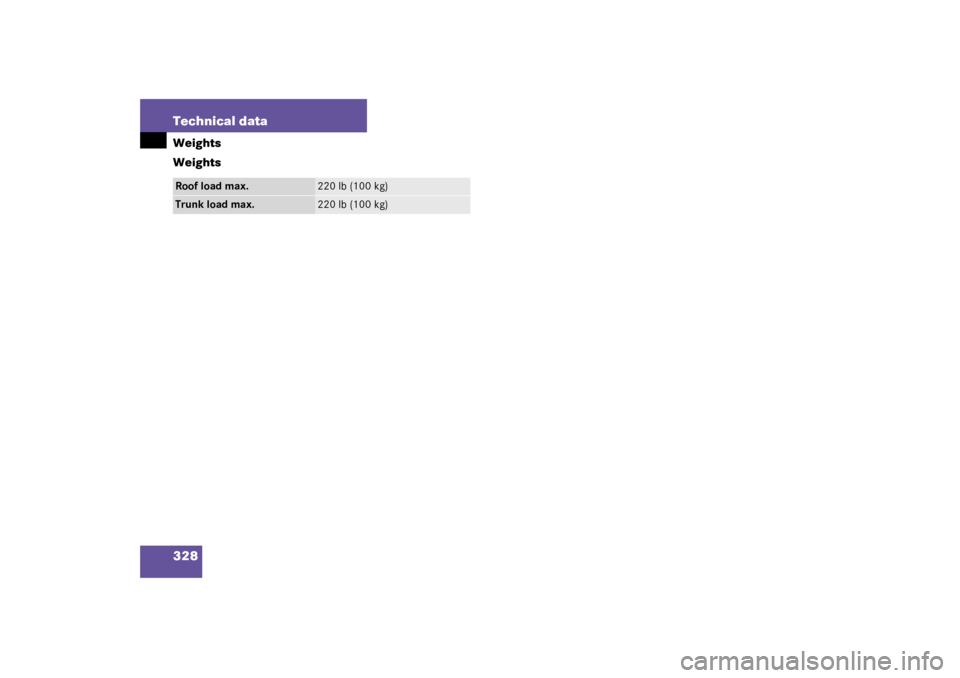

328 Technical dataWeights
WeightsRoof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

329 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore use only brands tested and
recommended by Mercedes-Benz. Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
C 230 Kompressor Sport
C240
C320
C320Sport
C2404MATIC
C3204MATIC
C3204MATICSport
C32AMG
5.8 US qt (5.5 l)
7.9 US qt (7.5 l)
7.9 US qt (7.5 l)
7.9 US qt (7.5 l)
7.4 US qt (7.0 l)
7.4 US qt (7.0 l)
7.4 US qt (7.0 l)
8.5 US qt (8.0 l)
Recommended engine oils
Automatic transmission
8.5 US qt (8.0 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Manual transmission
1.3 US qt (1.2 l)
MB Manual Transmission Oil
2
2MB part no. 001 989 26 03 10Rear axle
C 230 Kompressor Sport
C 240 (all models)
C 320 (all models)
C32AMG
1.2 US qt (1.1 l)
1.2 US qt (1.1 l)
1.2 US qt (1.1 l)
1.5 US qt (1.4 l)
Hypoid gear oil SAE 85 W 90

330 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Front axle
C2404MATIC
C3204MATIC
C3204MATICSport
0.5 US qt (0.46 l)
Hypoid gear oil SAE 85 W 90
Transfer case
C2404MATIC
C3204MATIC
C3204MATICSport
approx. 0.62 US qt (0.59 l)
MB Automatic Transmission Oil
1
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubs
approx. 2.1oz (60g) each
High temperature roller bearing grease
Brake system
0.5 US qt (0.5 l)
MB Brake Fluid (DOT 4+)
Cooling system
C 230 Kompressor Sport
C240 (all models)
C320 (all models)
C32AMG
approx. 8.5 US qt (8.0 l)
approx. 6.8 US qt (6.4 l)
approx. 6.8 US qt (6.4 l)
approx. 15.3 US qt (14.5 l)
MB 325.0 Anticorrosion / antifreeze agent
Fuel tank
including a reserve of
16.4 US gal (62.0 l)
2.1 US gal (8.0 l)
Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96 RON / 86 MON)Flexible Fuel Vehicle (MY 2003 Mercedes-Benz
C 320 models, except those equipped with
manual transmission or 4MATIC*):
Alternative fuel -- Ethanol fuel (E85)
1MB part no. 001 989 21 03 10
