130 Controls in detailControl systemThe control system is activated as soon as
the SmartKey in the starter switch is
turned to position1. The control system
enables you to

call up information about your vehicle


change vehicle settings
For example, you can use the control
system to find out when your vehicle is
next due for service, to set the language
for messages in the instrument cluster
display, and much more.
The control system relays information to
the multifunction display.
Multifunction display
1Trip odometer
2Main odometer
3Current program mode (automatic
transmission*)
4Current gear selector lever
position/gear range (automatic trans-
mission*)
5Digital clock
6Status indicator (outside tempera-
ture/digital speedometer)
iThe displays for the audio systems
(radio, CD player) will appear in English,
regardless of the language selected.
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.

131 Controls in detail
Control system
Multifunction steering wheel
The displays in the multifunction display
and the settings in the control system are
controlled by the buttons on the multifunc-
tion steering wheel.Pressing any of the buttons on the multi-
function steering wheel will alter what is
shown in the multifunction display.
The information available in the multifunc-
tion display is arranged in menus, each
containing a number of functions or sub-
menus.
The individual functions are then found
within the relevant menu (radio or CD op-
erations under
AUDIO
, for example). These
functions serve to call up relevant informa-
tion or to customize the settings for your
vehicle.
1
Multifunction displayOperating the control system
2
Selecting the submenu or setting
the volume:
Press buttonæup/to increaseçdown/to decrease
3
Telephone*:
Press buttonsto take a calltto end a call
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display
iC 230 Sport and C 350 Sport:
Steering wheel in these vehicles will
vary from steering wheel shown.
However, multifunction steering wheel
symbols and feature description apply
to Sport models as well.

132 Controls in detailControl systemIt is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.


If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For
instructions on using these submenus, see
“Submenus in the Settings menu”
(
page 141).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.

133 Controls in detail
Control system

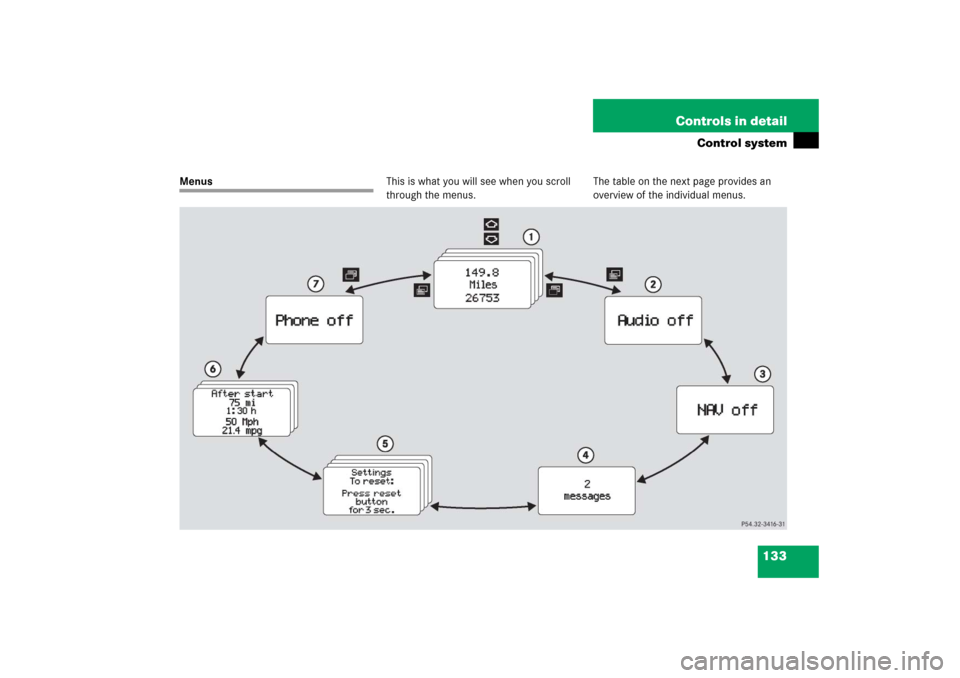

MenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

134 Controls in detailControl systemMenus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Standard
display
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone*
(page 135)
(page 136)
(page 138)
(page 138)
(page 140)
(page 155)
(page 157)
Commands/submenusRun Flat
Indicator*
(Canada only)
Select radio
station
Show route guid-
ance instructions,
current direction
traveled
Call up vehicle malfunc-
tion, warning and sys-
tem status messages
stored in memory
1
1The vehicle status message memory menu is only displayed if there is a message stored.
Reset to
factory
settings
Fuel consumption
statistics after
start
Load phone
book
Digital speed-
ometer or out-
side temperature
Select satellite
radio station*
(USA only)
Instrument
cluster sub-
menu
Fuel consumption
statistics since
the last reset
Search for
name in
phone book
Call up main-
tenance service
display
Operate
CD player*
Time/Date
submenu
Call up range
Lighting
submenuVehicle
submenuConvenience
submenu

135 Controls in detail
Control system
Standard display menu
In the standard display, the main odometer
and the trip odometer are shown in the
multifunction display.
1Trip odometer
2Main odometer
If another display is shown instead of the
standard display:
Press buttonè orÿ repeatedly
until you see the standard display.

Press buttonk orj to select
the functions in the standard display
menu.The following functions are available:Display digital speedometer or outside
temperature

Press buttonj ork repeatedly
until you see the digital speedometer.
The current vehicle speed is shown in
the multifunction display.
1Digital speedometer
Function
Page
Run Flat Indicator* (Canada
only)
317
Call up digital speedometer or
outside temperature
135
Call up maintenance service
display
338
iSelect either the display of the digital
speedometer or the outside tempera-
ture indicator (
page 144).

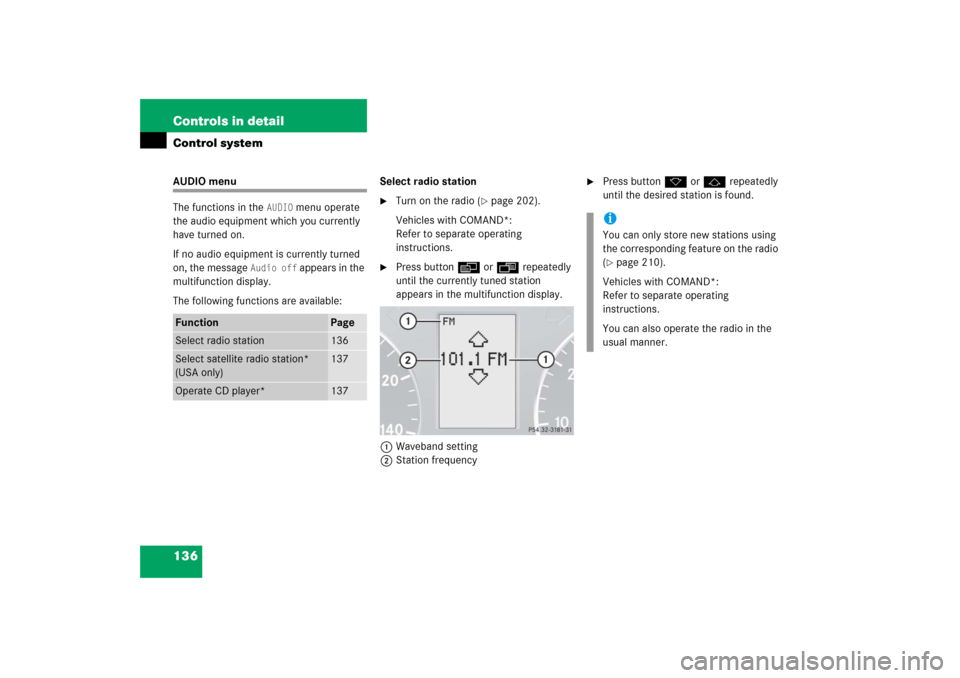

136 Controls in detailControl systemAUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
Audio off
appears in the
multifunction display.
The following functions are available:Select radio station

Turn on the radio (
page 202).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press buttonè orÿ repeatedly
until the currently tuned station
appears in the multifunction display.
1Waveband setting
2Station frequency

Press buttonk orj repeatedly
until the desired station is found.
Function
Page
Select radio station
136
Select satellite radio station*
(USA only)
137
Operate CD player*
137
iYou can only store new stations using
the corresponding feature on the radio
(page 210).
Vehicles with COMAND*:
Refer to separate operating
instructions.
You can also operate the radio in the
usual manner.

137 Controls in detail
Control system

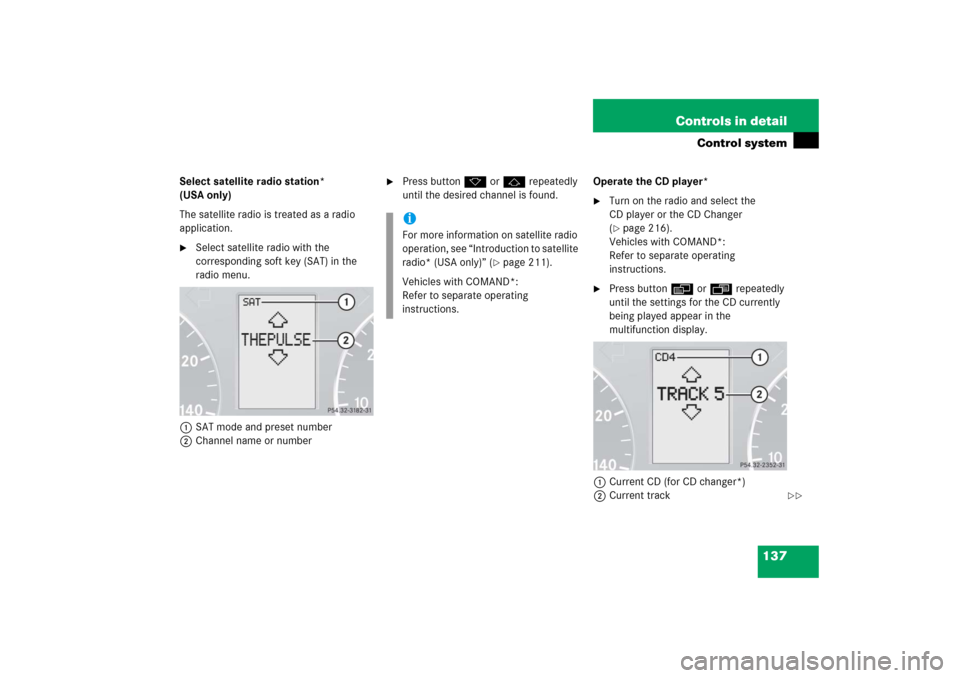

Select satellite radio station*
(USA only)
The satellite radio is treated as a radio
application.
Select satellite radio with the
corresponding soft key (SAT) in the
radio menu.
1SAT mode and preset number
2Channel name or number

Press buttonk orj repeatedly
until the desired channel is found.Operate the CD player*

Turn on the radio and select the
CD player or the CD Changer
(page 216).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display.
1Current CD (for CD changer*)
2Current track
iFor more information on satellite radio
operation, see “Introduction to satellite
radio* (USA only)” (
page 211).
Vehicles with COMAND*:
Refer to separate operating
instructions.


138 Controls in detailControl system
Press buttonk orj repeatedly
until the desired track is selected.
NAV* menu
The
NAV
menu contains the functions
needed to operate your navigation system.

Press buttonè orÿ repeatedly
until the message
NAV
appears in the
multifunction display.


If COMAND* is switched off, the mes-
sage
NAV off
appears in the multifunc-
tion display.


With COMAND* switched on but route
guidance not activated, the direction of
travel and, if available, the name of the
street currently traveled on appear in
the multifunction display.


With COMAND* switched on and route
guidance activated, the direction of
travel and maneuver instructions ap-
pear in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
Vehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the
system. Such messages appear in the mul-
tifunction display and are based on condi-
tions or system status the vehicle’s system
has recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.


139 Controls in detail
Control system

Press buttonè orÿ repeatedly
until the vehicle status message
memory appears in the multifunction
display.
If the vehicle status message memory
menu does not appear, then there are

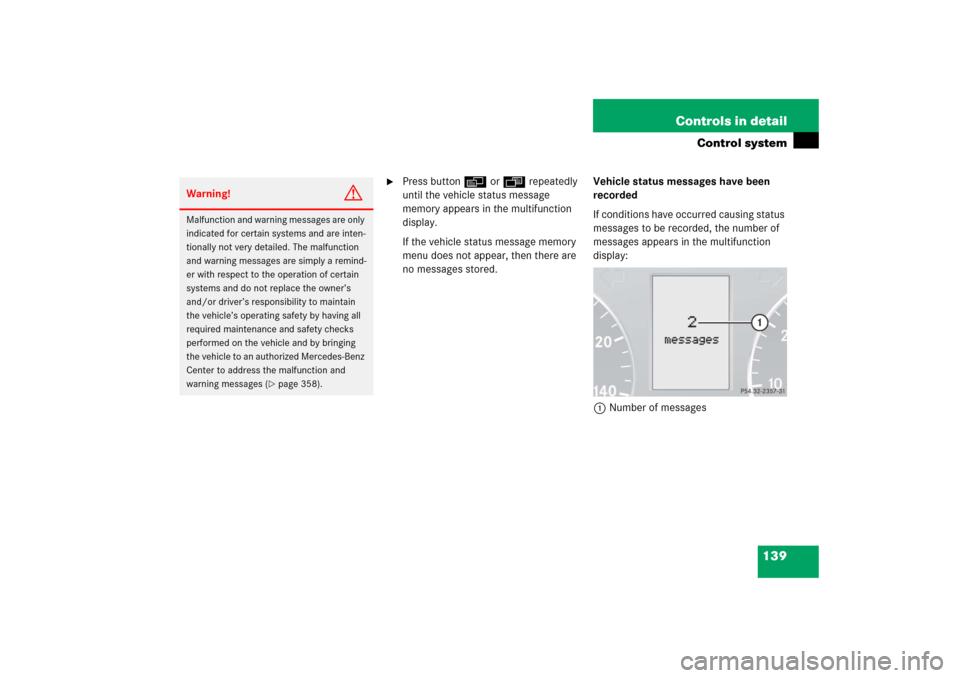

no messages stored.Vehicle status messages have been
recorded
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1Number of messages
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 358).
