240 Controls in detailPower windowsOpening and closing the windows
The side windows are opened and closed
electrically. The switches for all the side
windows are on the driver’s door. The
switches for the respective windows are
on the front passenger door and the rear
doors.

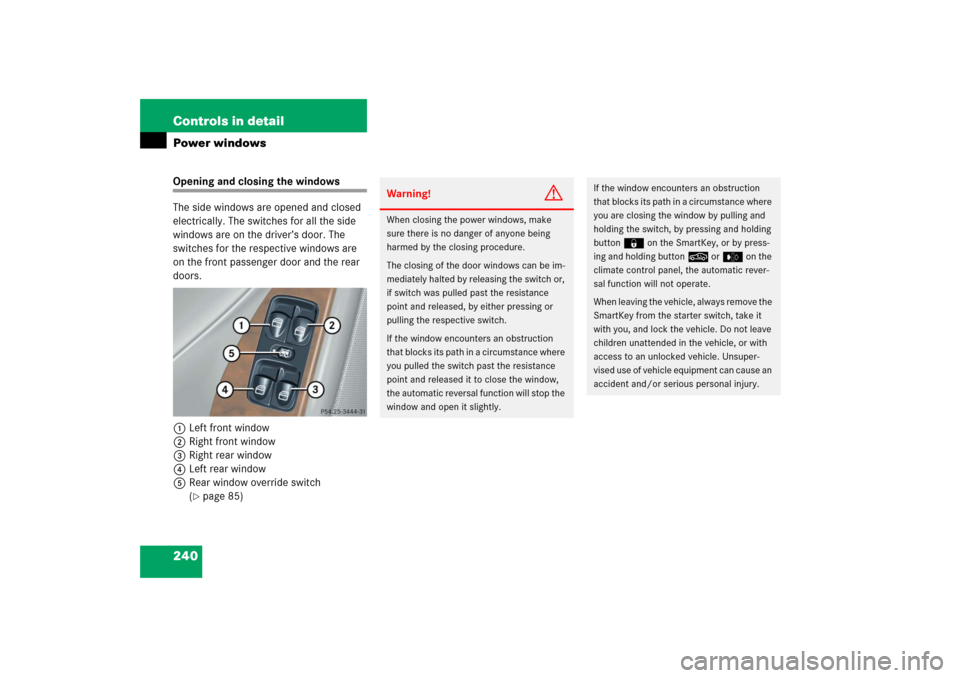

1Left front window
2Right front window
3Right rear window
4Left rear window
5Rear window override switch
(
page 85)
Warning!
G
When closing the power windows, make
sure there is no danger of anyone being
harmed by the closing procedure.
The closing of the door windows can be im-
mediately halted by releasing the switch or,
if switch was pulled past the resistance
point and released, by either pressing or
pulling the respective switch.
If the window encounters an obstruction
t h a t b l o c k s i t s p a t h i n a c i r c u m s t a n c e w h e r e
you pulled the switch past the resistance
point and released it to close the window,
the automatic reversal function will stop the
window and open it slightly.
If the window encounters an obstruction
that blocks its path in a circumstance where
you are closing the window by pulling and
holding the switch, by pressing and holding
button‹ on the SmartKey, or by press-
ing and holding button, ore on the
climate control panel, the automatic rever-
sal function will not operate.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.

241 Controls in detail
Power windows

Switch on the ignition (
page 33).Opening the windows

Press switch1 to4 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows

Pull switch1 to4 to the resistance
point.
The corresponding window will move
upwards until you release the switch.Fully opening the windows
(Express-open)

Press switch1 to4 past the
resistance point and release.
The corresponding window opens
completely.
Fully closing the windows
(Express-close)

Pull switch1 to4 past the
resistance point and release.
The corresponding window closes
completely.
iYou can also open or close the power
windows using the SmartKey, see
“Summer opening feature”
(page 243) and “Convenience clos-
ing feature” (
page 243).
Depending on current position, the win-
dows may also open or close when the
air recirculation button, in the
control panel of the climate control
(
page 177) or automatic climate
control* (Canada only) (
page 187),
or the charcoal filter buttone in the
control panel of the automatic climate
control* (Canada only) (
page 194) is
pressed and held.
Warning!
G
If you pull and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.

242 Controls in detailPower windows
Stopping windows
Press or pull respective switch again.
Synchronizing power windows
The power windows must be
resynchronized each time

after the battery has been
disconnected or discharged.


if the power windows cannot be fully
opened (Express-open) or closed
(Express-close).

Switch on the ignition (
page 33).

Pull the power window switches until
the side windows are closed.
Hold the switches for approximately
1 second.
The power windows are synchronized.
!If the upward movement of the window
is blocked during the closing
procedure, the window will stop and
open slightly.
Remove the obstruction, pull the
switch again past the resistance point
and release.
If the window still does not close when
there is no obstruction, then pull and
hold the switch again. The side window
will then close without the obstruction
sensor function.
Warning!
G
Driver’s door only:
If within 5 seconds you again pull the switch
past the resistance point and release, the
automatic reversal will not function.

243 Controls in detail
Power windows

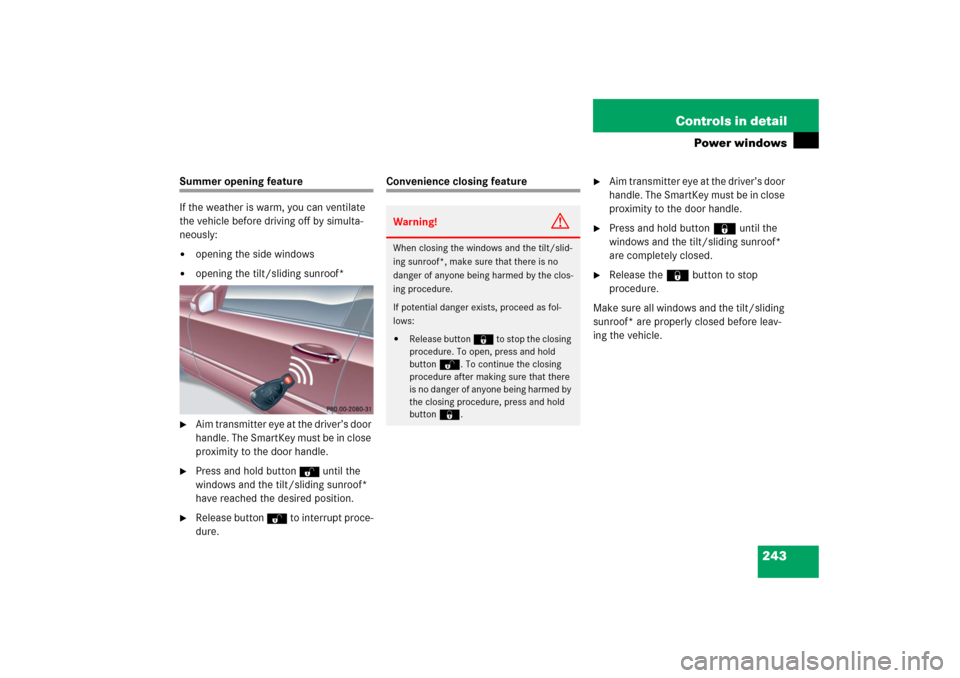

Summer opening feature
If the weather is warm, you can ventilate
the vehicle before driving off by simulta-
neously:

opening the side windows


opening the tilt/sliding sunroof*

Aim transmitter eye at the driver’s door
handle. The SmartKey must be in close
proximity to the door handle.

Press and hold button
Œ
until the
windows and the tilt/sliding sunroof*
have reached the desired position.

Release button
Œ
to interrupt proce-
dure.
Convenience closing feature

Aim transmitter eye at the driver’s door
handle. The SmartKey must be in close
proximity to the door handle.

Press and hold button ‹ until the
windows and the tilt/sliding sunroof*
are completely closed.

Release the ‹ button to stop
procedure.
Make sure all windows and the tilt/sliding
sunroof* are properly closed before leav-
ing the vehicle.
Warning!
G
When closing the windows and the tilt/slid-
ing sunroof*, make sure that there is no
danger of anyone being harmed by the clos-
ing procedure.
If potential danger exists, proceed as fol-
lows:

Release button ‹ to s t op t h e c lo s in g
procedure. To open, press and hold
buttonŒ. To continue the closing
procedure after making sure that there
is no danger of anyone being harmed by
the closing procedure, press and hold
button‹.

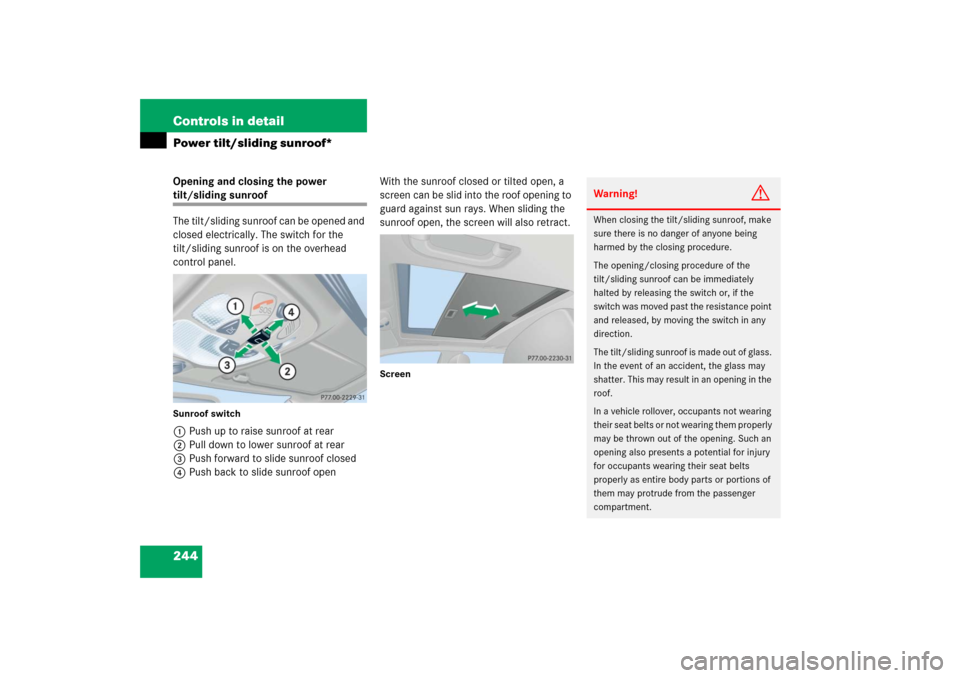

244 Controls in detailPower tilt/sliding sunroof*Opening and closing the power tilt/sliding sunroof
The tilt/sliding sunroof can be opened and
closed electrically. The switch for the
tilt/sliding sunroof is on the overhead
control panel.Sunroof switch1Push up to raise sunroof at rear
2Pull down to lower sunroof at rear
3Push forward to slide sunroof closed
4Push back to slide sunroof openWith the sunroof closed or tilted open, a
screen can be slid into the roof opening to
guard against sun rays. When sliding the
sunroof open, the screen will also retract.
Screen
Warning!
G
When closing the tilt/sliding sunroof, make
sure there is no danger of anyone being
harmed by the closing procedure.
The opening/closing procedure of the
tilt/sliding sunroof can be immediately
halted by releasing the switch or, if the
switch was moved past the resistance point
and released, by moving the switch in any
direction.
The tilt/sliding sunroof is made out of glass.
In the event of an accident, the glass may
shatter. This may result in an opening in the
roof.
In a vehicle rollover, occupants not wearing
their seat belts or not wearing them properly
may be thrown out of the opening. Such an
opening also presents a potential for injury
for occupants wearing their seat belts
properly as entire body parts or portions of
them may protrude from the passenger
compartment.

245 Controls in detail
Power tilt/sliding sunroof*

Switch on the ignition (
page 33).Opening and closing the power
tilt/sliding sunroof

To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch to resistance point in the
required direction of arrows1 to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the
desired position.
Fully opening (Express-open) and
closing (Express-close) the power
tilt/sliding sunroof

To open or close the tilt/sliding
sunroof, move the sunroof switch past
the resistance point in the required
direction of arrow1 to4 and
release.
The tilt/sliding sunroof opens or closes
completely.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.!To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 393).
iYou can also open or close the tilt/slid-
ing sunroof using the SmartKey, see
“Summer opening feature”
(page 243) and “Convenience clos-
ing feature” (
page 243).
Depending on current position, the
tilt/sliding sunroof may also open or
close when the air recirculation
button, in the control panel of the
climate control (page 177) or auto-
matic climate control* (Canada only)
(
page 192), or the charcoal filter
buttone in the control panel of the
automatic climate control* (Canada
only) (
page 194) is pressed and held.

246 Controls in detailPower tilt/sliding sunroof*Stopping the power tilt/sliding sunroof
during Express-operation
Move the sunroof switch in any
direction.Synchronizing the power tilt/sliding
sunroof
The tilt/sliding sunroof must be
synchronized

after the battery has been
disconnected or discharged


after the tilt/sliding sunroof has been
closed manually (
page 393)


after a malfunction


if the tilt/sliding sunroof does not open
smoothly

Switch on the ignition (
page 33).

Move and hold the sunroof switch in
the direction of arrow1 (
page 244)
until the tilt/sliding sunroof is fully
raised at the rear.
Hold the sunroof switch for
approximately 1 second.

Check the Express-open feature
(page 245).
If the tilt/sliding sunroof opens
completely, the tilt/sliding sunroof is
synchronized. Otherwise repeat the
above steps.
iIf the movement of the tilt/sliding
sunroof is blocked during the closing
procedure, the tilt/sliding sunroof will
stop and reopen slightly.

247 Controls in detail
Driving systems
Driving systems
The driving system of your vehicle is
described on the following pages:

Cruise control, with which the vehicle
can maintain a preset speed.
For information on the BAS, ABS, and ESP
®
driving systems, see “Driving safety sys-
tems” (
page 87).
Cruise control
Cruise control automatically maintains the
speed you set for your vehicle.
Use of cruise control is recommended for
driving at a constant speed for extended
periods of time. You can set or resume
cruise control at any speed over 20 mph
(30 km/h).
The cruise control function is operated by
means of the cruise control lever.
The cruise control lever is the uppermost
lever on the left-hand side of the steering
column (
page 22).
Warning!
G
Cruise control is a convenience system de-
signed to assist the driver during vehicle op-
eration. The driver is and must remain at all
times responsible for the vehicle speed and
for safe brake operation.
Only use cruise control if the road, traffic
and weather conditions make it advisable to
travel at a steady speed.

The use of cruise control can be danger-
ous on winding roads or in heavy traffic
because conditions do not allow safe
driving at a steady speed.


The use of cruise control can be danger-
ous on slippery roads. Rapid changes in
tire traction can result in wheel spin and
loss of control.


Deactivate cruise control when driving
in fog.
The “Resume” function should only be oper-
ated if the driver is fully aware of the previ-
ously set speed and wishes to resume this
particular preset speed.

248 Controls in detailDriving systems1Sets current or higher speed
2Sets current or lower speed
3Cancels cruise control
4Resumes at last set speed
Setting current speed
Accelerate or decelerate to the desired
speed.

Briefly lift1 or depress2 the cruise
control lever.
The current speed is set.

Remove your foot from the accelerator
pedal.
Cruise control is activated.Canceling cruise control
There are several ways to cancel cruise
control:

Step on the brake pedal.
Cruise control is canceled. The last
speed set is stored for later use.
or

Briefly push the cruise control lever to
position3.
Cruise control is canceled. The last
speed set is stored for later use.iOn uphill or downhill grades, cruise
control may not be able to maintain the
set speed. Once the grade eases, the
set speed will be resumed.
!Vehicles with automatic transmission:
Moving the gear selector lever to
positionN while driving also cancels
cruise control. However, the gear
selector lever should not be moved to
positionN while driving, except to
coast when the vehicle is in danger of
skidding (e.g. on icy roads).iVehicles with manual transmission:
The set cruise controlled speed is
switched off when declutching exceeds
4 seconds during shifting a new gear.iThe last stored speed is canceled when
you turn off the engine.

249 Controls in detail
Driving systems
Setting a higher speed
Lift cruise control lever to position1
and hold it up until the desired speed is
reached.

Release cruise control lever.
The new speed is set.
Setting a lower speed

Depress cruise control lever to
position2 and hold it down until the
desired speed is reached.

Release cruise control lever.
The new speed is set.Fine adjustment in 1 mph
(Canada: 1 km/h) increments
Faster

Briefly tip cruise control lever in
direction of arrow1.
Slower

Briefly tip cruise control lever in
direction of arrow2.Setting to last stored speed
“Resume” function)

Briefly push cruise control lever to
position4.
The cruise control resumes the last set
speed.

Remove your foot from the accelerator
pedal.
iDepressing the accelerator pedal does
not deactivate cruise control. After
brief acceleration (e.g. for passing),
cruise control will resume the last
speed set.
iVehicles with automatic transmission:
When you use the cruise control lever
to decelerate, the transmission will
automatically downshift if the engine’s
braking power does not brake the
vehicle sufficiently.
Warning!
G
The speed stored in memory should only be
set again if prevailing road conditions per-
mit. Possible acceleration or deceleration
differences arising from returning to preset
speed could cause an accident and/or seri-
ous injury to you and others.
