MERCEDES-BENZ C55AMG 2006 W203 Owner's Manual

410 Practical hints
Flat tire
Lowering the vehicle
Lower vehicle by turning crank
counterclockwise until vehicle is
resting fully on its own weight.
Remove the jack.1 - 5Wheel bolts
Tighten the five wheel bolts evenly,
following the diagonal sequence
illustrated (1to5), until all bolts are
tight. Observe a tightening torque
of 80 lb-ft (110 Nm).Before storing the jack, it should be fully
collapsed, with handle folded in (storage
position) (
page 381).
Store the jack and the other vehicle
tools in the trunk.
Warning!G
Inflate collapsible tire only after the wheel is
properly mounted.
Inflate the collapsible tire using the electric
pump (
page 408) before lowering the ve-
hicle.
Warning!G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque
of 80 lb-ft (110 Nm).

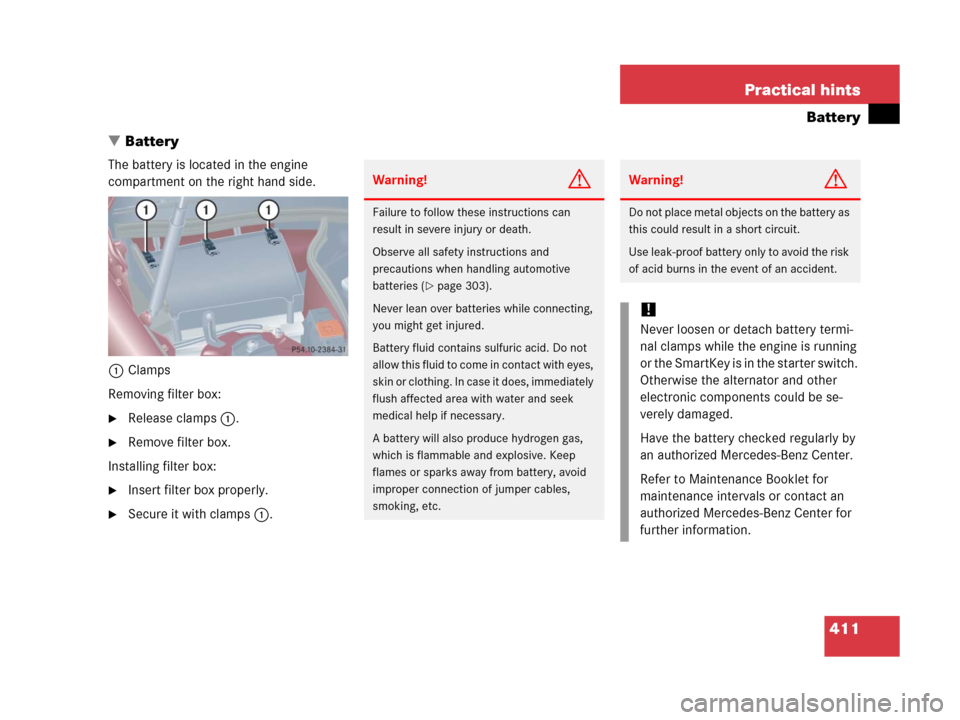

411 Practical hints
Battery
Battery
The battery is located in the engine
compartment on the right hand side.
1Clamps
Removing filter box:
Release clamps1.
Remove filter box.
Installing filter box:
Insert filter box properly.
Secure it with clamps1.
Warning!G
Failure to follow these instructions can
result in severe injury or death.
Observe all safety instructions and
precautions when handling automotive
batteries (
page 303).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
!
Never loosen or detach battery termi-
nal clamps while the engine is running
or the SmartKey is in the starter switch.
Otherwise the alternator and other
electronic components could be se-
verely damaged.
Have the battery checked regularly by
an authorized Mercedes-Benz Center.
Refer to Maintenance Booklet for
maintenance intervals or contact an
authorized Mercedes-Benz Center for
further information.

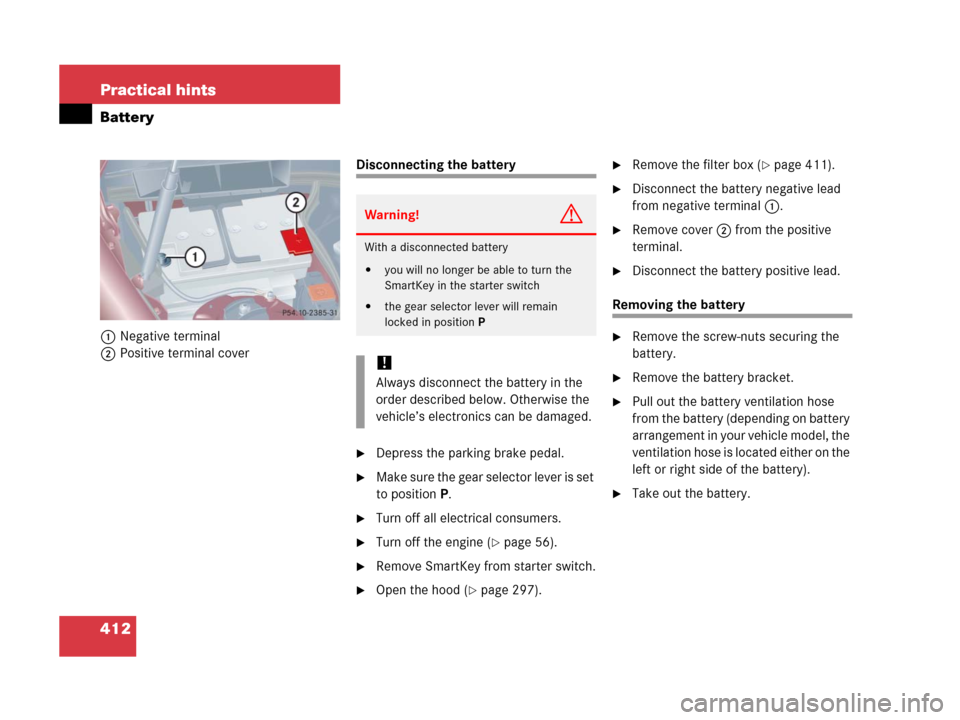

412 Practical hints
Battery
1Negative terminal
2Positive terminal cover
Disconnecting the battery
Depress the parking brake pedal.
Make sure the gear selector lever is set
to positionP.
Turn off all electrical consumers.
Turn off the engine (page 56).
Remove SmartKey from starter switch.
Open the hood (page 297).
Remove the filter box (page 411).
Disconnect the battery negative lead
from negative terminal1.
Remove cover2 from the positive
terminal.
Disconnect the battery positive lead.
Removing the battery
Remove the screw-nuts securing the
battery.
Remove the battery bracket.
Pull out the battery ventilation hose
from the battery (depending on battery
arrangement in your vehicle model, the
ventilation hose is located either on the
left or right side of the battery).
Take out the battery.
Warning!G
With a disconnected battery

you will no longer be able to turn the
SmartKey in the starter switch

the gear selector lever will remain
locked in positionP
!
Always disconnect the battery in the
order described below. Otherwise the
vehicle’s electronics can be damaged.

413 Practical hints
Battery
Charging and reinstalling the batteryCharge battery in accordance with the
instructions of the battery charger
manufacturer.
Reinstall the charged battery. Follow
the previously described steps in
reverse order.
Reconnecting the battery
Turn off all electrical consumers.
Remove SmartKey from starter switch.
Connect the battery positive lead and
fasten its cover2.
Connect the battery negative lead.
Reinstall the filter box (page 411).
Warning!G
Never charge a battery while still installed in
the vehicle unless the accessory battery
charge unit approved by Mercedes-Benz is
being used. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
An accessory battery charge unit specially
adapted for Mercedes-Benz vehicles and
tested and approved by Mercedes-Benz is
available, permitting the charging of the bat-
tery in its installed position. Contact an au-
thorized Mercedes-Benz Center for
information and availability. Charge battery
in accordance with the separate instruc-
tions for the accessory battery charger.
!
The battery, its filler caps and the bat-
tery ventilation hose must always be
securely installed when the vehicle is in
operation.
!
Always connect the battery in the order
described below. Otherwise the
vehicle’s electronics can be damaged.
!
Never invert the terminal connections!

414 Practical hints
Battery
Batteries contain materials that can harm
the environment if disposed of improperly.
Large 12 volt storage batteries contain
lead. Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.i
The following procedures must be
carried out following any interruption of
battery power (e.g. due to reconnec-
tion):

Set the clock (page 140).
Vehicles with COMAND*:
See COMAND operator’s manual.

Synchronize side windows
(
page 240).

Synchronize tilt/sliding sunroof
(
page 244).

415 Practical hints
Jump starting
Jump starting
If the battery is discharged, the engine can
be started with jumper cables and the
battery of another vehicle. Observe the
following:

Jump starting should only be performed
when the engine and catalytic con-
verter are cold.

Do not start the engine if the battery is
frozen. Let the battery thaw out first.

Only jump start from batteries with the
same voltage rating (12 V). Jump
starting with a more powerful battery
could damage the vehicle’s electrical
system, which will not be covered by
the Mercedes-Benz Limited Warranty.

Only use jumper cables with sufficient
cross-section and insulated terminal
clamps.

Always make sure the jumper cables
are not on or near pulleys, fans, or oth-
er parts that move when an engine is
started or running.

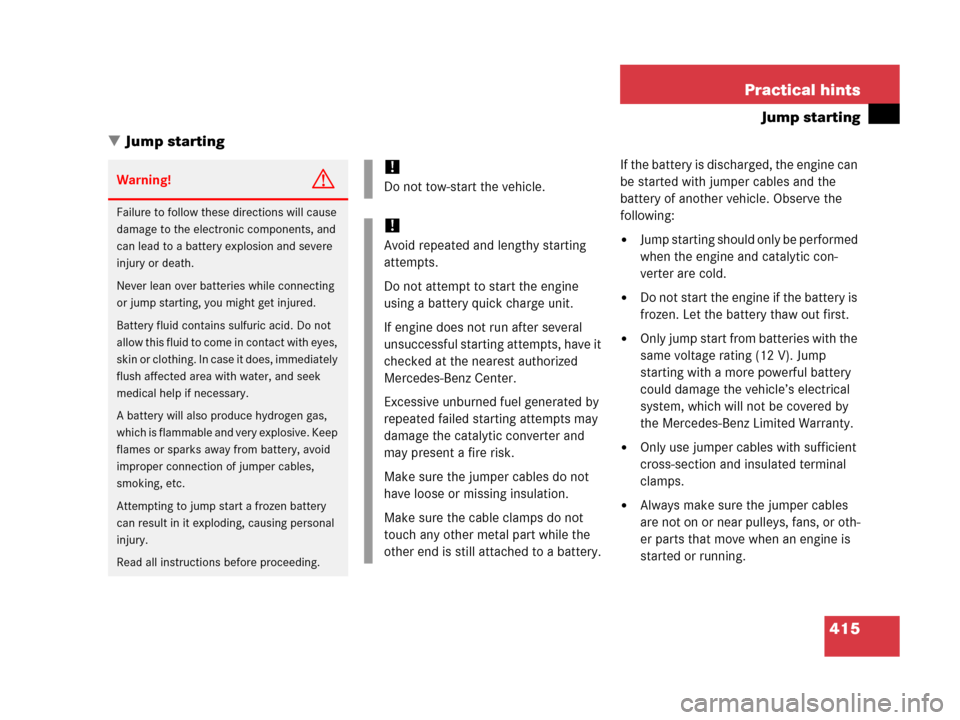

Warning!G
Failure to follow these directions will cause
damage to the electronic components, and
can lead to a battery explosion and severe
injury or death.
Never lean over batteries while connecting
or jump starting, you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water, and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and very explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking, etc.
Attempting to jump start a frozen battery
can result in it exploding, causing personal
injury.
Read all instructions before proceeding.
!
Do not tow-start the vehicle.
!
Avoid repeated and lengthy starting
attempts.
Do not attempt to start the engine
using a battery quick charge unit.
If engine does not run after several
unsuccessful starting attempts, have it
checked at the nearest authorized
Mercedes-Benz Center.
Excessive unburned fuel generated by
repeated failed starting attempts may
damage the catalytic converter and
may present a fire risk.
Make sure the jumper cables do not
have loose or missing insulation.
Make sure the cable clamps do not
touch any other metal part while the
other end is still attached to a battery.

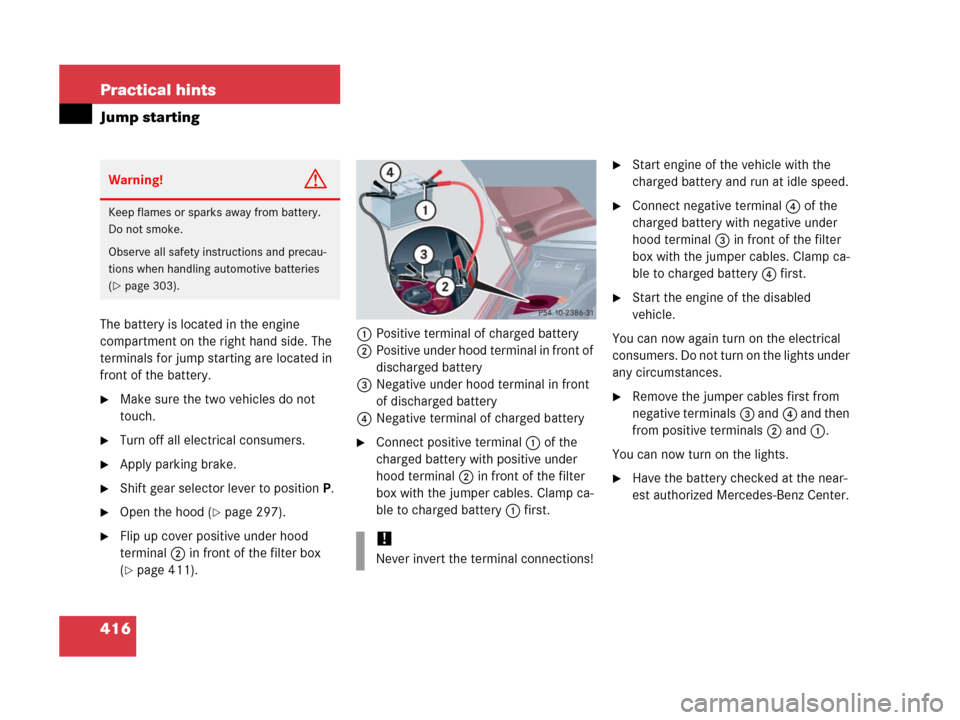

416 Practical hints
Jump starting
The battery is located in the engine
compartment on the right hand side. The
terminals for jump starting are located in
front of the battery.
Make sure the two vehicles do not
touch.
Turn off all electrical consumers.
Apply parking brake.
Shift gear selector lever to positionP.
Open the hood (page 297).
Flip up cover positive under hood
terminal2 in front of the filter box
(
page 411).1Positive terminal of charged battery
2Positive under hood terminal in front of
discharged battery
3Negative under hood terminal in front
of discharged battery
4Negative terminal of charged battery
Connect positive terminal1 of the
charged battery with positive under
hood terminal2 in front of the filter
box with the jumper cables. Clamp ca-
ble to charged battery1 first.
Start engine of the vehicle with the
charged battery and run at idle speed.
Connect negative terminal4 of the
charged battery with negative under
hood terminal3 in front of the filter
box with the jumper cables. Clamp ca-
ble to charged battery4 first.
Start the engine of the disabled
vehicle.
You can now again turn on the electrical
consumers. Do not turn on the lights under
any circumstances.
Remove the jumper cables first from
negative terminals3 and4 and then
from positive terminals2 and1.
You can now turn on the lights.
Have the battery checked at the near-
est authorized Mercedes-Benz Center.
Warning!G
Keep flames or sparks away from battery.
Do not smoke.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 303).
!
Never invert the terminal connections!

417 Practical hints
Towing the vehicle
Towing the vehicle
Mercedes-Benz recommends that the
vehicle be transported with all wheels off
the ground using flatbed or appropriate
wheel lift/dolly equipment. This method is
preferable to other types of towing.When circumstances do not permit the
recommended towing methods, the
vehicle may be towed with all wheels on
the ground or front wheels raised only so
far as necessary to have the vehicle moved
to a safe location where the recommended
towing methods can be employed.
!
Do not tow-start the vehicle.
!
Use flatbed or wheel lift/dolly equip-
ment with the SmartKey in the starter
switch turned to position0.
Do not tow with sling-type equipment.
Towing with sling-type equipment over
bumpy roads will damage radiator and
supports.
To prevent damage during transport,
do not tie down vehicle by its chassis or
suspension parts.
Switch off the tow-away alarm*
(
page 90) and deactivate the auto-
matic central locking (
page 147).
!
If the vehicle is towed with the front
axle raised, the engine must be shut off
(SmartKey in starter switch position0
or1). Otherwise the ESP
® will immedi-
ately be engaged and will apply the rear
wheel brakes.
When towing the vehicle with all wheels
on the ground, the gear selector lever
must be in positionN and the
SmartKey must be in starter switch
position2.
When towing the vehicle with all wheels
on the ground or the front axle raised,
the vehicle may be towed only for
distances up to 30 miles (50 km) and
at a speed not to exceed 30 mph
(50 km/h).
!
To be certain to avoid a possibility of
damage to the drivetrain, however, we
recommend the drive shaft be discon-
nected at the rear axle drive flange for
any towing beyond a short tow to a
nearby garage.

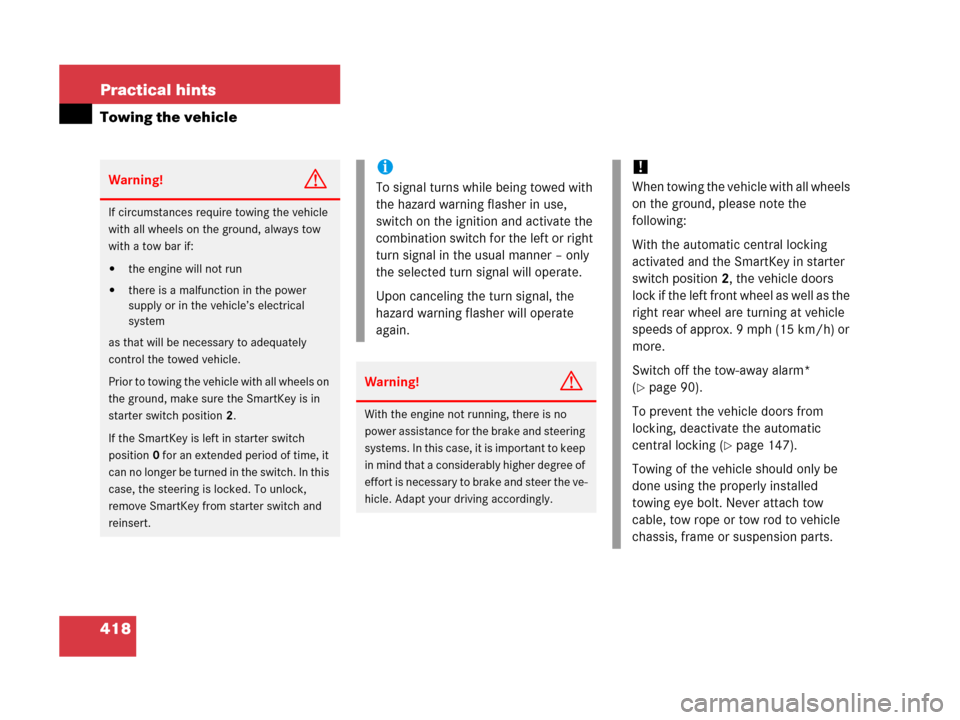

418 Practical hints
Towing the vehicle
Warning!G
If circumstances require towing the vehicle
with all wheels on the ground, always tow
with a tow bar if:

the engine will not run

there is a malfunction in the power
supply or in the vehicle’s electrical
system
as that will be necessary to adequately
control the towed vehicle.
Prior to towing the vehicle with all wheels on
the ground, make sure the SmartKey is in
starter switch position2.
If the SmartKey is left in starter switch
position0 for an extended period of time, it
can no longer be turned in the switch. In this
case, the steering is locked. To unlock,
remove SmartKey from starter switch and
reinsert.
i
To signal turns while being towed with
the hazard warning flasher in use,
switch on the ignition and activate the
combination switch for the left or right
turn signal in the usual manner – only
the selected turn signal will operate.
Upon canceling the turn signal, the
hazard warning flasher will operate
again.
Warning!G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle. Adapt your driving accordingly.
!
When towing the vehicle with all wheels
on the ground, please note the
following:
With the automatic central locking
activated and the SmartKey in starter
switch position2, the vehicle doors
lock if the left front wheel as well as the
right rear wheel are turning at vehicle
speeds of approx. 9 mph (15 km/h) or
more.
Switch off the tow-away alarm*
(
page 90).
To prevent the vehicle doors from
locking, deactivate the automatic
central locking (
page 147).
Towing of the vehicle should only be
done using the properly installed
towing eye bolt. Never attach tow
cable, tow rope or tow rod to vehicle
chassis, frame or suspension parts.

419 Practical hints
Towing the vehicle

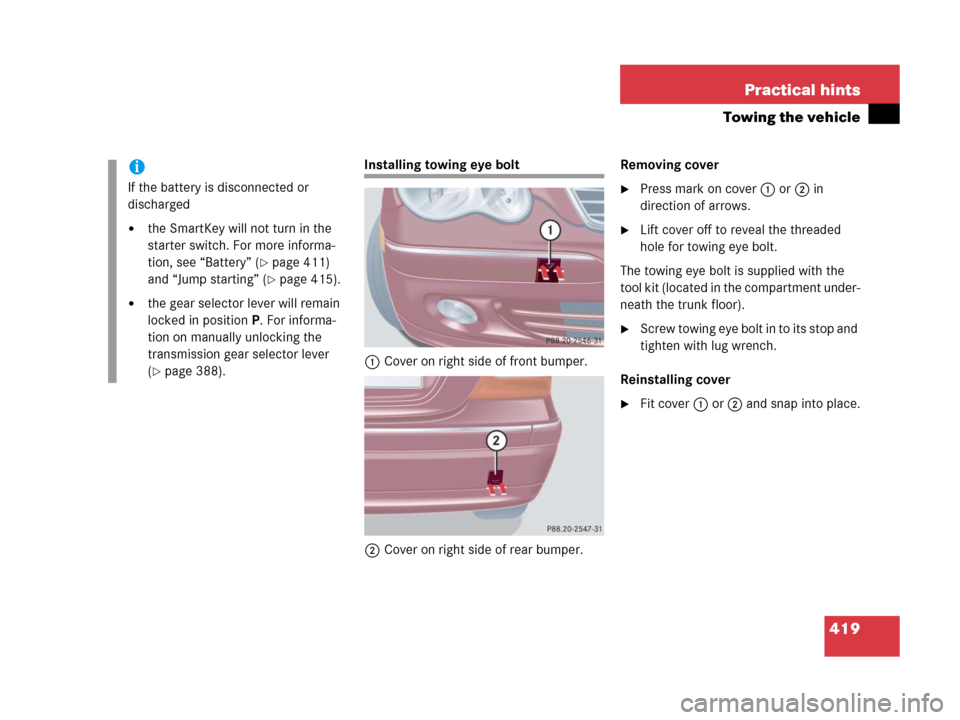

Installing towing eye bolt
1Cover on right side of front bumper.
2Cover on right side of rear bumper.Removing cover
Press mark on cover1 or2 in
direction of arrows.
Lift cover off to reveal the threaded
hole for towing eye bolt.
The towing eye bolt is supplied with the
tool kit (located in the compartment under-
neath the trunk floor).
Screw towing eye bolt in to its stop and
tighten with lug wrench.
Reinstalling cover
Fit cover1 or2 and snap into place.
i
If the battery is disconnected or
discharged

the SmartKey will not turn in the
starter switch. For more informa-
tion, see “Battery” (
page 411)
and “Jump starting” (
page 415).

the gear selector lever will remain
locked in positionP. For informa-
tion on manually unlocking the
transmission gear selector lever
(
page 388).
