Contents
Automatic transmission ..................... 155
Gear selector lever position ......... 157
Driving tips ................................... 158
Gear ranges ................................. 160
Automatic shift program .............. 161
Gear selector lever one-touch
gearshifting .................................. 162
Steering wheel gearshift control
one-touch gearshifting ................. 163
Manual shift program ................... 165
Emergency operation
(Limp-Home Mode) ...................... 168
Good visibility .................................... 169
Headlamp cleaning system* ........ 169
Rear view mirrors ......................... 169
Sun visors .................................... 171
Rear window sunshade* .............. 172
Rear window defroster ................. 173
Climate control .................................. 174
Deactivating the climate control
system ......................................... 177
Operating the climate control
system in automatic mode ........... 177
Setting the temperature ............... 178
Adjusting air distribution and
volume ......................................... 178Adjusting air volume ..................... 179
Front defroster.............................. 179
Air recirculation mode .................. 180
Air conditioning............................. 182
Rear passenger compartment
adjustable air vents....................... 183
Automatic climate control*
(Canada only) ..................................... 184
Deactivating the automatic
climate control system ................. 187
Operating the automatic climate
control system in automatic mode 187
Setting the temperature................ 188
Adjusting air distribution............... 189
Adjusting air volume ..................... 190
Front defroster.............................. 190
Maximum cooling MAXCOOL ........ 191
Air recirculation mode .................. 191
Charcoal filter ............................... 193
Air conditioning............................. 194
Residual heat and ventilation ........ 195
Rear passenger compartment
adjustable air vents....................... 196Audio system...................................... 197
Audio and telephone, operation .... 197
Operating safety ........................... 197
Operating and display elements ... 198
Button and soft key operation ...... 200
Operation...................................... 200
Radio operation ............................ 205
Introduction to satellite radio*
(USA only) ..................................... 209
CD mode....................................... 214
GSM network phones ................... 223
TDMA or CDMA network phones .. 229
Emergency calls “911” ................. 235
Power windows .................................. 238
Opening and closing the windows 238
Synchronizing power windows ...... 240
Summer opening feature .............. 241
Convenience closing feature......... 241
Power tilt/sliding sunroof .................. 242
Opening and closing the power
tilt/sliding sunroof........................ 242
Synchronizing the power
tilt/sliding sunroof........................ 244
Driving systems .................................. 245
Cruise control ............................... 245

176 Controls in detail
Climate control
The climate control is operational when-
ever the engine is running. You can oper-
ate the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the mode A/C is deactivated
(
page 182).
Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite on unpro-
tected skin in the immediate area of the air
vents. Always keep sufficient distance be-
tween unprotected parts of the body and the
air vents. If necessary, use the air distribu-
tion control (
page 178) to direct the air to
air vents in the vehicle interior that are not
in the immediate area of unprotected skin.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
i
Severe conditions (e.g. strong air
pollution) may require replacement of
the filter before its scheduled interval.
A clogged filter will reduce the air
volume to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off, see
“Summer opening feature”
(
page 241). The climate control will
then adjust the interior temperature to
the set value much faster.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing
objects on the air flow-through exhaust
slots below the rear window.

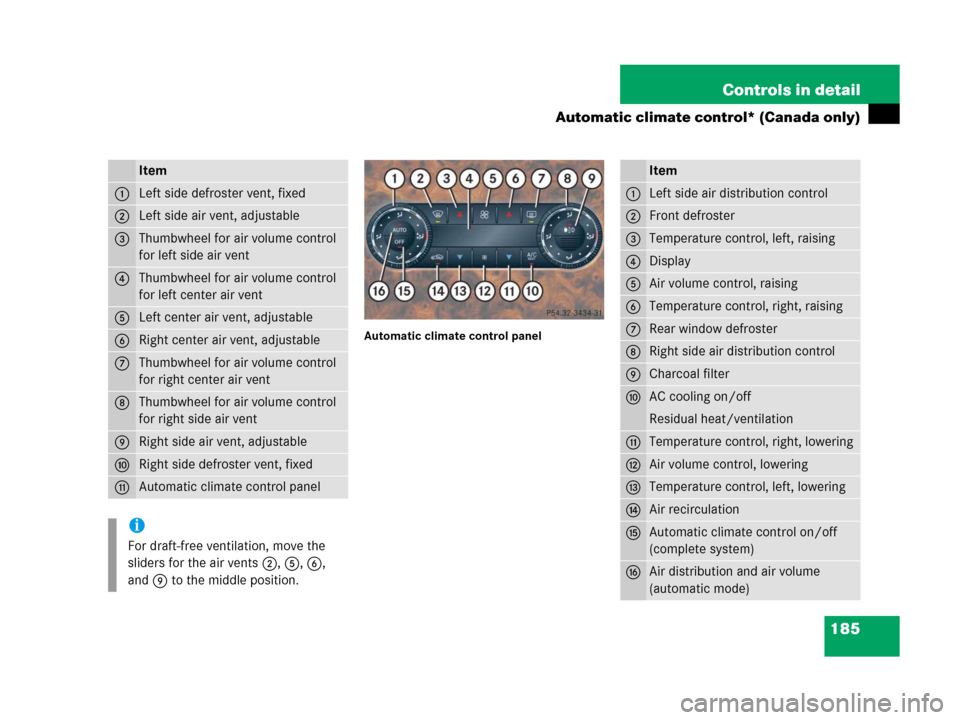

185 Controls in detail
Automatic climate control* (Canada only)
Automatic climate control panel
Item
1Left side defroster vent, fixed
2Left side air vent, adjustable
3Thumbwheel for air volume control
for left side air vent
4Thumbwheel for air volume control
for left center air vent
5Left center air vent, adjustable
6Right center air vent, adjustable
7Thumbwheel for air volume control
for right center air vent
8Thumbwheel for air volume control
for right side air vent
9Right side air vent, adjustable
aRight side defroster vent, fixed
bAutomatic climate control panel
i
For draft-free ventilation, move the
sliders for the air vents2,5,6,
and9 to the middle position.
Item
1Left side air distribution control
2Front defroster
3Temperature control, left, raising
4Display
5Air volume control, raising
6Temperature control, right, raising
7Rear window defroster
8Right side air distribution control
9Charcoal filter
aAC cooling on/off
Residual heat/ventilation
bTemperature control, right, lowering
cAir volume control, lowering
dTemperature control, left, lowering
eAir recirculation
fAutomatic climate control on/off
(complete system)
gAir distribution and air volume
(automatic mode)

186 Controls in detail
Automatic climate control* (Canada only)
The automatic climate control is operation-
al whenever the engine is running. You can
operate the automatic climate control sys-
tem in either the automatic or manual
mode. The system cools or heats the inte-
rior depending on the selected interior
temperature and the current outside tem-
perature.Nearly all dust particles, pollutants and
odors are filtered out before outside air
enters the passenger compartment
through the air distribution system.
The air conditioning will not engage (no
cooling) if the modeA/C is deactivated
(
page 194).
Warning!G
When operating the automatic climate
control, the air that enters the passenger
compartment through the air vents can be
very hot or very cold (depending on the set
temperature). This may cause burns or frost-
bite on unprotected skin in the immediate
area of the air vents. Always keep sufficient
distance between unprotected parts of the
body and the air vents. If necessary, use the
air distribution control (
page 189) to
direct the air to air vents in the vehicle
interior that are not in the immediate area of
unprotected skin.
Warning!G
Follow the recommended settings for
heating and cooling given on the following
pages. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
i
Severe conditions (e.g. strong air
pollution) may require replacement of
the filter before its scheduled interval.
A clogged filter will reduce the air
volume to the interior.
If the vehicle interior is hot, ventilate
the interior before driving off, see
“Summer opening feature”
(
page 241). The automatic climate
control will then adjust the interior
temperature to the set value much fast-
er.
Keep the air intake grille in front of the
windshield free of snow and debris.
Do not obstruct air flow by placing
objects on the air flow-through exhaust
slots below the rear window.

193 Controls in detail
Automatic climate control* (Canada only)
Charcoal filter
An activated charcoal filter markedly
reduces bad odors and removes pollutants
from air entering the passenger compart-
ment. The charcoal filter can be activated
or deactivated.
The system switches automatically to the
air recirculation mode, if the

charcoal filter is switched on

carbon monoxide (CO) or nitrogen
oxide (NO
X) concentration of the out-
side air increases beyond a predeter-
mined levelActivating
Press buttone (page 185).
The indicator lamp on the button
comes on.
i
Press and hold button, for approx.
2 seconds. The side windows and or
tilt/sliding sunroof will return to their
previous position. You can release
button, once the opening proce-
dure has begun. The windows and
tilt/sliding sunroof continue opening
until they have reached their previous
position.
A window or tilt/sliding sunroof will
only return to its previous position if it
has not been moved to another posi-
tion using the respective window
switch or tilt/sliding sunroof switch af-
ter it was closed with button,.
A window or tilt/sliding sunroof that
was moved will remain in its current po-
sition if button, i s u se d to re -ope n
the remaining windows or tilt/sliding
sunroof.
i
The automatic air recirculation mode
does not function if theA/C mode is
deactivated (indicator lamp on
button9 not lit), or if the
outside temperature has fallen
below 5°C (41°F).
i
The activated charcoal filter should be
switched off when windows fog up on
the inside, or if the passenger compart-
ment needs to be quickly heated or
cooled down.
i
The activated charcoal filter should be
switched off when windows fog up on
the inside, or if the passenger compart-
ment needs to be quickly heated or
cooled down.

239 Controls in detail
Power windows
Switch on the ignition (page 33).Opening the windows
Press switch1 to4 to the resistance
point.
The corresponding window will move
downwards until you release the
switch.
Closing the windows
Pull switch1 to4 to the resistance
point.
The corresponding window will move
upwards until you release the switch.Fully opening the windows
(Express-open)
Press switch1 to4 past the
resistance point and release.
The corresponding window opens
completely.
Fully closing the windows
(Express-close)
Pull switch1 to4 past the
resistance point and release.
The corresponding window closes
completely.
i
You can also open or close the power
windows using the SmartKey, see
“Summer opening feature”
(
page 241) and “Convenience clos-
ing feature” (
page 241).
Depending on current position, the win-
dows may also open or close when the
air recirculation button, in the
control panel of the climate control
(
page 175) or automatic climate
control* (Canada only) (
page 185),
or the charcoal filter buttone in the
control panel of the automatic climate
control* (Canada only) (
page 193) is
pressed and held.Warning!G
If you pull and hold the switch up when
closing the window, and upward movement
of the window is blocked by some obstruc-
tion including but not limited to arms, hands,
fingers, etc., the automatic reversal will not
operate.

243 Controls in detail
Power tilt/sliding sunroof
Switch on the ignition (page 33).Opening and closing the power
tilt/sliding sunroof
To open, close, raise, or lower the
tilt/sliding sunroof, move the sunroof
switch to resistance point in the
required direction of arrows1 to4.
Release the sunroof switch when the
tilt/sliding sunroof has reached the
desired position.
Fully opening (Express-open) and
closing (Express-close) the power
tilt/sliding sunroof
To open or close the tilt/sliding
sunroof, move the sunroof switch past
the resistance point in the required
direction of arrow1 to4 and
release.
The tilt/sliding sunroof opens or closes
completely.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment can cause an
accident and/or serious personal injury.
!
To avoid damaging the seals, do not
transport any objects with sharp edges
which can stick out of the tilt/sliding
sunroof.
Do not open the tilt/sliding sunroof if
there is snow or ice on the roof, as this
could result in malfunctions.
The tilt/sliding sunroof can be opened
or closed manually should an electrical
malfunction occur (
page 389).
i
You can also open or close the tilt/slid-
ing sunroof using the SmartKey, see
“Summer opening feature”
(
page 241) and “Convenience clos-
ing feature” (
page 241).
Depending on current position, the
tilt/sliding sunroof may also open or
close when the air recirculation
button, in the control panel of the
climate control (
page 175) or auto-
matic climate control* (Canada only)
(
page 191), or the charcoal filter
buttone in the control panel of the
automatic climate control* (Canada
only) (
page 193) is pressed and held.

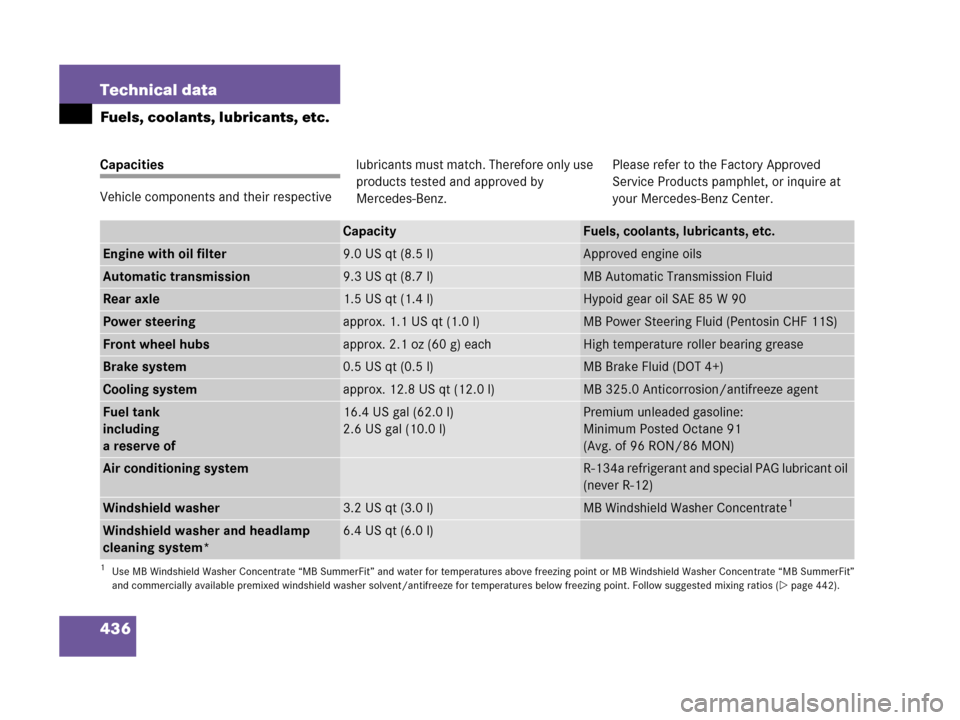

436 Technical data
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respectivelubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz. Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
CapacityFuels, coolants, lubricants, etc.
Engine with oil filter9.0 US qt (8.5 l)Approved engine oils
Automatic transmission9.3 US qt (8.7 l)MB Automatic Transmission Fluid
Rear axle1.5 US qt (1.4 l)Hypoid gear oil SAE 85 W 90
Power steeringapprox. 1.1 US qt (1.0 l)MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubsapprox. 2.1 oz (60 g) eachHigh temperature roller bearing grease
Brake system0.5 US qt (0.5 l)MB Brake Fluid (DOT 4+)
Cooling systemapprox. 12.8 US qt (12.0 l)MB 325.0 Anticorrosion/antifreeze agent
Fuel tank
including
a reserve of16.4 US gal (62.0 l)
2.6USgal (10.0l)Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)
Air conditioning systemR-134a refrigerant and special PAG lubricant oil
(never R-12)
Windshield washer3.2 US qt (3.0 l)MB Windshield Washer Concentrate1
1Use MB Windshield Washer Concentrate “MB SummerFit” and water for temperatures above freezing point or MB Windshield Washer Concentrate “MB SummerFit”
and commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 442).
Windshield washer and headlamp
cleaning system*6.4 US qt (6.0 l)

437 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory Ap-
proved Service Products pamphlet, or con-
tact an authorized Mercedes-Benz Center.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air
conditioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere.
Only brake fluid approved by
Mercedes-Benz is recommended. An
authorized Mercedes-Benz Center will
provide you with additional information.
!
Using engine oils and oil filters of
specification other than those express-
ly required for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.
Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) recommendations for scheduled
oil changes. Failure to do so will result
in engine damage not covered by the
Mercedes-Benz Limited Warranty.
Warning!G
Under extremely strenuous operating condi-
tions, this moisture content can lead to the
formation of bubbles in the system, thus re-
ducing the system’s efficiency.
Therefore, the brake fluid must be replaced
regularly. Refer to your vehicle’s Mainte-
nance Booklet for replacement interval.

451 Index
Brake fluid 437
Checking 295
Message in display 366
Brake lamps
Cleaning lenses 344
Messages in display 374
Replacing bulbs 400
Brake pads
Message in display 366
Brakes 284
Warning lamp 25, 351
Break-in period 282
Bulbs, replacing see Replacing bulbs
C
CAC 443
California retail buyers and lessees,
important notice 11
CAN system 444
Cargo area see Trunk
Cargo tie-down rings* 255
Carpets, cleaning 346
Catalytic converter 291
CD changer* 214
CD player* 132, 214
Centigrade see Temperature display
mode 137Central locking
Automatic 103, 147
From inside 104
Locking/unlocking from inside 104
Switch 104
Certification label 426
Charcoal filter
Automatic climate control*
(Canada only) 193
Children in the vehicle 72
Air bags 62
Blocking rear door window
operation 80
Indicator lamp, front passenger
air bag 75, 357
Infant and child restraint systems 73
LATCH-type child seat anchors 79
Cigarette lighter 262
Climate control system 174
Control panel 175
Defrosting, Front 179
Rear window defroster 173
Clock 25, 125
Setting time 140, 141
Cockpit 22, 444Cockpit Management and Data System
see COMAND
Cold tire inflation pressure 331
Collapsible tire 383, 433, 444
Collapsible wheel chock 382
COMAND* 444
COMAND* see separate COMAND
operating instructions
Combination switch 49, 118
Control system 125, 444
Multifunction display 125
Multifunction steering wheel 126
Resetting to factory default 135
Control system menu 125, 444
AUDIO 131
Menus overview 128
NAV* 134
Settings 135
Standard display 130
TEL* 152
Trip computer 150
Vehicle status message
memory 134
