MERCEDES-BENZ CL-CLASS 2000 Repair Manual

58 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

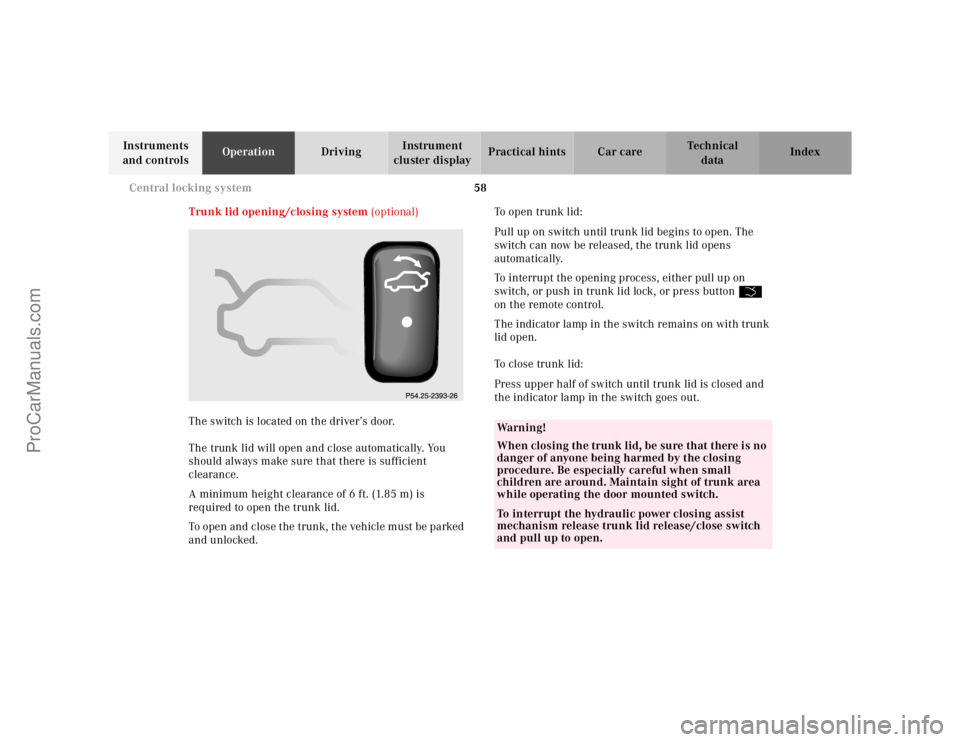

Trunk lid opening/closing system (optional)
The switch is located on the driver’s door.
The trunk lid will open and close automatically. You
should always make sure that there is sufficient
clearance.
A minimum height clearance of 6 ft. (1.85 m) is
required to open the trunk lid.
To open and close the trunk, the vehicle must be parked
and unlocked. To o p e n t r u n k l i d :
Pull up on switch until trunk lid begins to open. The
switch can now be released, the trunk lid opens
automatically.
To interrupt the opening process, either pull up on
switch, or push in trunk lid lock, or press buttonŠ
on the remote control.
The indicator lamp in the switch remains on with trunk
lid open.
To c l o s e tr u n k l i d :
Press upper half of switch until trunk lid is closed and
the indicator lamp in the switch goes out.
Wa r n i n g !
When closing the trunk lid, be sure that there is no
danger of anyone being harmed by the closing
procedure. Be especially careful when small
children are around. Maintain sight of trunk area
while operating the door mounted switch.To interrupt the hydraulic power closing assist
mechanism release trunk lid release/close switch
and pull up to open.
ProCarManuals.com

59 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Notes:
The automatic closing process is interrupted, if the
trunk lid is pushed against an object. The trunk lid will
reverse slightly and stop. In its final closing stage the
hydraulic power closing assist mechanism releases the
trunk lid which then drops into the lock by its own
weight. Now the trunk lid will stop but not reverse
slightly.
Investigate and correct the cause of interruption.
Now press trunk lid opening/closing switch again to
close the trunk lid.
In case of a malfunction the trunk lid can be opened and
closed manually.
To open, unlock trunk lid with the mechanical key and
open lid by hand, see page 53.
To close, lower trunk lid with hands placed flat on trunk
lid. Please remember to keep your fingers out of the
space between the lid and the vehicle.The trunk can also be opened by using the remote
control. PressŠ button.
The trunk lid cannot be opened by the switch or the
remote control when previously locked separately with
the mechanical key. To open, see page 53.
The trunk lid cannot be opened with the trunk lid
opening/closing switch when the vehicle was
previously locked with the central locking switch. To
unlock vehicle with the central locking switch, see
page 50.
Vehicles with KEYLESS-GO:
To prevent a possible inadvertent lockout, the trunk lid
will open automatically if a KEYLESS-GO-card is
recognized in the area of rear shelf or inside the trunk.
ProCarManuals.com

60 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Opening height restriction of trunk lid
The trunk lid opening height can be restricted when
transporting goods on a roof rack (e.g. presence of an
MB sport luggage container). When activated, the trunk
lid opens to below the roof line of the vehicle.
To a ctiva te:
Press upper half of trunk lid opening/closing switch for
a minimum of 5 seconds.
To deactivate:
Press upper half of trunk lid opening/closing switch for
a minimum of 5 seconds.Note:
To fully open the trunk lid while opening height
restriction activated, deactivate it.
ProCarManuals.com

61 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Trunk lid emergency release

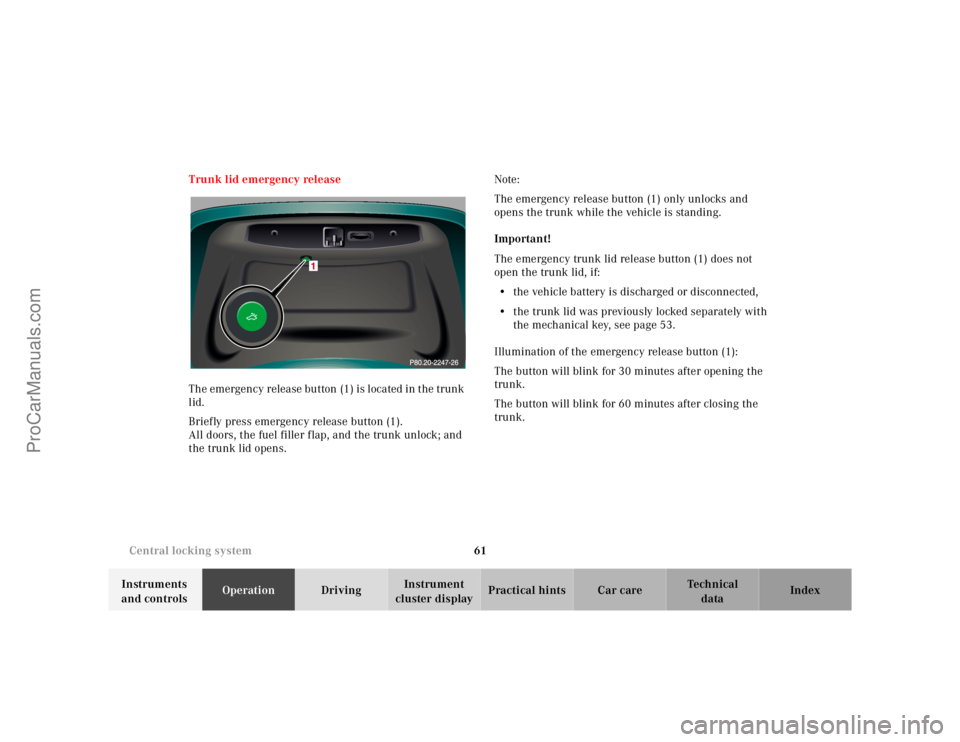

The emergency release button (1) is located in the trunk
lid.
Briefly press emergency release button (1).
All doors, the fuel filler flap, and the trunk unlock; and
the trunk lid opens.Note:
The emergency release button (1) only unlocks and
opens the trunk while the vehicle is standing.
Important!
The emergency trunk lid release button (1) does not
open the trunk lid, if:
•the vehicle battery is discharged or disconnected,
•the trunk lid was previously locked separately with
the mechanical key, see page 53.
Illumination of the emergency release button (1):
The button will blink for 30 minutes after opening the
trunk.
The button will blink for 60 minutes after closing the
trunk.
ProCarManuals.com

62 Antitheft alarm system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Antitheft alarm system
1Indicator lamp in switch located in center console
The antitheft alarm is automatically armed or disarmed
with the remote control or the KEYLESS-GO-function, by
locking or unlocking the vehicle.The antitheft alarm is armed within approx. 10 seconds
after locking the vehicle with the remote control or the
lock button at each door handle (vehicles with
KEYLESS-GO).
A blinking lamp (1) indicates that the alarm is armed.
Operation:
Once the alarm system has been armed, the exterior
vehicle lamps will flash and an alarm will sound when
someone:
•opens a door,
•opens the trunk,
•opens the hood,
•attempts to raise the vehicle.
The alarm will last approximately 2
1/2minutes in form
of f lashing exterior lamps. At the same time an alarm
will sound for 30 seconds. The alarm will stay on even if
the activating element (a door for example) is
immediately closed. If the alarm stays on for more than
20 seconds, an emergency call is initiated automatically.
See Tele Aid on page 210.
ProCarManuals.com

63 Antitheft alarm system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Notes:
We recommend that you carry the electronic reserve
key plus mechanical key with you and keep it in a safe
place (e.g. your wallet) so that it is always handy. Never
leave the electronic reserve key in the vehicle.
When you unlock the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound. To cancel the alarm, insert the electronic key in the
starter switch or press buttonŒ or‹ on the
electronic main key; or (vehicles with KEYLESS-GO)
when carrying the KEYLESS-GO-card, grasp the door
handle or press the start-/stop button on the gear
selector lever.
ProCarManuals.com

64 Tow-away alarm
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Tow - aw ay al a rm
The switch is located in the center console.
1Press to switch off
2Indicator lampOnce the alarm system has been armed, the exterior
vehicle lamps will flash and an alarm will sound when
someone attempts to raise the vehicle.
The alarm will last approximately 2
1/2minutes in form
of f lashing exterior lamps. At the same time an alarm
will sound for 30 seconds. The alarm will stay on even if
the vehicle is immediately lowered. To cancel the alarm,
insert the electronic key in the starter switch or press
buttonŒ or‹ on the electronic main key; or
(vehicles with KEYLESS-GO) when carrying the
KEYLESS-GO-card, grasp the door handle or press the
start-/stop button on the gear selector lever.
If the alarm stays on for more than 20 seconds, an
emergency call is initiated automatically. See Tele Aid
on page 210.
ProCarManuals.com

65 Tow-away alarm
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index To prevent triggering the tow-away alarm feature, switch
off the tow-away alarm before towing the vehicle, or
when parking on a surface subject to movement, such
as a ferry or auto train.
To do so, turn electronic key in starter switch to
position 1 or 0, or remove electronic key from starter
switch. Press tow-away alarm switch (1). The indicator
lamp (2) illuminates briefly.Exit vehicle, and lock vehicle with the electronic main
key or (vehicles with KEYLESS-GO) the lock button at
each door handle.
The tow-away alarm remains switched off until the
vehicle is locked again with the electronic main key or
the lock button at each door handle (vehicles with
KEYLESS-GO) at which time it is automatically
reactivated.
ProCarManuals.com

66 Easy-entry/exit feature
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Easy-entry/exit feature
The switch is located on the steering column adjustment
lever.
Turn the switch in direction:
1to switch on
2to switch offWith the easy-entry/exit feature activated, the steering
wheel tilts upwards to allow easier entry into and exit
from the vehicle when the driver’s door is opened.
However, the engine must be turned off.
When the electronic key is inserted in the starter switch
or, with a valid KEYLESS-GO-card, when pressing the
start-/stop button on the gear selector lever, and if the
driver’s door is closed, the steering wheel returns to the
last position set for it.
Wa r n i n g !
You must ensure that no one can become trapped
or injured by the moving steering wheel with the
easy-entry/exit feature activated and you open the
driver’s door or remove the electronic key from the
starter switch. Do not leave children unattended in
the vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.
ProCarManuals.com

67 Seats
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Front seat adjustment
To operate the front power seat adjustment switches,
turn the electronic key in starter switch to position 1
or 2 (with a front door open, the power seats can also be
operated with the electronic key removed or in starter
switch position 0).
Wa r n i n g !
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause the
driver to lose control of the vehicle.Never ride in a moving vehicle with the seat back
reclined. Sitting in an excessively reclined position
can be dangerous. You could slide under the seat
belt in a collision. If you slide under it, the belt
would apply force at the abdomen or neck. That
could cause serious or fatal injuries. The seat back
and seat belts provide the best restraint when the
wearer is in an upright position and belts are
properly positioned on the body.Never place hands under seat or near any moving
parts while a seat is being adjusted.
When leaving the vehicle always remove the
electronic key from the starter switch, take the
KEYLESS-GO-card (if so equipped) with you, and
lock your vehicle. The power seats can also be operated with the
driver’s or front passenger door open. Do not leave
children unattended in the vehicle, or with access
to an unlocked vehicle. Unsupervised use of vehicle
equipment may cause serious personal injury.
ProCarManuals.com
