39
Audio
Radio operation
FM, AM band
Entries outside the frequency range are
not possible.
Automatic statio
n scan (FM, AM)
The stations in a give n waveband (FM, AM)
can be scanned one after the other for 8
seconds each.
The scan function stops automatically
when the first station received has been
scanned twice. Start scan function
Activate the desired wave band
(
page 35).
Press the
Scan soft key.
The scan function will begin.
Scan will
appear in black lettering.
End scan function and play a station
Press the Scan soft key again if you
hear the desired station.
i
If you do not make another entry within
8 seconds, the function will be canceled
and you will listen to the station last tu-
ned to.
i
Station scan performs two runs. During
the first run, stations with good
reception are played. During the
second run, stations with weaker
reception are played.
220_Audio_US_A_2006.fm Seite 39 Mittwoch, 22. Dezember 2004 2:29 14

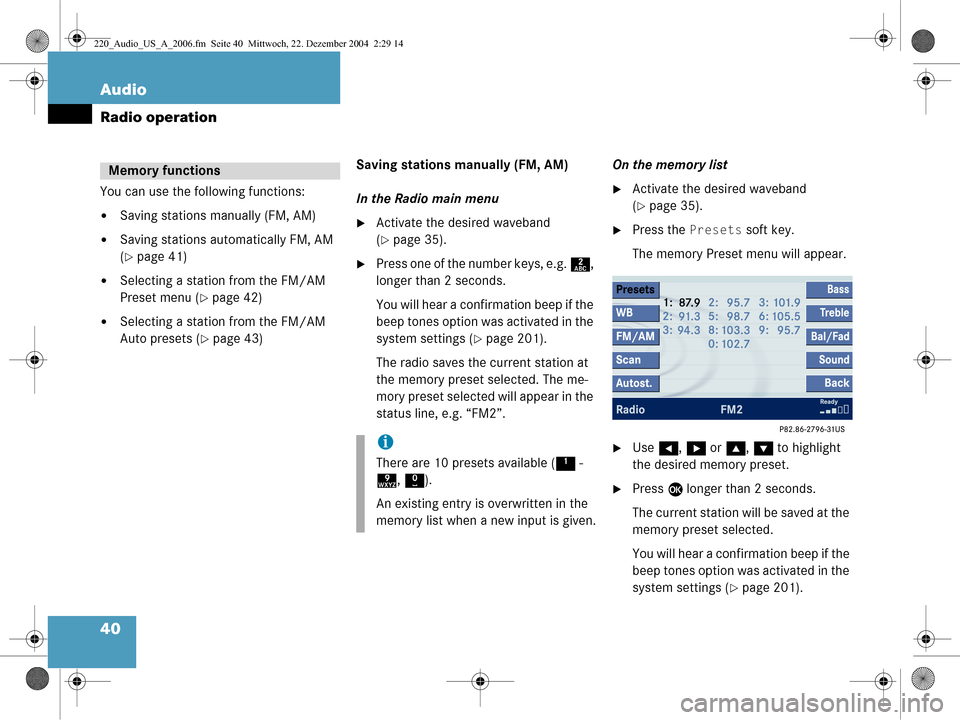

40 Audio
Radio operation
You can use the following functions:
Saving stations manually (FM, AM)
Saving stations automatically FM, AM
(
page 41)
Selecting a station from the FM/AM
Preset menu (
page 42)
Selecting a station from the FM/AM
Auto presets (
page 43)Saving stations manually (FM, AM)
In the Radio main menu
Activate the desired waveband
(
page 35).
Press one of the number keys, e.g.
2,
longer than 2 seconds.
You will hear a confirmation beep if the
beep tones option was activated in the
system settings (
page 201).
The radio saves the current station at
the memory preset selected. The me-
mory preset selected will appear in the
status line, e.g. “FM2”. On the memory list
Activate the desired waveband
(
page 35).
Press the
Presets soft key.
The memory Preset menu will appear.
Use H, h or g , G to highlight
the desired memory preset.
Press E longer than 2 seconds.
The current station will be saved at the
memory preset selected.
You will hear a confirmation beep if the
beep tones option was activated in the
system settings (
page 201).
Memory functions
i
There are 10 presets available ( 1 -
9 , 0 ).
An existing entry is overwritten in the
memory list when a new input is given.
220_Audio_US_A_2006.fm Seite 40 Mittwoch, 22. Dezember 2004 2:29 14

41
Audio
Radio operation
You will see the Radio main menu
automatically after 8 seconds
if you press the
Back soft key. Saving stations auto
matically (FM, AM)
Activate the desired waveband
(
page 35).
Press the Autost. soft key.
The autostore presets will appear.
Press E and confirm Reprogram
Autostore
.
The autostore function is active. The
radio stores the 10 stations with the
strongest signal. The station
frequencies available will appear in the
memory list.
i
There are 2 presets for each of the FM
and AM waveband, standard FM/AM
presets (saving stations manually) and
Auto presets (saving stations automati-
cally).
The standard FM/A M presets are not
affected by the Auto presets. This is a
second option for storing a station ran-
ge you are currently receiving.
i
There are 10 presets available ( 1 -
9 , 0 ).
The autostore function assigns the sta-
tions to the memory locations in the or-
der of their reception quality.
220_Audio_US_A_2006.fm Seite 41 Mittwoch, 22. Dezember 2004 2:29 14

42 Audio
Radio operation
Selecting a station from the preset
menu (FM, AM)
Activate the FM or AM memory
(
page 40).
You can use one of the following two ways
to select a station from the FM/AM
presets
Press the corresponding number key,
e.g. 3, to select the desired station.
or
Use H, h or g , G to highlight a
memory preset in the FM/AM preset
list.
Press E.
In both cases, you will see the Radio
main menu
automatically after 8 seconds
if you press the Back soft key.
The Radio main menu indicating the
memory preset number appears.
220_Audio_US_A_2006.fm Seite 42 Mittwoch, 22. Dezember 2004 2:29 14

43
Audio
Radio operation
Selecting a station from the FM/AM
autostore presets
Activate the FM or AM autostore pre-
sets (
page 41).
Use
H, h or g , G to highlight a
memory position.
Press E.
You will see the Radio main menu
automatically after 8 seconds
if you press the Back soft key.
220_Audio_US_A_2006.fm Seite 43 Mittwoch, 22. Dezember 2004 2:29 14

44 Audio
CD operation

CD operation
General Information on CD operation
WarningG
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and
operate the audio system only if permitted
by road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m)
every second.
WarningG
The CD drive and CD changer* are Class 1
laser products. There is a danger of invisible
laser radiation when you open or damage
the cover.
Do not remove the cover. The CD drive and
the CD changer* do not contain any parts
which can be serviced by the user. For safe-
ty reasons, have any necessary service work
performed by qua lified personnel.
i
Only use CDs, which bear the label
shown and that conform to the compact
standard (IEC 60908). You can there-
fore only use CDs with a maximum
thickness of 1.3 mm.
i
The COMAND CD drive may not be able
to play audio CDs with copy protection
or copied CDs.
!
Use only CDs with a diameter of 12 cm,
do not use 8-cm CDs.
An 8-cm CD adapter may cause dama-
ge to the CD changer* or to the
COMAND and should not be used.
i
Your CD drive has been designed to
play CDs which correspond to the IEC
60908 standard.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected
and will damage the drive.
220_Audio_US_A_2006.fm Seite 44 Mittwoch, 22. Dezember 2004 2:29 14

45
Audio
CD operation
Only touch the CD on the edge.
Avoid touching the CD surface with
your fingers.
Clean the CD with a dry, lint-free cloth.
Wipe them from the inside to the outer
edge. Never wipe the CD in a circular
motion.
Do not use rubbing alcohol or solvents
to clean the CDs.
Do not expose the CDs to heat or direct
sunlight.
Do not write or put stickers on CD.
Tips on caring for your CDs
220_Audio_US_A_2006.fm Seite 45 Mittwoch, 22. Dezember 2004 2:29 14

46 Audio
CD operation
Playback locations for audio CDs are:
the CD drive in the COMAND
the CD changer*.
Differences regarding the CD mode depen-
ding on the audio source are highlighted.
In the Audio menu (page 34), press
the
CD soft key (for CD drive) or
the
CD soft key (for CD changer*).
CD changer* main menu
1 CD changer* CD or CD drive
CD
2Current track/number of tracks on the
current CD
3 Elapsed playback time of the current
track
CD drive
CD changer*Switching to CD operation
i
The CD-Mag soft key is only assigned
when the CD changer* is active.
The
Sound soft key appears if the
COMAND is provided with sound
functions* (
page 31).
i
The CD drive in the COMAND can
playback audio CDs, MP3-CDs
(
page 55). The slot of the drive is
behind the display.
i
The CD changer* can accomodate up
to 6 audio CDs. It is located on the left-
hand side in the trunk.
Loading CDs
WarningG
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and
operate the audio system only if permitted
by road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m)
every second.
i
The COMAND may be unable to
playback audio CDs provided with copy
protection.
220_Audio_US_A_2006.fm Seite 46 Mittwoch, 22. Dezember 2004 2:29 14

47
Audio
CD operation
Loading a CD into the CD drive
With the COMAND switched on, press
l
.
The display moves up and the CD/DVD
slot is visible.
Insert a CD into the slot. The CD should
be inserted with the label side up.
The COMAND pulls the CD into the
drive. The message
Loading Medium
Please Wait
will appear. After that the CD main menu
(
page 46) will appear. Playback
begins with track 1 of the CD inserted.
Ejecting a CD
With the COMAND switched on, press
l .
The display moves up and the system
ejects the CD already loaded.
Remove the CD from the slot.
Insert another CD into the slot.
or
Press l again to close the slot if you
do not wish to insert another CD.
Ejecting/loading CDs into/from the CD
changer*
The CD changer* is located on the left-
hand side in the trunk. Open panel cover to
access the CD changer*.
i
A CD already loaded must be ejected
before inserting a new CD. Inserting a
second CD with another CD still loaded
will cause damage to the CD drive
which is not covered by the Mercedes-
Benz Limited Warranty.
i
If you do not insert the CD into the slot
within around 15 seconds, the
COMAND will close the slot.
i
If you do not remove the CD from the
slot within around 15 seconds, the
COMAND will pull the CD into the drive
again and close the slot.
220_Audio_US_A_2006.fm Seite 47 Mittwoch, 22. Dezember 2004 2:29 14

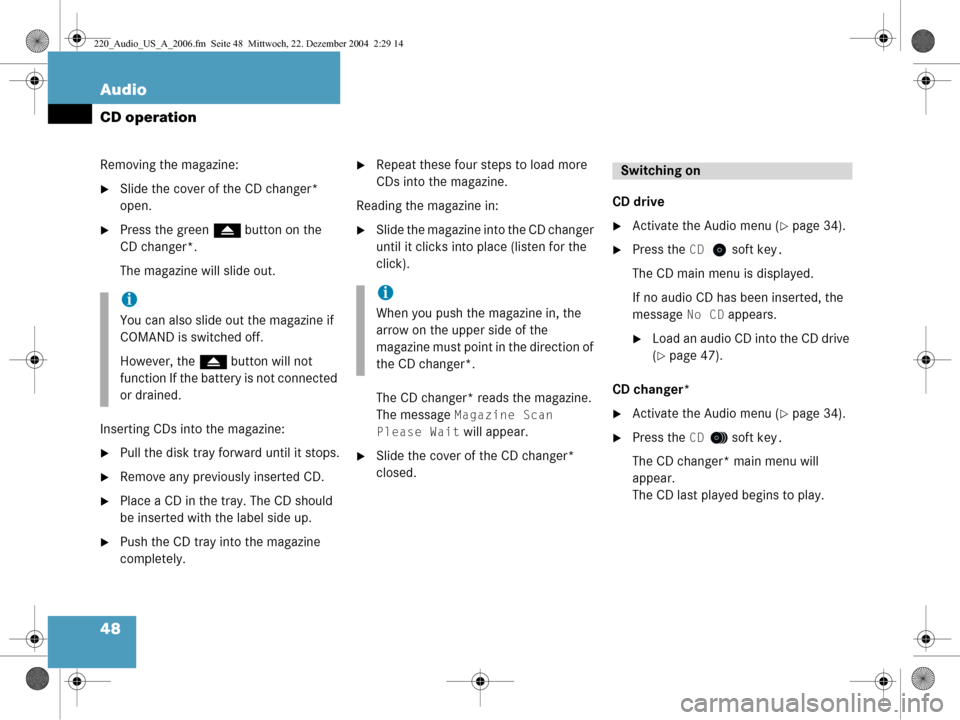

48 Audio
CD operation
Removing the magazine:
Slide the cover of the CD changer*
open.
Press the green l button on the
CD changer*.
The magazine will slide out.
Inserting CDs into the magazine:
Pull the disk tray forward until it stops.
Remove any previously inserted CD.
Place a CD in the tray. The CD should
be inserted with the label side up.
Push the CD tray into the magazine
completely.
Repeat these four steps to load more
CDs into the magazine.
Reading the magazine in:
Slide the magazine into the CD changer
until it clicks into place (listen for the
click).
The CD changer* reads the magazine.
The message
Magazine Scan
Please Wait
will appear.
Slide the cover of the CD changer*
closed. CD drive
Activate the Audio menu (page 34).
Press the CD soft key.
The CD main menu is displayed.
If no audio CD has been inserted, the
message
No CD appears.
Load an audio CD into the CD drive
(
page 47).
CD changer*
Activate the Audio menu (page 34).
Press the CD soft key.
The CD changer* main menu will
appear.
The CD last played begins to play.
i
You can also slide out the magazine if
COMAND is switched off.
However, the l button will not
function If the battery is not connected
or drained.
i
When you push the magazine in, the
arrow on the upper side of the
magazine must point in the direction of
the CD changer*.
Switching on
