At temperatures below freezing:XFill the washer fluid reservoir with a mixture
of water and windshield washer fluid, e.g.
MB WinterFit. Adapt the mixing ratio to the
outside temperature.XDown to 14 ‡ ( Ò10 †): mix 1 part MB
WinterFit to 2 parts water.XDown to Ò4 ‡ ( Ò20 †): mix 1 part MB
WinterFit to 1 part water.XDown to Ò20.2 ‡ ( Ò29 †): mix 2 parts MB
WinterFit to 1 part water.
i Add windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Climate control system refrigerant
Important safety notes
The climate control system of your vehicle is
filled with refrigerant R-134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
! Only the refrigerant R-134a and the PAG
oil approved by Mercedes-Benz may be
used. The approved PAG oil may not be
mixed with any other PAG oil that is not
approved for R-134a refrigerant.
Otherwise, the climate control system may
be damaged.
Service work, such as topping-up refrigerant
or replacing components, may only be carried
out by a qualified specialist workshop. All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control
system carried out at a qualified specialist
workshop.
Refrigerant instruction label
Example: refrigerant instruction label
:Warning symbol;Refrigerant filling capacity=Applicable SAE standards?PAG oil part numberAType of refrigerant
Warning symbols : indicate:
R possible dangers
R having service work carried out at a
qualified specialist workshop
Filling capacities
Missing values were not available at time of
going to print.
All modelsCapacityRefrigerant PAG oilService products and filling capacities489Technical dataZ

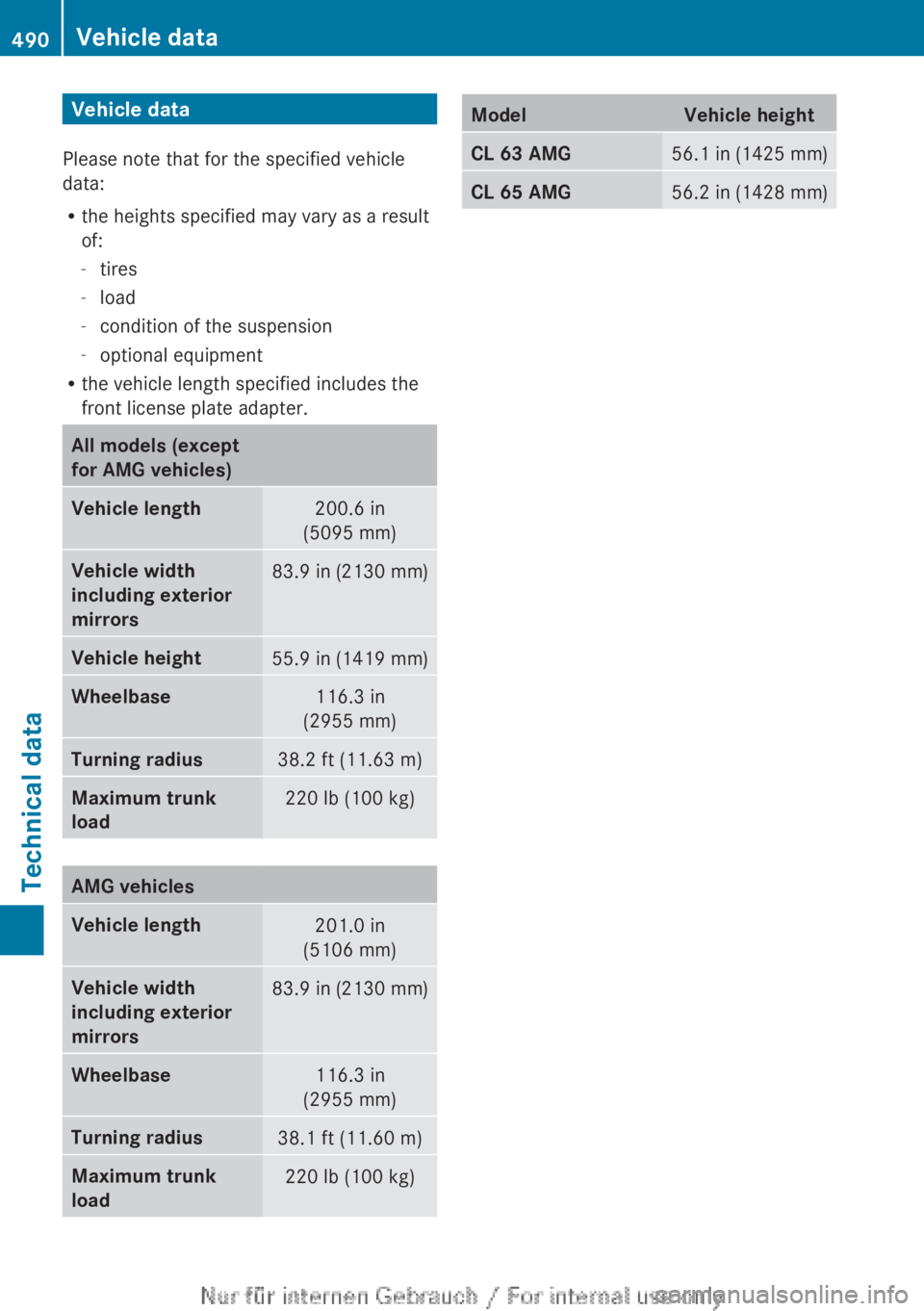

Vehicle data
Please note that for the specified vehicle
data:
R the heights specified may vary as a result
of:
- tires
- load
- condition of the suspension
- optional equipment
R the vehicle length specified includes the
front license plate adapter.All models (except
for AMG vehicles)Vehicle length200.6 in
(5095 mm)Vehicle width
including exterior
mirrors83.9 in (2130 mm)Vehicle height55.9 in (1419 mm)Wheelbase116.3 in
(2955 mm)Turning radius38.2 ft (11.63 m)Maximum trunk
load220 lb (100 kg)AMG vehiclesVehicle length201.0 in
(5106 mm)Vehicle width
including exterior
mirrors83.9 in (2130 mm)Wheelbase116.3 in
(2955 mm)Turning radius38.1 ft (11.60 m)Maximum trunk
load220 lb (100 kg)ModelVehicle heightCL 63 AMG56.1 in (1425 mm)CL 65 AMG56.2 in (1428 mm)490Vehicle dataTechnical data

491

492

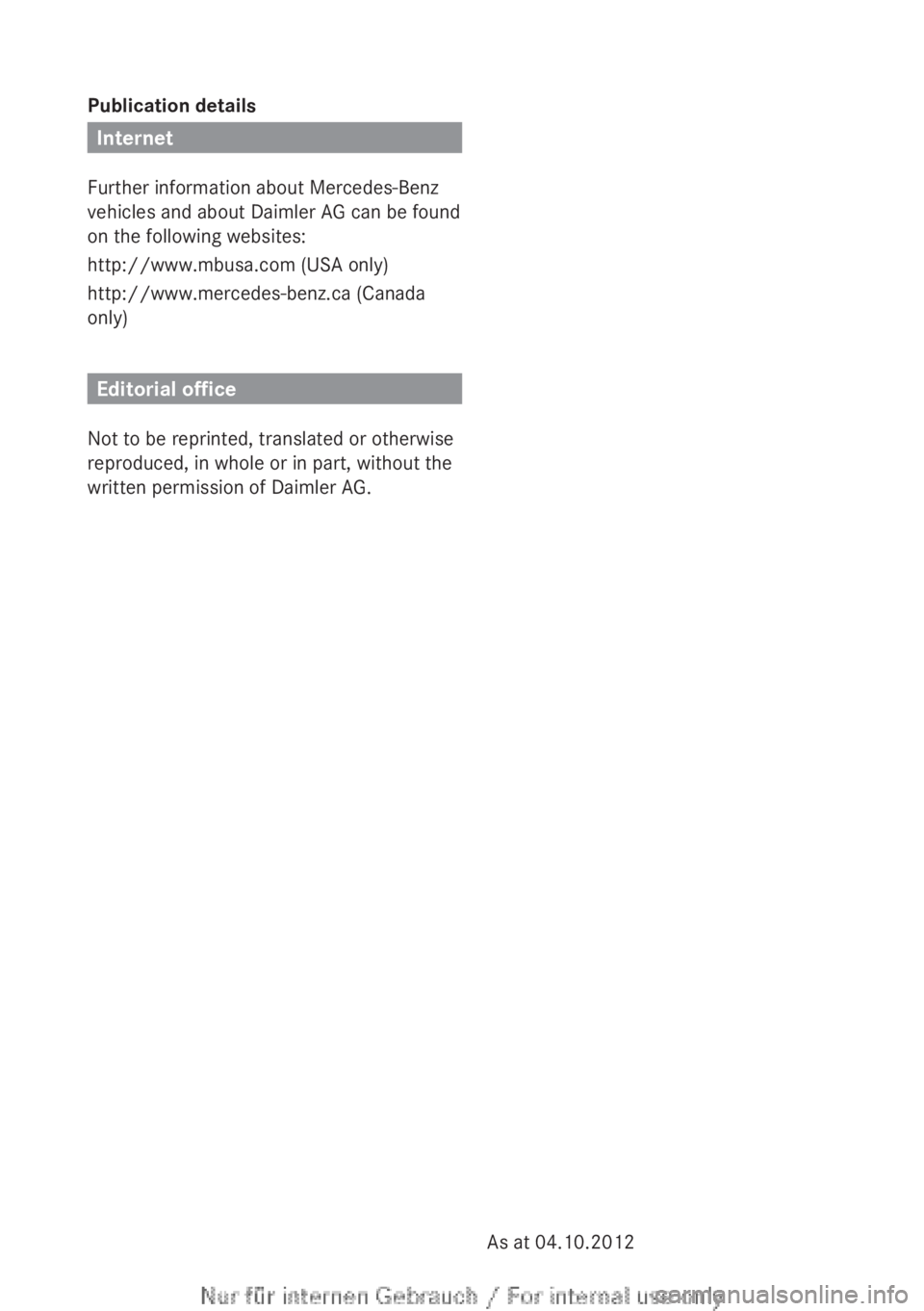

Publication details
Internet
Further information about Mercedes-Benz
vehicles and about Daimler AG can be found
on the following websites:
http://www.mbusa.com (USA only)
http://www.mercedes-benz.ca (Canada
only)
Editorial office
Not to be reprinted, translated or otherwise
reproduced, in whole or in part, without the
written permission of Daimler AG.
As at 04.10.2012

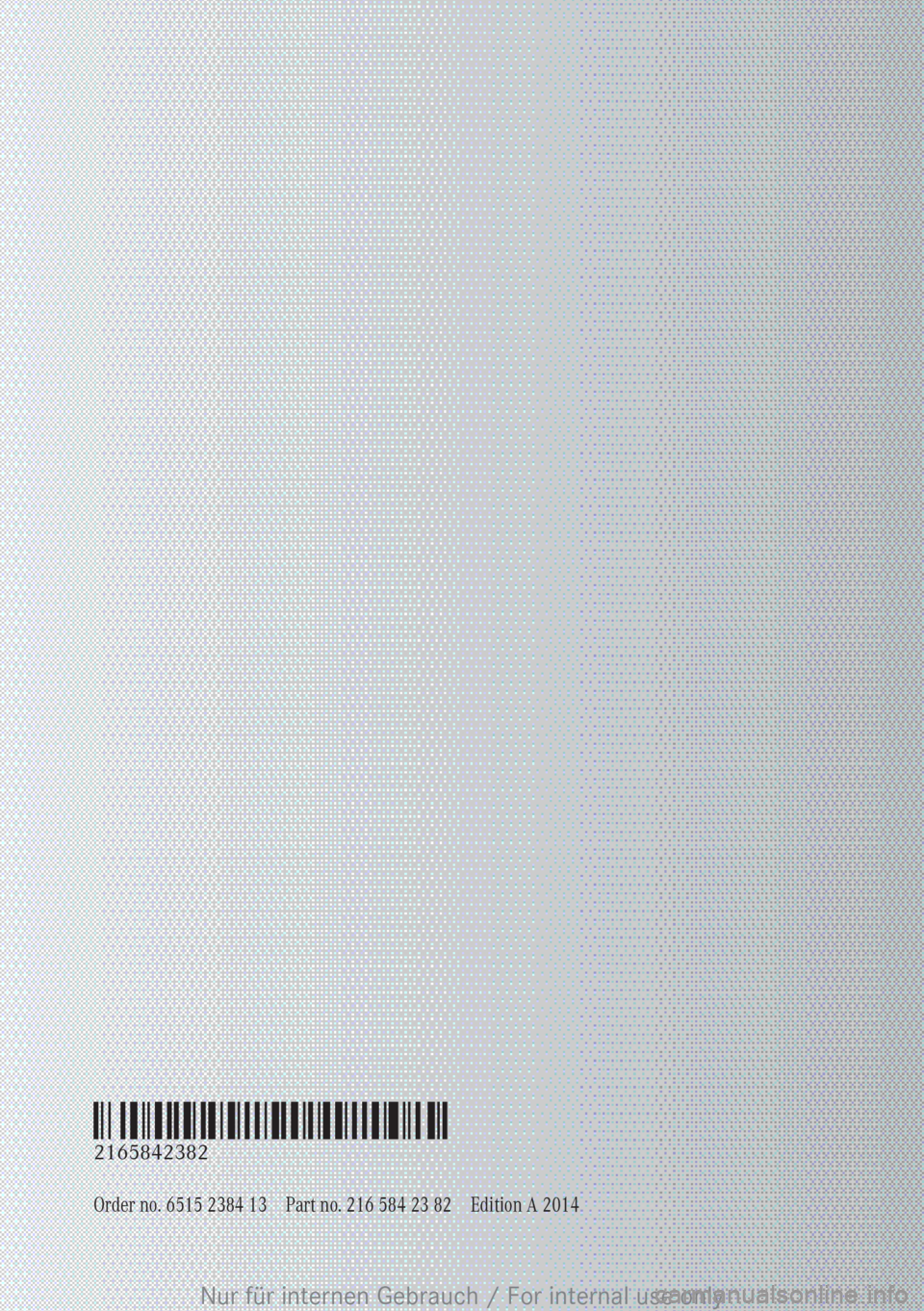

Order no. 6515 2384 13Part no. 216 584 23 82Edition A 2014
É2165842382wËÍ
2165842382
