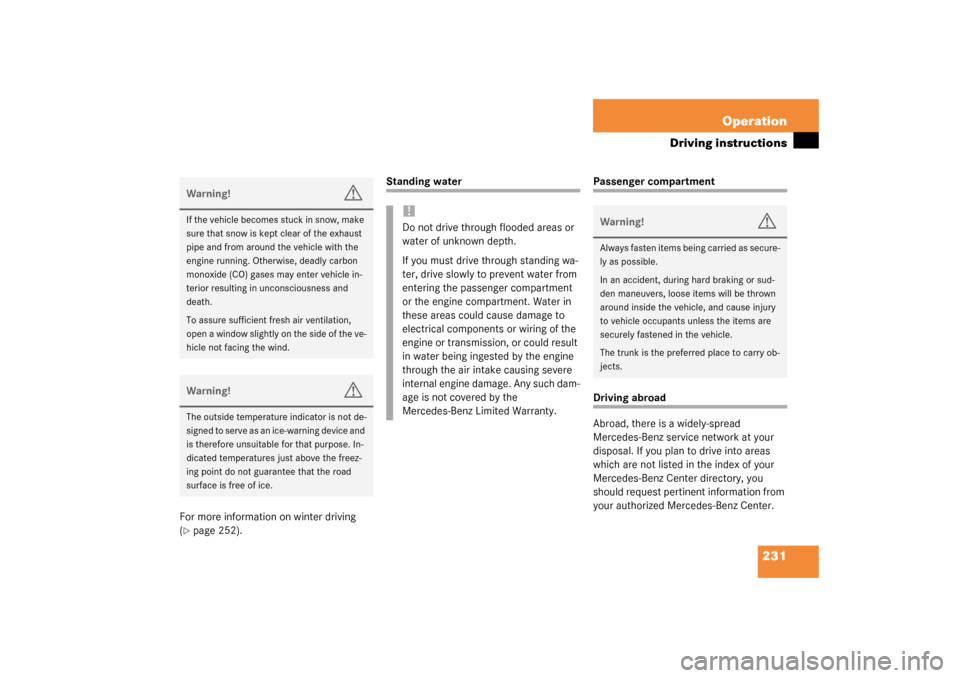

231 Operation
Driving instructions
For more information on winter driving
(page 252).
Standing water
Passenger compartmentDriving abroad
Abroad, there is a widely-spread
Mercedes-Benz service network at your
disposal. If you plan to drive into areas
which are not listed in the index of your
Mercedes-Benz Center directory, you
should request pertinent information from
your authorized Mercedes-Benz Center.
Warning!
G
If the vehicle becomes stuck in snow, make
sure that snow is kept clear of the exhaust
pipe and from around the vehicle with the
engine running. Otherwise, deadly carbon
monoxide (CO) gases may enter vehicle in-
terior resulting in unconsciousness and
death.
To assure sufficient fresh air ventilation,
open a window slightly on the side of the ve-
hicle not facing the wind.Warning!
G
The outside temperature indicator is not de-
signed to serve as an ice-warning device and
is therefore unsuitable for that purpose. In-
dicated temperatures just above the freez-
ing point do not guarantee that the road
surface is free of ice.
!Do not drive through flooded areas or
water of unknown depth.
If you must drive through standing wa-
ter, drive slowly to prevent water from
entering the passenger compartment
or the engine compartment. Water in
these areas could cause damage to
electrical components or wiring of the
engine or transmission, or could result
in water being ingested by the engine
through the air intake causing severe
internal engine damage. Any such dam-
age is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G
Always fasten items being carried as secure-
ly as possible.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
The trunk is the preferred place to carry ob-
jects.

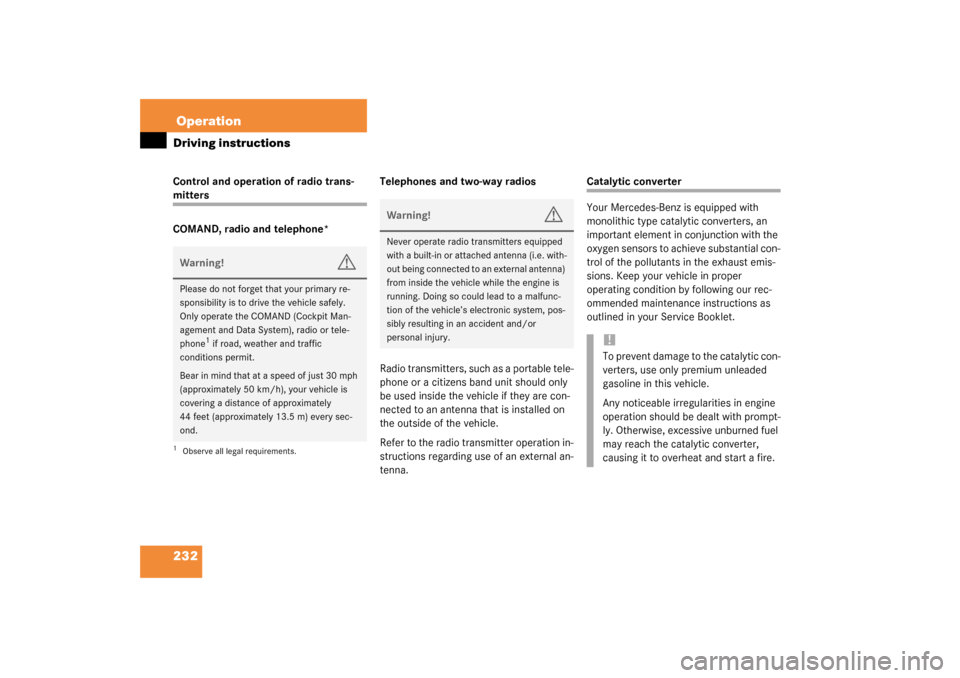

232OperationDriving instructionsControl and operation of radio trans-mitters
COMAND, radio and telephone*Telephones and two-way radios
Radio transmitters, such as a portable tele-
phone or a citizens band unit should only
be used inside the vehicle if they are con-
nected to an antenna that is installed on
the outside of the vehicle.
Refer to the radio transmitter operation in-
structions regarding use of an external an-
tenna.
Catalytic converter
Your Mercedes-Benz is equipped with
monolithic type catalytic converters, an
important element in conjunction with the
oxygen sensors to achieve substantial con-
trol of the pollutants in the exhaust emis-
sions. Keep your vehicle in proper
operating condition by following our rec-
ommended maintenance instructions as
outlined in your Service Booklet.
Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle safely.
Only operate the COMAND (Cockpit Man-
agement and Data System), radio or tele-
phone
1 if road, weather and traffic
conditions permit.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.
1Observe all legal requirements.
Warning!
G
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.
!To prevent damage to the catalytic con-
verters, use only premium unleaded
gasoline in this vehicle.
Any noticeable irregularities in engine
operation should be dealt with prompt-
ly. Otherwise, excessive unburned fuel
may reach the catalytic converter,
causing it to overheat and start a fire.

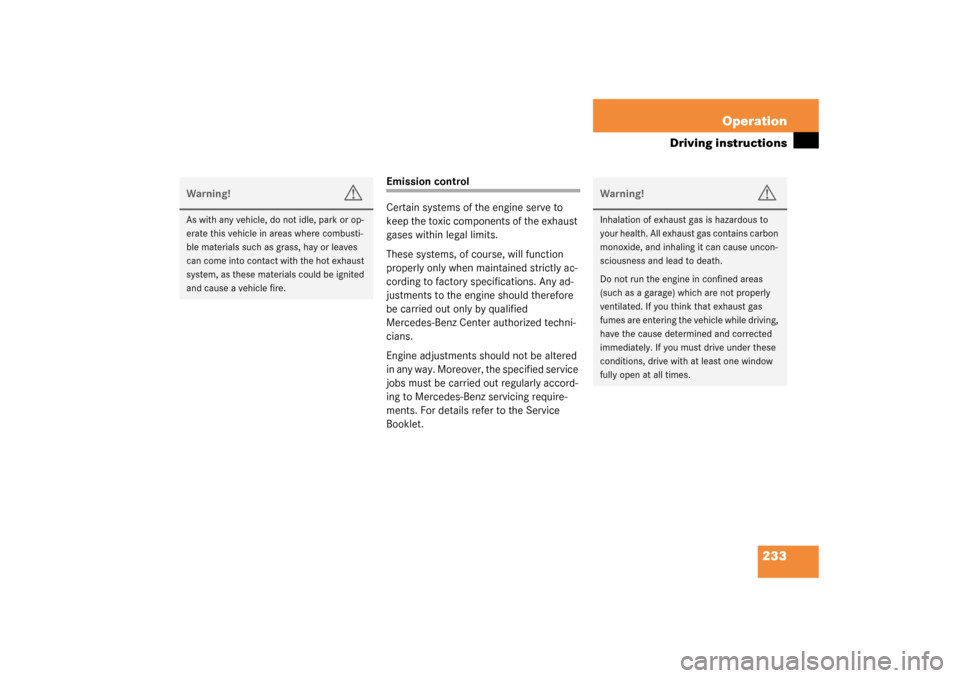

233 Operation
Driving instructions
Emission control
Certain systems of the engine serve to
keep the toxic components of the exhaust
gases within legal limits.
These systems, of course, will function
properly only when maintained strictly ac-
cording to factory specifications. Any ad-
justments to the engine should therefore
be carried out only by qualified
Mercedes-Benz Center authorized techni-
cians.
Engine adjustments should not be altered
in any way. Moreover, the specified service
jobs must be carried out regularly accord-
ing to Mercedes-Benz servicing require-
ments. For details refer to the Service
Booklet.
Warning!
G
As with any vehicle, do not idle, park or op-
erate this vehicle in areas where combusti-
ble materials such as grass, hay or leaves
can come into contact with the hot exhaust
system, as these materials could be ignited
and cause a vehicle fire.
Warning!
G
Inhalation of exhaust gas is hazardous to
your health. All exhaust gas contains carbon
monoxide, and inhaling it can cause uncon-
sciousness and lead to death.
Do not run the engine in confined areas
(such as a garage) which are not properly
ventilated. If you think that exhaust gas
fumes are entering the vehicle while driving,
have the cause determined and corrected
immediately. If you must drive under these
conditions, drive with at least one window
fully open at all times.

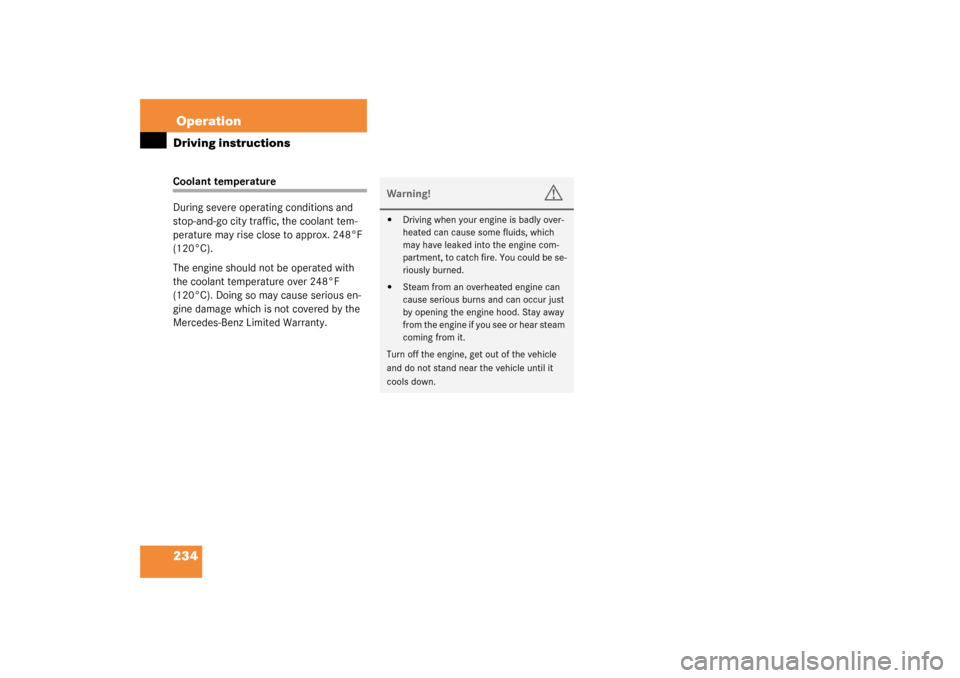

234OperationDriving instructionsCoolant temperature
During severe operating conditions and
stop-and-go city traffic, the coolant tem-
perature may rise close to approx. 248°F
(120°C).
The engine should not be operated with
the coolant temperature over 248°F
(120°C). Doing so may cause serious en-
gine damage which is not covered by the
Mercedes-Benz Limited Warranty.
Warning!
G


Driving when your engine is badly over-
heated can cause some fluids, which
may have leaked into the engine com-
partment, to catch fire. You could be se-
riously burned.


Steam from an overheated engine can
cause serious burns and can occur just
by opening the engine hood. Stay away
from the engine if you see or hear steam
coming from it.
Turn off the engine, get out of the vehicle
and do not stand near the vehicle until it
cools down.

235 Operation
At the gas station
At the gas station
The fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the SmartKey or the KEYLESS-GO* card
automatically locks/unlocks the fuel filler
flap.

Remove the key from the starter
switch.

Open the fuel filler flap by pushing at
the point indicated by the arrow.
The fuel filler flap springs open.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.

Replace the fuel cap by turning it to the
right.
You will hear when the fuel cap is tight-
ened.

Close the fuel filler flap.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious inju-
ry. Whenever you are around gasoline, avoid
inhaling fumes and skin contact, extinguish
all smoking materials. Never allow sparks,
flame or smoking materials near gasoline!
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
iCL 600: Use only premium unleaded
gasoline with a minimum Posted Oc-
tane Rating of 93 (average of
98 RON / 88 MON).
CL 500 and CL 55 AMG: Use only pre-
mium unleaded gasoline with a mini-
mum Posted Octane Rating of 91
(average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.

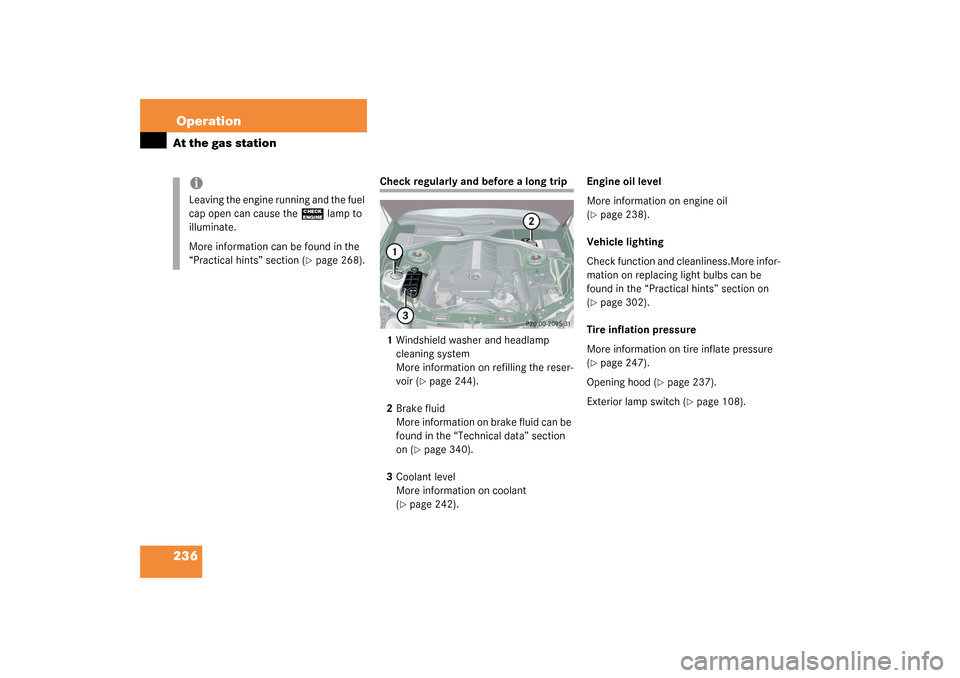

236OperationAt the gas station
Check regularly and before a long trip
1Windshield washer and headlamp
cleaning system
More information on refilling the reser-
voir (
page 244).
2Brake fluid
More information on brake fluid can be
found in the “Technical data” section
on (
page 340).
3Coolant level
More information on coolant
(
page 242).Engine oil level
More information on engine oil
(
page 238).
Vehicle lighting
Check function and cleanliness.More infor-
mation on replacing light bulbs can be
found in the “Practical hints” section on
(page 302).
Tire inflation pressure
More information on tire inflate pressure
(page 247).
Opening hood (
page 237).
Exterior lamp switch (
page 108).
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 268).

237 Operation
Engine compartment
Engine compartment
Hood
Opening
The hood lock release lever is located in
the driver’s footwell to the left of the park-
ing brake pedal.
1Hood lock release

Pull lever 1 towards you in the direction
of the arrow.
The hood is unlocked and handle 2 will
extend out of the radiator grill.
2Handle for opening the hood

Pull handle 2 to its stop out of radiator
grill.

Pull up on the hood (do not pull up on
the handle) and then release it.
The hood will be automatically held
open at shoulder height.
Warning!
G
Do not pull the release lever while the vehi-
cle is in motion. Otherwise the hood could
be forced open by passing air flow.
!To avoid damage to the windshield wip-
ers or hood, never open the hood if the
wiper arms are folded forward away
from the windshield.
Warning!
G
To help prevent personal injury, stay clear of
moving parts when the hood is open and the
engine is running. Make sure the hood is
properly closed before driving. When closing
the hood, use extreme caution not to catch
hands or fingers.
The radiator fan may continue to run for ap-
proximately 30 seconds or even restart af-
ter the engine has been turned off. Stay
clear of fan blades.

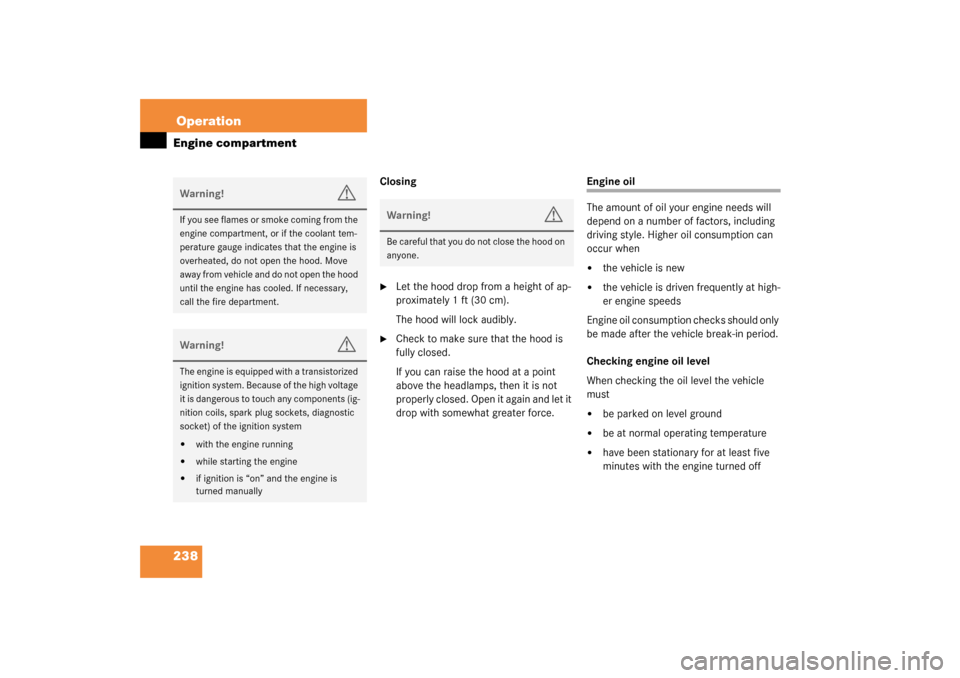

238OperationEngine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure that the hood is
fully closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at high-
er engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Checking engine oil level
When checking the oil level the vehicle
must


be parked on level ground


be at normal operating temperature


have been stationary for at least five
minutes with the engine turned off
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.

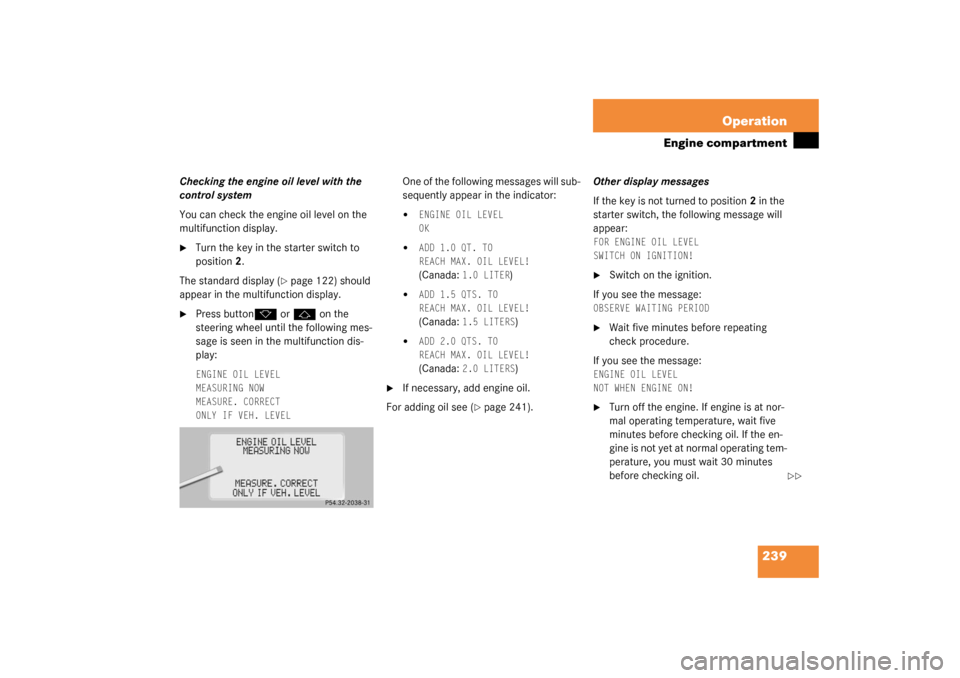

239 Operation
Engine compartment
Checking the engine oil level with the
control system
You can check the engine oil level on the
multifunction display.
Turn the key in the starter switch to
position2.
The standard display (
page 122) should
appear in the multifunction display.

Press button
k
or
j
on the
steering wheel until the following mes-
sage is seen in the multifunction dis-
play:
ENGINE OIL LEVEL
MEASURING NOW
MEASURE. CORRECT
ONLY IF VEH. LEVEL
One of the following messages will sub-
sequently appear in the indicator:

ENGINE OIL LEVEL
OK


ADD 1.0 QT. TO
REACH MAX. OIL LEVEL!(Canada:
1.0 LITER
)


ADD 1.5 QTS. TO
REACH MAX. OIL LEVEL!(Canada:
1.5 LITERS
)


ADD 2.0 QTS. TO
REACH MAX. OIL LEVEL!(Canada:
2.0 LITERS
)

If necessary, add engine oil.
For adding oil see (
page 241).Other display messages
If the key is not turned to position 2 in the
starter switch, the following message will
appear:
FOR ENGINE OIL LEVEL
SWITCH ON IGNITION!
Switch on the ignition.
If you see the message:
OBSERVE WAITING PERIOD
Wait five minutes before repeating
check procedure.
If you see the message:
ENGINE OIL LEVEL
NOT WHEN ENGINE ON!
Turn off the engine. If engine is at nor-
mal operating temperature, wait five
minutes before checking oil. If the en-
gine is not yet at normal operating tem-
perature, you must wait 30 minutes
before checking oil.

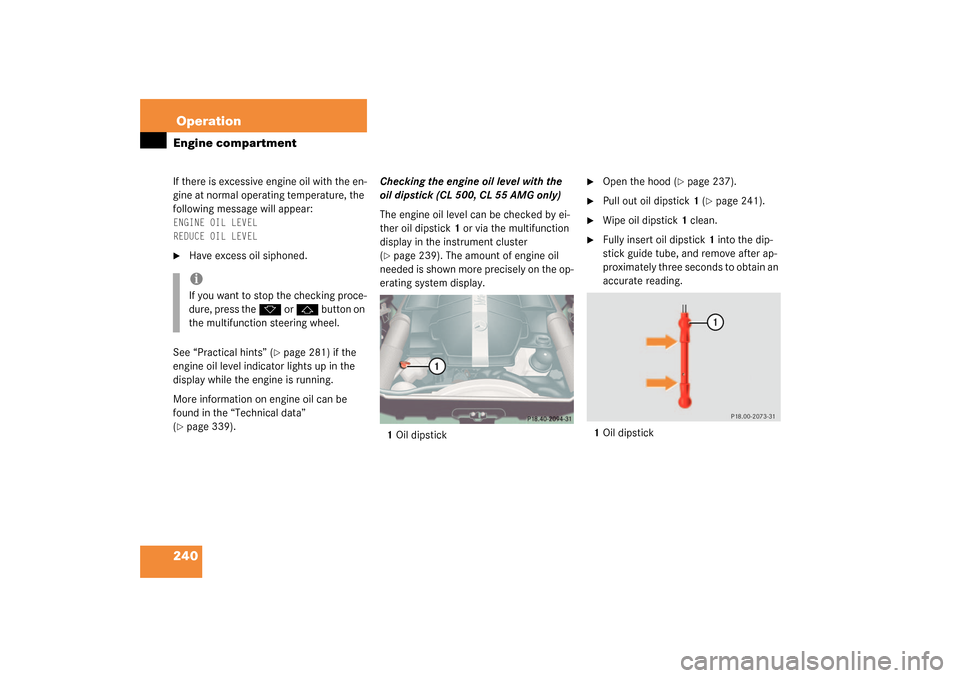

240OperationEngine compartmentIf there is excessive engine oil with the en-
gine at normal operating temperature, the
following message will appear:ENGINE OIL LEVEL
REDUCE OIL LEVEL
Have excess oil siphoned.
See “Practical hints” (
page 281) if the
engine oil level indicator lights up in the
display while the engine is running.
More information on engine oil can be
found in the “Technical data”
(
page 339).Checking the engine oil level with the
oil dipstick (CL 500, CL 55 AMG only)
The engine oil level can be checked by ei-
ther oil dipstick1 or via the multifunction
display in the instrument cluster
(
page 239). The amount of engine oil
needed is shown more precisely on the op-
erating system display.
1Oil dipstick

Open the hood (
page 237).

Pull out oil dipstick1 (
page 241).

Wipe oil dipstick1 clean.

Fully insert oil dipstick1 into the dip-
stick guide tube, and remove after ap-
proximately three seconds to obtain an
accurate reading.
1Oil dipstick
iIf you want to stop the checking proce-
dure, press the
k
or
j
button on
the multifunction steering wheel.
