301 Practical hints
Opening/closing in an emergency
Opening/closing in an emergency
Sliding/pop-up roof
The sliding/pop-up roof drive is located
behind the lens of the interior overhead
light.
You can open or close the sliding/pop-up
roof manually should an electrical malfunc-
tion occur.
1Lens
Pry off lens1 using a srewdriver.

Turn the key in the starter switch to
position1 or2.

Remove the crank from the Operator’s
Manual pouch.
2Crank

Insert crank2 through hole.

Turn crank2 clockwise to:

slide roof closed


raise roof at the rear

Turn crank2 counterclockwise to:

slide roof open


lower roof at the rear
The sliding/pop-up roof must be resyn-
chronized after being operated manually
(
page 175).

302 Practical hintsReplacing bulbs

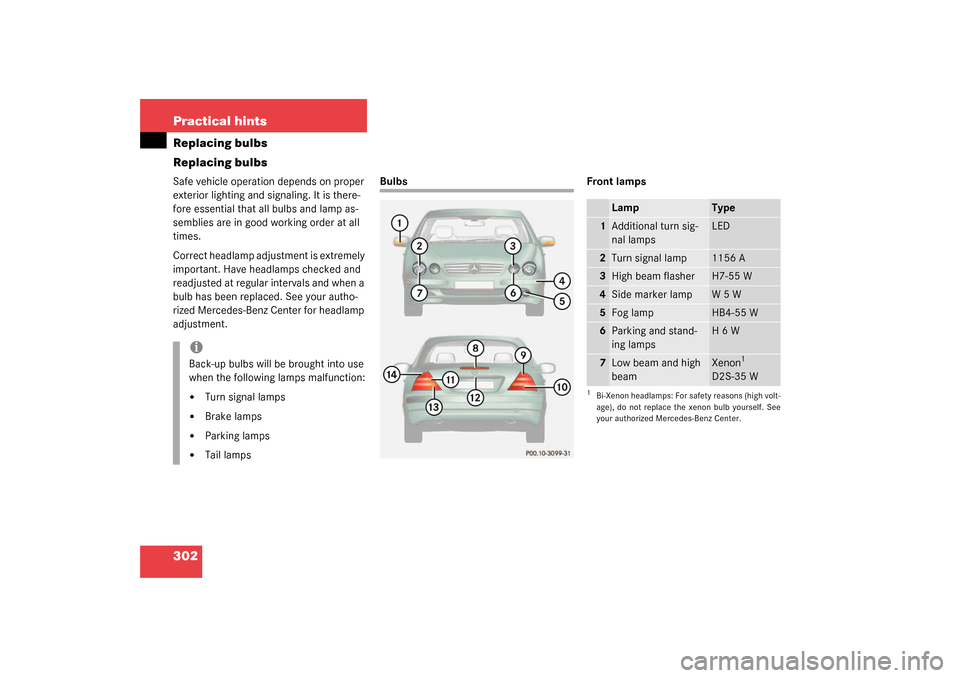

Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.
Bulbs Front lamps
iBack-up bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps


Brake lamps


Parking lamps


Tail lamps
Lamp
Type
1
Additional turn sig-
nal lamps
LED
2
Turn signal lamp
1156 A
3
High beam flasher
H7-55 W
4
Side marker lamp
W 5 W
5
Fog lamp
HB4-55 W
6
Parking and stand-
ing lamps
H 6 W
7
Low beam and high
beam
Xenon
1
D2S-35 W
1Bi-Xenon headlamps: For safety reasons (high volt-
age), do not replace the xenon bulb yourself. See
your authorized Mercedes-Benz Center.

303 Practical hints
Replacing bulbs

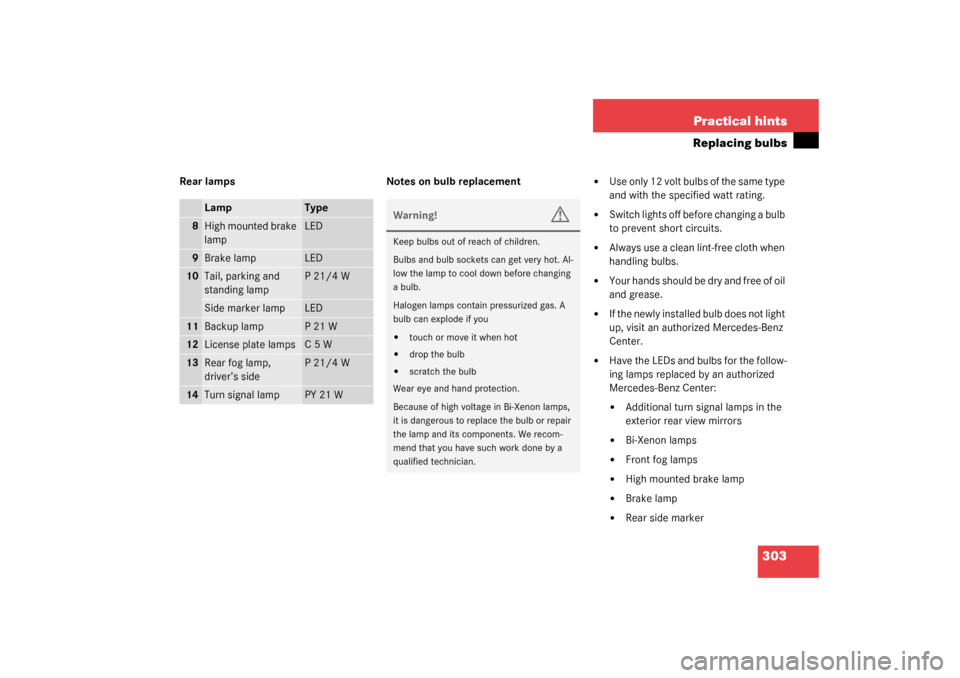

Rear lamps Notes on bulb replacement


Use only 12 volt bulbs of the same type
and with the specified watt rating.


Switch lights off before changing a bulb
to prevent short circuits.


Always use a clean lint-free cloth when
handling bulbs.


Your hands should be dry and free of oil
and grease.


If the newly installed bulb does not light
up, visit an authorized Mercedes-Benz
Center.


Have the LEDs and bulbs for the follow-
ing lamps replaced by an authorized
Mercedes-Benz Center:

Additional turn signal lamps in the
exterior rear view mirrors


Bi-Xenon lamps


Front fog lamps


High mounted brake lamp


Brake lamp


Rear side marker
Lamp
Type
8
High mounted brake
lamp
LED
9
Brake lamp
LED
10
Tail, parking and
standing lamp
P 21/4 W
Side marker lamp
LED
11
Backup lamp
P 21 W
12
License plate lamps
C 5 W
13
Rear fog lamp,
driver’s side
P 21/4 W
14
Turn signal lamp
PY 21 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can get very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you

touch or move it when hot


drop the bulb


scratch the bulb
Wear eye and hand protection.
Because of high voltage in Bi-Xenon lamps,
it is dangerous to replace the bulb or repair
the lamp and its components. We recom-
mend that you have such work done by a
qualified technician.

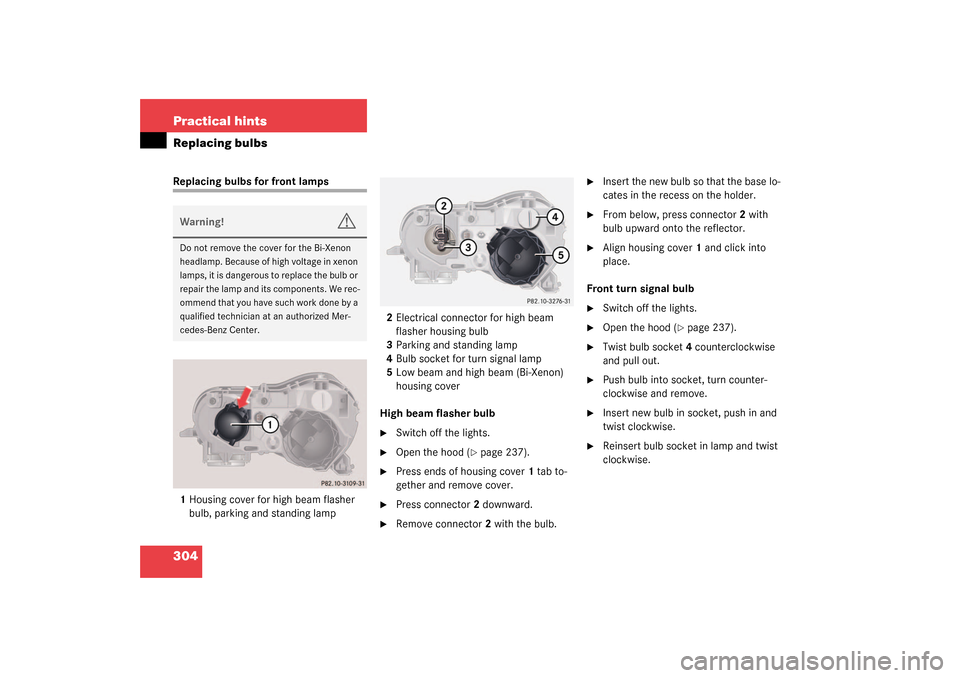

304 Practical hintsReplacing bulbsReplacing bulbs for front lamps
1Housing cover for high beam flasher
bulb, parking and standing lamp2Electrical connector for high beam
flasher housing bulb
3Parking and standing lamp
4Bulb socket for turn signal lamp
5Low beam and high beam (Bi-Xenon)
housing cover
High beam flasher bulb

Switch off the lights.

Open the hood (
page 237).

Press ends of housing cover1 tab to-
gether and remove cover.

Press connector2 downward.

Remove connector2 with the bulb.

Insert the new bulb so that the base lo-
cates in the recess on the holder.

From below, press connector2 with
bulb upward onto the reflector.

Align housing cover1 and click into
place.
Front turn signal bulb

Switch off the lights.

Open the hood (
page 237).

Twist bulb socket4 counterclockwise
and pull out.

Push bulb into socket, turn counter-
clockwise and remove.

Insert new bulb in socket, push in and
twist clockwise.

Reinsert bulb socket in lamp and twist
clockwise.
Warning!
G
Do not remove the cover for the Bi-Xenon
headlamp. Because of high voltage in xenon
lamps, it is dangerous to replace the bulb or
repair the lamp and its components. We rec-
ommend that you have such work done by a
qualified technician at an authorized Mer-
cedes-Benz Center.

305 Practical hints
Replacing bulbs

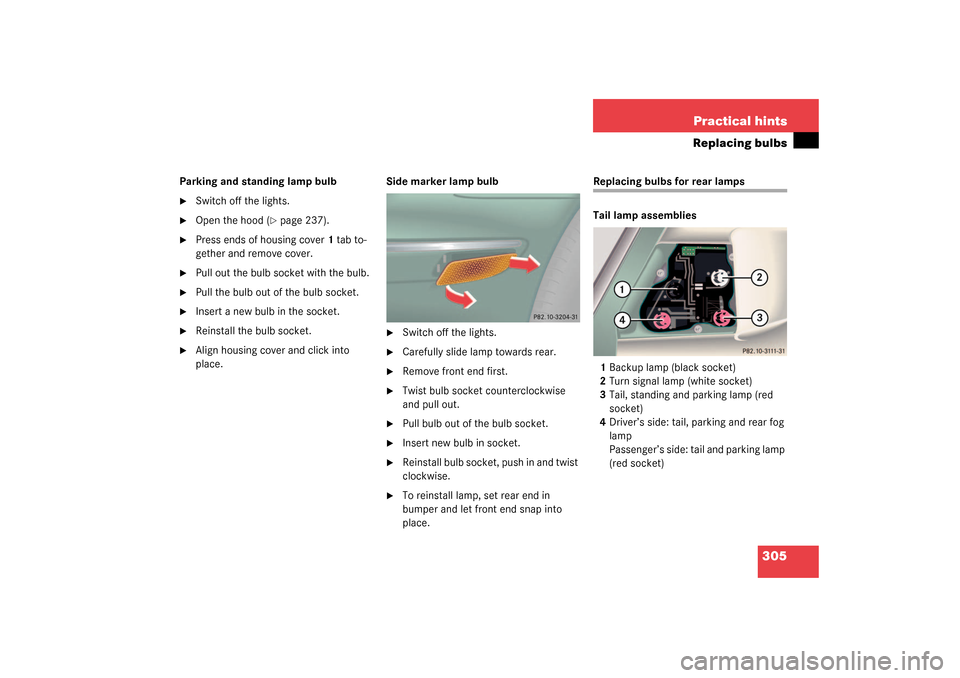

Parking and standing lamp bulb
Switch off the lights.

Open the hood (
page 237).

Press ends of housing cover1 tab to-
gether and remove cover.

Pull out the bulb socket with the bulb.

Pull the bulb out of the bulb socket.

Insert a new bulb in the socket.

Reinstall the bulb socket.

Align housing cover and click into
place.Side marker lamp bulb

Switch off the lights.

Carefully slide lamp towards rear.

Remove front end first.

Twist bulb socket counterclockwise
and pull out.

Pull bulb out of the bulb socket.

Insert new bulb in socket.

Reinstall bulb socket, push in and twist
clockwise.

To reinstall lamp, set rear end in
bumper and let front end snap into
place.
Replacing bulbs for rear lamps
Tail lamp assemblies
1Backup lamp (black socket)
2Turn signal lamp (white socket)
3Tail, standing and parking lamp (red
socket)
4Driver’s side: tail, parking and rear fog
lamp
Passenger’s side: tail and parking lamp
(red socket)

306 Practical hintsReplacing bulbs

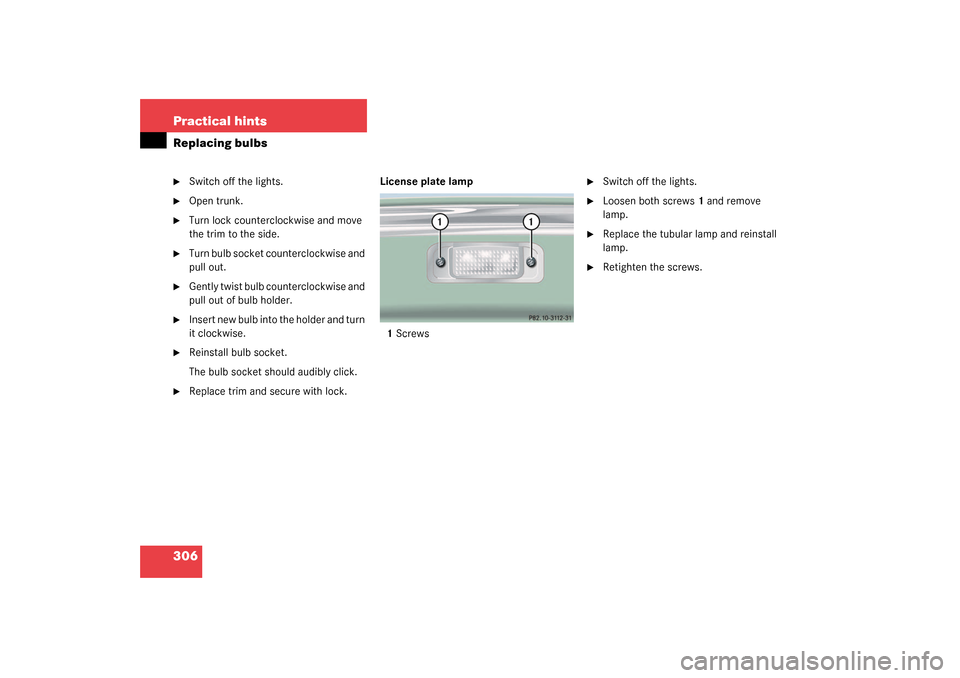

Switch off the lights.

Open trunk.

Turn lock counterclockwise and move
the trim to the side.

Turn bulb socket counterclockwise and
pull out.

Gently twist bulb counterclockwise and
pull out of bulb holder.

Insert new bulb into the holder and turn
it clockwise.

Reinstall bulb socket.
The bulb socket should audibly click.

Replace trim and secure with lock. License plate lamp
1Screws

Switch off the lights.

Loosen both screws1 and remove
lamp.

Replace the tubular lamp and reinstall
lamp.

Retighten the screws.

307 Practical hints
Replacing wiper blades

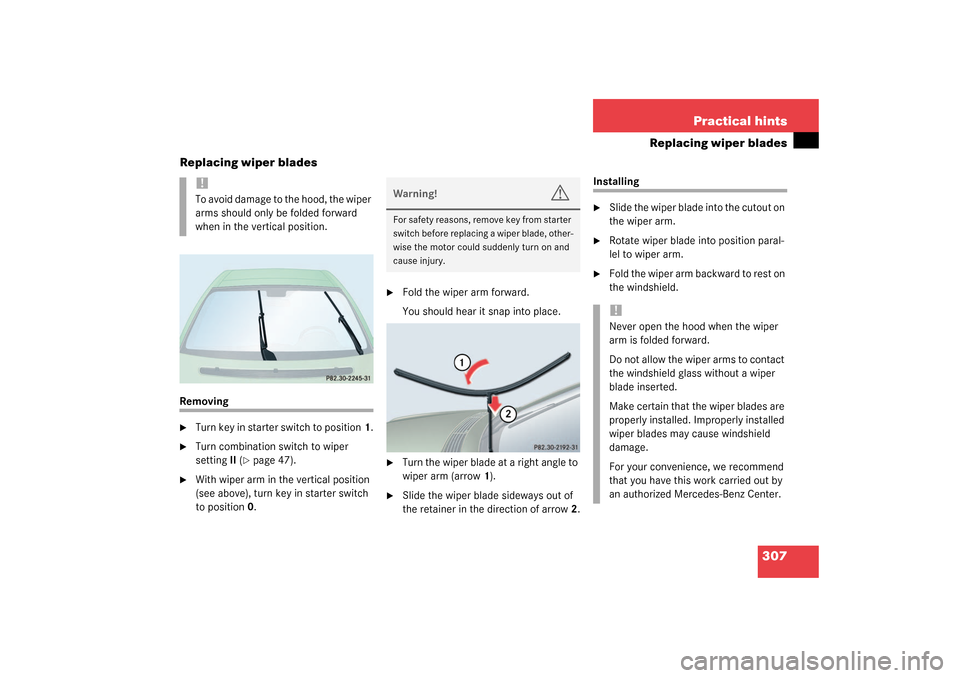

Replacing wiper blades
Removing
Turn key in starter switch to position1.

Turn combination switch to wiper
settingII (
page 47).

With wiper arm in the vertical position
(see above), turn key in starter switch
to position0.

Fold the wiper arm forward.
You should hear it snap into place.

Turn the wiper blade at a right angle to
wiper arm (arrow 1).

Slide the wiper blade sideways out of
the retainer in the direction of arrow2.
Installing
Slide the wiper blade into the cutout on
the wiper arm.

Rotate wiper blade into position paral-
lel to wiper arm.

Fold the wiper arm backward to rest on
the windshield.
!To avoid damage to the hood, the wiper
arms should only be folded forward
when in the vertical position.
Warning!
G
For safety reasons, remove key from starter
switch before replacing a wiper blade, other-
wise the motor could suddenly turn on and
cause injury.
!Never open the hood when the wiper
arm is folded forward.
Do not allow the wiper arms to contact
the windshield glass without a wiper
blade inserted.
Make certain that the wiper blades are
properly installed. Improperly installed
wiper blades may cause windshield
damage.
For your convenience, we recommend
that you have this work carried out by
an authorized Mercedes-Benz Center.

308 Practical hintsFlat tire
Flat tirePreparing the vehicle
Park the vehicle as far as possible from
moving traffic on a hard surface.

Turn on the hazard warning flashers.

Engage the steering wheel lock in the
straight ahead position and set the
parking brake.

Move the selector lever toP.

Have any passenger exit the vehicle at
a safe distance from the roadway.
Mounting the spare wheel
Spare wheel
Spare wheel CL 500 and CL 600 (except
Sport Package*)
The spare wheel rim is mounted with a full
sized tire of the same type as on the vehi-
cle, and it is fully functional.However, that spare wheel rim is weight
optimized and has a limited service life of
12 000 miles (20 000 km) use before a
standard wheel rim must replace it.
More information can be found in the
“Technical data” section (
page 333).Spare wheel CL 55 AMG and
Sport Package*
Warning!
G
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
Drive to the nearest Mercedes-Benz-Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.
Never operate the vehicle with more than
one spare wheel mounted.
Warning!
G
The dimensions of the spare wheel are dif-
ferent from those of the road wheels. As a
result, the vehicle handling characteristics
change when driving with a mounted spare
wheel. Adapt your driving style accordingly.
The spare wheel rim is for temporary use
only. Use for over a total of 12 000 miles
(20 000 km) (aggregate of all uses) may
cause wheel rim failure leading to an acci-
dent and possible injuries.
Never operate the vehicle with more than
one spare wheel mounted.
When driving with spare wheel mounted, en-
sure proper tire pressure and do not exceed
vehicle speed of 50 mph (80 km).
Drive to the nearest Mercedes-Benz-Center
as soon as possible to have the spare wheel
replaced with a regular road wheel.

309 Practical hints
Flat tire

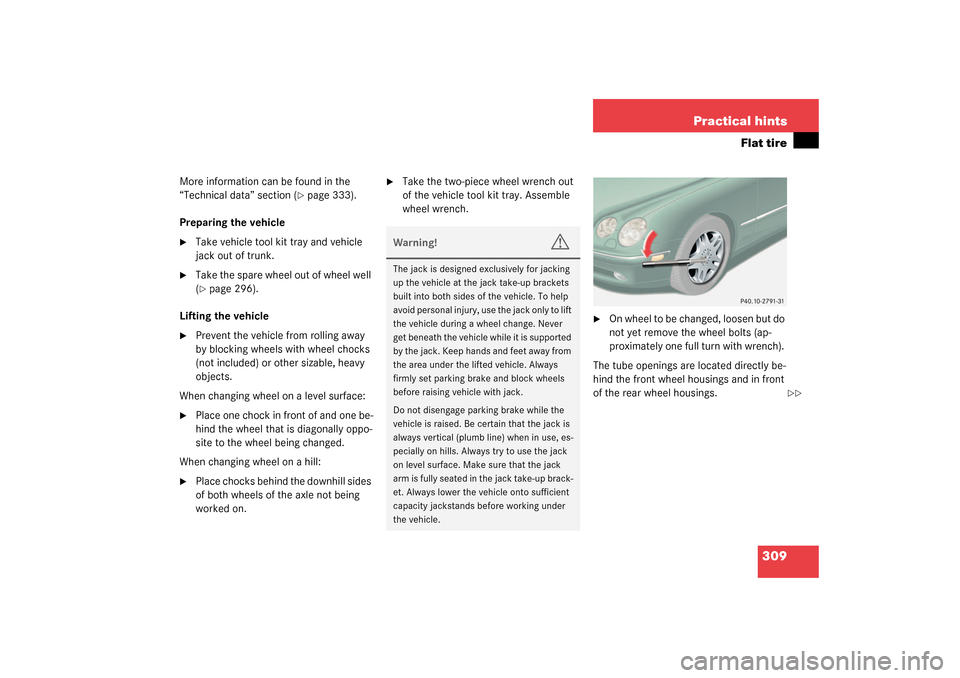

More information can be found in the
“Technical data” section (
page 333).
Preparing the vehicle

Take vehicle tool kit tray and vehicle
jack out of trunk.

Take the spare wheel out of wheel well
(page 296).
Lifting the vehicle

Prevent the vehicle from rolling away
by blocking wheels with wheel chocks
(not included) or other sizable, heavy
objects.
When changing wheel on a level surface:

Place one chock in front of and one be-
hind the wheel that is diagonally oppo-
site to the wheel being changed.
When changing wheel on a hill:

Place chocks behind the downhill sides
of both wheels of the axle not being
worked on.

Take the two-piece wheel wrench out
of the vehicle tool kit tray. Assemble
wheel wrench.

On wheel to be changed, loosen but do
not yet remove the wheel bolts (ap-
proximately one full turn with wrench).
The tube openings are located directly be-
hind the front wheel housings and in front
of the rear wheel housings.
Warning!
G
The jack is designed exclusively for jacking
up the vehicle at the jack take-up brackets
built into both sides of the vehicle. To help
avoid personal injury, use the jack only to lift
the vehicle during a wheel change. Never
get beneath the vehicle while it is supported
by the jack. Keep hands and feet away from
the area under the lifted vehicle. Always
firmly set parking brake and block wheels
before raising vehicle with jack.
Do not disengage parking brake while the
vehicle is raised. Be certain that the jack is
always vertical (plumb line) when in use, es-
pecially on hills. Always try to use the jack
on level surface. Make sure that the jack
arm is fully seated in the jack take-up brack-
et. Always lower the vehicle onto sufficient
capacity jackstands before working under
the vehicle.


310 Practical hintsFlat tire1Jack support tube cover
Move cover1 toward rear by pressing
at point indicated by arrow.

Remove cover1 carefully to avoid
damage to the locking tabs.1Jack arm
2Jack support tube hole
3Crank

Insert jack arm1 fully into tube hole2
up to the stop.

Keeping jack in this position, turn
crank3 clockwise until the jack base
meets the ground. Make sure the jack
is vertical (plumb line).

Continue to turn the crank until the tire
is a maximum of 1.2 in (3 cm) from the
ground.
Warning!
G
Insert the jack arm fully into the jack sup-
port tube hole up to the stop. Otherwise the
vehicle may fall from the jack and cause per-
sonal injury or damage to the vehicle.
Warning!
G
The jack is intended only for lifting the vehi-
cle briefly for wheel changes. It is not suited
for performing maintenance work under the
vehicle.

Never start the engine when the vehicle
is raised.


Never lie down under the raised vehicle.
