maintenance reset MERCEDES-BENZ CL500 2003 C215 Owner's Manual

Contents
Engine compartment ......................... 237
Hood ............................................ 237
Engine oil ..................................... 238
Transmission fluid level ................ 242
Active Body Control (ABC)
fluid level...................................... 242
Coolant ........................................ 242
Battery ......................................... 243
Windshield washer system and
headlamp cleaning system ........... 244
Tires and wheels ................................ 246
Important guidelines .................... 246
Life of tires ................................... 247
Direction of rotation ..................... 247
Checking tire inflation pressure ... 247
Rotating wheels ........................... 251
Winter driving .................................... 252
Winter tires .................................. 252
Block heater* ............................... 253
Snow chains................................. 253Maintenance....................................... 254
Clearing the service indicator ....... 254
Service term exceeded ................. 254
Calling up the service indicator..... 255
Resetting the service indicator ..... 255
Vehicle care........................................ 256
Cleaning and care of vehicle ......... 256
Practical hints.................................. 263
What to do if …? ................................. 264
Lamps in instrument cluster ......... 264
Lamp in center console................. 269
Messages in the display ................ 270
Where will I find...? ............................. 295
First aid kit .................................... 295
Vehicle jack, vehicle tool kit,
luggage bowl, spare wheel ............ 295
Unlocking/locking in an emergency... 297
Unlocking the vehicle.................... 297
Locking the vehicle ....................... 298
Changing batteries........................ 299
Fuel filler flap ................................ 300Opening/closing in an emergency ..... 301
Sliding/pop-up roof ...................... 301
Replacing bulbs .................................. 302
Bulbs............................................. 302
Replacing bulbs for front lamps .... 304
Replacing bulbs for rear lamps ..... 305
Replacing wiper blades ...................... 307
Removing ...................................... 307
Installing ....................................... 307
Flat tire............................................... 308
Preparing the vehicle .................... 308
Mounting the spare wheel ............ 308
Battery ............................................... 313
Disconnecting the battery ............ 314
Removing the battery ................... 314
Charging and reinstalling
the battery .................................... 314
Reconnecting the battery ............. 315
Jump starting...................................... 316
Towing the vehicle.............................. 318
Installing towing eye bolt .............. 321

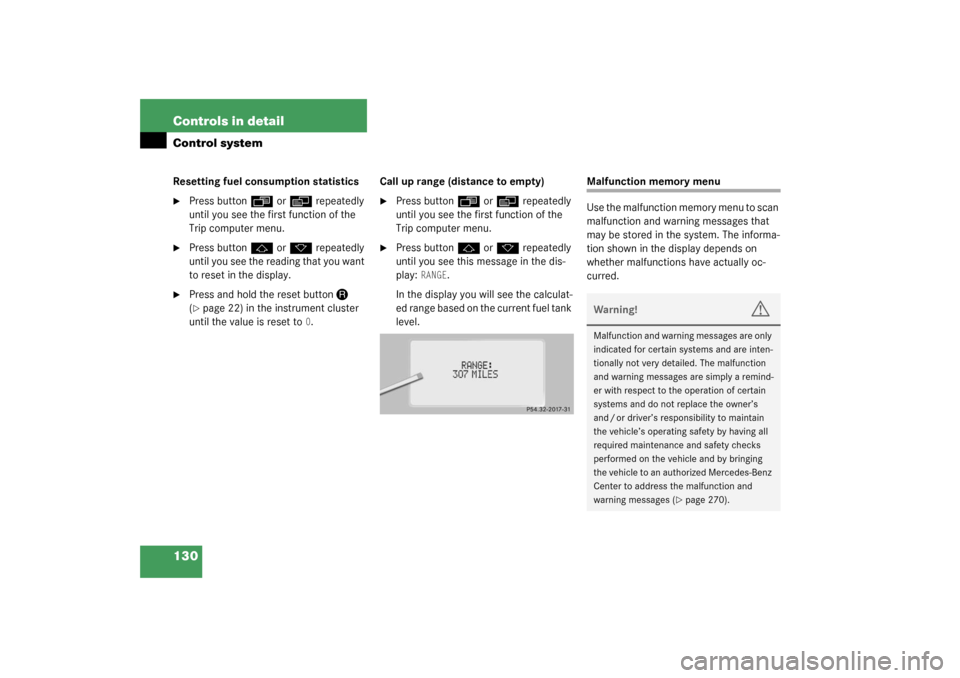

130 Controls in detailControl systemResetting fuel consumption statistics
Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset button
J

(
page 22) in the instrument cluster
until the value is reset to
0.Call up range (distance to empty)

Press button
ÿ
or
è
repeatedly
until you see the first function of the
Trip computer menu.

Press button
j
or
k
repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
Malfunction memory menu
Use the malfunction memory menu to scan
malfunction and warning messages that
may be stored in the system. The informa-
tion shown in the display depends on
whether malfunctions have actually oc-
curred.Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and / or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 270).

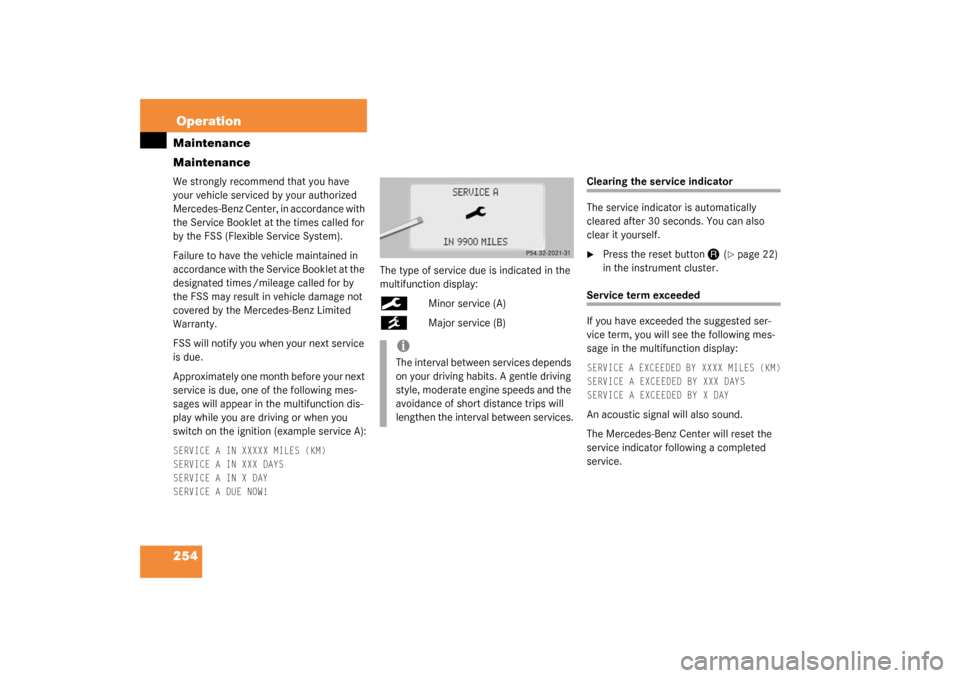

254OperationMaintenance
MaintenanceWe strongly recommend that you have
your vehicle serviced by your authorized
Mercedes-Benz Center, in accordance with
the Service Booklet at the times called for
by the FSS (Flexible Service System).
Failure to have the vehicle maintained in
accordance with the Service Booklet at the
designated times /mileage called for by
the FSS may result in vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.
FSS will notify you when your next service
is due.
Approximately one month before your next
service is due, one of the following mes-
sages will appear in the multifunction dis-
play while you are driving or when you
switch on the ignition (example service A):SERVICE A IN XXXXX MILES (KM)
SERVICE A IN XXX DAYS
SERVICE A IN X DAY
SERVICE A DUE NOW!
The type of service due is indicated in the
multifunction display:9
Minor service (A)
´
Major service (B)
Clearing the service indicator
The service indicator is automatically
cleared after 30 seconds. You can also
clear it yourself.
Press the reset button
J
(page 22)
in the instrument cluster.
Service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the multifunction display:SERVICE A EXCEEDED BY XXXX MILES (KM)
SERVICE A EXCEEDED BY XXX DAYS
SERVICE A EXCEEDED BY X DAYAn acoustic signal will also sound.
The Mercedes-Benz Center will reset the
service indicator following a completed
service.
iThe interval between services depends
on your driving habits. A gentle driving
style, moderate engine speeds and the
avoidance of short distance trips will
lengthen the interval between services.

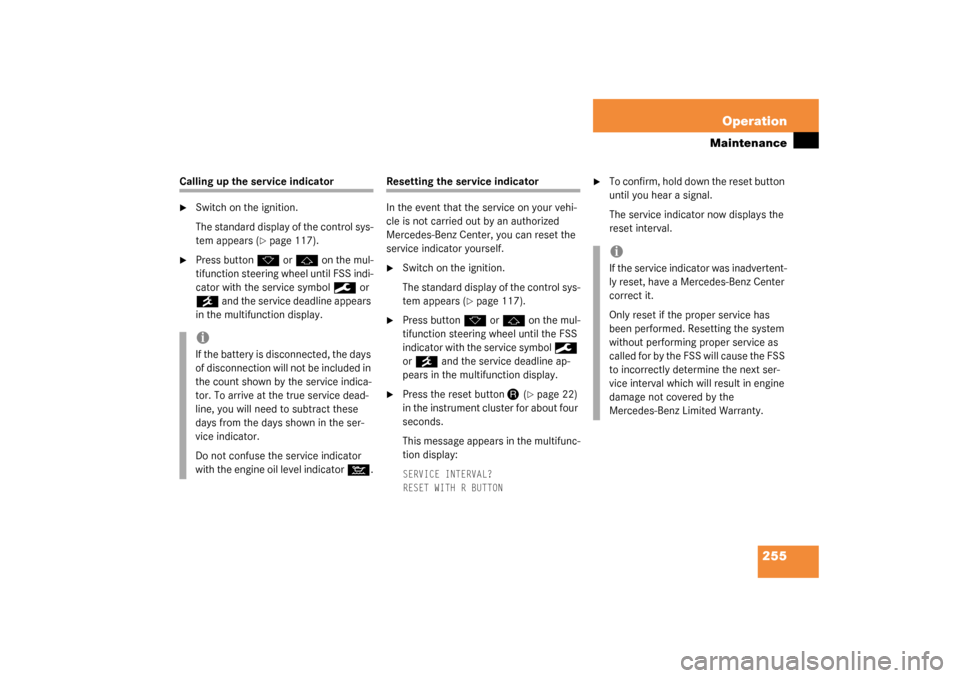

255 Operation
Maintenance
Calling up the service indicator
Switch on the ignition.
The standard display of the control sys-
tem appears (
page 117).

Press button
k
or
j
on the mul-
tifunction steering wheel until FSS indi-
cator with the service symbol
9
or
´
and the service deadline appears
in the multifunction display.
Resetting the service indicator
In the event that the service on your vehi-
cle is not carried out by an authorized
Mercedes-Benz Center, you can reset the
service indicator yourself.
Switch on the ignition.
The standard display of the control sys-
tem appears (
page 117).

Press button
k
or
j
on the mul-
tifunction steering wheel until the FSS
indicator with the service symbol
9

or
´
and the service deadline ap-
pears in the multifunction display.

Press the reset button
J
(page 22)
in the instrument cluster for about four
seconds.
This message appears in the multifunc-
tion display:
SERVICE INTERVAL?
RESET WITH R BUTTON

To confirm, hold down the reset button
until you hear a signal.
The service indicator now displays the
reset interval.
iIf the battery is disconnected, the days
of disconnection will not be included in
the count shown by the service indica-
tor. To arrive at the true service dead-
line, you will need to subtract these
days from the days shown in the ser-
vice indicator.
Do not confuse the service indicator
with the engine oil level indicator
:
.
iIf the service indicator was inadvertent-
ly reset, have a Mercedes-Benz Center
correct it.
Only reset if the proper service has
been performed. Resetting the system
without performing proper service as
called for by the FSS will cause the FSS
to incorrectly determine the next ser-
vice interval which will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.
