Page 7 of 418
ContentsUseful features .................................. 221
Storage compartments................. 221
Ashtrays ....................................... 227
Cigarette lighter ........................... 228
Heated steering wheel* ............... 228
Telephone*................................... 229
Tele Aid ........................................ 230
Garage door opener ..................... 238
Infrared reflecting windshield ....... 244
Operation........................................ 245
The first 1000 miles (1500 km) ......... 246
Driving instructions............................ 247
Drive sensibly – save fuel ............. 247
Drinking and driving ..................... 247
Pedals .......................................... 247
Power assistance ......................... 247
Brakes .......................................... 248
Driving off .................................... 249
Parking ......................................... 249
Tires ............................................. 250
Hydroplaning ................................ 251
Tire traction.................................. 251
Tire speed rating .......................... 251
Winter driving instructions ........... 252
Standing water ............................. 253
Passenger compartment .............. 254
Driving abroad.............................. 254
Control and operation of radio
transmitters ................................. 254
Catalytic converter ....................... 255
Emission control .......................... 255
Coolant temperature .................... 256At the gas station .............................. 257
Refueling ...................................... 257
Check regularly and before a
long trip ....................................... 258
Engine compartment ......................... 260
Hood ............................................ 260
Engine oil ..................................... 261
Transmission fluid level................ 266
Active Body Control (ABC)
fluid level ..................................... 266
Coolant ........................................ 266
Battery ......................................... 268
Windshield washer system and
headlamp cleaning system........... 269
Tires and wheels................................ 270
Important guidelines .................... 270
Life of tires................................... 271
Direction of rotation..................... 271
Checking tire inflation pressure ... 271
Rotating wheels ........................... 279
Winter driving .................................... 280
Winter tires .................................. 280
Block heater (Canada only) .......... 281
Snow chains................................. 281
Page 9 of 418
ContentsTechnical data.................................. 359
Spare parts service ............................ 360
Warranty coverage ............................. 361
Loss of Service and Warranty
Information Booklet...................... 361
Identification labels............................ 362
Layout of poly-V-belt drive ................. 363
CL 500 ......................................... 363
CL 55 AMG ................................... 363
CL 600 ......................................... 363
Engine ................................................ 364
Rims and Tires ................................... 365
Same size tires ............................. 366
Mixed size tires ............................ 368
Spare wheel ................................. 369
Electrical system................................ 370
Main Dimensions and weights ........... 371
Main Dimensions.......................... 371
Weights ........................................ 371Fuels, coolants, lubricants, etc. ......... 372
Capacities .................................... 372
Engine oils.................................... 374
Engine oil additives ...................... 374
Air conditioning refrigerant .......... 374
Brake fluid .................................... 375
Premium unleaded gasoline ......... 375
Fuel requirements ........................ 375
Gasoline additives ........................ 376
Coolants....................................... 376
Windshield and headlamp washer
system ......................................... 379
Consumer information ....................... 380
Uniform tire quality grading ......... 380
Technical terms............................... 383Index................................................. 389
Page 52 of 418
51 Getting started
Driving
Single wipe
Press switch briefly in the direction of
arrow1.
The windshield wipers wipe one time
without washer fluid.
Wiping with windshield washer fluid
Press switch in the direction of
arrow1 past the resistance point.
The windshield wiper operates with
washer fluid.
For information on filling up the washer
reservoir, see “Windshield washer system
and headlamp cleaning system”
(
page 269)
!If anything blocks the windshield wip-
ers (leaves, snow, etc.), switch them off
immediately.
For safety reasons,
turn off the engine by turning
the SmartKey to position0 and
withdraw SmartKey from starter
switch
or
turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, starter switch is in
position0, same as with
SmartKey removed from starter
switch)
before attempting to remove any
blockage.
Remove blockage.
Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,
set the combination switch to the
next highest wiper speed
have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center
Page 259 of 418
258OperationAt the gas station
Replace the fuel cap by turning it to the
right.
You will hear when the fuel cap is tight-
ened.
Close the fuel filler flap.
Check regularly and before a long trip
1Windshield washer and headlamp
cleaning system
2Brake fluid
3Coolant level
Warning!
G
Overfilling of the fuel tank may create pres-
sure in the system which could cause a gas
discharge. This could cause the gas to spray
back out when removing the fuel pump noz-
zle, which could cause personal injury.
iOnly use premium unleaded gasoline
with a minimum Posted Octane Rating
of 91 (average of 96 RON / 86 MON).
Information on gasoline quality can
normally be found on the fuel pump.
More information on gasoline can be
found in the Factory Approved Service
Products pamphlet.iLeaving the engine running and the fuel
cap open can cause the ? malfunc-
tion indicator lamp to illuminate.
For more information, see “Practical
hints” (
page 294).
iOpening the hood, see (
page 260).
Page 260 of 418
259 Operation
At the gas station
Windshield washer system and head-
lamp cleaning system
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system”
(page 269).
Coolant
For more information, see “Coolant”
(page 266) and see “Coolants”
(page 376).Brake fluid
For more information on brake fluid, see
“Brake fluid” (
page 375).
Engine oil level
For more information on engine oil, see
“Engine oil” (
page 261).Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 336).
For more information , see “Exterior lamp
switch” (
page 119).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 271).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately.
Notify an authorized Mercedes-Benz
Center immediately. Do not add brake
fluid as this will not solve the problem.
For more information, see “Practical
hints” (
page 293).
Page 270 of 418
269 Operation
Engine compartment
Windshield washer system and headlamp cleaning system
The windshield washer reservoir is located
in the engine compartment.
1Washer fluid reservoir
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approx. 7.1 US qt. (6.7 l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed wind-
shield washer solvent / antifreeze, de-
pending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below
freezing point. Failure to do so could re-
sult in damage to the washer sys-
tem/reservoir.
For more information, see “Windshield and
headlamp washer system” (
page 379).
Warning!
G
Washer solvent /antifreeze is highly flamma-
ble. Do not spill washer solvent /antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.iIf the windshield washer system on
your vehicle is heated*, a fluid mixture
produced to resist freezing at tempera-
tures of approximately 14°F (–10°C)
should be sufficient.

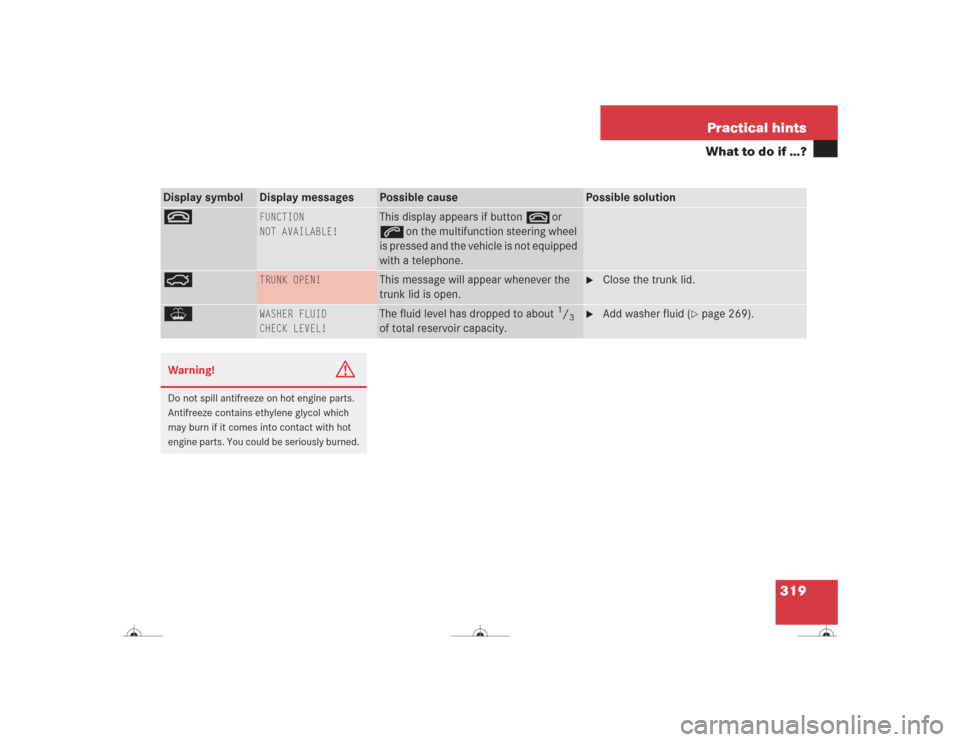

Page 320 of 418
319 Practical hints
What to do if …?
Display symbol
Display messages
Possible cause
Possible solution
t
FUNCTION
NOT AVAILABLE!
This display appears if button t or
son the multifunction steering wheel
is pressed and the vehicle is not equipped
with a telephone.
Ê
TRUNK OPEN!
This message will appear whenever the
trunk lid is open.
Close the trunk lid.
W
WASHER FLUID
CHECK LEVEL!
The fluid level has dropped to about
1/3
of total reservoir capacity.
Add washer fluid (
page 269).
Warning!
G
Do not spill antifreeze on hot engine parts.
Antifreeze contains ethylene glycol which
may burn if it comes into contact with hot
engine parts. You could be seriously burned.
Page 380 of 418
379 Technical data
Fuels, coolants, lubricants, etc.
Windshield and headlamp washer system
Both the windshield and headlamp washer
systems are supplied from the windshield
washer fluid reservoir.
The windshield and headlamp washer fluid
reservoir has a capacity of approx.
7.1 US qt. (6.7 l).
Refill the reservoir with MB Windshield
Washer Concentrate and water (or con-
centrate and commercially available
premixed windshield washer solvent /
antifreeze, depending on ambient tem-
peratures).Windshield and headlamp washer fluid
mixing ratio
For temperatures above freezing point, use
MB Windshield Washer Concentrate “S”
and water:
1 part “S” to 100 parts water
[40 ml “S” to 1 gallon (4 liters) water].
For temperatures below freezing point, use
MB Windshield Washer Concentrate “S”
and commercially available premixed
windshield washer solvent / antifreeze:
1 part “S” to 100 parts solvent
[40 ml “S” to 1 gallon (4 liters) solvent].
Warning
G
Washer solvent /antifreeze is highly flamma-
ble. Do not spill washer solvent /antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.
Page 399 of 418
398 IndexFuel tank
Filler flap 257
Fuels, coolants, lubricants etc. 372
Functions (control system) 131, 133
Resetting 146
Fuse box 356, 357
Fuse chart 329
Fuses 356
Fuse box in dashboard 356
Fuse box in engine compartment 357
Fuse box in passenger
compartment 356
Fuse box in the rear passenger
compartment 357
Fuse chart 329
Fuse extractor 329
Spare fuses 329
G
Garage door opener 27, 238
Erasing in remote control 243
Integrated remote control 240
Rolling code programming 241
Gasoline see Fuel 258Gear range 385
Automatic transmission 159
Limiting 159
Shifting into optimal 158
Gear range limit
Canceling 158
Gear selector lever
Cleaning 289
Position 160
Gearshift pattern for automatic
transmission 45
Global
Locking 89
Unlocking 89
Global Positioning System (GPS) 385
Glove box 21, 221
Closing 221
Locking 221
Opening 221
Unlocking 221
Gloves (vehicle tool kit) 329
Good visibility 167
GPS 231, 385H
Hand-held transmitter
Programming integrated remote
control 240
Hands-free microphone 27
Hard plastic trim items
Cleaning 289
Hazard warning flasher 123
Switching off 124
Switching on 124
Head restraints 108
Headlamp cleaning system 258
Headlamps
Automatic control 120
Bi-Xenon 383
Cleaning 286
Cleaning system 170, 269, 379
Refilling washer fluid 269
Switching off 55
Switching on 49
Headliner
Cleaning 289
Heated steering wheel* 228
Page 403 of 418
402 Index
Storing exterior rear view mirror
parking positions 117
Storing key dependent settings 117
Menus 131
AUDIO 134
Distronic* 142, 201
In control system 132, 133
Malfunction memory 144
NAVI 141
Settings menu 145
Standard display 134
Submenus 131
TEL* 139
Trip computer 143
Microphone
Hands-free microphone 27
Miles/kilometers in speedometer
Setting 148
Mirrors
Activating exterior rear view mirror
parking position 168
Adjusting 40
Automatic antiglare for rear view
mirror 167
Exterior rear view mirror 40Exterior rear view mirror parking
position 156
Exterior rear view mirror parking
positions 156
Interior rear view mirror 40
Storing exterior rear view mirror
parking position 117
MON (Motor Octane Number) 258, 385
Mph or km/h in speedometer 148
Multicontour backrest* 111
Multifunction display 24, 129, 386
Selecting language 149
Standard display 133
Multifunction display messages
ABC 300
ABS 301
BAS 302
Brake fluid 305
Brake pads 305
Check engine 294
Coolant 306
Coolant level 306
Distronic* 302
Doors 309
Engine 294Engine oil level 310
Entry position 312
Hood 312
Key 312
Lamps 315
Parking brake 305
Selector lever 302
SmartKey with KEYLESS-GO* 313
Tele Aid 318
Telephone* 319
Tires 321, 324
Trunk 319
Washer fluid 319
Multifunction steering wheel 24, 130,
386
Buttons 130
N
Navigation system
Operating 141
See separate COMAND operating in-
structions
Night security illumination 121
Nubuck leather upholstery
Cleaning 290
