MERCEDES-BENZ CL500 2007 C216 Owner's Manual

528 Operation
Tires and wheels
Recommended tire inflation pressure
Your vehicle is equipped with the Tire and
Loading Information placard located on
the driver’s door B-pillar (
page 523).
The tire inflation pressure should be
checked regularly and should only be ad-
justed on cold tires. The tires can be con-
sidered cold if the vehicle has been parked
for at least 3 hours or driven less than
1 mile (1.6 km).
Follow recommended cold tire inflation
pressures listed on the Tire and Loading
Information placard on the driver's door
B-pillar.Keeping the tires properly inflated
provides the best handling, tread life and
riding comfort.
In addition to the Tire and Loading
Information placard on the driver’s door
B-pillar, also consult the tire inflation
pressure label (if available) on the fuel filler
flap (
page 509) for any additional infor-
mation pertaining to special driving situa-
tions. For more information, see
“Important notes on tire inflation
pressure” (
page 529).

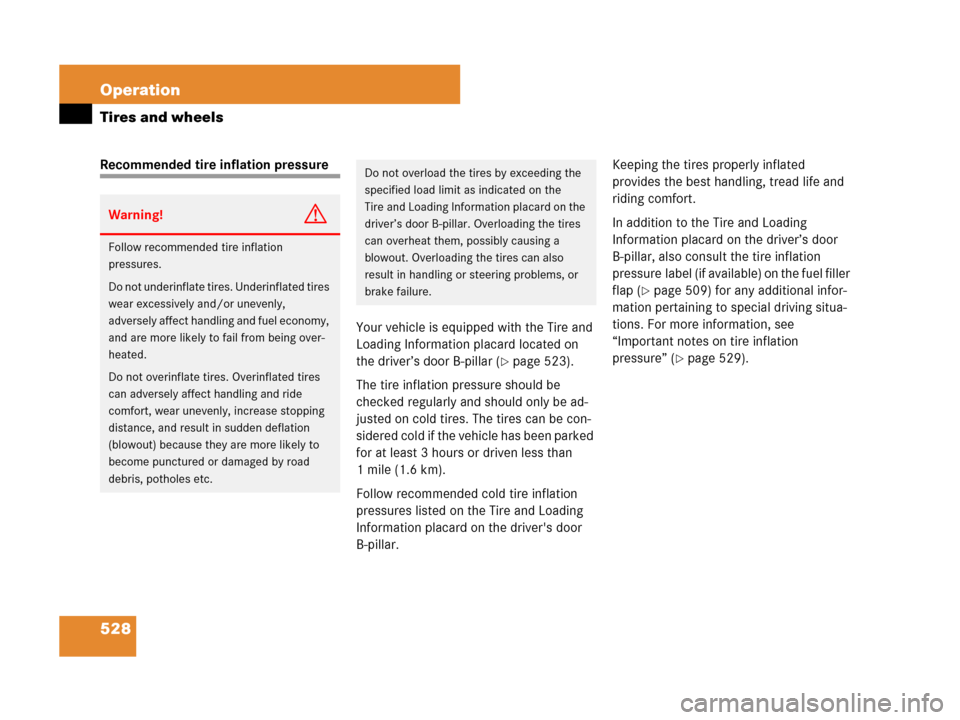

Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being over-
heated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the
Tire and Loading Information placard on the
driver’s door B-pillar. Overloading the tires
can overheat them, possibly causing a
blowout. Overloading the tires can also
result in handling or steering problems, or
brake failure.

529 Operation
Tires and wheels

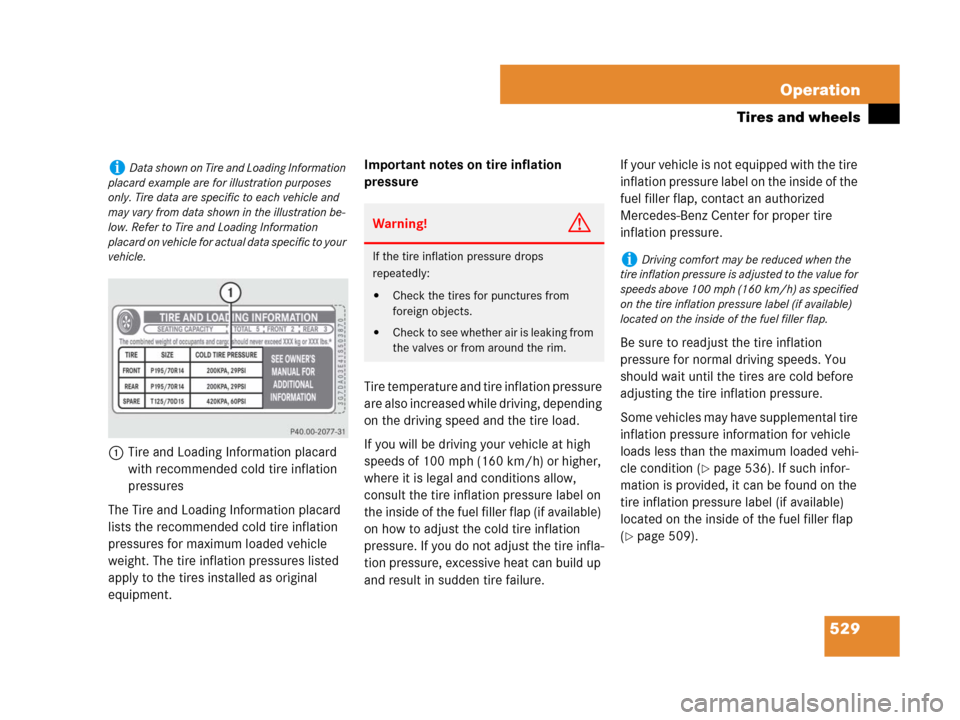

1Tire and Loading Information placard
with recommended cold tire inflation
pressures
The Tire and Loading Information placard
lists the recommended cold tire inflation
pressures for maximum loaded vehicle
weight. The tire inflation pressures listed
apply to the tires installed as original
equipment.Important notes on tire inflation
pressure
Tire temperature and tire inflation pressure
are also increased while driving, depending
on the driving speed and the tire load.
If you will be driving your vehicle at high
speeds of 100 mph (160 km/h) or higher,
where it is legal and conditions allow,
consult the tire inflation pressure label on
the inside of the fuel filler flap (if available)
on how to adjust the cold tire inflation
pressure. If you do not adjust the tire infla-
tion pressure, excessive heat can build up
and result in sudden tire failure.If your vehicle is not equipped with the tire
inflation pressure label on the inside of the
fuel filler flap, contact an authorized
Mercedes-Benz Center for proper tire
inflation pressure.
Be sure to readjust the tire inflation
pressure for normal driving speeds. You
should wait until the tires are cold before
adjusting the tire inflation pressure.
Some vehicles may have supplemental tire
inflation pressure information for vehicle
loads less than the maximum loaded vehi-
cle condition (
page 536). If such infor-
mation is provided, it can be found on the
tire inflation pressure label (if available)
located on the inside of the fuel filler flap
(
page 509).
iData shown on Tire and Loading Information
placard example are for illustration purposes
only. Tire data are specific to each vehicle and
may vary from data shown in the illustration be-
low. Refer to Tire and Loading Information
placard on vehicle for actual data specific to your
vehicle.
Warning!G
If the tire inflation pressure drops
repeatedly:

Check the tires for punctures from
foreign objects.

Check to see whether air is leaking from
the valves or from around the rim.
iDriving comfort may be reduced when the
tire inflation pressure is adjusted to the value for
speeds above 100 mph (160 km/h) as specified
on the tire inflation pressure label (if available)
located on the inside of the fuel filler flap.

530 Operation
Tires and wheels
Tire inflation pressure changes by approxi-
mately 1.5 psi (0.1 bar) per 18°F (10°C) of
air temperature change. Keep this in mind
when checking tire inflation pressure
where the temperature is different from
the outside temperature.
Checking tire inflation pressure
Regularly check your tire inflation pressure
at least once a month.
Check and adjust the tire inflation
pressure when the tires are cold. The tires
can be considered cold if the vehicle has
been parked for at least 3 hours or driven
less than 1 mile (1.6 km).
If you check the tire inflation pressure
when the tires are warm (the vehicle has
been driven for several miles or sitting less
than 3 hours), the reading will be
approximately 4 psi (0.3 bar) higher than
the cold reading. This is normal. Do not let
air out to match the specified cold tire in-
flation pressure. Otherwise, the tire will be
underinflated.Checking tire inflation pressure
manually
Follow the steps below to achieve correct
tire inflation pressure:
Remove the cap from the valve on one
tire.
Firmly press a tire gauge onto the
valve.
Read tire inflation pressure on tire
gauge and check against the recom-
mended tire inflation pressure on the
Tire and Loading Information placard
on the driver’s door B-pillar
(
page 523). If necessary, add air to
achieve the recommended tire inflation
pressure.
Install the valve cap.
Repeat this procedure for each tire.

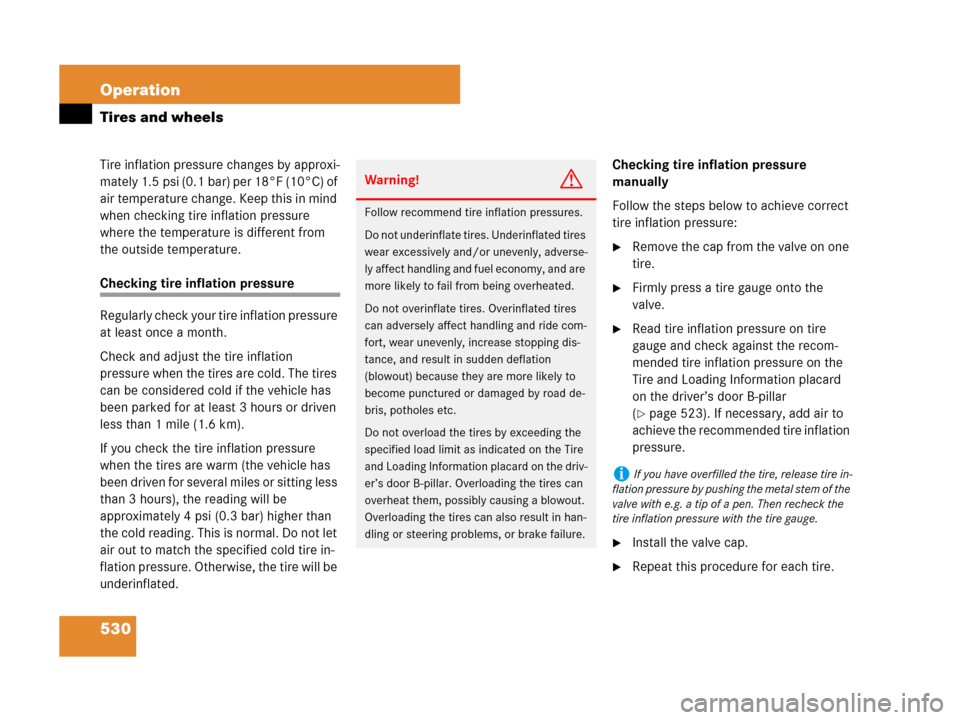

Warning!G
Follow recommend tire inflation pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly, adverse-
ly affect handling and fuel economy, and are
more likely to fail from being overheated.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride com-
fort, wear unevenly, increase stopping dis-
tance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road de-
bris, potholes etc.
Do not overload the tires by exceeding the
specified load limit as indicated on the Tire
and Loading Information placard on the driv-
er’s door B-pillar. Overloading the tires can
overheat them, possibly causing a blowout.
Overloading the tires can also result in han-
dling or steering problems, or brake failure.
iIf you have overfilled the tire, release tire in-
flation pressure by pushing the metal stem of the
valve with e.g. a tip of a pen. Then recheck the
tire inflation pressure with the tire gauge.

531 Operation
Tires and wheels
Checking tire pressure electronically
with the Advanced Tire Pressure
Monitoring System (Advanced TPMS)The Advanced TPMS only functions on
wheels that are equipped with the proper
electronic sensors. It monitors the tire in-
flation pressure, as selected by the driver,
in all four tires. A warning is issued to alert
you to a decrease in pressure in one or
more of the tires.
Tire inflation pressure inquiries are made
using the multifunction display. The
present inflation pressures are displayed
only after a few minutes of travel time.
iThe Advanced Tire Pressure Monitoring
System (Advanced TPMS) is equipped with a
combination low tire pressure/TPMS malfunc-
tion telltale in the instrument cluster
(
page 576). Depending on how the telltale illu-
minates, it indicates a low tire inflation pressure
condition or a malfunction in the Advanced
TPMS system itself:

If the telltale illuminates continuously, one
or more of your tires is significantly underin-
flated. There is no malfunction in the
Advanced TPMS.

If the telltale flashes for 60 seconds and
then stays illuminated, the Advanced TPMS
system itself is not operating properly.
iUSA only:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.
iCanada only:
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following
two conditions:
(1) This device may not cause interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation of the device.
Any unauthorized modification to this device
could void the user’s authority to operate the
equipment.iPossible differences between the readings
of a tire inflation pressure gauge of an air hose,
e.g. gas station equipment, and the vehicle’s
control system can occur. Usually the readings
issued by the control system are more precise.
iThe menu overview can be found on
(
page 258).

532 Operation
Tires and wheels

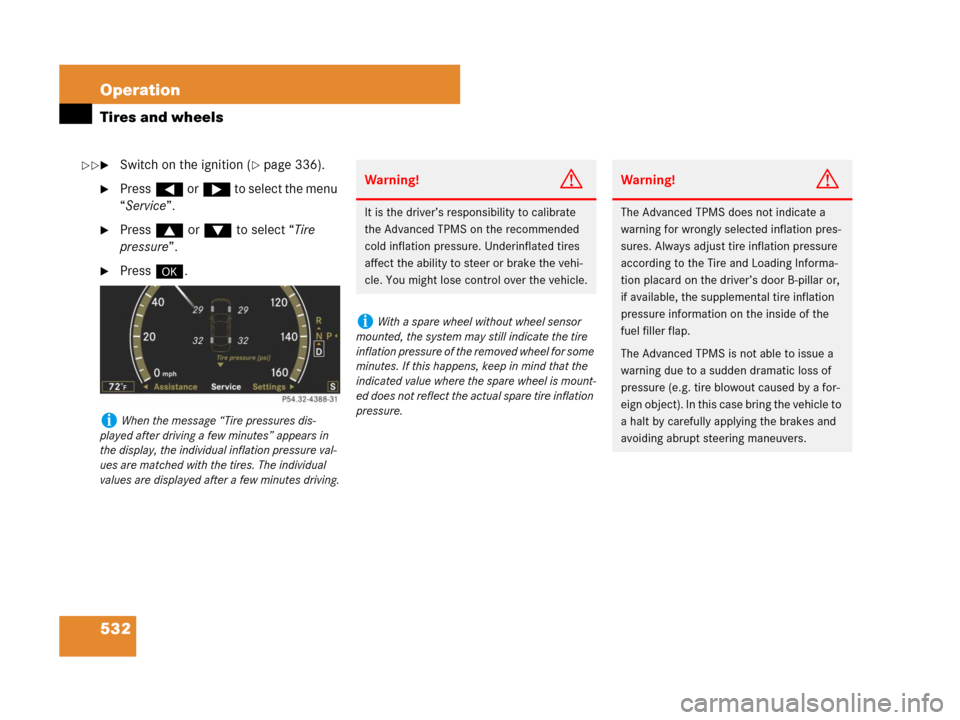

Switch on the ignition (page 336).
Press( or& to select the menu
“Service”.
Press$ or% to select “Tire
pressure”.
Press#.
iWhen the message “Tire pressures dis-
played after driving a few minutes” appears in
the display, the individual inflation pressure val-
ues are matched with the tires. The individual
values are displayed after a few minutes driving.

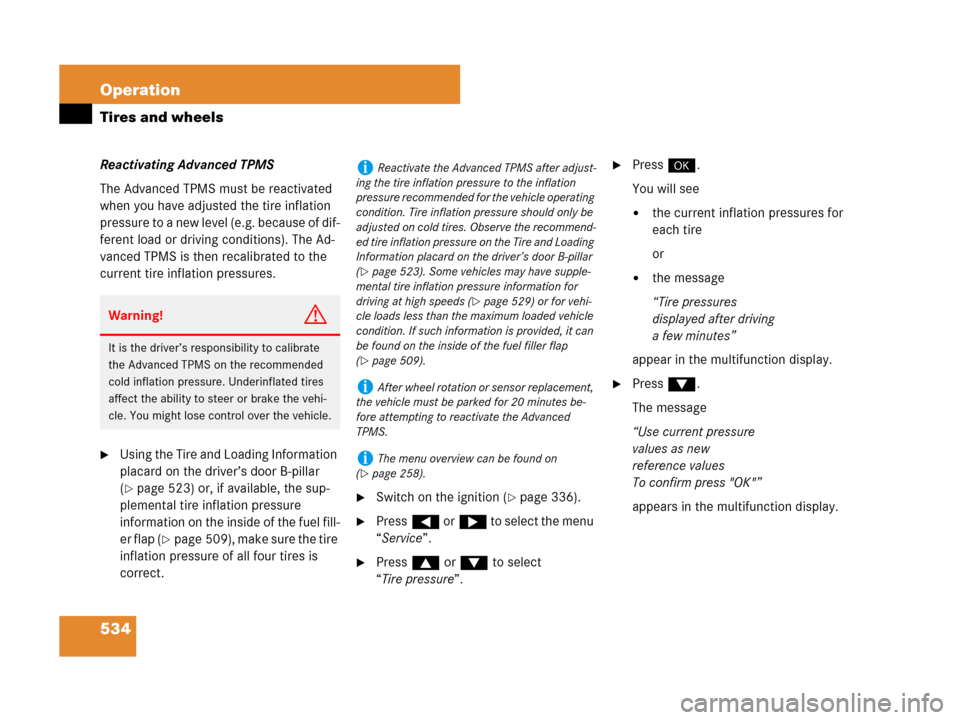

Warning!G
It is the driver’s responsibility to calibrate
the Advanced TPMS on the recommended
cold inflation pressure. Underinflated tires
affect the ability to steer or brake the vehi-
cle. You might lose control over the vehicle.
iWith a spare wheel without wheel sensor
mounted, the system may still indicate the tire
inflation pressure of the removed wheel for some
minutes. If this happens, keep in mind that the
indicated value where the spare wheel is mount-
ed does not reflect the actual spare tire inflation
pressure.
Warning!G
The Advanced TPMS does not indicate a
warning for wrongly selected inflation pres-
sures. Always adjust tire inflation pressure
according to the Tire and Loading Informa-
tion placard on the driver’s door B-pillar or,
if available, the supplemental tire inflation
pressure information on the inside of the
fuel filler flap.
The Advanced TPMS is not able to issue a
warning due to a sudden dramatic loss of
pressure (e.g. tire blowout caused by a for-
eign object). In this case bring the vehicle to
a halt by carefully applying the brakes and
avoiding abrupt steering maneuvers.


533 Operation
Tires and wheels

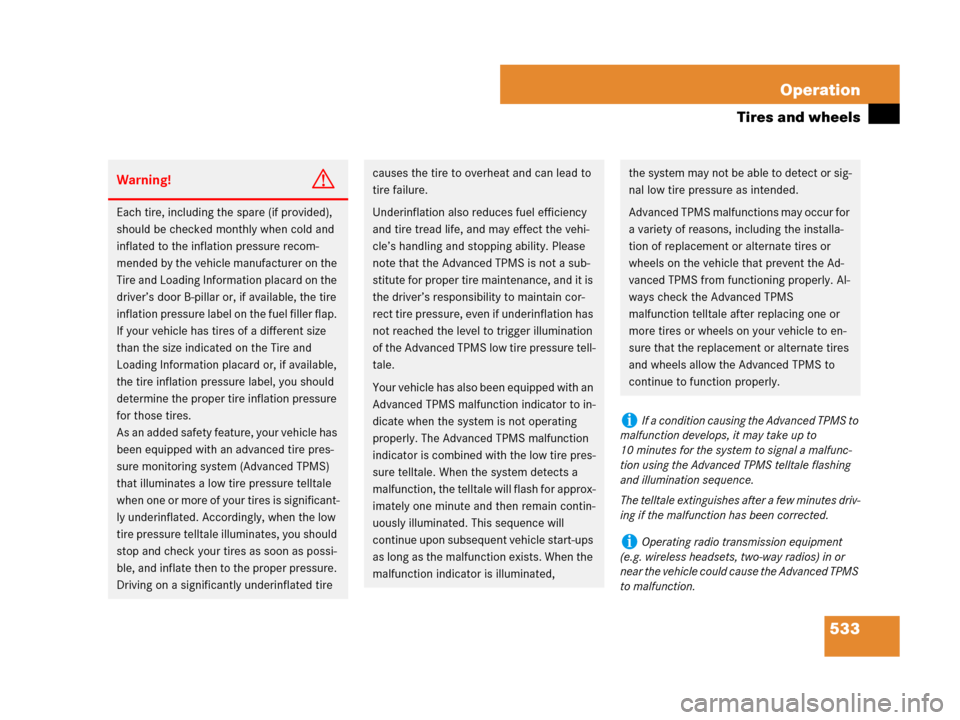

Warning!G
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the
Tire and Loading Information placard on the
driver’s door B-pillar or, if available, the tire
inflation pressure label on the fuel filler flap.
If your vehicle has tires of a different size
than the size indicated on the Tire and
Loading Information placard or, if available,
the tire inflation pressure label, you should
determine the proper tire inflation pressure
for those tires.
As an added safety feature, your vehicle has
been equipped with an advanced tire pres-
sure monitoring system (Advanced TPMS)
that illuminates a low tire pressure telltale
when one or more of your tires is significant-
ly underinflated. Accordingly, when the low
tire pressure telltale illuminates, you should
stop and check your tires as soon as possi-
ble, and inflate then to the proper pressure.
Driving on a significantly underinflated tire
causes the tire to overheat and can lead to
tire failure.
Underinflation also reduces fuel efficiency
and tire tread life, and may effect the vehi-
cle’s handling and stopping ability. Please
note that the Advanced TPMS is not a sub-
stitute for proper tire maintenance, and it is
the driver’s responsibility to maintain cor-
rect tire pressure, even if underinflation has
not reached the level to trigger illumination
of the Advanced TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with an
Advanced TPMS malfunction indicator to in-
dicate when the system is not operating
properly. The Advanced TPMS malfunction
indicator is combined with the low tire pres-
sure telltale. When the system detects a
malfunction, the telltale will flash for approx-
imately one minute and then remain contin-
uously illuminated. This sequence will
continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the
malfunction indicator is illuminated,the system may not be able to detect or sig-
nal low tire pressure as intended.
Advanced TPMS malfunctions may occur for
a variety of reasons, including the installa-
tion of replacement or alternate tires or
wheels on the vehicle that prevent the Ad-
vanced TPMS from functioning properly. Al-
ways check the Advanced TPMS
malfunction telltale after replacing one or
more tires or wheels on your vehicle to en-
sure that the replacement or alternate tires
and wheels allow the Advanced TPMS to
continue to function properly.
iIf a condition causing the Advanced TPMS to
malfunction develops, it may take up to
10 minutes for the system to signal a malfunc-
tion using the Advanced TPMS telltale flashing
and illumination sequence.
The telltale extinguishes after a few minutes driv-
ing if the malfunction has been corrected.
iOperating radio transmission equipment
(e.g. wireless headsets, two-way radios) in or
near the vehicle could cause the Advanced TPMS
to malfunction.

534 Operation
Tires and wheels
Reactivating Advanced TPMS
The Advanced TPMS must be reactivated
when you have adjusted the tire inflation
pressure to a new level (e.g. because of dif-
ferent load or driving conditions). The Ad-
vanced TPMS is then recalibrated to the
current tire inflation pressures.
Using the Tire and Loading Information
placard on the driver’s door B-pillar
(
page 523) or, if available, the sup-
plemental tire inflation pressure
information on the inside of the fuel fill-
er flap (
page 509), make sure the tire
inflation pressure of all four tires is
correct.
Switch on the ignition (page 336).
Press( or& to select the menu
“Service”.
Press$ or% to select
“Tire pressure”.
Press#.
You will see

the current inflation pressures for
each tire
or

the message
“Tire pressures
displayed after driving
a few minutes”
appear in the multifunction display.
Press%.
The message
“Use current pressure
values as new
reference values
To confirm press "OK"”
appears in the multifunction display.
Warning!G
It is the driver’s responsibility to calibrate
the Advanced TPMS on the recommended
cold inflation pressure. Underinflated tires
affect the ability to steer or brake the vehi-
cle. You might lose control over the vehicle.
iReactivate the Advanced TPMS after adjust-
ing the tire inflation pressure to the inflation
pressure recommended for the vehicle operating
condition. Tire inflation pressure should only be
adjusted on cold tires. Observe the recommend-
ed tire inflation pressure on the Tire and Loading
Information placard on the driver’s door B-pillar
(
page 523). Some vehicles may have supple-
mental tire inflation pressure information for
driving at high speeds (
page 529) or for vehi-
cle loads less than the maximum loaded vehicle
condition. If such information is provided, it can
be found on the inside of the fuel filler flap
(
page 509).
iAfter wheel rotation or sensor replacement,
the vehicle must be parked for 20 minutes be-
fore attempting to reactivate the Advanced
TPMS.
iThe menu overview can be found on
(
page 258).

535 Operation
Tires and wheels
Press#.
The message
“Tire pressure monitor
restarted”
appears in the multifunction display.
After a few minutes driving, the current
tire inflation pressure values are ac-
cepted as reference values and then
monitored.
If you wish to cancel activation:
PressL.
or
Press$ to exit menu screen.Potential problems associated with
underinflated and overinflated tires
Underinflated tires
Underinflated tires can:

cause excessive and uneven tire wear

adversely affect fuel economy

lead to tire failure from being
overheated

adversely affect handling
characteristicsOverinflated tires
Overinflated tires can:

adversely affect handling
characteristics

cause uneven tire wear

be more prone to damage from road
hazards

adversely affect ride comfort

increase stopping distance
iWhen the wheel positions are changed on
the vehicle, it is possible that the air pressure is
temporarily displayed for the wrong position.
This will be corrected after driving for several
minutes, and the air pressure will be shown for
the correct position.

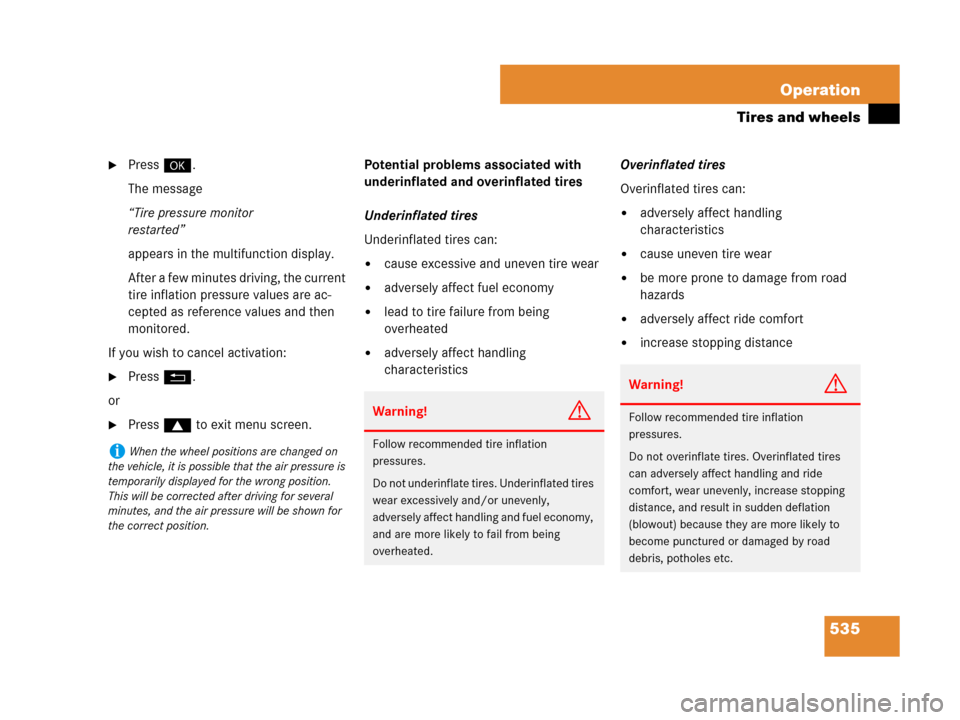

Warning!G
Follow recommended tire inflation
pressures.
Do not underinflate tires. Underinflated tires
wear excessively and/or unevenly,
adversely affect handling and fuel economy,
and are more likely to fail from being
overheated.
Warning!G
Follow recommended tire inflation
pressures.
Do not overinflate tires. Overinflated tires
can adversely affect handling and ride
comfort, wear unevenly, increase stopping
distance, and result in sudden deflation
(blowout) because they are more likely to
become punctured or damaged by road
debris, potholes etc.

536 Operation
Tires and wheels

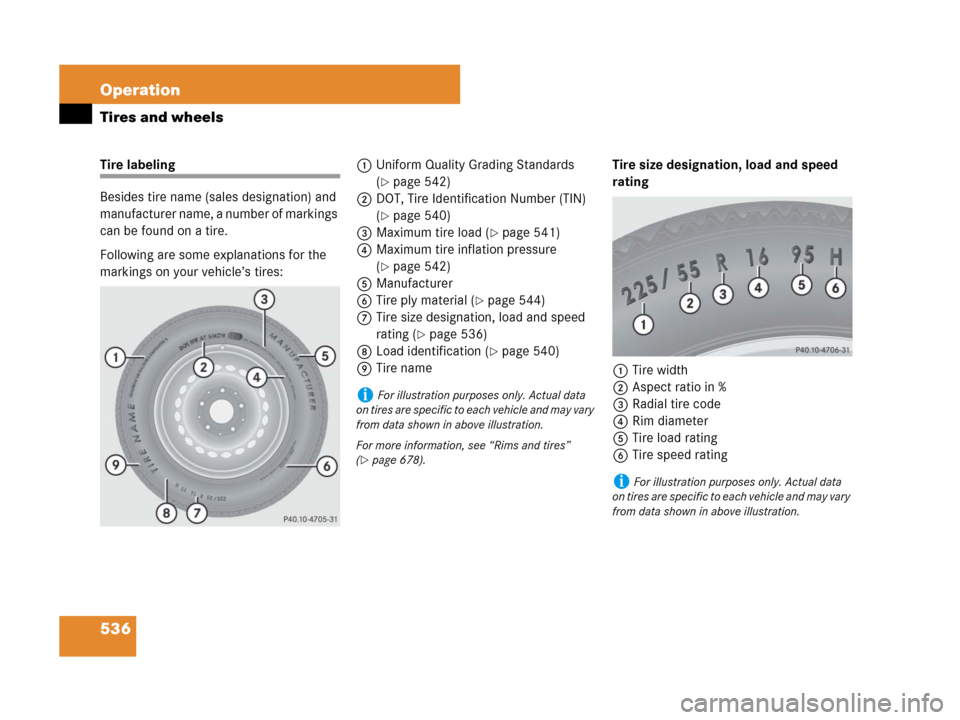

Tire labeling
Besides tire name (sales designation) and
manufacturer name, a number of markings
can be found on a tire.
Following are some explanations for the
markings on your vehicle’s tires:1Uniform Quality Grading Standards
(
page 542)
2DOT, Tire Identification Number (TIN)
(
page 540)
3Maximum tire load (
page 541)
4Maximum tire inflation pressure
(
page 542)
5Manufacturer
6Tire ply material (
page 544)
7Tire size designation, load and speed
rating (
page 536)
8Load identification (
page 540)
9Tire nameTire size designation, load and speed
rating
1Tire width
2Aspect ratio in %
3Radial tire code
4Rim diameter
5Tire load rating
6Tire speed rating
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.
For more information, see “Rims and tires”
(
page 678).
iFor illustration purposes only. Actual data
on tires are specific to each vehicle and may vary
from data shown in above illustration.

537 Operation
Tires and wheels
General:
Depending on the design standards used,
the tire size molded into the sidewall may
have no letter or a letter preceding the tire
size designation.
No letter preceding the size designation
(as illustrated above): Passenger car tire
based on European design standards.
Letter “P” preceding the size designation:
Passenger car tire based on U.S. design
standards.
Letter “LT” preceding the size designation:
Light Truck tire based on U.S. design
standards.
Letter “T” preceding the size designation:
Temporary spare tires which are high
pressure compact spares designed for
temporary emergency use only. Tire width
The tire width1 (
page 536) indicates
the nominal tire width in mm.
Aspect ratio
The aspect ratio2 (
page 536) is the
dimensional relationship between tire
section height and section width and is
expressed in percentage. The aspect ratio
is arrived at by dividing section height by
section width.
Tire code
The tire code3 (
page 536) indicates
the tire construction type. The “R” stands
for radial tire type. Letter “D” means diag-
onal or bias ply construction; letter “B”
means belted-bias ply construction.
At the tire manufacturer’s option, any tire
with a speed capability above 149 mph
(240 km/h) can include a “ZR” in the size
designation (for example: 245/40 ZR 18).
For additional information, see “Tire speed
rating” (
page 538).Rim diameter
The rim diameter4 (
page 536) is the
diameter of the bead seat, not the
diameter of the rim edge. Rim diameter is
indicated in inches (in).
Tire load rating
The tire load rating5 (
page 536) is a
numerical code associated with the
maximum load a tire can support.
For example, a load rating of 91 corre-
sponds to a maximum load of 1 356 lbs
(615 kg) the tire is designed to support.
See also “Maximum tire load”
(
page 541) where the maximum load as-
sociated with the load index is indicated in
kilograms and lbs.
