Contents
Operation......................................... 497
The first 1000 miles (1500 km) ......... 498
Driving instructions ............................ 499
Drive sensibly – save fuel ............. 499
Drinking and driving ..................... 499
Pedals .......................................... 499
Power assistance ......................... 499
Brakes .......................................... 500
Driving off..................................... 501
Parking ......................................... 502
Tires ............................................. 502
Hydroplaning ................................ 503
Tire traction .................................. 503
Tire speed rating .......................... 504
Winter driving instructions ........... 504
Standing water ............................. 505
Passenger compartment .............. 506
Driving abroad .............................. 506
Control and operation
of radio transmitters .................... 506
Catalytic converter ....................... 507
Emission control........................... 507
Coolant temperature .................... 508At the gas station .............................. 509
Refueling ...................................... 509
Check regularly
and before a long trip ................... 511
Engine compartment ......................... 512
Hood ............................................ 512
Engine oil ..................................... 513
Transmission fluid level ................ 517
Active Body Control
(ABC) fluid level ............................ 517
Coolant level ................................ 518
Windshield washer system and
headlamp cleaning system ........... 519
Tires and wheels ................................ 520
Important guidelines .................... 520
Tire care and maintenance ........... 521
Direction of rotation ..................... 523
Loading the vehicle ...................... 523
Recommended
tire inflation pressure ................... 528
Checking tire inflation pressure ... 530
Tire labeling.................................. 536
Load identification ....................... 540
DOT,
Tire Identification Number (TIN) ... 540
Maximum tire load ....................... 541Maximum tire inflation pressure .. 542
Uniform Tire Quality
Grading Standards (U.S. vehicles) 542
Tire ply material ........................... 544
Tire and loading terminology ........ 544
Rotating tires ............................... 548
Winter driving .................................... 549
Winter tires .................................. 549
Snow chains................................. 550
Maintenance...................................... 551
Maintenance
service indicator message ........... 551
Calling up the maintenance
service indicator display .............. 553
Resetting the maintenance
service indicator .......................... 553
Vehicle care....................................... 554
Cleaning and care of vehicle ........ 554
Page 28 of 723
27 At a glance
Exterior view
ItemPage
1Trunk
Unlocking
Opening and closing
Minispare wheel
Vehicle tool kit
461
461
649
632
2Rear lamps642
3Rear window, defrosting457
4Fuel filler flap
Gasoline509
687
5Doors
Locking and unlocking
Opening and closing
322
333
ItemPage
6Exterior rear view mirror
Parking position355
356
7Towing the vehicle663
8Rims and tires
Checking tire inflation
pressure
Minispare wheel
Flat tire
678
530
634
649
9Hood, opening
Engine oil
Coolant512
513
518
ItemPage
aHeadlamp cleaning system367
bFront lamps642
cWindshield wipers
Wiper blades, replacing
Wiper blades, cleaning372
647
562
dWindow, cleaning562
ePower tilt/sliding sunroof466
Page 260 of 723
259 Control systems
Instrument cluster control system
Assistance* (page 268)Service (page 269)Settings (page 271)
Commands/submenus
Displaying the distance graphic*,
DISTRONIC Plus*Calling up vehicle malfunction, warning
and system status messages stored in
memorySetting daytime running lamp mode
(USA only)
Activating/deactivating PRE-SAFE®
Brake*
(vehicles with DISTRONIC Plus* only)Checking tire inflation pressureSwitching additional speedometer on or
off
Switching on the Dynamic Rear View
Monitor* automaticallyCalling up maintenance service displaySwitching radar sensors* on or off
(USA only)
Checking engine oil level (CL 600)
Page 270 of 723
269 Control systems
Instrument cluster control system
Switching on the Dynamic Rear View
Monitor* automatically
Press ( or & to select the
“Assistance” menu.
Press % or $ to select the
“Rearview camera” function.
Press #.
Press # again if you would like to
change the current status.The following settings are available:
Service menu
The “Service” menu is used for
calling up messages
checking tire inflation pressure elec-
tronically with the Advanced TPMS
calling up the maintenance service in-
dicator display
check engine oil level*
iThe image from the Dynamic Rear View
Monitor is shown on the COMAND display.“On when in
Reverse”The Dynamic Rear View
Monitor automatically
switches on when reverse
gear is engaged.
“OFF”The Dynamic Rear View
Monitor is not switched on.
iThe menu overview can be found on
(
page 258).
Page 271 of 723
270 Control systems
Instrument cluster control system
Calling up vehicle malfunction, warning
and system status messages stored in
memory
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the sys-
tem. Such messages appear in the multi-
function display and are based on
conditions or system status the vehicle’s
system has recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
Press ( or & to select the
“Service” menu.
If conditions have occurred causing
status messages to be recorded, the
number of messages appears in the
multifunction display: “2 Messages”.
Press % or $ to select the mes-
sage.
Press # to confirm.Checking tire inflation pressure
For information about checking tire infla-
tion pressure (
page 531).
Calling up the maintenance service in-
dicator display
For information about calling up the main-
tenance service indicator display
(
page 551).
Checking engine oil level (CL 600)
For information about checking engine oil
level (
page 514).
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 580).
iSee the “Practical hints” section for mal-
function and warning messages (
page 580).
iIf you turn the SmartKey in the starter
switch to position0 and then back to position2,
all messages will be deleted from the message
memory.
Page 514 of 723
511 Operation
At the gas station
Check regularly and before a long trip
Example illustration from CL 550
1Coolant level
2Brake fluid
3Windshield washer and headlamp
cleaning systemWindshield washer system and head-
lamp cleaning system
For more information on refilling the wash-
er reservoir, see “Windshield washer sys-
tem and headlamp cleaning system”
(
page 519).
Coolant
For more information on coolant, see
“Coolant level” (
page 518) and see “Fu-
els, coolants, lubricants, etc.”
(
page 684).
Brake fluid
For information on brake fluid, see “Brake
fluid” (
page 687)Engine oil level
For more information on engine oil, see
“Engine oil” (
page 513).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 641).
For more information, see “Lighting”
(
page 363).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 530).
iOpening the hood (page 512).
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see “Practical
hints” (
page 569) and (page 596).
Page 516 of 723
513 Operation
Engine compartment
Closing
Let the hood drop from a height of ap-
proximately 1 ft (30 cm).
The hood will lock audibly.
Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when
the vehicle is new
the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.

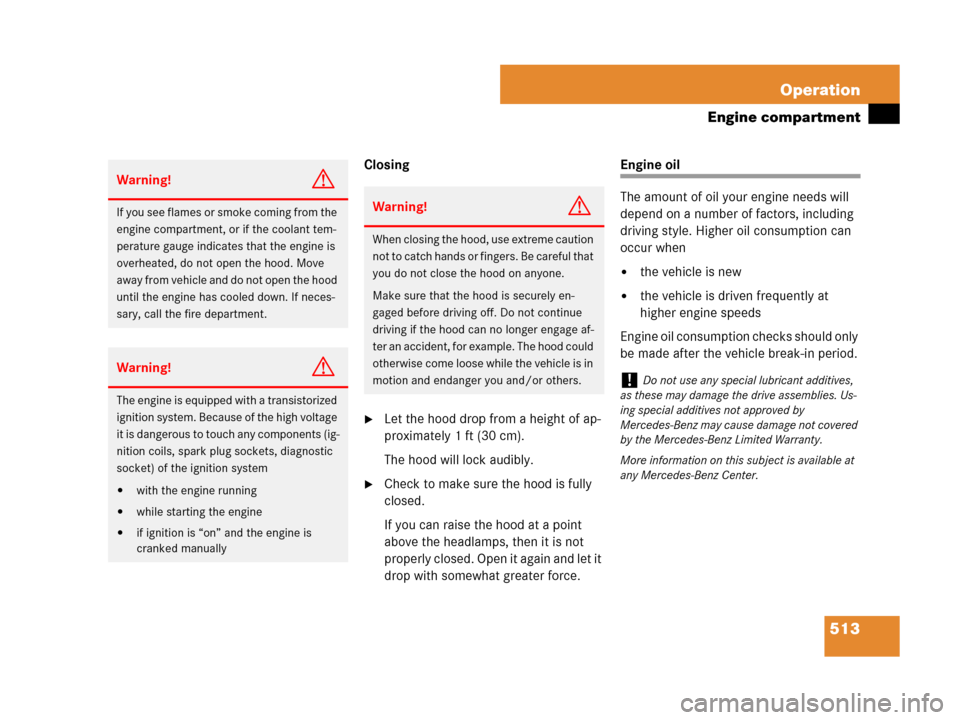

Warning!G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature gauge indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled down. If neces-
sary, call the fire department.
Warning!G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components (ig-
nition coils, spark plug sockets, diagnostic
socket) of the ignition system
with the engine running
while starting the engine
if ignition is “on” and the engine is
cranked manually
Warning!G
When closing the hood, use extreme caution
not to catch hands or fingers. Be careful that
you do not close the hood on anyone.
Make sure that the hood is securely en-
gaged before driving off. Do not continue
driving if the hood can no longer engage af-
ter an accident, for example. The hood could
otherwise come loose while the vehicle is in
motion and endanger you and/or others.
!Do not use any special lubricant additives,
as these may damage the drive assemblies. Us-
ing special additives not approved by
Mercedes-Benz may cause damage not covered
by the Mercedes-Benz Limited Warranty.
More information on this subject is available at
any Mercedes-Benz Center.
Page 517 of 723
514 Operation
Engine compartment
Notes about checking engine oil level
When checking the oil level
the vehicle must be parked on level
ground
with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least 5 minutes with
the engine turned off
with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned offChecking engine oil level with the
control system (CL 600)
To check the engine oil level via the multi-
function display, do the following:
Switch on the ignition (page 336).
Press( or& to select the menu
“Service”.
Press$ or% to select “Engine
oil level”.
Press#.
The following message is seen in the multi-
function display:
“Engine oil level
Measuring now
Correct measurement
only if vehicle is level”One of the following messages will
subsequently appear in the multifunction
display:
“Engine oil level
OK”
“Add 1.0 qts. engine oil
at next refueling”
(Canada: “1.0 l”)
“Add 1.5 qts. engine oil
at next refueling”
(Canada: “1.5 l”)
“Add 2.0 qts. engine oil
at next refueling”
(Canada: “2.0 l”)
If necessary, add engine oil
(
page 516).
For more information on engine oil, see the
“Technical data” section (
page 684) and
(
page 686).
iThe menu overview can be found on
(
page 258).
iIf you want to interrupt the checking proce-
dure, press buttonL on the multifunction
steering wheel.
Page 518 of 723
515 Operation
Engine compartment
Other display messages
If the SmartKey or KEYLESS-GO* start/
stop button is not in position 2, the follow-
ing message will appear:
“For engine oil level,
turn on ignition”
Switch on the ignition (page 336).
If you see the message
“Waiting period for,
engine oil level
not complete”
If engine is at operating temperature,
wait 5 minutes before repeating check
procedure.
If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.If you see the message
“Engine oil level
Not when engine on”
Turn off the engine.
If the engine is at operating tempera-
ture, wait 5 minutes before checking
oil.
If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.If there is excess engine oil with the engine
at operating temperature, the following
message will appear:
“Engine oil level
Reduce oil level”
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 580).
!Excess oil must be siphoned or drained off.
It could cause damage to the engine and catalyt-
ic converter (gasoline engine) not covered by the
Mercedes-Benz Limited Warranty.
Page 519 of 723
516 Operation
Engine compartment
Checking engine oil level with the oil
dipstick (CL 550)
To check the engine oil level with the oil
dipstick, do the following:
Open the hood (page 512).
CL 550
1Oil dipstick
2Upper mark
3Lower mark
Pull out oil dipstick1.
Wipe oil dipstick1 clean.
Fully insert oil dipstick1 into the dip-
stick guide tube.
Pull out oil dipstick1 again after ap-
proximately 3 seconds to obtain accu-
rate reading.
The oil level is correct when it is between
lower mark3 (min.) and upper mark2
(max.) mark of the oil dipstick.
If necessary, add engine oil.
For adding engine oil (
page 516).
For more information on engine oil, see the
“Technical data” section (
page 684) and
(
page 686).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 580).Adding engine oil
iThe filling quantity between the upper and
lower marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System
(U.S. vehicles. Canada vehicles, depending on
vehicle production date) or FSS PLUS (Canada
vehicles, depending on vehicle production date).
For a listing of approved engine oils and oil fil-
ters, refer to the Factory Approved Service
Products pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the Main-
tenance System (U.S. vehicles. Canada vehicles,
depending on vehicle production date) or
FSS PLUS (Canada vehicles, depending on vehi-
cle production date), or changing of oil and oil fil-
ter at change intervals longer than those called
for by the Maintenance System (U.S. vehicles.
Canada vehicles, depending on vehicle produc-
tion date) or FSS PLUS (Canada vehicles, de-
pending on vehicle production date) will result in
engine or emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.
