600 OperationVehicle care
Clean a wide area of the bumpers
surrounding the sensors2.

Restart the engine after cleaning sen-
sors.Cleaning the Parktronic* system
sensors
1Parktronic system* sensors in front
bumper

Use a mild car wash detergent, such as
Mercedes-Benz approved Car Sham-
poo, with plenty of water and a soft,
non-scratching cloth to clean
sensors1 on the bumpers.
!
To prevent scratches or damage, never
apply strong force and only use a soft,
non-scratching cloth when cleaning the sensor
cover and/or bumper area near sensors. Do not
attempt to wipe dirty sensors and/or bumper
with a dry cloth or sponge.
!
Do not apply strong pressure to the sensor
covers. Applying strong pressure may damage
the sensor covers.
Follow the instructions provided by the power
washer manufacturer on maintaining a distance
between the vehicle and the nozzle of the power
washer.
!
To prevent scratches, never apply strong
force and only use a soft, non-scratching cloth
when cleaning the sensors. Do not attempt to
wipe dirty sensors with a dry cloth or sponge.


601 Operation
Vehicle care
Cleaning the driving systems sensors
The sensors are integrated in the front and
rear bumpers and cannot be seen from the
outside. They work with the following sys-
tems:

BAS Plus*


PRE-SAFE
® Brake*


Blind Spot Assist*


Park Assist*


Advanced Parking Guidance*
1Bumper area near sensors

Switch off the ignition (
page 365).

Use a mild car wash detergent, such as
Mercedes-Benz approved Car Sham-
poo, with plenty of water and a soft,
non-scratching cloth to clean the
bumper area near sensors.
!
To prevent scratches or damage to the sur-
face, never apply strong force and only use a
soft, non-scratching cloth when cleaning the
bumper area near sensors. Do not attempt to
wipe a dirty bumper with a dry cloth or sponge.

602 OperationVehicle careCleaning the Rear View Camera* lens
1Camera lens
Only use clean water and a soft,
non-scratching cloth to clean the cam-
era lens1.
Be careful not to apply wax to the camera
lens1 when waxing the vehicle. If neces-
sary, remove the wax using the
Mercedes-Benz approved Car Shampoo
with plenty of water.Cleaning the windshield in front of the
Night View Assist camera*
1Recessed handles of camera cover

Use recessed handles1 to swing
camera cover downward.
!
Do not clean the camera and the area
around the camera:


with a high-pressure cleaner


with a dry cloth and high pressure


with aggressive cleaning agents
You could otherwise damage the camera.Warning!
G
Please do not forget that your primary re-
sponsibility is to drive the vehicle. A driver’s
attention to the road must always be
his/her primary focus when driving. For
your safety and the safety of others, stop be-
fore trying to remove window fogging or
cleaning the window in front of the Night
View Assist camera.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet (approximate-
ly 14 m) every second.
!
Do not clean the lens of the Night View
Assist camera. If the camera lens is dirty, please
contact an authorized Mercedes-Benz Center.

603 Operation
Vehicle care
2Camera
Clean inside of windshield in front of
camera2 with a soft, non-scratching
cloth.

Use recessed handles1 to swing
camera cover up.Cleaning the windows and the wiper
blades

Make sure the hood is fully closed.
Placing wiper arms in vertical position
Vehicles with SmartKey:

Turn SmartKey in starter switch
position1.

Turn combination switch to wiper
settingu (
page 400).

With wiper arm in vertical position, turn
the SmartKey in starter switch to
position0.
Vehicles with KEYLESS-GO*:

Make sure the vehicle’s on-board elec-
tronics have status 1 (
page 366).

Turn combination switch to wiper
settingu (
page 400).

Press KEYLESS-GO start/stop button
repeatedly until windshield wipers
start.

Press KEYLESS-GO start/stop button
when the wiper arms are in a vertical
position.
Cleaning

Fold the wiper arms forward until they
snap into place.
!
If you use a windshield cleaning product,
make sure that none of the cleaning product
comes into contact with the lens of the Night
View Assist camera.
!
The windshield wipers must be in a vertical
position before folding them away from the wind-
shield. They could otherwise damage the hood.
Never open the hood when the wiper arms are
folded forward.
Warning!
G
For safety reasons, switch off wipers and re-
move SmartKey from starter switch (vehi-
cles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before cleaning the windshield
and/or the wiper blades. Otherwise, the
wiper motor could suddenly turn on and
cause injury.


604 OperationVehicle care
Clean the wiper blade inserts with a
clean cloth and detergent solution.

Use a soft, clean cloth and a mild win-
dow cleaning solution on all outside
and inside glass surfaces.
An automotive glass cleaner is recom-
mended.Light alloy wheels
If possible, clean wheels once a week.

Use Mercedes-Benz approved Wheel
Care, a soft bristle brush and a strong
spray of water for cleaning the light
alloy wheels.Plastic and rubber parts

Use a gentle dishwashing detergent or
mild detergent for delicate fabrics as a
washing solution.

Wipe with a cloth moistened in a luke-
warm solution.
The surface may temporarily change
color. If this is the case, wait for it to
dry.
!
Do not pull on the wiper blade inserts. They
could tear.
!
Fold the windshield wiper arms back onto
the windshield before turning the SmartKey in
the starter switch or pressing the KEYLESS-GO*
start/stop button (vehicles with KEYLESS-GO*).
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
!
To clean the window interior, do not use a
dry cloth, abrasives, solvents or cleaners con-
taining solvents. Do not touch the inside of the
front, rear or side windows with hard objects
such as an ice scraper or ring. Doing so may
damage the windows.
!
Only use acid-free cleaning materials. Acid
may cause corrosion or damage the clear coat.
!
The vehicle should not be parked for an
extended period of time immediately after it has
been cleaned, especially not after the wheel rims
have been cleaned with wheel rim cleaner.
Wheel rim cleaners can lead to increased
corrosion of the brake disks and brake pads.
Non-approved wheel cleaners may also damage
the wheel paint if the car is not driven after
cleaning. Therefore, the vehicle’s brake system
should always be warmed-up before it is parked
after cleaning. To do so, please drive your vehicle
for several minutes to allow the brakes to dry.
When applying Mercedes-Benz approved Tire
Care and Mercedes-Benz approved Wheel Care
products, take care not to spray them on the
brake disks.
Warning!
G
Do not use cleaners or cockpit care sprays
containing solvents to clean the cockpit or
the steering wheel. Cleaners containing sol-
vents will make the surface porous and vehi-
cle occupants could suffer serious injuries
from plastic parts coming loose in the event
of air bag deployment.


605 Operation
Vehicle care
Hard plastic trim items
Use Mercedes-Benz approved Interior
Care, a soft, lint-free cloth and apply
with light pressure.Steering wheel

Wipe with a damp cloth and dry thor-
oughly or clean with Mercedes-Benz
approved Leather Care.
Carpets

Use Mercedes-Benz approved Carpet
and Fabric Care for cleaning the
carpets.
Headliner and shelf below rear window

Use a soft bristle brush or a dry-sham-
poo cleaner in case of excessive dirt. Seat belts

Only use clear, lukewarm water and
soap.
!
Do not use oil, wax or scouring agents on
these parts.
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the surface.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the sur-
face.
!
Never apply strong force and only use a soft,
non-scratching cloth when cleaning the surface.
Do not attempt to wipe the surface with a dry
cloth or sponge.
Otherwise you may scratch or damage the sur-
face.
!
The webbing must not be treated with
chemical cleaning agents. Do not dry the web-
bing at temperatures above 176°F (80°C) or in
direct sunlight.
Warning!
G
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.

606 OperationVehicle careUpholstery
Using aftermarket seat covers or wearing
clothing that have the tendency to give off
coloring (e.g. when wet, etc.) may cause
the upholstery to become permanently dis-
colored. By lining the seats with a proper
intermediate cover, contact-discoloration
will be prevented.Leather upholstery

Wipe leather upholstery with a damp
cloth and dry thoroughly or clean with
Mercedes-Benz approved Leather
Care.
Exercise particular care when cleaning per-
forated leather as its underside should not
become wet.
Wood trims

Dampen cloth using water and use
damp cloth to clean wood trims in your
vehicle.Chrome-plated exhaust tip*
Regular cleaning and care of chrome-plat-
ed exhaust tips will help to maintain their
shine and the classy appearance.

Use Mercedes-Benz approved Chrome
Polishing Paste each time the vehicle
has been washed, especially during the
winter.
Warning!
G
Only use seat covers which have been
tested and approved by Mercedes-Benz for
your vehicle model. Using other seat covers
may interfere with or prevent the activation
of the front side impact air bags or the rear
side impact air bags. Contact an authorized
Mercedes-Benz Center for availability.
!
Do not use solvents like tar remover or
wheel cleaner nor polishes or waxes as these
may be abrasive.
!
Do not use alkaline cleaners such as wheel
cleaners as they could cause corrosion.

607 Practical hints
What to do if …?
Where will I find ...?
Unlocking/locking in an emergency
Replacing SmartKey batteries
Replacing bulbs
Replacing wiper blades
Flat tire
Batteries
Jump starting
Towing the vehicle
Fuses

608 Practical hintsWhat to do if …?Lamps in instrument cluster
General information:
If any of the following lamps in the instru-
ment cluster fails to come on during the
bulb self-check when switching on the igni-
tion, have the respective bulb checked and

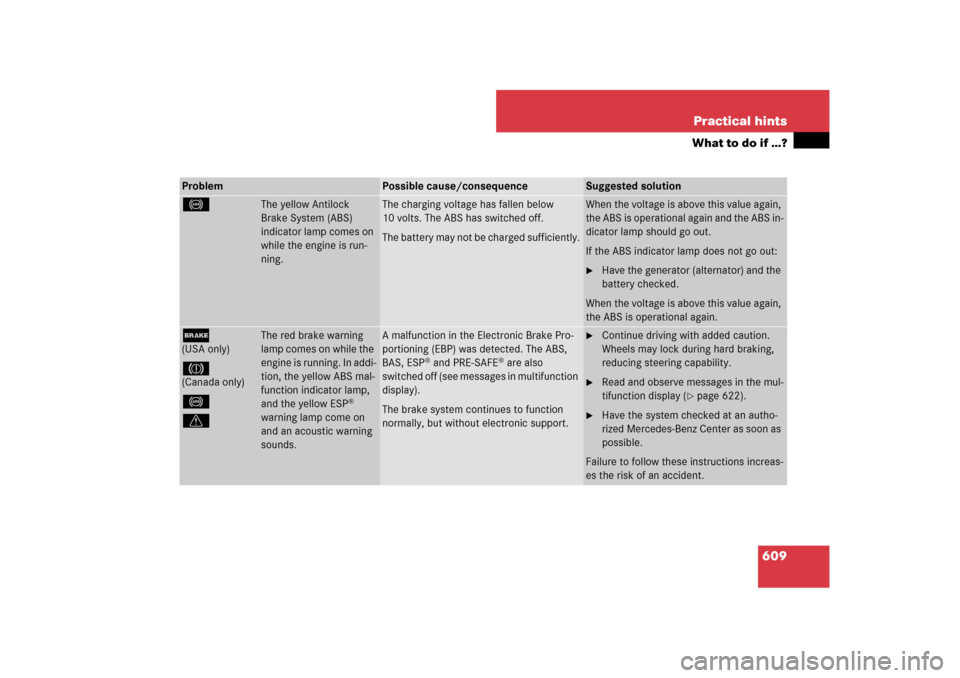

replaced if necessary.Problem
Possible cause/consequence
Suggested solution
-
The yellow Antilock
Brake System (ABS)
indicator lamp comes on
while the engine is run-
ning.
The ABS has detected a malfunction and
has switched off. The BAS, ESP
®, EBP and
PRE-SAFE
® are also switched off (see mes-
sages in multifunction display).
The brake system is still functioning nor-
mally but without the ABS available.
If the ABS control unit is malfunctioning,
other systems such as Parktronic*,
DISTRONIC Plus*, navigation system, Park
Assist* and the automatic transmission
may also be malfunctioning.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.

609 Practical hints
What to do if …?
Problem
Possible cause/consequence
Suggested solution
-
The yellow Antilock
Brake System (ABS)
indicator lamp comes on
while the engine is run-
ning.
The charging voltage has fallen below
10 volts. The ABS has switched off.
The battery may not be charged sufficiently.
When the voltage is above this value again,
the ABS is operational again and the ABS in-
dicator lamp should go out.
If the ABS indicator lamp does not go out:
Have the generator (alternator) and the
battery checked.
When the voltage is above this value again,
the ABS is operational again.
;(USA only)3(Canada only)-
v
The red brake warning
lamp comes on while the
engine is running. In addi-
tion, the yellow ABS mal-
function indicator lamp,
and the yellow ESP
®
warning lamp come on
and an acoustic warning
sounds.
A malfunction in the Electronic Brake Pro-
portioning (EBP) was detected. The ABS,
BAS, ESP
® and PRE-SAFE
® are also
switched off (see messages in multifunction
display).
The brake system continues to function
normally, but without electronic support.

Continue driving with added caution.
Wheels may lock during hard braking,
reducing steering capability.

Read and observe messages in the mul-
tifunction display (
page 622).

Have the system checked at an autho-
rized Mercedes-Benz Center as soon as
possible.
Failure to follow these instructions increas-
es the risk of an accident.
