MERCEDES-BENZ CL55AMG 2003 C215 Owner's Manual

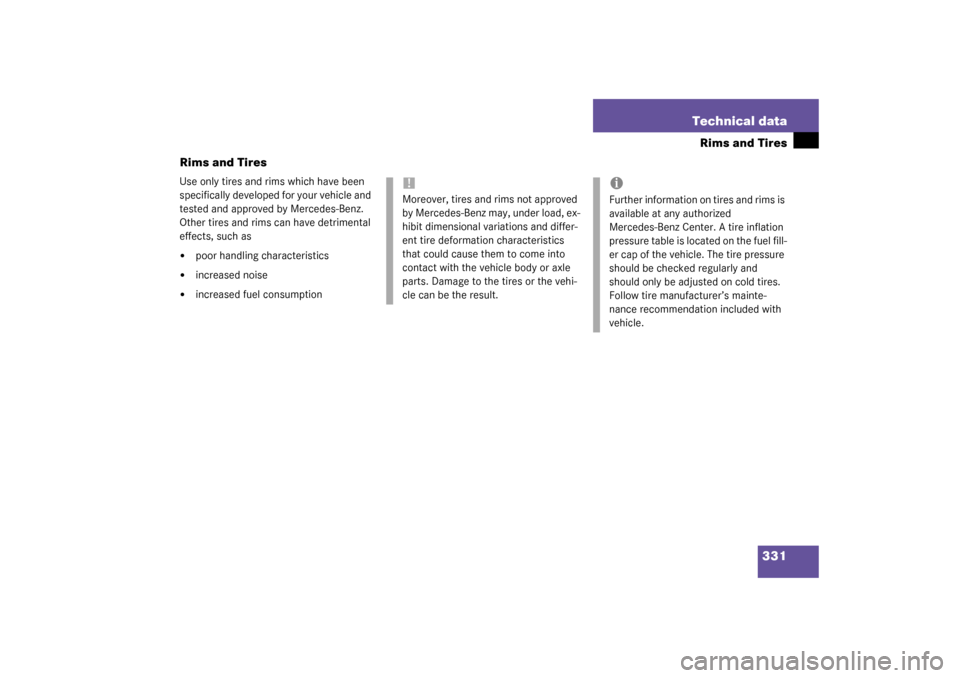

331 Technical data
Rims and Tires
Rims and Tires
Use only tires and rims which have been
specifically developed for your vehicle and
tested and approved by Mercedes-Benz.
Other tires and rims can have detrimental
effects, such as

poor handling characteristics


increased noise


increased fuel consumption
!Moreover, tires and rims not approved
by Mercedes-Benz may, under load, ex-
hibit dimensional variations and differ-
ent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle can be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A tire inflation
pressure table is located on the fuel fill-
er cap of the vehicle. The tire pressure
should be checked regularly and
should only be adjusted on cold tires.
Follow tire manufacturer’s mainte-
nance recommendation included with
vehicle.

332 Technical dataRims and TiresSame size tires
CL 500
(except Sport Package*)
CL 600
(except Sport Package*)
CL 55 AMG
Rims (light alloy)
7½J x17 H2
8J x18 H2
1
1For use with snow chains contact an authorized Mercedes-Benz Center
8J x18 H2 or 8½J x18 EH2
2
2Must not be used with snow chainsWheel offset
1.81 in (46 mm)
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
-
245 / 45 R18 96Y
1
-
All season tires (radial-ply tires)
225 / 55 R17 97H M+S AS
-
-
Winter tires (radial-ply tires)
225 / 55 R17 97H M+S
245 / 45 R18 100V XL M+S
1 or
245 / 45 R18 96H M+S
1
245 / 45 R18 100V XL M+S or
245 / 45 R18 96H M+S

333 Technical data
Rims and Tires
Mixed size tiresSpare wheel
CL 500 and CL 600 (Sport Package*)
CL 55 AMG
Front axle
AMG light alloy rims
8½J x 18 EH2
1
1Must not be used with snow chains
8½J x 18 EH2
1
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
245 / 45 R18 100Y XL
245 / 45 R18 100Y XL
1
Rear axle
AMG light alloy rims
9J x 18 EH2
1
9J x 18 EH2
1
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
265 / 40 R18 101Y XL
1 or 265/40 R18 97Y
1265 / 40 R18 101Y XL
1
CL 500 (except Sport Package)
CL 600 (except Sport Package*)
CL 500 and CL 600 (Sport Package*)
CL 55 AMG
Rims (light alloy)
7½J x 17 H2
8J x 18 H2
Wheel offset
2.0 in (51 mm)
1.73 in (44 mm)
Summer tires (radial-ply tires)
-
245 / 45 R18 96Y
All season tires (radial-ply tires)
225 / 55 R17 97H M+S AS
-

334 Technical dataElectrical system
Electrical systemModel
CL 500
CL 55 AMG
CL 600
Generator (alternator)
14 V / 150 A
14 V / 180 A
14 V / 180 A
Starter motor
12 V / 1.7 kW
12 V / 1.8 kW
12 V / 1.7 kW
Battery
12 V / 95 Ah
12 V / 95 Ah
12 V / 95 Ah
Spark plugs
Bosch F 8 DPP332
NGK PFR 5 R-11
NGK ILFR 6 A
NGK NFR 6Q-G
Electrode gap
0.039 in (1.0 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
Tightening torque
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)
15 – 22 ft.lb (20 – 30 Nm)

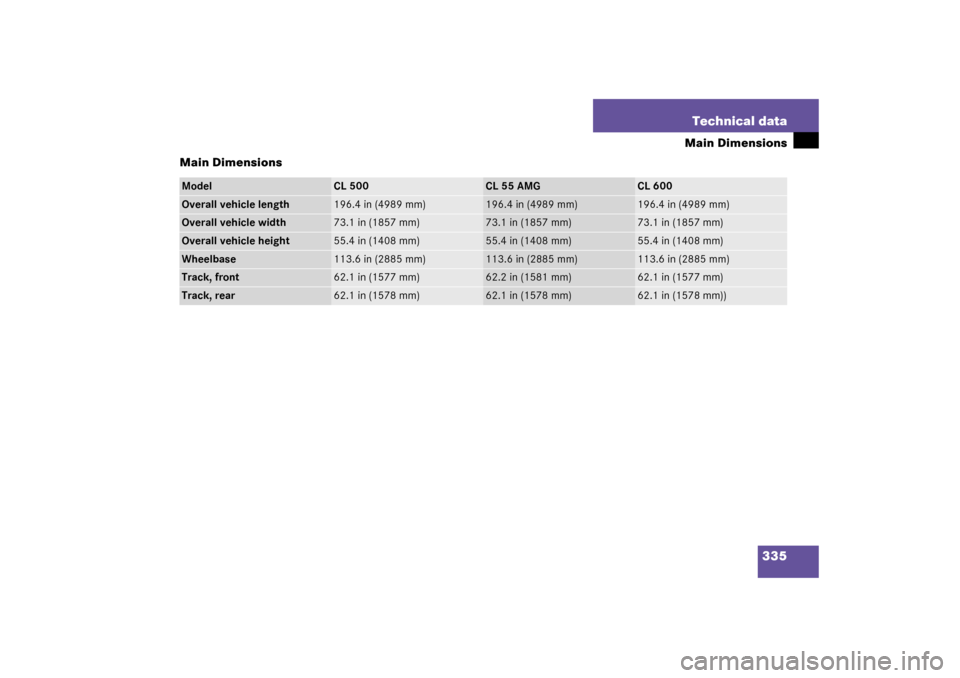

335 Technical data
Main Dimensions
Main Dimensions
Model
CL 500
CL 55 AMG
CL 600
Overall vehicle length
196.4 in (4989 mm)
196.4 in (4989 mm)
196.4 in (4989 mm)
Overall vehicle width
73.1 in (1857 mm)
73.1 in (1857 mm)
73.1 in (1857 mm)
Overall vehicle height
55.4 in (1408 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
Wheelbase
113.6 in (2885 mm)
113.6 in (2885 mm)
113.6 in (2885 mm)
Track, front
62.1 in (1577 mm)
62.2 in (1581 mm)
62.1 in (1577 mm)
Track, rear
62.1 in (1578 mm)
62.1 in (1578 mm)
62.1 in (1578 mm))

336 Technical dataWeights
WeightsRoof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

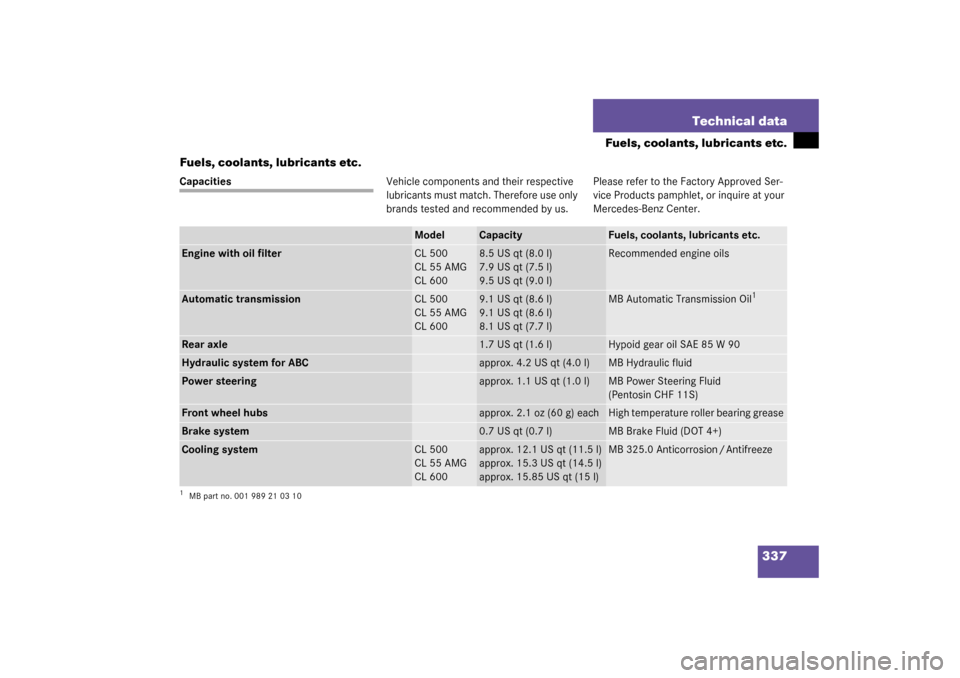

337 Technical data
Fuels, coolants, lubricants etc.
Fuels, coolants, lubricants etc.
CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
brands tested and recommended by us.Please refer to the Factory Approved Ser-
vice Products pamphlet, or inquire at your
Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants etc.
Engine with oil filter
CL 500
CL 55 AMG
CL 600
8.5 US qt (8.0 l)
7.9 US qt (7.5 l)
9.5 US qt (9.0 l)
Recommended engine oils
Automatic transmission
CL 500
CL 55 AMG
CL 600
9.1 US qt (8.6 l)
9.1 US qt (8.6 l)
8.1 US qt (7.7 l)
MB Automatic Transmission Oil
1
1MB part no. 001 989 21 03 10Rear axle
1.7 US qt (1.6 l)
Hypoid gear oil SAE 85 W 90
Hydraulic system for ABC
approx. 4.2 US qt (4.0 l)
MB Hydraulic fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid
(Pentosin CHF 11S)
Front wheel hubs
approx. 2.1 oz (60 g) each
High temperature roller bearing grease
Brake system
0.7 US qt (0.7 l)
MB Brake Fluid (DOT 4+)
Cooling system
CL 500
CL 55 AMG
CL 600
approx. 12.1 US qt (11.5 l)
approx. 15.3 US qt (14.5 l)
approx. 15.85 US qt (15 l)
MB 325.0 Anticorrosion / Antifreeze

338 Technical dataFuels, coolants, lubricants etc.
Model
Capacity
Fuels, coolants, lubricants etc.
Low temperature cooling system
CL 600
2.43 US qt (2.3 l)
MB 325.0 Anticorrosion / Antifreeze
Fuel tank
including a reserve of
CL 500
CL 55 AMG
23.2 US gal (88.0 l)
2.9 US gal (11.0 l)
Premium unleaded gasoline:
Posted Octane Rating of min 91
(average of 96 RON / 86 MON)
Fuel tank
including a reserve of
CL 600
23.2 US gal (88.0 l)
2.9 US gal (11.0 l)
Premium unleaded gasoline:
Posted Octane Rating of min 93
(average of 98 RON / 88 MON)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer and
headlamp cleaning system:
7.1 US qt (6.7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent / antifreeze for temperatures below freezing. Follow suggested mixing ratios (
page 344).

339 Technical data
Fuels, coolants, lubricants etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines. Therefore, use
only engine oils recommended by
Mercedes-Benz. Information on recom-
mended brands is available in the Factory
Approved Service Products pamphlet, or at
your authorized Mercedes-Benz Center.
Please follow FSS recommendations for
scheduled oil changes. Failure to do so
could result in engine damage not covered
by the Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may be harmful to the engine opera-
tion.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air condition-
ing system.
Never use R-12 (CFC) or mineral-based lu-
bricating oil, otherwise damage to the
system will occur.

340 Technical dataFuels, coolants, lubricants etc.Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of bub-
bles in the system, thus reducing the sys-
tem’s efficiency.
Therefore, the brake fluid must be re-
placed every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your au-
thorized Mercedes-Benz Center will pro-
vide you with additional information.
Premium unleaded gasoline
Fuel requirements
Use only premium unleaded gasoline
meeting ASTM standard D 439:

The octane number (posted at the
pump) must be min. 91 for CL 500 and
CL 55 AMG and min. 93 for CL 600. It
is an average of both the Research (R)
octane number and the Motor (M) oc-
tane number: (R+M) / 2). This is also
known as the ANTI-KNOCK INDEX.
Unleaded gasoline containing oxygenates
such as ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not exceed
10%; MTBE not to exceed 15%.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3000 rpm if the vehicle is loaded
with a light load such as two per-
sons and no luggage.


Do not exceed 2 / 3 of maximum ac-
celerator pedal position if the vehi-
cle is fully loaded or operating in
mountainous terrain.
