MERCEDES-BENZ CL55AMG 2006 C215 Owner's Manual

410 Technical dataRims and Tires
!
Only use tires which have been tested
and approved for your vehicle by
Mercedes-Benz. Tires approved by
Mercedes-Benz are developed to pro-
vide best possible performance in con-
junction with the driving safety
systems on your vehicle such as ABS or
ESP
®. Tires specially developed for
your vehicle and tested and approved
by Mercedes-Benz can be identified by
finding the following on the tire’s side-
wall:


MO = M
ercedes-Benz O
riginal
equipment tires
AMG vehicles:
Does not apply to all approved tires
on AMG vehicles. For information
on tested and approved tires for
AMG vehicles, contact an autho-
rized Mercedes-Benz Center.
Using tires other than those approved
by Mercedes-Benz may result in dam-
age that is not covered by the
Mercedes-Benz Limited Warranty.!Using tires other than those approved
by Mercedes-Benz can have detrimen-
tal effects, such as

poor handling characteristics


increased noise


increased fuel consumption
Moreover, tires and rims not approved
by Mercedes-Benz may, under load,
exhibit dimensional variations and dif-
ferent tire deformation characteristics
that could cause them to come into
contact with the vehicle body or axle
parts. Damage to the tires or the vehi-
cle may be the result.
iFurther information on tires and rims is
available at any authorized
Mercedes-Benz Center. A placard with
the recommended tire inflation pres-
sures is located on the driver’s door
B-pillar (
page 286). Some vehicles
may have supplemental tire inflation
pressure information for driving at high
speeds (page 293) or for vehicle
loads less than the maximum loaded
vehicle condition (
page 299). If such
information is provided, it can be found
on the placard located on the inside of
the fuel filler flap. The tire inflation
pressure should be checked regularly
and should only be adjusted on cold
tires. Follow tire manufacturer’s main-
tenance recommendation included
with vehicle.

411 Technical data
Rims and Tires
iThe following pages also list the ap-
proved wheel rim and tire sizes for
equipping your vehicles with winter
tires. Winter tires are not available as
standard or optional factory equip-
ment, but can be purchased from an
authorized Mercedes-Benz Center.
Depending on vehicle model and the
standard or optional factory-equipped
wheel rim/tire configuration on your
vehicle (Appearance Package, Sport
Package etc.), equipping your vehicle
with winter tires approved for your ve-
hicle model may also require the pur-
chase of two or four wheel rims of the
recommended size for use with these
winter tires. See an authorized
Mercedes-Benz Center for more infor-
mation.

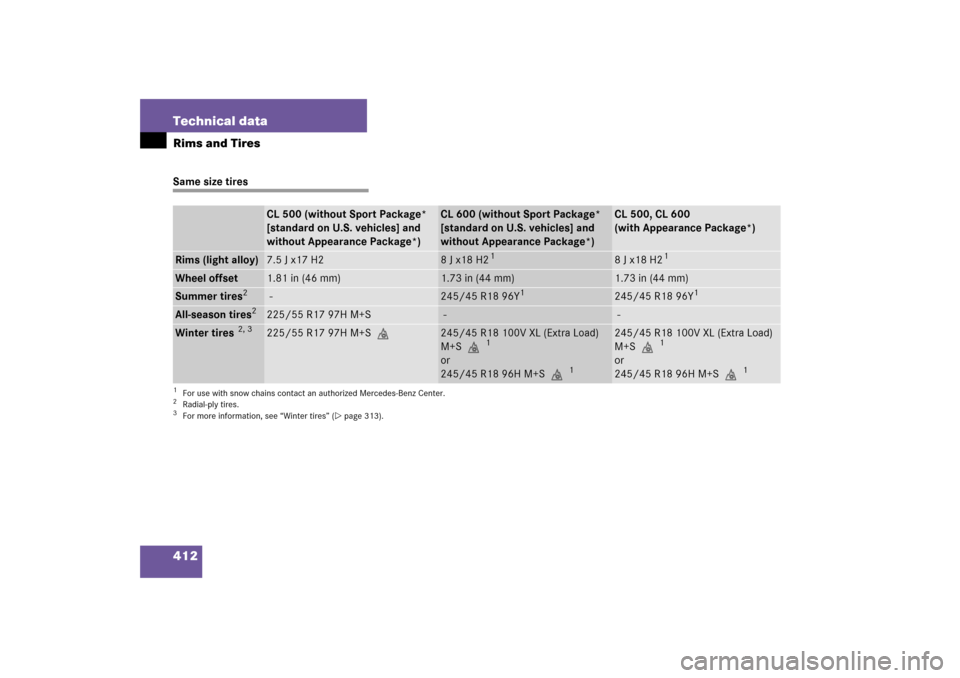

412 Technical dataRims and TiresSame size tires
CL 500 (without Sport Package*
[standard on U.S. vehicles] and
without Appearance Package*)
CL 600 (without Sport Package*
[standard on U.S. vehicles] and
without Appearance Package*)
CL 500, CL 600
(with Appearance Package*)
Rims (light alloy)
7.5 J x17 H2
8 J x18 H2
1
1For use with snow chains contact an authorized Mercedes-Benz Center.
8 J x18 H2
1
Wheel offset
1.81 in (46 mm)
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires
2
2Radial-ply tires.
-
245/45 R18 96Y
1
245/45 R18 96Y
1
All-season tires
2
225/55 R17 97H M+S
-
-
Winter tires
2, 3
3For more information, see “Winter tires” (page 313).
225/55 R17 97H M+S.
245/45 R18 100V XL (Extra Load)
M+S.
1
or
245/45 R18 96H M+S.
1
245/45 R18 100V XL (Extra Load)
M+S.
1
or
245/45 R18 96H M+S.
1

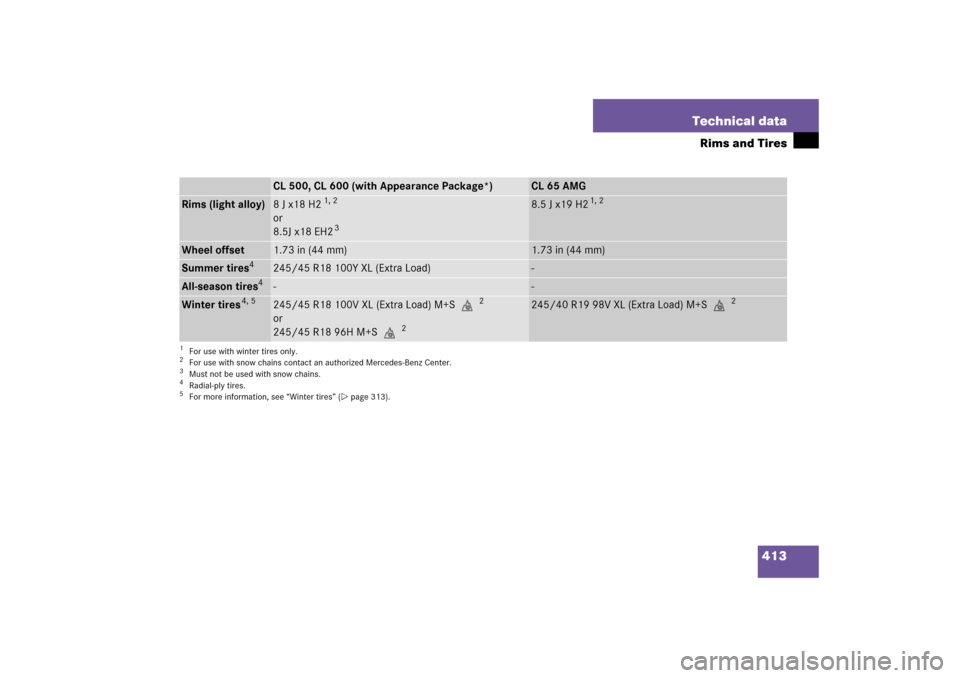

413 Technical data
Rims and Tires
CL 500, CL 600 (with Appearance Package*)
CL 65 AMG
Rims (light alloy)
8 J x18 H2
1, 2
or
8.5J x18 EH2
3
1For use with winter tires only.2For use with snow chains contact an authorized Mercedes-Benz Center.3Must not be used with snow chains.
8.5 J x19 H2
1, 2
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires
4
4Radial-ply tires.
245/45 R18 100Y XL (Extra Load)
-
All-season tires
4
-
-
Winter tires
4, 5
5For more information, see “Winter tires” (page 313).
245/45 R18 100V XL (Extra Load) M+S.
2
or
245/45 R18 96H M+S.
2
245/40 R19 98V XL (Extra Load) M+S.
2

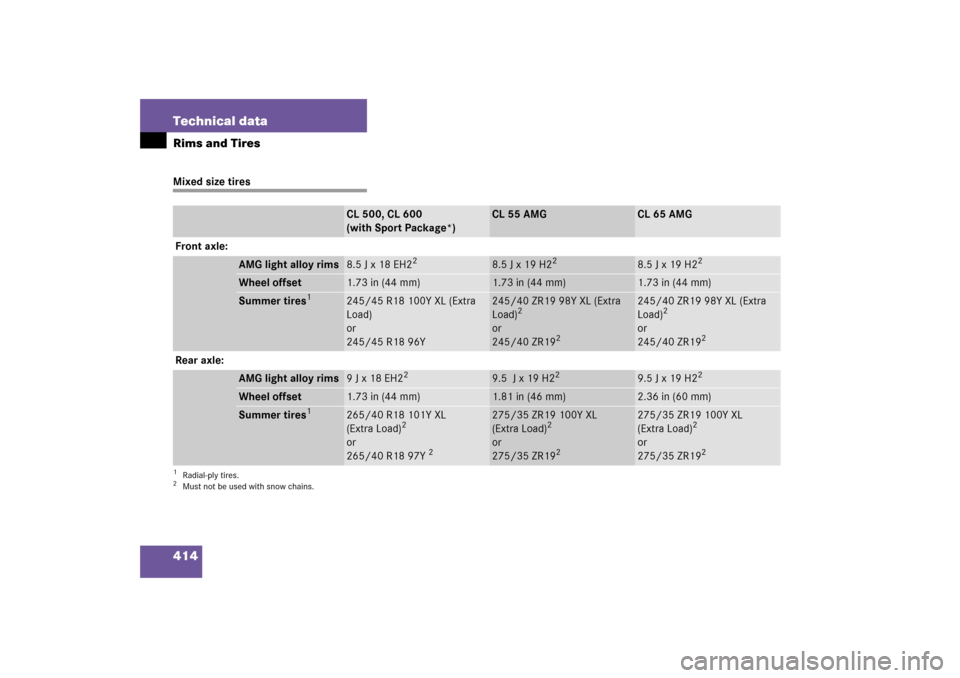

414 Technical dataRims and TiresMixed size tires
CL 500, CL 600
(with Sport Package*)
CL 55 AMG
CL 65 AMG
Front axle:
AMG light alloy rims
8.5 J x 18 EH2
2
8.5 J x 19 H2
2
8.5 J x 19 H2
2
Wheel offset
1.73 in (44 mm)
1.73 in (44 mm)
1.73 in (44 mm)
Summer tires
1
1Radial-ply tires.
245/45 R18 100Y XL (Extra
Load)
or
245/45 R18 96Y
245/40 ZR19 98Y XL (Extra
Load)
2
or
245/40 ZR19
2
245/40 ZR19 98Y XL (Extra
Load)
2
or
245/40 ZR19
2
Rear axle:
AMG light alloy rims
9 J x 18 EH2
2
9.5 J x 19 H2
2
9.5 J x 19 H2
2
Wheel offset
1.73 in (44 mm)
1.81 in (46 mm)
2.36 in (60 mm)
Summer tires
1
265/40 R18 101Y XL
(Extra Load)
2
or
265/40 R18 97Y
2
2Must not be used with snow chains.
275/35 ZR19 100Y XL
(Extra Load)
2
or
275/35 ZR19
2
275/35 ZR19 100Y XL
(Extra Load)
2
or
275/35 ZR19
2

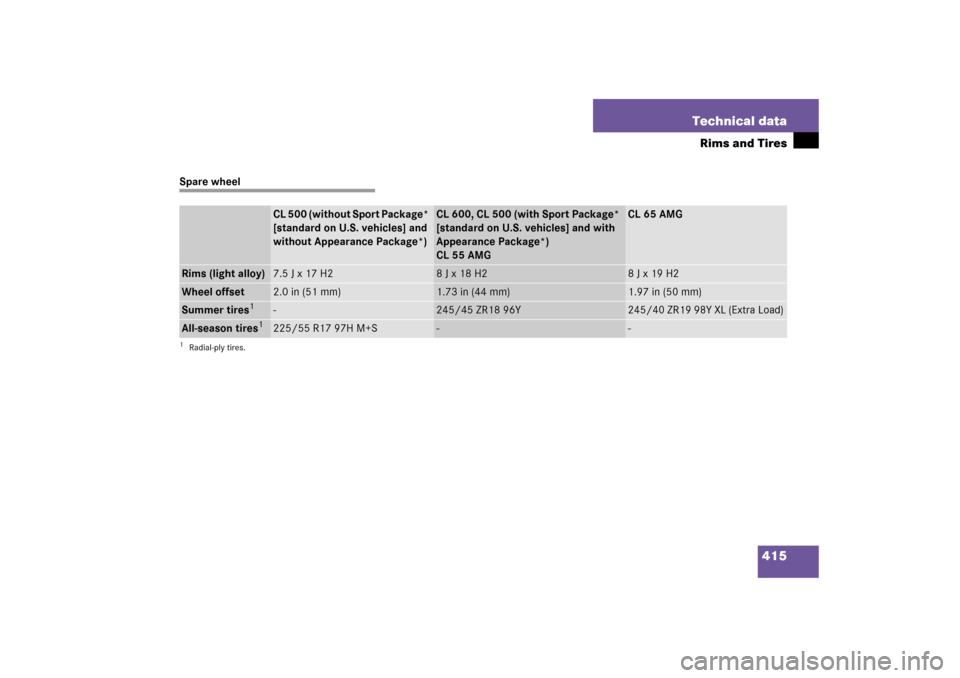

415 Technical data
Rims and Tires
Spare wheel
CL 500 (without Sport Package*
[standard on U.S. vehicles] and
without Appearance Package*)
CL 600, CL 500 (with Sport Package*
[standard on U.S. vehicles] and with
Appearance Package*)
CL 55 AMG
CL 65 AMG
Rims (light alloy)
7.5Jx17H2
8Jx18H2
8Jx19 H2
Wheel offset
2.0 in (51 mm)
1.73 in (44 mm)
1.97 in (50 mm)
Summer tires
1
1Radial-ply tires.
-
245/45 ZR18 96Y
245/40 ZR19 98Y XL (Extra Load)
All-season tires
1
225/55 R17 97H M+S
-
-

416 Technical dataElectrical systemModel
CL 500
CL 55 AMG
CL 600
CL 65 AMG
Generator (alternator)
14 V/150 A
14 V/180 A
14 V/180 A
14 V/180 A
Starter motor
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
12 V/1.7 kW
Battery
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
12 V/95 Ah
Spark plugs
Bosch F 8 DPP332
NGK PFR 5 R-11
NGK ILFR 6 A
NGK NFR 6Q G
NGK NFR 6Q G
Electrode gap
0.039 in (1.0 mm)
0.031 in (0.8 mm)
0.028 in (0.7 mm)
0.028 in (0.7 mm)
Tightening torque
18 – 22 lb-ft (25 – 30 Nm)
18 – 22 lb-ft (25 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)
15 – 22 lb-ft (20 – 30 Nm)

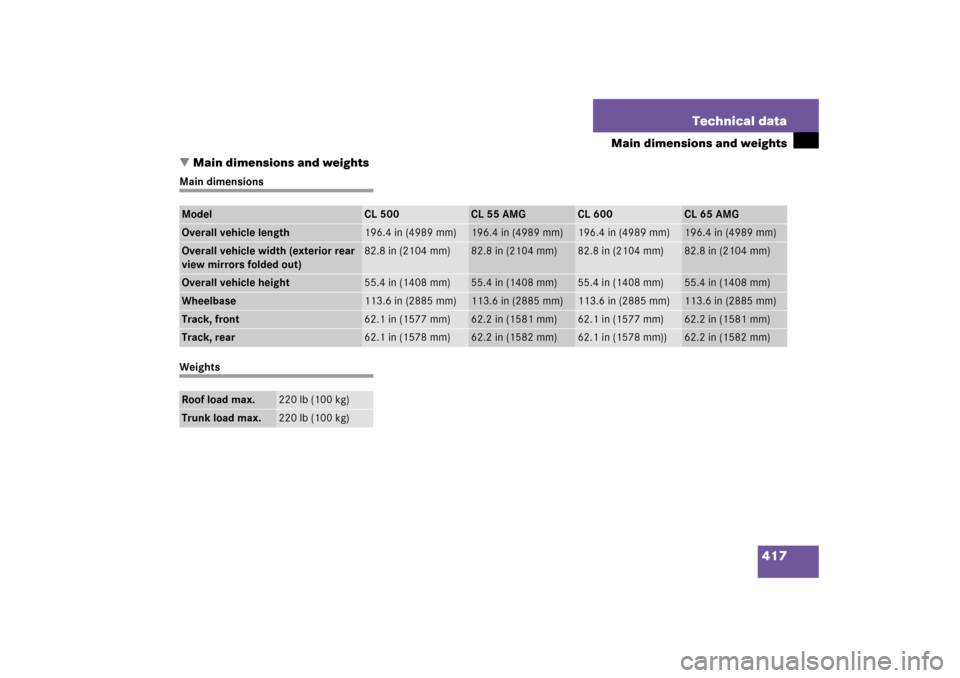

417 Technical data
Main dimensions and weights
Main dimensions and weights
Main dimensionsWeightsModel
CL 500
CL 55 AMG
CL 600
CL 65 AMG
Overall vehicle length
196.4 in (4989 mm)
196.4 in (4989 mm)
196.4 in (4989 mm)
196.4 in (4989 mm)
Overall vehicle width (exterior rear
view mirrors folded out)
82.8 in (2104 mm)
82.8 in (2104 mm)
82.8 in (2104 mm)
82.8 in (2104 mm)
Overall vehicle height
55.4 in (1408 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
55.4 in (1408 mm)
Wheelbase
113.6 in (2885 mm)
113.6 in (2885 mm)
113.6 in (2885 mm)
113.6 in (2885 mm)
Track, front
62.1 in (1577 mm)
62.2 in (1581 mm)
62.1 in (1577 mm)
62.2 in (1581 mm)
Track, rear
62.1 in (1578 mm)
62.2 in (1582 mm)
62.1 in (1578 mm))
62.2 in (1582 mm)
Roof load max.
220 lb (100 kg)
Trunk load max.
220 lb (100 kg)

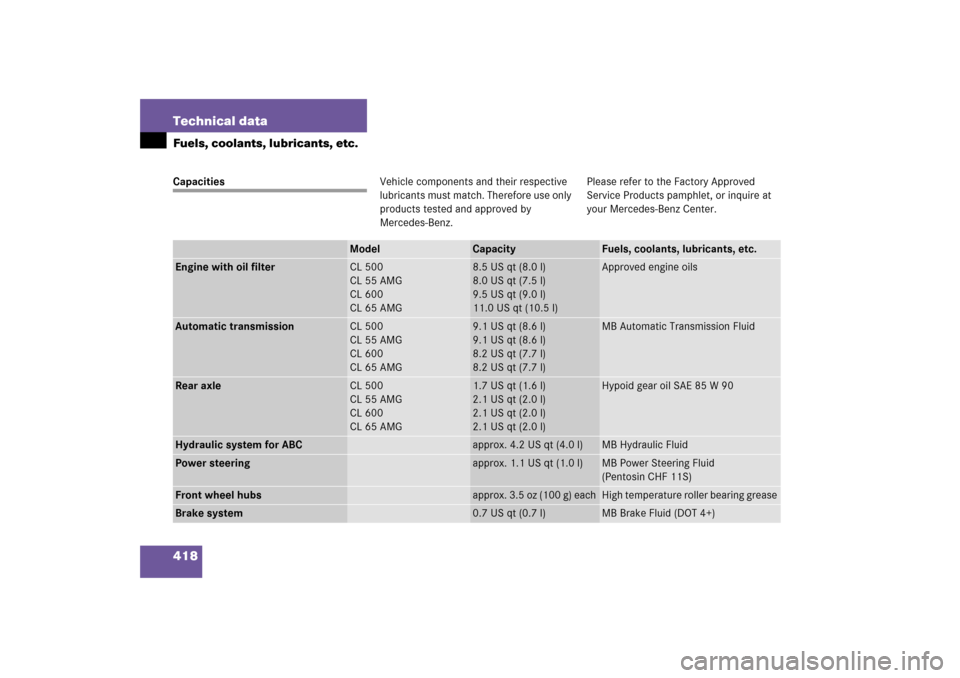

418 Technical dataFuels, coolants, lubricants, etc.CapacitiesVehicle components and their respective
lubricants must match. Therefore use only
products tested and approved by
Mercedes-Benz.Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
CL 500
CL 55 AMG
CL 600
CL 65 AMG
8.5 US qt (8.0 l)
8.0 US qt (7.5 l)
9.5 US qt (9.0 l)
11.0 US qt (10.5 l)
Approved engine oils
Automatic transmission
CL 500
CL 55 AMG
CL 600
CL 65 AMG
9.1 US qt (8.6 l)
9.1 US qt (8.6 l)
8.2 US qt (7.7 l)
8.2 US qt (7.7 l)
MB Automatic Transmission Fluid
Rear axle
CL 500
CL 55 AMG
CL 600
CL 65 AMG
1.7 US qt (1.6 l)
2.1 US qt (2.0 l)
2.1 US qt (2.0 l)
2.1 US qt (2.0 l)
Hypoid gear oil SAE 85 W 90
Hydraulic system for ABC
approx. 4.2 US qt (4.0 l)
MB Hydraulic Fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid
(Pentosin CHF 11S)
Front wheel hubs
approx. 3.5 oz (100 g) each
High temperature roller bearing grease
Brake system
0.7 US qt (0.7 l)
MB Brake Fluid (DOT 4+)

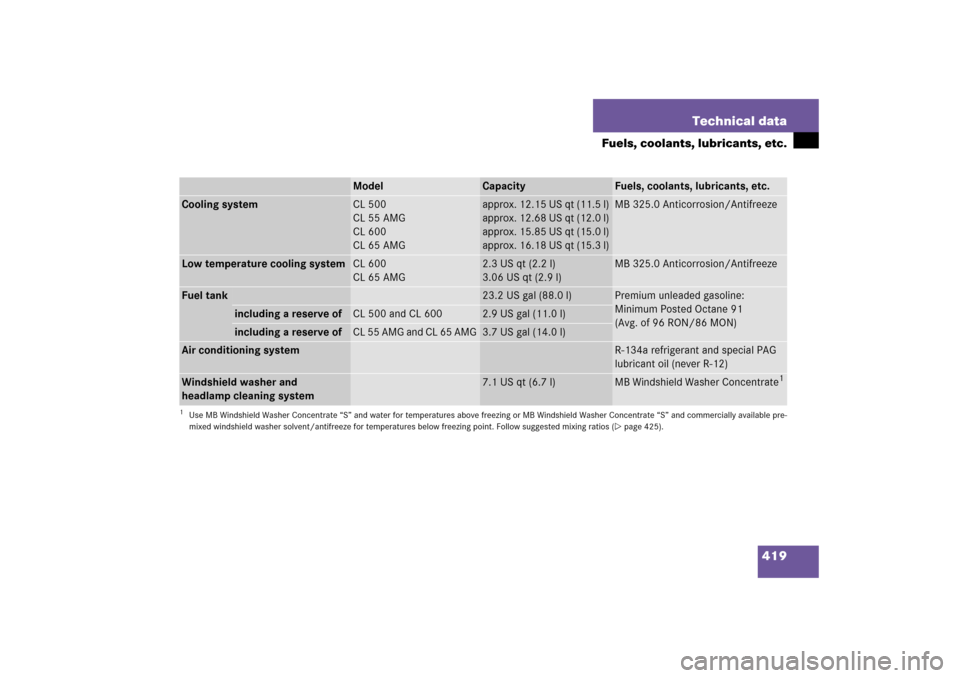

419 Technical data
Fuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Cooling system
CL 500
CL 55 AMG
CL 600
CL 65 AMG
approx. 12.15 US qt (11.5 l)
approx. 12.68 US qt (12.0 l)
approx. 15.85 US qt (15.0 l)
approx. 16.18 US qt (15.3 l)
MB 325.0 Anticorrosion/Antifreeze
Low temperature cooling system
CL 600
CL 65 AMG
2.3 US qt (2.2 l)
3.06 US qt (2.9 l)
MB 325.0 Anticorrosion/Antifreeze
Fuel tank
23.2 US gal (88.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg.of96RON/86MON)
including a reserve of
CL 500 and CL 600
2.9 US gal (11.0 l)
including a reserve of
CL 55 AMG and CL 65 AMG
3.7 US gal (14.0 l)
Air conditioning system
R-134a refrigerant and special PAG
lubricant oil (never R-12)
Windshield washer and
headlamp cleaning system
7.1 US qt (6.7 l)
MB Windshield Washer Concentrate
1
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and commercially available pre-
mixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 425).
