MERCEDES-BENZ CL600 2000 W140 Owner's Manual

188 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Interior Storage compartments and armrests
Wa r n i n g !
To help avoid personal injury during a collision or
sudden maneuver, exercise care when stowing
things. Put luggage or cargo in the trunk if
possible. Do not pile luggage or cargo higher than
the seat backs. Do not place anything on the shelf
below the rear window.Luggage nets cannot secure hard or heavy objects.
Wa r n i n g !
Keep compartment lids closed. This will help to
prevent stored objects from being thrown about
and injuring vehicle occupants during an accident.

189 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Glove box
1Unl ocked position
2Locked position
3Press to open
The glove box can be locked and unlocked with the
mechanical key. See page 29 for instructions on how to
remove the mechanical key from the electronic main
key (e.g. for valet parking service).4 The glove box lid is equipped with a container (4)
for coins and small accessories.
To open, press the marking on the cover.

190 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Storage compartment in front of armrest
5 Storage compartment in front of armrest
To o pen :
Touch the top of the cover lightly.
To cl os e:
Lightly push the cover up until it engages in lock.Storage compartment below the front armrest
A coin holder is also located in the storage compartment
below the armrest.
Storage tray in the armrest
To open: Press button (6) and raise the armrest.
To close: Lower the armrest until it engages in lock.

191 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Storage space below the armrest
To open: Press button (7) and raise the armrest.
To close: Lower the armrest until it engages in lock.
Notes:
The storage compartment can be heated or cooled, see
page 175.
The compartment can get very warm due to its confined
space. When storing heat sensitive objects in the
compartment, close the air outlet while heating the
passenger compartment.
Do not obstruct the air outlet in the storage
compartment.
The storage space below the armrest is illuminated with
the exterior lamps switched on.Storage compartment under the front seats
8 Storage compartment under the front seats
Maximum permissible weight of contents:
3.3 lbs. (1.5 kg)
To o p e n :
Press buttons (9) together and fold the lid down.
To c l o s e :
Close lid until both buttons (9) of lock engage.

192 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

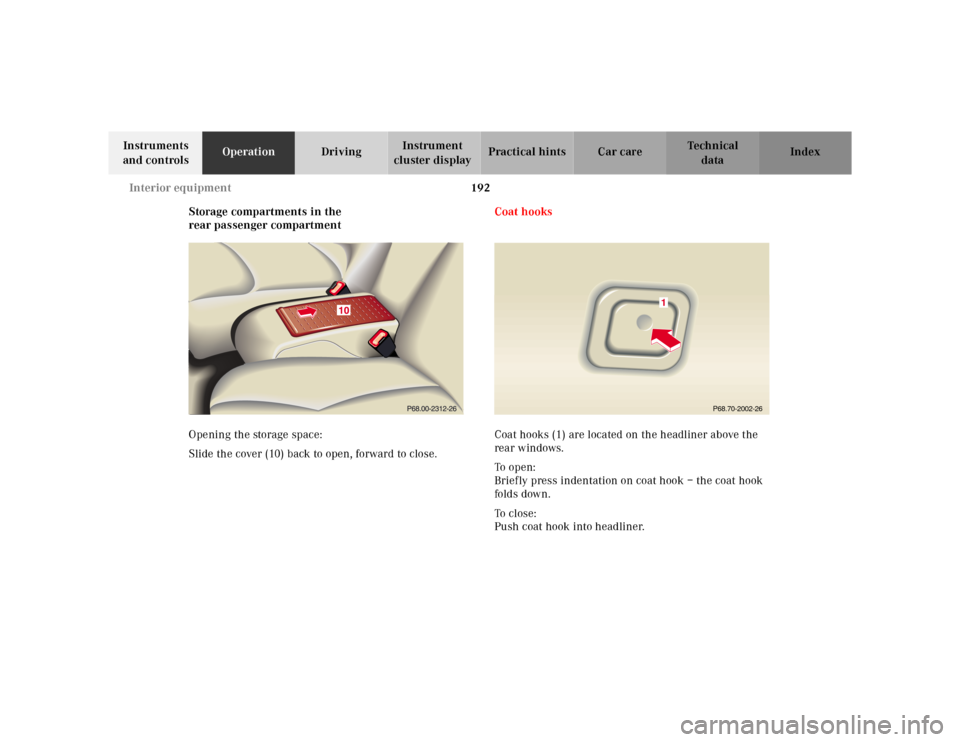

Storage compartments in the
rear passenger compartment
Opening the storage space:
Slide the cover (10) back to open, forward to close.Coat hooks
Coat hooks (1) are located on the headliner above the
rear windows.
To o p e n :
Briefly press indentation on coat hook – the coat hook
folds down.
To c l o s e :
Push coat hook into headliner.
P68.70-2002-26
1

193 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument

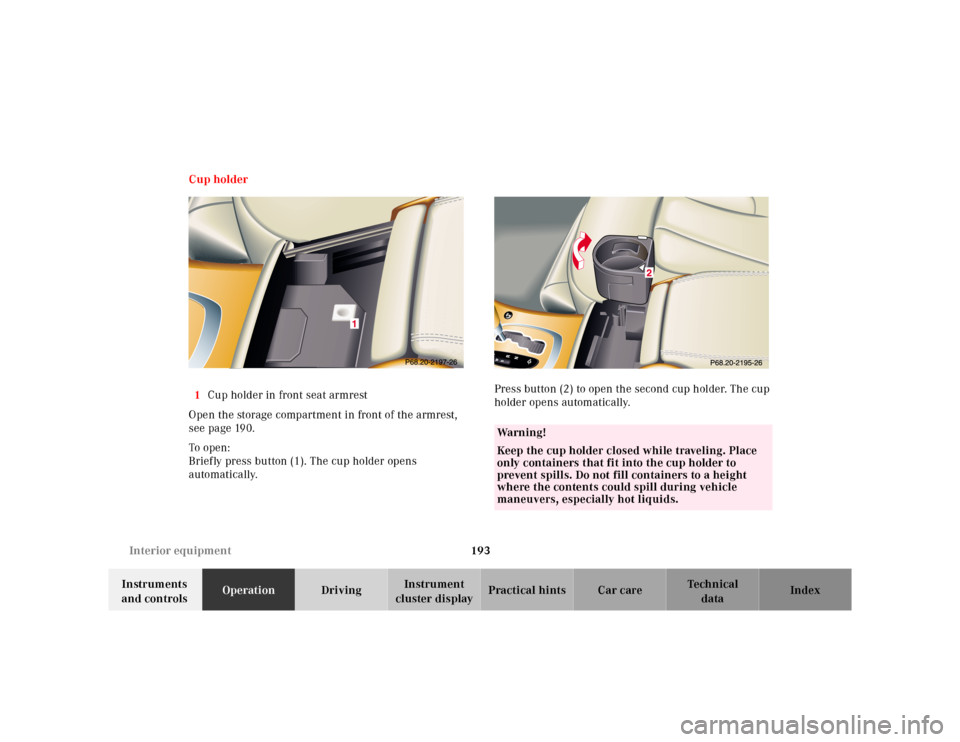

cluster displayPractical hints Car care Index Cup holder
1Cup holder in front seat armrest
Open the storage compartment in front of the armrest,
see page 190.
To o pen :
Briefly press button (1). The cup holder opens
automatically.Press button (2) to open the second cup holder. The cup
holder opens automatically.
Wa r n i n g !
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.

194 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

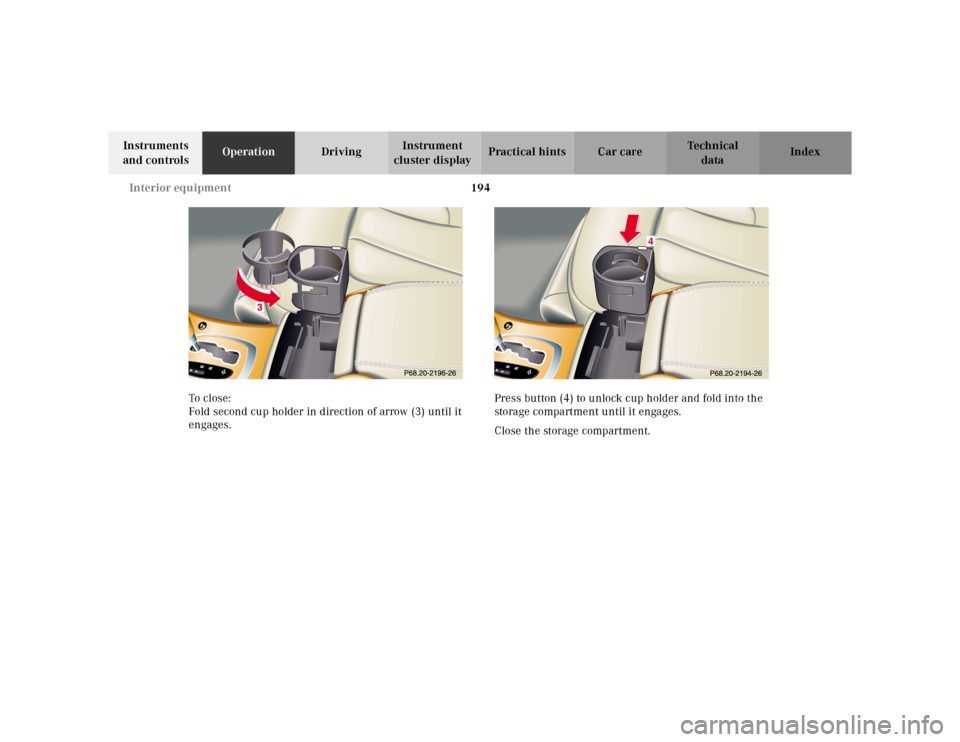

To cl os e:
Fold second cup holder in direction of arrow (3) until it
engages.Press button (4) to unlock cup holder and fold into the
storage compartment until it engages.
Close the storage compartment.
4

195 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument

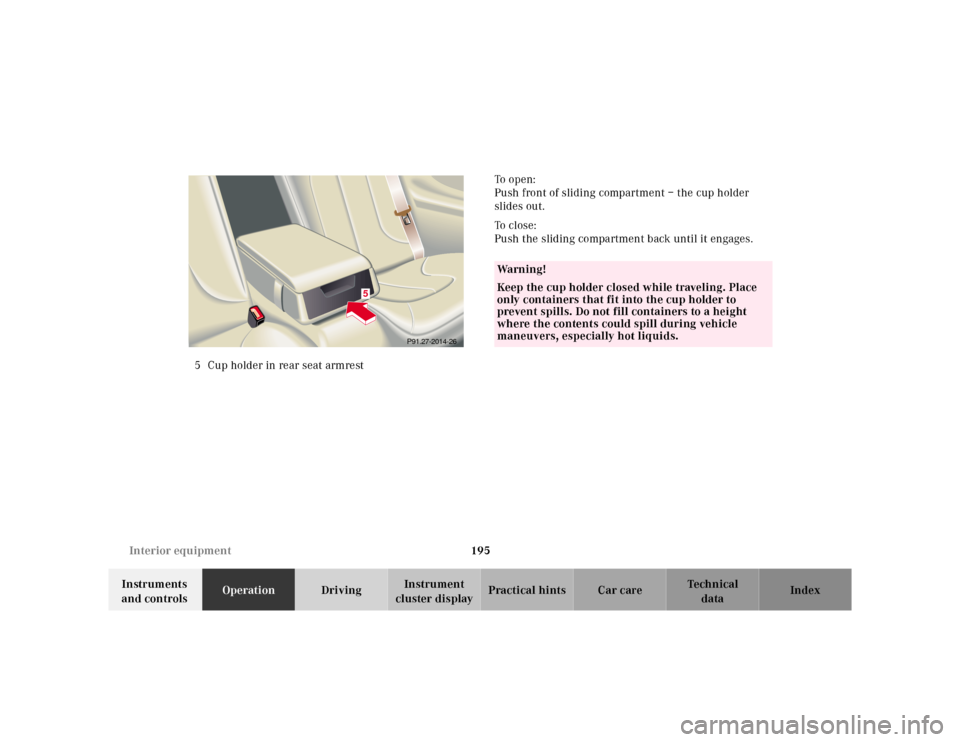

cluster displayPractical hints Car care Index 5 Cup holder in rear seat armrestTo o p e n :
Push front of sliding compartment – the cup holder
slides out.
To c l o s e :
Push the sliding compartment back until it engages.
P91.27-2014-26
5
Wa r n i n g !
Keep the cup holder closed while traveling. Place
only containers that fit into the cup holder to
prevent spills. Do not fill containers to a height
where the contents could spill during vehicle
maneuvers, especially hot liquids.

196 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index

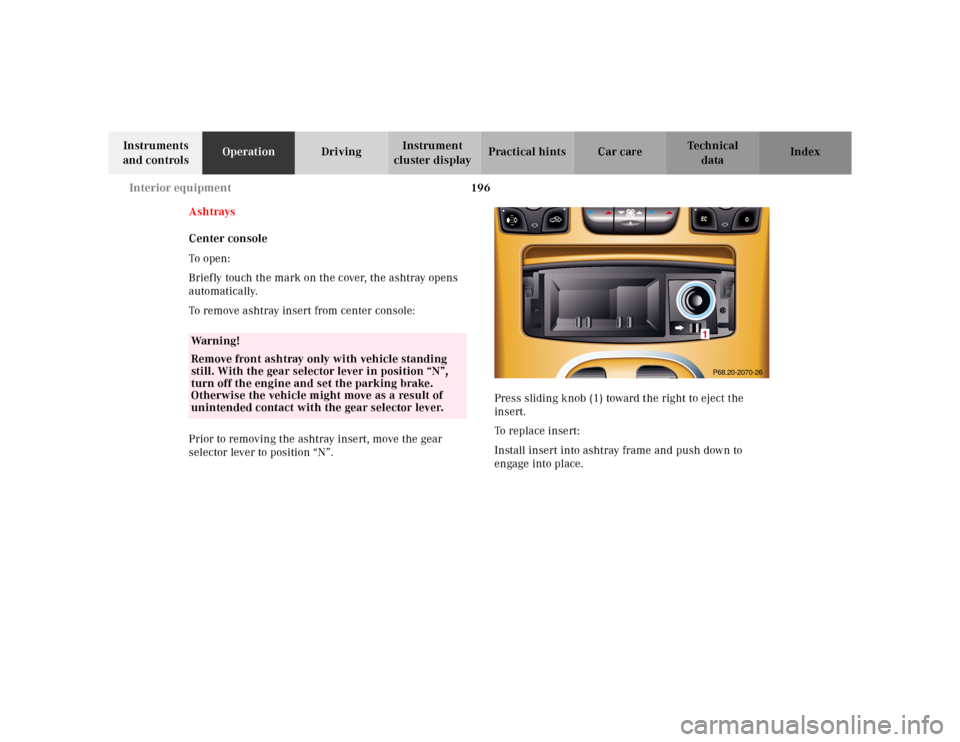

Ashtrays
Center console
To o pen :
Briefly touch the mark on the cover, the ashtray opens
automatically.
To remove ashtray insert from center console:
Prior to removing the ashtray insert, move the gear
selector lever to position “N”.Press sliding knob (1) toward the right to eject the
insert.
To r e p l a c e i n s e r t :
Install insert into ashtray frame and push down to
engage into place.
Wa r n i n g !
Remove front ashtray only with vehicle standing
still. With the gear selector lever in position “N”,
turn off the engine and set the parking brake.
Otherwise the vehicle might move as a result of
unintended contact with the gear selector lever.
P68.20-2070-261

197 Interior equipment
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument

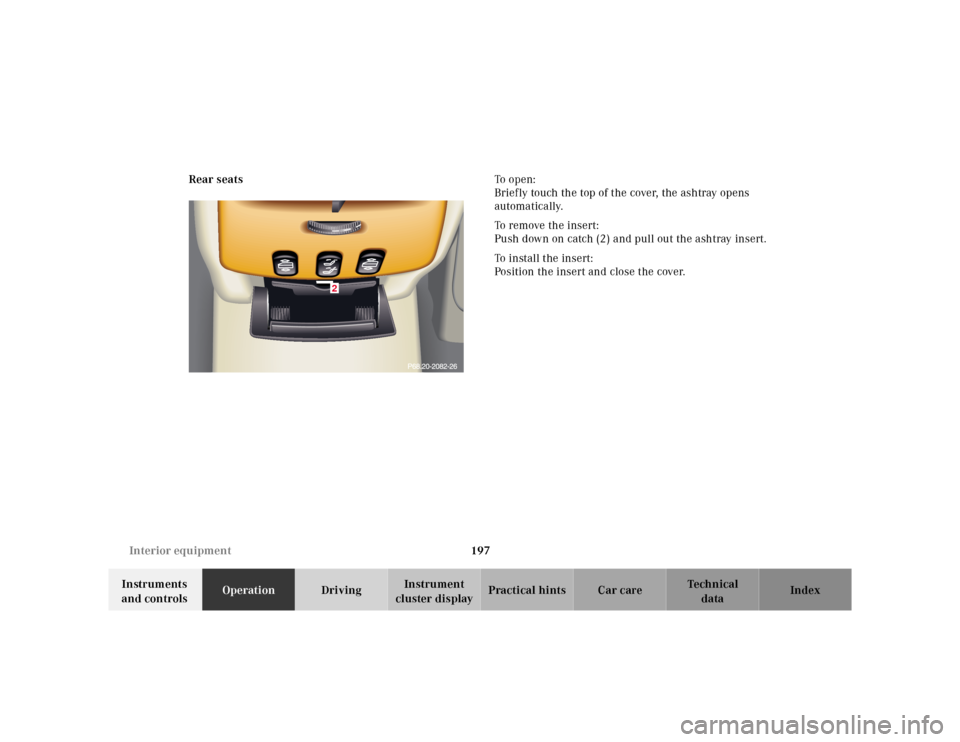

cluster displayPractical hints Car care Index Rear seatsTo o p e n :
Briefly touch the top of the cover, the ashtray opens
automatically.
To remove the insert:
Push down on catch (2) and pull out the ashtray insert.
To install the insert:
Position the insert and close the cover.
2
