ContentsUseful features .................................. 221
Storage compartments................. 221
Ashtrays ....................................... 227
Cigarette lighter ........................... 228
Heated steering wheel* ............... 228
Telephone*................................... 229
Tele Aid ........................................ 230
Garage door opener ..................... 238
Infrared reflecting windshield ....... 244
Operation........................................ 245
The first 1000 miles (1500 km) ......... 246
Driving instructions............................ 247
Drive sensibly – save fuel ............. 247
Drinking and driving ..................... 247
Pedals .......................................... 247
Power assistance ......................... 247
Brakes .......................................... 248
Driving off .................................... 249
Parking ......................................... 249
Tires ............................................. 250
Hydroplaning ................................ 251
Tire traction.................................. 251
Tire speed rating .......................... 251
Winter driving instructions ........... 252
Standing water ............................. 253
Passenger compartment .............. 254
Driving abroad.............................. 254
Control and operation of radio
transmitters ................................. 254
Catalytic converter ....................... 255
Emission control .......................... 255
Coolant temperature .................... 256At the gas station .............................. 257
Refueling ...................................... 257
Check regularly and before a
long trip ....................................... 258
Engine compartment ......................... 260
Hood ............................................ 260
Engine oil ..................................... 261
Transmission fluid level................ 266
Active Body Control (ABC)
fluid level ..................................... 266
Coolant ........................................ 266
Battery ......................................... 268
Windshield washer system and
headlamp cleaning system........... 269
Tires and wheels................................ 270
Important guidelines .................... 270
Life of tires................................... 271
Direction of rotation..................... 271
Checking tire inflation pressure ... 271
Rotating wheels ........................... 279
Winter driving .................................... 280
Winter tires .................................. 280
Block heater (Canada only) .......... 281
Snow chains................................. 281

23 At a glance
Instrument cluster
Item
Page
1
Coolant temperature gauge
127
2
Fuel gauge with:Fuel reserve warning lamp
296
3
LLeft turn signal
indicator lamp
49
KRight turn signal
indicator lamp
4
Speedometer with:vESP warning lamp
295
lDistance warning
lamp
Vehicles without Distronic*:
Warning lamp without func-
tion. It illuminates when the
ignition is on. It should go
out when the engine is run-
ning.
294
5
Tachometer
128
6
Right display with: 296
Item
Page
-Antilock Brake Sys-
tem (ABS) ndicator
lamp
292
AHigh beam headlamp
indicator
123
7
Reset button
126
8
Display with:

Program mode
163


Gear range indicator
159


Digital clock (see
COMAND operating in-
structions)
9
Multifunction display
with:

Trip odometer
129


Main odometer
129
Stored speed for:

Cruise control
195


Distronic*
198
Item
Page
a
Outside temperature indica-
tor
127
b
Left display with:1Supplemental
restraint system
indicator lamp
297
;Brake warning lamp,
USA only
293
3Brake warning lamp,
Canada only
293
?Engine malfunction
indicator lamp, USA
only
294
±Engine malfunction
indicator lamp,
Canada only
294
HTire pressure warning
lamp
275,
296
c
Knob for instrument cluster
illumination
126

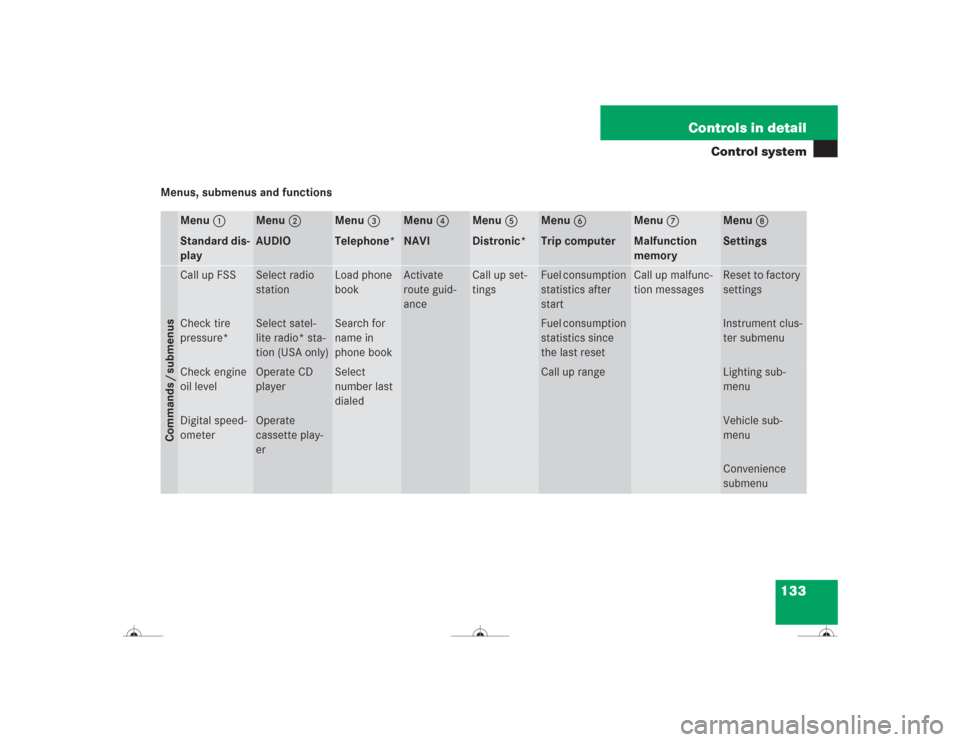

133 Controls in detail
Control system
Menus, submenus and functions
Menu1
Standard dis-
play
Menu2
AUDIO
Menu3
Telephone*
Menu4
NAVI
Menu5
Distronic*
Menu6
Trip computer
Menu7
Malfunction
memory
Menu8
Settings
Commands / submenusCall up FSS
Select radio
station
Load phone
book
Activate
route guid-
ance
Call up set-
tings
Fuel consumption
statistics after
start
Call up malfunc-
tion messages
Reset to factory
settings
Check tire
pressure*
Select satel-
lite radio* sta-
tion (USA only)
Search for
name in
phone book
Fuel consumption
statistics since
the last reset
Instrument clus-
ter submenu
Check engine
oil level
Operate CD
player
Select
number last
dialed
Call up range
Lighting sub-
menu
Digital speed-
ometer
Operate
cassette play-
er
Vehicle sub-
menuConvenience
submenu

247 Operation
Driving instructions
Driving instructions
Drive sensibly – save fuel
Fuel consumption, to a great extent, de-
pends on driving habits and operating con-
ditions.
To save fuel you should:

Keep tires at the recommended infla-
tion pressures.


Remove unnecessary loads.


Remove roof rack when not in use.


Allow engine to warm up under low
load use.


Avoid frequent acceleration and decel-
eration.


Have all maintenance work performed
at the intervals specified in the Service
Booklet and as required by the FSS.
Contact an authorized Mercedes-Benz
Center.
Fuel consumption is also increased by driv-
ing in cold weather, in stop-and-go traffic,
on short trips and in hilly country.
Drinking and driving
PedalsPower assistance
Warning!
G
Drinking and driving and/or taking drugs
and driving are very dangerous combina-
tions. Even a small amount of alcohol or
drugs can affect your reflexes, perceptions
and judgement.
The possibility of a serious or even fatal ac-
cident are greatly increased when you drink
or take drugs and drive.
Do not drink or take drugs and drive or allow
anyone to drive who has been drinking or
taking drugs.
Warning!
G
Keep driver’s foot area clear at all times. Ob-
jects stored in this area may impair pedal
movement.Warning!
G
With the engine not running, there is no
power assistance for the brake and steering
systems. In this case, it is important to keep
in mind that a considerably higher degree of
effort is necessary to brake and steer the ve-
hicle.

257 Operation
At the gas station
At the gas station
RefuelingThe fuel filler flap is located on the
right-hand side of the vehicle towards the
rear. Locking/unlocking the vehicle with
the SmartKey or the SmartKey with
KEYLESS-GO* automatically locks/un-
locks the fuel filler flap.

Turn the engine off

by turning the SmartKey to
position0. Remove the SmartKey
from the starter switch.


by pressing the KEYLESS-GO*
start/stop button. Open the driv-
er’s door (with the driver’s door open, starter switch is now in
position0, same as SmartKey re-
moved from starter switch).

Open the fuel filler flap by pushing at
the point indicated by the arrow.
The fuel filler flap springs open.

Turn the fuel cap to the left and hold on
to it until possible pressure is released.

Take off the cap and set it in the recess
on the fuel filler flap.
To prevent fuel vapors from escaping
into open air, fully insert filler nozzle
unit.

Only fill your tank until the filler nozzle
unit cuts out – do not top up or over-
fill.
Warning!
G
Gasoline is highly flammable and poisonous.
It burns violently and can cause serious
injury. Whenever you are around gasoline,
avoid inhaling fumes and skin contact, extin-
guish all smoking materials. Never allow
sparks, flame or smoking materials near
gasoline!


271 Operation
Tires and wheels
Life of tires
The service life of a tire is dependent upon
varying factors including but not limited to:

Driving style


Tire pressure


Distance driven
Direction of rotation
Unidirectional tires offer added advantag-
es, such as better hydroplaning perfor-
mance. To benefit, however, you must
make sure the tires rotate in the direction
specified.
An arrow on the sidewall indicates the in-
tended direction of tire rotation.
Checking tire inflation pressure
Regularly check your tire pressure at inter-
vals of no more than 14 days.
Correct the tire pressure only when tires
are cold.
If the tires are warm, you should only cor-
rect the tire pressure if it is too low for cur-
rent operating conditions.
A table on the fuel filler flap lists the spec-
ified tire inflation pressures for warm and
cold tires as well as for various operating
conditions.
Warning!
G
Tires and spare tire should be replaced after
six years, regardless of the remaining tread.!Keep unmounted tires in a cool, dry
place with as little exposure to light as
possible. Protect tires from contact
with oil, grease and gasoline.
Warning!
G
If the tire pressure repeatedly drops:

Check the tires for punctures from for-
eign objects.


Check to see whether air is leaking from
the valves or from around the rim.

272OperationTires and wheelsTire pressure changes by approximately
1.5 psi (0.1 bar) per 18°F (10°C) of air
temperature change. Keep this in mind
when checking tire pressure where the
temperature is different from the outside
temperature.
Tire temperature and tire pressure also in-
crease while driving, depending on the
driving speed and the tire load.Check the spare tire periodically for condi-
tion and inflation pressure. Spare tires will
age and become worn over time even if
never used, and thus should be inspected
and replaced when necessary or after a
maximum of six years.
iThe pressures listed for light loads are
minimum values offering high driving
comfort.
Increased inflation pressures listed for
heavier loads may also be used for light
loads. These higher pressures produce
favorable handling characteristics. The
ride of the vehicle, however, will be
somewhat harder. Never exceed the
max. values or inflate tires below the
min. values listed on the fuel filler flap.
Warning!
G
Follow recommended tire inflation pres-
sures.
Do not overinflate tires. Overinflated tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indicat-
ed by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.

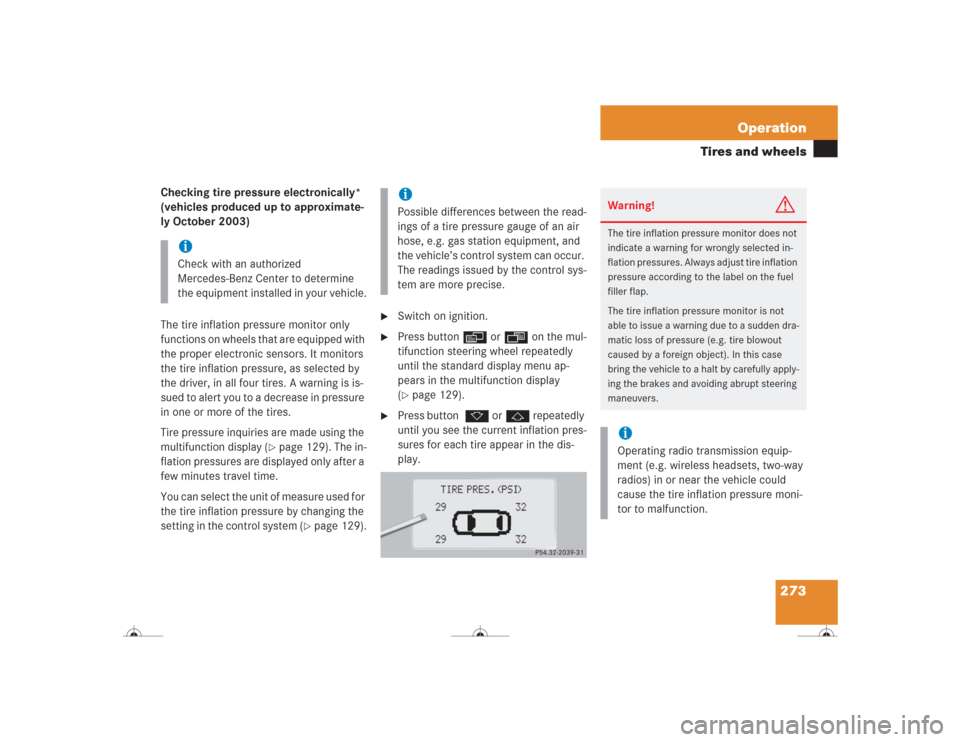

273 Operation
Tires and wheels
Checking tire pressure electronically*
(vehicles produced up to approximate-
ly October 2003)
The tire inflation pressure monitor only
functions on wheels that are equipped with
the proper electronic sensors. It monitors
the tire inflation pressure, as selected by
the driver, in all four tires. A warning is is-
sued to alert you to a decrease in pressure
in one or more of the tires.
Tire pressure inquiries are made using the
multifunction display (
page 129). The in-
flation pressures are displayed only after a
few minutes travel time.
You can select the unit of measure used for
the tire inflation pressure by changing the
setting in the control system (
page 129).

Switch on ignition.

Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu ap-
pears in the multifunction display
(page 129).

Press button k orj repeatedly
until you see the current inflation pres-
sures for each tire appear in the dis-
play.
iCheck with an authorized
Mercedes-Benz Center to determine
the equipment installed in your vehicle.
iPossible differences between the read-
ings of a tire pressure gauge of an air
hose, e.g. gas station equipment, and
the vehicle’s control system can occur.
The readings issued by the control sys-
tem are more precise.
Warning!
G
The tire inflation pressure monitor does not
indicate a warning for wrongly selected in-
flation pressures. Always adjust tire inflation
pressure according to the label on the fuel
filler flap.
The tire inflation pressure monitor is not
able to issue a warning due to a sudden dra-
matic loss of pressure (e.g. tire blowout
caused by a foreign object). In this case
bring the vehicle to a halt by carefully apply-
ing the brakes and avoiding abrupt steering
maneuvers.iOperating radio transmission equip-
ment (e.g. wireless headsets, two-way
radios) in or near the vehicle could
cause the tire inflation pressure moni-
tor to malfunction.

274OperationTires and wheels
Activating the tire inflation pressure
monitor
You must activate the tire inflation pres-
sure monitor in the following cases:

If you have changed the tire pressure


If you have replaced the wheels or tires


If you have installed new wheels or
tires

Make sure the tire pressure is correctly
set.

Press buttonè orÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu ap-
pears in the multifunction display
(page 129).

Press button j or k repeatedly
until you see the current inflation pres-
sures for each tire appear in the display
or the following message appears in
the displayTIRE PRES.
DISPLAY AFTER DRIVING
A FEW MINS.
REACTIVATE USING
R-BUTTON
Warning!
G
Follow recommended tire inflation pres-
sures.
Do not overinflate tires. Overinflating tires
can result in sudden deflation (blowout) be-
cause they are more likely to become punc-
tured or damaged by road debris, potholes,
etc.
Do not underinflate tires. Underinflated tires
wear unevenly, adversely affect handling
and fuel economy, and are more likely to fail
from being overheated.
Do not overload the tires by exceeding the
specified vehicle capacity weight (as indicat-
ed by the label on the pillar in the driver’s
door opening). Overloading the tires can
overheat them, possibly causing a blowout.
iIf transporting a deflated road wheel or
additional wheel sensors in the vehicle,
the tire inflation pressure monitor
should not be reactivated until the de-
flated wheel or additional wheel sen-
sors have been removed from the
vehicle. Otherwise, the deflated wheel
or additional sensors could cause the
tire inflation pressure monitor system
to malfunction.

276OperationTires and wheels

Switch on ignition.

Press buttonè or ÿ on the mul-
tifunction steering wheel repeatedly
until the standard display menu ap-
pears in the multifunction display
(page 129).

Press button k orj repeatedly
until you see the current inflation pres-
sures for each tire appear in the dis-
play.
iAfter you have reactivated the tire
pressure monitor, the current tire pres-
sures will only be shown after a few
minutes’ driving time.
During this time, you will see the follow-
ing message in the display:TIRE PRES. DISPLAY
APPEARS AFTER
DRIVING A FEW MINUTESiPossible differences between the read-
ings of a tire pressure gauge of an air
hose, e.g. gas station equipment, and
the vehicle’s control system can occur.
The readings issued by the control sys-
tem are more precise.
Warning!
G
When the tire pressure monitoring system
warning lamp is lit, one or more of your tires
is significantly under-inflated. You should
stop and check your tires as soon as possi-
ble, and inflate them to the proper pressure
as indicated on the vehicle’s tire information
placard. Driving on a significantly under-in-
flated tire causes the tire to overheat and
can lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability. Each tire, including the
spare, should be checked monthly when
cold and set to the recommended inflation
pressure as specified in the vehicle placard
and owner’s manual.iThe recommended tire inflation pres-
sure for your vehicle can be found on
the inside of the fuel filler flap, not in
the owner’s manual.
