seat adjustment MERCEDES-BENZ CL600 2005 C215 Owner's Manual

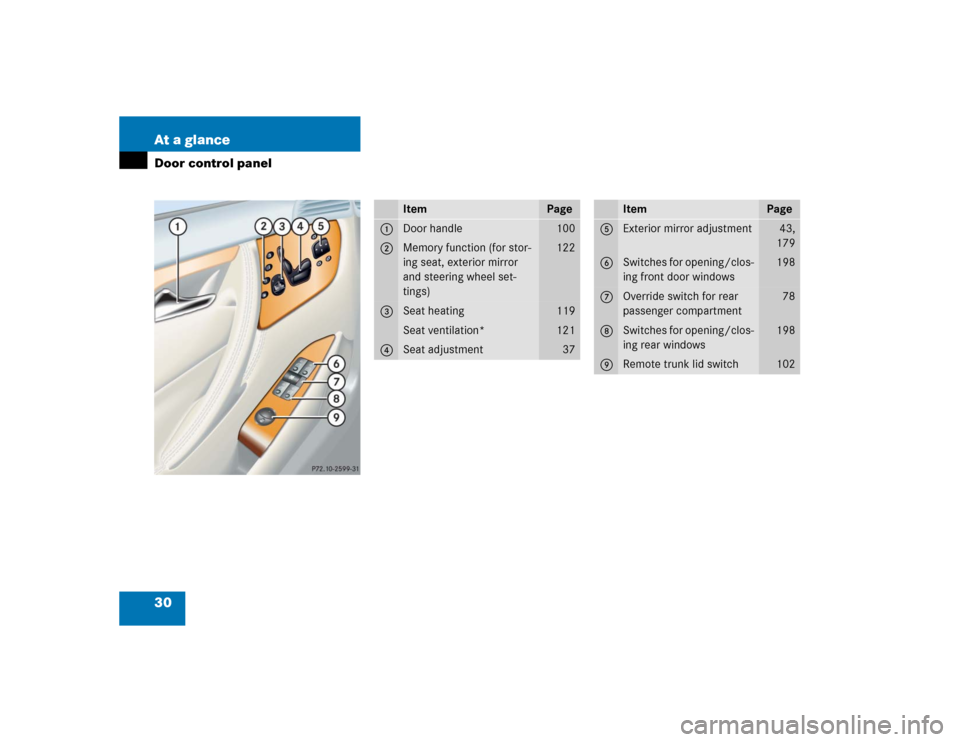

30 At a glanceDoor control panel
Item
Page
1
Door handle
100
2
Memory function (for stor-
ing seat, exterior mirror
and steering wheel set-
tings)
122
3
Seat heating
119
Seat ventilation*
121
4
Seat adjustment
37
Item
Page
5
Exterior mirror adjustment
43,
179
6
Switches for opening/clos-
ing front door windows
198
7
Override switch for rear
passenger compartment
78
8
Switches for opening/clos-
ing rear windows
198
9
Remote trunk lid switch
102

34 Getting startedUnlockingStarter switch positions
SmartKeyStarter switch
0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 326).
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (except high beam
headlamp indicator lamp and turn sig-
nal indicator lamps unless activated)
should go out when the engine is run-
ning.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.

36 Getting startedUnlockingPosition 0
Before you press the KEYLESS-GO
start/stop button1, the vehicle’s
on-board electronics have status 0 (as with
SmartKey removed).
Position 1
Press KEYLESS-GO start/stop
button1 once.
This supplies power to some electrical
consumers, such as seat adjustment.Ignition (or position 2)

Press KEYLESS-GO start/stop
button1 twice.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 326).
For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 49).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2)
is switched on


twice, the power supply is again
switched off
iIf you now press the KEYLESS-GO
start/stop button once, the power sup-
ply is again switched off.
iWhen you switch on the ignition, the in-
dicator and warning lamps (except high
beam headlamp indicator lamp and
turn signal indicator lamps unless acti-
vated) in the instrument cluster come
on. This indicates that the respective
systems are operational. The indicator
and warning lamps (except high beam
headlamp indicator lamp and turn sig-
nal indicator lamps unless activated)
should go out when the engine is run-
ning.

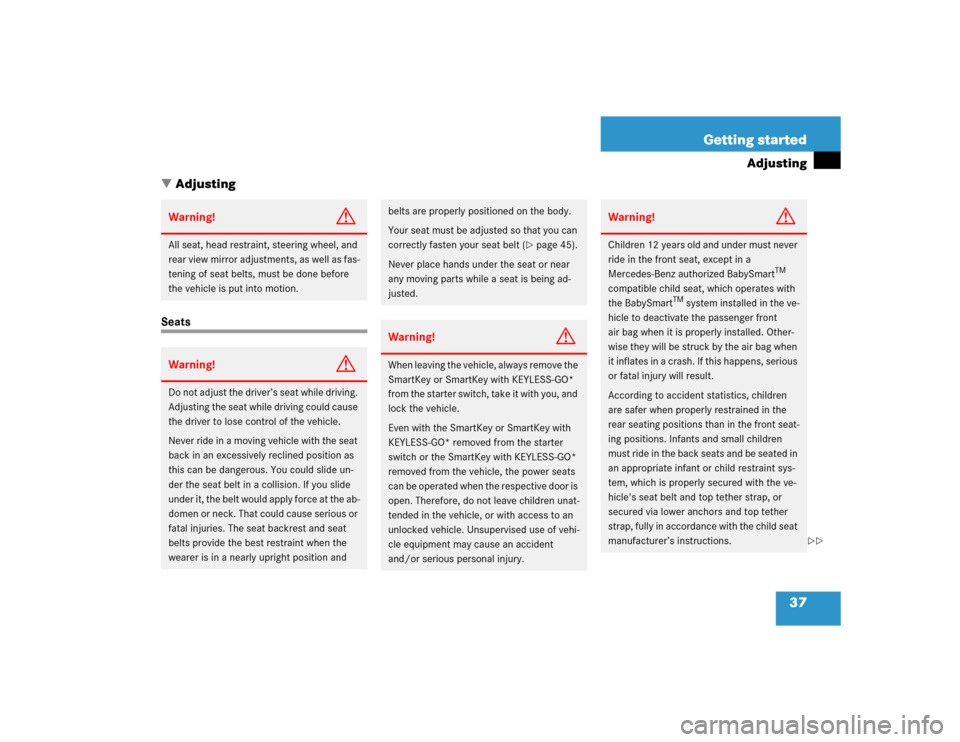

37 Getting started
Adjusting
Adjusting
SeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 45).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated when the respective door is
open. Therefore, do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed. Other-
wise they will be struck by the air bag when
it inflates in a crash. If this happens, serious
or fatal injury will result.
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in the back seats and be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle's seat belt and top tether strap, or
secured via lower anchors and top tether
strap, fully in accordance with the child seat
manufacturer’s instructions.


38 Getting startedAdjustingSeat adjustment
The seat adjustment switches are located
in each door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft adjustment
6Seat backrest tilt

Switch on ignition (
page 34).
or

Open the respective door.
Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow5.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3 until your upper
legs are lightly supported.
Seat cushion depth

Press the switch forward or backward
in the direction of arrow4 until your
legs are supported comfortably.
Seat backrest tilt

Press the switch forward or backward
in the direction of arrow6 until your
arms are slightly angled when holding
the steering wheel.
Seat height

Press the switch up or down in the di-
rection of arrow2.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, be sure that
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
The memory function (
page 122) lets
you store the setting for the seat posi-
tion together with the settings for the
steering wheel and the exterior rear
view mirrors.

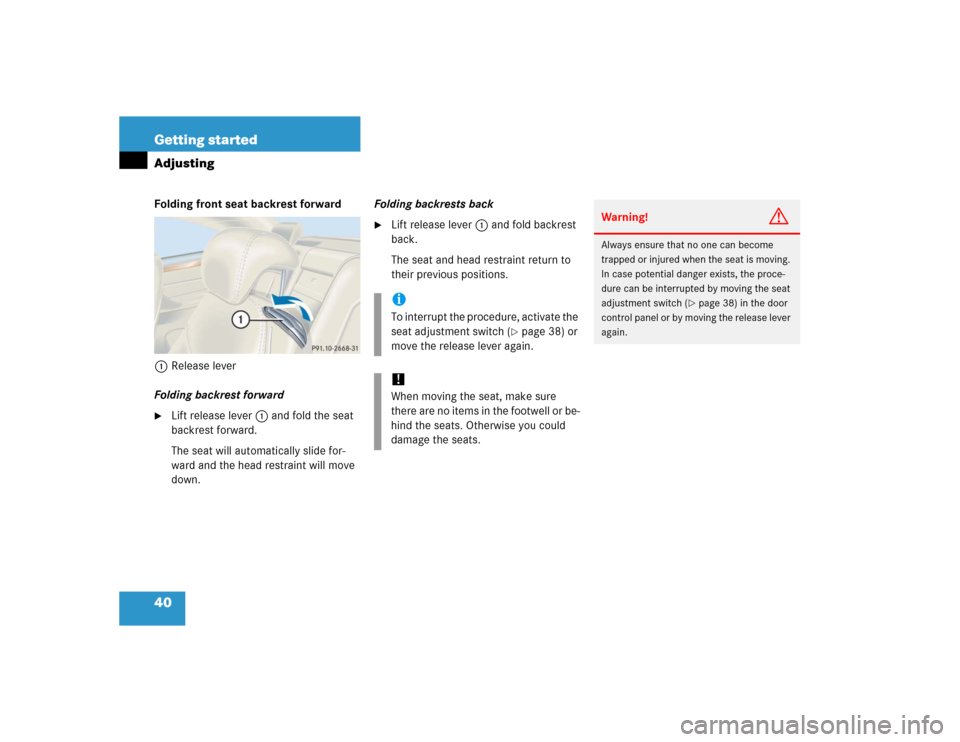

40 Getting startedAdjustingFolding front seat backrest forward
1Release lever
Folding backrest forward
Lift release lever1 and fold the seat
backrest forward.
The seat will automatically slide for-
ward and the head restraint will move
down.Folding backrests back

Lift release lever1 and fold backrest
back.
The seat and head restraint return to
their previous positions.iTo interrupt the procedure, activate the
seat adjustment switch (
page 38) or
move the release lever again.
!When moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
Warning!
G
Always ensure that no one can become
trapped or injured when the seat is moving.
In case potential danger exists, the proce-
dure can be interrupted by moving the seat
adjustment switch (
page 38) in the door
control panel or by moving the release lever
again.

41 Getting started
Adjusting
Warning!
G
The seat belts provide protection only with
the backrest locked in place and, therefore,
must be locked in place with the vehicle in
motion. Do not drive the vehicle when the
backrest is not locked in place. If the warn-
ing message SEAT BACKREST, RIGHT
LOCK!or SEAT BACKREST, LEFT
LOCK!is displayed in the multifunction display,
then the respective backrest is not engaged
in its lock. Carefully slow down, and drive
with caution to an area which is in a safe dis-
tance from the roadway. Always provide suf-
ficient room behind the backrest and fold
the backrest all the way back until it locks in
place.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.
The warning message is no longer displayed
as soon as the backrest is locked in place. If
both backrests are locked in place and the
warning message is still displayed, have the
system checked at an authorized
Mercedes-Benz Center immediately.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Never place hands under seat or near any
moving parts during a seat adjustment pro-
cedure.
!The automatic seat slide is provided
with a safety feature.
The automatic process is interrupted, if
the backrest of the sliding seat is
pushed against an occupant or object.
The seat will slide forward and stop.
Investigate and correct the cause of in-
terruption.
Now use memory button (
page 123)
or seat adjustment switch (page 38)
to bring seat into desired position.
When folding the backrest forward
from a reclined position, and then fold-
ing it back, the backrest stops in a
more upright position for the safety of
any rear-seat passenger. Adjust the
backrest until your arms are slightly an-
gled when holding the steering
wheel (
page 38).

42 Getting startedAdjustingSteering wheel Steering wheel adjustment
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down

Switch on ignition (
page 34).
or

Open the driver’s door.Adjusting steering column in or out

Move stalk forward or back in the direc-
tion of arrow 1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Adjusting steering column up or down

Move stalk up or down in the direction
of arrow 2.
Make sure your legs can move freely
and all the displays (incl. malfunction
and indicator lamps) on the instrument
cluster are clearly visible.
For more information, see “Heated steer-
ing wheel*” (
page 241).
Warning!
G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the steering
wheel adjustment feature can be operated
when the driver’s door is open. Therefore,
do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
iThe memory function (
page 122) lets
you store settings for the steering
wheel together with the settings for the
exterior rear view mirrors and the seat
position.

44 Getting startedAdjustingThe buttons are located on the driver’s
door.
1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view mir-
ror button
3Adjustment button

Switch on ignition (
page 34).

Press button1 for the left mirror or
button2 for the right mirror.

Push adjustment button3 up, down,
left or right according to the desired
setting.
For more information, see “Folding exteri-
or rear view mirrors in and out
automatically” (
page 181).
!For information on how to reposition
the exterior mirror housing when it was
forcibly pushed forward (hit from the
rear) or forcibly pushed rearward (hit
from the front), see “Folding exterior
rear view mirrors in and out manually”
(page 181).
iThe memory function (
page 122) lets
you store the setting for the exterior
rear view mirrors together with the set-
ting for the steering wheel and the seat
position.
At low ambient temperatures, the mir-
rors will be heated automatically.

47 Getting started

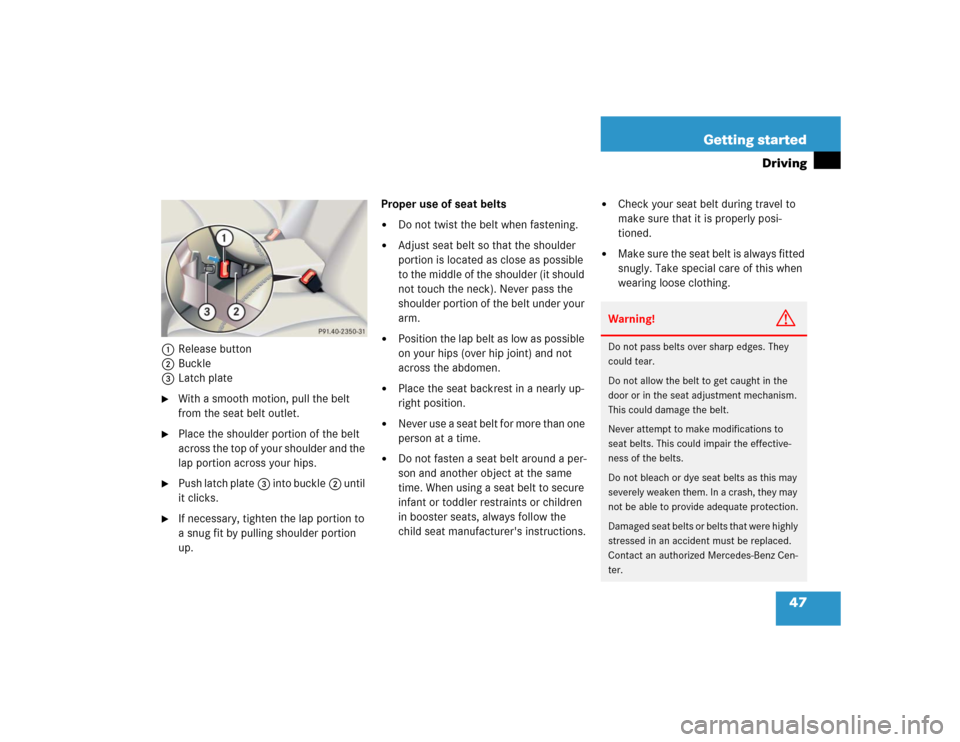

Driving
1Release button
2Buckle
3Latch plate
With a smooth motion, pull the belt
from the seat belt outlet.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate3 into buckle2 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.


Check your seat belt during travel to
make sure that it is properly posi-
tioned.


Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Cen-
ter.
