Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside
the USA or Canada......................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
Vehicle data recording......................... 19
Information regarding electronic
recording devices........................... 19
At a glance.......................................... 21
Cockpit ................................................. 22
Instrument cluster ................................ 24
Multifunction steering wheel ................ 26
Center console ..................................... 27
Upper part ...................................... 27
Lower part ...................................... 28
Overhead control panel ........................ 29
Door control panel................................ 30Getting started................................... 31
Unlocking ............................................. 32
Unlocking with the SmartKey.......... 32
Unlocking with KEYLESS-GO* ......... 33
Starter switch positions .................. 34
Adjusting .............................................. 37
Seats............................................... 37
Steering wheel ................................ 42
Mirrors ............................................ 43Driving .................................................. 45
Fastening the seat belts ................. 45
Starting the engine ......................... 48
Switching on headlamps ................. 52
Turn signals .................................... 53
Windshield wipers ........................... 54
Problems while driving.................... 56
Parking and locking .............................. 57
Parking brake ................................. 58
Switching off headlamps................. 59
Turning off the engine ..................... 59
Locking ........................................... 60
Safety and Security........................... 61
Occupant safety ................................... 62
Air bags .......................................... 63
Seat belts ....................................... 68
Children in the vehicle .................... 72
Blocking of rear window operation . 78
Panic alarm .......................................... 79
Activating........................................ 79
Deactivating.................................... 79

ContentsDriving safety systems ......................... 80
ABS ................................................ 80
BAS ................................................ 81
ESP ................................................. 82
Anti-theft systems................................ 85
Immobilizer..................................... 85
Anti-theft alarm system .................. 85
Tow-away alarm ............................. 87Controls in detail............................... 89
Locking and unlocking ......................... 90
SmartKey ....................................... 90
SmartKey with KEYLESS-GO*......... 94
Opening the doors
from the inside ............................. 100
Opening the trunk ........................ 101
Closing the trunk .......................... 103
Trunk lid emergency release ........ 109
Power closing assist
for doors and trunk lid .................. 110
Automatic central locking ............ 110
Locking and unlocking
from the inside ............................. 111Seats ................................................. 112
Easy-entry/exit feature ................ 112
Removing and installing
front seat head restraints............. 114
Rear seat head restraints ............. 115
Lumbar support............................ 117
Multicontour backrest* ................ 117
Seat heating ................................. 119
Seat ventilation* .......................... 121
Memory function ............................... 122
Storing positions into memory ..... 123
Recalling positions from memory . 123
Storing exterior rear view
mirror parking position................. 124
Lighting.............................................. 125
Exterior lamp switch..................... 125
Combination switch ..................... 129
Hazard warning flasher ................ 130
Interior lighting............................. 131
Courtesy lighting .......................... 133
Door entry lamps ......................... 133
Trunk lighting ............................... 133Instrument cluster ............................. 134
Instrument cluster illumination .... 134
Coolant temperature gauge ......... 135
Trip odometer .............................. 135
Tachometer .................................. 136
Outside temperature indicator ..... 136
Clock............................................ 136
Control system .................................. 137
Multifunction display.................... 137
Multifunction steering wheel........ 138
Menus .......................................... 140
Standard display menu ................ 142
AUDIO menu ................................ 142
CD changer operating mode ........ 145
TEL menu* ................................... 147
NAVI menu ................................... 149
Distronic* menu .......................... 150
Trip computer menu..................... 151
Vehicle status message
memory menu .............................. 153
Settings menu .............................. 154

37 Getting started
Adjusting
Adjusting
SeatsWarning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide un-
der the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
fatal injuries. The seat backrest and seat
belts provide the best restraint when the
wearer is in a nearly upright position and
belts are properly positioned on the body.
Your seat must be adjusted so that you can
correctly fasten your seat belt (
page 45).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
Even with the SmartKey or SmartKey with
KEYLESS-GO* removed from the starter
switch or the SmartKey with KEYLESS-GO*
removed from the vehicle, the power seats
can be operated when the respective door is
open. Therefore, do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.
Warning!
G
Children 12 years old and under must never
ride in the front seat, except in a
Mercedes-Benz authorized BabySmart
TM
compatible child seat, which operates with
the BabySmart
TM system installed in the ve-
hicle to deactivate the passenger front
air bag when it is properly installed. Other-
wise they will be struck by the air bag when
it inflates in a crash. If this happens, serious
or fatal injury will result.

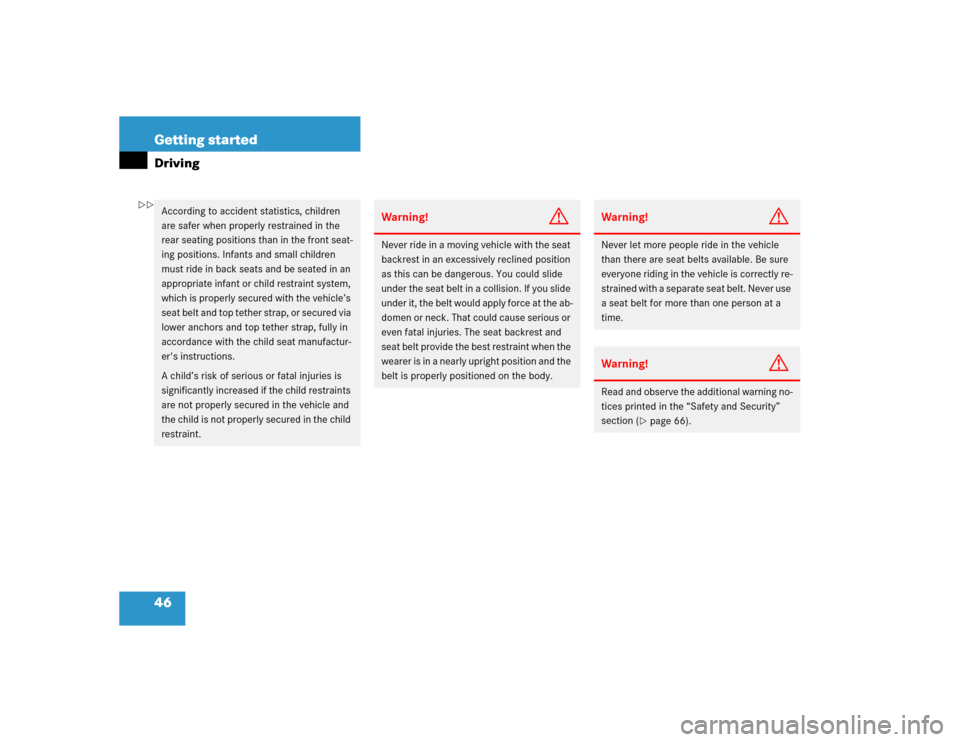

According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in the back seats and be seated in
an appropriate infant or child restraint sys-
tem, which is properly secured with the ve-
hicle's seat belt and top tether strap, or
secured via lower anchors and top tether
strap, fully in accordance with the child seat
manufacturer’s instructions.


38 Getting startedAdjustingSeat adjustment
The seat adjustment switches are located
in each door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat cushion depth
5Seat fore and aft adjustment
6Seat backrest tilt

Switch on ignition (
page 34).
or

Open the respective door.
Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow5.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator/brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls.Seat cushion tilt

Press the switch up or down in the di-
rection of arrow3 until your upper
legs are lightly supported.
Seat cushion depth

Press the switch forward or backward
in the direction of arrow4 until your
legs are supported comfortably.
Seat backrest tilt

Press the switch forward or backward
in the direction of arrow6 until your
arms are slightly angled when holding
the steering wheel.
Seat height

Press the switch up or down in the di-
rection of arrow2.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
iWhen moving the seat, be sure that
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
The memory function (
page 122) lets
you store the setting for the seat posi-
tion together with the settings for the
steering wheel and the exterior rear
view mirrors.


39 Getting started
Adjusting
Head restraint height
Press the switch up or down in the di-
rection of arrow1.Head restraint tilt
Manually adjust the angle of the head re-
straint.

Push or pull on the lower edge of the
head restraint cushion.
For more information, see “Seats”
(
page 112).
Warning!
G
For your protection, drive only with properly
positioned head restraints.
Adjust head restraint so that the center of
the head restraint supports the back of the
head at eye level. This will reduce the poten-
tial for injury to the head and neck in the
event of an accident or similar situation.
Do not drive the vehicle without the seat
head restraints. Head restraints are intend-
ed to help reduce injuries during an acci-
dent.iAdjust the head restraint in such a way
that it is as close to the head as possi-
ble.
iAdjust the head restraint in such a way
that it is as close to the head as possi-
ble.
iThe feature below is deactivated at the
factory for U.S. vehicles. If you wish to
have it activated, contact an authorized
Mercedes-Benz Center.
The front passenger seat head restraint
automatically lowers after a few sec-
onds when the front passenger seat is
not occupied. This improves the
driver's outward view as well as the for-
ward view from the rear passenger
compartment.
When the front passenger seat is occu-
pied again, the front passenger head
restraint returns to the last set position
within a few seconds.
If the front passenger seat was moved
fore or aft while not being occupied,
the front passenger seat head restraint
returns to a position that corresponds
best with the seat's axial position when
the seat is occupied again.

40 Getting startedAdjustingFolding front seat backrest forward
1Release lever
Folding backrest forward
Lift release lever1 and fold the seat
backrest forward.
The seat will automatically slide for-
ward and the head restraint will move
down.Folding backrests back

Lift release lever1 and fold backrest
back.
The seat and head restraint return to
their previous positions.iTo interrupt the procedure, activate the
seat adjustment switch (
page 38) or
move the release lever again.
!When moving the seat, make sure
there are no items in the footwell or be-
hind the seats. Otherwise you could
damage the seats.
Warning!
G
Always ensure that no one can become
trapped or injured when the seat is moving.
In case potential danger exists, the proce-
dure can be interrupted by moving the seat
adjustment switch (
page 38) in the door
control panel or by moving the release lever
again.

41 Getting started
Adjusting
Warning!
G
The seat belts provide protection only with
the backrest locked in place and, therefore,
must be locked in place with the vehicle in
motion. Do not drive the vehicle when the
backrest is not locked in place. If the warn-
ing message SEAT BACKREST, RIGHT
LOCK!or SEAT BACKREST, LEFT
LOCK!is displayed in the multifunction display,
then the respective backrest is not engaged
in its lock. Carefully slow down, and drive
with caution to an area which is in a safe dis-
tance from the roadway. Always provide suf-
ficient room behind the backrest and fold
the backrest all the way back until it locks in
place.
Keep the area around head restraints clear
of articles (e.g. clothing) to not obstruct the
folding operation of the head restraints.
The warning message is no longer displayed
as soon as the backrest is locked in place. If
both backrests are locked in place and the
warning message is still displayed, have the
system checked at an authorized
Mercedes-Benz Center immediately.
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle.
The power seats can also be operated with
the driver’s or passenger door open. Do not
leave children unattended in the vehicle or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.
Never place hands under seat or near any
moving parts during a seat adjustment pro-
cedure.
!The automatic seat slide is provided
with a safety feature.
The automatic process is interrupted, if
the backrest of the sliding seat is
pushed against an occupant or object.
The seat will slide forward and stop.
Investigate and correct the cause of in-
terruption.
Now use memory button (
page 123)
or seat adjustment switch (page 38)
to bring seat into desired position.
When folding the backrest forward
from a reclined position, and then fold-
ing it back, the backrest stops in a
more upright position for the safety of
any rear-seat passenger. Adjust the
backrest until your arms are slightly an-
gled when holding the steering
wheel (
page 38).

46 Getting startedDrivingAccording to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing positions. Infants and small children
must ride in back seats and be seated in an
appropriate infant or child restraint system,
which is properly secured with the vehicle’s
seat belt and top tether strap, or secured via
lower anchors and top tether strap, fully in
accordance with the child seat manufactur-
er's instructions.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.
Warning!
G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the ab-
domen or neck. That could cause serious or
even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!
G
Never let more people ride in the vehicle
than there are seat belts available. Be sure
everyone riding in the vehicle is correctly re-
strained with a separate seat belt. Never use
a seat belt for more than one person at a
time.Warning!
G
Read and observe the additional warning no-
tices printed in the “Safety and Security”
section (
page 66).


47 Getting started
Driving
1Release button
2Buckle
3Latch plate
With a smooth motion, pull the belt
from the seat belt outlet.

Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.

Push latch plate3 into buckle2 until
it clicks.

If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.Proper use of seat belts


Do not twist the belt when fastening.


Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.


Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.


Place the seat backrest in a nearly up-
right position.


Never use a seat belt for more than one
person at a time.


Do not fasten a seat belt around a per-
son and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.


Check your seat belt during travel to
make sure that it is properly posi-
tioned.


Make sure the seat belt is always fitted
snugly. Take special care of this when
wearing loose clothing.Warning!
G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash, they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz Cen-
ter.

62 Safety and SecurityOccupant safetyIn this section you will learn the most im-
portant facts about the restraint systems
of the vehicle.
The restraint systems are:

Seat belts


Emergency tensioning device


Air bags


Child seats


Child seat recognition


Lower anchors and tethers for children
(LATCH)
As independent systems, their protective
effects work in conjunction with each oth-
er.The 1 indicator lamp in the instrument
cluster comes on


for about four seconds when you turn
the SmartKey in the starter switch to
position1 or press the KEYLESS-GO*
start/stop button (
page 35) once. It
then goes out briefly, comes on again
and remains lit until you start the en-
gine.


for about four seconds when you start
the engine by turning the SmartKey or
pressing the KEYLESS-GO* start/stop
button.The restraint systems are fully operational
if the 1 indicator lamp is not lit when
the engine is running.
A malfunction in the system has been de-
tected if the 1 indicator lamp:


fails to extinguish after approximately
four seconds.


does not come on at all.


comes on after the engine was started
or while driving.
For safety reasons, we strongly recom-
mend that you visit an authorized
Mercedes-Benz Center immediately to
have the system checked.
For more information, see “Practical hints”
(
page 333).
iFor information on infants and children
traveling with you in the vehicle and re-
straint systems for infants and chil-
dren, see “Children in the vehicle”
(page 72).
iThe 1 indicator lamp remains lit if
the SmartKey is turned to position 2
and left there or the KEYLESS-GO*
start/stop button is pressed twice. The
indicator lamp will go out when you
start the engine.
