check engine MERCEDES-BENZ CL600 2007 C216 Owner's Manual

Contents
Operation......................................... 497
The first 1000 miles (1500 km) ......... 498
Driving instructions ............................ 499
Drive sensibly – save fuel ............. 499
Drinking and driving ..................... 499
Pedals .......................................... 499
Power assistance ......................... 499
Brakes .......................................... 500
Driving off..................................... 501
Parking ......................................... 502
Tires ............................................. 502
Hydroplaning ................................ 503
Tire traction .................................. 503
Tire speed rating .......................... 504
Winter driving instructions ........... 504
Standing water ............................. 505
Passenger compartment .............. 506
Driving abroad .............................. 506
Control and operation
of radio transmitters .................... 506
Catalytic converter ....................... 507
Emission control........................... 507
Coolant temperature .................... 508At the gas station .............................. 509
Refueling ...................................... 509
Check regularly
and before a long trip ................... 511
Engine compartment ......................... 512
Hood ............................................ 512
Engine oil ..................................... 513
Transmission fluid level ................ 517
Active Body Control
(ABC) fluid level ............................ 517
Coolant level ................................ 518
Windshield washer system and
headlamp cleaning system ........... 519
Tires and wheels ................................ 520
Important guidelines .................... 520
Tire care and maintenance ........... 521
Direction of rotation ..................... 523
Loading the vehicle ...................... 523
Recommended
tire inflation pressure ................... 528
Checking tire inflation pressure ... 530
Tire labeling.................................. 536
Load identification ....................... 540
DOT,
Tire Identification Number (TIN) ... 540
Maximum tire load ....................... 541Maximum tire inflation pressure .. 542
Uniform Tire Quality
Grading Standards (U.S. vehicles) 542
Tire ply material ........................... 544
Tire and loading terminology ........ 544
Rotating tires ............................... 548
Winter driving .................................... 549
Winter tires .................................. 549
Snow chains................................. 550
Maintenance...................................... 551
Maintenance
service indicator message ........... 551
Calling up the maintenance
service indicator display .............. 553
Resetting the maintenance
service indicator .......................... 553
Vehicle care....................................... 554
Cleaning and care of vehicle ........ 554

27 At a glance
Exterior view
ItemPage
1Trunk

Unlocking

Opening and closing

Minispare wheel

Vehicle tool kit
461
461
649
632
2Rear lamps642
3Rear window, defrosting457
4Fuel filler flap
Gasoline509
687
5Doors

Locking and unlocking

Opening and closing
322
333
ItemPage
6Exterior rear view mirror
Parking position355
356
7Towing the vehicle663
8Rims and tires

Checking tire inflation
pressure

Minispare wheel

Flat tire
678
530
634
649
9Hood, opening
Engine oil
Coolant512
513
518
ItemPage
aHeadlamp cleaning system367
bFront lamps642
cWindshield wipers
Wiper blades, replacing
Wiper blades, cleaning372
647
562
dWindow, cleaning562
ePower tilt/sliding sunroof466

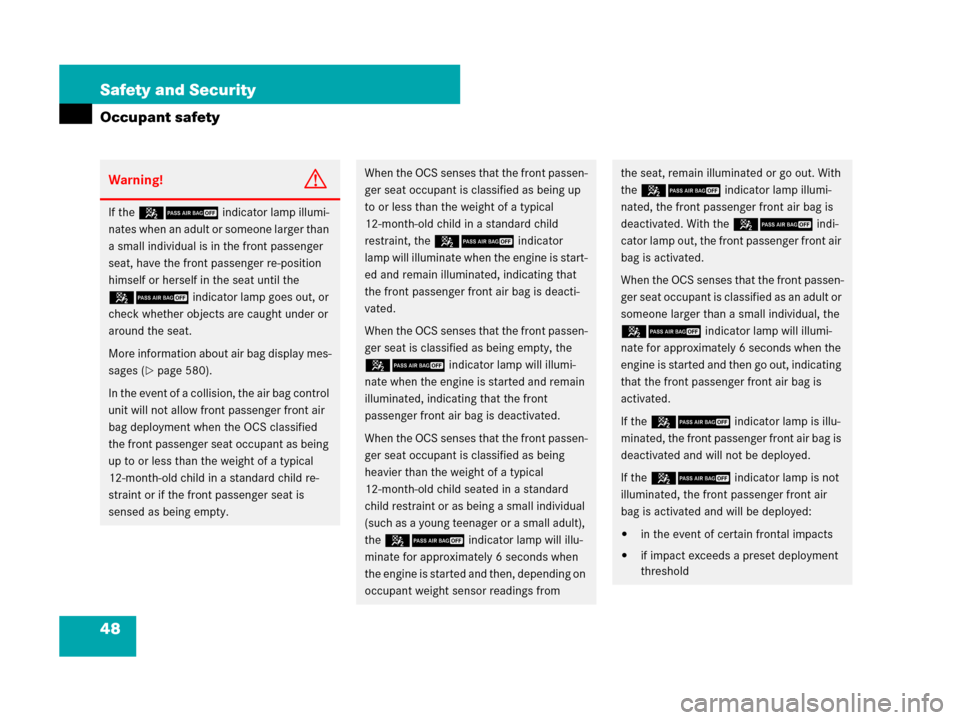

48 Safety and Security
Occupant safety
Warning!G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger re-position
himself or herself in the seat until the
59indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display mes-
sages (
page 580).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is start-
ed and remain illuminated, indicating that
the front passenger front air bag is deacti-
vated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front
passenger front air bag is deactivated.
When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings fromthe seat, remain illuminated or go out. With
the 59indicator lamp illumi-
nated, the front passenger front air bag is
deactivated. With the 59 indi-
cator lamp out, the front passenger front air
bag is activated.
When the OCS senses that the front passen-
g e r s e a t o c c u p a n t i s c l a s s i f i e d a s a n a d u l t o r
someone larger than a small individual, the
59indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is
activated.
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

69 Safety and Security
Driving safety systems
After a hard collision or damage to the
front of the vehicle from an accident, have
the adjustment and operation of the radar
sensors checked by an authorized
Mercedes-Benz Center.
If BAS Plus is not available due to a radar
sensor malfunction, the braking system
will continue to function normally with full
brake boost and full standard BAS
function.EBP
The Electronic Brake Proportioning (EBP)
enhances braking effectiveness by allow-
ing the rear brakes to supply a greater pro-
portion of the braking effort in straight line
braking without a loss of vehicle stability.ESP®
The Electronic Stability Program (ESP®) is
operational as soon as the engine is run-
ning and monitors the vehicle’s traction
(force of adhesive friction between the
tires and the road surface) and handling.
The ESP
® recognizes when a wheel is spin-
ning or if the vehicle starts to skid. By ap-
plying brakes to the appropriate wheel and
by limiting the engine output, the ESP
®
works to stabilize the vehicle. The ESP® is
especially useful while driving off and on
wet or slippery road surfaces. The ESP
®
also stabilizes the vehicle during braking
and steering maneuvers.
The ESP
® warning lamp v in the instru-
ment cluster flashes when the ESP® is en-
gaged.
The ESP
® warning lamp v in the instru-
ment cluster comes on when you switch on
the ignition (
page 336). It goes out when
the engine is running.
Warning!G
When the EBP is malfunctioning, the ABS,
BAS, BAS Plus* and ESP® are also switched
off.
If the EBP is malfunctioning, the brake sys-
tem will still function with full brake boost.
However, the rear wheels could lock up dur-
ing emergency braking situations, for exam-
ple. You could lose control of the vehicle and
cause an accident. Adapt your driving style
to the changed driving characteristics.

259 Control systems
Instrument cluster control system
Assistance* (page 268)Service (page 269)Settings (page 271)
Commands/submenus
Displaying the distance graphic*,
DISTRONIC Plus*Calling up vehicle malfunction, warning
and system status messages stored in
memorySetting daytime running lamp mode
(USA only)
Activating/deactivating PRE-SAFE®
Brake*
(vehicles with DISTRONIC Plus* only)Checking tire inflation pressureSwitching additional speedometer on or
off
Switching on the Dynamic Rear View
Monitor* automaticallyCalling up maintenance service displaySwitching radar sensors* on or off
(USA only)
Checking engine oil level (CL 600)

269 Control systems
Instrument cluster control system
Switching on the Dynamic Rear View
Monitor* automatically
Press ( or & to select the
“Assistance” menu.
Press % or $ to select the
“Rearview camera” function.
Press #.
Press # again if you would like to
change the current status.The following settings are available:
Service menu
The “Service” menu is used for

calling up messages

checking tire inflation pressure elec-
tronically with the Advanced TPMS

calling up the maintenance service in-
dicator display

check engine oil level*
iThe image from the Dynamic Rear View
Monitor is shown on the COMAND display.“On when in
Reverse”The Dynamic Rear View
Monitor automatically
switches on when reverse
gear is engaged.
“OFF”The Dynamic Rear View
Monitor is not switched on.
iThe menu overview can be found on
(
page 258).

270 Control systems
Instrument cluster control system
Calling up vehicle malfunction, warning
and system status messages stored in
memory
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the sys-
tem. Such messages appear in the multi-
function display and are based on
conditions or system status the vehicle’s
system has recorded.
The vehicle status message memory menu
only appears if there are any messages
stored.
Press ( or & to select the
“Service” menu.
If conditions have occurred causing
status messages to be recorded, the
number of messages appears in the
multifunction display: “2 Messages”.
Press % or $ to select the mes-
sage.
Press # to confirm.Checking tire inflation pressure
For information about checking tire infla-
tion pressure (
page 531).
Calling up the maintenance service in-
dicator display
For information about calling up the main-
tenance service indicator display
(
page 551).
Checking engine oil level (CL 600)
For information about checking engine oil
level (
page 514).
Warning!G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 580).
iSee the “Practical hints” section for mal-
function and warning messages (
page 580).
iIf you turn the SmartKey in the starter
switch to position0 and then back to position2,
all messages will be deleted from the message
memory.

326 Controls in detail
Locking and unlocking
SmartKey with KEYLESS-GO*
Vehicles equipped with KEYLESS-GO come
with two SmartKeys with KEYLESS-GO,
each with remote control and a removable
mechanical key.
The locking tabs for the mechanical key
portion of the two SmartKeys with
KEYLESS-GO are of different color to help
distinguish each SmartKey with
KEYLESS-GO unit.
The KEYLESS-GO function is integrated
into the SmartKey. On these vehicles, the
validity of the SmartKey with KEYLESS-GO
is checked every time you grasp an outside
door handle.
With the KEYLESS-GO function, you can
lock and unlock the vehicle without using
the remote control buttons on the
SmartKey and start the engine without in-
serting the SmartKey in the starter switch.If the SmartKey with KEYLESS-GO is valid,
your vehicle unlocks:

the doors

the trunk

the fuel filler flap
SmartKey with KEYLESS-GO
1‹ Lock button
2ŠOpening button for trunk
(
page 461)
3Locking tab for mechanical key
4ΠUnlock button
5Battery check lamp
6ÂPanic button (
page 63)
!To prevent possible malfunction, avoid ex-
posing the SmartKey with KEYLESS-GO to high
levels of electromagnetic radiation.
Warning!G
When leaving the vehicle, always take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
Children could start the vehicle with a valid
SmartKey with KEYLESS-GO left in the
vehicle or with the KEYLESS-GO button on
the starter switch, or could release the
electronic parking brake, thereby putting
themselves and others in danger. Switch off
the engine and take the SmartKey with
KEYLESS-GO with you even if you are only
leaving the vehicle for a short while.

336 Controls in detail
Starter switch positions
SmartKey
Starter switch
0For removing SmartKey
1Power supply for some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position.
All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.
If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 566).
3Starting position
For information on starting the engine us-
ing the SmartKey, see “Starting with the
SmartKey” (
page 379).
Warning!G
When leaving the vehicle, always remove the
SmartKey or SmartKey with KEYLESS-GO*
from the starter switch, take it with you, and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. A child’s unsupervised ac-
cess to a vehicle could result in an accident
and/or serious personal injury.
iWhen you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
!If you turn off the engine using the
SmartKey and

remove the SmartKey from the starter
switch
or

open a door
the transmission will shift to park positionP
automatically.
Keep in mind that turning off the engine with the
SmartKey alone only will automatically shift the
transmission to neutral positionN.
!If the SmartKey cannot be turned in the
starter switch, the battery may not be sufficient-
ly charged.

Check the battery and charge it if necessary
(
page 655).

Get a jump start (page 660).
To prevent accelerated battery discharge or a
completely discharged battery, always remove
the SmartKey from the starter switch when the
engine is not in operation.

338 Controls in detail
Starter switch positions
Position 0
Before you press the KEYLESS-GO
start/stop button, the vehicle’s on-board
electronics have status 0 (as with
SmartKey removed).
Position 1
Press the KEYLESS-GO start/stop but-
ton once.
This supplies power for some electrical
consumers, such as seat adjustment.
Ignition (or position 2)
Press the KEYLESS-GO start/stop but-
ton twice.
This supplies power for all electrical
consumers.All lamps (except high beam headlamp
indicator lamp and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary.
If a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 566).For information on starting the engine us-
ing the KEYLESS-GO start/stop button,
see “Starting with KEYLESS-GO*”
(
page 379).
iIf you now press the KEYLESS-GO
start/stop button

once again, the ignition (position2) is
switched on

twice, the power supply is again switched off
iIf you now press the KEYLESS-GO
start/stop button once, the power supply is
again switched off.
iWhen you switch on the ignition, the indica-
tor and warning lamps (except high beam head-
lamp indicator lamp and turn signal indicator
lamps unless activated) in the instrument cluster
come on. The indicator and warning lamps (ex-
cept high beam headlamp indicator lamp and
turn signal indicator lamps if activated) should go
out when the engine is running. This indicates
that the respective systems are operational.
!If you turn off the engine using the
KEYLESS-GO start/stop button and open the
driver’s or passenger door, the transmission will
shift to park positionP automatically.
Keep in mind that turning off the engine using
the KEYLESS-GO start/stop button alone only
will automatically shift the transmission to
neutral positionN.
