oil filter MERCEDES-BENZ CL600 2007 C216 Owner's Manual

516 Operation
Engine compartment
Checking engine oil level with the oil
dipstick (CL 550)
To check the engine oil level with the oil
dipstick, do the following:
Open the hood (page 512).
CL 550
1Oil dipstick
2Upper mark
3Lower mark
Pull out oil dipstick1.
Wipe oil dipstick1 clean.
Fully insert oil dipstick1 into the dip-
stick guide tube.
Pull out oil dipstick1 again after ap-
proximately 3 seconds to obtain accu-
rate reading.
The oil level is correct when it is between
lower mark3 (min.) and upper mark2
(max.) mark of the oil dipstick.
If necessary, add engine oil.
For adding engine oil (
page 516).
For more information on engine oil, see the
“Technical data” section (
page 684) and
(
page 686).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 580).Adding engine oil
iThe filling quantity between the upper and
lower marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System
(U.S. vehicles. Canada vehicles, depending on
vehicle production date) or FSS PLUS (Canada
vehicles, depending on vehicle production date).
For a listing of approved engine oils and oil fil-
ters, refer to the Factory Approved Service
Products pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the Main-
tenance System (U.S. vehicles. Canada vehicles,
depending on vehicle production date) or
FSS PLUS (Canada vehicles, depending on vehi-
cle production date), or changing of oil and oil fil-
ter at change intervals longer than those called
for by the Maintenance System (U.S. vehicles.
Canada vehicles, depending on vehicle produc-
tion date) or FSS PLUS (Canada vehicles, de-
pending on vehicle production date) will result in
engine or emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.

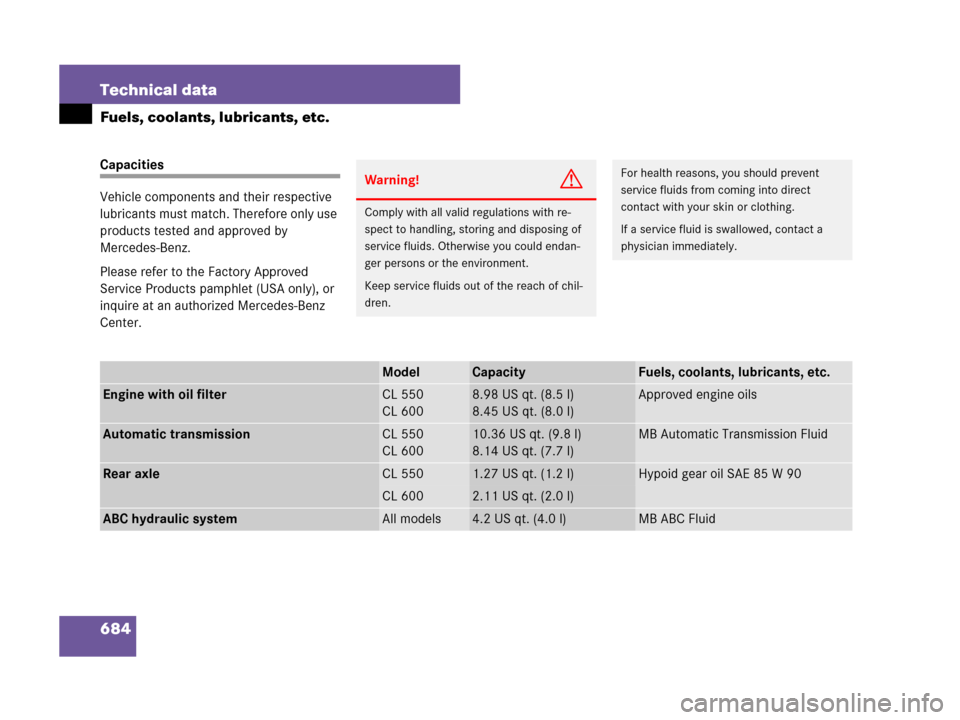

684 Technical data
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respective
lubricants must match. Therefore only use
products tested and approved by
Mercedes-Benz.
Please refer to the Factory Approved
Service Products pamphlet (USA only), or
inquire at an authorized Mercedes-Benz
Center.
Warning!G
Comply with all valid regulations with re-
spect to handling, storing and disposing of
service fluids. Otherwise you could endan-
ger persons or the environment.
Keep service fluids out of the reach of chil-
dren.
For health reasons, you should prevent
service fluids from coming into direct
contact with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.
ModelCapacityFuels, coolants, lubricants, etc.
Engine with oil filterCL 550
CL 6008.98 US qt. (8.5 l)
8.45 US qt. (8.0 l)Approved engine oils
Automatic transmissionCL 550
CL 60010.36 US qt. (9.8 l)
8.14 US qt. (7.7 l)MB Automatic Transmission Fluid
Rear axleCL 5501.27 US qt. (1.2 l)Hypoid gear oil SAE 85 W 90
CL 6002.11 US qt. (2.0 l)
ABC hydraulic systemAll models4.2 US qt. (4.0 l)MB ABC Fluid

686 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles, Canada vehicles,
depending on vehicle production date) or
FSS PLUS (Canada vehicles, depending on
vehicle production date). For a listing of
approved engine oils and oil filters, refer to
the Factory Approved Service Products
pamphlet (USA only), or contact an autho-
rized Mercedes-Benz Center.Engine oil additives
Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil are used in the air condition-
ing system.
!Using engine oils and oil filters of
specification other than those expressly
required for the Maintenance System
(U.S. vehicles, Canada vehicles, depending on
vehicle production date) or FSS PLUS (Canada
vehicles, depending on vehicle production date),
or changing of oil and oil filter at change intervals
longer than those called for by the Maintenance
System (U.S. vehicles, Canada vehicles, depend-
ing on vehicle production date) or FSS PLUS
(Canada vehicles, depending on vehicle produc-
tion date) will result in engine or emission control
system damage not covered by the
Mercedes-Benz Limited Warranty.
Please follow Maintenance System
(U.S. vehicles, Canada vehicles, depending on
vehicle production date) or FSS PLUS (Canada
vehicles, depending on vehicle production date)
recommendations for scheduled oil changes.
Failure to do so will result in engine or emission
control system damage not covered by the
Mercedes-Benz Limited Warranty.
!Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from blending
oil additives are not covered by the
Mercedes-Benz Limited Warranty.
!Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the system
will occur.

700 Index
Emergency operations
Locking the vehicle 635
Mechanically releasing
the electronic parking brake 637
Releasing from inside 464
Remote door lock 489
Remote door unlock 489
Tilt/sliding sunroof 638
Unlocking the trunk 636
Unlocking the vehicle 635
Emergency Tensioning Device see ETD
Emergency, In case of
Battery, Jump starting 660
First aid kit 632
Flat tire 649
Fuses 667
Roadside Assistance 16
Roadside Assistance (Tele Aid) 485
Towing the vehicle 663
Emission control 507
Emission control information label 675
Emission control system warranties 14Engine
Belt layout 676
Cleaning 556
Compartment 512
Coolant 518, 685, 689
Malfunction indicator lamp 31, 570
Number 674, 675
Oil 516, 684, 686
Oils 513
Residual heat and ventilation 460
Starting 378
Technical data 677
Turning off 387
Engine coolant see Coolant
Engine oil 513
Adding 516
Additives 686
Checking level 513
Checking level (Dipstick) 516
Checking level (Instrument
cluster control system) 514
Consumption 513Dipstick 516
Filler neck 516, 517
Messages in display 515, 623
Recommended engine oils
and oil filters 684
ESP
®69
Messages in display 594, 605
Warning lamp 31, 567, 572
ETD 55
Safety guidelines 44
Exterior lighting
Delayed switch-off (COMAND) 235
Locator lighting (COMAND) 236
Exterior rear view mirrors
Adjusting 353
Auto-dimming
on the driver’s side 355
Fold in automatically when locking
(COMAND) 237
Lower mirror when reversing
(COMAND) 237
Power folding 354
