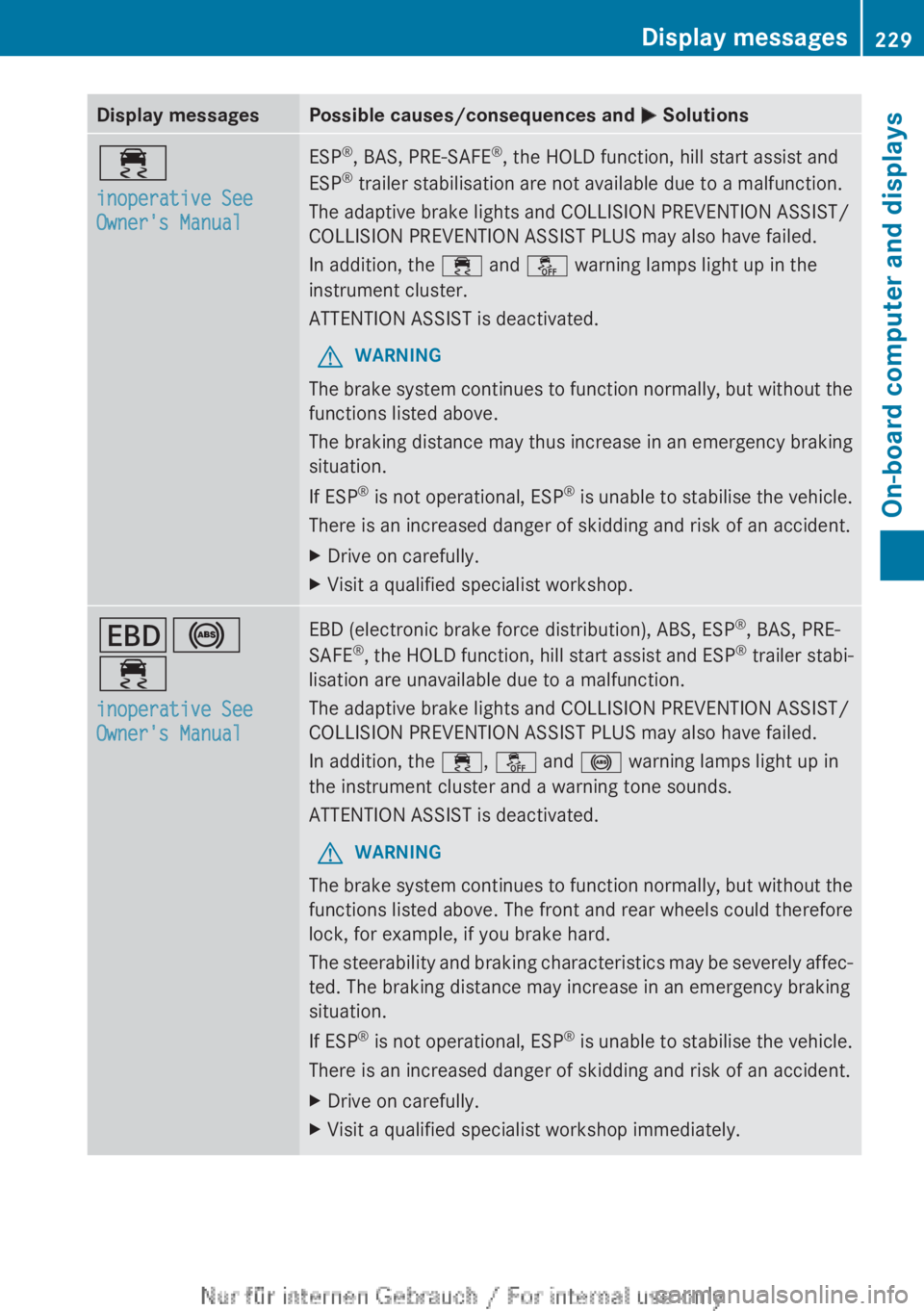

Display messagesPossible causes/consequences and M Solutions÷
inoperative See
Owner's ManualESP ®
, BAS, PRE-SAFE ®
, the HOLD function, hill start assist and
ESP ®
trailer stabilisation are not available due to a malfunction.
The adaptive brake lights and COLLISION PREVENTION ASSIST/
COLLISION PREVENTION ASSIST PLUS may also have failed.
In addition, the ÷ and å warning lamps light up in the
instrument cluster.
ATTENTION ASSIST is deactivated.GWARNING
The brake system continues to function normally, but without the
functions listed above.
The braking distance may thus increase in an emergency braking
situation.
If ESP ®
is not operational, ESP ®
is unable to stabilise the vehicle.
There is an increased danger of skidding and risk of an accident.
XDrive on carefully.XVisit a qualified specialist workshop.T !
÷
inoperative See
Owner's ManualEBD (electronic brake force distribution), ABS, ESP ®
, BAS, PRE-
SAFE ®
, the HOLD function, hill start assist and ESP ®
trailer stabi-
lisation are unavailable due to a malfunction.
The adaptive brake lights and COLLISION PREVENTION ASSIST/
COLLISION PREVENTION ASSIST PLUS may also have failed.
In addition, the ÷, å and ! warning lamps light up in
the instrument cluster and a warning tone sounds.
ATTENTION ASSIST is deactivated.GWARNING
The brake system continues to function normally, but without the
functions listed above. The front and rear wheels could therefore
lock, for example, if you brake hard.
The steerability and braking characteristics may be severely affec-
ted. The braking distance may increase in an emergency braking
situation.
If ESP ®
is not operational, ESP ®
is unable to stabilise the vehicle.
There is an increased danger of skidding and risk of an accident.
XDrive on carefully.XVisit a qualified specialist workshop immediately.Display messages229On-board computer and displaysZ
Page 232 of 352

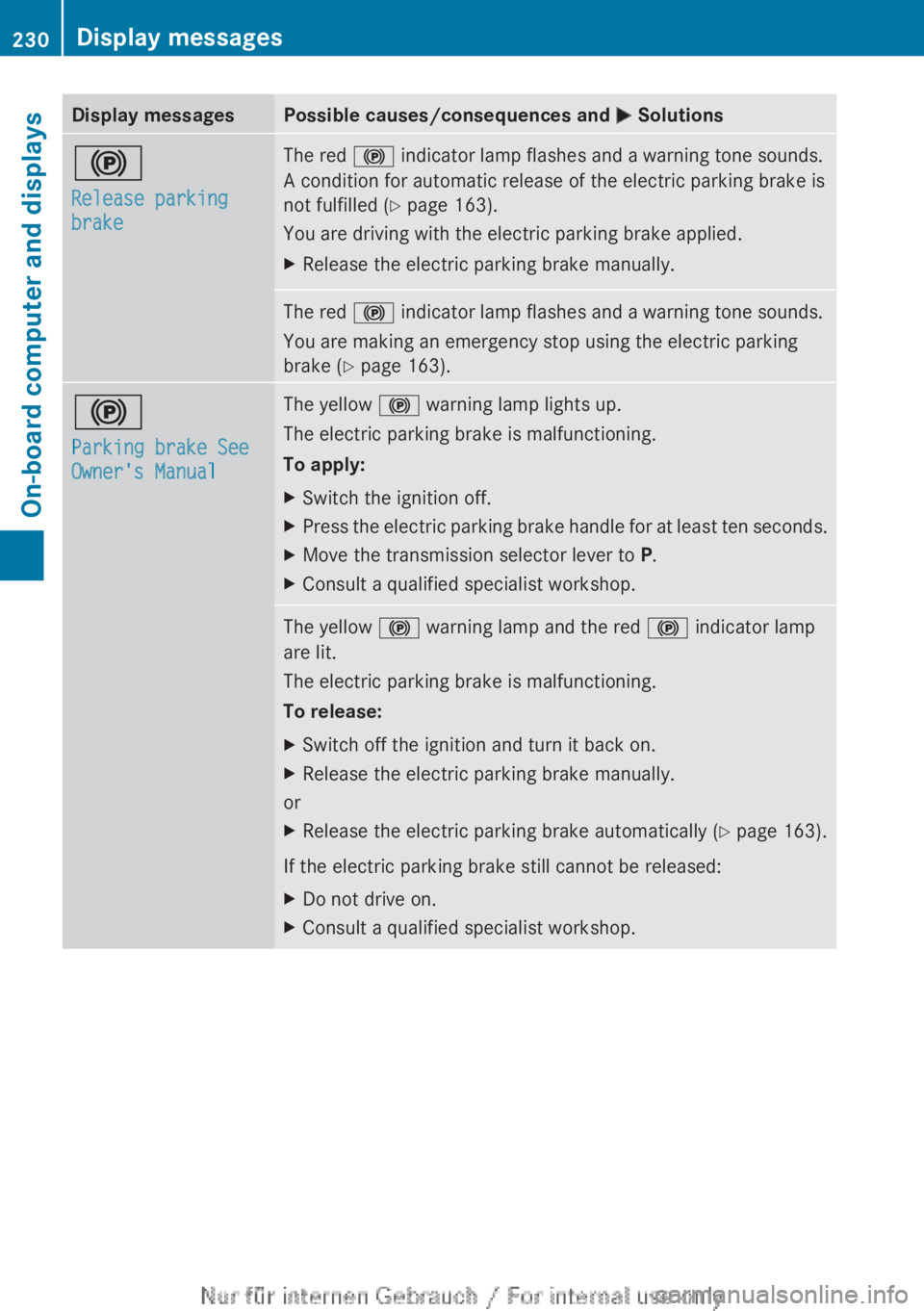

Display messagesPossible causes/consequences and M Solutions!
Release parking
brakeThe red ! indicator lamp flashes and a warning tone sounds.
A condition for automatic release of the electric parking brake is
not fulfilled ( Y page 163).
You are driving with the electric parking brake applied.XRelease the electric parking brake manually.The red ! indicator lamp flashes and a warning tone sounds.
You are making an emergency stop using the electric parking
brake ( Y page 163).!
Parking brake See
Owner's ManualThe yellow ! warning lamp lights up.
The electric parking brake is malfunctioning.
To apply:XSwitch the ignition off.XPress the electric parking brake handle for at least ten seconds.XMove the transmission selector lever to P.XConsult a qualified specialist workshop.The yellow ! warning lamp and the red ! indicator lamp
are lit.
The electric parking brake is malfunctioning.
To release:XSwitch off the ignition and turn it back on.XRelease the electric parking brake manually.
or
XRelease the electric parking brake automatically ( Y page 163).
If the electric parking brake still cannot be released:
XDo not drive on.XConsult a qualified specialist workshop.230Display messagesOn-board computer and displays
Page 233 of 352

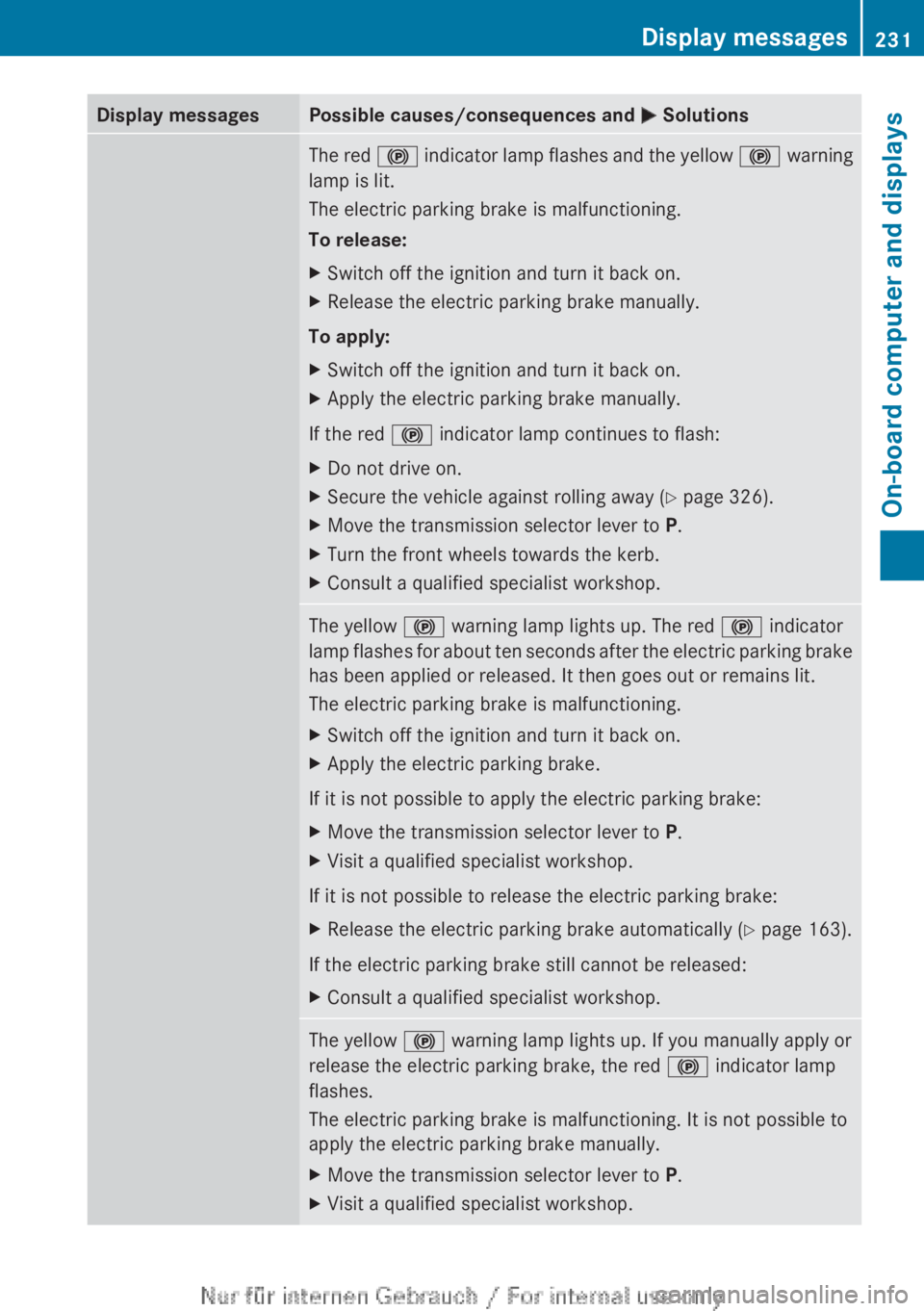

Display messagesPossible causes/consequences and M SolutionsThe red ! indicator lamp flashes and the yellow ! warning
lamp is lit.
The electric parking brake is malfunctioning.
To release:XSwitch off the ignition and turn it back on.XRelease the electric parking brake manually.
To apply:
XSwitch off the ignition and turn it back on.XApply the electric parking brake manually.
If the red ! indicator lamp continues to flash:
XDo not drive on.XSecure the vehicle against rolling away ( Y page 326).XMove the transmission selector lever to P.XTurn the front wheels towards the kerb.XConsult a qualified specialist workshop.The yellow ! warning lamp lights up. The red ! indicator
lamp flashes for about ten seconds after the electric parking brake
has been applied or released. It then goes out or remains lit.
The electric parking brake is malfunctioning.XSwitch off the ignition and turn it back on.XApply the electric parking brake.
If it is not possible to apply the electric parking brake:
XMove the transmission selector lever to P.XVisit a qualified specialist workshop.
If it is not possible to release the electric parking brake:
XRelease the electric parking brake automatically ( Y page 163).
If the electric parking brake still cannot be released:
XConsult a qualified specialist workshop.The yellow ! warning lamp lights up. If you manually apply or
release the electric parking brake, the red ! indicator lamp
flashes.
The electric parking brake is malfunctioning. It is not possible to
apply the electric parking brake manually.XMove the transmission selector lever to P.XVisit a qualified specialist workshop.Display messages231On-board computer and displaysZ
Page 234 of 352
Display messagesPossible causes/consequences and M Solutions!
Parking brake inop‐
erativeThe yellow ! warning lamp lights up. The red ! indicator
lamp flashes for about ten seconds after the electric parking brake
has been applied or released. It then goes out or remains lit.
The electric parking brake is malfunctioning, e.g. because of over-
voltage or undervoltage.XRectify the cause of the overvoltage or undervoltage, e.g. by
charging the battery or restarting the engine.XApply or release the electric parking brake.
If it remains impossible to apply or release the electric parking
brake:
XSwitch off the ignition and turn it back on.XApply or release the electric parking brake.
If the electric parking brake still cannot be released:
XConsult a qualified specialist workshop.The display message is only shown while the vehicle is in motion.
The red ! indicator lamp flashes and the yellow ! warning
lamp is lit.
It is not possible to apply the electric parking brake manually.XMove the transmission selector lever to P.XVisit a qualified specialist workshop.!
Turn on the igni‐
tion to release
the parking brakeThe red ! indicator lamp lights up.
You attempted to release the electric parking brake while the igni-
tion was switched off.XTurn the key to position 1 in the ignition lock.J
Brake immediatelyVehicles with manual transmission: a malfunction has occurred
while the HOLD function was activated.
A tone may also sound at regular intervals. If you attempt to lock
the vehicle, the tone becomes louder.
You cannot start the engine.XPaying attention to the traffic situation, immediately depress the
brake pedal firmly and hold until the display message disap-
pears.XSecure the vehicle against rolling away ( Y page 162).
You can restart the engine.232Display messagesOn-board computer and displays
Page 235 of 352

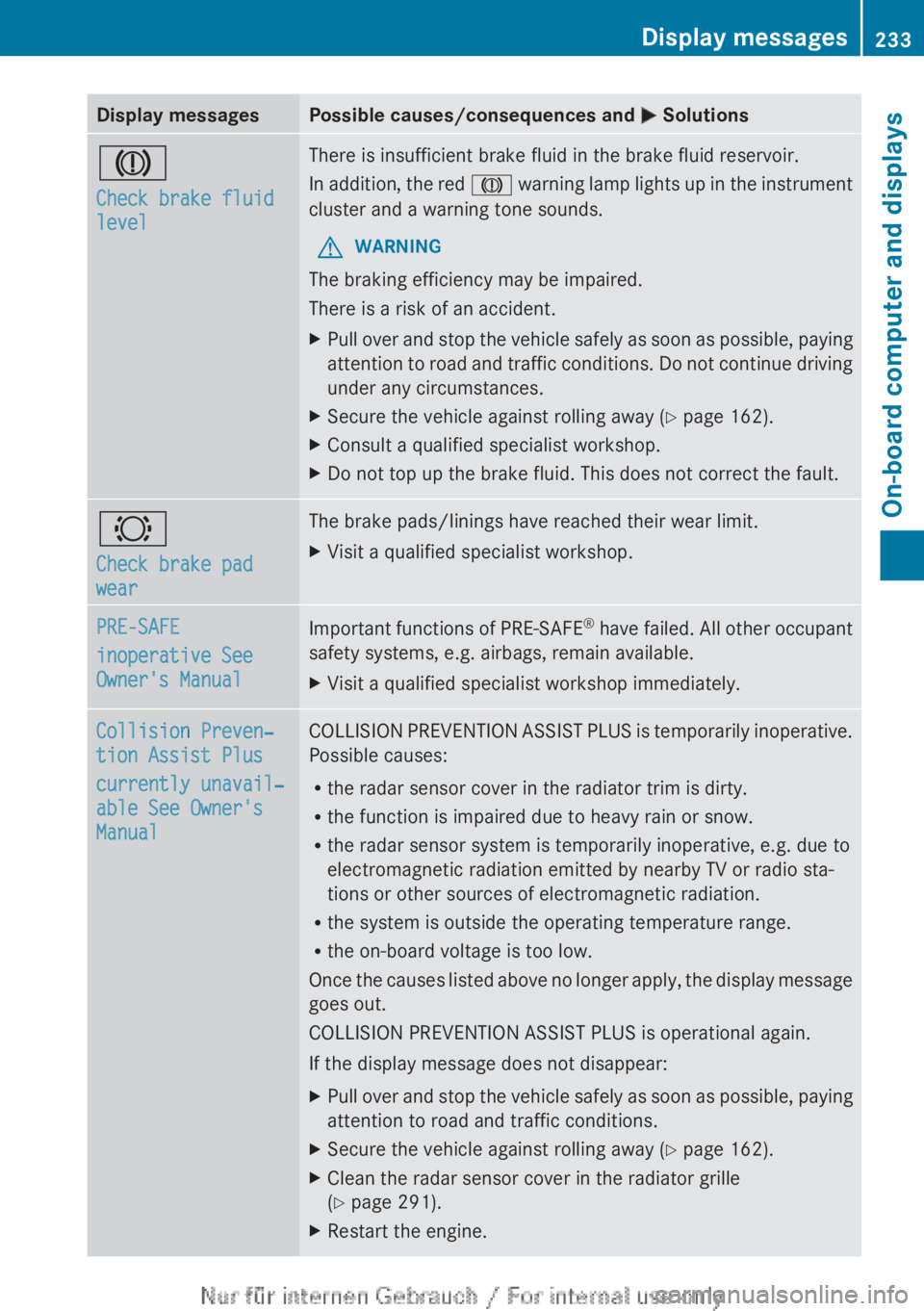

Display messagesPossible causes/consequences and M SolutionsJ
Check brake fluid
levelThere is insufficient brake fluid in the brake fluid reservoir.
In addition, the red J warning lamp lights up in the instrument
cluster and a warning tone sounds.GWARNING
The braking efficiency may be impaired.
There is a risk of an accident.
XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions. Do not continue driving
under any circumstances.XSecure the vehicle against rolling away ( Y page 162).XConsult a qualified specialist workshop.XDo not top up the brake fluid. This does not correct the fault.#
Check brake pad
wearThe brake pads/linings have reached their wear limit.XVisit a qualified specialist workshop.PRE-SAFE
inoperative See
Owner's ManualImportant functions of PRE-SAFE ®
have failed. All other occupant
safety systems, e.g. airbags, remain available.XVisit a qualified specialist workshop immediately.Collision Preven‐
tion Assist Plus
currently unavail‐
able See Owner's
ManualCOLLISION PREVENTION ASSIST PLUS is temporarily inoperative.
Possible causes:
R the radar sensor cover in the radiator trim is dirty.
R the function is impaired due to heavy rain or snow.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
R the system is outside the operating temperature range.
R the on-board voltage is too low.
Once the causes listed above no longer apply, the display message
goes out.
COLLISION PREVENTION ASSIST PLUS is operational again.
If the display message does not disappear:XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XSecure the vehicle against rolling away ( Y page 162).XClean the radar sensor cover in the radiator grille
( Y page 291).XRestart the engine.Display messages233On-board computer and displaysZ
Page 236 of 352

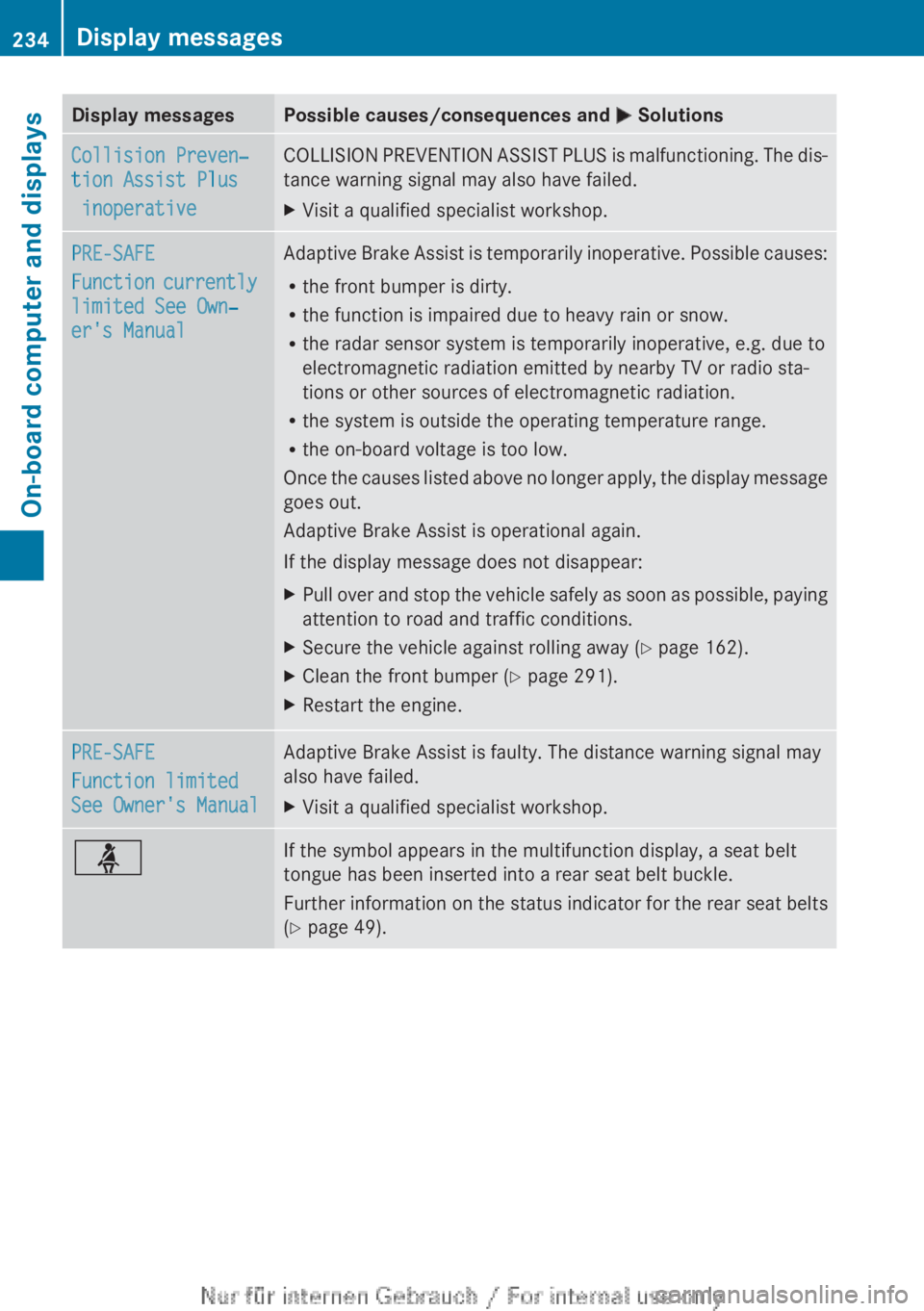

Display messagesPossible causes/consequences and M SolutionsCollision Preven‐
tion Assist Plus
inoperativeCOLLISION PREVENTION ASSIST PLUS is malfunctioning. The dis-
tance warning signal may also have failed.XVisit a qualified specialist workshop.PRE-SAFE
Function currently
limited See Own‐
er's ManualAdaptive Brake Assist is temporarily inoperative. Possible causes:
R the front bumper is dirty.
R the function is impaired due to heavy rain or snow.
R the radar sensor system is temporarily inoperative, e.g. due to
electromagnetic radiation emitted by nearby TV or radio sta-
tions or other sources of electromagnetic radiation.
R the system is outside the operating temperature range.
R the on-board voltage is too low.
Once the causes listed above no longer apply, the display message
goes out.
Adaptive Brake Assist is operational again.
If the display message does not disappear:XPull over and stop the vehicle safely as soon as possible, paying
attention to road and traffic conditions.XSecure the vehicle against rolling away ( Y page 162).XClean the front bumper ( Y page 291).XRestart the engine.PRE-SAFE
Function limited
See Owner's ManualAdaptive Brake Assist is faulty. The distance warning signal may
also have failed.XVisit a qualified specialist workshop.üIf the symbol appears in the multifunction display, a seat belt
tongue has been inserted into a rear seat belt buckle.
Further information on the status indicator for the rear seat belts
( Y page 49).234Display messagesOn-board computer and displays
Page 237 of 352

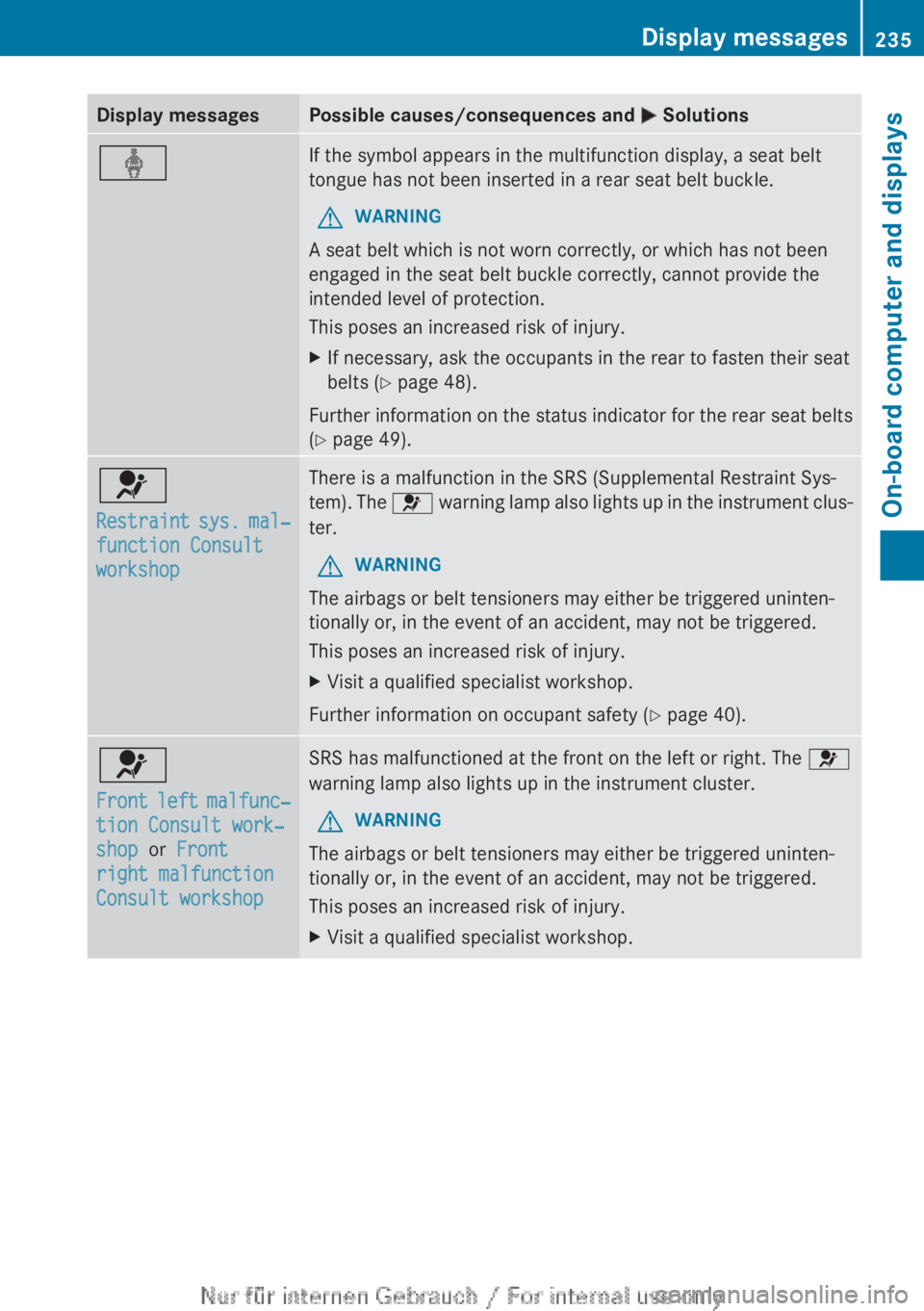

Display messagesPossible causes/consequences and M SolutionsýIf the symbol appears in the multifunction display, a seat belt
tongue has not been inserted in a rear seat belt buckle.GWARNING
A seat belt which is not worn correctly, or which has not been
engaged in the seat belt buckle correctly, cannot provide the
intended level of protection.
This poses an increased risk of injury.
XIf necessary, ask the occupants in the rear to fasten their seat
belts ( Y page 48).
Further information on the status indicator for the rear seat belts
( Y page 49).
6
Restraint sys. mal‐
function Consult
workshopThere is a malfunction in the SRS (Supplemental Restraint Sys-
tem). The 6 warning lamp also lights up in the instrument clus-
ter.GWARNING
The airbags or belt tensioners may either be triggered uninten-
tionally or, in the event of an accident, may not be triggered.
This poses an increased risk of injury.
XVisit a qualified specialist workshop.
Further information on occupant safety ( Y page 40).
6
Front left malfunc‐
tion Consult work‐
shop or Front
right malfunction
Consult workshopSRS has malfunctioned at the front on the left or right. The 6
warning lamp also lights up in the instrument cluster.GWARNING
The airbags or belt tensioners may either be triggered uninten-
tionally or, in the event of an accident, may not be triggered.
This poses an increased risk of injury.
XVisit a qualified specialist workshop.Display messages235On-board computer and displaysZ
Page 238 of 352

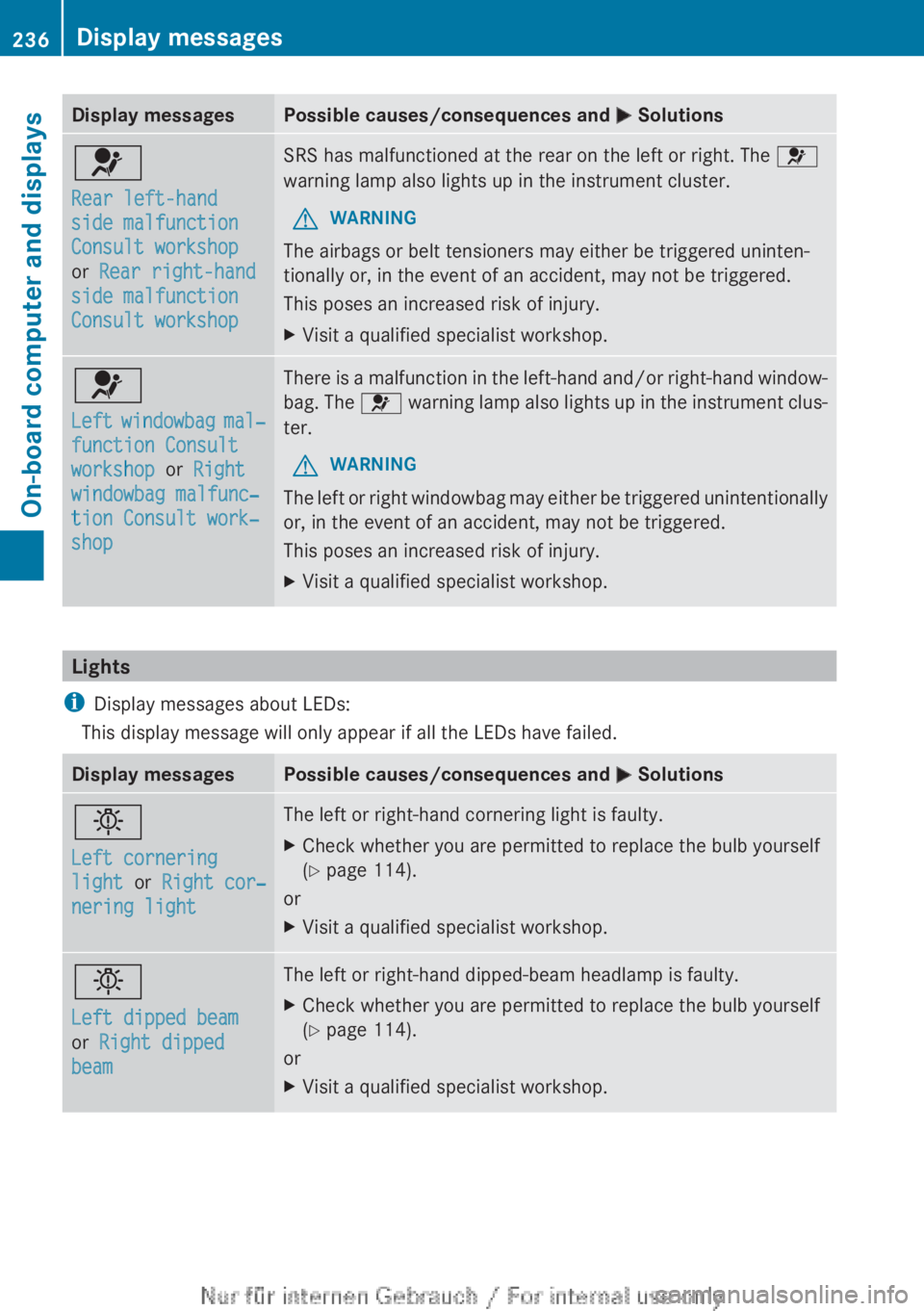

Display messagesPossible causes/consequences and M Solutions6
Rear left-hand
side malfunction
Consult workshop
or Rear right-hand
side malfunction
Consult workshopSRS has malfunctioned at the rear on the left or right. The 6
warning lamp also lights up in the instrument cluster.GWARNING
The airbags or belt tensioners may either be triggered uninten-
tionally or, in the event of an accident, may not be triggered.
This poses an increased risk of injury.
XVisit a qualified specialist workshop.6
Left windowbag mal‐
function Consult
workshop or Right
windowbag malfunc‐
tion Consult work‐
shopThere is a malfunction in the left-hand and/or right-hand window-
bag. The 6 warning lamp also lights up in the instrument clus-
ter.GWARNING
The left or right windowbag may either be triggered unintentionally
or, in the event of an accident, may not be triggered.
This poses an increased risk of injury.
XVisit a qualified specialist workshop.

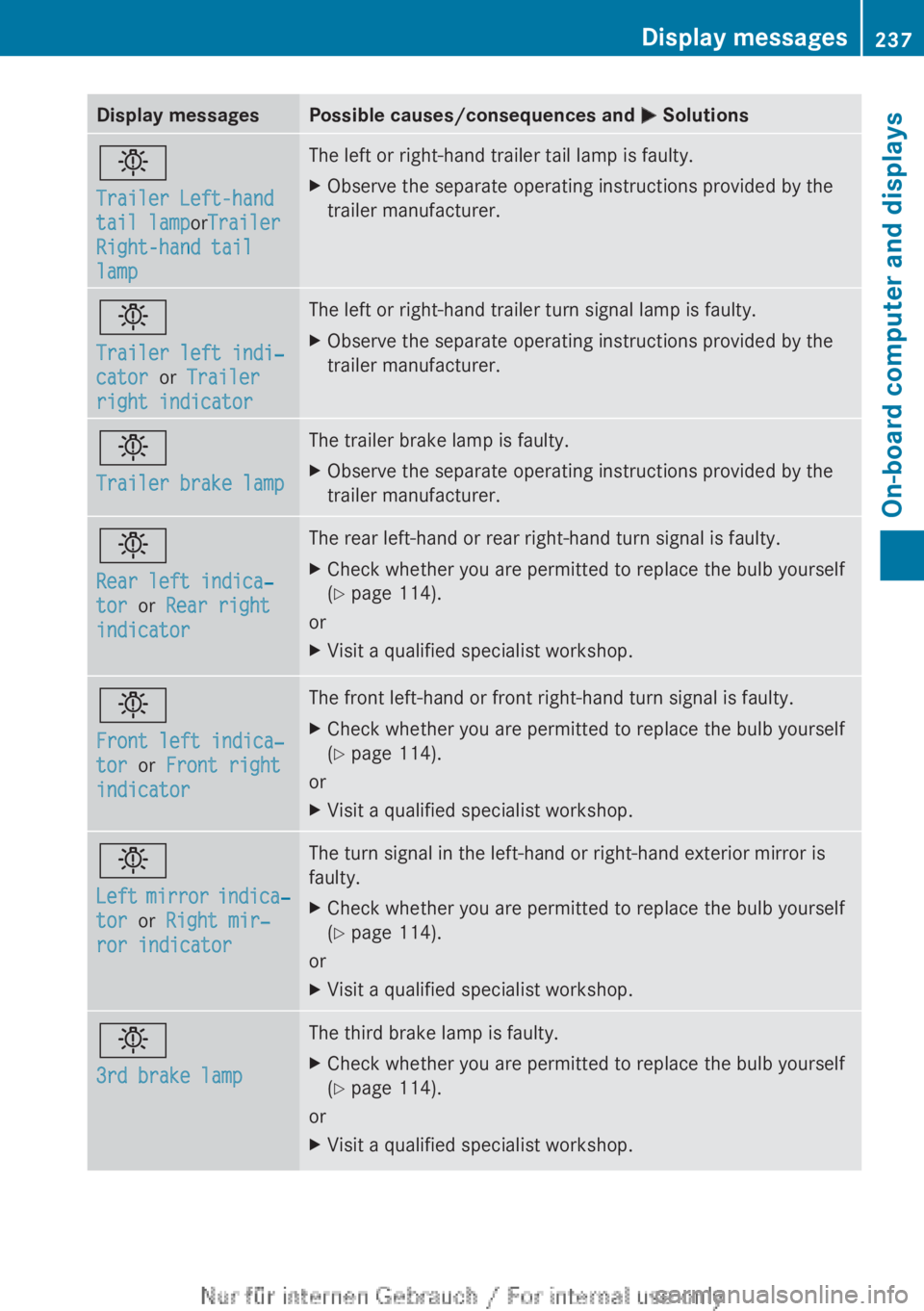

Lights
i Display messages about LEDs:
This display message will only appear if all the LEDs have failed.
Display messagesPossible causes/consequences and M Solutionsb
Left cornering
light or Right cor‐
nering lightThe left or right-hand cornering light is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Left dipped beam
or Right dipped
beamThe left or right-hand dipped-beam headlamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.236Display messagesOn-board computer and displays
Page 239 of 352
Display messagesPossible causes/consequences and M Solutionsb
Trailer Left-hand
tail lamp orTrailer
Right-hand tail
lampThe left or right-hand trailer tail lamp is faulty.XObserve the separate operating instructions provided by the
trailer manufacturer.b
Trailer left indi‐
cator or Trailer
right indicatorThe left or right-hand trailer turn signal lamp is faulty.XObserve the separate operating instructions provided by the
trailer manufacturer.b
Trailer brake lampThe trailer brake lamp is faulty.XObserve the separate operating instructions provided by the
trailer manufacturer.b
Rear left indica‐
tor or Rear right
indicatorThe rear left-hand or rear right-hand turn signal is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Front left indica‐
tor or Front right
indicatorThe front left-hand or front right-hand turn signal is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Left mirror indica‐
tor or Right mir‐
ror indicatorThe turn signal in the left-hand or right-hand exterior mirror is
faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
3rd brake lampThe third brake lamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.Display messages237On-board computer and displaysZ
Page 240 of 352

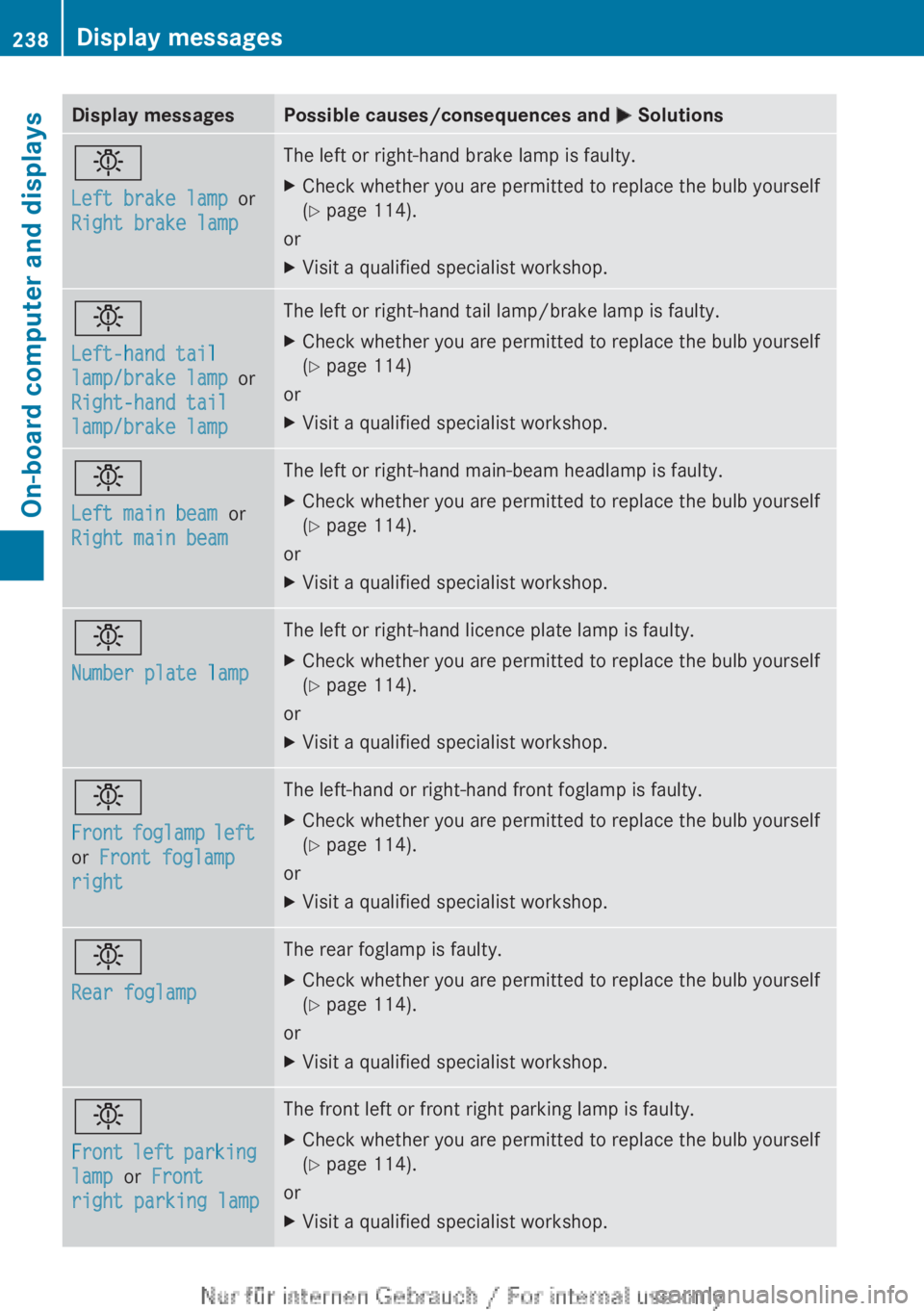

Display messagesPossible causes/consequences and M Solutionsb
Left brake lamp or
Right brake lampThe left or right-hand brake lamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Left-hand tail
lamp/brake lamp or
Right-hand tail
lamp/brake lampThe left or right-hand tail lamp/brake lamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114)
or
XVisit a qualified specialist workshop.b
Left main beam or
Right main beamThe left or right-hand main-beam headlamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Number plate lampThe left or right-hand licence plate lamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Front foglamp left
or Front foglamp
rightThe left-hand or right-hand front foglamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Rear foglampThe rear foglamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.b
Front left parking
lamp or Front
right parking lampThe front left or front right parking lamp is faulty.XCheck whether you are permitted to replace the bulb yourself
( Y page 114).
or
XVisit a qualified specialist workshop.238Display messagesOn-board computer and displays
