G

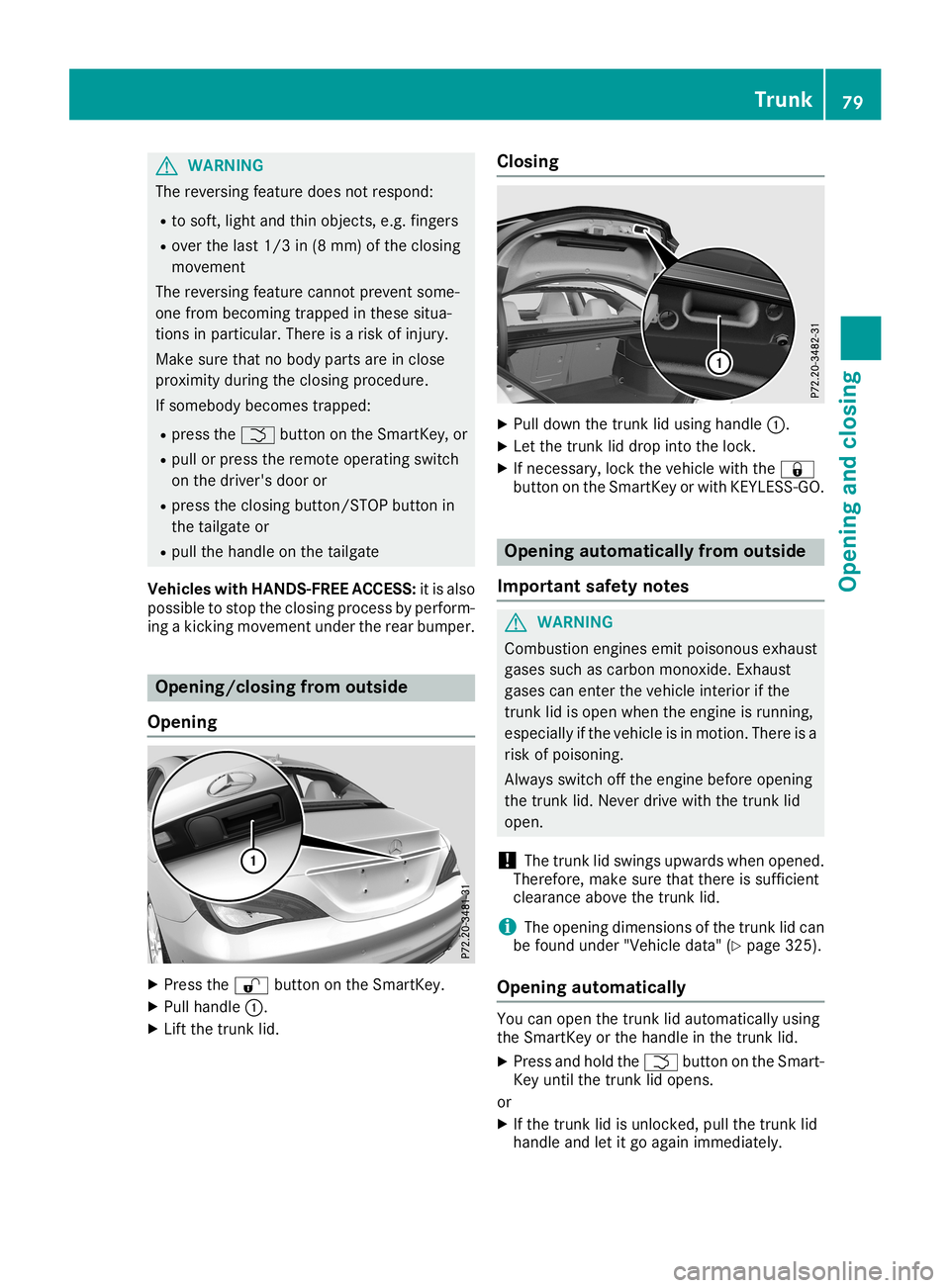

WARNING
The reversi ngfeatu redoes notrespo nd:
R to soft, light and thin objects, e.g.fingers
R over thelast1/3 in(8 mm) ofthe closi ng
movement
The reversi ngfeatu recannot prevent some-
one from becomi ngtrappe din these situa-
tions inparticu lar.There isarisk ofinjury .
Make surethatnobody parts areinclose
proximi tyduri ngthe closi ngproced ure.
If someb odybecome strappe d:
R press the0054 button onthe SmartKey ,or
R pul lor press theremote operatingswitch
on the drive r'sdoor or
R press theclosi ngbutton/STOP buttonin
the tailgate or
R pul lthe handl eon the tailgate
Vehic leswith HANDS -FREEACCES S:itis als o
possi bletostop theclosi ngprocess byperform-
ing akicking movement undertherear bump er. Openi
ng/closing from outside
Openi ng X
Press the0036 button onthe SmartKey .
X Pul lhandl e0043.
X Lift the trunk lid. Clo
sing X
Pul ldow nthe trunk lidusing handl e0043.
X Let the trunk liddrop intothelock.
X Ifnecessa ry,lock thevehicl ewith the0037
button onthe SmartKey orwith KEYLESS-GO. Openi
ngautomaticall yfrom outside
Important safetynotes G
WARNING
Comb ustionengines emitpoisonous exhaust
gase ssuch ascarbon monoxide .Exhaust
gase scan enter thevehicl einterior ifthe
trunk lidisopen when theengine isrunning,
espe ciallyifthe vehicl eis in motion. Thereisa
risk ofpois oning.
Alwa ysswi tch offthe engine beforeopening
the trunk lid.Never drivewiththetrunk lid
open.
! The
trunk lidswi ngs upw ards when opened .
There fore,make surethatthere issuffi cient
clea rance abovethe trunk lid.
i The
openi ngdime nsions ofthe trunk lidcan
be found under "Vehicledata "(Y pag e325) .
Openi ngautomaticall y You
canopen thetrunk lidautomatical lyusi ng
the SmartKey orthe handl ein the trunk lid.
X Press andhold the0054 button onthe Smart-
Key until thetrunk lidopens.
or X Ifthe trunk lidisunlocked ,pul lthe trunk lid
handl eand letitgo aga inimmed iately. Trunk
79Openingand closi ng Z

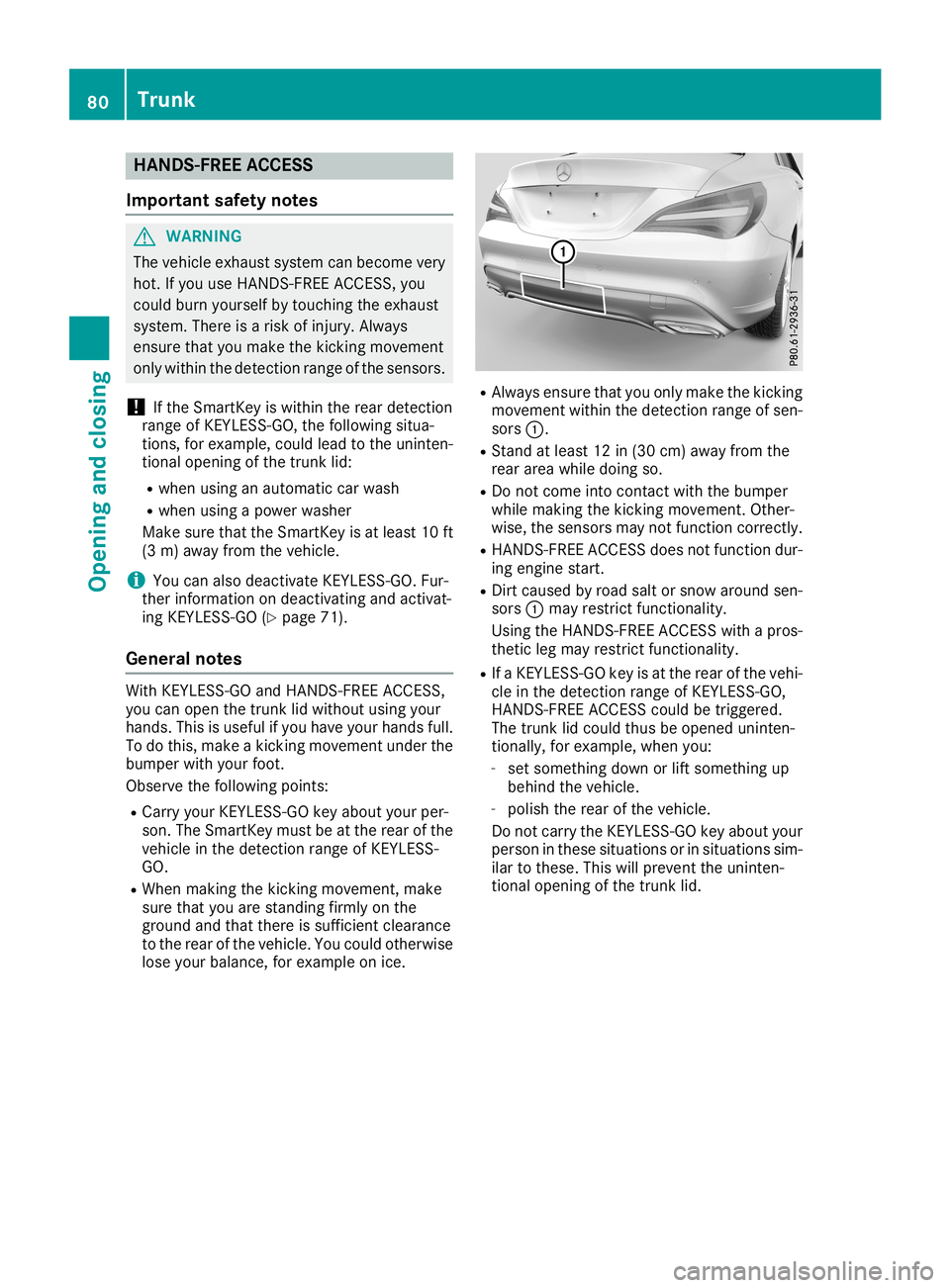

HANDS
-FREEACCESS
Important safetynotes G
WARNING
The vehicl eexhau stsystem canbecome very
hot. Ifyou useHANDS-F REEACCESS, you
coul dburn yourself bytouching theexhau st
system. Thereisarisk ofinjury .Alwa ys
ensure thatyoumake thekicking movement
only withi nthe detection rangeofthe sensors.
! If
the SmartKey iswithi nthe rear detection
range ofKEYLESS-GO, thefollowi ngsitua -
tions, forexampl e,coul dlea dto the uninten-
tional openingofthe trunk lid:
R when using anautomatic carwas h
R when using apow erwas her
Make surethattheSmartKey isat lea st10 ft
(3 m) awa yfrom thevehicl e.
i You
canalsodea ctivate KEYLESS-GO. Fur-
ther informati onondea ctivating andactiva t-
ing KEYLESS-GO (Ypag e71) .
Gene ralnote s With
KEYLESS-GO andHANDS-F REEACCESS,
you can open thetrunk lidwitho utusi ng you r
hands. Thisisuse fulifyou have yourhands full.
To do this, make akicking movement underthe
bump erwith yourfoot.
Observe thefollowi ngpoints:
R Ca rry you rKEYLESS-GO keyaboutyou rper-
son. TheSmartKey mustbeatthe rear ofthe
vehicl ein the detection rangeofKEYLESS-
GO.
R When making thekicking movement, make
sure thatyouarestanding firmlyonthe
grou ndand that there issuffi cient clearance
to the rear ofthe vehicl e.You couldotherwi se
lose yourbal ance, forexampl eon ice. R
Alwa ysensure thatyouonly make thekicking
movement withinthe detection rangeofsen-
sors 0043.
R Stand atlea st12 in(30 cm) awayfrom the
rear area whiledoing so.
R Do not come intocontact withthebump er
whi lemaking thekicking movement. Other-
wis e,the sensors maynotfunction correctly .
R HANDS-F REEACCESS doesnotfunction dur-
ing engine start.
R Dirt caus edbyroad saltor snow aroundsen-
sors 0043may restrict functional ity.
Using theHANDS-F REEACCESS withapros-
thetic legmay restrict functional ity.
R IfaKEYLESS-GO keyisat the rear ofthe vehi-
cle inthe detection rangeofKEYLESS-GO,
HANDS-F REEACCESS couldbe triggere d.
The trunk lidcoul dthus beopened uninten-
tional ly,for exampl e,when you:
- set somethi ngdow nor lift somethi ngup
behi ndthe vehicl e.
- poli shthe rear ofthe vehicl e.
Do not carry theKEYLESS-GO keyaboutyou r
perso nin these situations orinsitua tions sim-
ila rto these. Thiswillprevent theuninten-
tional openingofthe trunk lid. 80
TrunkOpen
ingand closi ng

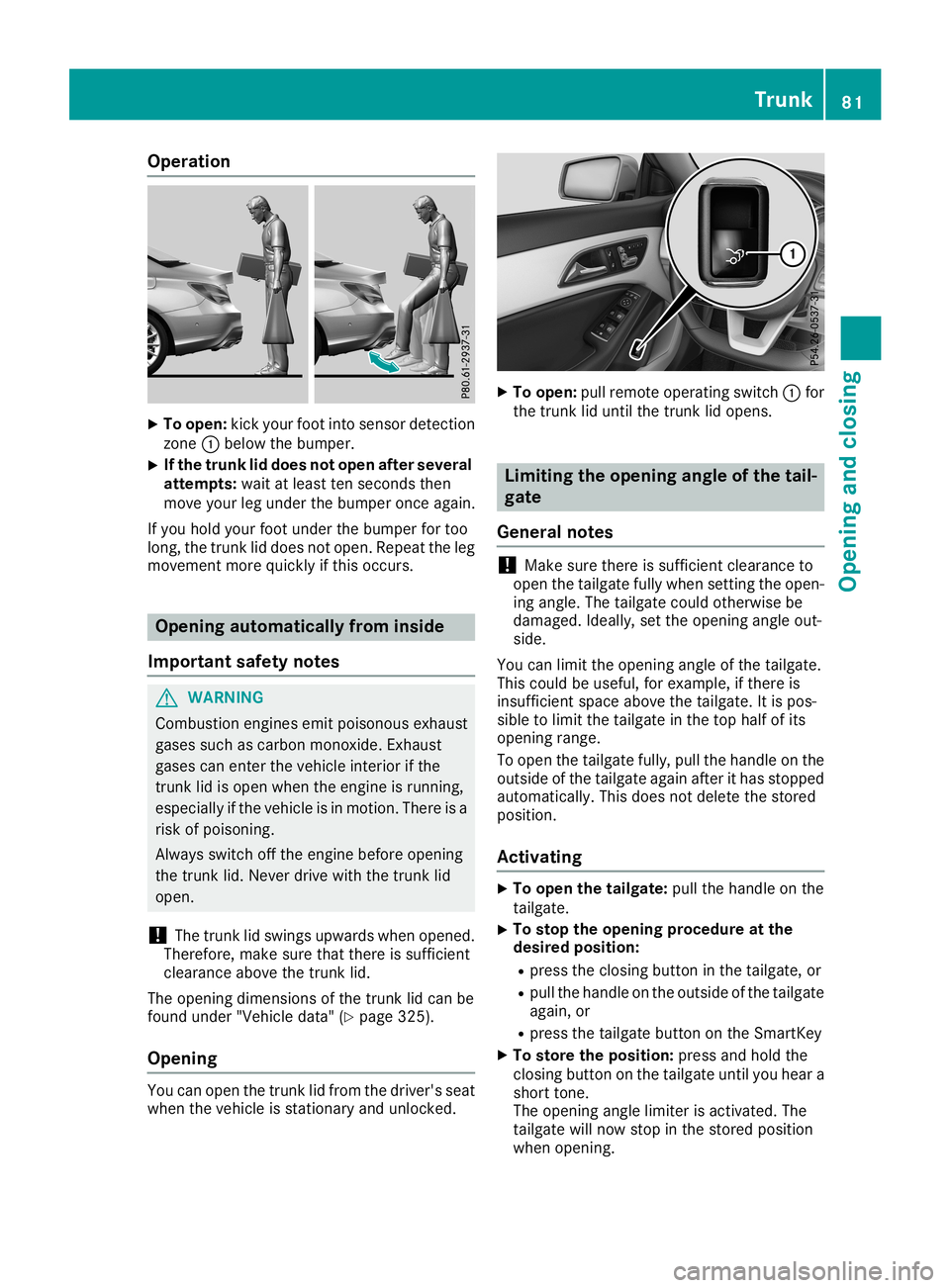

Opera
tion X
To open: kickyour footintosensor detection
zon e0043 below thebumper.
X If
the trunk liddoes notopen afterseveral
att empt s:wait atleast tensecon dsthen
move yourlegunder thebumper onceagain.
If you hold your footunder thebumper fortoo
long, thetrun klid does notopen. Repeat theleg
movemen tmore quickly ifthis occurs . Opening
automat ically frominside
Impor tantsafet ynotes G
WARN
ING
Combustion enginesemit poisonous exhaust
gases suchascarbon monoxide.Exhaust
gases canenterthe vehicle interiorifthe
trun klid isopen when theengine isrunn ing,
especially ifthe vehicle isin motion .There isa
risk ofpoisonin g.
Always switchoffthe engine beforeopening
the trun klid. Never drivewiththetrun klid
open.
! The
trunklid swings upwards whenopened.
Therefor e,make surethatthere issufficien t
clearanc eabove thetrun klid.
The opening dimension sof the trun klid can be
found under "Vehicle data"(Ypage 325).
Opening You
canopen thetrun klid from thedriver's seat
when thevehicle isstat ionary andunlock ed. X
To open: pullremot eoperatin gswitch 0043for
the trun klid until thetrun klid opens. Limiting
theopening angleofthe tail-
gate
General notes !
Make
surethere issufficien tclearanc eto
open thetailgate fullywhen settingthe open-
ing angle. Thetailgate couldotherwisebe
damaged. Ideally,setthe opening angleout-
side.
You canlimit theopening angleofthe tailgate.
This could beuseful, forexample, ifthere is
insuffic ientspace above thetailgate. Itis pos-
sible tolimit thetailgate inthe top half ofits
opening range.
To open thetailgate fully,pullthehandle onthe
outside ofthe tailgate againafterithas stopped
automatic ally.This does notdelete thestor ed
position .
Activating X
To open thetailgat e:pull thehandle onthe
tailgate.
X To
stop theopening procedure atthe
desired position:
R press theclosing buttoninthe tailgate, or
R pull thehandle onthe outside ofthe tailgate
again, or
R press thetailgate buttononthe Smart Key
X To store theposition: pressandhold the
closing buttononthe tailgate untilyouhear a
short tone.
The opening anglelimiter isactivat ed.The
tailgate willnow stop inthe stor edposition
when opening . Tr
unk
81Opening andclosi ng Z

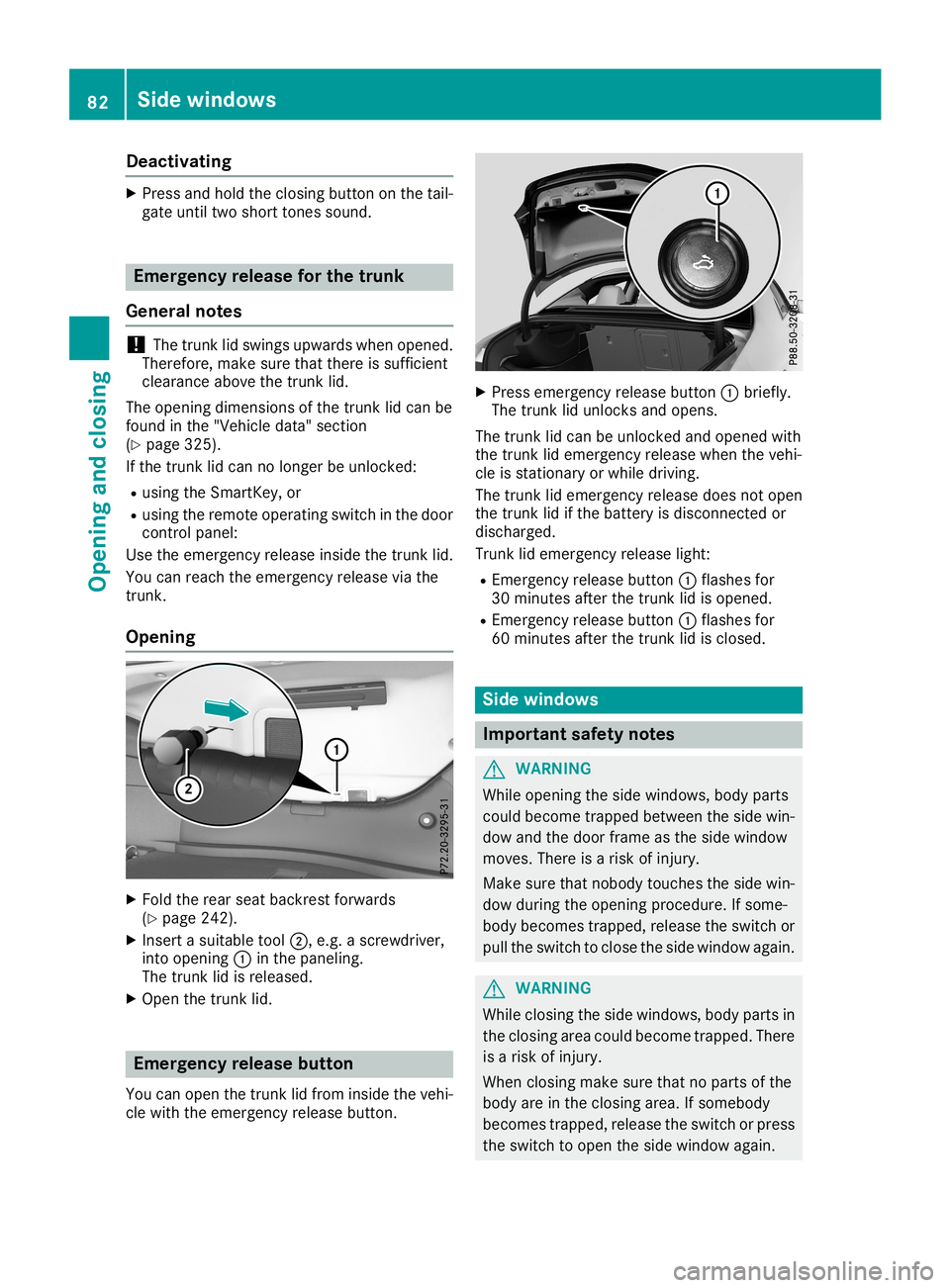

Deact
ivating X
Press and holdth eclosi ng but tonon theta il-
gat eunt iltw osho rttone ssoun d. Em
ergency relea sefor thetrun k
Gen eral not es !
The
trunk lidswin gsupwar dswhen opened.
The refore, mak esur eth at there issuf ficien t
cl ear anc eabov eth etrunk lid.
The opening dim ensio ns ofthetrunk lidcan be
fo und inthe"Veh icle dat a"sec tion
(Y page 325).
If th etrunk lidcan nolonger beunlocked:
R usin gth eSm artKey, or
R usin gth erem oteope ratingswit chinthedoo r
co ntro lpan el:
Use theeme rgen cy release insid eth etrunk lid.
You canreachtheeme rgen cy release viathe
tr unk .
Op enin g X
Fo ldtherea rseat backrest forwar ds
(Y page 242).
X Inser ta suit able tool 0044, e.g. asc rew driver ,
in to ope ning 0043 inthepan eling.
The trunk lidisrel ease d.
X Ope nth etrunk lid. Em
ergency relea sebut ton
You canopenth etrunk lidfrom insid eth eveh i-
cl e wit hth eeme rgen cy release button. X
Press eme rgen cy release button0043 briefly.
The trunk lidunl ocks and opens.
The trunk lidcan beunlockedand openedwit h
th etrunk lideme rgen cy release when theveh i-
cl e is stat ion ary orwhil edri vin g.
The trunk lideme rgen cy release doesno tope n
th etrunk lidifth ebat tery isdis conn ectedor
dis charg ed.
Tr unk lideme rgen cy release light:
R Em erg ency release button0043 flas hes for
30 min utes afterthetrunk lidisope ned.
R Em erg ency release button0043 flas hes for
60 min utes afterthetrunk lidisclose d. Sid
ewind ows Im
por tant safet ynot es G
WAR
NING
Whi leope ning thesid ewin dows ,bod ypar ts
co uld becometrappe dbet ween thesid ewin -
dow andthedoo rfr ame asthesid ewin dow
mo ves .The reisaris kof inju ry.
Mak esur eth at nobod yto uch esthesid ewin -
dow during th eope ning pro cedur e.Ifsom e-
bod ybec omestrappe d,rel ease theswit chor
pull theswit chtoclose thesid ewin dow again . G
WAR
NING
Whi leclosi ng thesid ewin dows ,bod ypar tsin
th ecl osi ngare aco uld bec ometrappe d.The re
is aris kof inju ry.
Whe nclosi ng mak esur eth at no par tsof the
bod yare intheclosi ng are a.Ifsom ebody
bec omestrappe d,rel ease theswit chorpre ss
th eswit chtoope nth esid ewin dow again . 82
Sid
ewind owsOpening andclosing

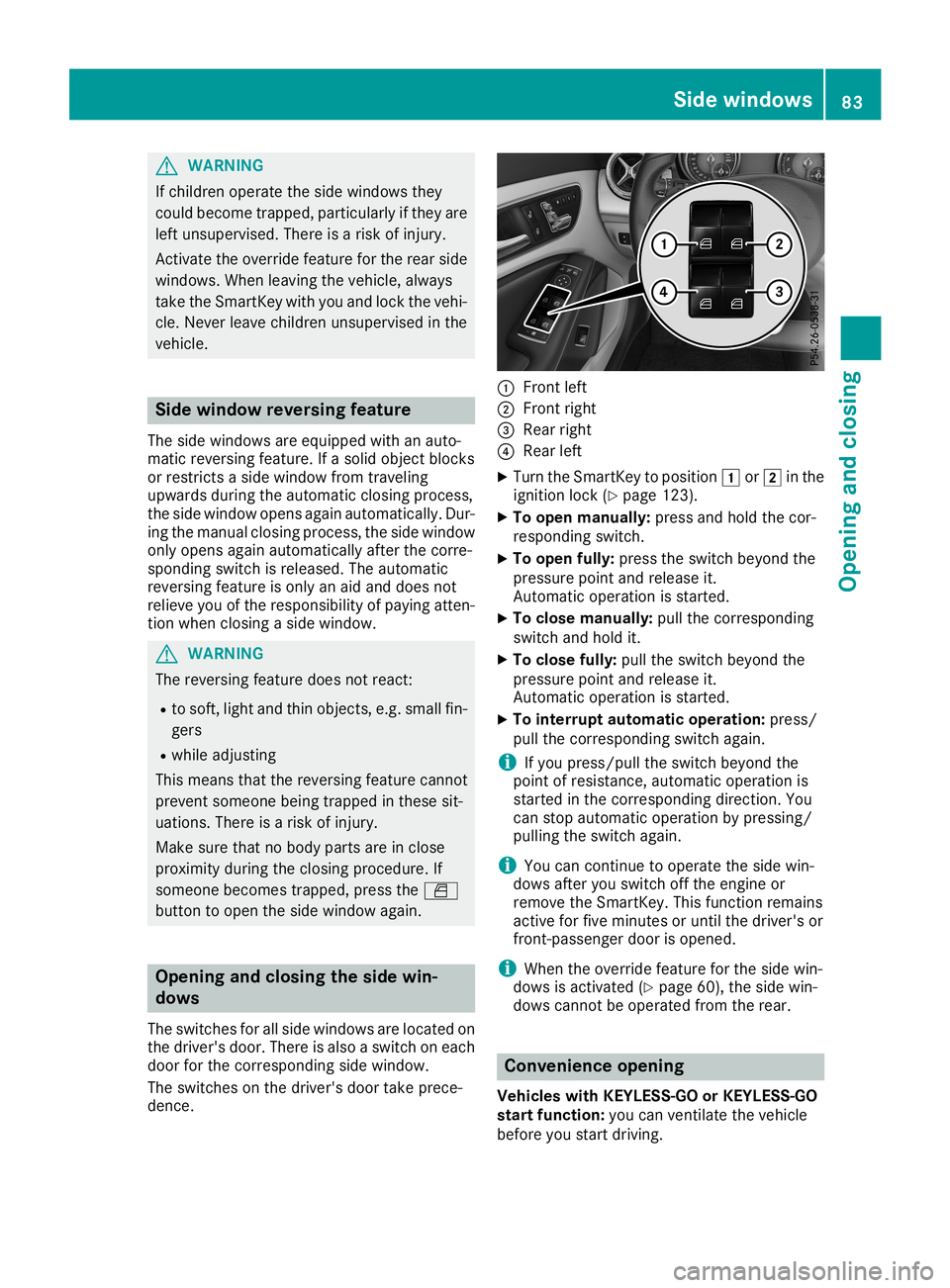

G
WARNING
If child renopera tethe side windo wsthey
coul dbecome trapped,particu larlyif they are
left unsu pervi sed.There isarisk ofinjury .
Activate theoverrid efeatu refor the rear side
windo ws.When leaving thevehicl e,alw ays
take theSmartKey withyouand lock thevehi-
cle. Never leavechild renunsu pervi sedinthe
vehicl e. Side
window reversi ngfeature
The side windo wsare equipped with anauto-
matic reversi ngfeatu re.Ifasoli dobject blocks
or restricts aside windo wfrom traveli ng
upw ards duringthe automatic closingprocess ,
the side windo wopens againau tomatica lly.Dur-
ing the manua lclosi ngprocess ,the side windo w
only opens againautomatica llyafter thecorre-
spondi ngswi tch isrele ased .The automatic
reversi ngfeatu reisonly anaid and does not
reli eve you ofthe respo nsibilityofpay ing atten-
tion when closingaside windo w. G
WARNING
The reversi ngfeatu redoes notreact:
R to soft, light and thin objects, e.g.smal lfin-
gers
R whi leadju sting
This means thatthereversi ngfeatu recannot
prevent someone being trappe din these sit-
ua tions. There isarisk ofinjury .
Make surethatnobody parts areinclose
proximi tyduri ngthe closi ngproced ure.If
someone becomestrappe d,press the0062
button toopen theside windo waga in. Openi
ngand closing theside win-
dows
The switches forallside windo wsare loca tedon
the drive r'sdoor. There isals oaswi tch oneach
door forthe correspo ndingsidewindo w.
The switches onthe drive r'sdoor takeprece-
dence. 0043
Front left
0044 Front right
0087 Rea rright
0085 Rea rleft
X Turn theSmartKey toposi tion 0047or0048 inthe
ignitio nlock (Ypag e123).
X To open manually: pressandhold thecor-
respo nding switch.
X To open fully: press theswitch beyond the
pressu repoint andrelease it.
Automatic operationisstarted.
X To clo semanually: pullthe correspo nding
swi tch and hold it.
X To clo sefully: pullthe switch beyond the
pressu repoint andrelease it.
Automatic operationisstarted.
X To interrupt automatic operation:press/
pul lthe correspo ndingswitch again.
i If
you press/p ullthe switch beyond the
point ofresis tance, automatic operationis
started inthe correspo ndingdirection. You
can stop automatic operationbypressi ng/
pul ling theswitch again.
i You
cancontinue toopera tethe side win-
dow safter youswitch offthe engine or
remove theSmartKey .This function remains
active forfive minutes oruntil thedrive r'sor
front-passenge rdoor isopened .
i When
theoverrid efeatu refor the side win-
dow sis activa ted(Ypag e60) ,the side win-
dow scannot beopera tedfrom therear. Co
nven ienceopen ing
Vehic leswith KEYLESS-GO orKEYLESS-GO
start functio n:you can ventila tethe vehicl e
before youstart driving. Side
window s
83Openi ngand closi ng Z

The

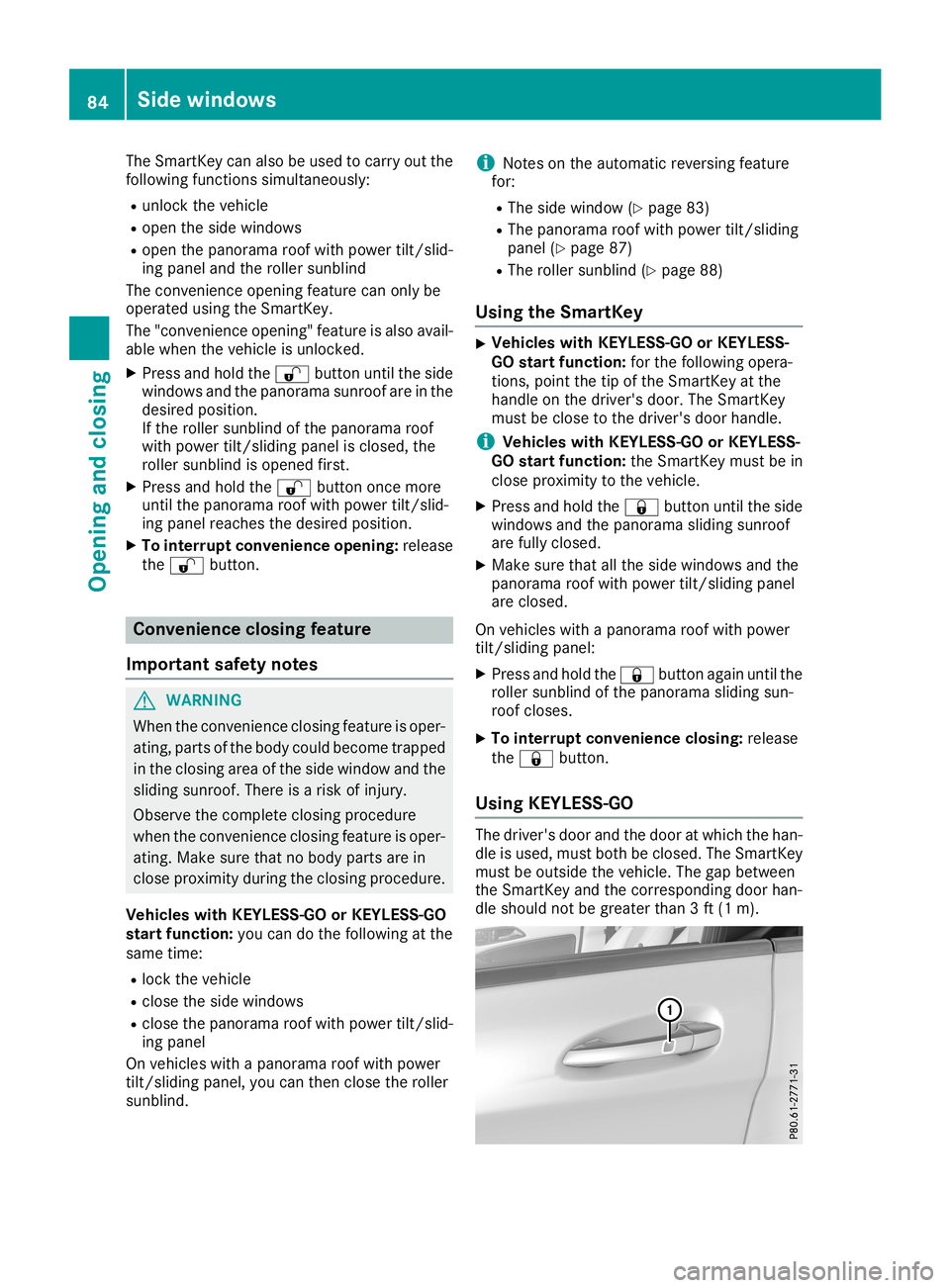

Smart Keycanalso beused tocarry outthe
following functionssimultaneously:
R unlock thevehicle
R open theside windows
R open thepanorama roofwith power tilt/slid-
ing panel andtheroller sunblind
The conv enienc eopening featurecanonly be
operated usingtheSmart Key.
The "conven ienceopening" featureisalso avail-
able when thevehicle isunlocked.
X Press andhold the0036 button untiltheside
windows andthepanorama sunroofareinthe
desired position.
If the roller sunblind ofthe panorama roof
with power tilt/sliding panelisclosed, the
roller sunblind isopened first.
X Press andhold the0036 button oncemore
until thepanorama roofwith power tilt/slid-
ing panel reaches thedesired position.
X To interr uptconvenie nceopening: release
the 0036 button . Convenie
nceclosing feature
Import antsafety notes G
WARNIN
G
When theconv enienc eclosing feature isoper-
ating, partsofthe body could become trapped
in the closing areaofthe side window andthe
sliding sunroof. Thereisarisk ofinjury.
Observe thecomplete closingprocedure
when theconv enienc eclosing feature isoper-
ating. Makesurethatnobody parts arein
close proximit yduring theclosing procedure.
Vehicles withKEYL ESS-GO orKEYL ESS-GO
star tfunction: youcan dothe following atthe
same time:
R lock thevehicle
R close theside windows
R close thepanorama roofwith power tilt/slid-
ing panel
On vehicles withapanorama roofwith power
tilt/ sliding panel,youcan then close theroller
sunblind. i
Notes onthe automatic reversingfeature
for:
R The side window (Ypage 83)
R The panorama roofwith power tilt/sliding
panel (Ypage 87)
R The roller sunblind (Ypage 88)
Using theSmar tKey X
Vehicles
withKEYL ESS-GO orKEYL ESS-
GO star tfunction: forthe following opera-
tions, pointthetipofthe Smart Keyatthe
handle onthe driver's door.TheSmart Key
must beclose tothe driver's doorhandle.
i Vehicles
withKEYL ESS-GO orKEYL ESS-
GO star tfunction: theSmart Keymust bein
close proximit yto the vehicle.
X Press andhold the0037 button untiltheside
windows andthepanorama slidingsunroof
are fully closed.
X Make surethatallthe side windows andthe
panorama roofwith power tilt/sliding panel
are closed.
On vehicles withapanorama roofwith power
tilt/ sliding panel:
X Press andhold the0037 button againuntilthe
roller sunblind ofthe panorama slidingsun-
roof closes.
X To interr uptconvenie nceclosing: release
the 0037 button .
Using KEYLESS-GO The
driver's doorandthedoor atwhich thehan-
dle isused, mustbothbeclosed. TheSmart Key
must beoutside thevehicle. Thegap between
the Smart Keyand thecorrespon dingdoor han-
dle should notbegreater than3ft (1 m). 84
Side
window sOpening andclosing

X

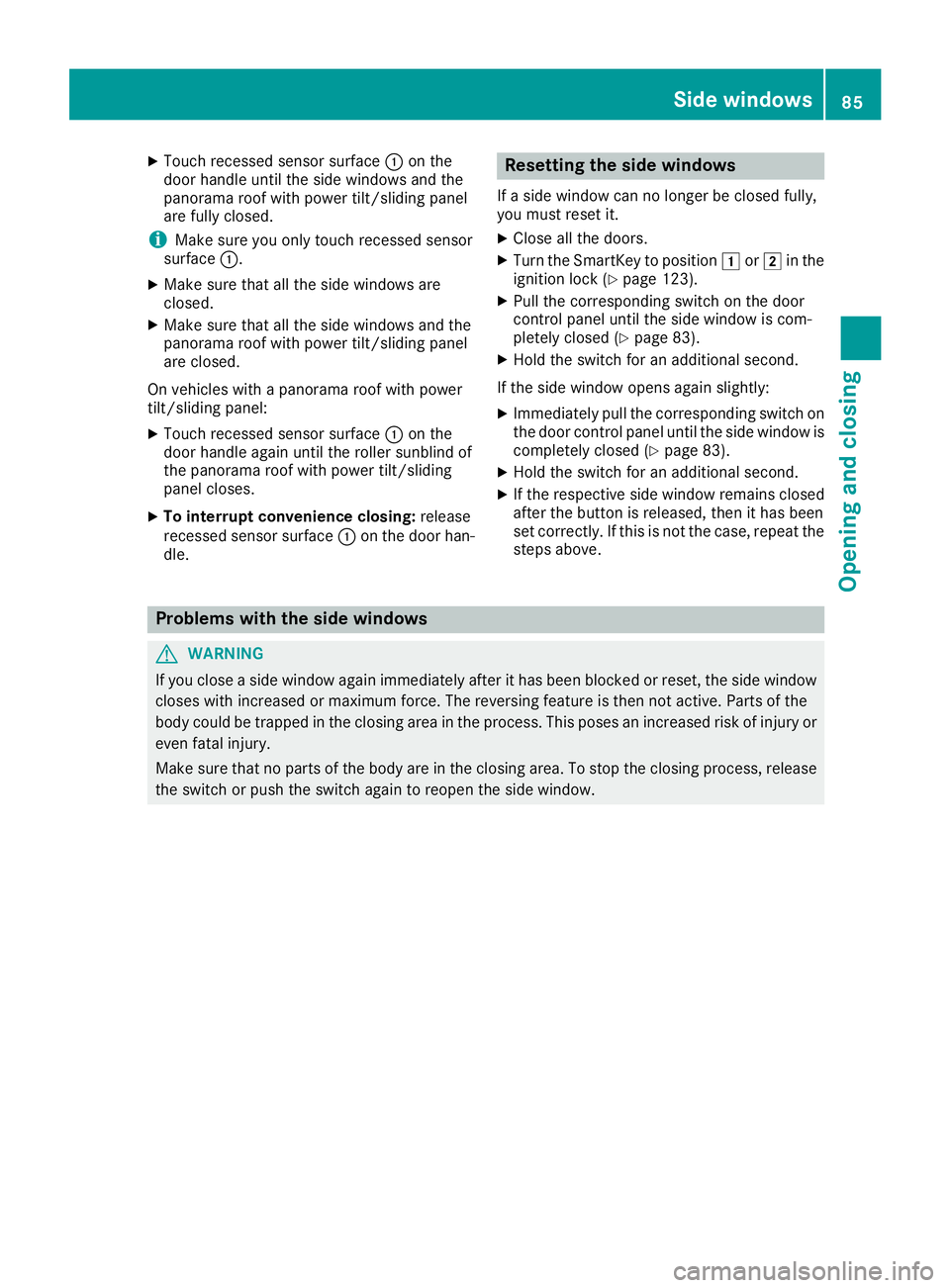

Touch recessed sensorsurface 0043onthe
door handle untiltheside windows andthe
panorama roofwith power tilt/sliding panel
are fully closed.
i Make
sureyouonly touch recessed sensor
surface 0043.
X Make surethatallthe side windows are
closed.
X Make surethatallthe side windows andthe
panorama roofwith power tilt/sliding panel
are closed.
On vehicles withapanorama roofwith power
tilt/ sliding panel:
X Touch recessed sensorsurface 0043onthe
door handle againuntiltheroller sunblind of
the panorama roofwith power tilt/sliding
panel closes.
X To interr uptconvenie nceclosing: release
recessed sensorsurface 0043onthe door han-
dle. Resetting
theside windows
If aside window cannolonger beclosed fully,
you must reset it.
X Close allthe doors.
X Turn theSmart Keytoposition 0047or0048 inthe
ignition lock(Ypage 123).
X Pull thecorrespon dingswitch onthe door
cont rolpanel untiltheside window iscom-
pletely closed(Ypage 83).
X Hold theswitch foranadditional second.
If the side window opensagainslightly:
X Immediately pullthecorrespon dingswitch on
the door controlpanel untiltheside window is
completely closed(Ypage 83).
X Hold theswitch foranadditional second.
X Ifthe respect iveside window remains closed
after thebutton isreleased, thenithas been
set correc tly.Ifthis isnot thecase, repeat the
steps above. Problems
withtheside windows G
WARNIN
G
If you close aside window againimmediately afterithas been blocked orreset, theside window
closes withincreased ormaximum force.Thereversin gfeature isthen notactive. Partsofthe
body could betrapped inthe closing areainthe process. Thisposes anincreased riskofinjury or
even fatalinjury.
Make surethatnoparts ofthe body areinthe closing area.Tostop theclosing process, release
the switch orpush theswitch againtoreopen theside window. Side
window s
85Opening andclosing Z

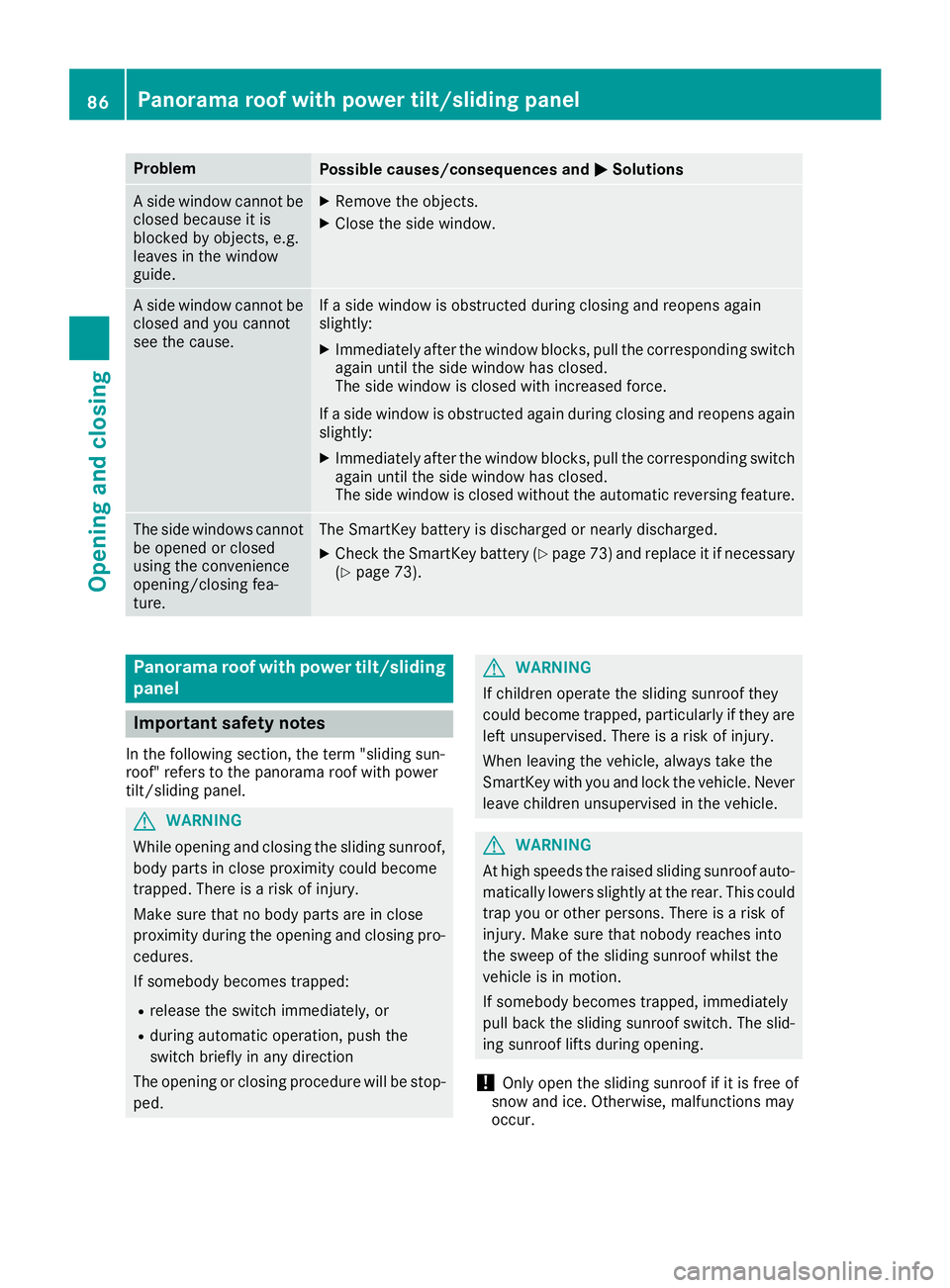

Problem
Possible
causes/co nsequences and0050 0050
Solutions A
side window cannotbe
closed because itis
blocked byobject s,e.g.
leaves inthe window
guide. X
Remove theobject s.
X Close theside window. A
side window cannotbe
closed andyoucannot
see thecause. If
aside window isobstruct edduring closing andreopens again
slightly:
X Immediately afterthewindow blocks,pullthecorrespondin gswitch
again untiltheside window hasclosed.
The side window isclosed withincreased force.
If aside window isobstruct edagain during closing andreopens again
slightly:
X Immediately afterthewindow blocks,pullthecorrespondin gswitch
again untiltheside window hasclosed.
The side window isclosed without theautomatic reversingfeature. The
side windows cannot
be opened orclosed
using theconven ience
opening/c losingfea-
ture. The
SmartK eybattery isdischarged ornearly discharged.
X Check theSmartK eybattery (Ypage 73)and replace itifnecessary
(Y page 73). Panoram
aroof with power tilt/sliding
panel Import
antsafety notes
In the following section,theterm "slidingsun-
roof" refers tothe panorama roofwith power
tilt/sliding panel. G
WARNING
While opening andclosing thesliding sunroof,
body parts inclose proximity couldbecome
trapped. Thereisarisk ofinjury.
Make surethatnobody parts areinclose
proximity duringtheopening andclosing pro-
cedures.
If somebody becomestrapped:
R release theswitch immediately, or
R during automatic operation, pushthe
switch brieflyinany direction
The opening orclosing procedure willbestop-
ped. G
WARNING
If children operatethesliding sunroof they
could become trapped, particularly ifthey are
left unsupervised. Thereisarisk ofinjury.
When leaving thevehicle, alwaystake the
SmartK eywith youand lock thevehicle. Never
leave children unsupervised inthe vehicle. G
WARNING
At high speeds theraised sliding sunroof auto-
matically lowersslightly atthe rear. Thiscould
trap youorother persons. Thereisarisk of
injury. Makesurethatnobody reaches into
the sweep ofthe sliding sunroof whilstthe
vehicle isin motion.
If somebody becomestrapped,immediately
pull back thesliding sunroof switch.Theslid-
ing sunroof liftsduring opening.
! Only
open thesliding sunroof ifit is free of
snow andice.Otherwise, malfunctions may
occur. 86
Panoram
aroof with power tilt/sliding panelOpeningandclosing

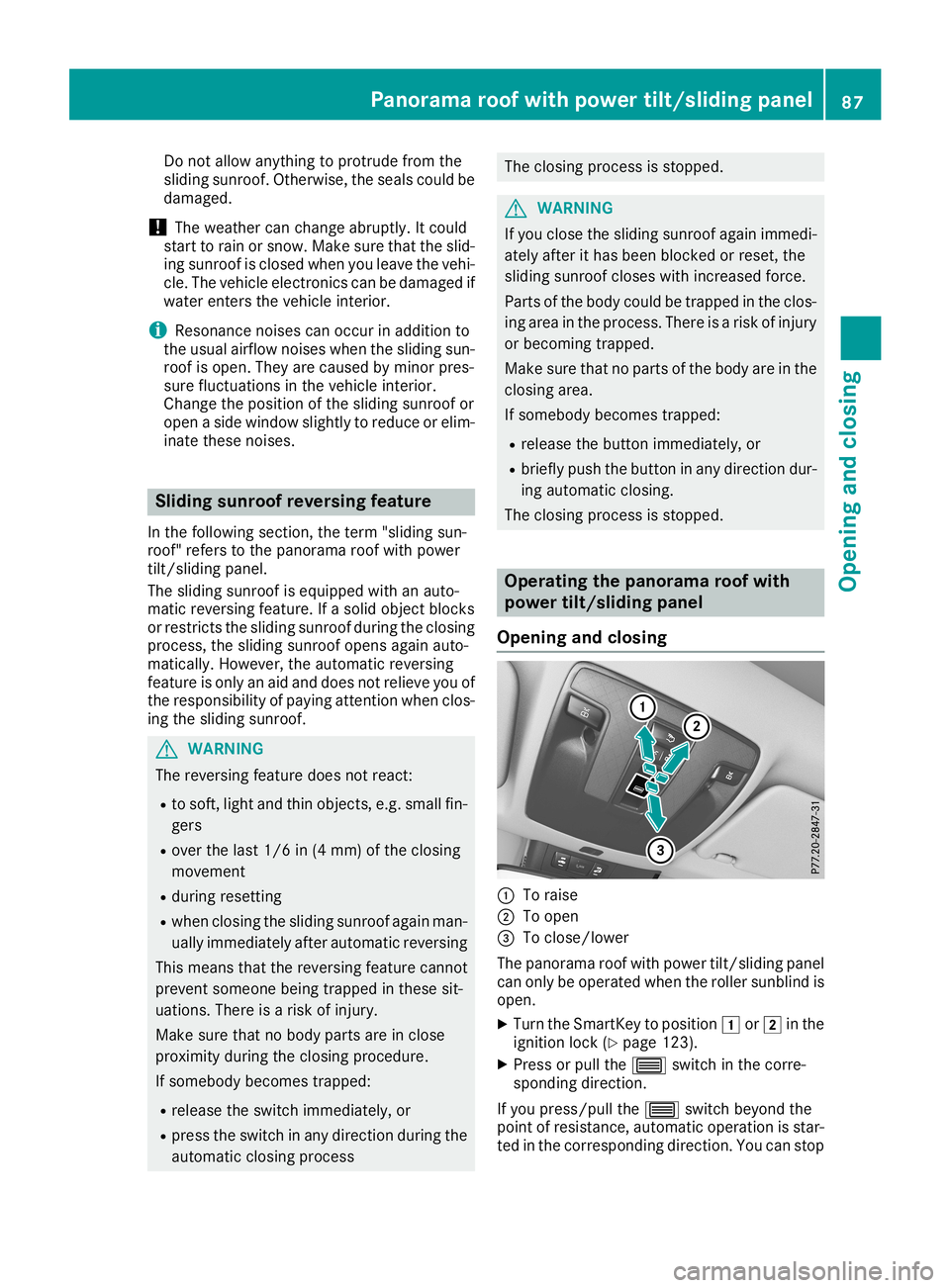

Do
not allo w any thing topro trude fromthe
sl id ing sunroo f.Othe rwise, the sealscou ldbe
da ma ged.
! The
weath ercan change abruptl y.Itcou ld
sta rtto rain or snow .Ma kesure tha tthe slid -
ing sunroo fis clo sed when youle av ethe vehi-
cle .The vehicleel ectro nicscanbedama gedif
wa ter ente rsthe vehicleinte rior.
i Re
sona ncenoises can occu rin ad ditio nto
the usua lai rfl ow noises when the slid ing sun-
roo fis op en. Theyar ecau sed bymin orpre s-
su re fluctua tions inthe vehicleinte rior.
Ch ang ethe positio nof the slid ing sunroo for
op en aside windo wslig htl yto red uce orelim-
ina tethe senoi ses . Sl
idi ng sun roofrev ersingfe ature
In the followi ng sec tion,the term "slidi ng sun-
roo f"ref ers tothe panora maroofwi th powe r
til t/sl iding panel .
The slid ing sunroo fis eq uipp ed with an auto-
ma tic revers ing feature.Ifasol idob ject blocks
or res tric tsthe slid ing sunroo fdu rin gthe closing
pro ces s,the slid ing sunroo fop ens again au to-
ma tica lly. How ever,the automa ticrevers ing
fea tureis onl yan aidand does not relieve youof
the responsi bility of pa ying atte ntionwh en clo s-
ing the slid ing sunroo f. G
WA
RNING
The revers ing featuredo es not react:
R to sof t,light and thinob jects ,e.g .sma llfin-
ge rs
R ove rthe last 1/6 in(4 mm )of the closing
mov eme nt
R du rin gres etti ng
R wh enclo sing the slid ing sunroo fag ainma n-
ua lly imm ediatel yaf ter automa ticrev ers ing
Thi smea nstha tthe revers ing featurecanno t
pre vent someone being trapped inthe sesit-
ua tio ns. The reisaris kof inju ry.
Ma kesure tha tno body parts arein clo se
pro xim itydurin gthe closing pro ced ure.
If som ebod ybe come stra pped:
R rel ease the switch imm ediatel y,or
R pre ssthe switch inany directi ondurin gthe
au toma ticclosing pro ces s The
closing pro ces sis stop ped. G
WA
RNING
If yo uclo sethe slid ing sunroo fag ain imm edi-
ate lyafter itha sbe en blocke dor res et, the
sl id ing sunroo fclo ses with incr eased force.
Pa rts ofthe body cou ldbe trapped inthe clos-
ing area inthe proces s.The reisaris kof inju ry
or becomi ngtrapped.
Ma kesure tha tno parts ofthe body arein the
clo sing area .
If som ebod ybe come stra pped:
R rel ease the button immediatel y,or
R bri eflypu sh the button inany directi ondur-
ing automa ticclosing.
The closing pro ces sis stop ped. Ope
ratin gthe pano rama roofwi th
pow ertilt/s lidin gpane l
Ope ning and clos ing 0043
Toraise
0044 Toopen
0087 Toclose/ lowe r
The panora maroofwi th powe rtil t/sl iding panel
can onlybe opera ted when the rollersu nbl ind is
op en.
X Tu rn the Sma rtKeyto po sitio n0047 or0048 inthe
ig niti onlock (Ypage 123 ).
X Pre ssorpullthe 0057 switch inthe corr e-
sp ond ingdirecti on.
If yo upre ss/p ullthe 0057 switch beyond the
po int ofres istance ,au toma ticopera tionis sta r-
ted inthe corr espond ingdirecti on.Youcan stop Pan
orama roofwit hpo wer tilt/s lidin gpan el
87Opening and closin g Z

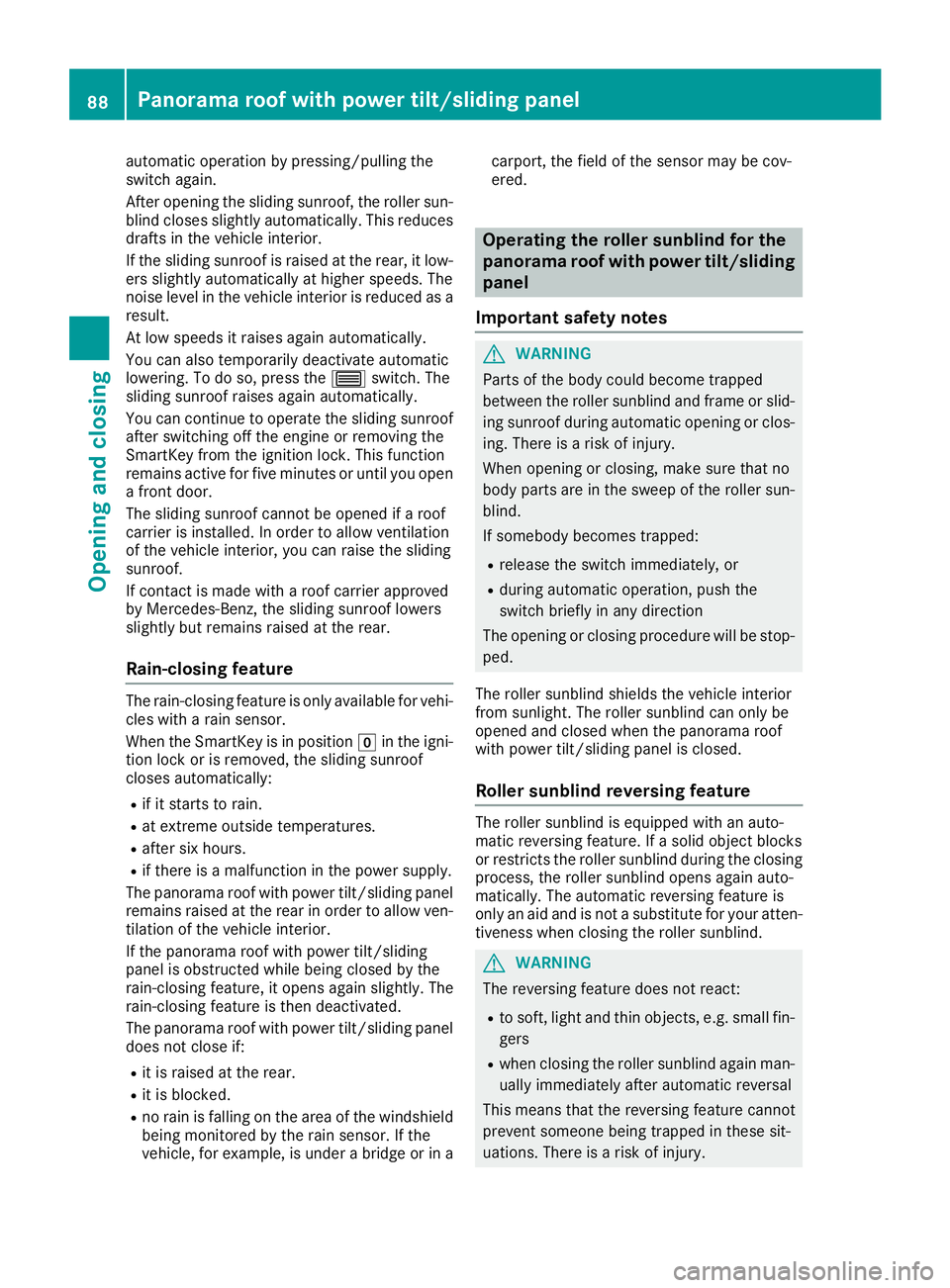

auto
maticoper ationby pres sing/p ullin gth e
swit chagain .
Af teropen ingtheslidin gsun roof,th eroll ersun -
blin dclo ses sligh tlyauto matically. Thisreduc es
draf tsintheveh icle interio r.
If th eslidin gsun roofis raise dat therear ,it low-
ers sligh tlyauto matically athigh erspee ds.The
no ise leve lin theveh icle interio ris reduc edasa
res ult.
At low spee dsitraise sagain automatically.
You canalso tempor arilydeac tivate auto matic
lower ing.To do so, pres sth e0057 switch.The
slidin gsun roofraise sagain automatically.
You cancontinue tooper atetheslidin gsun roof
aft erswit ching offtheeng ineorrem ovin gth e
Sm artKey from theign ition lock.This function
rem ains active forfivemin utesor unt ilyou open
a fron tdoor .
The slidin gsun roofcan notbe open edifaroo f
car rier isins tall ed. Inorde rto allow ventilatio n
of theveh icle interio r,you can raise theslidin g
sun roof.
If con tactis made witharoo fcar rier appro ved
by Mer cedes-Ben z,theslidin gsun rooflower s
sligh tlybut rem ains raise dat therear .
Ra in-cl osing feature The
rain-closin gfeat ureison lyavailabl efor veh i-
cle swith arain sensor.
When theSm artKey isin posit ion005Aintheign i-
tio nloc kor isrem oved,theslidin gsun roof
clo ses auto matically:
R ifit start sto rain .
R at ext rem eout side temper atures.
R aft ersix hour s.
R ifth ere isamalf unctionin thepower supply.
The pano ramaroo fwith power tilt/ slidin gpane l
rem ains raise dat therear inorde rto allow ven-
til atio nof theveh icle interio r.
If th epano ramaroo fwith power tilt/ slidin g
pane lis obst ructedwhile beingclo sed bythe
rain -closin gfeat ure, itopen sagain slightly.The
rain -closin gfeat ure isthen deac tivate d.
The pano ramaroo fwith power tilt/ slidin gpane l
does notclo seif:
R itis raise dat therear .
R itis bloc ked.
R no rain isfallin gon thearea ofthewind shield
bein gmon itored bytherain sensor.If th e
veh icle,for exam ple,isunde ra brid georina car
port ,th efield ofthesen sor may becov -
ered . Oper
ating theroll ersun blind forthe
pa nor amaroof with power tilt/s liding
pa nel
Imp ortant safety notes G
WAR
NING
Part sof thebody couldbec ome trapped
bet ween theroll ersun blin dand frame orslid-
ing sun roofdurin gauto maticopen ingorclo s-
ing .Ther eis arisk ofinjury.
When openingorclo sing,mak esure that no
body partsare inthesweep oftheroll ersun -
blin d.
If som ebody become strapped:
R rele ase theswit chimm ediat ely,or
R durin gauto maticoper ation,push the
swit chbrie flyinany direction
The open ingorclo singproc edure willbestop-
ped.
The rollersun blin dshie ldstheveh icle interio r
fr om sunlight .The rollersun blin dcan onlybe
open edand closed when thepano ramaroo f
with power tilt/ slidin gpane lis clo sed.
Roller sunblind reversing feature The
rollersun blin dis equippe dwith anauto -
mat icrev ers ing feat ure. Ifasolid object bloc ks
or res trict sth eroll ersun blin ddurin gth eclo sing
proc ess, theroll ersun blin dopen sagain auto-
mat ically. Theauto maticrev ers ing feat ure is
on lyan aid and isno ta subst itutefor your atten-
tiv ene sswhen closingth eroll ersun blin d. G
WAR
NING
The revers ing feat ure does notreac t:
R to sof t,light andthin obj ect s,e.g .small fin-
ger s
R when closingth eroll ersun blin dagain man-
ually immediat elyafterauto maticrev ers al
This mean sth at therev ers ing feat ure cannot
prev entsom eonebein gtrapped inthese sit-
uatio ns.Ther eis arisk ofinjury. 88
Pan
orama roof with power tilt/s lidin gpa nelOpen ingand closing
