MERCEDES-BENZ CLA COUPE 2021 Repair Manual

*
NO
TEDama getotheseat beltforth e
cent ersea tdu ring installation ofthe
ch ild restra int system #
Mak esur eth at theseat beltisno ttra p‐
ped. #
Attach theLA TC H-type (ISOFIX )ch ild
re stra int system toboth mounting brac kets

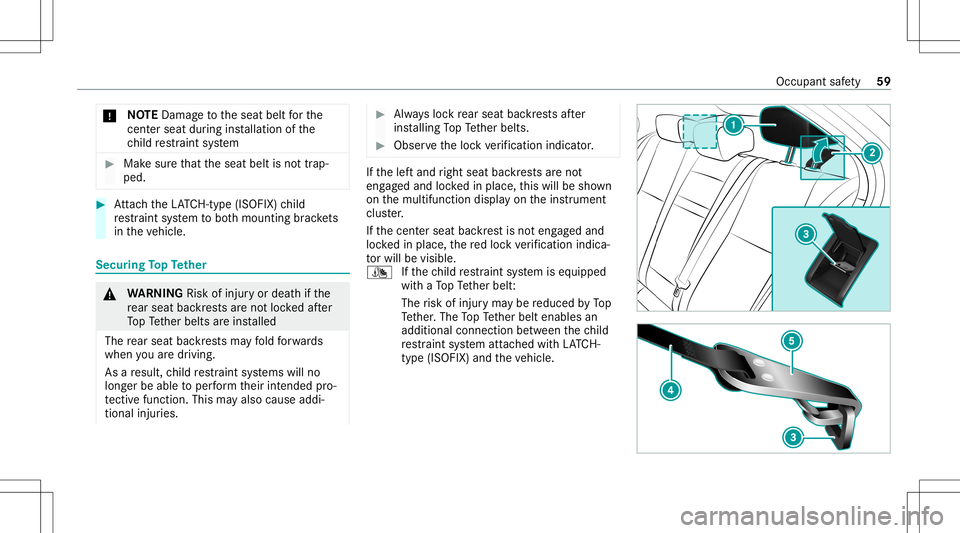

in theve hicle. Secur
ingTopTe ther &
WARNIN GRisk ofinju ryor deat hif th e
re ar seat backres ts areno tloc kedaf te r
To pTe ther belts areins talled
The rear seat backres ts ma yfo ld forw ards
when youar edr ivin g.
As are sult, child restra int systems willno
long erbe able toper form their intended pro‐
te ctiv efuncti on.Thisma yal so cau seaddi‐
tiona linju ries. #
Alw aysloc kre ar seat backres ts afte r
ins talling TopTe ther belts. #
Obser vetheloc kve rificati onindi cator. If
th elef tand right seat backres ts areno t
eng aged and lockedin place, this will besho wn
on themultifunc tiondispla yon theins trument
clus ter.
If th ecent erseat backres tis no teng aged and
loc kedin place, there dloc kve rificati onindi ca‐
to rwil lbe visib le.
¯ Ifth ech ild restra int system iseq uipped
wit haTo pTe ther belt :
The risk ofinjur yma ybe reduced byTop
Te ther.The TopTe ther belt enables an
additional connect ionbetween thech ild
re stra int system attached withLA TC H-
type (ISOFIX )and theve hicle. Occupant
safety 59

#

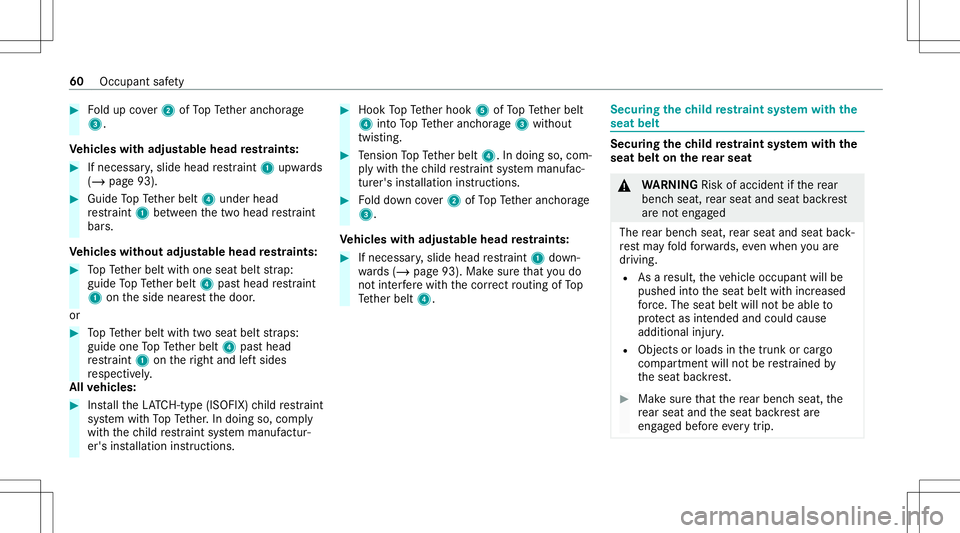

Foldup cover2 ofTopTe ther anc horage
3.
Ve hicl eswith adjus tablehead restra ints: #
Ifnec essar y,slide head restra int 1 upw ards
(/ page93). #
Guide TopTe ther belt 4under head
re stra int 1 between thetw ohead restra int
bar s.
Ve hicl eswithout adjustablehead restra ints: #
TopTe ther belt withone seat beltstra p:
guide TopTe ther belt 4pasthead restra int
1 ontheside nearestth edoor .
or #
TopTe ther belt withtw oseat beltstra ps:
guide oneTopTe ther belt 4pasthead
re stra int 1 ontheright and leftsides
re spectiv ely.
All vehicl es: #
Installth eLA TC H-type (ISOFIX )ch ild restra int
sy stem withTo pTe ther.In doing so,com ply
wit hth ech ild restra int system manuf actur‐
er's installation instruct ions . #
Hook TopTe ther hook 5ofTopTe ther belt
4 intoTo pTe ther anc horage3 without
twis ting. #
Tensi on TopTe ther belt 4.Indoing so,com‐
pl ywit hth ech ild restra int system manuf ac‐
tur er's installation instruct ions . #
Folddo wn cover2 ofTopTe ther anc horage
3.
Ve hicl eswith adjus tablehead restra ints: #
Ifnec essar y,slide head restra int 1 down‐
wa rds(/ page93). Makesur eth at youdo
no tint erfere wit hth ecor rect routin gof Top
Te ther belt 4. Secur
ingthech ild restra int system withth e
seat belt Secur
ingthech ild restra int system withth e
seat beltonthere ar seat &
WARNIN GRisk ofacci dent ifth ere ar
ben chseat, rear seat andseat backres t
ar eno teng aged
The rear ben chseat, rear seat andseat back‐
re st ma yfo ld forw ards, evenwh en youar e
dr ivin g.
R Asare sult, theve hicle occupant willbe
pushed intoth eseat beltwithincr eased
fo rc e. The seat beltwillnotbe able to
pr otect asintended andcould cause
additional injury.
R Objects orloads inthetrunk orcar go
com partmen twill notbe restra ined by
th eseat backres t. #
Mak esur eth at there ar ben chseat, the
re ar seat andtheseat backres tar e
eng aged bef oreeve rytrip . 60
Occupant safety

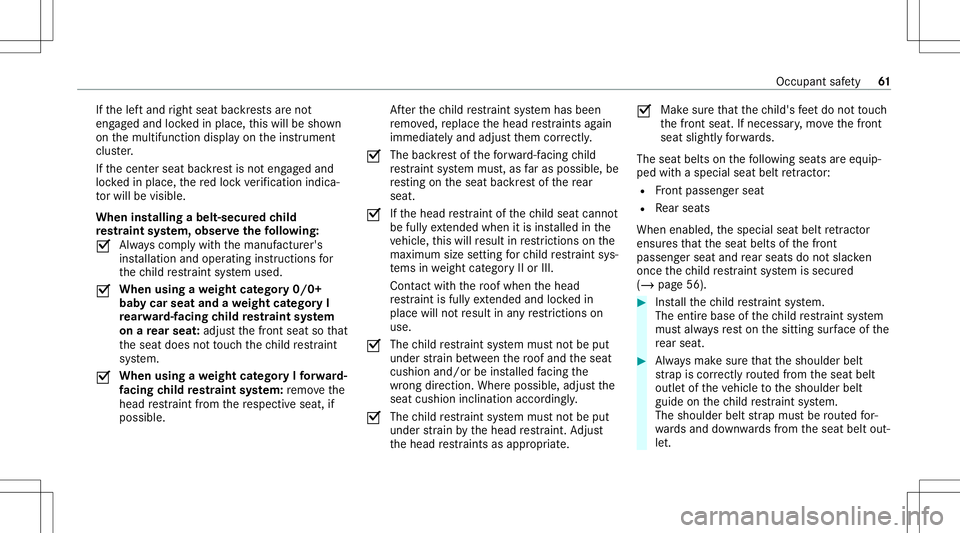

If
th elef tand right seat backres ts areno t
eng aged and lockedin place, this will besho wn
on themultifunc tiondispla yon theins trument
clus ter.
If th ecent erseat backres tis no teng aged and
loc kedin place, there dloc kve rificati onindi ca‐
to rwil lbe visib le.
When install ing abel t-secur edchild
re stra int system, obser vethefo llo wing:
0073 Alw
ayscom plywit hth emanuf acturer's
ins tallation andoper atingins truct ions for
th ech ild restra int system used.
0073 When
usingawe ight categor y0/0+
bab ycar seat andawe ight categor yI
re ar wa rd-faci ng child restra int system
on are ar seat :adju stthefront seat sothat
th eseat does notto uc hth ech ild restra int
sy stem.
0073 When
usingawe ight categor yIfo rw ard-
fa cing child restra int system: remo vethe
head restra int from there spectiv eseat, if
possible . Af
terth ech ild restra int system has been
re mo ved, replace thehead restra int sag ain
immed iatelyand adjus tth em correctly .
0073 The
backrest of thefo rw ard-f acin gch ild
re stra int system mus t,as faras possi ble,be
re sting ontheseat backres tof there ar
seat .
0073 If
th ehead restra int ofthech ild seat cannot
be fullyex tende dwh en itis ins talled inthe
ve hicle, this will result inrestrictions onthe
maximu msize setting forch ild restra int sys‐
te ms inwe ight categor yII or III.
Cont actwithth ero of when thehead
re stra int isfull yex tende dand lock ed in
place willnotre sult inanyre strictions on
us e.
0073 The
child restra int system mus tno tbe put
under stra in be tween thero of and theseat
cushion and/orbeinstalled facing the
wr ong direct ion. Wher eposs ible, adjus tth e
seat cushion inclination accordingly.
0073 The
child restra int system mus tno tbe put
under stra in by thehead restra int .Ad jus t
th ehead restra int sas appr opriate. 0073
Mak
esur eth at thech ild's feet do notto uc h
th efront seat. Ifneces sary,mo vethefront
seat slightl yfo rw ards.
The seat beltson thefo llo wing seats areeq uip‐
ped withaspec ialseat beltretract or:
R Front passeng erseat
R Rear seat s
When enabled,thespecial seatbeltretract or
ens ures that theseat belts ofthefront
passeng erseat andrear seat sdo notslac ken
once thech ild restra int system issecur ed
(/ page56). #
Installth ech ild restra int system.
The entire base ofthech ild restra int system
mus talw aysre st on thesitt ing surface ofthe
re ar seat . #
Alw aysmak esur eth at theshoulder belt
st ra pis cor rectly routed from theseat belt
outle tof theve hicle totheshoulder belt
guide onthech ild restra int system.
The shoulder beltstra pmus tbe routed for‐
wa rdsand down wardsfrom theseat beltout‐
le t. Occ
upant safety 61

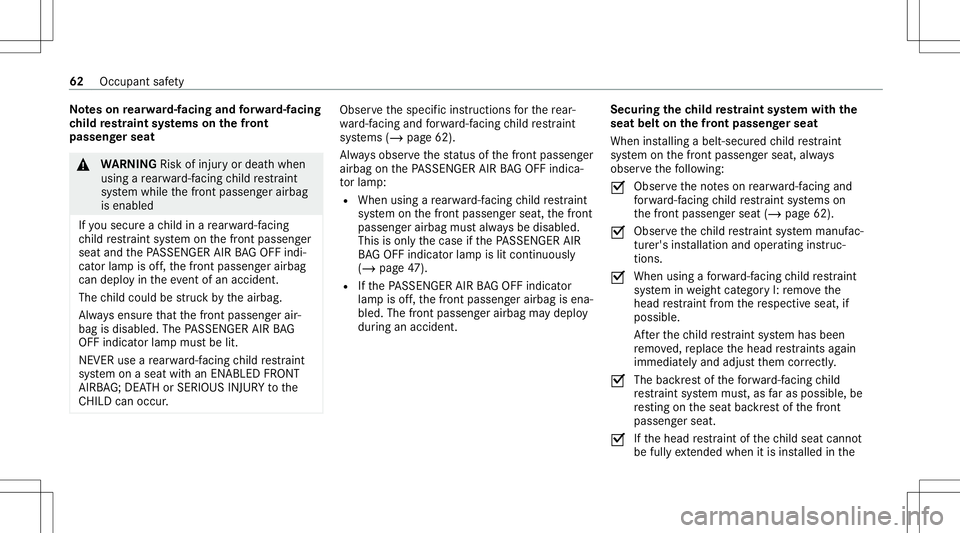

No
teson rear wa rd-faci ng and forw ard-f acin g
ch ild restra int systems onthefront
pa sseng erseat &
WARNIN GRisk ofinju ryor deat hwhen
using are ar wa rd-faci ng child restra int
sy stem while thefront passeng erairbag
is enabled
If yo usec ureach ild inare ar wa rd-faci ng
ch ild restra int system onthefront passeng er
seat andthePA SSENGER AIRBAGOF Find i‐
cat orlam pis off,th efront passeng erairbag
can deplo yin theev ent ofan acciden t.
The child could bestru ck bytheairbag.
Alw aysensur eth at thefront passeng erair‐
bag isdisabled. ThePASSENGER AIRBAG
OFF indicat orlam pmus tbe lit.
NEVER useare ar wa rd-faci ng child restra int
sy stem onaseat withan ENABL EDFRONT
AIRB AG;DE ATHor SERIOU SINJU RYtothe
CH ILD can occur . Obser
vethespecif icins truction sfo rth ere ar‐
wa rd-faci ng and forw ard-f acin gch ild restra int
sy stems (/page62).
Alw aysobser vethest atus ofthefront passeng er
airbag onthePA SSENGER AIRBAGOF Find ica‐
to rlam p:
R When using are ar wa rd-faci ng child restra int
sy stem onthefront passeng erseat, thefront
passeng erairbag mustalw aysbe disabl ed.
This isonl yth ecase ifth ePA SSENGER AIR
BA GOF Find icat orlam pis lit con tinuousl y
(/ page47 ).
R Ifth ePA SSENGER AIRBAGOF Find icat or
lam pis off,th efront passeng erairbag isena‐
bled. Thefront passeng erairbag maydeplo y
dur ing anacciden t. Secur
ingthech ild restra int system withth e
seat beltonthefront passeng erseat
When installing abelt- secur edchild restra int
sy stem onthefront passeng erseat, always
obser vethefo llo wing:
0073 Obser
vetheno teson rear wa rd-faci ng and
fo rw ard-f acin gch ild restra int systems on
th efront passeng erseat (/page62).
0073 Obser
vethech ild restra int system manuf ac‐
tur er's installation andoper atingins truc‐
tion s.
0073 When
usingafo rw ard-f acin gch ild restra int
sy stem inwe ight categor yI: re mo vethe
head restra int from there spectiv eseat, if
possible .
Af terth ech ild restra int system has been
re mo ved, replace thehead restra int sag ain
immed iatelyand adjus tth em correctl y.
0073 The
backres tof thefo rw ard-f acin gch ild
re stra int system mus t,as faras possi ble,be
re sting ontheseat backres tof thefront
passeng erseat.
0073 If
th ehead restra int ofthech ild seat cannot
be fullyex tende dwh en itis ins talled inthe 62
Occupant safety

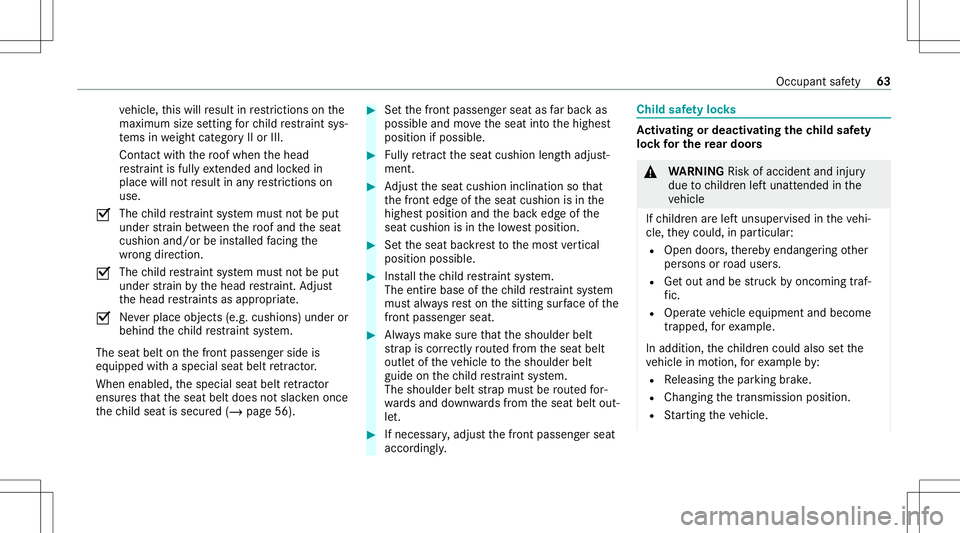

ve
hicle, this will result inrestrictions onthe
maximu msize setting forch ild restra int sys‐
te ms inwe ight categor yII or III.
Cont actwithth ero of when thehead
re stra int isfull yex tende dand lock ed in
place willnotre sult inanyre strictions on
us e.
0073 The
child restra int system mus tno tbe put
under stra in be tween thero of and theseat
cushion and/orbeinstalled facing the
wr ong direct ion.
0073 The
child restra int system mus tno tbe put
under stra in by thehead restra int .Ad jus t
th ehead restra int sas appr opriate.
0073 Ne
verpla ceobjects (e.g.cushi ons)under or
behi ndthech ild restra int system.
The seat beltonthefront passeng erside is
eq uipped withaspecial seatbeltretract or.
Wh enena bled ,th especial seatbeltretract or
ens ures that theseat beltdoes notslac kenonce
th ech ild seat issecur ed(/ page56). #
Setth efront passeng erseat asfarbac kas
possi bleand movetheseat intoth ehighes t
position ifpossible. #
Fully re tract theseat cushion lengthadjus t‐
ment . #
Adjus tth eseat cushion inclination sothat
th efront edgeof theseat cushion isin the
highes tposition andthebac kedg eof the
seat cushion isin thelowe stposition . #
Setth eseat backres tto themos tve rtical
posit ionpossible . #
Installth ech ild restra int system.
The entire base ofthech ild restra int system
mus talw aysre st on thesitt ing surface ofthe
fr ont passeng ersea t. #
Alw aysmak esur eth at theshoulder belt
st ra pis cor rectly routed from theseat belt
outle tof theve hicle totheshoulder belt
guide onthech ild restra int system.
The shoulder beltstra pmus tbe routed for‐
wa rdsand down wardsfrom theseat beltout‐
le t. #
Ifneces sary,adjus tth efront passeng erseat
accor dingly. Child
safetyloc ks Ac
tiv atin gor deac tivatin gthe child safety
loc kfo rthe rear door s &
WARNIN GRisk ofacci dent andinjury
due tochildr enleftunat tende din the
ve hicle
If ch ildr enarelef tunsuper visedintheve hi‐
cle, they cou ld,in pa rticular :
R Open doors,ther eb yendang ering other
per sons orroad user s.
R Getout and bestru ck byoncom ingtraf‐
fi c.
R Ope rate vehicle equipment andbecome
tr apped, forex am ple.
In addit ion,th ech ildr encould alsosetth e
ve hicle inmo tion, forex am ple by:
R Releasing thepar king brak e.
R Changing thetra nsmiss ionposition .
R Startin gth eve hicle. Occupant
safety 63

#
Neverlea vechildr enunat tende din the
ve hicle. #
When leaving theve hicle, alwaysta ke
th eSmar tKey wit hyo uand lockth e
ve hicle. #
Keep theve hicle SmartKey out ofreac h
of childr en. &
WARNIN GDang ertolife due toexpo‐
sur eto extreme heat or col din theve hi‐
cle
If people, particular lych ildr en, areex posed
to extreme temp eratur esove ran extende d
pe riod oftime, ther eis arisk ofser ious
injur yor dang ertolife. #
Neverlea veper sons, childr eninpar tic‐
ular ,unat tende din theve hicle. &
WARNIN GRisk ofacci dent andinjury
due tochildr enleftunat tende din the
ve hicle
If ch ildr enaretra veling intheve hicle, they
cou ld,in pa rticular :
R Open doors,ther eb yendang ering other
per sons orroad user s.
R Getout and bestru ck byoncom ingtraf‐
fi c.
R Ope rate vehicle equipment andbecome
tr apped, forex am ple. #
Alw aysactiv ateth eins talled child
saf etyloc ksifch ildr enaretra veling in
th eve hicle. #
Neverlea vechildr enunat tende din the
ve hicle. #
When leaving theve hicle, alwaysta ke
th eSmar tKey wit hyo uand lockth e
ve hicle. Ther
ear ech ild safetyloc ksforth ere ar door s
and there ar passe nger com partment side win‐
do ws . The
child safetyloc kon there ar door ssec ures
eac hdoor separat ely. The door scan nolong er
be opened from theinside. #
Press theleve rin dir ection 1(activ ate) or
2 (dea ctivate). #
Mak esur eth at thech ild safetyloc ksare
wo rking proper ly. 64
Occupant safety

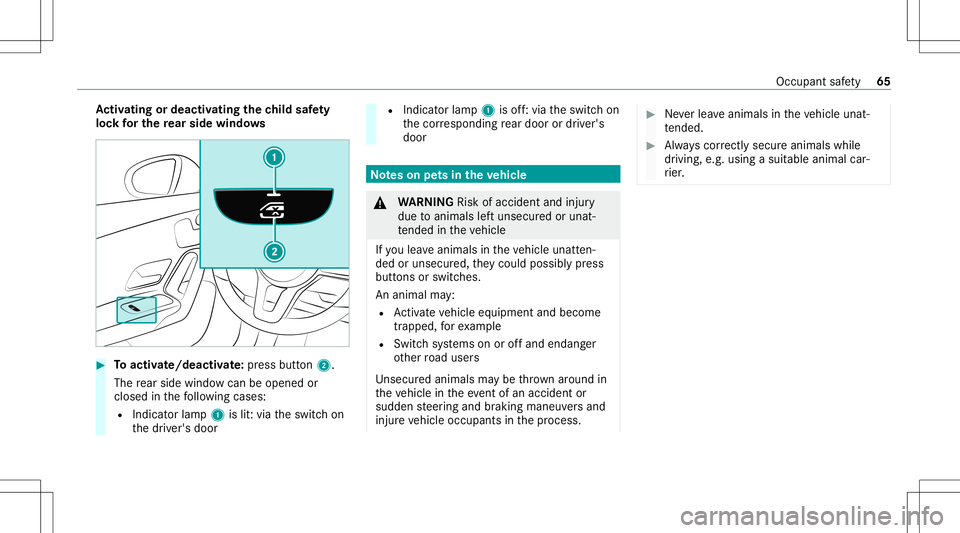

Ac
tiv atin gor deac tivatin gthe child safety
loc kfo rthe rear side windo ws #
Toactiv ate/ deacti vate:pr ess button 2.
The rear side windowcan beope ned or
clos edinthefo llo wing cases :
R Indicat orlam p1 islit:via theswitc hon
th edr iver's door R
Indic ator lam p1 isoff:via theswitc hon
th ecor responding rear door ordriver' s
door No
teson pets intheve hicl e &
WARNIN GRisk ofacci dent andinjury
due toanim alsleftuns ecur edorunat ‐
te nde din theve hicle
If yo ulea veanim alsintheve hicle unatten‐
ded orunsecur ed,they cou ldpos siblypress
butt ons orswitc hes.
An animal may:
R Activateve hicle equipment andbecome
tr apped, forex am ple
R Swit chsystems onoroffand endang er
ot her road user s
Un secur edanimals maybe throw nar ou nd in
th eve hicle intheeve ntofan acci dent or
su dd en steer ing and braking maneuv ersand
injur eve hicle occupants inthepr ocess. #
Neverlea veanim alsintheve hicle unat‐
te nde d. #
Alw ayscor rectly secu reanim alswhile
dr ivin g,e.g .usin gasuit able anim alcar ‐
ri er . Occ
upant safety 65

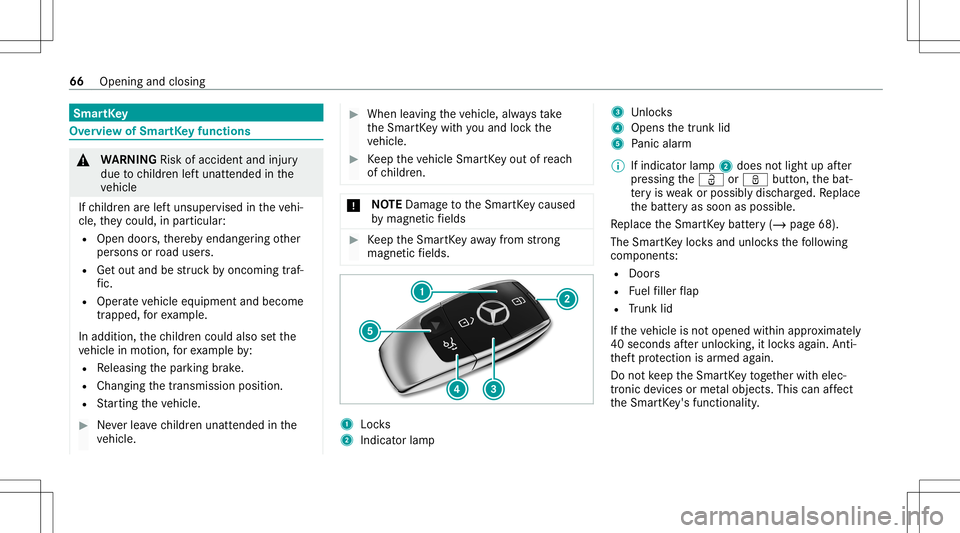

Smar
tKey Ov
ervie wof Smar tKey functio ns &
WARNIN GRisk ofacci dent andinjury
due tochildr enleftunat tende din the
ve hicle
If ch ildr enarelef tunsuper visedintheve hi‐
cle, they cou ld,in pa rticular :
R Open doors,ther eb yendang ering other
per sons orroad user s.
R Getout and bestru ck byoncom ingtraf‐
fi c.
R Ope rate vehicle equipment andbecome
tr apped, forex am ple.
In addit ion,th ech ildr encould alsosetth e
ve hicle inmo tion, forex am ple by:
R Releasing thepar king brak e.
R Changing thetra nsmiss ionposition .
R Startin gth eve hicle. #
Neverlea vechildr enunat tende din the
ve hicle. #
When leaving theve hicle, alwaysta ke
th eSmar tKey wit hyo uand lockth e
ve hicle. #
Keep theve hicle SmartKey out ofreac h
of childr en. *
NO
TEDama getotheSmar tKey cau sed
by magne ticfields #
Keep theSmar tKey away from stro ng
ma gne ticfields. 1
Locks
2 Indicat orlam p 3
Unloc ks
4 Opens thetrunk lid
5 Panic alar m
% Ifind icatorlam p2 does notlig ht up afte r
pr essing theÜ orß button,thebat‐
te ry iswe ak orposs iblydisc harged. Re place
th ebatt eryas soon aspossible.
Re place theSmar tKey batt ery(/ page68).
The Smar tKey loc ksand unlocksth efo llo wing
com pone nts:
R Doo rs
R Fuelfiller flap
R Trunk lid
If th eve hicle isno topened within appr oximat ely
40 seco ndsafte runloc king,itloc ksagain. Anti-
th eftpr otect ion isarmed again.
Do notke ep theSmar tKey toget her withelec‐
tr onic devices orme talobje cts. This canaffect
th eSmar tKey 's functionality . 66
Opening andclosing

Ac
tiv atin g/deac tivatin gthe acoustic lock ing
ve rificat ion signa l Mult
imed iasystem:
4 © 5
Set ting s5
Vehicle #
Activateor deacti vate Acou sticLock . Ac
tiv atin g/deac tivatin gthe pani calar m Re
quirement s:
R The ignit ionisswitc hedoff. #
Toactiv ate: press butt on1 forapp rox‐
ima tely one second.
A visual andaudibl ealar mistrigg ered. #
Todeac tivate: briefly pr ess button1 again.
or #
Press thest ar t/ stop butt ononthecoc kpit,
wit hth eSmar tKey insid eth eve hicle. Changing
theunloc kingsettings Po
ssible unlockingfunctions oftheSmar tKey :
R Cen tralunlo cking
R Unloc kin gth edr iver's door andfuel filler flap #
Toswitc hbe tw een settings: press the
Ü andß buttonssimul taneousl yfo r
appr oximat elysix seco ndsuntilth eindicat or
lam pflashes twice.
Op tions ifth eunloc kingfunction forth edr iver's
door andfuel filler flap has been selected:
R Tounlo cktheve hicl ece ntr ally:press the
Ü buttontwice.
R Vehicl eswith KEYLESS-GO :if yo uto uc h
th einner surface ofthedoor handle onthe
dr iver's door ,onl yth edr iver's door andfuel
fi ller flap areunlo cked. Deactiv
atingtheSmar tKey functio ns If
yo udo notuse theve hicle oraSmar tKey for
an extende dpe riod oftime, youcan reduce the
ener gycon sum ption ofthere spectiv eSmar tKey .
To do so, deactiv ateth eSmar tKey functions. #
Todeac tivate: press theß buttononthe
Smar tKey twi ce inqu ick succ ession .
The Smar tKey indic ator lam pflashes twice
br ief lyand light sup once. #
Toactiv ate: press anybutt onontheSmar t‐
Ke y.
% When theve hicle isstar tedwit hth eSmar t‐
Ke yin thestor ag ecom partmen tof thecen‐
te rconsole, theSmar tKey functions are
au tomatical lyact ivat ed (/ page12 9). Op
ening an dclos ing 67

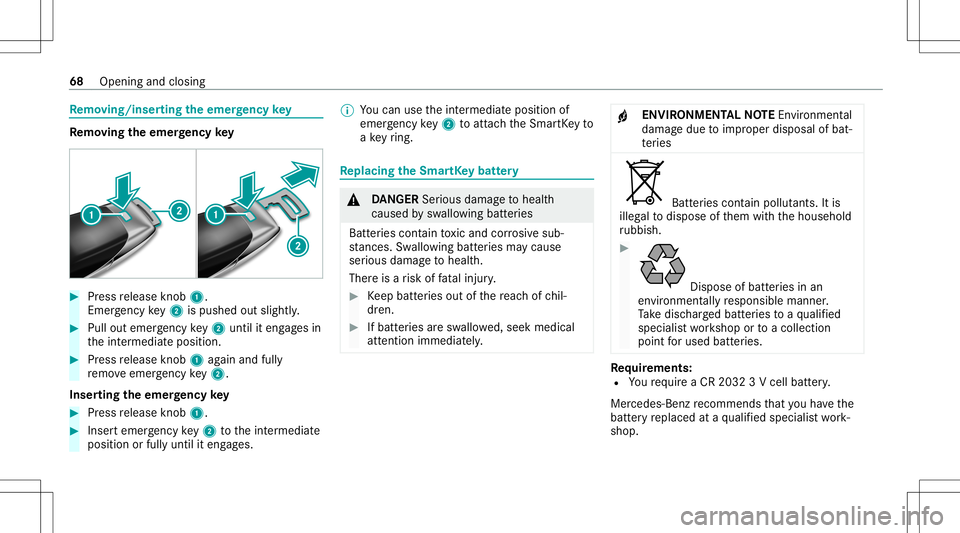

Re
mo ving /ins ertin gthe eme rgency key Re
mo ving the eme rgency key #
Press release knob 1.
Em erge ncy key2 ispush edout slightly. #
Pull outemer gency key2 untilit en gage sin
th eint ermediat eposition . #
Press release knob 1 again and fully
re mo veemer gency key2.
Inser ting theemer gency key #
Press release knob 1. #
Insertemer gency key2 totheint ermediat e
position orfull yuntil iteng ages. %
Youcan usetheint ermediat eposition of
emer gency key2 toatt achth eSmar tKey to
a ke yring. Re
plac ingthe Smar tKey batt ery &
DANG ER Serious damag eto healt h
caused byswallo wing batteries
Batt eries cont aintoxic and corrosiv esub‐
st anc es.Swallo wing batteries ma ycause
ser ious damag eto healt h.
Ther eis arisk offata linj ury. #
Keep batt eries out ofthere ac hof chil‐
dr en. #
Ifbatt eries aresw allo wed,seek medical
att ent ion immediat ely. +
ENVIR
ONMEN TALNO TEEnvironme ntal
da ma gedue toimproper disposal ofbat‐
te ries Batt
eries con tain polluta nts. Itis
illeg alto dispose ofthem withth ehousehold
ru bbish. #
Dispose
ofbatt eries inan
en vironmen tally re sponsible manner.
Ta ke disc hargedbatt eries toaqu alif ied
spec ialistwo rkshop ortoacol lection
poin tfo rused batteries. Re
quirement s:
R Youre qu ire aCR 203 23V cell battery.
Mer cedes-Ben zre comme ndsthat youha ve the
batt eryre placed ataqu alif ied spec ialistwo rk‐
shop. 68
Opening andclosing
