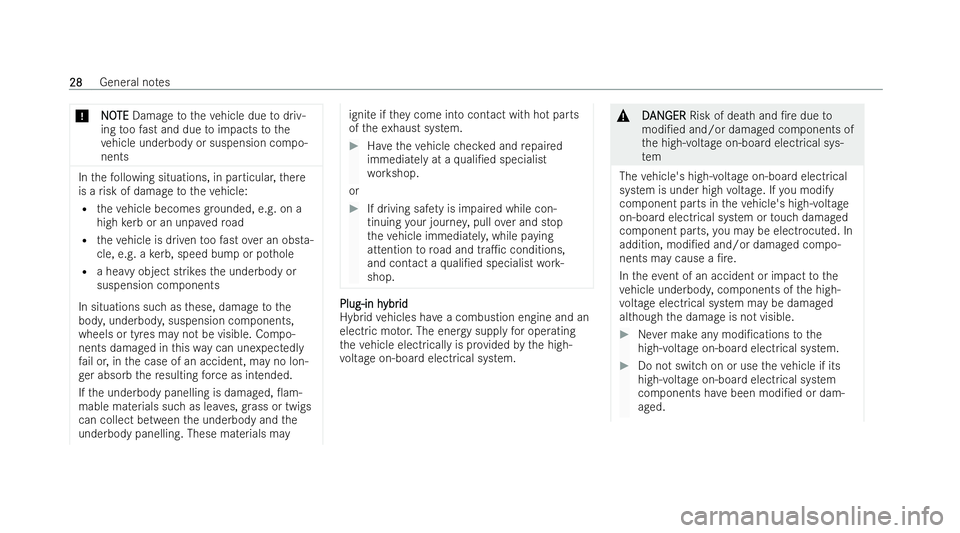

N
NO
OTE
TE Damage totheve hicle due todriv-
ing toofast and due toimpacts tothe
ve hicle underbody or suspension compo-
nents In
thefo llowing situations, in particular, there
is a risk of damage totheve hicle:
R theve hicle becomes grounded, e.g. on a
high kerb or an unpa vedro ad
R theve hicle is driven toofast ove r an obsta-
cle, e.g. a kerb, speed bump or po thole
R a heavy object st rike sth e underbody or
suspension components
In situations such as these, damage tothe
body, underbody, suspension components,
wheels or tyres may not be visible. Compo-
nents damaged in this wa y can un expectedly
fa il or, in the case of an accident, may no lon-
ge r absorb there sulting forc e as intended.
If th e underbody panelling is damaged, 0am-
mable materials such as lea ves, grass or twigs
can collect between the underbody and the
underbody panelling. These materials may ignite if
they come into contact with hot parts
of theex haust system. #
Have theve hicle checked and repaired
immediately at a quali/ed specialist
wo rkshop.
or #
If driving saf ety is impaired while con-
tinuing your journe y,pull over and stop
th eve hicle immediatel y,while paying
attention toroad and tra1c conditions,
and contact a quali/ed specialist work-
shop. Plug-in h Plug-in h
ybr
ybr id
id
Hybrid vehicles ha vea combustion engine and an
elect ric mo tor.The energy supply for operating
th eve hicle elect rically is pr ovided bythe high-
vo ltage on-board electrical system. &
D
DAN
AN GER
GER Risk of death and /re due to
modi/ed and/or damaged components of
th e high-voltage on-board electrical sys-
tem
The vehicle's high- voltage on-board electrical
system is under high voltage. If you modify
component parts in theve hicle's high- voltage
on-board electrical system or touch damaged
component parts, you may be electrocuted. In
addition, modi/ed and/or damaged compo-
nents may cause a /re.
In theeve nt of an accident or impact tothe
ve hicle underbod y,components of the high-
vo ltage electrical system may be damaged
although the damage is not visible. #
Never make any modi/cations tothe
high- voltage on-board electrical system. #
Do not switch on or use theve hicle if its
high- voltage on-board electrical system
components ha vebeen modi/ed or dam-
aged. 28 28
General no
tes
Page 32 of 525
#
Neverto uch damaged components of
th e high-voltage on-board electrical sys-
te m. #
ATer an accident, do not touch any com-
ponents of the high-voltage on-board
electrical system. #
ATer an accident, ha vetheve hicle trans-
por tedawa y. #
Have the components of the high-voltage
on-board electrical system checked at a
qu ali/ed specialist workshop and
re placed if necessar y. The components of
the high-voltage on-board
electrical system are mar ked with yellow warning
stic kers. The cables of the high-voltage on-board
electrical system are orange.
Ve hicles with hybrid systems generate signi/-
cant lyless noise when stationary and when being
driven than vehicles with combustion engines.
When driving in elect ric mode, theve hicle may
not be heard by otherroad users due tothe signif-
icantly reduced noise generated. It is
forth is reason that theve hicle is equipped
with a sound generator, which ser ves as an acous-
tic vehicle alerting system (A VAS). Declar
Declar
ations of conf
ations of conf or
ormity and not
mity and not es on dr
es on driving
iving
in
in di.er
di.er ent
entcountr
countr ies
ies Electr
Electr
omagne
omagne tic com
tic compatibility
patibility The elect
romagnetic compatibility of theve hicle
components has been checked and certi/ed
according tothe cur rently valid version of Regula-
tion UN-R 10. v
v
ehicle inst
ehicle inst alled r
alled radio com
adio com ponents
ponents Onl
Onl
y f
y for EU and EFT
or EU and EFT A countr
A countries and countr
ies and countr ies t
ies that
hat
r
r ecognise t
ecognise t he EU manuf
he EU manuf actur
acturer's declar
er's declar ation of
ation of
conf
conf or
ormity:
mity: The
following information applies toall wireless
components of theve hicle and of the information systems and communication devices integ
rated in
th eve hicle:
The manu facturers of the wireless components
ensure that all wireless components ins talled in
th eve hicle comply with Directi ve2014/53/EU.
The full texts of the EU declarations of conformity
are available at thefo llowing web address:
https://moba.i.daimler.com/mar kets/ece-r ow/
baix/cars/certi/cates-of-con form ity/en_GB/
index.html General no
tes
29
29
Page 33 of 525
Yo
u can obtain fur ther information from a
Mercedes-Benz service centre.

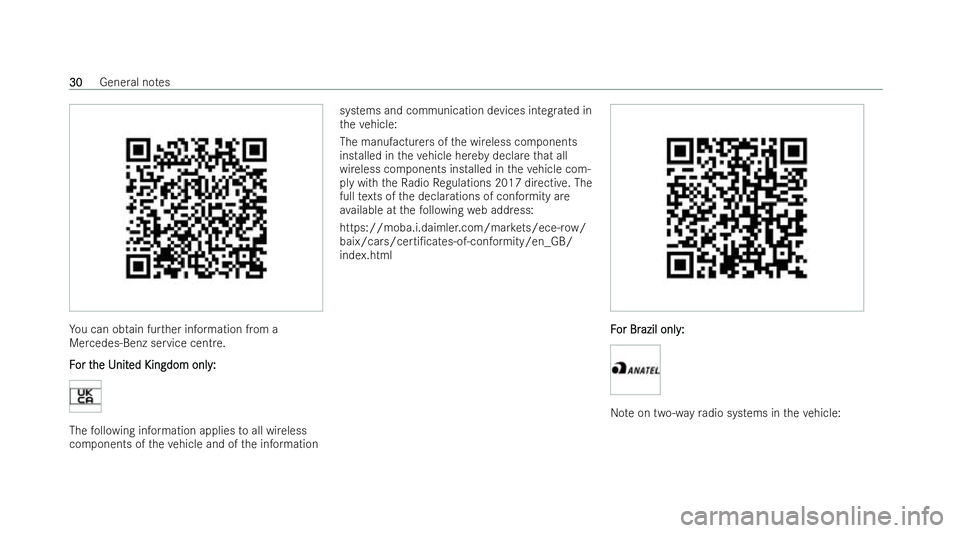

F F or t
or t he U
he Unit nited Kingdom onl y:
ed Kingdom onl y:The
following information applies toall wireless
components of theve hicle and of the information systems and communication devices integ
rated in
th eve hicle:
The manu facturers of the wireless components
installed in theve hicle hereby declare that all
wireless components ins talled in theve hicle com-
ply with theRa dio Regulations 2017 directi ve. The
full texts of the declarations of conformity are
av ailable at thefo llowing web address:
https://moba.i.daimler.com/mar kets/ece-r ow/
baix/cars/certi/cates-of-con form ity/en_GB/
index.html F
F
or Br
or Br azil onl y:
azil onl y: No

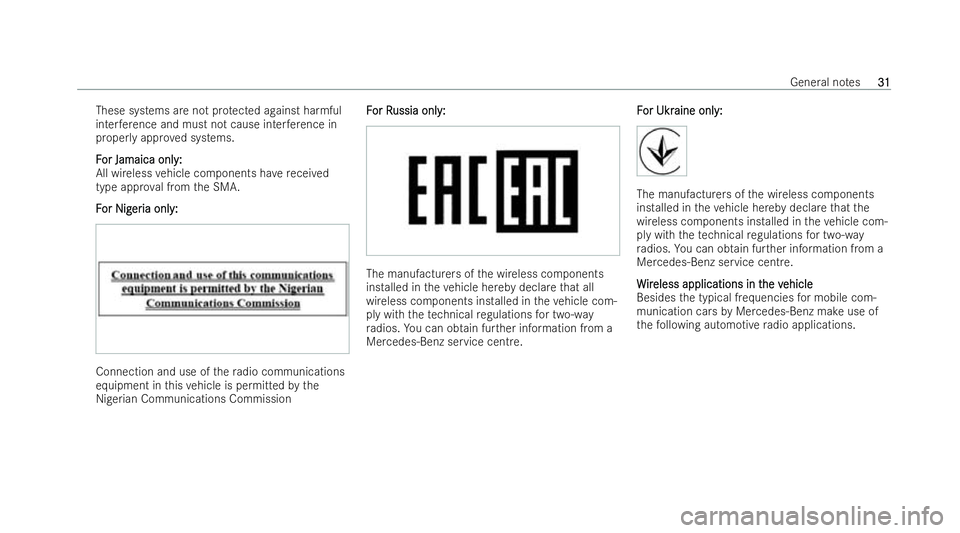

teon two-w ayradio systems in theve hicle: 30
30
Gene
ral no tes
Page 34 of 525
These systems are not pr
otected against harmful
inter fere nce and must not cause inter fere nce in
prope rly appr oved systems.
F
F or Jamaica onl y:
or Jamaica onl y:
All wireless vehicle components ha vereceived
type appr oval from the SMA.
F
F or Nig
or Nig er
eria onl y:
ia onl y: Connection and use of
thera dio communications
equipment in this vehicle is permitted bythe
Nigerian Communications Commission F
F
or R
or R ussia onl y:
ussia onl y: The manufacturers of
the wireless components
installed in theve hicle hereby declare that all
wireless components ins talled in theve hicle com-
ply with thete ch nical regulations for two-w ay
ra dios. You can obtain fur ther information from a
Mercedes-Benz service centre. F
F or Ukr
or Ukr aine onl y:
aine onl y: The manufacturers of
the wireless components
installed in theve hicle hereby declare that the
wireless components ins talled in theve hicle com-
ply with thete ch nical regulations for two-w ay
ra dios. You can obtain fur ther information from a
Mercedes-Benz service centre.
W
W ir ireless applications in t
eless applications in t he v
he vehicle
ehicle
Besides the typical frequencies for mobile com-
munication cars byMercedes-Benz ma keuse of
th efo llowing automotive radio applications. General no
tes
31
31
Page 35 of 525
W
W
ir
ireless applications in t
eless applications in t he v
he vehicle
ehicle T
T
ec
ec hnology Fr
hnology Freq
eq uency r
uency r angeT r
ang eT ransmission output/magne
ansmission output/magne tic
tic/eld
/eld s
strtr eng th
ength
Re mo teKeyless Entr y2 0 kHz (9–90 kHz) ≤ 72 dBμA/m at 10m
Wi reless Powe rTr ansmission 105 kHz (90–119 kHz)≤ 42 dBμA/m at 10m
Re mo teKeyless Entr y1 20 kHz (119–135 kHz) ≤ 42 dBμA/m at 10m
Wi reless Powe rTr ansmission 127 kHz (119–135 kHz)≤ 66 dBμA/m at 10m withthe magnetic /eld
strength le vel decreasing 3dB/oct aveabove119
kHz
Ne ar-/eld communication 13.553–13.567 MHz≤ 42 dBμA/m at 10m
Re mo teKeyless Entr y,Garage Door Opener, Tire
Pressure Monitoring 433 MHz (433.05–434.79 MHz)
≤ 10 mW ERP
Block Heater Remo teControl, Garage Door
Opener 868 MHz (868.0–868.6 MHz)≤
25 mW ERP
Block Heater Remo teControl, Garage Door
Opener 869 MHz (868.7–869.2 MHz)≤
25 mW ERP
Blue toot h, Kleer, RLAN, wireless Headphone s2.4 GHz ISM band (2400–2483.5 MHz) ≤ 100 mW EIRP
RLAN 5.1 GHz UNII-1 (5150–5250 MHz)≤ 25 mW EIRP32
32
General no
tes
Page 36 of 525
T
T
ec
ec hnology Fr
hnology Freq
eq uency r
uency r angeT r
ang eT ransmission output/magne
ansmission output/magne tic
tic/eld
/eld s
strtr eng th
ength

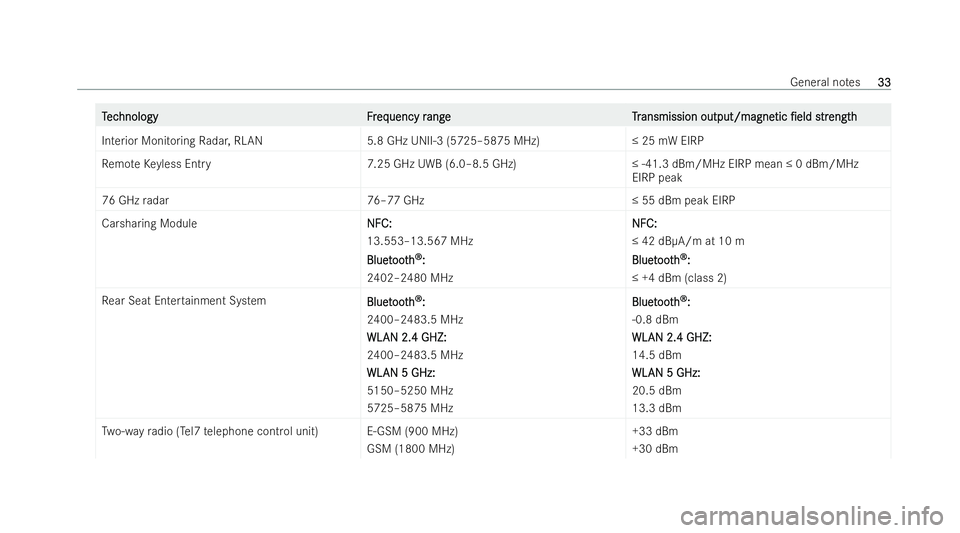

Interior Monitoring Radar, RLAN 5.8 GHz UNII-3 (5725–5875 MHz)≤ 25 mW EIRP
Re mo teKeyless Entr y7 .25 GHz UWB (6.0–8.5 GHz) ≤ -41.3 dBm/MHz EIRP mean ≤ 0 dBm/MHz
EIRP peak
76 GHz radar 76–77 GHz ≤ 55 dBm peak EIRP
Carsharing Module NFC:
NFC:
13.553–13.567 MHz
Bluet Bluet ooth
oo th®
®
:
:
2402–2480 MHz NFC:
NFC:
≤ 42 dBμA/m at 10 m
Bluet Bluet
ooth
oo th®
®
:
:
≤ +4 dBm (class 2)
Re ar Seat Enter tainment System
Bluet
Bluet ooth
oo th®
®
:
:
2400–2483.5 MHz
WL WL AN 2.4 GHZ:
AN 2.4 GHZ:
2400–2483.5 MHz
WL WL AN 5 GHz:
AN 5 GHz:
5150–5250 MHz
5725–5875 MHz Bluet Bluet
ooth
oo th®
®
:
:
-0.8 dBm
WL WL AN 2.4 GHZ:
AN 2.4 GHZ:
14.5 dBm
WL WL AN 5 GHz:
AN 5 GHz:
20.5 dBm
13.3 dBm
Tw o-w ayradio (Tel7 telephone control unit) E-GSM (900 MHz)
GSM (1800 MHz) +33 dBm
+30 dBm General no
tes
33 33
Page 37 of 525
T
T
ec
ec hnology Fr
hnology Freq
eq uency r
uency r angeT r
ang eT ransmission output/magne
ansmission output/magne tic
tic/eld
/eld s
strtr eng th
ength

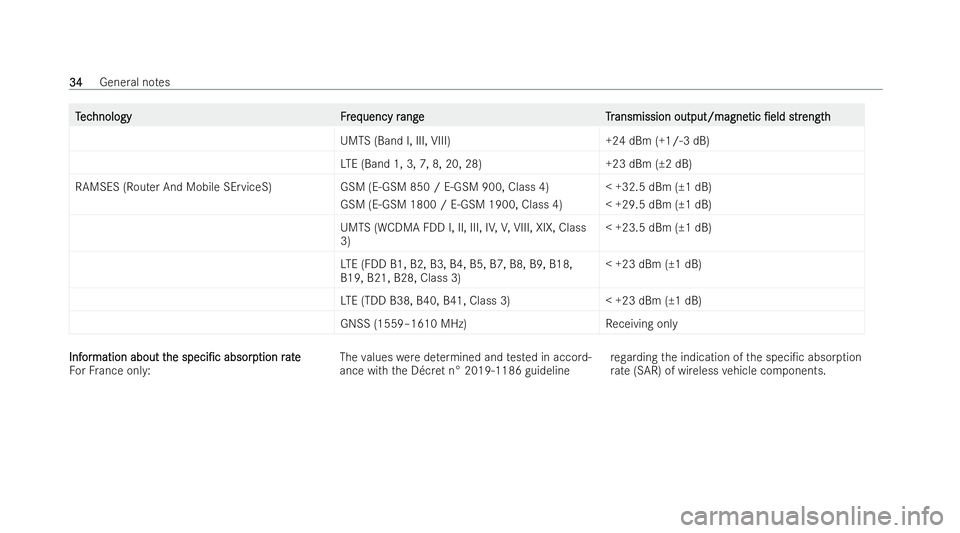

UMTS (Band I, III, VIII)+ 24 dBm (+1/-3 dB)
LT E (Band 1, 3, 7, 8, 20, 28) +23 dBm (±2 dB)
RAMSES (Router And Mobile SErviceS )GSM (E-GSM 850 / E-GSM 900, Class 4)
GSM (E-GSM 1800 / E-GSM 1900, Class 4) < +32.5 dBm (±1 dB)
< +29.5 dBm (±1 dB)
UMTS (WCDMA FDD I, II, III, IV, V,VIII, XIX, Class
3) < +23.5 dBm (±1 dB)
LT E (FDD B1, B2, B3, B4, B5, B7, B8, B9, B18,
B19, B21, B28, Class 3) < +23 dBm (±1 dB)
LT E (TDD B38, B40, B41, Class 3) < +23 dBm (±1 dB)
GNSS (1559–1610 MHz )R eceiving onlyInf Inf
or
ormation about t
mation about t he
hespeci/c
speci/c absorp
absorption r
tion rate
ate
Fo rFr ance onl y: The
values weredeterm ined and tested in acco rd-
ance with the Décr etn° 2019-1186 guideline re
ga rding the indication of the speci/c absor ption
ra te (SAR) of wireless vehicle components. 34 34
Gene
ral no tes
Page 38 of 525
Inf
Inf
or
ormation about t
mation about t he
hespeci/c
speci/c absorp
absorption r
tion r ate
ate V
V
ehicle com
ehicle com ponent (designation in
ponent (designation in
accor
accor dance wit
dance wit h EU DoC)
h EU DoC) S
S
AR v
AR v alue in W/kg
alue in W/kg Applicable limit v
Applicable limit value
alue
Ra dio data transmission telephone system 0.24 W/kg 2 W/kg
Hermes 2.1 < 0.4 W/kg2 W/kg
Compensator ECE DE003 & ECE DE004 < 0.2 W/kg 2 W/kg
DA I RS E1 .8 W/kg 2 W/kg
Ta blet PC SM-T230NZ 0.7 W/kg4 W/kg
NRCS2P 0.003 W/kg2 W/kg
NTG7RSU 0.07 W/kg2 W/kg
NTG7 MID, NTG7 HIGH, NTG7 PREMIUM,
NTG7 PREMIUMP LUS, NTG7 MID LFT2,
NTG7 HIGH LFT2, NTG7 PREMIUM LFT2,
NTG7 PREMIUMP LUS LFT2 0.08 W/kg
2 W/kg General no
tes
35 35
Page 39 of 525
V
V
ehicle com
ehicle com ponent (designation in
ponent (designation in
accor
accor dance wit
dance wit h EU DoC)
h EU DoC) S
S AR v
AR v alue in W/kg
alue in W/kg Applicable limit v
Applicable limit value
alue
RAMSES 1.0 and 1.1 0.036 W/kg2 W/kg
NTG6N MID/ENTRY
NTG6N HIGH
NTG6N HIGH2 0.199 W/kg
4 W/kgIm Im
port
port er inf
er inf or
ormation f
mation f or wir
or wireless com
eless com ponents
ponents F
F
or Moldov
or Moldov a only:
a onl y:
Im
Im port
port er
er
S.C. GRAND PREMIUM S.R.L. Moldo va
mun. Chisinau, st r.Hîncesti sos., 2/2
F
F or T
or T urke
ur ke y onl y:
y onl y:
Im
Im port
port er
er
Mercedes Benz Otomotiv Ticar etve Hizmetler
A. Ş. Genel Mer kez
Akçabu rgaz Mah. Süleyman Şah Cad. No: 6/1
34522 Esenyurt/İstanbul F
F or Ukr
or Ukr aine onl y:
aine onl y:
Im
Im port
port er
er
PJ SC “AUTOCAPITAL”
Ve lyka Vasylkivska st r.15/2
01004 Kyiv
Ukraine
F F or t
or t he U
he Unit nited Kingdom onl y:
ed Kingdom onl y:
Im
Im port
port er
er
Mercedes-Benz Cars UK Limi ted
Dela wareDrive, Tongwell
Milton Keynes, MK15 8BA
England Im Im
port port er of Mer
er of Mer cedes-Benz spar
cedes-Benz spar e par
e parts
ts
Me rcedes-Benz Parts Logistics
Dela wareDrive, Tongwell
Milton Keynes, MK15 8BA
England Jack
Jack
Copy and translation of
the original declaration of
conformity:
EC declar EC declar ation of conf
ation of conf or
ormity
mity
1.
The undersigned, representing 36 36
General no
tes
Page 40 of 525
Manufacturer:
BRANO a.s.
747 41 Hradec nad Mor
avicí, Opavská 1000,
The Czech Republic
ID No.: 64-387-5933
VA T No.: CZ64-387-5933
her ewith declares under our sole responsibility
th at the product:
2. a)
Na me:
Jack
Ty pe, Number:
A) A 164 580 02 18, A 166 580 01 18
B) A 240 580 00 18
C) A 639 580 02 18
D) A 639 580 03 18
E) A 910 580 00 00
F) A 247 580 00 00, A 293 580 00 00
Ye ar of manu facture: 2020
Complies with all releva nt pr ovisions Directive No. 2006/42/EC
b)
Description and purpose of use:
Car jack is intended solely
for liTing of the con-
cr ete car, in accordance with the inst ruction label
on the car jac k.
3.
Re fere nces of ha rmonized and other standards or
speci/cations
ISO 4063, EN ISO 14341- A,AS 2693, DBL
8230.10, DBL 7382.20, DBL 7392.10, DBL
8451.15, MBN 10435,
Te ch nical documentation of the product is stored
at the premise of the manufacturer. The person
re sponsible for assembling thete ch nical docu-
mentation of the product: Head of theTe ch nical
Department Brano a.s.
4.
Hradec nad Mor avicí
Place
5.
05.10.2020 Date
Engineer
PetrPe tr
[Signature]
Director of division ZZ TIREFIT kit TIREFIT kit
Copy and translation of
the original declaration of
conformity:
EC declar EC declar ation of conf
ation of conf or
ormity
mity , CE
, CE
We,
Aircom Automotive Sp. z o.o. Sp. k.
ul. Fabryc zna 20B
55-080 Pietrzyk owice
Po land (1)
hereby declare that the product
Electric air pump (2)
Models: (3) General no
tes
37 37
