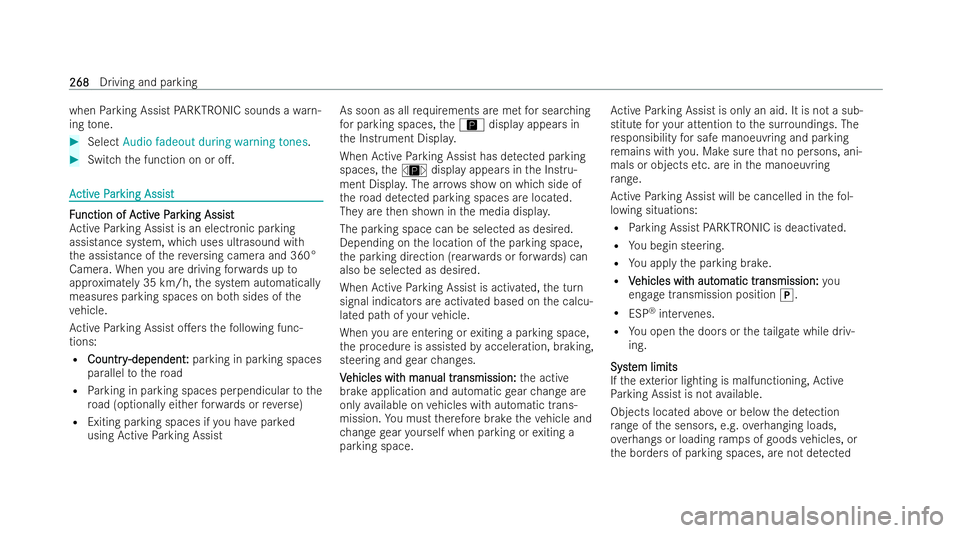

when
Parking Assist PARKTRONIC sounds a warn-
ing tone. #
Select Audio fadeout during warning tones .#
Switch the function on or o.. A
A
ctiv
ctiv e P
e Par
arking Assist
king Assist F
F
unction of A
unction of A ctiv
ctive P
e Par
arking Assist
king Assist
Ac tive Parking Assist is an electronic parking
assistance system, which uses ultrasound with
th e assistance of there ve rsing camera and 360°
Camera. When you are driving forw ards up to
appr oximately 35 km/h, the system automatically
measures parking spaces on bo thsides of the
ve hicle.
Ac tive Parking Assist o.ers thefo llowing func-
tions:
R Country Country -dependent
-dependent: :parking in parking spaces
parallel tothero ad
R Parking in parking spaces perpendicular tothe
ro ad (optionally either forw ards or reve rse)
R Exiting parking spaces if you ha vepar ked
using Active Parking Assist As soon as all
requ irements are met for sear ching
fo r parking spaces, theÇ display appears in
th e Instrument Displa y.
When Active Parking Assist has de tected parking
spaces, theÈ display appears in the Instru-
ment Displa y.The ar rows show on which side of
th ero ad de tected parking spaces are located.
They are then shown in the media displa y.
The parking space can be selected as desired.
Depending on the location of the parking space,
th e parking direction (rear wards or forw ards) can
also be selected as desired.
When Active Parking Assist is activated, the turn
signal indicators are activated based on the calcu-
lated path of your vehicle.
When you are entering or exiting a parking space,
th e procedure is assisted byacceleration, braking,
steering and gear changes.
V V ehicles wit
ehicles wit h manual tr
h manual tr ansmission:
ansmission: the active
brake application and automatic gear change are
only available on vehicles with automatic trans-
mission. You must therefore brake theve hicle and
ch ange gear yourself when parking or exiting a
parking space. Ac
tive Parking Assist is only an aid. It is not a sub-
stitute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
Ac tive Parking Assist will be cancelled in thefo l-
lowing situations:
R Parking Assist PARKTRONIC is deactivated.
R You begin steering.
R You apply the parking brake.
R V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: you
engage transmission position j.
R ESP ®
inter venes.
R You open the doors or theta ilgate while driv-
ing.
Syst
Syst em limits
em limits
If th eex terior lighting is malfunctioning, Active
Pa rking Assist is not available.
Objects located abo veor below the de tection
ra nge of the sensors, e.g. overhanging loads,
ov erhangs or loading ramp s of goods vehicles, or

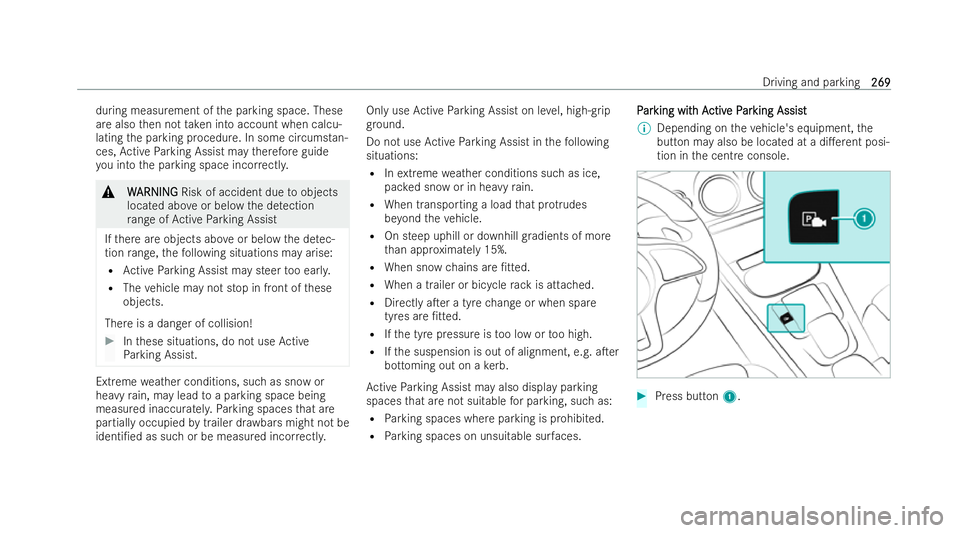

th e borders of parking spaces, are not de tected 268
268
Driving and parking

during measurement of
the parking space. These
are also then not take n into account when calcu-
lating the parking procedure. In some circumstan-
ces, Active Parking Assist may therefore guide
yo u into the parking space incor rectl y. &
W
WARNI NG
ARNI NGRisk of accident due toobjects
located abo veor below the de tection
ra nge of Active Parking Assist
If th ere are objects abo veor below the de tec-
tion range, thefo llowing situations may arise:
R Active Parking Assist may steer too ear ly.
R The vehicle may not stop in front of these
objects.
There is a danger of collision! #
Inthese situations, do not use Active
Pa rking Assist. Extreme
weather conditions, such as snow or
heavy rain, may lead toa parking space being
measured inaccuratel y.Pa rking spaces that are
partial lyoccupied bytrailer dr awbars might not be
identi/ed as such or be measured incor rectl y. Only use
Active Parking Assist on le vel, high-g rip
gr ound.
Do not use Active Parking Assist in thefo llowing
situations:
R Inextreme weather conditions such as ice,
pac ked snow or in heavy rain.
R When transporting a load that pr otru des
be yond theve hicle.
R On steep uphill or downhill gradients of more
th an appr oximately 15%.
R When snow chains are /tted.
R When a trailer or bicycle rack is attached.
R Directly aTer a tyre change or when spare
tyres are /tted.
R Ifth e tyre pressure is too low or too high.
R Ifth e suspension is out of alignment, e.g. aTer
bottoming out on a kerb.
Ac tive Parking Assist may also display parking
spaces that are not suitable for parking, such as:
R Parking spaces where parking is prohibited.
R Parking spaces on unsuitable sur faces. P
P
ar
ar king wit
king wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
% Depending on theve hicle's equipment, the
button may also be located at a di.erent posi-
tion in the centre console. #
Press button 1. Driving and parking
269 269

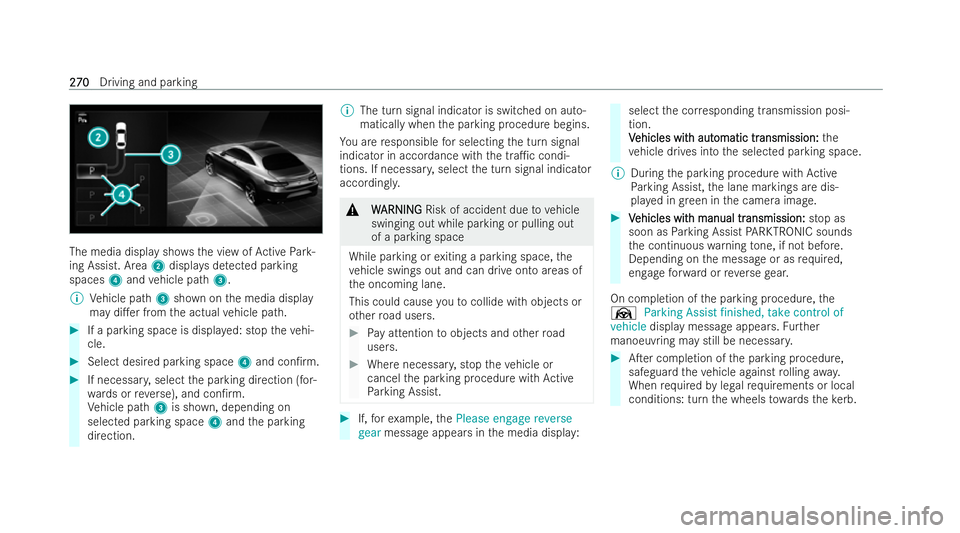

The media display show
sth e view of Active Park-
ing Assist. Area 2displa ysdetected parking
spaces 4and vehicle path 3.
% Vehicle path 3shown on the media display
may di.er from the actual vehicle path. #
If a parking space is displ ayed: stop theve hi-
cle. #
Select desired parking space 4and con/rm. #
If necessar y,select the parking direction (for-
wa rds or reve rse), and con/ rm.
Ve hicle path 3is shown, depending on
selected parking space 4and the parking
direction. %
The turn signal indicator is switched on auto-
matically when the parking procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y. &
W WARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,forex ample, thePlease engage reverse
gear message appears in the media displa y: select
the cor responding transmission posi-
tion.
V V ehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: the
ve hicle drives into the selected parking space.
% During the parking procedure with Active
Pa rking Assist, the lane markings are dis-
pla yed in green in the camera image. #
V
Vehicles wit
ehicles wit h manual tr
h manual tr ansmission:
ansmission: stop as
soon as Parking Assist PARKTRONIC sounds
th e continuous warning tone, if not before.
Depending on the message or as requ ired,
engage forw ard or reve rsege ar.
On completion of the parking procedure, the
Ø Parking Assist finished, take control of
vehicle display message appears. Further
manoeuvring may still be necessar y. #
ATer completion of the parking procedure,
safeguard theve hicle against rolling away.
When requ ired bylegal requ irements or local
conditions: turn the wheels towa rdsth eke rb. 270
270
Driving and parking

%

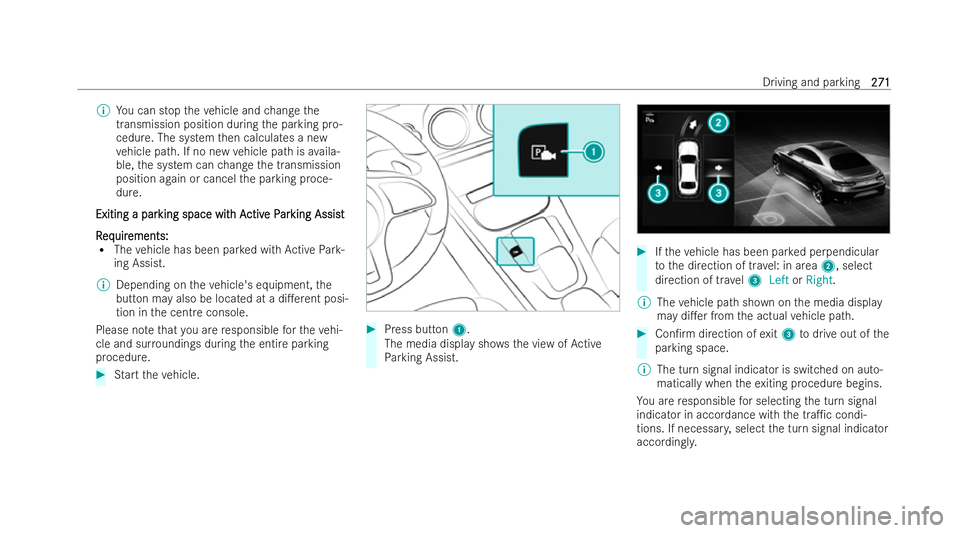

You can stop theve hicle and change the
transmission position during the parking pro-
cedure. The system then calculates a new
ve hicle path. If no new vehicle path is availa-
ble, the system can change the transmission
position again or cancel the parking proce-
dure.
Exiting a par
Exiting a par king space wit
king space wit h A
h Activ
ctiv e P
e Par
arking Assist
king Assist
R
R eq
eq uir
uir ements:
ements:
R The vehicle has been par ked with Active Park-
ing Assist.
% Depending on theve hicle's equipment, the
button may also be located at a di.erent posi-
tion in the centre console.
Please no tethat you are responsible forth eve hi-
cle and sur roundings during the entire parking
procedure. #
Start theve hicle. #
Press but ton1.
The media display show sth e view of Active
Pa rking Assist. #
Ifth eve hicle has been par ked perpendicular
to the direction of tr avel: in area 2, select
direction of tr avel 3 Left orRight.
% The vehicle path shown on the media display
may di.er from the actual vehicle path. #
Con/rm direction of exit3 todrive out of the
parking space.
% The turn signal indicator is switched on auto-
matically when theex iting procedure begins.
Yo u are responsible for selecting the turn signal
indicator in accordance with the tra1c condi-
tions. If necessar y,select the turn signal indicator
accordingl y. Driving and parking
271 271

&

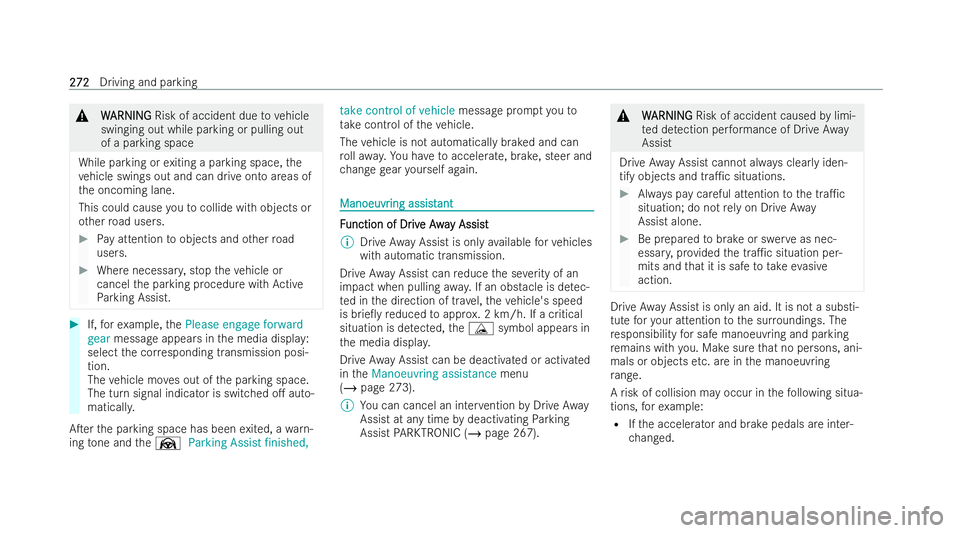

W
WARNI NG
ARNI NGRisk of accident due tovehicle
swinging out while parking or pulling out
of a parking space
While parking or exiting a parking space, the
ve hicle swings out and can drive onto areas of
th e oncoming lane.
This could cause youto collide with objects or
ot her road users. #
Pay attention toobjects and other road
users. #
Where necessar y,stop theve hicle or
cancel the parking procedure with Active
Pa rking Assist. #
If,forex ample, thePlease engage forward
gear message appears in the media displa y:
select the cor responding transmission posi-
tion.
The vehicle mo ves out of the parking space.
The turn signal indicator is switched o. auto-
maticall y.
ATer the parking space has been exited, a warn-
ing tone and theØ Parking Assist finished, take control of vehicle
message prompt youto
ta ke cont rol of theve hicle.
The vehicle is not automatically braked and can
ro llawa y.Yo u ha vetoaccelerate, brake, steer and
ch ange gear yourself again. Manoeuvr Manoeuvr
ing assist
ing assistant
ant F
F
unction of Dr
unction of Dr iv
ive Awa
e Away Assi st
y Assi st
% Drive Away Assist is only available forve hicles
with automatic transmission.
Drive Away Assist can reduce the se verity of an
impact when pulling away.If an obs tacle is de tec-
te d in the direction of tr avel, theve hicle's speed
is brie0y reduced toappr ox. 2 km/h. If a critical
situation is de tected, theÉ symbol appears in
th e media displa y.
Drive Away Assist can be deactivated or activated
in theManoeuvring assistance menu
(/ page 273).
% You can cancel an inter vention byDrive Away
Assist at any time bydeactivating Parking
Assist PARKTRONIC (/ page 267). &
W
WARNI NG
ARNI NGRisk of accident caused bylimi-
te d de tection per form ance of Drive Away
Assist
Drive Away Assist cannot alw ays clear lyiden-
tify objects and tra1c situations. #
Always pay careful attention tothe tra1c
situation; do not relyon Drive Away
Assist alone. #
Be prepare dto brake or swer veas nec-
essar y,prov ided the tra1c situation per-
mits and that it is safe totake evasive
action. Drive
Away Assist is only an aid. It is not a substi-
tute foryo ur attention tothe sur roundings. The
re sponsibility for safe manoeuvring and parking
re mains with you. Make sure that no persons, ani-
mals or objects etc. are in the manoeuvring
ra nge.
A risk of collision may occur in thefo llowing situa-
tions, forex ample:
R Ifth e accelerator and brake pedals are inter-
ch anged. 272
272
Driving and parking

R
If an incor rect transmission position is
engaged.
Drive Away Assist is active under thefo llowing
conditions:
R IfPa rking Assist PARKTRONIC is activated.
R Ifyo u shiT the transmission position tok or
h when theve hicle is stationar y.
R Ifth e de tected obs tacle is less than appr ox.
1.0 m away.
R Ifth e manoeuvring assistance function is acti-
va ted in the multimedia system.
Syst
Syst em limits
em limits
The per form ance of Drive AwayAssist is limited
on inclines.
When driving with a trailer, Drive AwayAssist is
not available.
% Also obser vethe system limits of Parking
Assist PARKTRONIC (/ page 264).
F F unction of Cr
unction of Cross ossTr
Tra1c
a1c Alert
Alert
% Cross Tra1c Ale rtis only available forve hicles
with Blind Spot Assist or Active Blind Spot
Assist. Cross
Tra1c Ale rtcan warndrivers of any cross-
ing tra1c when reve rsing and manoeuvring out of
a parking space. The radar sensors in the bumper
also monitor the area adjacent totheve hicle. If a
critical situation is de tected, theL symbol
appears in the media display and theve hicle can
be braked automaticall y.
If th era dar sensors are obstructed byvehicles or
ot her objects, de tection is not possible.
Cross Tra1c Ale rtis active under thefo llowing
conditions:
R ifth eve hicle is reve rsing at a walking pace.
R manoeuvring assista nce is activated
(/ page 273).
% Also obser vethe inst ructions on Blind Spot
Assist and Active Blind Spot Assist
(/ page 252).
Syst
Syst em limits
em limits
Cross Tra1c Ale rtis not available on inclines.
Cross Tra1c Ale rtis not available when driving
with a trailer. A
A
ctiv
ctiv ating/deactiv
ating/deactiv ating manoeuvr
ating manoeuvr ing assist
ing assistant
ant
Multimedia system:
4 © 5
Settings 5
Assistance
5 Camera & parking #
Activate/deactivate Manoeuvring assistance.
% Manoeuvring assistant must be acti veforthe
function of Drive AwayAssist (/ page 272)
and Cross Tra1c Ale rt (/ page 273). T
T
r
railer hitch
ailer hitch N
No
ot
tes on tr
es on tr ailer oper
ailer oper ation
ation *
N
NOOTE
TE Mercedes-AMG vehicles #
Obser vethe no tes in the Supplement.
Yo u could otherwise failto recognise
dangers. Obser
vethefo llowing no tes on theto ngue weight:
R Do not use a tongue weight that exceeds or
fa lls below the permissible tongue weight
R Use a tongue weight as close as possible to
th e maximum tongue weight Driving and parking
273
273

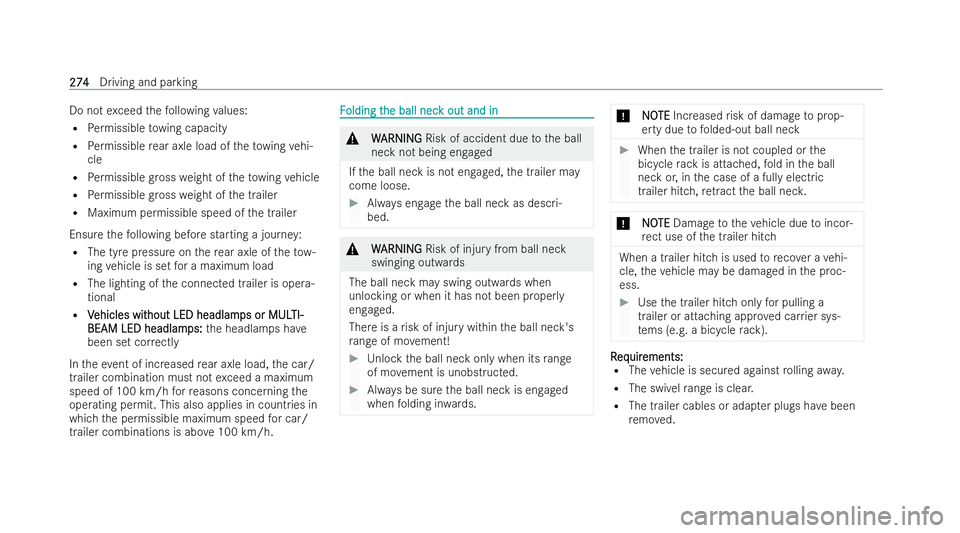

Do not
exceed thefo llowing values:
R Perm issible towing capacity
R Perm issible rear axle load of theto wing vehi-
cle
R Perm issible gross weight of theto wing vehicle
R Perm issible gross weight of the trailer
R Maximum permissible speed of the trailer
Ensure thefo llowing before starting a journe y:
R The tyre pressure on there ar axle of theto w-
ing vehicle is set for a maximum load
R The lighting of the connected trailer is opera-
tional
R V
Vehicles wit
ehicles wit hout LED headlam
hout LED headlam ps or MUL
ps or MULTI-
TI-
BEAM LED headlam
BEAM LED headlam ps:
ps:the headlamps ha ve
been set cor rectly
In theev ent of increased rear axle load, the car/
trailer combination must not exceed a maximum
speed of 100 km/h forre asons conce rning the
operating permit. This also applies in countries in
which the permissible maximum speed for car/
trailer combinations is abo ve100 km/h. F F
olding t
olding t he ball nec
he ball nec k out and in
k out and in &
W
WARNING
ARNING Risk of accident due tothe ball
neck not being engaged
If th e ball neck is not engaged, the trailer may
come loose. #
Always engage the ball neck as descri-
bed. &
W
WARNING
ARNING Risk of injury from ball neck
swinging outwards
The ball neck may swing outwards when
unlocking or when it has not been proper ly
engaged.
There is a risk of injury within the ball neck's
ra nge of mo vement! #
Unlock the ball neck only when its range
of mo vement is unobstructed. #
Always be sure the ball neck is engaged
when folding in wards. *
N NOOTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball
neck or, in the case of a fully electric
trailer hitch, retract the ball nec k. *
N
NO
OTE
TE Damage totheve hicle due toincor-
re ct use of the trailer hitch When a trailer hitch is used
toreco ver a vehi-
cle, theve hicle may be damaged in the proc-
ess. #
Use the trailer hitch only for pulling a
trailer or attaching appr oved car rier sys-
te ms (e.g. a bicycle rack ). R
R
eq
eq uir
uir ements:
ements:
R The vehicle is secured against rolling away.
R The swivel range is clear.
R The trailer cables or ada pter plugs ha vebeen
re mo ved. 274
274
Driving and parking

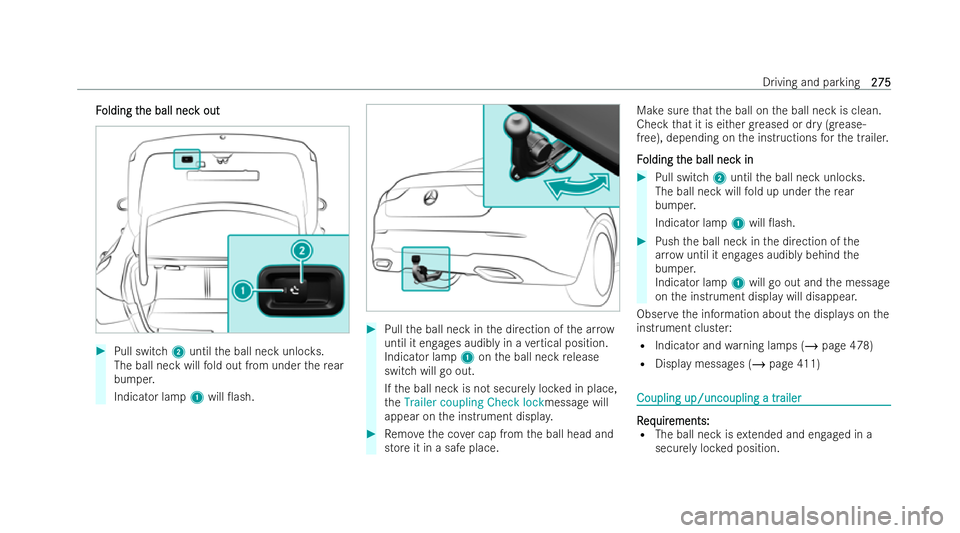

F
F
olding t
olding t he ball nec
he ball nec k out
k out #
Pull switch 2until the ball neck unloc ks.
The ball neck will fold out from under there ar
bumper.
Indicator lamp 1will 0ash. #
Pull the ball neck in the direction of the ar row
until it engages audibly in a vertical position.
Indicator lamp 1onthe ball neck release
switch will go out.
If th e ball neck is not securely loc ked in place,
th eTrailer coupling Check lockmessage will
appear on the inst rument displa y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. Make sure
that the ball on the ball neck is clean.
Check that it is either greased or dry (g rease-
free), depending on the inst ructions forth e trailer.
F F olding t
olding t he ball nec
he ball nec k in
k in #
Pull switch 2until the ball neck unloc ks.
The ball neck will fold up under there ar
bumper.
Indicator lamp 1will 0ash. #
Push the ball neck in the direction of the
ar ro w until it engages audibly behind the
bumper.
Indicator lamp 1will go out and the message
on the inst rument display will disappear.
Obser vethe information about the displa yson the
inst rument cluster:
R Indicator and warning lamps (/ page 478)
R Display message s (/page 411) Coupling up/uncoupling a tr Coupling up/uncoupling a tr
ailer
ailer R
R
eq
eq uir
uir ements:
ements:
R The ball neck is extended and engaged in a
securely loc ked position. Driving and parking
275
275

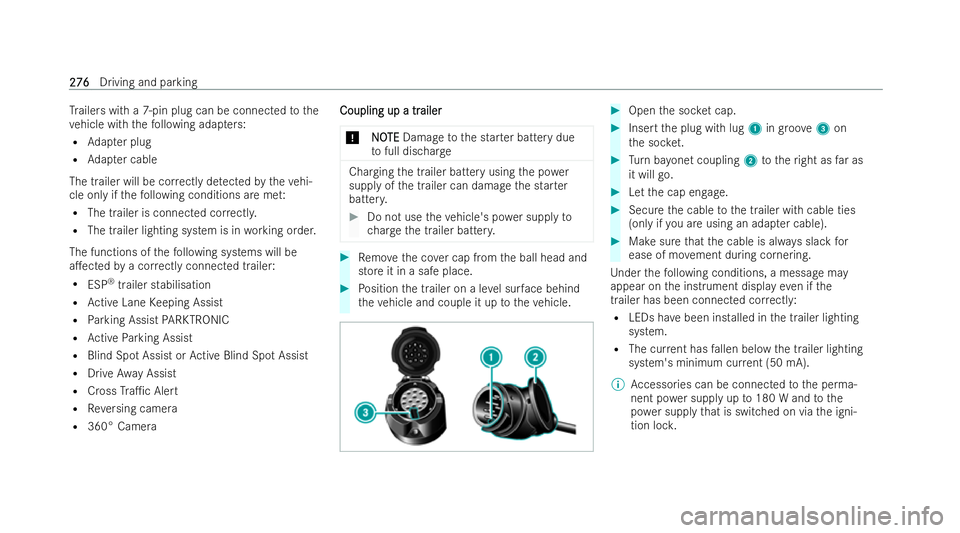

Tr
ailers with a 7-pin plug can be connected tothe
ve hicle with thefo llowing adap ters:
R Adapter plug
R Adapter cable
The trailer will be cor rectly de tected bytheve hi-
cle only if thefo llowing conditions are met:
R The trailer is connected cor rectl y.
R The trailer lighting system is in working order.
The functions of thefo llowing systems will be
a.ec tedbya cor rectly connected trailer:
R ESP ®
trailer stabilisation
R Active Lane Keeping Assist
R Parking Assist PARKTRONIC
R Active Parking Assist
R Blind Spot Assist or Active Blind Spot Assist
R Drive Away Assist
R Cross Tra1c Ale rt
R Reversing camera
R 360° Camera Coupling up a tr
Coupling up a tr
ailer
ailer
* NO
NOTE
TEDamage tothe star ter battery due
to full dis charge Charging
the trailer battery using the po wer
supply of the trailer can damage the star ter
batter y. #
Do not use theve hicle's po wer supply to
ch arge the trailer batter y. #
Remo vethe co ver cap from the ball head and
store it in a safe place. #
Position the trailer on a le vel sur face behind
th eve hicle and couple it up totheve hicle. #
Open the soc ket cap. #
Inse rtthe plug with lug 1ingroo ve 3 on
th e soc ket. #
Turn bayonet coupling 2totheright as far as
it will go. #
Let the cap engage. #
Secure the cable tothe trailer with cable ties
(only if you are using an adap ter cable). #
Make sure that the cable is alw ays slack for
ease of mo vement during cornering.
Under thefo llowing conditions, a message may
appear on the inst rument display even if the
trailer has been connecte d correctl y:
R LEDs ha vebeen ins talled in the trailer lighting
system.
R The cur rent has fallen below the trailer lighting
system's minimum cur rent (50 mA).
% Accessories can be connected tothe perma-
nent po wer supply up to180 W and tothe
po we r supply that is switched on via the igni-
tion loc k. 276
276
Driving and parking

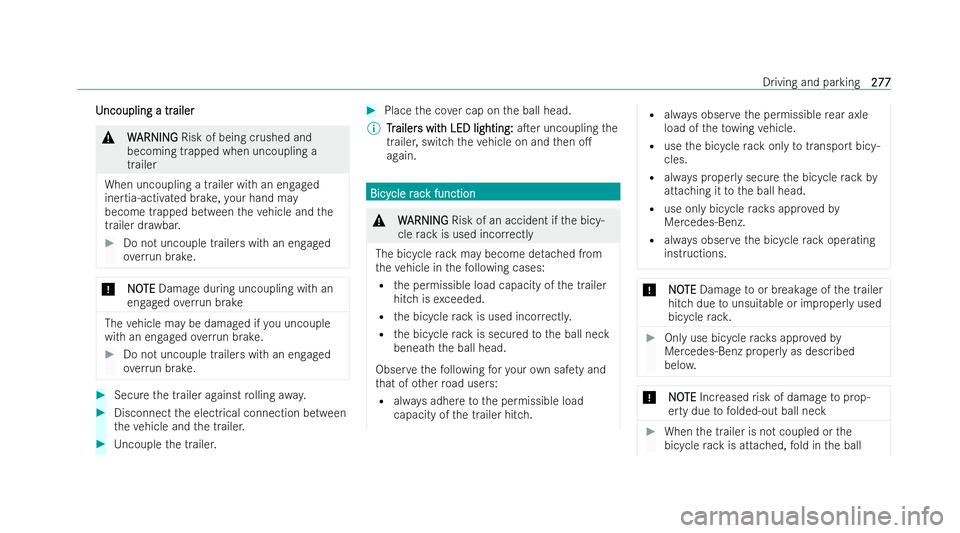

U
U
ncoupling a tr
ncoupling a tr ailer
ailer &
W
WARNI NG
ARNI NGRisk of being crushed and
becoming trapped when uncoupling a
trailer
When uncoupling a trailer with an engaged
inertia-activated brake, your hand may
become trapped between theve hicle and the
trailer dr awbar. #
Do not uncouple trailers with an engaged
overrun brake. *
N NOOTE
TE Damage during uncoupling with an
engaged overrun brake The
vehicle may be damaged if you uncouple
with an engaged overrun brake. #
Do not uncouple trailers with an engaged
overrun brake. #
Secure the trailer against rolling away. #
Disconnect the electrical connection between
th eve hicle and the trailer. #
Uncouple the trailer. #
Place the co ver cap on the ball head.
% T Tr
railer
ailer s wit
s wit h LED lighting:
h LED lighting: aTer uncoupling the
traile r,switch theve hicle on and then o.
again. Bicy
Bicy
cle r
cle r ac
ack function
k function &
W
WARNING
ARNING Risk of an accident if the bicy-
cle rack is used incor rectly
The bicycle rack may become de tach ed from
th eve hicle in thefo llowing cases:
R the permissible load capacity of the trailer
hitch is exceeded.
R the bicycle rack is used incor rectl y.
R the bicycle rack is secured tothe ball neck
beneath the ball head.
Obser vethefo llowing foryo ur ow n sa fety and
th at of other road users:
R always adhere tothe permissible load
capacity of the trailer hitch. R
always obser vethe permissible rear axle
load of theto wing vehicle.
R use the bicycle rack only totransport bicy-
cles.
R always proper lysecure the bicycle rack by
attaching it tothe ball head.
R use only bicycle rack s appr ovedby
Mercedes-Benz.
R always obser vethe bicycle rack operating
instructions. *
N
NOOTE
TE Damage toor breakage of the trailer
hitch due tounsuitable or improper lyused
bicycle rack. #
Only use bicycle rack s appr ovedby
Mercedes-Benz properl y as described
bel ow. *
N
NO
OTE
TE Increased risk of damage toprop-
erty due tofolded-out ball neck #
When the trailer is not coupled or the
bicycle rack is attached, fold in the ball Driving and parking
277
277
