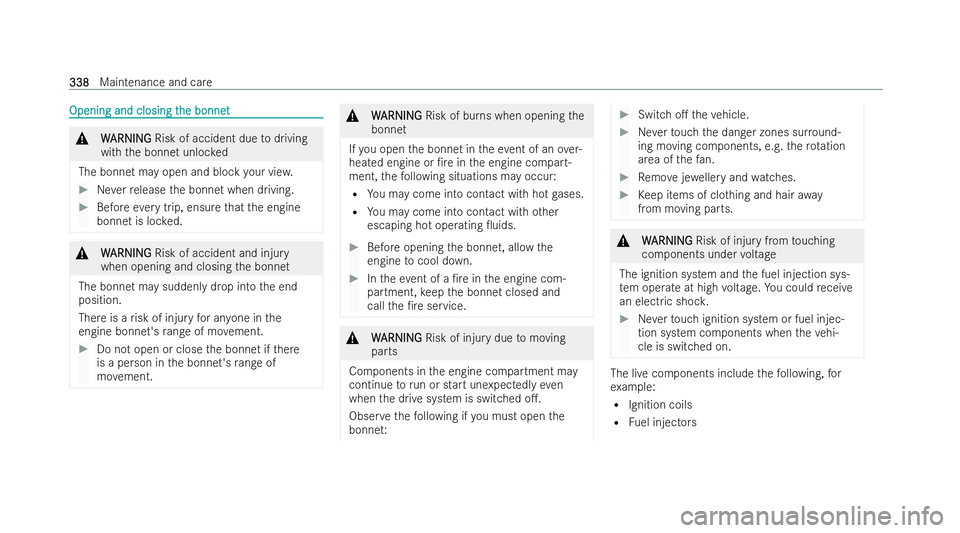

Opening and closing t
Opening and closing t
he bonnet
he bonnet&
W
WARNING
ARNING Risk of accident due todriving
with the bonnet unloc ked
The bonnet may open and blo ckyour vie w. #
Neverre lease the bonnet when driving. #
Before every trip, ensure that the engine
bonnet is loc ked. &
W
WARNING
ARNING Risk of accident and inju ry
when opening and closing the bonnet
The bonnet may suddenly drop into the end
position.
There is a risk of injury for an yone in the
engine bonnet's range of mo vement. #
Do not open or close the bonnet if there
is a person in the bonnet's range of
mo vement. &
W WARNING
ARNING Risk of burns when opening the
bonnet
If yo u open the bonnet in theev ent of an over-
heated engine or /re in the engine compart-
ment, thefo llowing situations may occur:
R You may come into contact with hot gases.
R You may come into contact with other
escaping hot operating 0uids. #
Before opening the bonnet, allow the
engine tocool down. #
Intheev ent of a /re in the engine com-
partment, keep the bonnet closed and
call the /re service. &
W
WARNING
ARNING Risk of injury due tomoving
parts
Components in the engine compartment may
continue torun or start unexpectedly even
when the drive system is switched o..
Obser vethefo llowing if you must open the
bonnet: #
Switch o. theve hicle. #
Neverto uch the danger zones sur round-
ing moving components, e.g. thero tation
area of thefa n. #
Remo vejewe llery and watches. #
Keep items of clo thing and hair away
from moving pa rts. &
W
WARNING
ARNING Risk of injury from touching
components under voltage
The ignition system and the fuel injection sys-
te m operate at high voltage. You could receive
an elect ric shoc k. #
Neverto uch ignition system or fuel injec-
tion system components when theve hi-
cle is switched on. The live components include
thefo llowing, for
ex ample:
R Ignition coils
R Fuel injectors 338
338
Maintenance and care

R
Electric lines tothe ignition coils and the fuel
injectors &
W
WARNING
ARNING Risk of burns from hot compo-
nent parts in the engine compartment
Cer tain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of theex haust system. #
Allow the engine tocool down and only
to uch component parts described in the
fo llowing. &
W
WARNING
ARNING Risk of injury from using the
windscreen wipers when the bonnet is
open
If th e windscreen wipers start moving when
th e bonnet is open, you could be trapped by
th e wiper linkage. #
Always switch o. the windscreen wipers
and theve hicle /r stifyo u need toopen
th e bonnet. Opening t
Opening t
he bonnet
he bonnet #

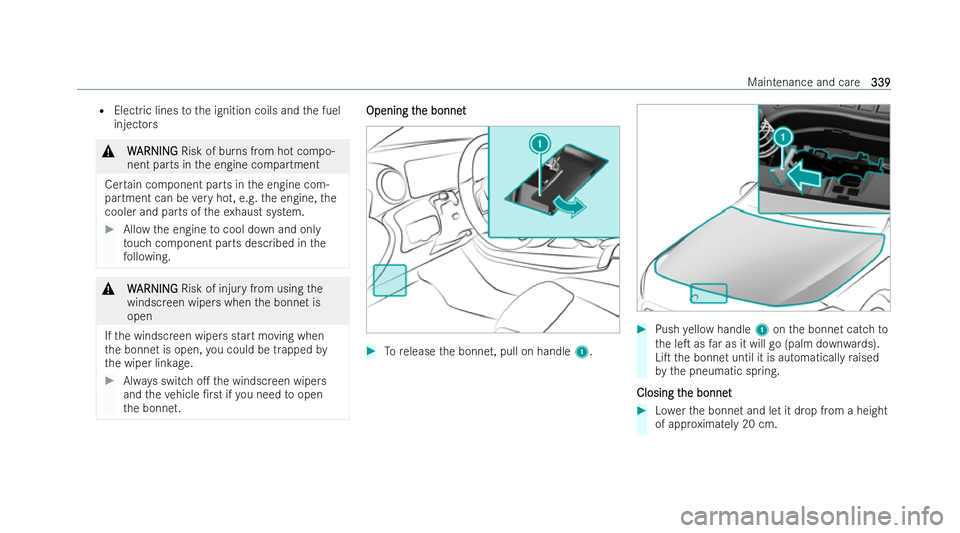

Torelease the bonnet, pull on handle 1. #
Push yellow handle 1onthe bonnet catch to
th e leT as far as it will go (palm down wards).
LiT the bonnet until it is automatically raised
by the pneumatic spring.
Closing t
Closing t he bonnet
he bonnet #
Lowe rth e bonnet and let it drop from a height
of appr oximately 20 cm. Maintenance and care
339
339

#
Ifth e bonnet can still be liTed slightl y,open
th e bonnet again and close it with a little force
until it engages cor rectl y. Engine oil

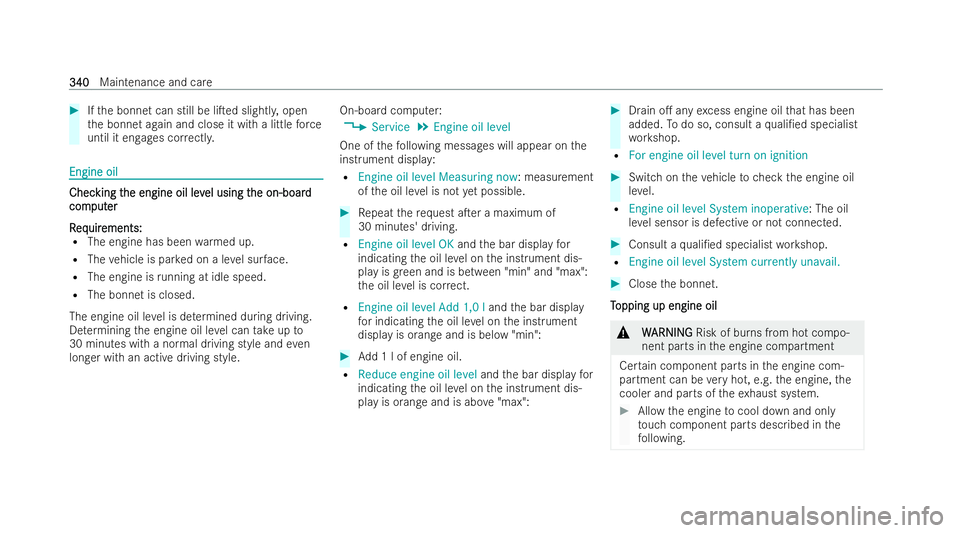

Engine oil
Chec
Chec
king t
king t he engine oil lev
he engine oil lev el using t
el using the on-board
he on-board
com
com put
puter
er
R
R eq
eq uir
uir ements:
ements:
R The engine has been warmed up.
R The vehicle is par ked on a le vel sur face.
R The engine is running at idle speed.
R The bonnet is closed.
The engine oil le vel is de term ined during driving.
De term ining the engine oil le vel can take up to
30 minutes with a normal driving style and even
longer with an active driving style. On-board computer:
4 Service 5
Engine oil level
One of thefo llowing message s will appear onthe
inst rument displa y:
R Engine oil level Measuring now: measu rement
of the oil le vel is not yet possible. #
Repeat there qu est aTer a maximum of
30 minutes' driving.
R Engine oil level OK andthe bar display for
indicating the oil le vel on the inst rument dis-
play is green and is between "min" and "max":
th e oil le vel is cor rect.
R Engine oil level Add 1,0 l andthe bar display
fo r indicating the oil le vel on the inst rument
display is orange and is below "min": #
Add 1 l of engine oil.
R Reduce engine oil level andthe bar display for
indicating the oil le vel on the inst rument dis-
play is orange and is abo ve"max": #
Drain o. any excess engine oil that has been
added. Todo so, consult a quali/ed specialist
wo rkshop.
R For engine oil level turn on ignition #
Switch on theve hicle tocheck the engine oil
le ve l.
R Engine oil level System inoperative: The oil
leve l sensor is defective or not connected. #
Consult a quali/ed specialist workshop.
R Engine oil level System currently unavail. #
Close the bonnet.
T T opping up engine oil
opping up engine oil &
W
WARNING
ARNING Risk of burns from hot compo-
nent parts in the engine compartment
Cer tain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of theex haust system. #
Allow the engine tocool down and only
to uch component parts described in the
fo llowing. 340
340
Maintenance and care

&
W
WARNI NG
ARNI NGRisk of /re and injury from
engine oil
If engine oil comes into contact with hot com-
ponent parts in the engine compartment, it
may ignite. #
Make sure that no engine oil is spilled
next tothe /ller opening. #
Allow the engine tocool o. and thor-
oughly clean the engine oil from compo-
nent parts before starting theve hicle. *
N NOOTE
TE Engine damage caused byan inco r-
re ct oil /lter, incor rect oil or additi ves #
Do not use engine oils or oil /lters which
do not cor respond tothe speci/cations
ex plicitly prescribed forth e service inter-
va ls. #
Follow the inst ructions on the service
inter val display forch anging the engine
oil and obser vethe prescribed change
inter vals. #
Do not use additives. *
N NOOTE
TE Damage caused bytopping up too
much engine oil To
o much engine oil can damage the engine or
th e catalytic con verter. #
Have excess engine oil remo ved at a
qu ali/ed specialist workshop. %
Depending on driving st yle, theve hicle con-
sumes up to0.8 litre of oil per 1000 km. The
oil consum ption may be higher than this when
th eve hicle is new or if you frequently drive at
high engine speeds. #

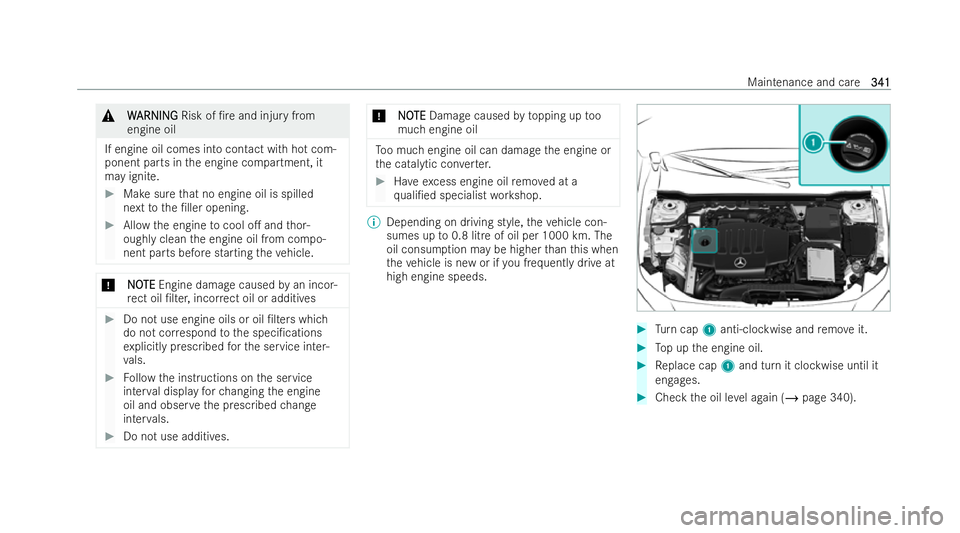

Turn cap 1anti-clockwise and remo veit. #
Top up the engine oil. #
Replace cap 1and turn it clockwise until it
engages. #
Check the oil le vel again (/ page 340). Maintenance and care
341
341

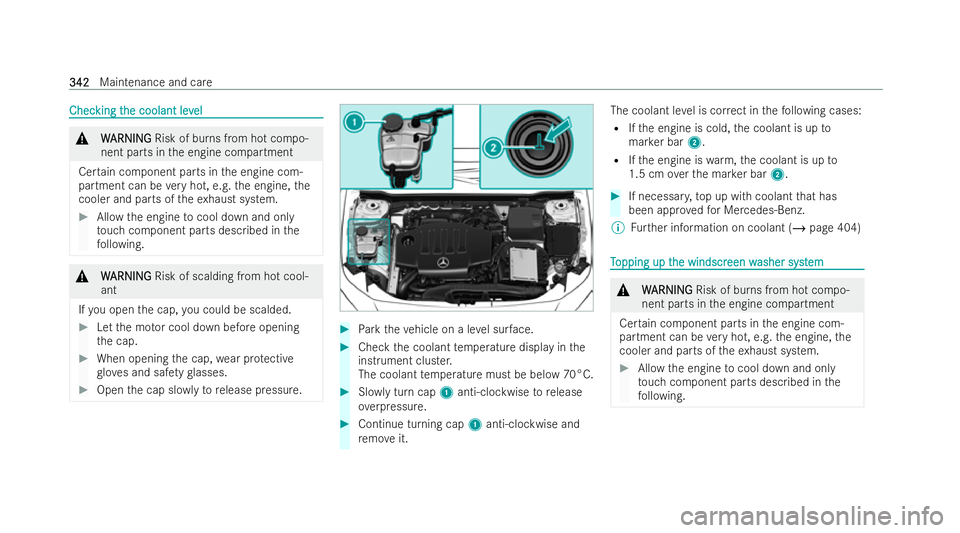

Chec
Chec
king t
king t he coolant lev
he coolant lev el
el &
W
WARNING
ARNING Risk of burns from hot compo-
nent parts in the engine compartment
Cer tain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of theex haust system. #
Allow the engine tocool down and only
to uch component parts described in the
fo llowing. &
W
WARNING
ARNING Risk of scalding from hot cool-
ant
If yo u open the cap, you could be scalded. #
Let the mo tor cool down before opening
th e cap. #
When opening the cap, wear pr otective
glo ves and saf ety glasses. #
Open the cap slo wlytorelease pressure. #
Park theve hicle on a le vel sur face. #
Check the coolant temp erature display in the
inst rument cluster.
The coolant temp erature must be below 70°C. #
Slowly turn cap 1anti-clockwise torelease
ove rpressure. #
Continue turning cap 1anti-clockwise and
re mo veit. The coolant le
vel is cor rect in thefo llowing cases:
R Ifth e engine is cold, the coolant is up to
mar ker bar 2.
R Ifth e engine is warm,th e coolant is up to
1.5 cm overth e mar ker bar 2. #
If necessar y,top up with coolant that has
been appr ovedfo r Mercedes-Benz.
% Further information on coolant (/ page 404) T
T
opping up t
opping up t he windscr
he windscreen w
een washer syst
asher syst em
em &
W
WARNING
ARNING Risk of burns from hot compo-
nent parts in the engine compartment
Cer tain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of theex haust system. #
Allow the engine tocool down and only
to uch component parts described in the
fo llowing. 342
342
Maintenance and care

&
W
WARNI NG
ARNI NG‑ Risk of /re and injury due to
windscreen washer concent rate
Wi ndsc reen washer concent rate is highly 0am-
mable. It could ignite if it comes into contact
with hot engine component parts or the
ex haust system. #
Make sure that no windscreen washer
concent rate spills out next tothe /ller
opening. #
Remo vecap 1bytheta b. #
Top up thewa sher 0uid.
% Further information about the windscreen
wa sher 0uid (/ page 405) K K
eeping t
eeping t he air
he air-w
-wat
ater duct fr
er duct fr ee
ee #
Keep the area between the bonnet and the
windscreen free of deposits, e.g. ice, snow
and lea ves. Cleaning and care Cleaning and care
Inf
Inf
or
ormation on w
mation on w ashing t
ashing the v
he vehicle in a car w
ehicle in a car w ash
ash &
W
WARNING
ARNING Risk of an accident due to
re duced braking po wer aTer washing the
ve hicle
Braking e1ciency is reduced aTer washing the
ve hicle. #
ATer theve hicle has been washed, brake
carefully while paying attention tothe
tra1c conditions until braking po wer has
been fully restored. Maintenance and ca
re
343
343

*
N
NO
OTE
TE Damage from automatic braking If one of
thefo llowing functions is switched
on, theve hicle brakes automatically in cer tain
situations:
R Active Brake Assist
R Active Distance Assist DISTRONIC
R HOLD function
R Active Parking Assist
To avoid damage totheve hicle, deactivate
th ese systems in thefo llowing or similar situa-
tions: #
during towing #
in a car wash *
N
NOOTE
TE Damage due tounsuitable car wash #
Before driving into a car wash make sure
th at the car wash is suitable forth eve hi-
cle dimensions. #
Ensu rethere is su1cient ground clear-
ance between the underbody and the
guide rails of the car wash. #
Ensure that the clearance width of the
car wash, in particular the width of the
guide rails, is su1cient. To
avo id damage toyour vehicle when using a car
wa sh, ensu rethefo llowing beforehand:
R Active Distance Assist DISTRONIC is deactiva-
te d.
R The HOLD function is switched o..
R The 360° Camera or there ve rsing camera is
switched o..
R The side windo wsand sliding sunroof are com-
ple tely closed.
R The blo werfo rth eve ntilation/heating is
switched o..
R The windscre en wiper switch is in position g.
R The key is at a minimum dis tance of 3 m away
from theve hicle. Otherwise theta ilgate could
open unintentionall y. R
In automatic car washes with con veyo r sys-
te ms:
- Neutral iis engaged.
- V
Vehicles wit
ehicles wit h aut
h automatic tr
omatic tr ansmission:
ansmission: If
yo uwo uld like tolea vetheve hicle while it
is being washed, make sure theke y is
located in theve hicle. The park position
j isotherwise automatically engaged.
% If, aTer the car wash, youre mo vethewax
from the windscreen and wiper rubbers, this
will pr event smearing and reduce wiper noise.
A
A ut
ut omatic car w
omatic car w ash mode
ash mode
In car wash mode, theve hicle is prepared for driv-
ing into the automatic car wash. Car wash mode
can be activated at a speed of up to20 km/h
Ac tivate (/ page 345).
The following settings are made when car wash
mode is activated:
R The outside mir rors are folded in.
R Topreve ntthe windscreen washer system
from starting up automaticall y,thera in sensor
is deactivated.
R The rear wind owwiper is deacti vated. 344
344
Maintenance and care

R
The wind ows and the sliding sunroof are
closed.
R The air conditioning system is set toair-recir-
culation mode.
R Parking Assist PARKTRONIC is deactivated.
R V
Vehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:the front image is
activated aTer appr ox. eight seconds.
If one of the settings cannot be selected, this is
displa yedby a% behind there specti veset-
ting.
Ab ove a speed of 20 km/h Car wash mode is
automatically deacti vated.
The following settings are reset when car wash
mode is deacti vated:
R The outside mir rors are folded out.
R The rain sensor is activated.
R The rear wind owwiper is activated.
R The air conditioning system is set tofresh air
mode.
R Parking Assist PARKTRONIC is reset tothe
pr ev iously selected setting. R
The windo wsand the sliding sunroof remain
closed.
R V Vehicles wit
ehicles wit h 360° Camer
h 360° Camer a:
a:the front image is
deactivated at speeds abo ve18 km/h. A
A
ctiv
ctiv ating/deactiv
ating/deactiv ating aut
ating automatic car w
omatic car w ash mode
ash mode R
R
eq
eq uir
uir ements:
ements:
R theve hicle is stationar y.
R the engine is running.
Multimedia system: 4 © 5
Settings 5
Quick access
A
A ctiv
ctiv ating aut
ating aut omatic car w
omatic car w ash mode
ash mode #
Select Car wash mode . #
Select Start.
If one of the settings cannot be selected, this is
displa yedby a% behind there specti veset-
ting.
% For an overview of the settings made when
activating automatic car wash mode
(/ page 343). Deactiv Deactiv
ating aut
ating aut omatic car w
omatic car w ash mode
ash mode #
Select Stop.
The automatic car wash settings are reset.
% The automatic car wash mode is automatically
deacti vated as soon as a speed of 20 km/h is
ex ceeded. Inf
Inf
or
ormation on using a high-pr
mation on using a high-pr essur
essure cleaner
e cleaner &
W
WARNING
ARNING Risk of an accident when using
high-pressure cleane rswith round-spr ay
nozzles
The water jet can cause extern ally invisible
damage.
Components damaged in this wa y may un ex-
pectedly fail. #
Do not use a high-pressure cleaner with
round-spr aynozzles. #
Have damaged tyres or chassis parts
re placed immediatel y. Maintenance and ca
re
345 345

To
avo id damage toyour vehicle, obser vethefo l-
lowing when using a high-pressure cleaner:
R The key is at a minimum dis tance of 3 m away
from theve hicle. Otherwise theta ilgate could
open unintentionall y.
R Maintain a distance of at least 30 cm tothe
ve hicle.
R V
Vehicles wit
ehicles with decor h decorativ
ative f
e foil:
oil: Parts of your
ve hicle are co vered with a decorative foil.
Maintain a distance of at least 70 cm between
th efo il-co vered parts of theve hicle and the
nozzle of the high-pressure cleaner. Mo vethe
high-pressure cleaner nozzle around whilst
cleaning. The waterte mp erature of the high-
pressure cleaner must not exceed 60°C.
R Obser vethe information on the cor rect dis-
ta nce in the equipment manufacturer's oper-
ating inst ructions.
R Do not direct the nozzle of the high-pressure
cleaner directly at sensitive parts, such as
tyres, gaps, electrical components, batteries,
light sources and ventilation slits. W W
ashing t
ashing t he v
he vehicle b
ehicle b y hand
y hand *
N
NOOTE
TE Engine damage due towa ter ing ress #
Take care not topoint thewa ter jet
directly towa rdsth e air inlet grille below
th e bonnet. obser
vethe legal requ irements, e.g. in a number
of countries, washing byhand is only permitted in
special lydesignated wash ba ys. #
Use a mild cleaning agent, e.g. car shampoo. #
Washtheve hicle with luk ewarm water using a
soT car sponge. When doing so, do not
ex pose theve hicle todirect sunlight. #
Carefully hose theve hicle o. with water and
dry using a chamois.
% Obser vethe no tes on the care of car parts
(/ page 348). N No
ot
tes on paintw
es on paintw or
ork/matt
k/matt /nish
/nishpaintw
paintw or
ork care
k care To
avo id damaging the paintwork and inter fering
with the driving assistance systems, please
obser vethefo llowing no tes: P
P
aint
aint
R Insect remains: soak with insect remo ver and
ri nse o. the treated areas aTer wards.
R Bird droppings: soak with water and rinse o.
aTer wards.
R Tree resin, oils, fuels and greases: remo veby
ru bbing gently with a clo thsoaked in petro-
leum ether or lighter 0uid.
R Coolant and brake 0uid: remo vewith a damp
clo thand clean water.
R Tar stains: use tarre mo ver.
R Wax: use silicone remo ver.
R Do not attach sti ckers, /lms or similar materi-
als. Only ha ve/lm attached tothe bumper at
a quali/ed specialist workshop.
R Remo vedirt immediatel y,where possible.
Matt
Matt /nish
/nish
R Only use care products appr ovedfor
Mercedes-Benz.
R Do not attach stic kers, /lms or similar materi-
als. Only ha ve/lm attached tothe bumper at
a qu ali/ed specialist workshop. 346
346
Main
tenance and ca re

R
Do not polish theve hicle and light-alloy
wheels.
R Only use car washes that cor respond tothe
latest engineering standards.
R Do not use car wash prog rammes with a /nal
hot wax treatment.
R Do not use paint cleaners, bu1ng or polishing
products, gloss preser vers, e.g. wax.
In theev ent of paintwork damage:
R Always ha vepaintwork repairs car ried out at a
qu ali/ed specialist workshop.
R Make sure thera dar sensors function
(/ page 223). N No
ot
tes on cleaning decor
es on cleaning decor ativ
ative f
e foils
oils Obser
vethe no tes on matt /nish care in thech ap-
te r "No tes on paintwork/matt /nish paintwork
care" (/ page 346). They also apply tomatt dec-
orative foils.
Obser vethe no tes on cleaning decorative foils to
av oid vehicle damage. Cleaning
Cleaning
R For cleaning, use plenty of water and a mild
cleaning agent without additives or abrasive
substances, e.g. a car shampoo appr ovedfor
Mercedes-Benz.
R Remo vedirt immediatel y,where possible,
whilst avoiding rubbing too hard. There is oth-
erwise a risk of damaging the decorative foil
ir re parabl y.
R Ifth ere is dirt on the /nish or if the decorative
fo il is dull: Use thePa int Cleaner recommen-
ded and appr ovedfo r Mercedes-Benz.
R Insect remains: Soak with insect remo ver and
ri nse o. the treated areas aTer wards.
R Bird droppings: Soak with water and rinse o.
aTer wards.
R Topreve ntwa ter stains, dry a foil-wrapped
ve hicle with a soT, absorbent clo thaTer every
car wash.
Av Av oiding damag
oiding damag e t
e to t
o t he decor
he decor ativ
ative f
e foil
oil
R The service life and colouring of decorative
foils are impaired by:
- Sunlight -
Tempe rature, e.g. hot air blo wer
- Weather conditions
- Stone chippings and dirt
- Chemical cleaning agents
- Oily products
R Do not use polish on matt decorative foil. Po l-
ishing will ha vethe e.ect of shining thefo il-
wrapped sur face.
R Do not treat matt or st ructured decorative
fo ils with wax.Pe rm anent stains may occur.
Scratches, cor rosive deposits, areas a.ected by
cor rosion and damage caused byincor rect care
cannot alw ays be comple tely re paired. In such
cases, visit a quali/ed specialist workshop.
Yo u can obtain more information on care and
cleaning products from the manufacturer.
In the case of foil-wrapped sur faces, optical di.er-
ences may occur between the sur faces that we re
not pro tected bya decorative foil aTer removing a
decorative foil. Maintenance and care
347 347
