MERCEDES-BENZ CLK CABRIOLET 2001 A208 Owner's Manual

288 Electronic main key
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

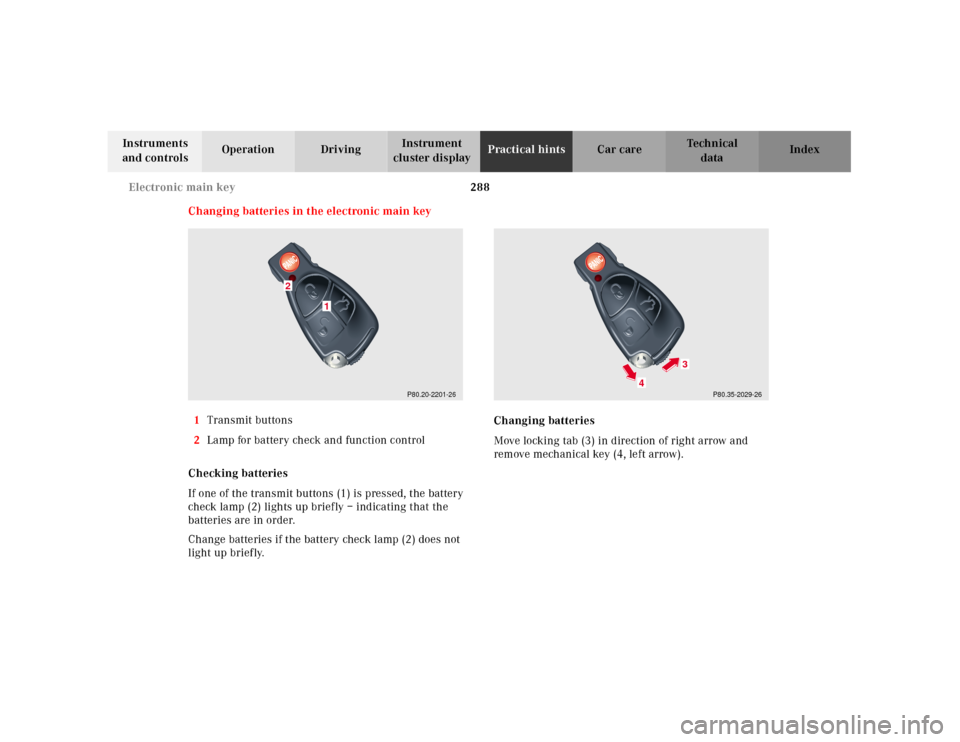

Changing batteries in the electronic main key
1Transmit buttons
2Lamp for battery check and function control
Checking batteries
If one of the transmit buttons (1) is pressed, the battery
check lamp (2) lights up briefly – indicating that the
batteries are in order.
Change batteries if the battery check lamp (2) does not
light up briefly.Changing batteries
Move locking tab (3) in direction of right arrow and
remove mechanical key (4, left arrow).
P80.20-2201-26
1
2
P80.35-2029-26
4
3

289 Electronic main key
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

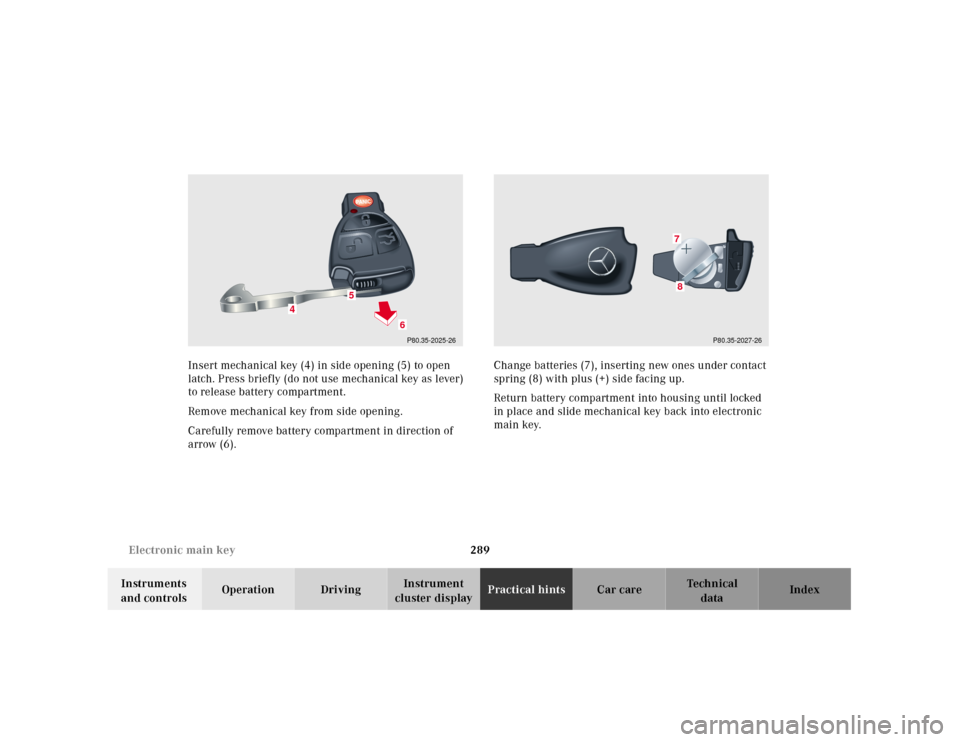

cluster displayPractical hintsCar care Index Insert mechanical key (4) in side opening (5) to open
latch. Press briefly (do not use mechanical key as lever)
to release battery compartment.
Remove mechanical key from side opening.
Carefully remove battery compartment in direction of
arrow (6).Change batteries (7), inserting new ones under contact
spring (8) with plus (+) side facing up.
Return battery compartment into housing until locked
in place and slide mechanical key back into electronic
main key.
P80.35-2025-26
5
4
6
P80.35-2027-26
78

290 Electronic main key
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement Battery:
Lithium, type CR 2025 or equivalent.Synchronizing remote control
The remote control may have to be resynchronized, if
the vehicle cannot be locked or unlocked.
To synchronize insert electronic key in steering lock.
The remote control should once again be operational.

291 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Raising soft top manually
In case of malfunction, the power soft top can also be
raised manually. This procedure should be performed
with great care by two persons.
We r e c o m m e n d to t a ke o f f yo u r w a tc h or ot h e r j ewe l r y to
prevent personal injury.
A combination open-end / hex-socket wrench in the
vehicle tool kit is required for this job.
1. E n ga g e p a r k i n g b ra ke .
2. Lower windows and open doors.
3. Lower roll bar with roll bar switch.
Note:
If the roll bar cannot be lowered, carefully guide the
sof t top a cross th e roll ba r. Lif t the rear window over
the roll bar.
4. For safety reasons, remove electronic key from
steering lock. Important!
Ensure that the trunk lid is closed while raising the soft
top manually. Otherwise there is the possibility of
contact between the trunk lid and the soft top
compartment cover.
Wa r n i n g !
Do not place your hands near the roll bar, soft top
frame, upper windshield area or soft top storage
compartment or between the soft top rods while the
soft top is being raised and locked. Serious personal injury may occur.

292 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
5. Unlock soft top storage compartment:
Open trunk lid with mechanical key and lift
protection cover.
Using screwdriver (supplied in vehicle tool kit), turn
screw two turns counterclockwise to the stop.
Close trunk lid.
Important!
Do not place mechanical key inside trunk, since trunk is
locked again when closing the lid.6. Place open-end wrench (1) (supplied in vehicle tool
kit) on bolt between backrest and soft top
compartment cover. Turn wrench (1) in direction of
arrow to its stop and remove.
P65.10-2009-26
1
P77.30-2031-26

293 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

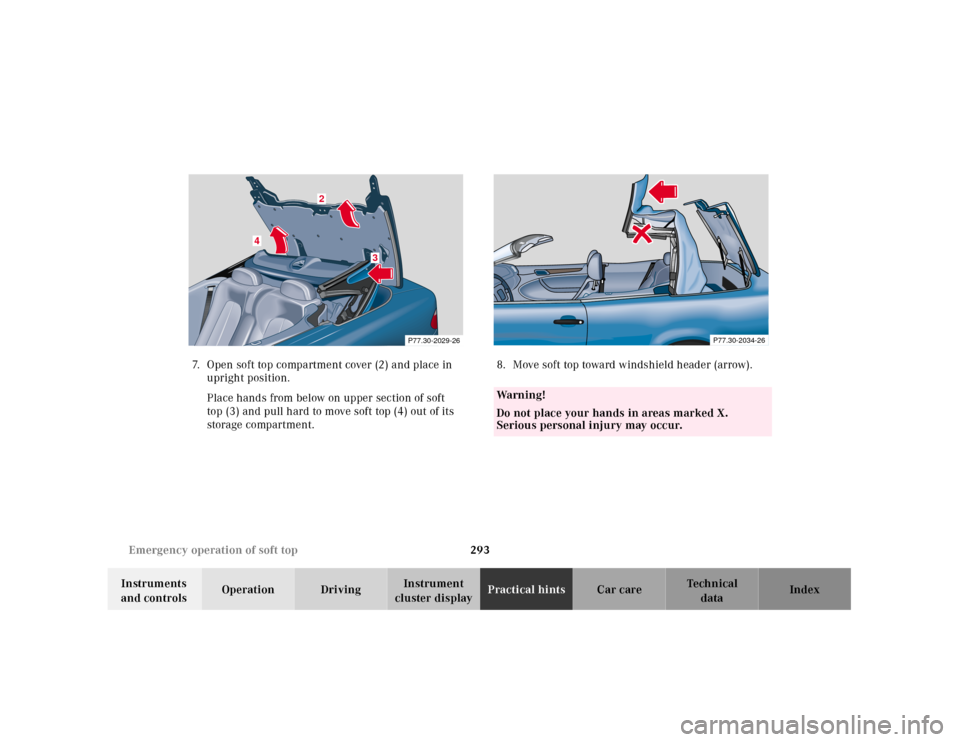

cluster displayPractical hintsCar care Index 7. Open soft top compartment cover (2) and place in
upright position.
Place hands from below on upper section of soft
top (3) and pull hard to move soft top (4) out of its
storage compartment. 8. Move soft top toward windshield header (arrow).
2
4
3
P77.30-2029-26
Wa r n i n g !
Do not place your hands in areas marked X.
Serious personal injury may occur.
P77.30-2034-26

294 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

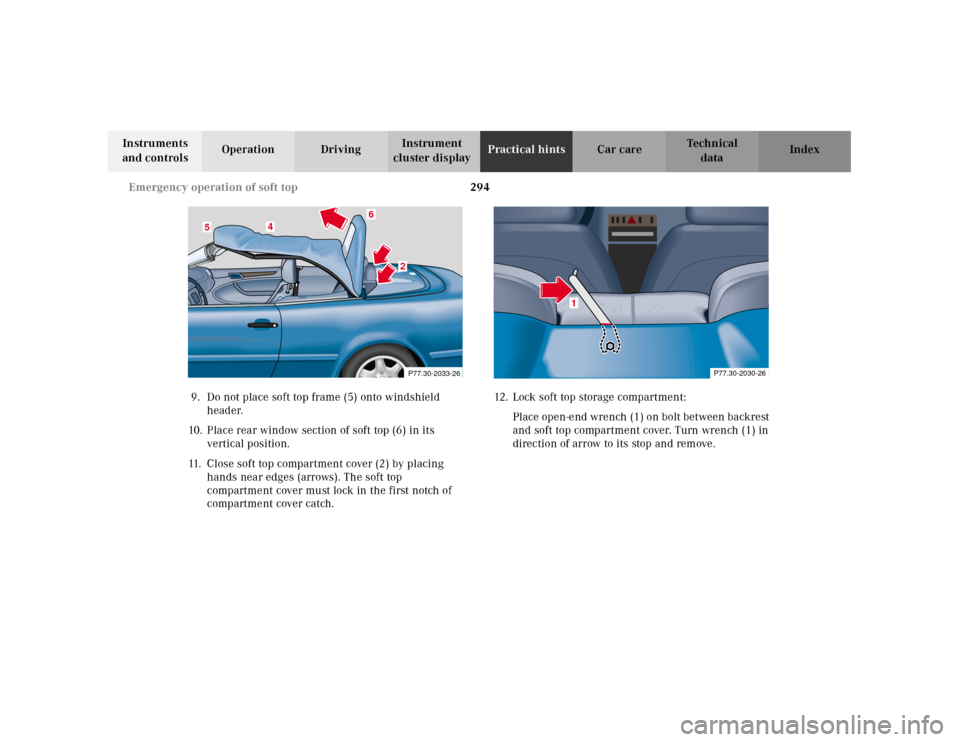

9. Do not place soft top frame (5) onto windshield
header.
10. Place rear window section of soft top (6) in its
vertical position.
11. Close soft top compartment cover (2) by placing
hands near edges (arrows). The soft top
compartment cover must lock in the first notch of
compartment cover catch.12. Lock soft top storage compartment:
Place open-end wrench (1) on bolt between backrest
and soft top compartment cover. Turn wrench (1) in
direction of arrow to its stop and remove.
6
P77.30-2033-26
5
4
2
1
P77.30-2030-26

295 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

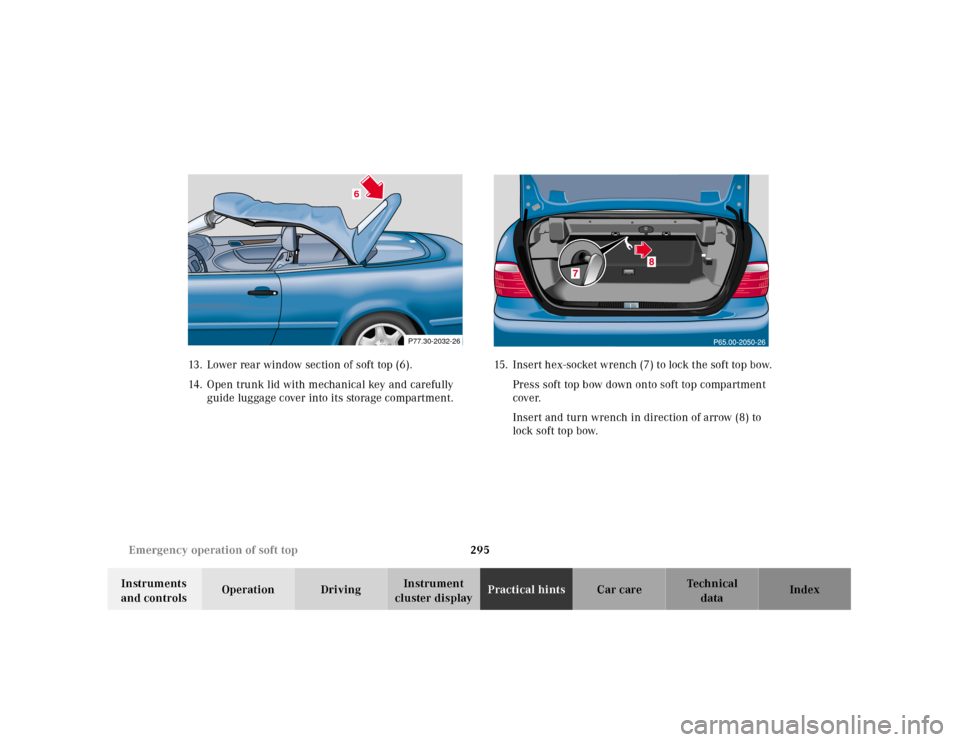

cluster displayPractical hintsCar care Index 13. Lower rear window section of soft top (6).
14. Open trunk lid with mechanical key and carefully
guide luggage cover into its storage compartment.15. Insert hex-socket wrench (7) to lock the soft top bow.
Press soft top bow down onto soft top compartment
cover.
Insert and turn wrench in direction of arrow (8) to
lock soft top bow.
6
P77.30-2032-26

296 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
16 . U s in g s c r ew d r iv e r ( s u p pl ie d i n v e h i c l e to ol k i t ) , t u r n
screw clockwise to the stop.
17. Close trunk lid.
Important!
Do not place mechanical key inside trunk, since trunk is

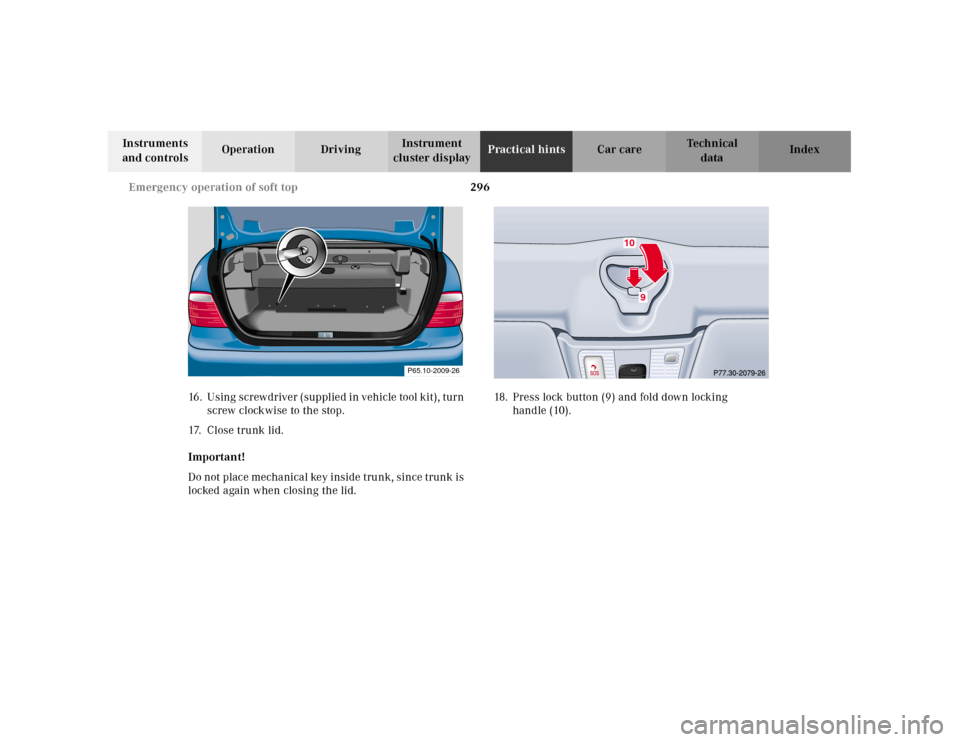

locked again when closing the lid.18. Press lock button (9) and fold down locking
handle (10).
P65.10-2009-26
9
10

297 Emergency operation of soft top
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

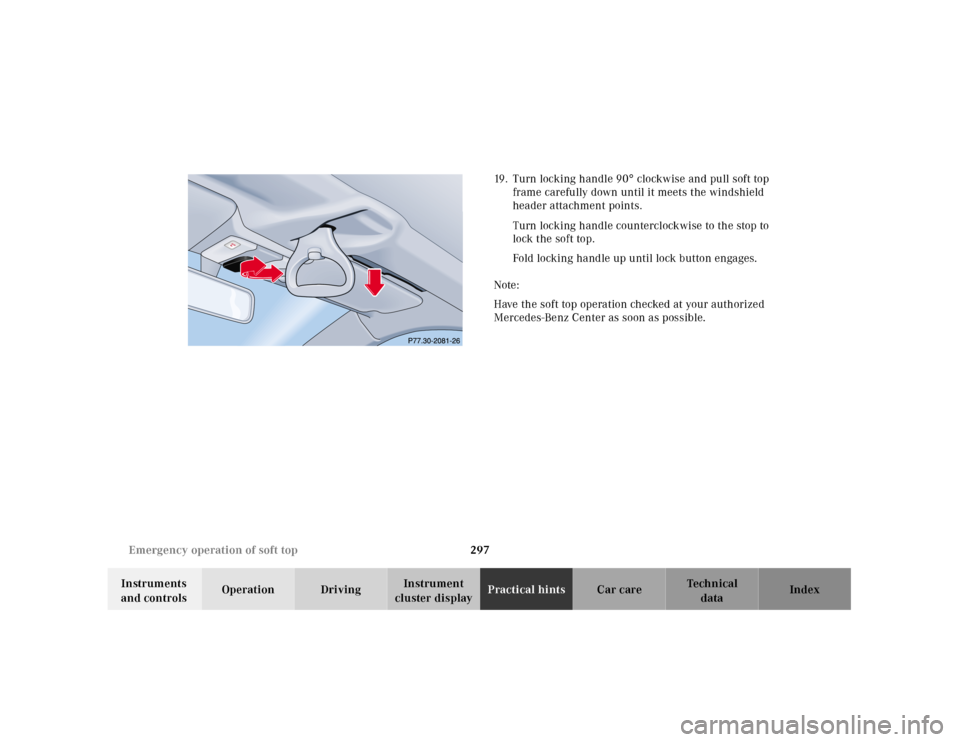

cluster displayPractical hintsCar care Index 19. Turn locking handle 90° clockwise and pull soft top
frame carefully down until it meets the windshield
header attachment points.
Turn locking handle counterclockwise to the stop to
lock the soft top.
Fold locking handle up until lock button engages.
Note:
Have the soft top operation checked at your authorized
Mercedes-Benz Center as soon as possible.
