headlamp MERCEDES-BENZ CLK-CLASS 2000 Owner's Manual

Fuels, coolants, lubricants etc. - capacities
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Fuels, coolants, lubricants etc. – capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Center.
Capacity Fuels, coolants, lubricants etc.
Engine with oil filter 8.5 US qt (8.0 l) Recommended engine oils
Automatic transmission9.6US qt (9.1l) Automatic transmission fluid
Rear axle 1.4 US qt (1.3 l) Hypoid gear oil SAE 90, 85 W 90
Power steering
Accelerator control linkage Hydraulic fluidapprox. 1.1 US qt (1.0 l) MB Power steering fluid
Front wheel hubs approx. 2.1 oz (60 g) each High temperature roller bearing grease
Brake system approx. 0.5 US qt (0.5 l) MB Brake fluid (DOT 4)
Windshield/headlamp
washer systemapprox. 7.4 US qt (7.0 l) MB Windshield washer concentrate “S” 1
Cooling system approx. 11.7 US qt (11.1 l) MB Anticorrosion/antifreeze
Fuel tank including
a reserve ofapprox. 16.4 US gal (62.0 l)
approx. 2.1 US gal (8.0 l)Premium unleaded gasoline:
Posted Octane 91 (Avg. of 96 RON/86 MON)
Air conditioner system R-134a refrigerant and special PAC lubricant (Never R-12)1 Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios, see
Windshield/headlamp washer system on page238.
284
ProCarManuals.com

IndexAABS (Antilock brake system)………………………….198ABS-SYSTEM - malfunction and
warning messages .................................................. 216
Adjusting headlamp aim ........................................... .261Adjusting telescoping steering column ........................73Air conditioner refrigerant........................................ 285Airbag OFF indicator lamp ..........................................212Airbags ........................................................................64Antilock brake system (ABS) ...................................... 198
Malfunction indicator lamp ....................................211
Antitheft alarm system..................................................41Aquaplaning .............................................................. .188Ashtray
Center console, front ..............................................150Rear seats ..............................................................151
Audio system
Anti-theft system ....................................................125Button and soft key operation ................................126Cassette mode.........................................................131CD changer ............................................................135
CD mode................................................................ 134Operating and display elements ............................. 124Operating safety .................................................... 123Operation .............................................................. 127Operation Audio and telephone .............................. 123Radio mode ........................................................... 129Telephone operation .............................................. 138
Audio systems ............................................................. 89
Cassette player ........................................................ 91CD player................................................................. 90Radio ....................................................................... 89
Automatic climate control............................................ 116
Air distribution ..................................................... .120Air recirculation .................................................... .121Air volume ............................................................ .120Basic setting.......................................................... 118Defogging windows ................................................ 119Defrosting............................................................... 119Display and controls ............................................... 118Dust filter .............................................................. .122Economy................................................................. 119Rear window defroster ........................................... .120Residual engine heat utilization (REST) ................ .121Special settings....................................................... 119
291
ProCarManuals.com

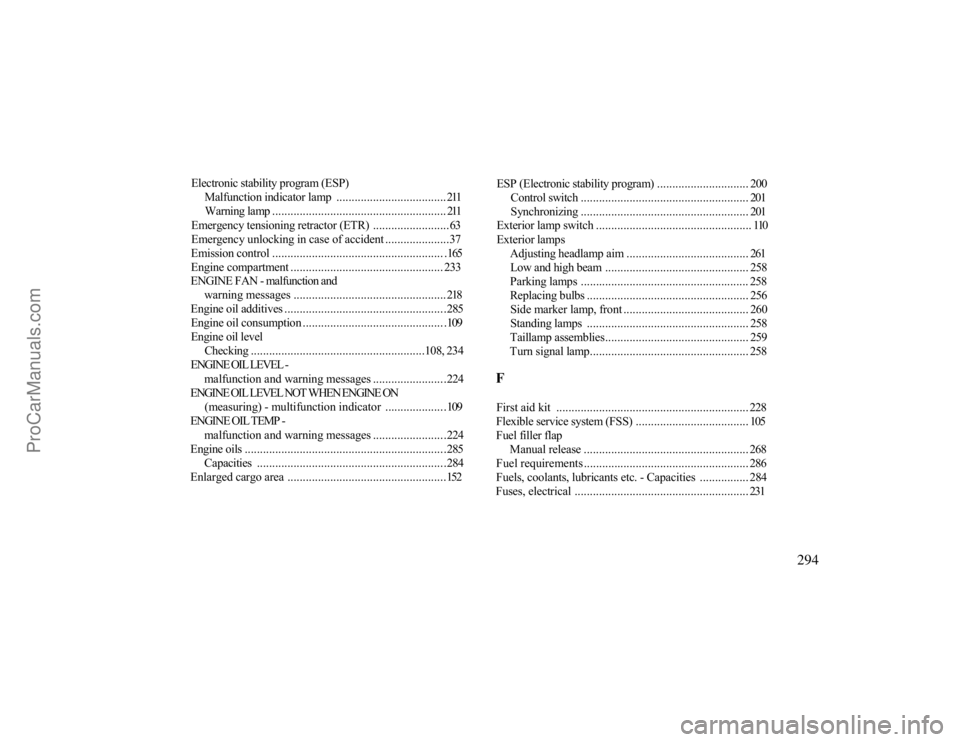

Electronic stability program (ESP)
Malfunction indicator lamp .................................... 211Warning lamp ......................................................... 211
Emergency tensioning retractor (ETR) .........................63Emergency unlocking in case of accident .....................37Emission control ........................................................ .165Engine compartment .................................................. 233ENGINE FAN - malfunction and
warning messages ..................................................218
Engine oil additives .....................................................285Engine oil consumption .............................................. .109Engine oil level
Checking .........................................................108, 234
ENGINE OIL LEVEL -
malfunction and warning messages ........................224
ENGINE OIL LEVEL NOT WHEN ENGINE ON
(measuring) - multifunction indicator ....................109
ENGINE OIL TEMP -
malfunction and warning messages ........................224
Engine oils ..................................................................285
Capacities..............................................................284
Enlarged cargo area ....................................................152
ESP (Electronic stability program).............................. 200
Control switch ....................................................... 201Synchronizing ....................................................... 201
Exterior lamp switch ................................................... 110Exterior lamps
Adjusting headlamp aim ........................................ 261Low and high beam ............................................... 258Parking lamps ....................................................... 258Replacing bulbs ..................................................... 256Side marker lamp, front ......................................... 260Standing lamps ..................................................... 258Taillamp assemblies............................................... 259Turn signal lamp.................................................... 258
FFirst aid kit ............................................................... 228Flexible service system (FSS) ..................................... 105Fuel filler flap
Manual release ...................................................... 268
Fuel requirements ...................................................... 286Fuels, coolants, lubricants etc. - Capacities ................ 284Fuses, electrical ......................................................... 231
294
ProCarManuals.com

GGarage door opener.................................................... 157Gasoline
Additives .............................................................. 287Fuel requirements ................................................. 286Premium unleaded ................................................ 286
Glove box ................................................................... 148
Instrument cluster........................................................ 78
Activating display .................................................... 81Indicator lamps ....................................................... 80
Instrument lamps ........................................................ 81Instruments and controls ............................................. 18Interior
General notes ........................................................ 147
Interior lighting ......................................................... 145
HHazard warning flasher switch ....................................115Head restraints
Front .......................................................................49Rear.........................................................................50
Headlamp cleaning system ..........................................112Heated seats.................................................................53Hood .......................................................................... 233IIlluminated vanity mirrors ........................................147Indicator lamps in the instrument cluster ....................80Infant and child restraint systems .................................70
Installation...............................................................72
JJump starting ............................................................. 251LLIGHT SENSOR - malfunction and
warning messages ................................................ 221
Lighter ...................................................................... 151LIGHTING SYSTEM - malfunction and
warning messages ................................................ 222
Limp home mode (Automatic transmission)................ 183Loading instructions .................................................. 153Locking and unlocking ................................................ 29
295
ProCarManuals.com

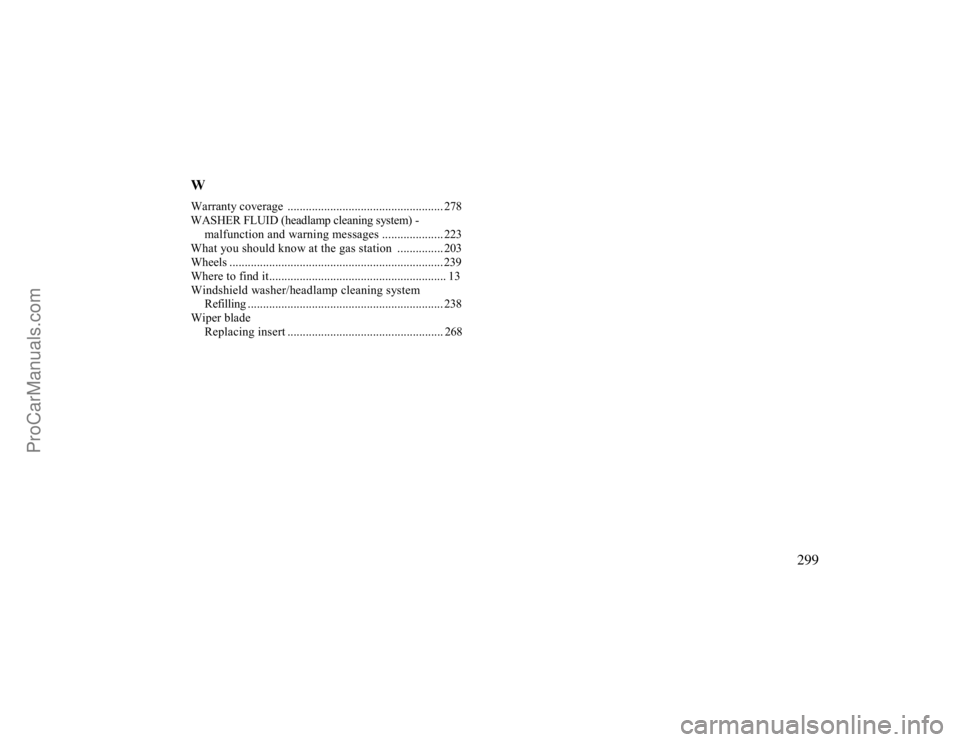

WWarranty coverage ................................................... 278WASHER FLUID (headlamp cleaning system) -
malfunction and warning messages .................... 223
What you should know at the gas station ............... 203Wheels ...................................................................... 239Where to find it.......................................................... 13Windshield washer/headlamp cleaning system
Refilling................................................................ 238
Wiper blade
Replacing insert ................................................... 268
299
