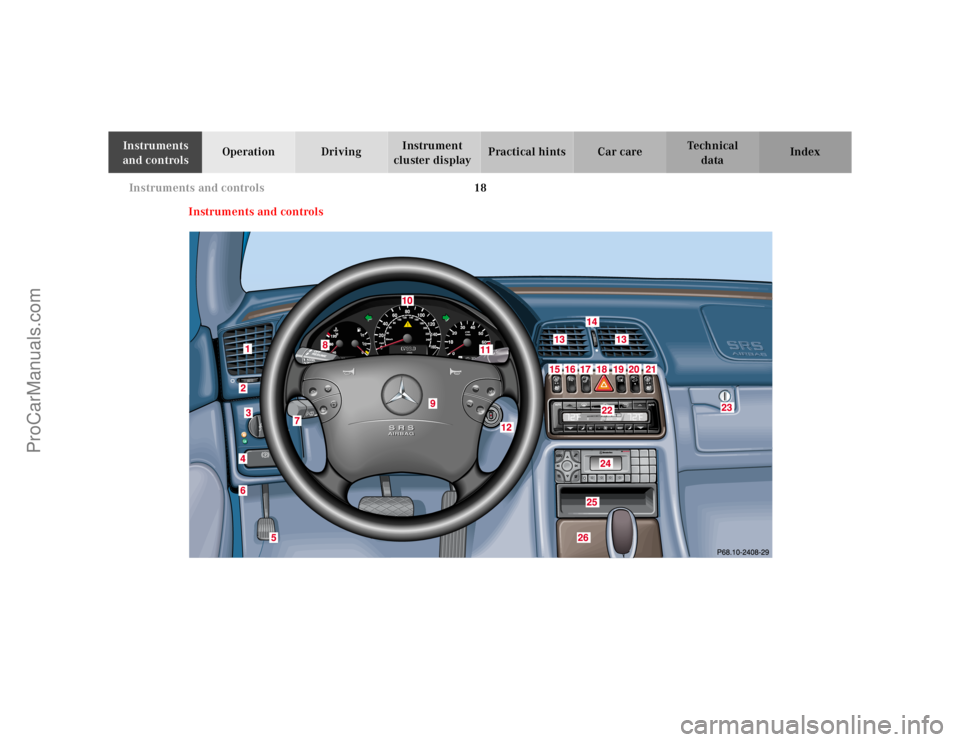

1Side air outlet, adjustable
2Air volume control for side air outlet
3Exterior lamp switch, see page 114
4Parking brake release, see page 200
5Parking brake pedal, see page 200
6Hood lock release, see page 249
7Combination switch, see page 117
8Cruise control switch, see page 210
9Multifunction steering wheel, see page 88
Horn (with electronic key in steering lock
position 1 or 2)
10Instrument cluster, see page 82
11Voice recognition system switch, see separate
operating instructions
12Steering lock with ignition/starter switch,
see page 18813Center air outlets, adjustable
14Air volume control for center air outlets
15Left front seat heater switch, see page 55
16Headlamp washer switch, see page 116
17Switch for rear seat head restraints, see page 52
18Hazard warning flasher switch, see page 119
19Central locking switch, see page 36
20Switch for tow-away alarm, see page 44
Indicator lamp for antitheft alarm system,
see page 42
21Right front seat heater switch, see page 55
22Automatic climate control, see page 120
Rear window defroster switch, see page 124
23Glove box (illuminated with electronic key in
steering lock position 1 or 2), see page 153
24Audio system, see page 127
25Storage compartment
26Ashtray with lighter, see page 156
ProCarManuals.com

20 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index

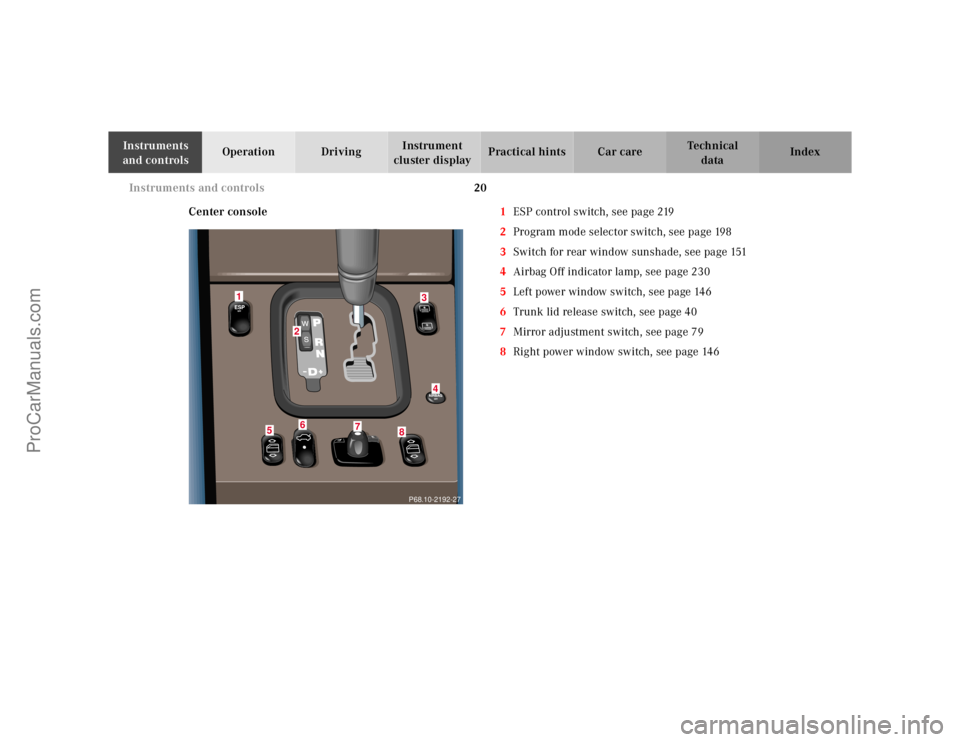

Center console1ESP control switch, see page 219
2Program mode selector switch, see page 198
3Switch for rear window sunshade, see page 151
4Airbag Off indicator lamp, see page 230
5Left power window switch, see page 146
6Trunk lid release switch, see page 40
7Mirror adjustment switch, see page 79
8Right power window switch, see page 146
P68.10-2192-27
2
5
1
6
7
8
43
ProCarManuals.com

21 Instruments and controls
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Overhead control panel1Interior lighting, see page 150

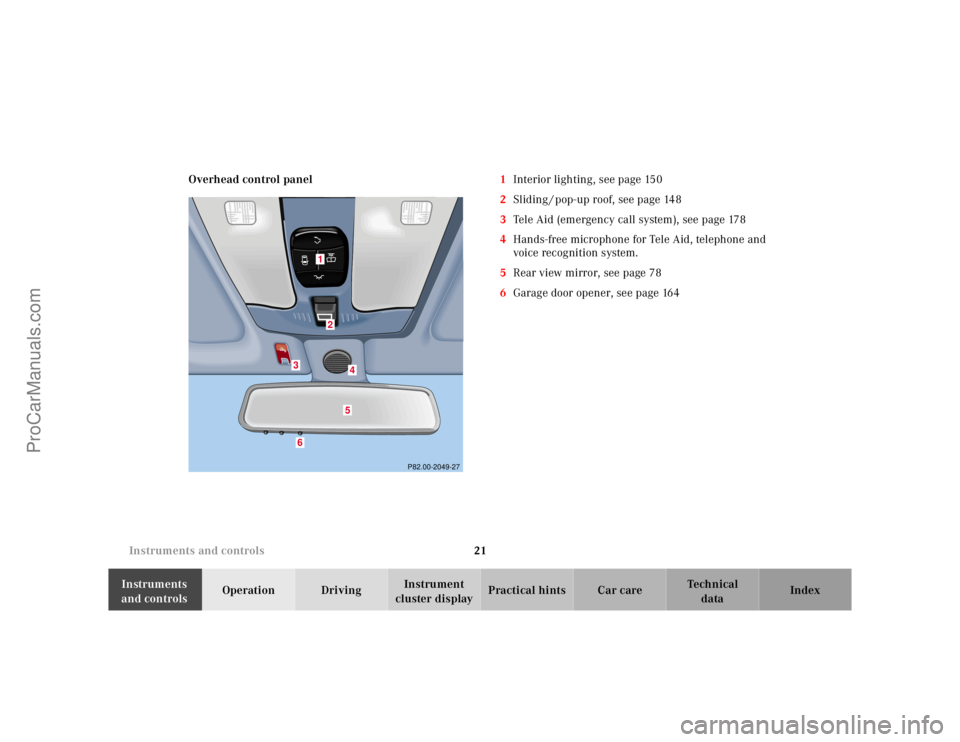

2Sliding / pop-up roof, see page 148
3Tele Aid (emergency call system), see page 178
4Hands-free microphone for Tele Aid, telephone and
voice recognition system.
5Rear view mirror, see page 78
6Garage door opener, see page 164
1
1
6
P82.00-2049-27
5
2
3
4
ProCarManuals.com

22 Contents – Operation
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
OperationVehicle keys ...................................... 24
Start lock-out .................................... 27
General notes on the
central locking system ............... 27
Central locking system ................... 28
Radio frequency and
infrared remote control ............... 28
Opening and closing windows
and sliding/pop-up roof
from outside .................................. 32
Panic button .................................. 33
Mechanical keys ........................... 33
Doors .................................................. 34
Central locking switch .................... 36
Automatic central locking .......... 37
Emergency unlocking in
case of accident ........................... 37
Trunk ................................................. 38
Trunk lid release switch ................. 40
Trunk lid emergency release ......... 41
Antitheft alarm system ................... 42Tow-away alarm ............................... 44
Power seats, front ............................ 45
Front head restraints ...................51
Head restraints, rear ................... 52
Backrest ............................................ 53
Multicontour seat ............................ 54
Heated seats ..................................... 55
Seat belts and integrated
restraint system .......................... 57
Seat belts .......................................... 57
Seat belt nonusage
warning system ............................ 58
BabySmart
TM airbag
deactivation system ................... 64
Self-test BabySmart
TM
without special child
seat installed ................................ 64
Supplemental restraint
system (SRS) ............................... 65
Emergency tensioning
retractor (ETR) ............................ 65Airbags .............................................. 66
Safety guidelines for the seat belt,
emergency tensioning retractor
and airbag ..................................... 72
Infant and child
restraint systems .......................... 74
Adjusting telescoping
steering column .......................... 77
Inside rear view mirror .................. 78
Exterior rear view mirrors ............. 79
Instrument cluster ........................... 82
Indicator lamps in the
instrument cluster ...................... 84
Multifunction steering wheel,
multifunction display ................. 88
Trip and main odometer, vehicle
speed, FSS and engine oil level
indicator ....................................... 92
Audio systems .................................. 93
Radio .............................................. 93
CD player ....................................... 94
Cassette player ............................. 95
ProCarManuals.com

23 Contents – Operation
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Telephone .......................................... 96
Telephone book ............................ 96
Redialing ....................................... 98
Incoming call .............................. 100
Navigation system .......................... 101
Trip computer ................................. 102
Malfunction message
memory ...................................... 104
Individual settings ......................... 106
Setting the audio volume .............. 108
Flexible service system
(FSS) ............................................ 109
Engine oil level indicator .............. 112
Engine oil consumption .................113
Exterior lamp switch ......................114
Night security illumination ..........115
Headlamp cleaning system ...........116
Combination switch .......................117
Hazard warning flasher
switch ...........................................119Automatic climate control ............ 120
Display and controls ................. 122
Basic setting ............................... 122
Economy ...................................... 123
Special settings .......................... 123
Rear window defroster .............. 124
Air recirculation ........................ 125
Residual engine
heat utilization ........................... 125
Dust filter .................................... 126
Audio and telephone,
operation .................................... 127
Power windows .............................. 146
Sliding/pop-up roof ....................... 148
Interior lighting ..............................150
Rear window sunshade .................151
Sun visors ........................................151
Illuminated vanity mirrors ...........152
Interior .............................................152Storage compartments,
armrest and cup holder ........... 152
Glove box ..................................... 153
Storage compartments
in center console ........................ 153
Ashtrays .......................................... 156
Lighter ............................................. 158
Enlarged cargo area –
split folding rear
seat backrest .............................. 159
Loading instructions ..................... 160
Cargo tie down rings ..................... 162
Parcel net in front
passenger footwell .................... 162
Telephone, general ........................ 163
Cellular telephone ......................... 163
Garage door opener ....................... 164
Ski sack ........................................... 168
ProCarManuals.com

24 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Ve h i c l e k ey s
Included with your vehicle are:
•2 electronic main keys with integrated radio
frequency and infrared remote controls plus
removable mechanical key.
The locking tabs for the mechanical key portion of
the two electronic main keys are a different color to
help distinguish it.
•1 electronic reserve key without remote control
functions, plus removable mechanical key.
Wa r n i n g !
When leaving the vehicle always remove the
electronic key from the steering lock, and lock your
vehicle. Do not leave children unattended in the
vehicle, or with access to an unlocked vehicle.
Unsupervised use of vehicle equipment may cause
serious personal injury.
ProCarManuals.com

25 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Electronic main key
The electronic main key has an integrated radio
frequency and infrared remote control, plus removable
mechanical key.

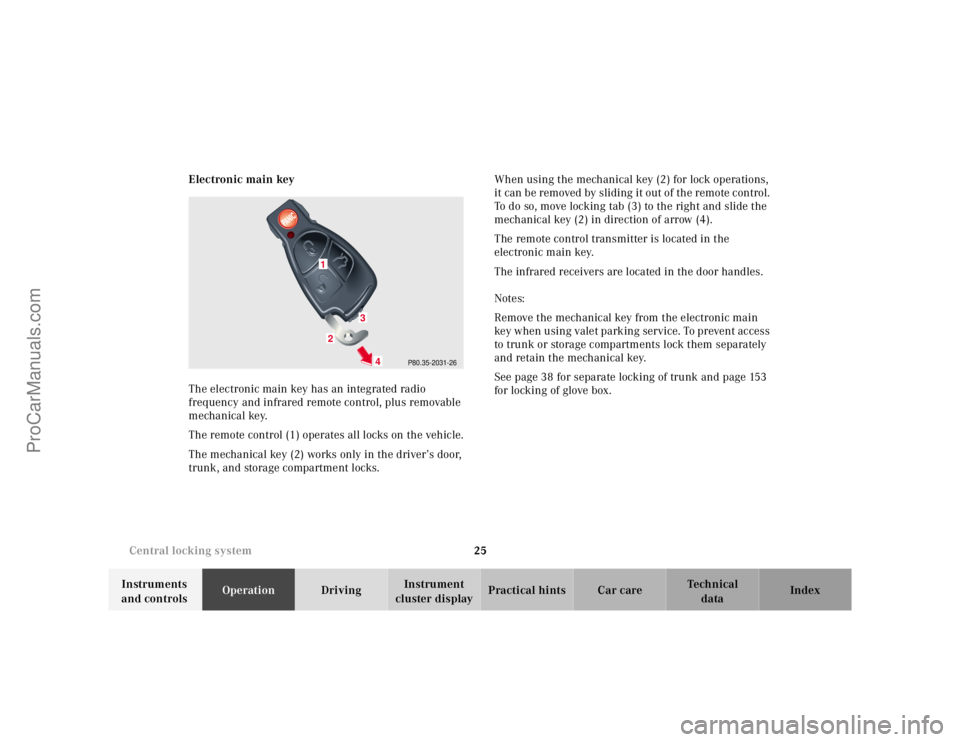

The remote control (1) operates all locks on the vehicle.
The mechanical key (2) works only in the driver’s door,
trunk, and storage compartment locks.When using the mechanical key (2) for lock operations,
it can be removed by sliding it out of the remote control.
To do so, move locking tab (3) to the right and slide the
mechanical key (2) in direction of arrow (4).
The remote control transmitter is located in the
electronic main key.
The infrared receivers are located in the door handles.
Notes:
Remove the mechanical key from the electronic main
key when using valet parking service. To prevent access
to trunk or storage compartments lock them separately
and retain the mechanical key.
See page 38 for separate locking of trunk and page 153
for locking of glove box.
P80.35-2031-26
1
3
4
2
ProCarManuals.com

26 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Electronic reserve key

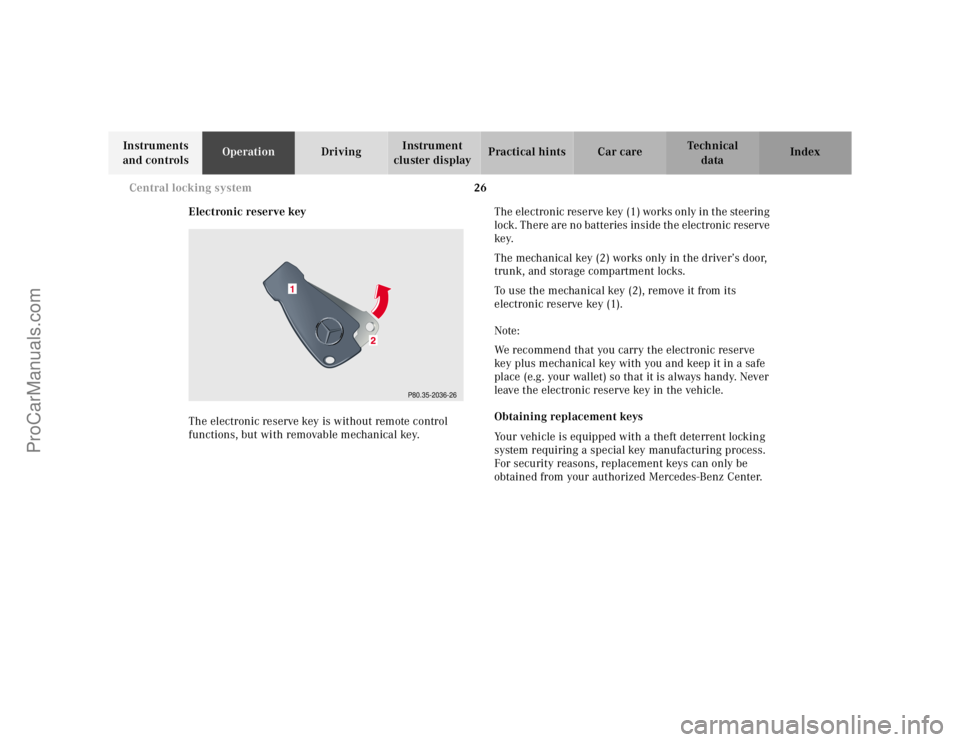

The electronic reserve key is without remote control
functions, but with removable mechanical key.The electronic reserve key (1) works only in the steering
lock. There are no batteries inside the electronic reserve
ke y.
The mechanical key (2) works only in the driver’s door,
trunk, and storage compartment locks.
To use the mechanical key (2), remove it from its
electronic reserve key (1).
Note:
We recommend that you carry the electronic reserve
key plus mechanical key with you and keep it in a safe
place (e.g. your wallet) so that it is always handy. Never
leave the electronic reserve key in the vehicle.
Obtaining replacement keys
Your vehicle is equipped with a theft deterrent locking
system requiring a special key manufacturing process.
For security reasons, replacement keys can only be
obtained from your authorized Mercedes-Benz Center.
P80.35-2036-26
1
ProCarManuals.com

27 Central locking system
Te ch n ica l
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index Start lock-out
Important!
Removing the electronic key from the steering lock
activates the start lock-out. The engine cannot be
started.
Inserting the electronic key in the steering lock
deactivates the start lock-out.
Note:
In case the engine cannot be started (vehicle’s battery is
in order), the system is not operational. Contact an
authorized Mercedes-Benz Center or call 1-800-FOR-
MERCedes (in the USA) or 1-800-387-0100 (in Canada).General notes on the central locking system
If the electronic key is inserted in the steering lock, the
vehicle cannot be locked or unlocked with the remote
control.
If the vehicle cannot be locked or unlocked:
•Aim transmitter eye at a receiver of either door
handle. Check the batteries of the electronic main
key, see page 281, or synchronize the remote
control, see page 283.
•Use the mechanical key to unlock the driver’s door.
To start the engine, insert the electronic main key in
the steering lock. There could be a slight delay until
the electronic main key can be turned in the
steering lock.
Important!
When unlocking the driver’s door with the mechanical
key, the exterior lamps will flash and the alarm will
sound.
To cancel the alarm, insert the electronic key in the
steering lock or press buttonŒ or‹ on the
electronic main key.
ProCarManuals.com
