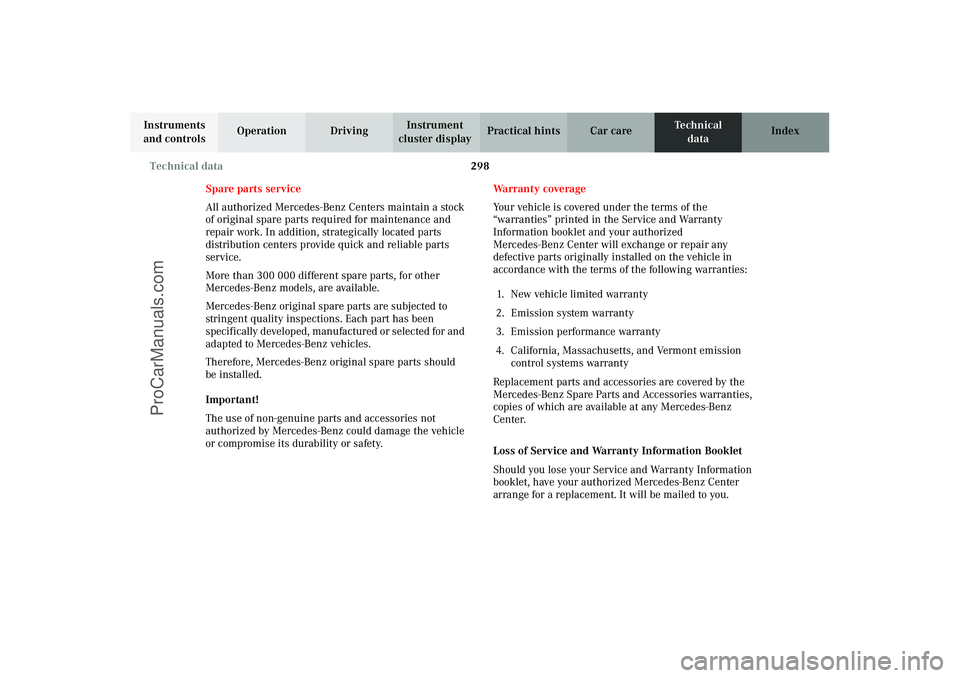

298 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for other
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
or compromise its durability or safety.Wa r r a n t y c o v e r a g e
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission system warranty
3. Emission performance warranty
4. California, Massachusetts, and Vermont emission
control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information Booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.
J_C208_II.book Seite 298 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

299 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Identification labels

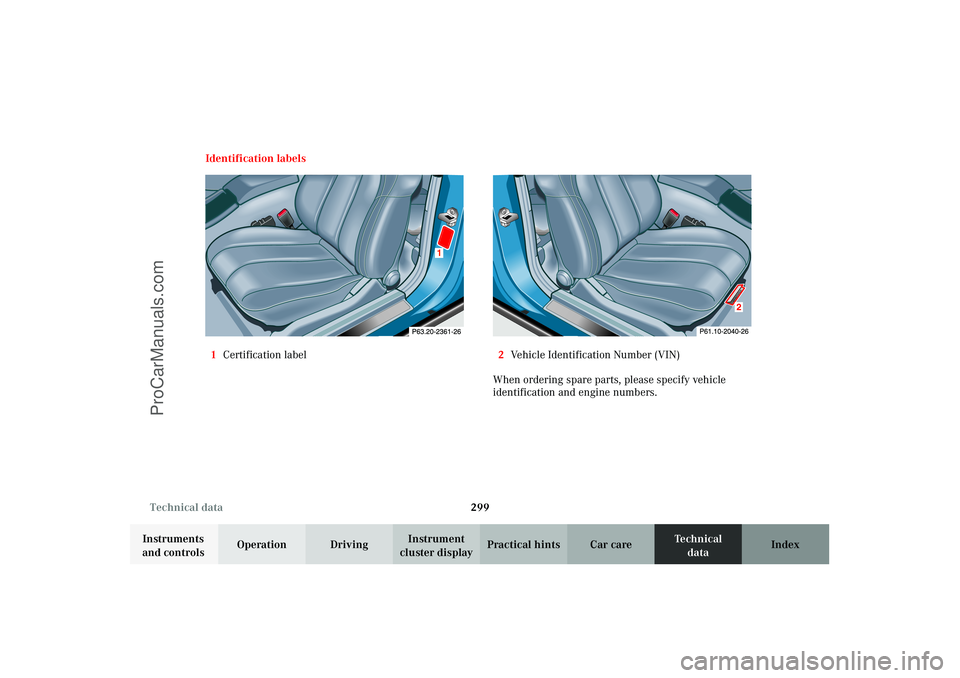

1Certification label2Vehicle Identification Number (VIN)
When ordering spare parts, please specify vehicle
identification and engine numbers.
1
X
X
X
X
X
X
X
X
X2
J_C208_II.book Seite 299 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

300 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
3VIN, visible (lower edge of windshield)
4Engine number
5Body number and paintwork number
6Emission control label
7Information label, California version
Vacuum line routing for emission control systemLayout of poly-V-belt drive
1Automatic belt tensioner
2Crankshaft
3Air conditioner compressor
4Coolant pump
5Generator (alternator)
6Idler pulley
7Power steering pump
6
5
7
3
4
J_C208_II.book Seite 300 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

301 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Technical data
Model CLK 430 (208.370)
1
CLK 55 AMG (208.374)
1
Engine113 113
Mode of operation 4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection
No. of cylinders 8 8
Bore 3.54 in (89.90 mm) 3.82 in (97.00 mm)
Stroke 3.30 in (84.00 mm) 3.60 in (92.00 mm)
Total piston displacement 260.3 cu.in. (4265 cm
3) 322.0 cu.in. (5439 cm
3)
Compression ratio 10:1 10.5:1
Output acc. to SAE J 1349 275 hp/5750 rpm
(205 kW/5750 rpm)342 hp/5500 rpm
(255 kW/5500 rpm)
Maximum torque acc. to SAE J 1349 295 ft.lb/3200 rpm
(400 Nm/3200 rpm)376 ft.lb/3000 rpm
(510 Nm/3000 rpm)
Maximum engine speed 6000 rpm 6000 rpm
Firing order 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8
Poly-V-belt 2390 mm 2390 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz
Center for the corresponding data of all special bodies and special equipment.
J_C208_II.book Seite 301 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

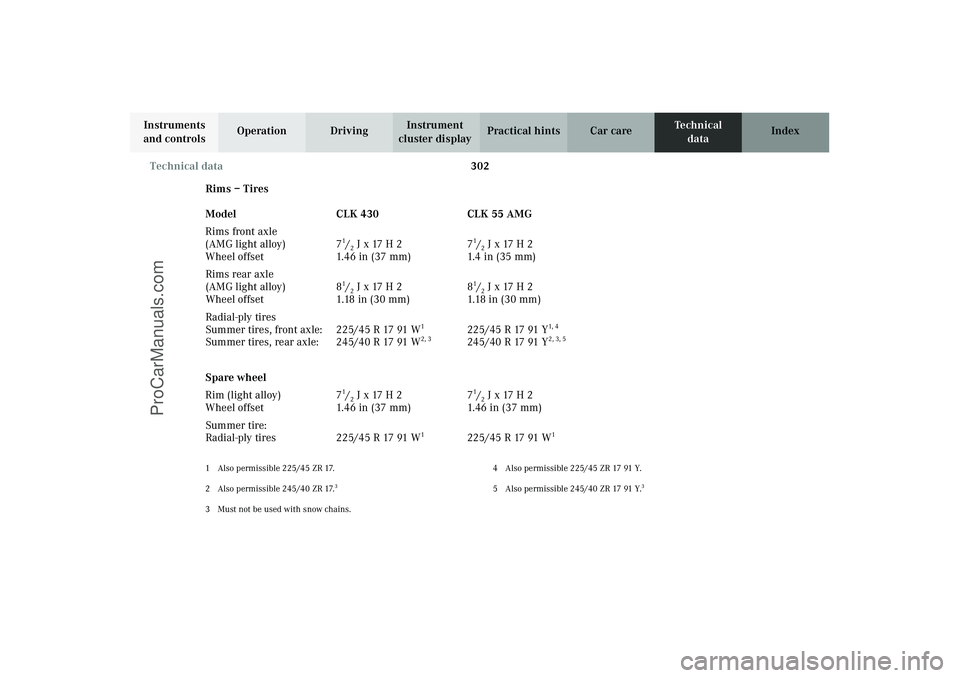

302 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Rims – Tires
1 Also permissible 225/45 ZR 17.
2 Also permissible 245/40 ZR 17.
3
3 Must not be used with snow chains.4 Also permissible 225/45 ZR 17 91 Y.
5 Also permissible 245/40 ZR 17 91 Y.
3
Model CLK 430 CLK 55 AMG
Rims front axle
(AMG light alloy)
Wheel offset7
1/2 J x 17 H 2
1.46 in (37 mm)7
1/2 J x 17 H 2
1.4 in (35 mm)
Rims rear axle
(AMG light alloy)
Wheel offset8
1/2 J x 17 H 2
1. 18 i n ( 3 0 m m )8
1/2 J x 17 H 2
1.18 in (30 mm)
Radial-ply tires
Summer tires, front axle:
Summer tires, rear axle:225/45 R 17 91 W
1
245/40 R 17 91 W
2, 3
225/45 R 17 91 Y
1, 4
245/40 R 17 91 Y
2, 3, 5
Spare wheel
Rim (light alloy)
Wheel offset7
1/2 J x 17 H 2
1.46 in (37 mm)7
1/2 J x 17 H 2
1.46 in (37 mm)
Summer tire:
Radial-ply tires 225/45 R 17 91 W
1
225/45 R 17 91 W
1
J_C208_II.book Seite 302 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

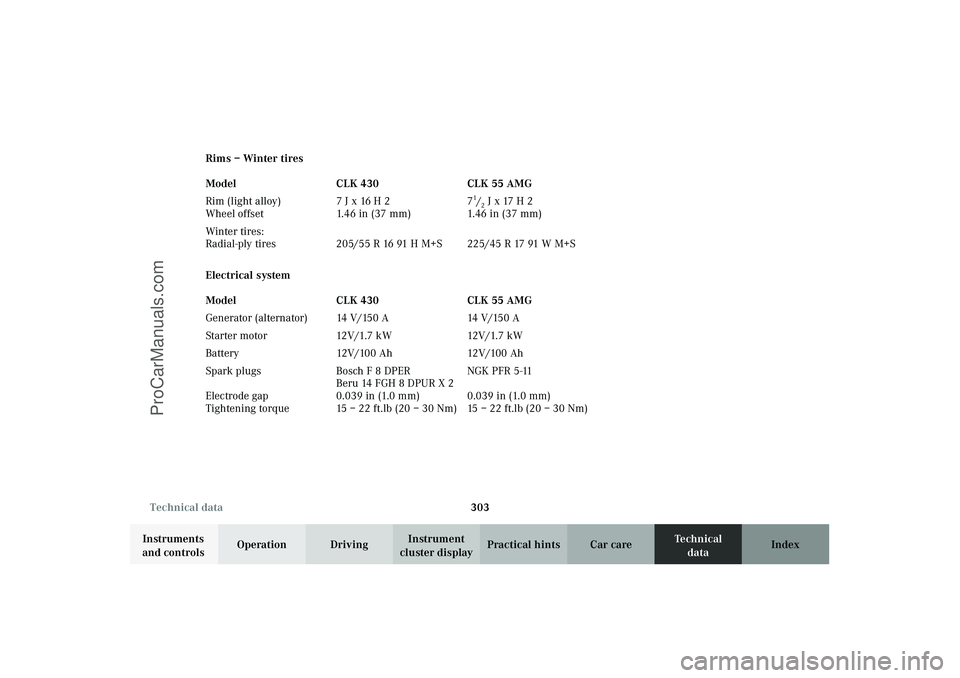

303 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Rims – Winter tires
Electrical system Model CLK 430 CLK 55 AMG
Rim (light alloy)
Wheel offset7 J x 16 H 2
1.46 in (37 mm)7
1/2 J x 17 H 2
1.46 in (37 mm)
Winter tires:
Radial-ply tires 205/55 R 16 91 H M+S 225/45 R 17 91 W M+S
Model CLK 430 CLK 55 AMG
Generator (alternator) 14 V/150 A 14 V/150 A
Starter motor 12V/1.7 kW 12V/1.7 kW
B a t t e r y 12 V / 10 0 A h12 V / 10 0 A h
Spark plugs
Electrode gap
Tightening torqueBosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
0.039 in (1.0 mm)
15–22ft.lb (20–30Nm)NGK PFR 5-11
0.039 in (1.0 mm)
15–22ft.lb (20–30Nm)
J_C208_II.book Seite 303 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

304 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Main dimensions
We i g h t s (see certification tag) Model CLK 430 CLK 55 AMG
Overall vehicle length 179.8 in (4567 mm) 179.8 in (4567 mm)
Overall vehicle width 67.8 in (1722 mm) 67.8 in (1722 mm)
Overall height 54.6 in (1386 mm) 54.6 in (1386 mm)
Wheel base 105.9 in (2690 mm) 105.9 in (2690 mm)
Track, front 59.3 in (1505 mm) 59.3 in (1505 mm)
Track, rear 58.6 in (1488 mm) 58.6 in (1488 mm)
Roof load max. 220 lb (100 kg)
Trunk load max. 220 lb (100 kg)
J_C208_II.book Seite 304 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

305 Fuels, coolants, lubricants etc. - capacities
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Fuels, coolants, lubricants etc. – capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Center.
Model Capacity Fuels, coolants, lubricants etc.
Engine with oil filter CLK 430
CLK 55 AMG8.5 US qt (8.0 l)
8.0 US qt (7.5 l)Recommended engine oils
Automatic transmission 9.6 US qt (9.1 l) Automatic transmission fluid
Rear axle 1.4 US qt (1.3 l) Hypoid gear oil SAE 90, 85 W 90
Power steering approx. 1.1 US qt (1.0 l) MB Power steering fluid
Front wheel hubs approx. 2.1 oz (60 g) each High temperature roller bearing grease
Brake system approx. 0.5 US qt (0.5 l) MB Brake fluid (DOT 4)
Windshield/headlamp
washer systemapprox. 7.4 US qt (7.0 l) MB Windshield washer concentrate “S”
1
Cooling system approx. 11.7 US qt (11.1 l) MB Anticorrosion/antifreeze1 Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios, see
Windshield/headlamp washer system on page 256.
J_C208_II.book Seite 305 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

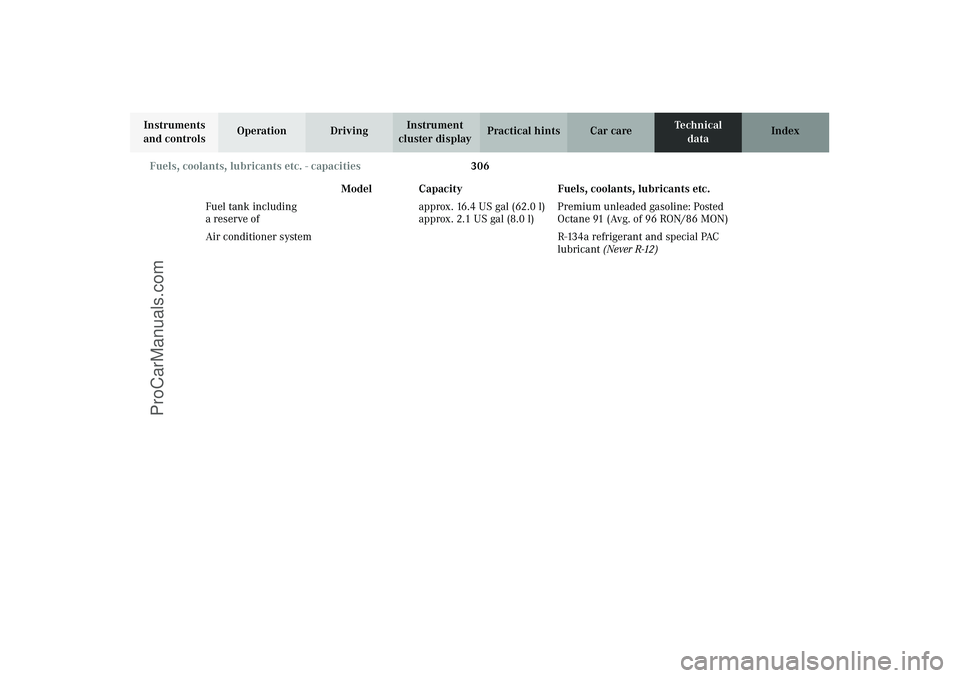

306 Fuels, coolants, lubricants etc. - capacities
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Fuel tank including
a reserve ofapprox. 16.4 US gal (62.0 l)
approx. 2.1 US gal (8.0 l)Premium unleaded gasoline: Posted
Octane 91 (Avg. of 96 RON/86 MON)
Air conditioner system R-134a refrigerant and special PAC
lubricant (Never R-12) Model Capacity Fuels, coolants, lubricants etc.
J_C208_II.book Seite 306 Donnerstag, 31. Mai 2001 10:13 10
ProCarManuals.com

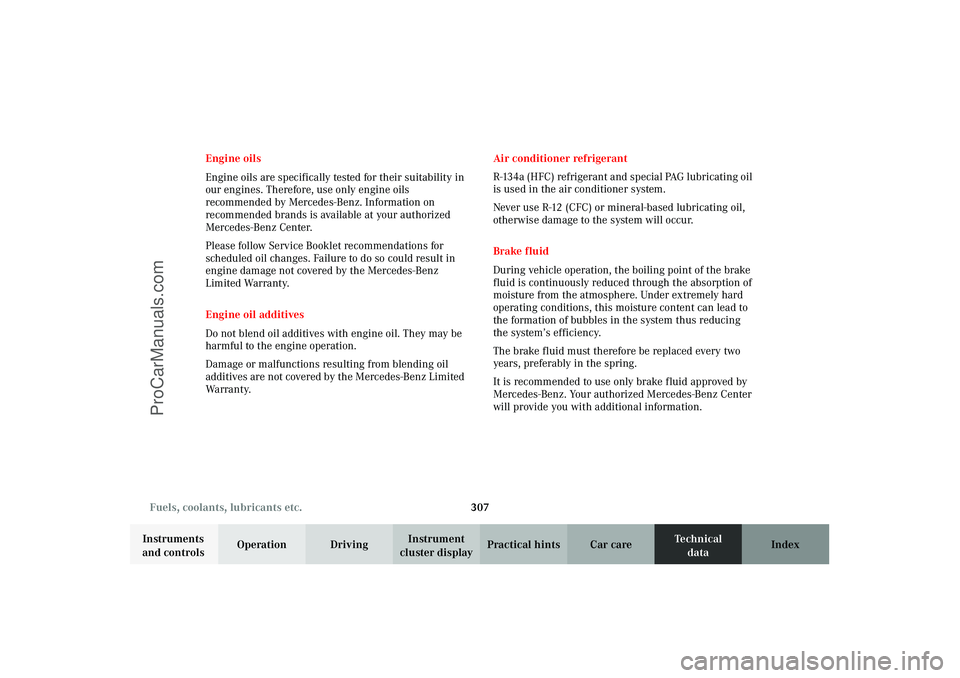

307 Fuels, coolants, lubricants etc.
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Engine oils
Engine oils are specifically tested for their suitability in
our engines. Therefore, use only engine oils
recommended by Mercedes-Benz. Information on
recommended brands is available at your authorized
Mercedes-Benz Center.
Please follow Service Booklet recommendations for
scheduled oil changes. Failure to do so could result in
engine damage not covered by the Mercedes-Benz
Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil. They may be
harmful to the engine operation.
Damage or malfunctions resulting from blending oil
additives are not covered by the Mercedes-Benz Limited
Warranty.Air conditioner refrigerant
R-134a (HFC) refrigerant and special PAG lubricating oil
is used in the air conditioner system.
Never use R-12 (CFC) or mineral-based lubricating oil,
otherwise damage to the system will occur.
Brake fluid
During vehicle operation, the boiling point of the brake
fluid is continuously reduced through the absorption of
moisture from the atmosphere. Under extremely hard
operating conditions, this moisture content can lead to
the formation of bubbles in the system thus reducing
the system’s efficiency.
The brake fluid must therefore be replaced every two
years, preferably in the spring.
It is recommended to use only brake fluid approved by
Mercedes-Benz. Your authorized Mercedes-Benz Center
will provide you with additional information.
J_C208_II.book Seite 307 Donnerstag, 31. Mai 2001 10:13 10
