MERCEDES-BENZ CLK-Class 2009 C208 Comand Manual

100 TelephoneTelephone operationInitiating an emergency callIf Telephone is locked
Press the
911
soft key.
The system opens an inquiry menu
prompting if you want to dial a “911”
call.The selection marker in the inquiry
menu should be on
Yes
.

If necessary, push the joystick to
H to select
Yes
.

Press E to confirm
Yes
if you want to
place the “911” emergency call.
The emergency call will be placed.

Wait until the emergency rescue

station answers and describe the
emergency.
If you do not want to place the emergency
call:
Push the joystick to h to select
No
when the inquiry menu appears.

Press E to confirm
No.
If Telephone is ready for operation

Press a repeatedly until the
Telephone menu is displayed.

Press 9, 1 and 1 one after the
other.

Press E.
or
Press the
Send
soft key.
or
Press k.The emergency call will be placed.

Wait until the emergency rescue
station answers and describe the
emergency.
209_MY09_A_US.book Seite 100 Montag, 26. Mai 2008 6:12 18

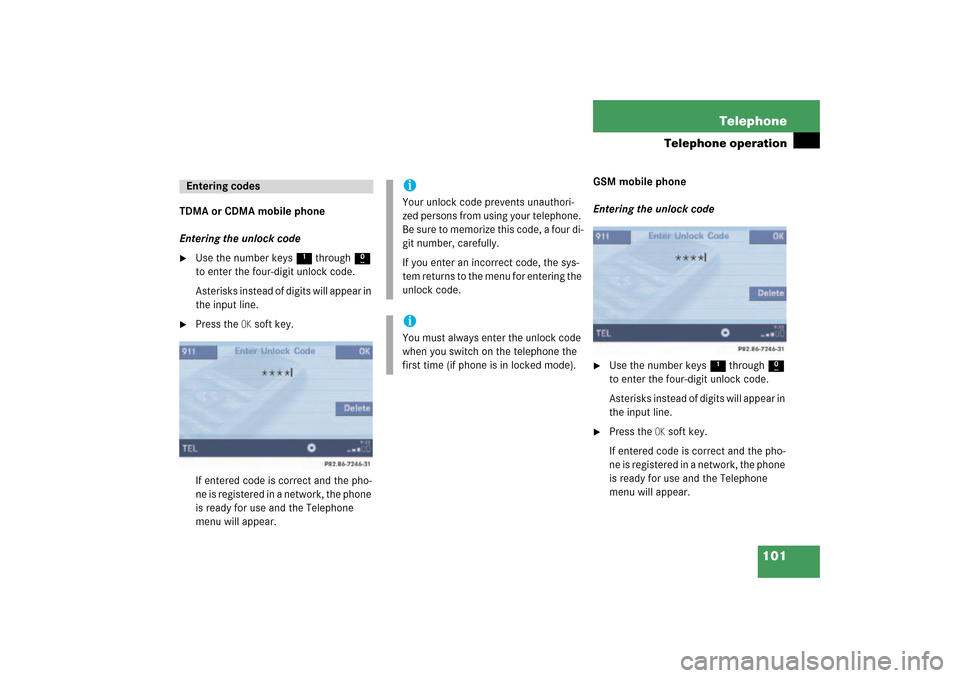

101 Telephone
Telephone operation
TDMA or CDMA mobile phoneEntering the unlock code
Use the number keys 1 through 0
to enter the four-digit unlock code.Asterisks instead of digits will appear in
the input line.

Press the
OK soft key.
If entered code is correct and the pho
-
ne is registered in a network, the phone
is ready for use and the Telephone
menu will appear.
GSM mobile phoneEntering the unlock code
Use the number keys 1 through 0
to enter the four-digit unlock code.Asterisks instead of digits will appear in
the input line.

Press the
OK soft key.
If entered code is correct and the pho
-
ne is registered in a network, the phone
is ready for use and the Telephone
menu will appear.
Entering codes
iYour unlock code prevents unauthori
-
zed persons from using your telephone.
B e s u re t o m em o ri z e t hi s c o d e , a f o u r d i
-
git number, carefully.If you enter an incorrect code, the sys
-
tem returns to the menu for entering the
unlock code.iYou must always enter the unlock code
when you switch on the telephone the
first time (if phone is in locked mode).
209_MY09_A_US.book Seite 101 Montag, 26. Mai 2008 6:12 18

102 TelephoneTelephone operation
If no SIM card is in the telephone, the
message
Please insert SIM card
(Emergency Call 911 only possible
with phone)
appears.

Insert a SIM card. Refer to the mo
-
bile phone operator’s manual.
Entry incorrect:You will hear a warning sound. The mes
-
sage
Code incorrect
will appear.

You need to re-enter your code.
Entering the PUKIf you enter your code incorrectly three
times in a row, you need to enter the PUK
number.
The PUK can only be entered at the mobile
phone. Refer to the mobile phone
operator’s manual.When the COMAND
is switched on, you
can switch to telephone operation from
any other system (e.g. radio):

Press a.The Telephone menu will appear.
Telephone menuThe telephone is ready for operation Message
Ready
and the reception strength
Ö are shown on the status bar.
Full screen messages:Phone not inserted
Plug the mobile phone into the mobile
phone cradle. Refer to the separate
mobile phone operator’s manual.
Phone not availableYour vehicle may not have a mobile phone
cradle installed and/or the telephone con
-
trol unit may not be coded properly. Con
-
tact an authorized Mercedes-Benz Center.
!If the code is entered incorrectly three
times in a row, the SIM card will be

blocked. The message
SIM-card blo
-
cked
is displayed briefly. After that the
message
PIN blocked. Please enter
PUK on cell phone
is displayed.
iThe PUK number is provided by your
telephone service provider.Switching to telephone operation
209_MY09_A_US.book Seite 102 Montag, 26. Mai 2008 6:12 18

103 Telephone
Telephone operation
The system detects an incoming call, the
phone rings.Incoming calls are indicated in a window in
any system (e.g. radio).The window shows:
the caller’s number if it is transmitted
or

the caller’s name if her or his name and
number are saved in the phone book or

Unknown
.
Accepting a call
Press k.
or
Press E to confirm
accept
.
The display will change to the
call
menu
( page
108)
. In the status
bar, the off-hook symbol will appear.
An active audio source will be muted.
You talk over the hands-free set.
Rejecting a call
Press K.
or
Push the joystick to H to highlight
re-
ject
and than press E.
Setting the volume for hands-free ope
-
rationRaising the volume
Turn the rotary control on the e but
-
ton to the right.
Lowering the volume
Turn the rotary control on the e but
-
ton to the left.
Ending a call
Press K.
or
Press the
End
soft key.
Incoming call
209_MY09_A_US.book Seite 103 Montag, 26. Mai 2008 6:12 18

104 TelephoneTelephone operationYou can use the following functions to
make a phone call:
Dialing a telephone number ( page
104)

Redial
( page
105)

Selecting an entry from the Received
calls list
( page
106)

Selecting an entry from the Dialed
numbers list
( page
106)

Use speed-dialing
( page
108)

Use quick-dialing
( page
108)

Selecting a phone book entry and
dialing the number
( page
112)
Dialing a telephone number Entering a telephone number
Open the Telephone menu ( page
102)
.

Use the number keys 1 - 0 to enter
the telephone number.
Deleting the last or several digits:
Press the
Delete
soft key once or seve
-
ral times.
Deleting all digits:
Press K.
or
Press and hold
Delete
soft key for more
than 2 seconds.
Outgoing calls
209_MY09_A_US.book Seite 104 Montag, 26. Mai 2008 6:12 18

105 Telephone
Telephone operation
Begin dialingWhen you have entered the telephone
number
Press E.
or
Press k.
or
In the Telephone menu, press the
Send

soft key.
Dialing will begin. If a name is associated
with the phone number saved in the phone
book, the name appears on the screen. In
the status bar, the off-hook symbol will ap
-
pear.COMAND will mute an active audio source.
If the person called answers the call, the
call is active. You talk over the hands-free
set.The message
Call failed
may

appear if you place an outgoing call.

Try again later.Subsequent dialingTransmitting other dial tones:
During a call you can press the number
keys 1 through 0, # and *.
Ending a call
Press K.
or
Press the
End
soft key.
Redial
Press k.
or
Press the
Dialed#
soft key.
The Dialed numbers list will appear.
The most recently dialed number is
highlighted.

Push the joystick g or G to select
the desired entry.
To dial the selected number:
Press E.
or
Press k.
or
Press the
Send
soft key.
209_MY09_A_US.book Seite 105 Montag, 26. Mai 2008 6:12 18

106 TelephoneTelephone operationSelecting an entry from the Received
calls listThe COMAND automatically generates a
list of the last 10 calls received. The list is
sorted chronologically with the most
recently received call at the top of the list.Displaying the list
In the Telephone menu
( page
102)
,
press the
Recvd#
soft key.
The list is displayed and the most
recently received call is highlighted.
Received calls listThe status bar shows:
the caller’s name if her or his name and
number are stored in the phone book

the message
Unknown
if no entry is
available

the telephone number
You can select the following functions:
Changing the list display

Selecting an entry and begin dialing

Ending a call
( page
105)
Changing the list display
Press the
123
soft key.
The display changes to numbers.
or
Press the
ABC
soft key.
The display changes to names.
Selecting an entry and begin dialing
Push the joystick to g or G to
select the desired entry.

Press E.
or
Press k.
or
Press the
Send
soft key.
The telephone dials the number.
209_MY09_A_US.book Seite 106 Montag, 26. Mai 2008 6:12 18

107 Telephone
Telephone operation
Selecting an entry from the Dialed num
-
bers listThe COMAND automatically generates a
list of the last 10 numbers dialed. The list
is sorted chronologically with the most
recently dialed number at the top of the
list.Displaying the list
In the Telephone menu
( page
102)
,
press the
Dialed#
soft key.
The list is displayed and the most
recently dialed number is highlighted.
Dialed numbers listThe status bar shows:
the caller’s name if her or his name and
number are stored in the phone book

the message
Unknown
if no entry is
available

the telephone number
You can select the following functions:
Changing the list display
( page
106)

Selecting an entry and begin dialing ( page
106)

Ending a call
( page
105)
Toggling between lists
Push the joystick to H or h to
select the desired list.
Missed callsIf there are one or more missed calls avai
-
lable on the mobile phone, a correspon
-
ding message will appear.
Press the
Back
soft key or press E to
return to the Telephone menu.
209_MY09_A_US.book Seite 107 Montag, 26. Mai 2008 6:12 18

108 TelephoneTelephone operationSpeed-dialingFor all memory locationsAt the mobile phone you can save
telephone numbers in the speed-dialing
memory and use them. Refer to the mobile
phone operator’s manual.You can also use speed-dialing at the
COMAND (only mobile phone memory
locations 1-99).You can enter up to 2 digits.
Open the Telephone menu ( page
102)
.
Memory locations with up to two digits:
Use the number keys 1 to 9 to
enter the memory location number.

Press E.
or
Press k.
or
Press the
Send
soft key.
The telephone dials the saved number.
Ending a call (
 page
105).
Quick-dialingQuick dialing can be used on memory loca
-
tions 1-9.
Open the Telephone menu ( page
102)
.

Press one of the number keys 1 - 9
longer than 2 seconds.The telephone dials the saved number.
Ending a call (
 page
105).
If the person called or you answer a call,
the call is active. The call indication is
displayed. Call menuYou talk over the hands-free set. You can
set the volume for the hands-free
operation
( page
103)
.
The status bar indicates the call time and
the off-hook symbol.Active call
209_MY09_A_US.book Seite 108 Montag, 26. Mai 2008 6:12 18

109 Telephone
Telephone operation
The following functions can be used during
a call:
Ending an active call

Switch on/off hands-free microphone

Setting the volume for hands-free ope
-
ration
( page
103)
Ending an active call
Press K.
or
Press the
End
soft key.
The Telephone menu will appear.
Switching hands-free microphone on/
off (available if microphone is switched
on)The microphone status is indicated by the
status of the
Mic
Off
or the
Mic
On
soft key.
Press the
Mic Off
soft key.
The microphone is switched on. The
soft key status changes accordingly.

Press the
Mic
On soft key.
The microphone is switched off. The
soft key status changes accordingly.When the microphone is off, the other
party cannot hear you. You can still
hear your partner.
Three-way callingWhen a call is active and you receive a se
-
cond call on your mobile phone, a tone re
-
presenting a second caller can be heard.
You can accept the second call, toggle bet
-
ween the active (first) and the second call
and make a conference.Accepting a second call
Press k.You now have two calls, the second call
is active. The formerly active call is put
on hold.
Toggling between the active and the wai
-
ting callTDMA, CDMA
Press k.The active call is put on hold and the
call formerly on hold is now active.
Microphone
status
Soft key status

On
Mic Off
Off
Mic
On
209_MY09_A_US.book Seite 109 Montag, 26. Mai 2008 6:12 18
