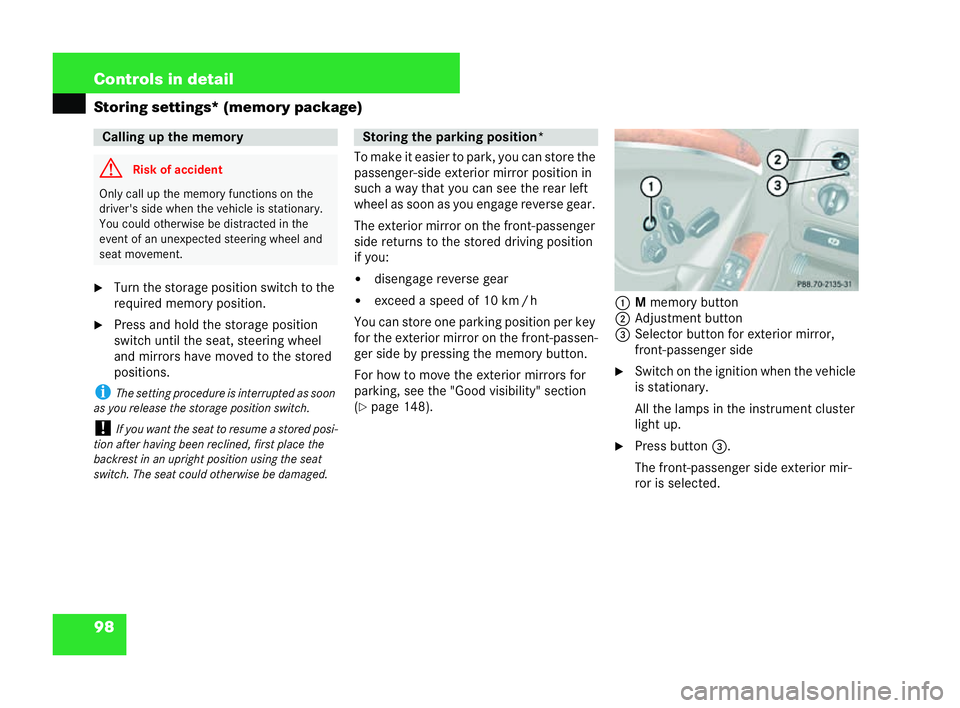

98 Controls in detail
Storing settings* (memory package)
6
Turn the storage position switch to the
required memory position.
6 Press and hold the storage position
switch until the seat, steering wheel
and mirrors have moved to the stored
positions.
i The sett ing pro cedu re is interrup ted as soon
as you release the storage position switch.
! Ifyou want the seat to resu meast ored posi-
tion after having bee nreclined, first place the
backrest in an upright position usi ngthe seat
swi tch. The seat could otherwise be damaged. To make it easier to park, you can store the
passenger-side exterior mirror position
in
such a way that you can see the rear left
wheel as soon as you engage reverse gear.
The exterior mirror on the front-passenger
side returns to the stored driv ing position
if you:
! disen gage reverse gear
! exceed a speed of 10 km /h
You can store one parking position per key
for the exterior mirror on the front-passen-
ge r side by pressin gthe memory button.
For how to move the exterior mirrors for
park ing, see the "Good visibility" section
( = pa ge 148). 1
Mmemory button
2 Adjustment button
3 Select orbutton for exterior mirror,
front-passenger side
6 Switch on the ignition when the vehicle
is stationary.
All the lamps in the instrument cluster
light up.
6 Press button 3.
The front-passenger side exterior mir-
ror is selected. Calling up the memory
G
Riskofaccident Only call up the memo
ry functionson the
driver's side when the vehicle is stationary.
You could otherwise be distracted in the
event of an unexpected steering wheel and
se at movemen t. Storing the parking position*
P88.70-2135-31209en_d2.boo Seite
98Diens tag, 25 .Mai 2004 7:26 19

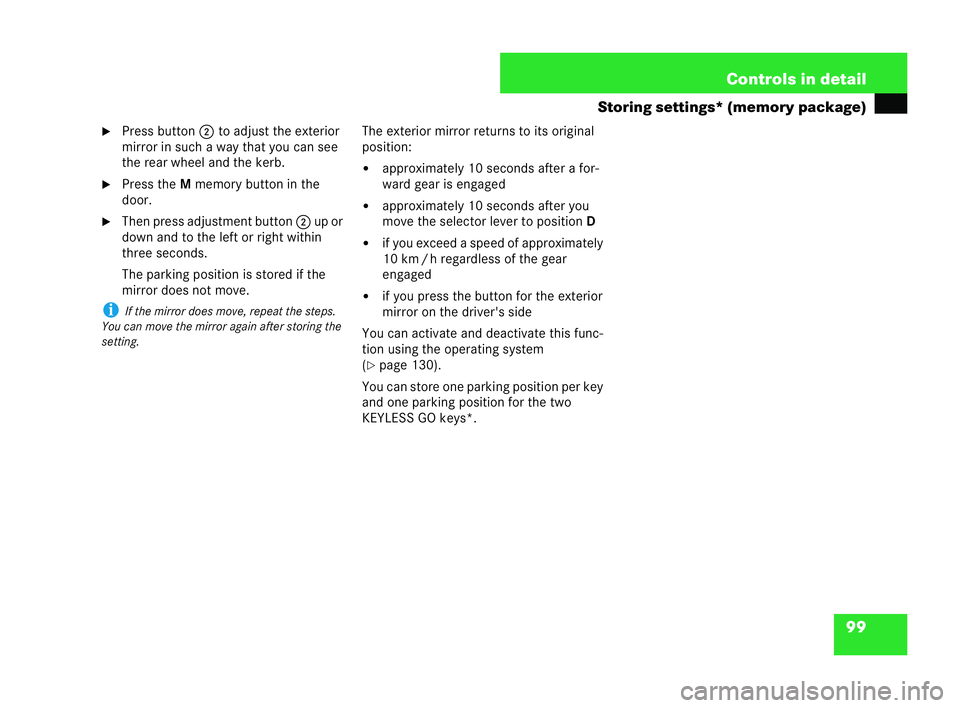

99
Controls in detail
Storing settings* (memory package)
6 Press button 2to adjust the exterior
mirror in such a way that you can see
the rear wheel and the kerb.
6 Press the Mmemory button in the
door.
6 Then press adjustment button 2up or
down and to the left or right within
three seconds.
The parking position is stored if the
mirror does not move.
i Ifth e mirror doe smove, repeat the step s.
Yo u ca n move the mirror again after storing the
setting. The exterior mirror returns to
its original
position:
! approximately 10 seconds after a for-
ward gear isengaged
! approximately 10 seconds after you
move the selector lever to position D
! ifyou exceed a speed of approximately
10 km /hregardless of the gear
engaged
! ifyou press the button for the exterior
mirror on the driver's side
You can activate and deactivate this func-
tion using the operating system
( = page 130).
You can store one parking position per key
and one parking position for the two
KEYLESS GO keys*. 209en_d2.boo Seite
99Diens tag, 25 .Mai 2004 7:26 19

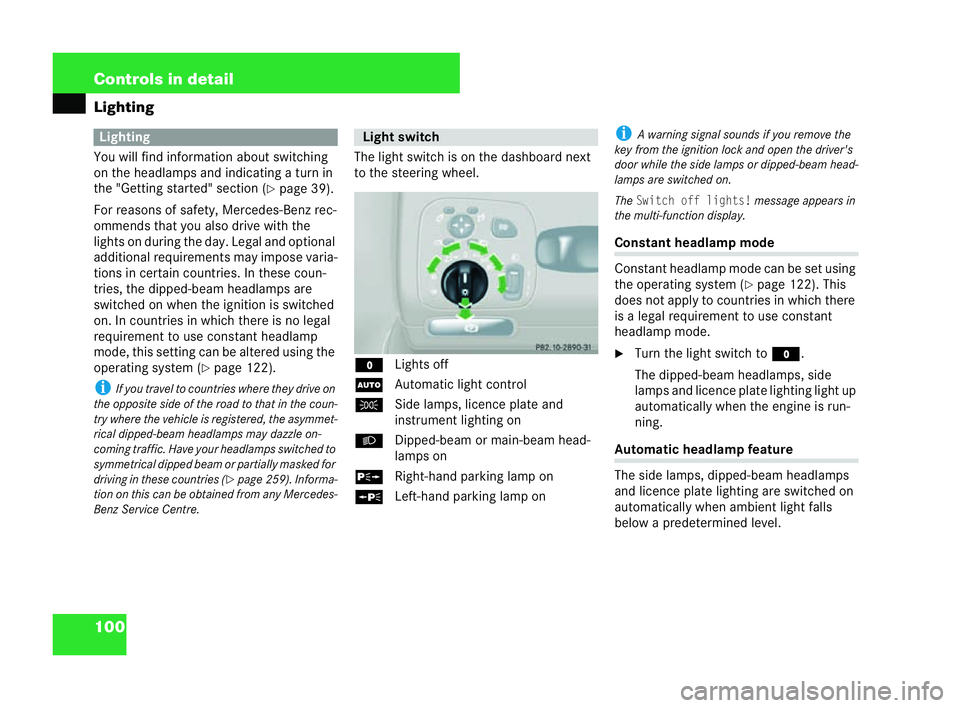

100 Controls in detail
Light
ing
You will find information about switching
on the headlamps and indicating a turn in
the "Getting started" section ( =page 39).
For reasons of safety, Mercedes-Benz rec-
ommends that you also drive with the
lights on during the day. Legal and optional
additional requirements may impose varia-
tions in certain countries. In these coun-
tries, the dipped-beam headlamps are
switched on when the ignition is switched
on. In countries in which there is no legal
requirement to use constant headlamp
mode, this setting can be altered using the
operating system ( =pa ge 122).
i If you travel to countr ies where they drive on
the opposite side of the road to that inthe coun-
try where the vehicle is registe red, the asymmet-
rical dipped-beam headlamps may dazzle on-
co ming traffic .H ave your head lampsswitche dto
symmetrical dipped beam or partially masked for
drivi nginthe secou ntrie s (=
page 259). Informa-
tion on this can be obtai ned from any Merced es-
Benz Service Centre. The light switch is on the dashboard
next
to the steering whee l.
M Lights off
U Automatic light control
C Side lamps, licence plate and
instrument lighting on
B Dipped-beam or main-beam head-
lamps on
ˆ Right-hand parking lamp on
‚ Left-hand pa rking lamp on i
Awa rning signal sou nds if you remove the
key from the ignition lock and open the driver's
door while the side lamps ordipped-bea mhead-
lamps are switched on.
TheSwitch off lights!message appears in
the multi-function display. Constant headlamp mode
Constant headlamp mode can be set using
the operating system (
=pag e122) . This
does not apply to countries inwhich there
is a lega lrequirement to use constant
hea dlam pmod e.
6 Turn the light switch to M.
The dipped-beam headl amps, side
lamps and licence plate lighting light up
automatical lywhen the engine is run-
ning. Automatic headlamp feature
The side lamps, dipp
ed-beam headlamps
and licence plate lighting are switched on
automatically when ambient light falls
below a predetermined level. Lighting Light swi
tch P 82
.10-2890-31 209en_d2.boo Seite
100 Dienstag, 25. Mai 2004 7:26 19

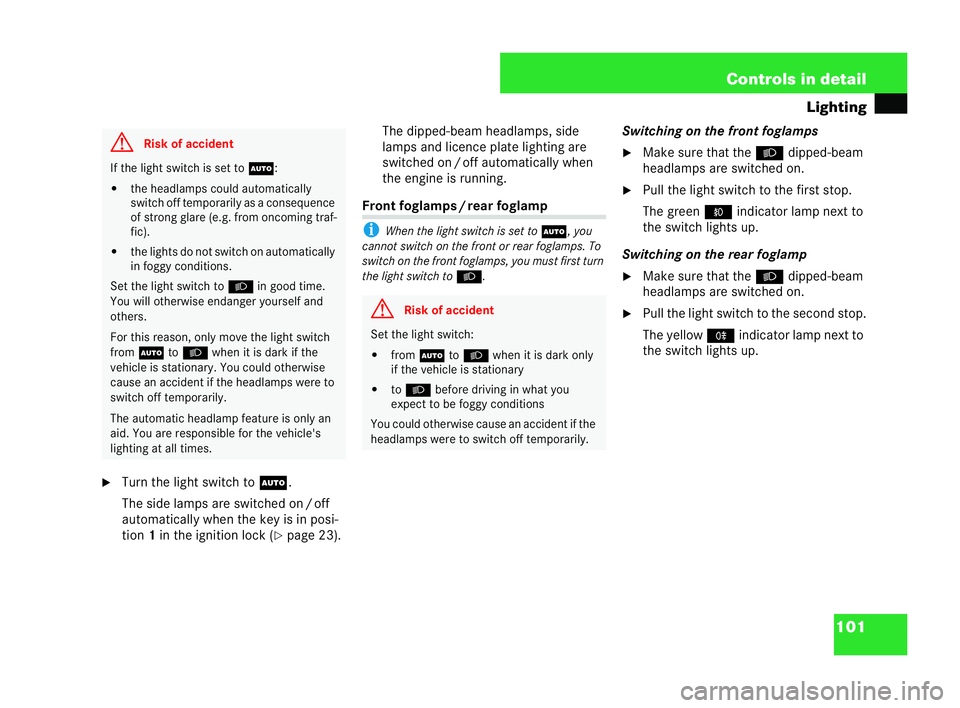

101
Controls in detail
Lighting
6 Turn the light switch to U.
The side lamps are sw itched on /off
automatically when the key is in posi-
tion 1in the ignition lock (
=page 23). The dipped-beam headlamps, side
la
mps and licence plate lightin gare
switched on /off automatically when
the eng ine is running. Fr
ont foglamp s/rear foglamp
i When the light switch is set to U, you
ca nnot switch on the front or rear foglamps. To
swit chon the front foglamps, you must first turn
th e light switch to B. Switchi
ngon th e front foglamps
6 Make sure that the Bdipped-beam
headlamps are switched on.
6 Pull the light switch to the first stop.
The green ‡indicator lamp nextto
the switch lights up.
Switching on the rear foglamp 6 Make sure that the Bdipped-beam
headlamps are switched on.
6 Pull the light swi tch to the second stop.
The yellow †indicator lamp next to
the switch lights up. G
Risk of accident If the light switch is set to
U:
! theheadlamps could automatically
switch of ftemporarily as a consequen ce
of strong glare (e.g. fro mon comi ng traf-
fic).
! the lights do not switch on automatically
in foggy conditions.
Set the light switch to Bingood time.
You will otherwise endanger yourself and
others.
For this reason ,only move the light switch
from U toB when it is dark if the
vehicle is stationary. You could otherwise
cause an accident if the headlamps were to
switch off temporarily.
The automatic headlamp fe ature is onlyan
aid. You are responsible for the vehic le's
lighting at all times. G
Risk of accident Set the light switch:
!
from U toB when it is dark only
if the vehicle is stationary
! toB before dri ving in what you
expect to be foggy cond itions
You could otherwise cause an accident if the
he adlamps were to switch off temporarily. 209en_d2.boo Seite
101 Dienstag, 25. Mai 2004 7:26 19

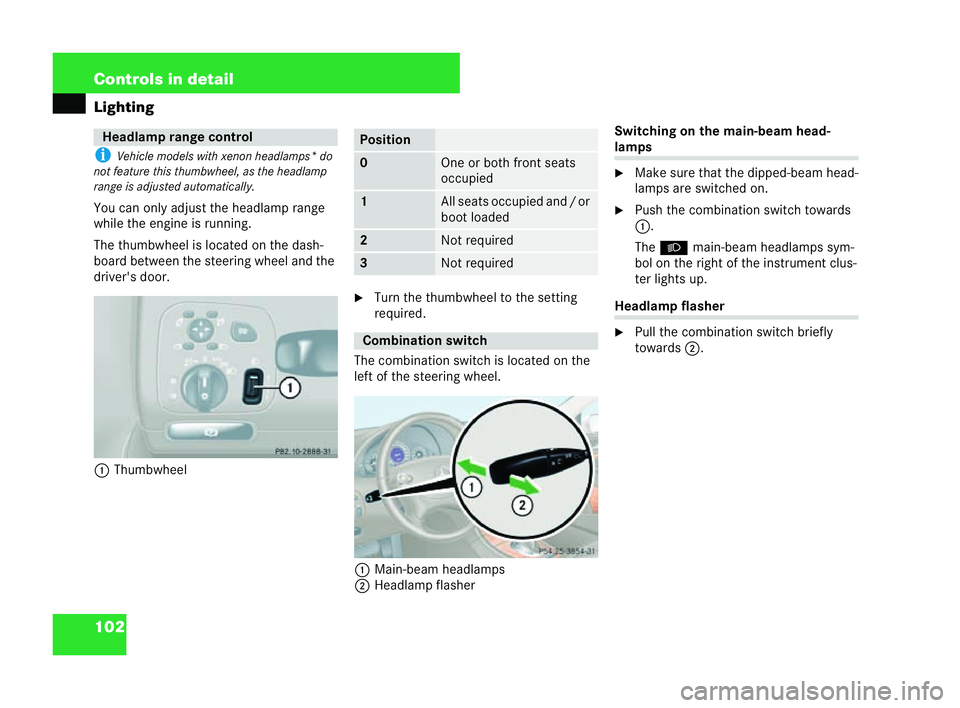

102 Controls in detail
Light
ing
i Vehicle models with xenon hea dlamps *do
not feature this thumbwheel, as the headlamp
range is adjusted automatically.
You can only adjust the headlamp range
while the engine is running.
The thumbwheel is located on the dash-
board between the steeri ngwheel and the
driver's door.
1 Thumbwheel 6
Turn the thumbwheel to the setting
required.
The combination switch is located on the
left of the steering wheel.
1 Main-beam headlamps
2 Headlamp flasher Switching
onthe main-beam head- lamps
6
Make sure that the dipped-beam head-
lamps are switched on.
6 Push the combination switch towards
1.
The B main-beam head lamps sym-
bol on the right of the instrume ntclus-
ter lights up. Headlamp fl
ashe r
6 Pull the combination switch briefly
towards 2. Head
lamp range control P
82.10-2888-31 neu Position
0 One or both front seats
occu
pied 1 All seats occupied and
/or
boot loaded 2 Not required
3 Not required
Combi
nation switch P 54.25-3854-31 neu209en_d2.boo Seite
102 Dienstag, 25. Mai 2004 7:26 19

103
Controls in detail
Lighting
When you turn, the turning lamps illumi-
nate more effect ively the section of road
into which you are turning. Switching
onthe turning lamps
6 Make sure that the dipped-beam head-
lamps are switched on.
6 Operate the turn signal.
The corresponding front foglamp
switches on and shines in the same
direction as the turn signal which is
flashing. Switching
offthe turning lamps
6 Switch off the turn signal.
The corresponding front foglamp
switches off.
i The turning-lamp function is deactivated if
you drive faster than 40 km /h.The hazard warning lamps
still operate if
the ignition is switched off. They switch on
au tomatically when an airbag is triggered.
The switch is located on the centre con-
sole.
1 Hazard warning lamps switch Switchi
ng onthe ha zard warning lamps
6 Press hazard warning lamps switch 1.
All the turn signal lamps flash. i
When you indicate a turn, only the turn sig-
nal lamps onthat side light up. Switching off the hazard warning lamps
6
Press hazard warning lamps switch 1
ag ain.
i If the hazard warning lamps have been
swi tched onautomatically ,pre ssthe hazard
warning lamps switch twice.
When you switch off the ignition, the fol-
lowing light up ifit is dark:
! Side lamps
! Tail lamps
! Licence plate lighting
! Front fog lamps
If you open a door and then close it again,
the delayed sw itch-off time set in the oper-
ating system ( =page 123) begins to count
down. The exterior lighting switch esoff
after the delayed switch-o fftime has
elapsed. Tu
rning la mps* Hazard warning la
mps P
54.25-3814-31 neu Exterior lighting delayed switch-
off 209en_d2.boo Seite
103 Dienstag, 25. Mai 2004 7:26 19

104 Controls in detail
Light
ing i
You can reactivate thi sfunction within ten
mi nutes by ope ning a door. If neither of the
doors is opened aft er the engine is swit ched off
or if a door is not closed after it has been
ope ned, the exterior lighting goe sout after
60 seconds.
Dea ctivat ing the delayed sw itch-off function
temp orarily
6 After stopping the engine, turn the key
to position 0in the ignition lock, then
to position 2and then bac kto position
0 again (
=pag e23).
The delayed switch-off function is auto-
ma tically reactivated the next time the
engine is switched on.
You can set or deactivate the delayed
switch-off function using the operating
system ( =page 12 3). If you set the
locator lighting /surround
lighting toOnin the operating system
(
= pag e123), the following light up if it is
dark and you unlock the vehicle centrally:
! Side lamps
! Tail lamps
! Licen ceplate lighting
! Front foglamps
The lights go out: ! when you open the dr iver's door
! when you switch on the ignition
! after amaximum of 40 seconds Illustr
ation taken from a CLK Coupé with
sliding /tilting sun roof*
1 Rear interior lighting
2 Right-ha ndreading lamp
3 Automatic function off
4 Automatic function on
5 Front interior lighting on
6 Left-hand reading lamp Locator lighting
/surround lighting Interio
r lighting P 82.20-2626-31 neu209en_d2.boo Seite
104 Dienstag, 25. Mai 2004 7:26 19

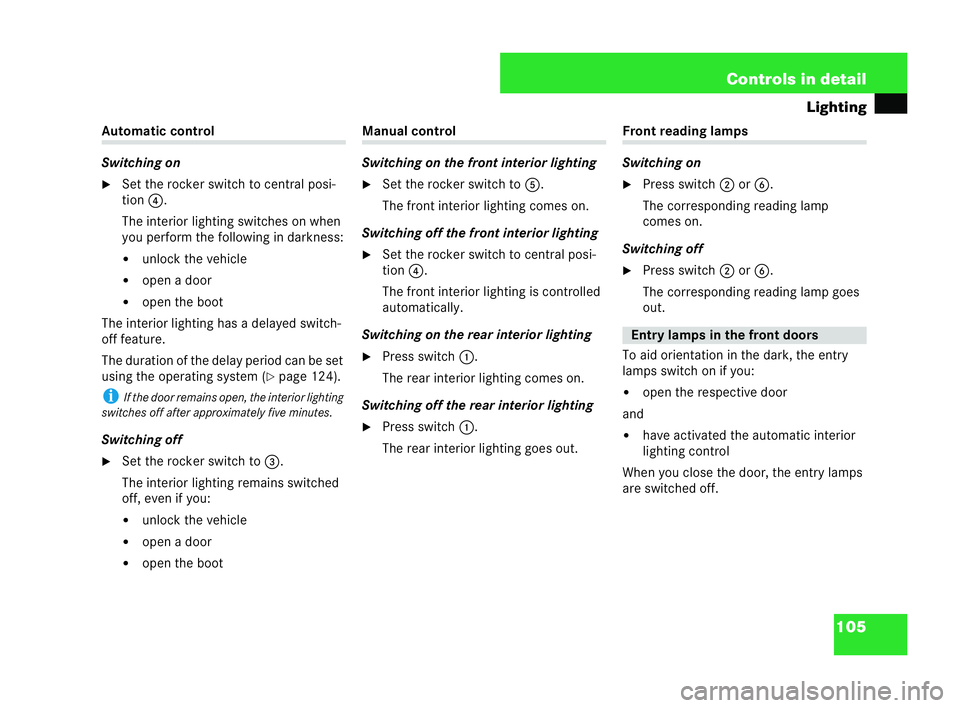

105
Controls in detail
Lighting Automatic control
Swi
tching on
6 Set the rocker switch to central posi-
tion 4.
The interior lighti ngswi tches on when
you perform the following indarkness:
! unlock the vehicle
! open a door
! open the boot
The interior lighting has a delayed switch-
off feature.
The duration of the delay period can be set
using the operating system ( =page 124).
i Ifth e door remai nsopen, the interior lighting
swit ches offafter approximately five min utes.
Switching off
6 Set the rocker switch to 3.
The interior lighti ngremains switched
off ,even if you:
! unlock the vehicle
! open a door
! open the boot Ma
nual con trol
Switching on the front interior lighting
6 Set the rocker switch to5 .
The front interior lighting comes on.
Switching off the fro ntinterior lighting
6 Set the rocker sw itch to central posi-
tion 4.
The front interior lighting is controlled
automatically.
Switching on the rear interior lighting
6 Press switch 1.
The rear interior lighting comes on.
Switching off the rear interior lighting
6 Press switch 1.
The rear interior lighting goes out. Fr
on t reading lamps
Switch ing on
6 Pres s switch 2or6.
The corresponding reading lamp
comes on.
Switching off 6 Press switch 2or6.
The corresponding reading lamp goes
out.
To aid orientation in the dark, the entry
lamps switch on if you: ! open the res pective door
and ! have ac tivated the automatic interior
lighting control
When you close the door, the entry lamps
are sw itched off. En
try lamps in the front doors 209en_d2.boo Seite
105 Dienstag, 25. Mai 2004 7:26 19

106 Controls in detail
Instrument cluster
You will find a full ov
erview of the instru-
ment cluster in the "At a glance" sect ion
( = page 12).
1 Reset button
The displ ays in the instrument cluster are
ac tivated when you:
! open a door
! switch on the ignition
! press the reset button
! switch on the lights
You can modify the instrument cluster dis-
play settings, e.g. the language selection,
using the operating system ( =pa ge 108). 6
Make sure that the standard displ ayis
shown in the mu lti-function display
(= page 112).
6 Press and hold the reset button 1
until the trip me ter is reset. You can adjust the brightness of th
einstru-
ment lighting using reset button 1.
i The instrument lighti ngautomatically
adjusts itself to the brightness of the ambient
light. Brighter
6
Turn reset button 1clockwise.
The instrument lighting becomes
brighter. Dimmer
6
Turn the reset but tonan ti-clockwise.
The instrument lighting becomes dim-
mer. Instrument cluster
G
Riskofaccident No
messages are displayed if the instrument
clu ster or multi-functio n display fail. You
could fail to rec ognise dangers and thereby
endanger yours elf or others.
Contact a qualified speci alist workshop
im me diately, e.g. a Mercedes-Benz Service
Centre, and have the instrument cluster or
multi-function display checked. Resetting
the trip met er Adjusting the instrument lighting209en_d2.boo Seite
106 Dienstag, 25. Mai 2004 7:26 19

107
Controls in detail
Instrument cluster

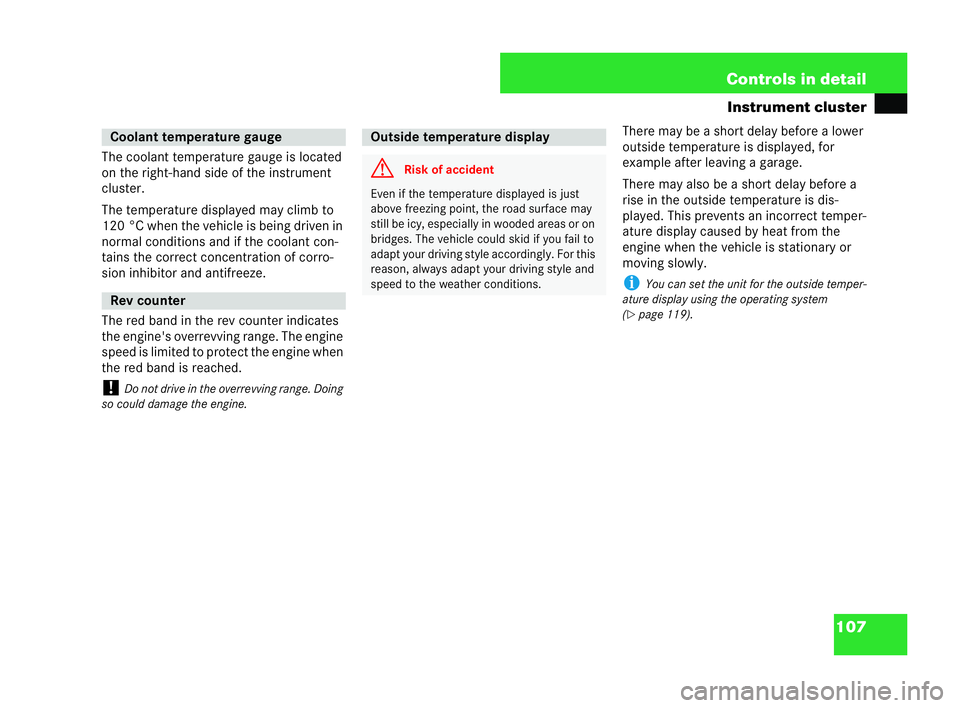

The coolant temperature gauge is located
on the right-hand side of the instrument
cluster.
The temperature displayed may climb to
120 °Cwhen the vehicle is being driven in
normal conditions and if the coolant con-
tains the correct concentration of corro-
sion inhibitor and antifreeze.
The red band in the rev counter indicates
the engine's overrevving range. The engine
speed is limited to protect the engine when
the red band is reached.
! Do not driv ein the overrevving range. Doing
so could damage the engine. There may be a short delay before a lower
outside temperature is displayed, for
example after leaving a garage.
There may also be a short delay before a
rise in the outside temperature is dis-
played. This prevents an incorrect temper-
ature displ
aycaused by heat from the
engine when the vehicle is stationary or
mo ving slowly.
i You can set the unit for the out side temper-
ature display using the operating syst em
( =
page 119). Co
olant temperature gauge Rev counter Outside temperature displ
ay G
Risk of accident Even if the temperature displayed is just
above freezing point, the road
surface may
still be icy, especially inwooded areas or on
br idges. The vehicle could skid if you fail to
adapt your driving style accordingly. For this
reason, always adapt your driving style and
speed to the weather conditions. 209en_d2.boo Seite
107 Dienstag, 25. Mai 2004 7:26 19
