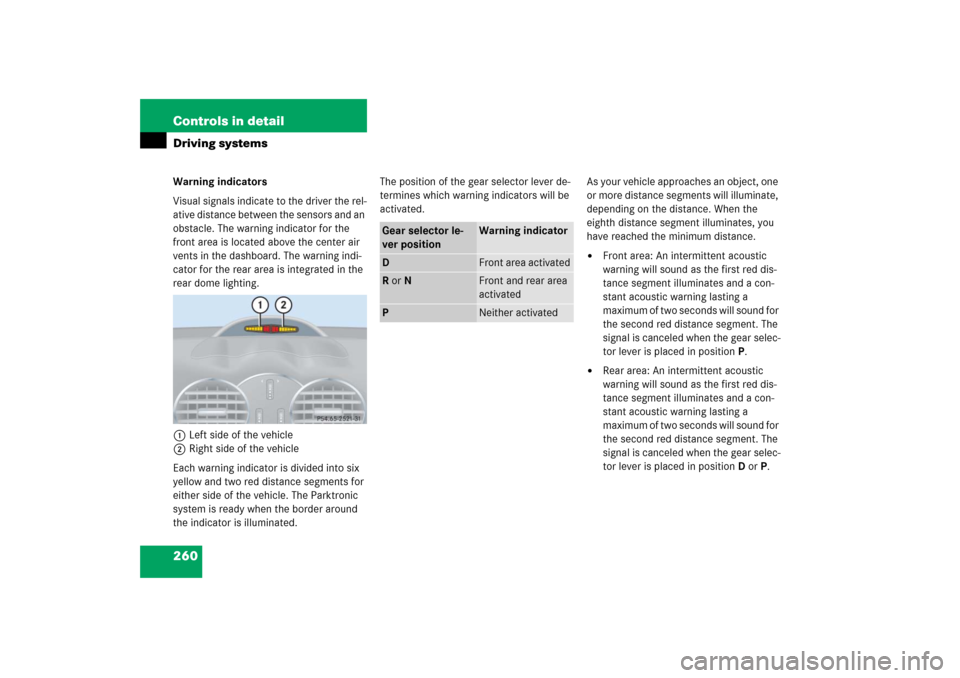

260 Controls in detailDriving systemsWarning indicators
Visual signals indicate to the driver the rel-
ative distance between the sensors and an
obstacle. The warning indicator for the
front area is located above the center air
vents in the dashboard. The warning indi-
cator for the rear area is integrated in the
rear dome lighting.
1Left side of the vehicle
2Right side of the vehicle
Each warning indicator is divided into six
yellow and two red distance segments for
either side of the vehicle. The Parktronic
system is ready when the border around
the indicator is illuminated.The position of the gear selector lever de-
termines which warning indicators will be
activated.As your vehicle approaches an object, one
or more distance segments will illuminate,
depending on the distance. When the
eighth distance segment illuminates, you
have reached the minimum distance.


Front area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of two seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in positionP.


Rear area: An intermittent acoustic
warning will sound as the first red dis-
tance segment illuminates and a con-
stant acoustic warning lasting a
maximum of two seconds will sound for
the second red distance segment. The
signal is canceled when the gear selec-
tor lever is placed in position DorP.
Gear selector le-
ver position
Warning indicator
D
Front area activated
R or N
Front and rear area
activated
P
Neither activated

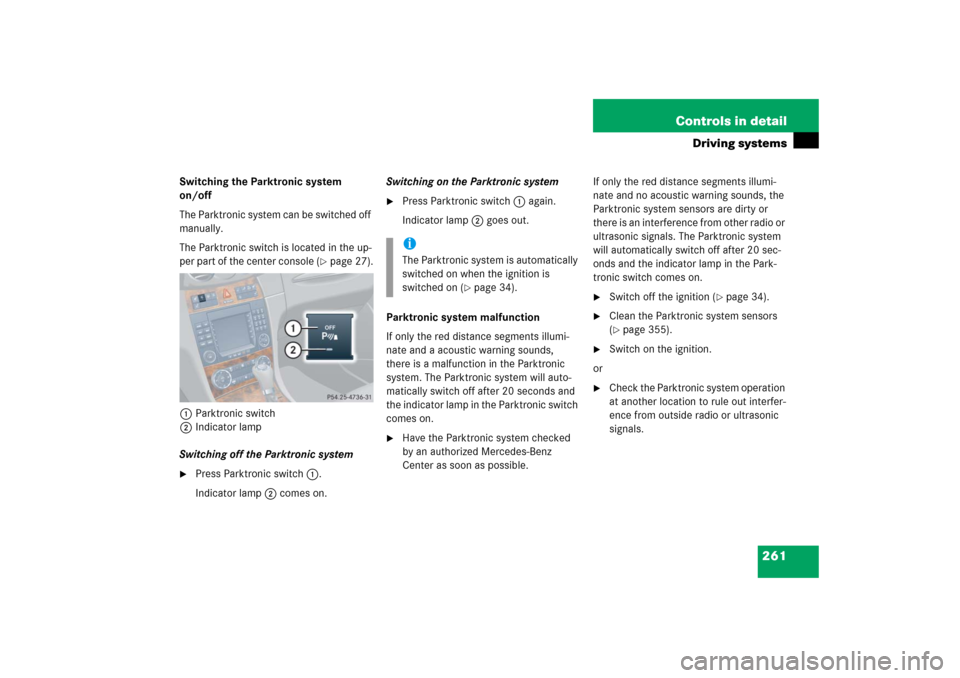

261 Controls in detail
Driving systems
Switching the Parktronic system
on/off
The Parktronic system can be switched off
manually.
The Parktronic switch is located in the up-
per part of the center console (
page 27).
1Parktronic switch
2Indicator lamp
Switching off the Parktronic system

Press Parktronic switch1.
Indicator lamp2 comes on.Switching on the Parktronic system

Press Parktronic switch1 again.
Indicator lamp2 goes out.
Parktronic system malfunction
If only the red distance segments illumi-
nate and a acoustic warning sounds,
there is a malfunction in the Parktronic
system. The Parktronic system will auto-
matically switch off after 20 seconds and
the indicator lamp in the Parktronic switch
comes on.

Have the Parktronic system checked
by an authorized Mercedes-Benz
Center as soon as possible.If only the red distance segments illumi-
nate and no acoustic warning sounds, the
Parktronic system sensors are dirty or
there is an interference from other radio or
ultrasonic signals. The Parktronic system
will automatically switch off after 20 sec-
onds and the indicator lamp in the Park-
tronic switch comes on.

Switch off the ignition (
page 34).

Clean the Parktronic system sensors
(page 355).

Switch on the ignition.
or

Check the Parktronic system operation
at another location to rule out interfer-
ence from outside radio or ultrasonic
signals.
iThe Parktronic system is automatically
switched on when the ignition is
switched on (
page 34).

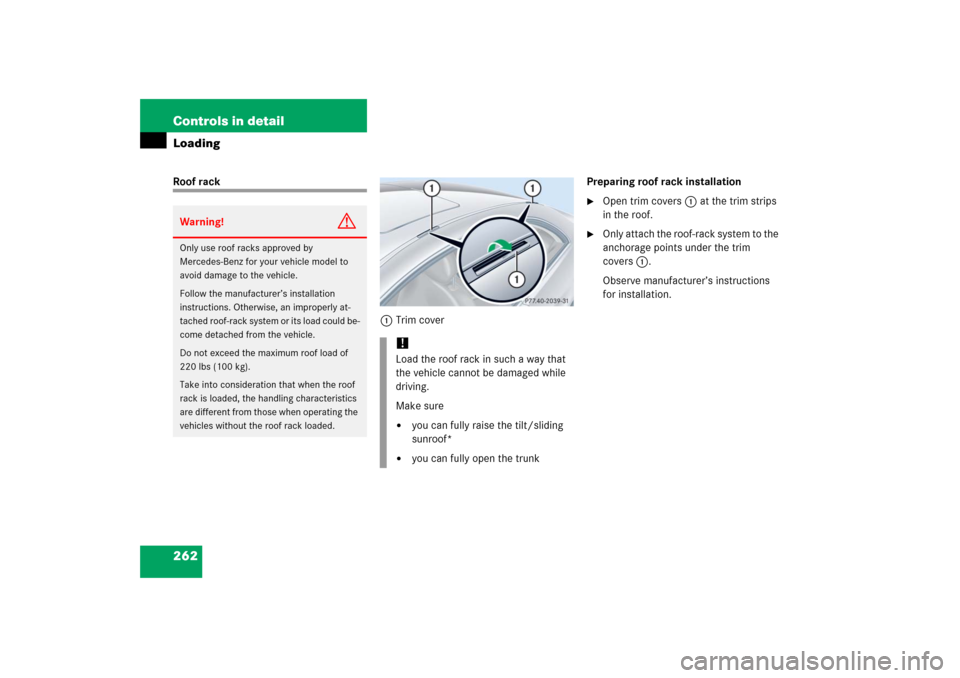

262 Controls in detailLoadingRoof rack
1Trim coverPreparing roof rack installation

Open trim covers1 at the trim strips
in the roof.

Only attach the roof-rack system to the
anchorage points under the trim
covers1.
Observe manufacturer’s instructions
for installation.
Warning!
G
Only use roof racks approved by
Mercedes-Benz for your vehicle model to
avoid damage to the vehicle.
Follow the manufacturer’s installation
instructions. Otherwise, an improperly at-
tached roof-rack system or its load could be-
come detached from the vehicle.
Do not exceed the maximum roof load of
220 lbs (100 kg).
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
!Load the roof rack in such a way that
the vehicle cannot be damaged while
driving.
Make sure

you can fully raise the tilt/sliding
sunroof*


you can fully open the trunk

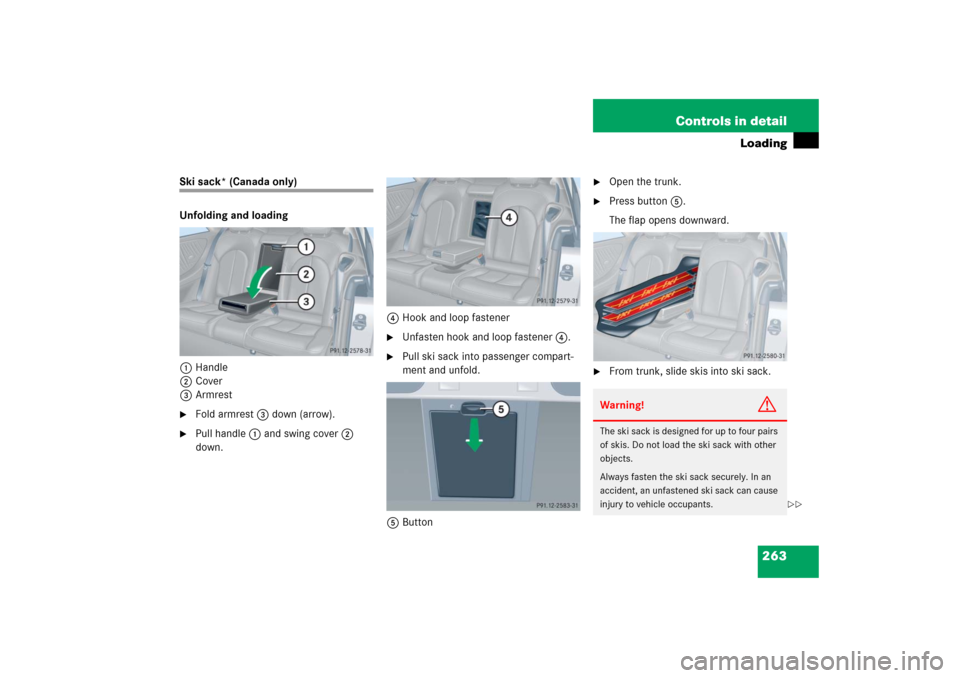

263 Controls in detail
Loading
Ski sack* (Canada only)
Unfolding and loading
1Handle
2Cover
3Armrest
Fold armrest3 down (arrow).

Pull handle1 and swing cover2
down.4Hook and loop fastener

Unfasten hook and loop fastener4.

Pull ski sack into passenger compart-
ment and unfold.
5Button

Open the trunk.

Press button5.
The flap opens downward.

From trunk, slide skis into ski sack.Warning!
G
The ski sack is designed for up to four pairs
of skis. Do not load the ski sack with other
objects.
Always fasten the ski sack securely. In an
accident, an unfastened ski sack can cause
injury to vehicle occupants.


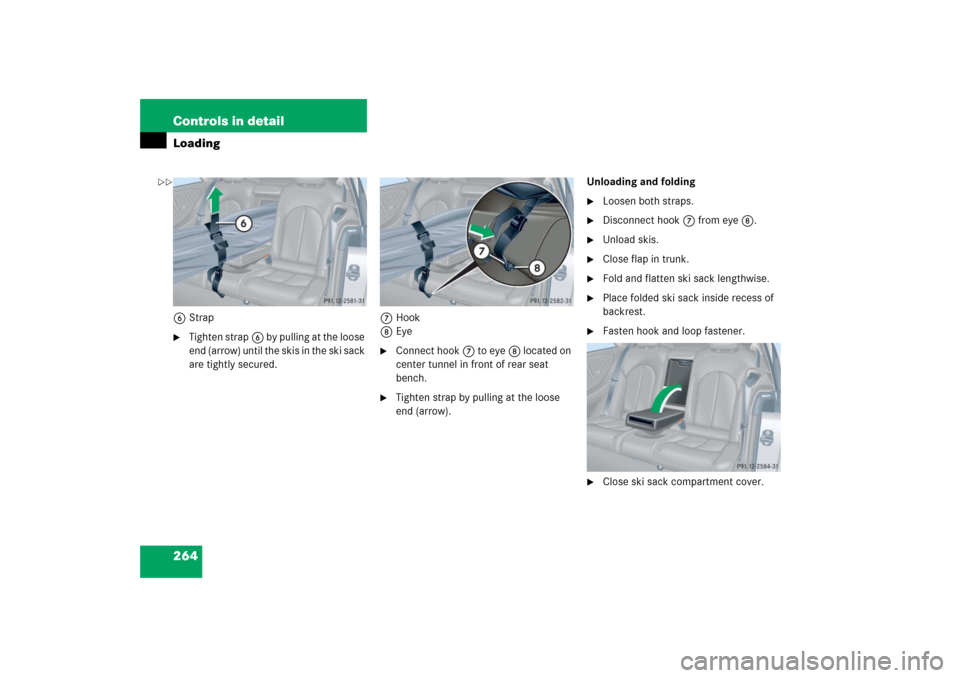

264 Controls in detailLoading6Strap
Tighten strap6 by pulling at the loose
end (arrow) until the skis in the ski sack
are tightly secured.7Hook
8Eye

Connect hook7 to eye8 located on
center tunnel in front of rear seat
bench.

Tighten strap by pulling at the loose
end (arrow).Unloading and folding

Loosen both straps.

Disconnect hook7 from eye8.

Unload skis.

Close flap in trunk.

Fold and flatten ski sack lengthwise.

Place folded ski sack inside recess of
backrest.

Fasten hook and loop fastener.

Close ski sack compartment cover.


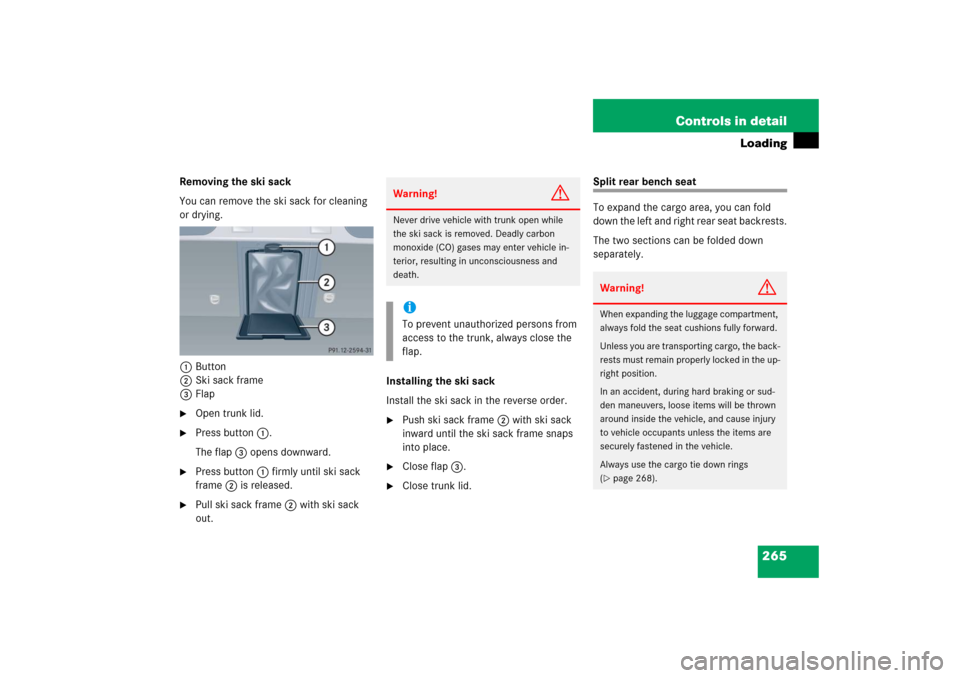

265 Controls in detail
Loading
Removing the ski sack
You can remove the ski sack for cleaning
or drying.
1Button
2Ski sack frame
3Flap
Open trunk lid.

Press button1.
The flap3 opens downward.

Press button1 firmly until ski sack
frame2 is released.

Pull ski sack frame2 with ski sack
out.Installing the ski sack
Install the ski sack in the reverse order.

Push ski sack frame2 with ski sack
inward until the ski sack frame snaps
into place.

Close flap3.

Close trunk lid.
Split rear bench seat
To expand the cargo area, you can fold
down the left and right rear seat backrests.
The two sections can be folded down
separately.
Warning!
G
Never drive vehicle with trunk open while
the ski sack is removed. Deadly carbon
monoxide (CO) gases may enter vehicle in-
terior, resulting in unconsciousness and
death.iTo prevent unauthorized persons from
access to the trunk, always close the
flap.
Warning!
G
When expanding the luggage compartment,
always fold the seat cushions fully forward.
Unless you are transporting cargo, the back-
rests must remain properly locked in the up-
right position.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
Always use the cargo tie down rings
(page 268).

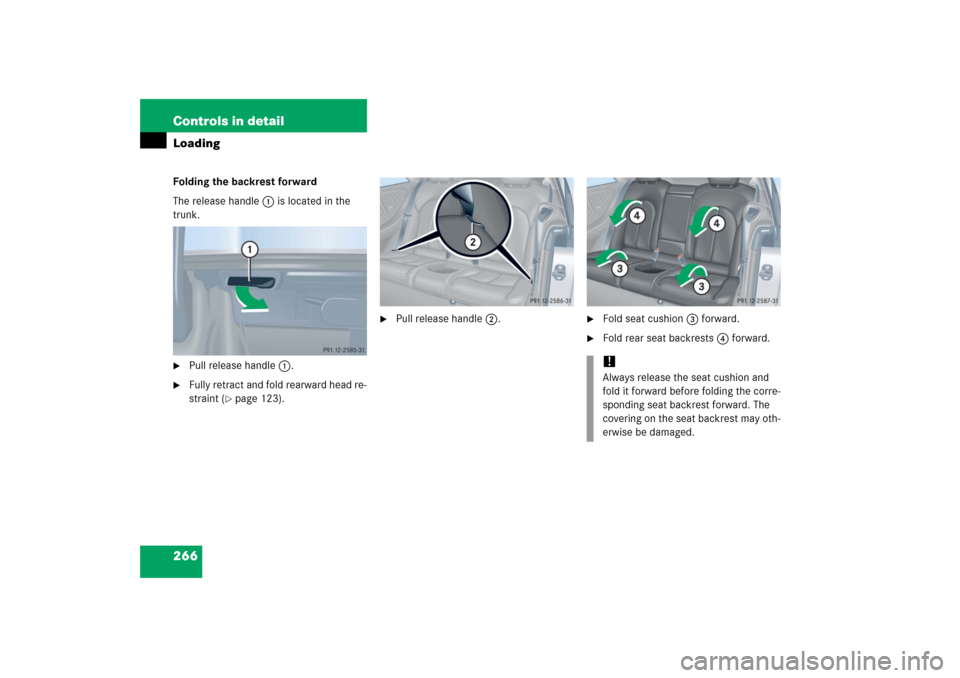

266 Controls in detailLoadingFolding the backrest forward
The release handle1 is located in the
trunk.
Pull release handle1.

Fully retract and fold rearward head re-
straint (
page 123).

Pull release handle2.

Fold seat cushion3 forward.

Fold rear seat backrests4 forward.!Always release the seat cushion and
fold it forward before folding the corre-
sponding seat backrest forward. The
covering on the seat backrest may oth-
erwise be damaged.

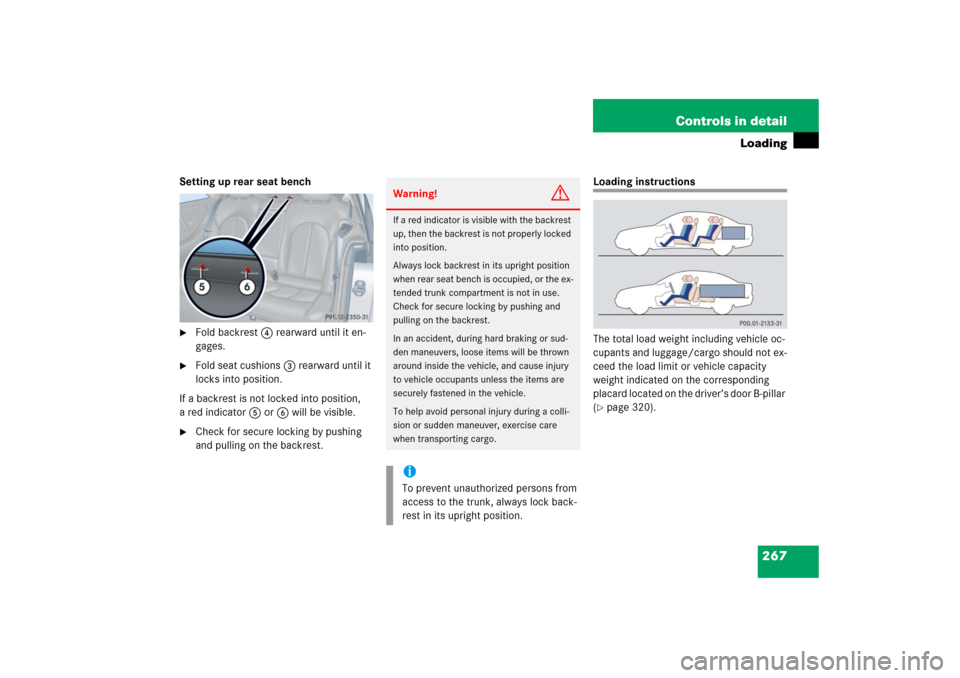

267 Controls in detail
Loading
Setting up rear seat bench
Fold backrest4 rearward until it en-
gages.

Fold seat cushions3 rearward until it
locks into position.
If a backrest is not locked into position,
ared indicator5 or6 will be visible.

Check for secure locking by pushing
and pulling on the backrest.
Loading instructions
The total load weight including vehicle oc-
cupants and luggage/cargo should not ex-
ceed the load limit or vehicle capacity
weight indicated on the corresponding
placard located on the driver’s door B-pillar
(page 320).
Warning!
G
If a red indicator is visible with the backrest
up, then the backrest is not properly locked
into position.
Always lock backrest in its upright position
when rear seat bench is occupied, or the ex-
tended trunk compartment is not in use.
Check for secure locking by pushing and
pulling on the backrest.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle, and cause injury
to vehicle occupants unless the items are
securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo.iTo prevent unauthorized persons from
access to the trunk, always lock back-
rest in its upright position.

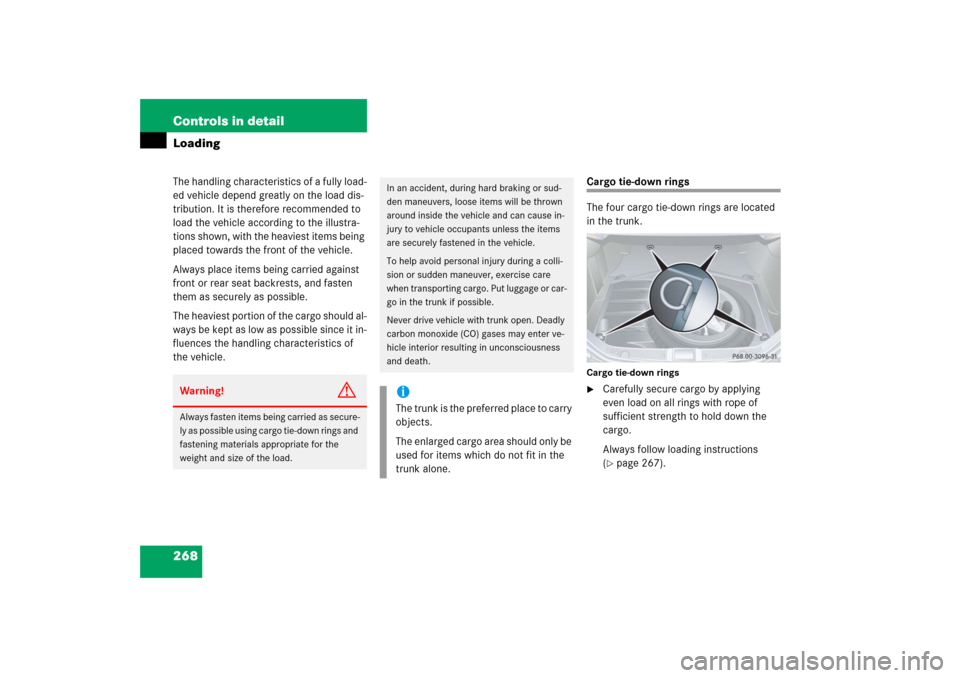

268 Controls in detailLoadingThe handling characteristics of a fully load-
ed vehicle depend greatly on the load dis-
tribution. It is therefore recommended to
load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Always place items being carried against
front or rear seat backrests, and fasten
them as securely as possible.
The heaviest portion of the cargo should al-
ways be kept as low as possible since it in-
fluences the handling characteristics of
the vehicle.
Cargo tie-down rings
The four cargo tie-down rings are located
in the trunk.Cargo tie-down rings
Carefully secure cargo by applying
even load on all rings with rope of
sufficient strength to hold down the
cargo.
Always follow loading instructions
(page 267).
Warning!
G
Always fasten items being carried as secure-
ly as possible using cargo tie-down rings and
fastening materials appropriate for the
weight and size of the load.
In an accident, during hard braking or sud-
den maneuvers, loose items will be thrown
around inside the vehicle and can cause in-
jury to vehicle occupants unless the items
are securely fastened in the vehicle.
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when transporting cargo. Put luggage or car-
go in the trunk if possible.
Never drive vehicle with trunk open. Deadly
carbon monoxide (CO) gases may enter ve-
hicle interior resulting in unconsciousness
and death.iThe trunk is the preferred place to carry
objects.
The enlarged cargo area should only be
used for items which do not fit in the
trunk alone.

269 Controls in detail
Useful features
Useful features
Storage compartments Glove box
1Glove box lid
2Glove box lid release
Opening the glove box

Pull glove box lid release2.
The glove box lid1 opens downward.
Closing the glove box

Push glove box lid1 up to close.Storage box (Center armrest design A)
The storage box is in front of the armrest
storage compartment.
1Storage box
Warning!
G
To help avoid personal injury during a colli-
sion or sudden maneuver, exercise care
when storing objects in the vehicle. Put lug-
gage or cargo in the trunk if possible. Do not
pile luggage or cargo higher than the seat
backs.
Parcel nets cannot secure hard or heavy ob-
jects.
Keep compartment lids closed. This will help
to prevent stored objects from being thrown
about and injuring vehicle occupants during
an accident.
iAudio system/COMAND* with CD
changer*: The CD changer is located in
the glove box.
Warning!
G
Do not use this storage compartment as an
ashtray and/or place hot cigarettes or other
hot smoking materials in the storage box.
Placing such materials in the storage box
may cause vehicle damage and/or poten-
tially cause a vehicle fire.
