200 Controls in detailAutomatic climate control (CLK 500/CLK 55 AMG)Rear passenger compartment adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 191).The air vents for the rear passenger
compartment are located in the rear
center console.

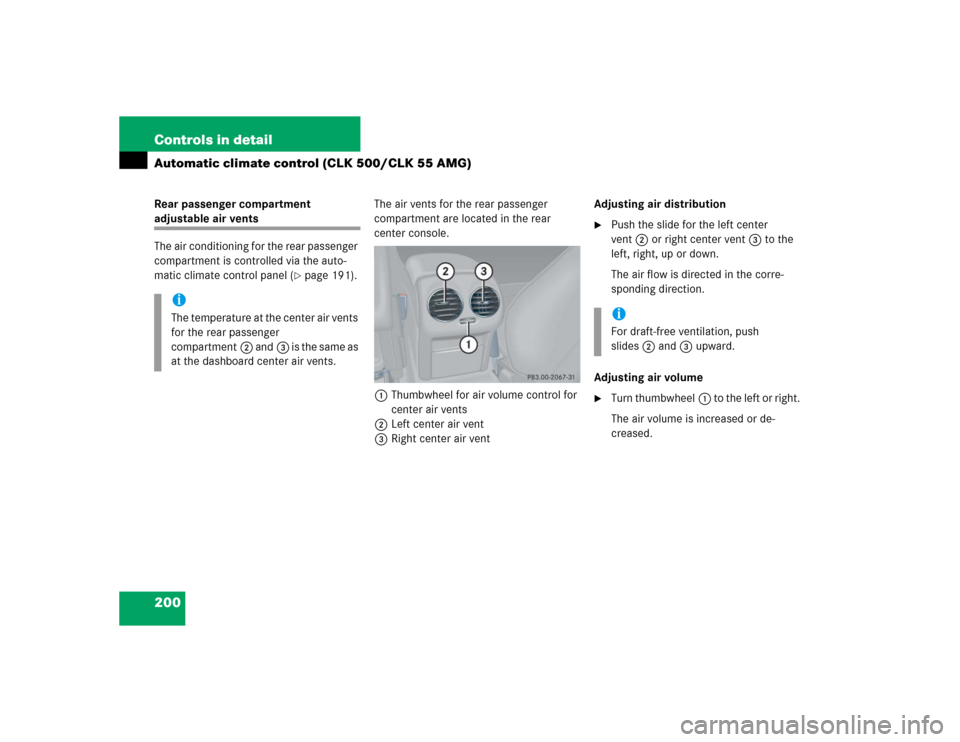

1Thumbwheel for air volume control for
center air vents
2Left center air vent
3Right center air ventAdjusting air distribution

Push the slide for the left center
vent2 or right center vent3 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume

Turn thumbwheel1 t o t he l e f t o r r i g h t .
The air volume is increased or de-
creased.
iThe temperature at the center air vents
for the rear passenger
compartment2 and3 i s t h e s a m e a s
at the dashboard center air vents.
iFor draft-free ventilation, push
slides2 and3 upward.

201 Controls in detail
Audio system
Audio system
Audio and telephone, operation
These instructions are intended to help
you become familiar with your
Mercedes-Benz audio system. They con-
tain useful tips and a detailed description
of the user functions.
Operating safety
Sound system*
Your vehicle is equipped with a sound sys-
tem. The subwoofer is located between the
rear seats.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should enter
system settings with the vehicle at a
standstill and operate the system only when
road and traffic conditions permit. Always
pay full attention to traffic conditions first
before operating system controls while
driving.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
Warning!
G
Any alterations made to electronic
components can cause malfunctions.
The radio, amplifier, CD changer*, satellite
radio*, and telephone* are interconnected.
When one of the components is not opera-
tional or has not been removed/replaced
properly, the function of other components
may be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
by an authorized Mercedes-Benz Center.
!Make sure no objects fall into the open-
ings of the subwoofer between the rear
seats.
If necessary, contact an authorized
Mercedes-Benz Center to remove any
objects which may have fallen into the
openings.

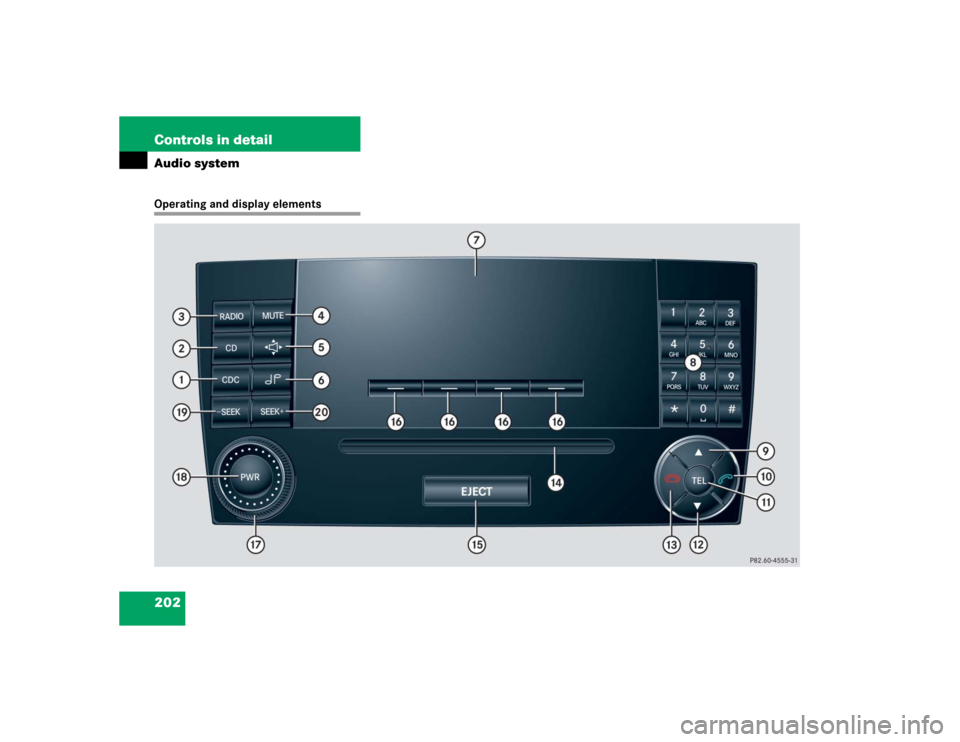

202 Controls in detailAudio systemOperating and display elements

203 Controls in detail
Audio system

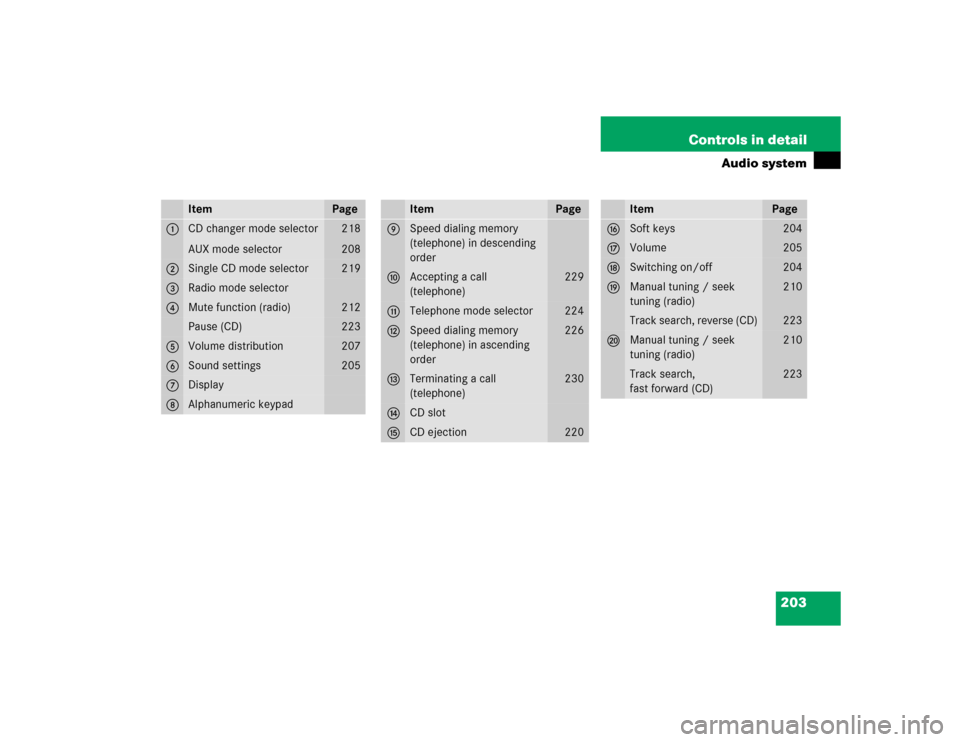

Item
Page
1
CD changer mode selector
AUX mode selector
218
208
2
Single CD mode selector
219
3
Radio mode selector
4
Mute function (radio)
212
Pause (CD)
223
5
Volume distribution
207
6
Sound settings
205
7
Display
8
Alphanumeric keypad
Item
Page
9
Speed dialing memory
(telephone) in descending
order
a
Accepting a call
(telephone)
229
b
Telephone mode selector
224
c
Speed dialing memory
(telephone) in ascending
order
226
d
Terminating a call
(telephone)
230
e
CD slot
f
CD ejection
220
Item
Page
g
Soft keys
204
h
Volume
205
j
Switching on/off
204
k
Manual tuning / seek
tuning (radio)
210
Track search, reverse (CD)
223
l
Manual tuning / seek
tuning (radio)
210
Track search,
fast forward (CD)
223

204 Controls in detailAudio systemButton and soft key operation
In these instructions, the alphanumeric
keypad (right side of radio panel) and the
function buttons (left side of radio panel)
are referred to as “buttons”. The four keys
below the display panel are referred to as
“soft keys”.
Operation
Switching the unit on/off
Switching on
Turn the SmartKey in the starter switch
to position 1 or 2.

If the audio system was on as you
removed the SmartKey from the starter
switch, the audio system will
automatically come back on as you
turn the SmartKey to position 1 or 2.
or

Press M button.Switching off

Remove SmartKey from starter switch.
or

Press M button.
!Do not press directly in the display
face. Otherwise, the display will be
damaged.
iIf the radio is switched on without the
key in the starter switch, it will
automatically switch off again after
approx. 30 minutes.
If your vehicle is equipped with a
telephone, the display may prompt you
to enter your PIN (GSM network) or
code (TDMA or CDMA network).iShould excessively high temperatures
occur while the audio system is being
operated, the display will dim. If tem-
peratures continue to rise,
HIGH TEMP

will appear in the display, after which
the audio system will be switched off
for a cooling-down period.

205 Controls in detail
Audio system
Adjusting the volume
Turn rotary control of N button.
The volume will increase or decrease
depending on the direction turned.
Adjusting sound functions
The bass and treble functions are called up
by pressing the O button.
Settings for bass and treble are stored
separately for the AM and FM wavebands,
weather band, CD mode and telephone
mode.Bass

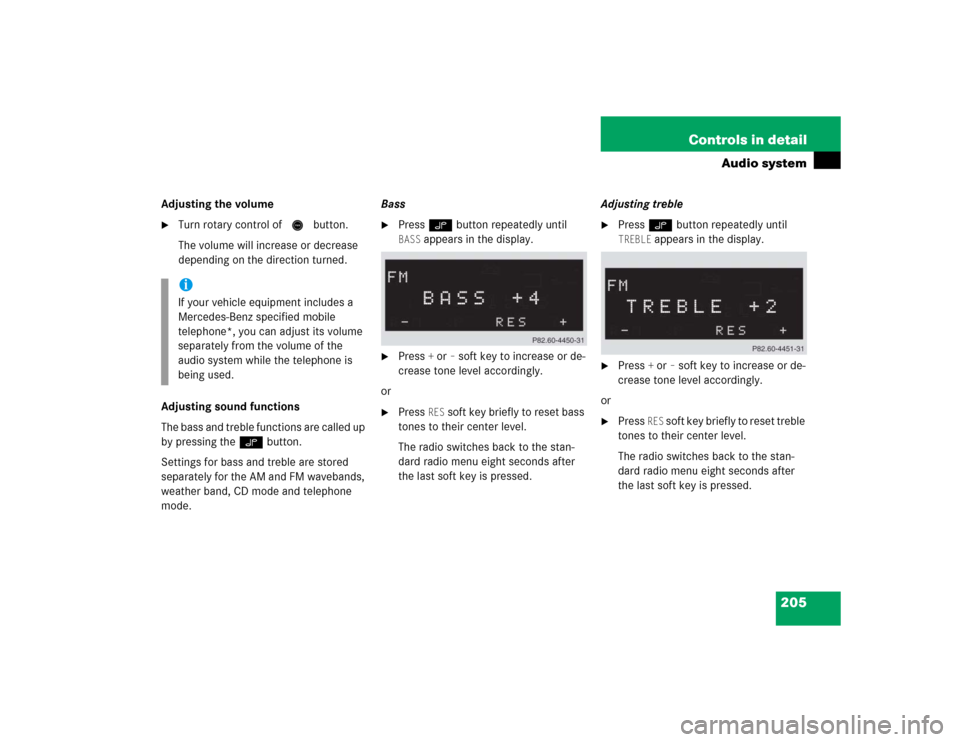

Press O button repeatedly until BASS
appears in the display.

Press
+ or
– soft key to increase or de-
crease tone level accordingly.
or

Press
RES
soft key briefly to reset bass
tones to their center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.Adjusting treble

Press O button repeatedly until TREBLE
appears in the display.

Press
+ or
– soft key to increase or de-
crease tone level accordingly.
or

Press
RES
soft key briefly to reset treble
tones to their center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.
iIf your vehicle equipment includes a
Mercedes-Benz specified mobile
telephone*, you can adjust its volume
separately from the volume of the
audio system while the telephone is
being used.

206 Controls in detailAudio systemSound system*
You can either program the sound settings
manually (
page 205) or choose settings
via preset sound characteristics.
You can select from among the following
settings:


STANDARD
: conventional stereo sound.


SURROUND
: the sound is set for better
three-dimensional acoustic character-
istics.


SPEECH
: the sound is optimized for the
spoken word.

Press O button repeatedly until STANDARD
, SURROUND
or
SPEECH
appears
in the display.

Press X or Y soft key repeatedly
until the desired sound setting has
been reached.
The sound is set accordingly.
or

Press
RES
soft key briefly.
The sound setting is reset depending
on the sound source activated.


Radio mode:
STANDARD


CD/AUX mode:
SURROUND


Telephone:
SPEECH
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.Returning sound functions to factory
settings

Press O button to call up settings
menu in the display.

Press
RES
soft key briefly; the respec-
tive sound function is reset to its center
level.
or

Press and hold
RES
soft key until
RESET

appears in the display.
The sound settings for bass and treble
are returned to their center level and
the volume is set to a predefined level.

207 Controls in detail
Audio system
Vehicles with sound system*:
The sound setting is reset depending
on the sound source activated.

Radio mode:
STANDARD


CD/AUX mode:
SURROUND


Telephone:
SPEECH
The radio switches back to the stan-
dard radio menu four seconds after the
last soft key is pressed.
Adjusting volume distribution
Call up fader and balance functions by
pressing the P button.Fader

Press P button repeatedly until FADER
appears in the display.

Press V or W soft key.
The volume is distributed accordingly
between the front and rear of the vehi-
cle.
or

Press
RES
soft key briefly.
The fader is reset to its center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last soft key is pressed.Adjusting balance

Press P button repeatedly until BALANCE
appears in the display.

Press X or Y soft key.
The volume is distributed between the
left and right sides of the vehicle.
or

Press
RES
soft key briefly.
The balance is reset to its center level.
The radio switches back to the stan-
dard radio menu eight seconds after
the last button is pressed.

208 Controls in detailAudio systemReturning volume distribution to facto-
ry settings
Press P button to call up settings
menu in the display.

Press
RES
soft key briefly; the respec-
tive volume distribution is reset to its
center (flat) level.
or

Press and hold
RES
soft key until
RESET

appears in the display.
The volume distribution settings for
fader and balance are set to their cen-
ter level.
The radio switches back to the stan-
dard radio menu four seconds after the
last soft key is pressed.Telephone* muting
If your vehicle equipment includes a
Mercedes-Benz specified mobile tele-
phone*, you can adjust its volume sepa-
rately from the volume of the audio system
while the telephone is being used.Connecting an external audio source
(AUX) to the radio*
An optional dealer-installed cinch-connec-
tor* for connecting an external audio
source may become available for your ve-
hicle model. Feature description is based
on preliminary information at time of print-
ing. Contact an authorized Mercedes-Benz
Center for availability.
You can adjust the volume (
page 205),
the sound settings (
page 205) and the
volume distribution (page 207) for the
AUX input.
Calling up AUX mode

Press and hold Q button until AUX
appears in the display.
Canceling AUX mode

Press any audio source button.

209 Controls in detail
Audio system
Radio operation
Selecting radio mode
Press b button.
Calling up wavebands
You can choose from among the FM, AM
and WB wavebands.
Weather band (
page 212).Calling up wavebands for radios without
SAT*

Press
FM or
AM soft key to switch be-
tween FM and AM.
The FM and AM wavebands are called
up one after another.
or

Press
WB soft key.
The weather band menu is called up.
The waveband currently selected
appears in the upper left-hand corner
of the display.Calling up wavebands for radios with
SAT*

Press
FM, AM or
WB soft key repeatedly
until desired waveband has been se-
lected.
The FM, AM and WB wavebands are
called up one after another.
The waveband currently selected
appears in the upper left-hand corner
of the display.
iFM waveband: 87.7......107.9 mHz
AM waveband: 530......1 710 kHz
