MERCEDES-BENZ CLK320 CABRIOLET 2005 A209 Owner's Guide

20

21 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

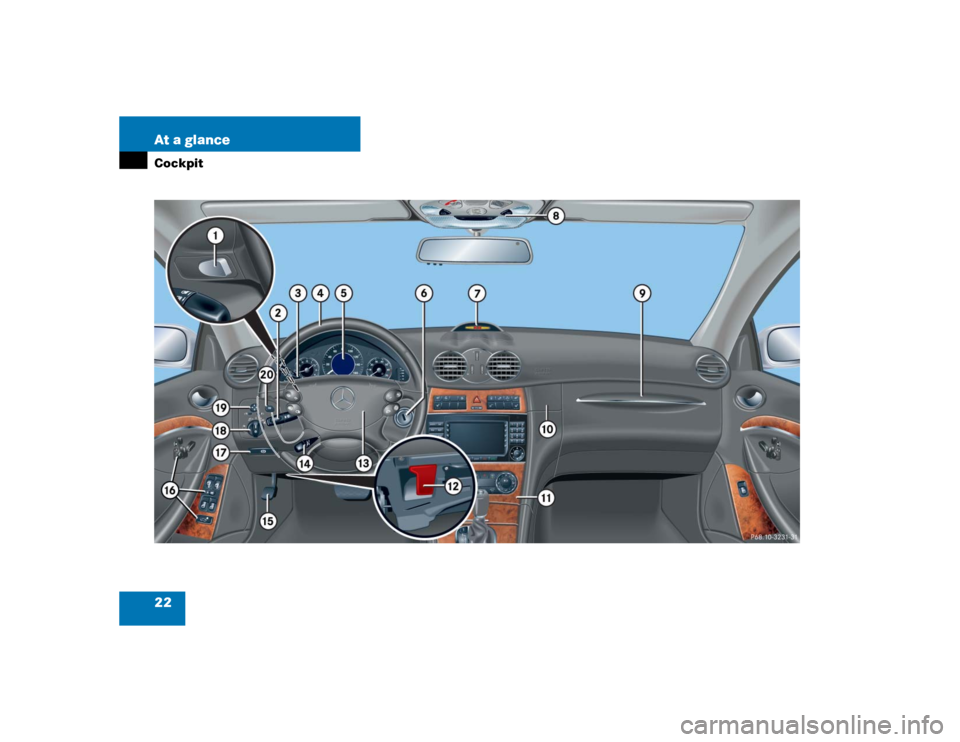

22 At a glanceCockpit

23 At a glance
Cockpit
Item
Page
1
Steering wheel gearshift
buttons
(CLK 500, CLK 55 AMG)
171
2
Combination switch

Turn signals


Windshield wipers


High beam
51
52
51
3
Cruise control lever
255
4
Multifunction steering
wheel
26,
134
5
Instrument cluster
24,
130
6
Starter switch
34
7
Front Parktronic* warning
indicators
262
8
Overhead control panel
29
Item
Page
9
Glove box
269
a
Cup holder
271
b
Center console
27, 28
c
Hood lock release
305
d
Horn
e
Steering wheel adjustment
stalk
40
f
Parking brake pedal
49
g
Door control panel
30
h
Parking brake release
49
j
Exterior lamp switch
50,
122
k
Exterior rear view mirror
adjustment
41
l
Headlamp washer switch*
176

24 At a glanceInstrument cluster

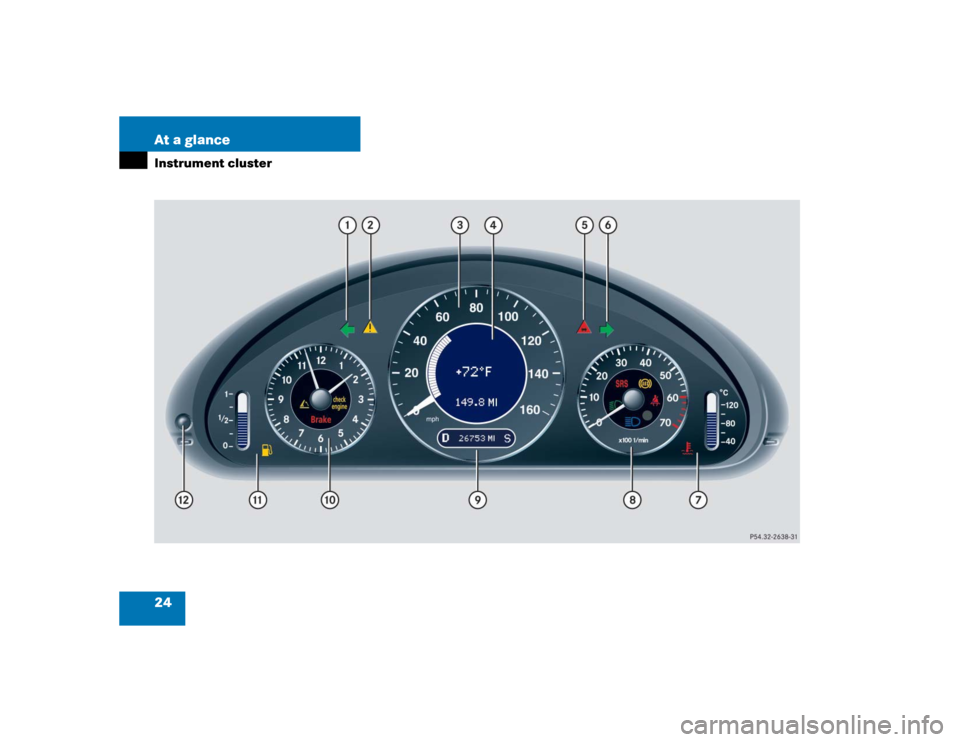

25 At a glance
Instrument cluster
Item
Page
1
LLeft turn signal indi-
cator lamp
51
2
vESP warning lamp
358
3
Speedometer
4
Multifunction display
133
5
lDistance warning
lamp
Warning lamp without func-
tion. It illuminates with the
ignition on. It should go out
when the engine is running.
6
KRight turn signal indi-
cator lamp
51
7
Coolant temperature indi-
cator with:
131
•Coolant temperature
warning lamp
357,
377
Item
Page
8
Tachometer with:
132
1Supplemental
restraint system
indicator lamp
360,
388
-Antilock Brake Sys-
tem (ABS) warning
lamp
354
359,
388
BLow beam headlamp
indicator lamp
126
AHigh beam headlamp
indicator lamp
126
9
Main odometer with:

Gear selector lever posi-
tion
133


Program mode
133
Item
Page
a
Clock with:
147
;Brake warning lamp,
USA only
355
3Brake warning lamp,
Canada onlyúEngine malfunction
indicator lamp,
USA only
356
±Engine malfunction
indicator lamp,
Canada only
356
CRoll bar warning lamp
b
Fuel display with:AFuel reserve warning
lamp
359
c
Reset button for:

Resetting trip odometer
130


Adjusting instrument
cluster illumination
130


Confirming new time set-
tings
147

26 At a glanceMultifunction steering wheel
Item
Page
1
Multifunction display
133
Operating control
system
134
2
Selecting the submenu or
setting the volume:
Press buttonæup / to increaseçdown / to decrease
3
Telephone*:
Press buttonsto take a call
to dial a call
161
161
tto end a call
to reject an incom-
ing call
161
Item
Page
4
Menu systems:
Press buttonèfor next menuÿfor previous menu
5
Moving within a menu:
Press buttonjfor next displaykfor previous display

27 At a glance

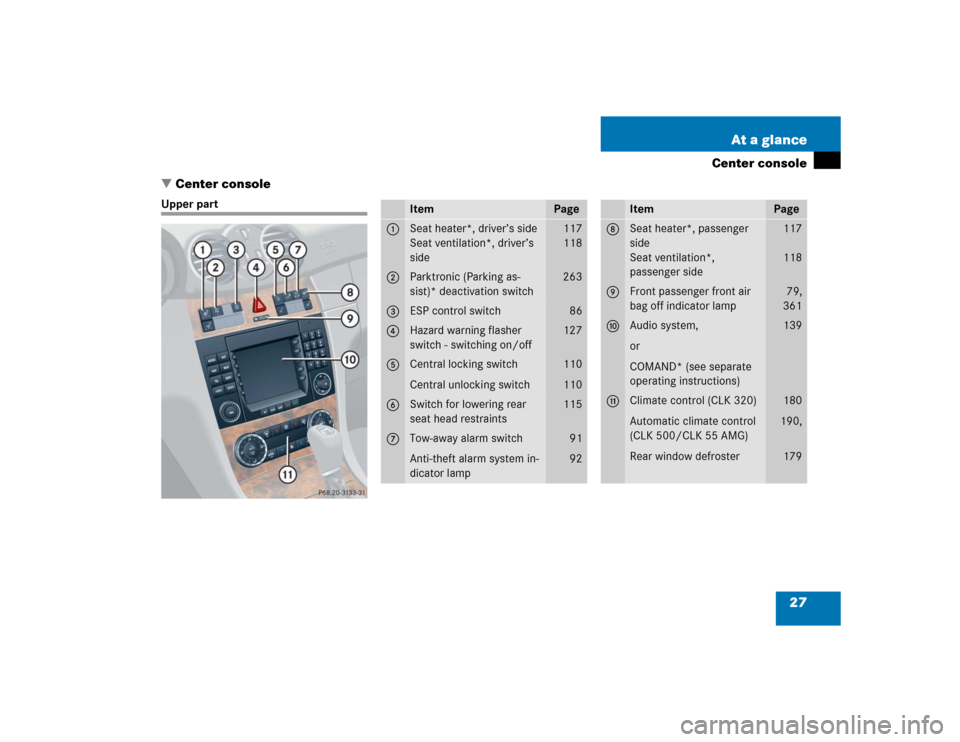

Center console
Center console
Upper part
Item
Page
1
Seat heater*, driver’s side
Seat ventilation*, driver’s
side
117
118
2
Parktronic (Parking as-
sist)* deactivation switch
263
3
ESP control switch
86
4
Hazard warning flasher
switch - switching on/off
127
5
Central locking switch
Central unlocking switch
110
110
6
Switch for lowering rear
seat head restraints
115
7
Tow-away alarm switch
Anti-theft alarm system in-
dicator lamp
91
92
Item
Page
8
Seat heater*, passenger
side
Seat ventilation*,
passenger side
117
118
9
Front passenger front air
bag off indicator lamp
79,
361
a
Audio system,
or
COMAND* (see separate
operating instructions)
139
b
Climate control (CLK 320)
Automatic climate control
(CLK 500/CLK 55 AMG)
Rear window defroster
180
190,
179

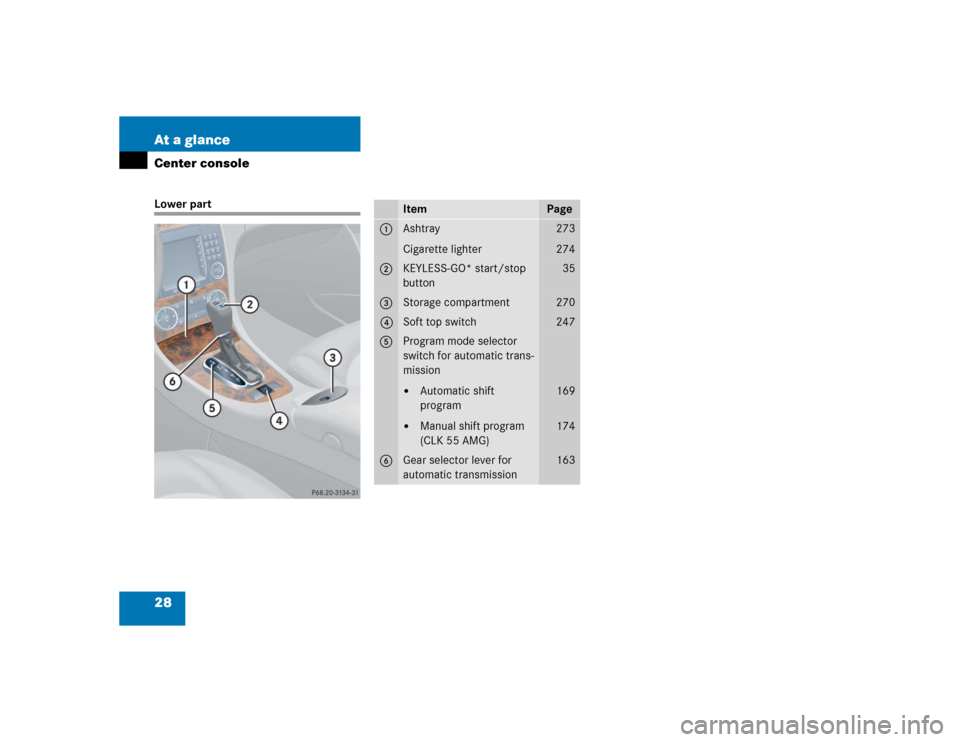

28 At a glanceCenter consoleLower part
Item
Page
1
Ashtray
Cigarette lighter
273
274
2
KEYLESS-GO* start/stop
button
35
3
Storage compartment
270
4
Soft top switch
247
5
Program mode selector
switch for automatic trans-
mission

Automatic shift
program


Manual shift program
(CLK 55 AMG)
169
174
6
Gear selector lever for
automatic transmission
163

29 At a glance

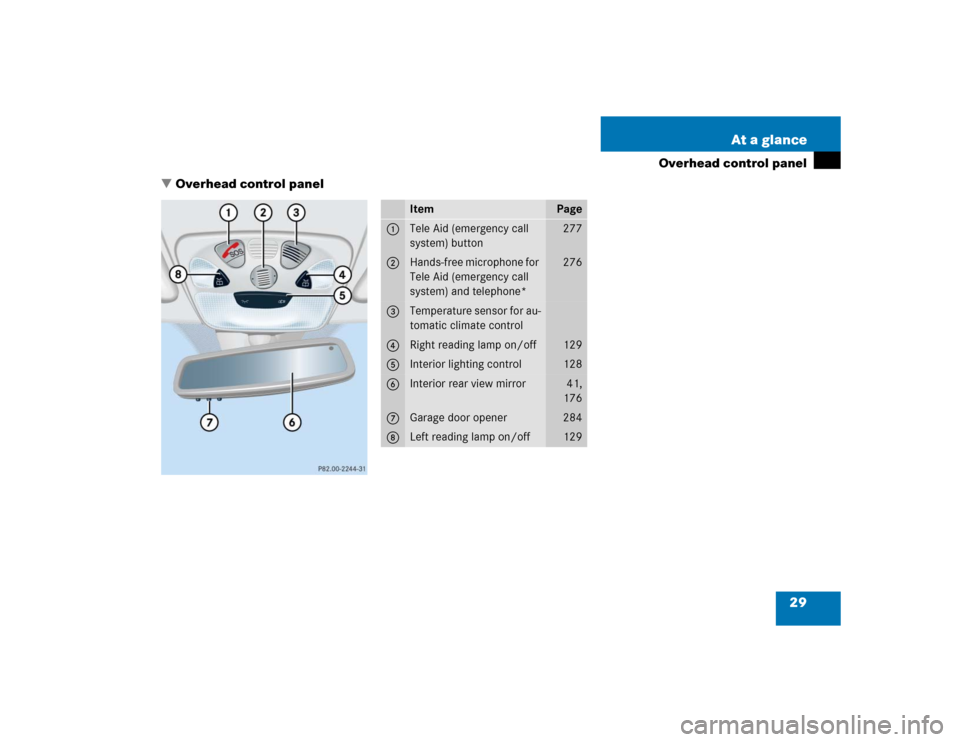

Overhead control panel
Overhead control panel
Item
Page
1
Tele Aid (emergency call
system) button
277
2
Hands-free microphone for
Tele Aid (emergency call
system) and telephone*
276
3
Temperature sensor for au-
tomatic climate control
4
Right reading lamp on/off
129
5
Interior lighting control
128
6
Interior rear view mirror
41,
176
7
Garage door opener
284
8
Left reading lamp on/off
129
