Page 7 of 394
Contents
Practical hints................................. 275
What to do if …?................................. 276
Lamps in instrument cluster ........ 276
Lamp in center console................ 282
Messages in the display ............... 283
Where will I find...? ............................ 305
First aid kit ................................... 305
Vehicle tool kit ............................. 305
Minispare wheel ........................... 307
Unlocking/locking in an emergency .. 310
Unlocking the vehicle ................... 310
Locking the vehicle ...................... 311
Changing batteries ....................... 312
Fuel filler flap ............................... 313
Manually unlocking the
transmission selector lever .......... 313
Opening/closing in an emergency..... 314
Sliding/pop-up roof ..................... 314

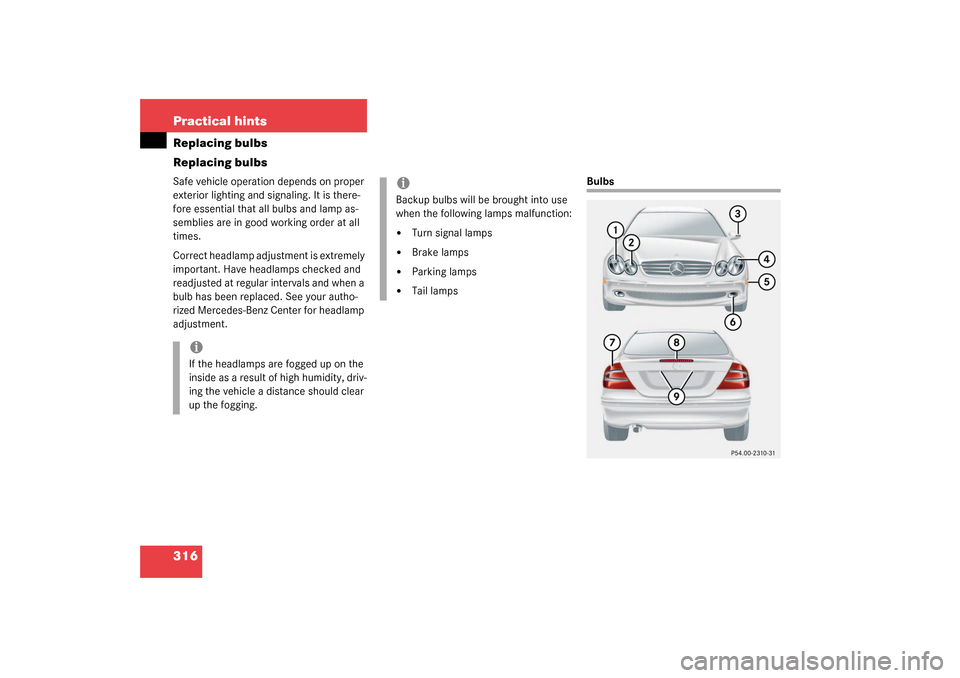

Replacing bulbs ................................. 316
Bulbs ............................................ 316
Replacing bulbs for front lamps ... 318
Side marker lamp bulb ................. 321
Replacing bulbs for rear lamps..... 322Replacing wiper blades....................... 323
Removing ...................................... 323
Installing ....................................... 323
Flat tire ............................................... 324
Preparing the vehicle .................... 324
Mounting the Minispare wheel ...... 324
Battery................................................ 329
Disconnecting the battery............. 330
Removing the batteries ................. 330
Charging and
reinstalling batteries ..................... 330
Reconnecting the batteries ........... 331
Jump starting ...................................... 332
Towing the vehicle .............................. 334
Towing the vehicle ........................ 334
Installing towing eye bolt .............. 336
Fuses .................................................. 337
Fuse box in
passenger compartment ............... 337
Fuse box in engine compartment.. 337
Auxiliary fuse box in trunk............. 338
Technical data.................................. 339
Spare parts service ............................ 340
Warranty coverage ............................. 341
Loss of Service and Warranty
Information Booklet ...................... 341
Identification labels ............................ 342
Layout of poly-V-belt drive.................. 343
CLK320 / CLK500 /
CLK 55 AMG ................................. 343
Engine ................................................ 344
Rims and tires .................................... 345
Same size tires ............................. 345
Mixed size tires ............................. 346
Minispare wheel............................ 347
Electrical system ................................ 348
Main dimensions ................................ 349
Weights .............................................. 350

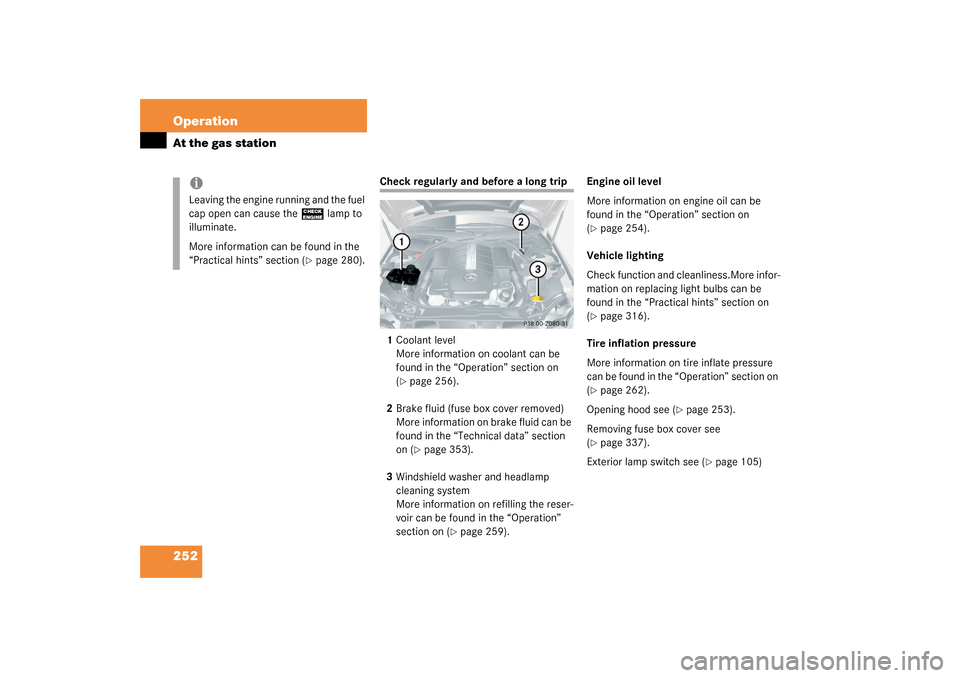

Page 252 of 394
252 OperationAt the gas station
Check regularly and before a long trip
1Coolant level
More information on coolant can be
found in the “Operation” section on
(
page 256).
2Brake fluid (fuse box cover removed)
More information on brake fluid can be
found in the “Technical data” section
on (page 353).
3Windshield washer and headlamp
cleaning system
More information on refilling the reser-
voir can be found in the “Operation”
section on (
page 259).Engine oil level
More information on engine oil can be
found in the “Operation” section on
(
page 254).
Vehicle lighting
Check function and cleanliness.More infor-
mation on replacing light bulbs can be
found in the “Practical hints” section on
(page 316).
Tire inflation pressure
More information on tire inflate pressure
can be found in the “Operation” section on
(page 262).
Opening hood see (
page 253).
Removing fuse box cover see
(
page 337).
Exterior lamp switch see (
page 105)
iLeaving the engine running and the fuel
cap open can cause the
?
lamp to
illuminate.
More information can be found in the
“Practical hints” section (
page 280).

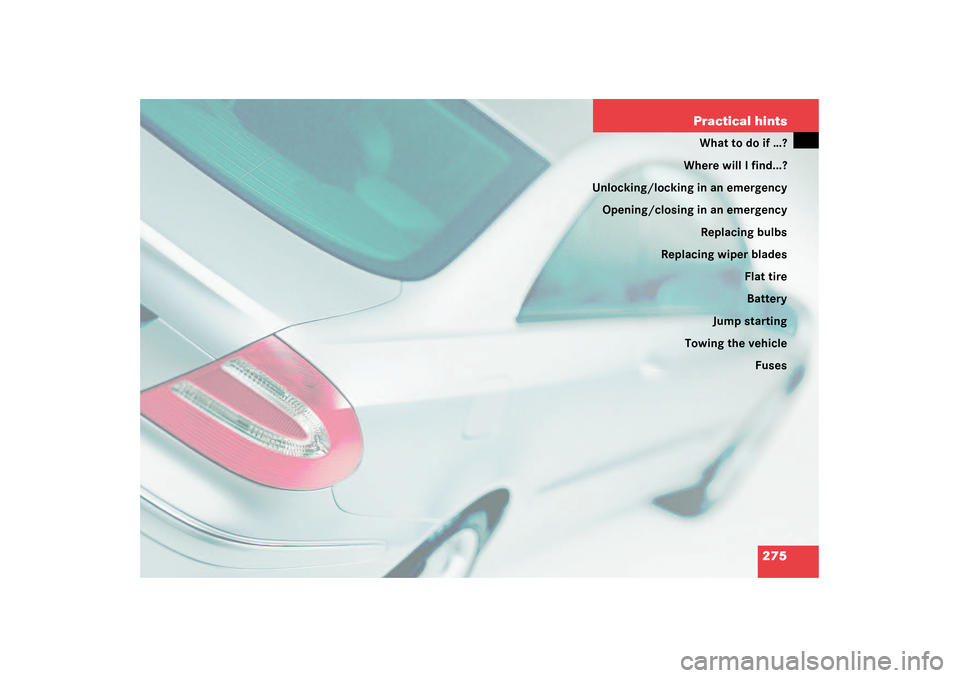

Page 275 of 394
275 Practical hints
What to do if …?
Where will I find...?
Unlocking/locking in an emergency
Opening/closing in an emergency
Replacing bulbs
Replacing wiper blades
Flat tire
Battery
Jump starting
Towing the vehicle
Fuses

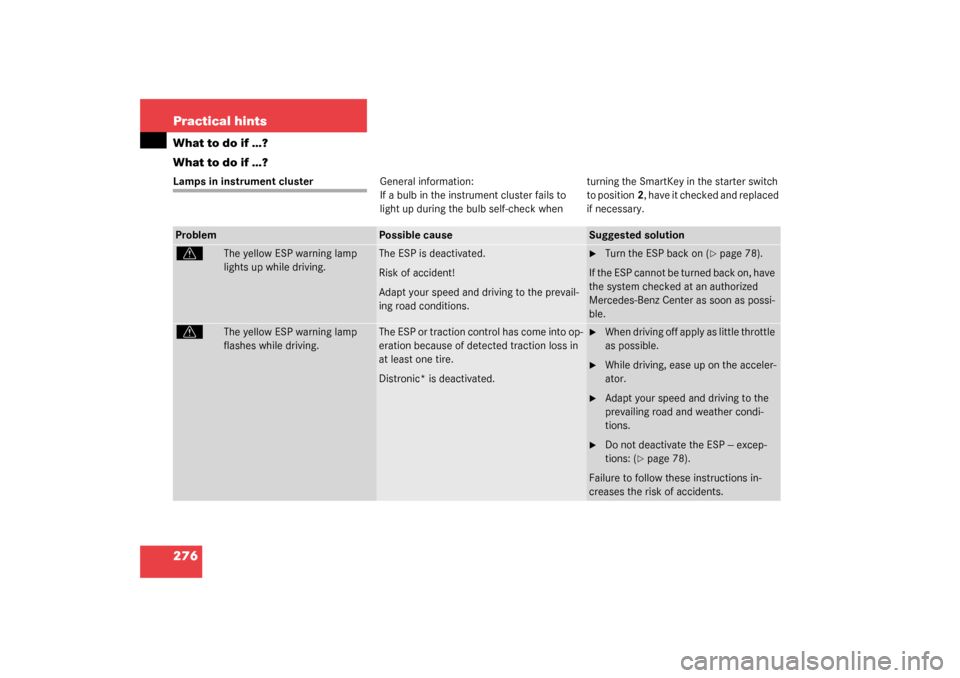

Page 276 of 394
276 Practical hintsWhat to do if …?
What to do if …?Lamps in instrument clusterGeneral information:
If a bulb in the instrument cluster fails to
light up during the bulb self-check when turning the SmartKey in the starter switch
to position2, have it checked and replaced
if necessary.Problem
Possible cause
Suggested solution
v
The yellow ESP warning lamp
lights up while driving.
The ESP is deactivated.
Risk of accident!
Adapt your speed and driving to the prevail-
ing road conditions.
Turn the ESP back on (
page 78).
If the ESP cannot be turned back on, have
the system checked at an authorized
Mercedes-Benz Center as soon as possi-
ble.
v
The yellow ESP warning lamp
flashes while driving.
The ESP or traction control has come into op-
eration because of detected traction loss in
at least one tire.
Distronic* is deactivated.
When driving off apply as little throttle
as possible.
While driving, ease up on the acceler-
ator.
Adapt your speed and driving to the
prevailing road and weather condi-
tions.
Do not deactivate the ESP -- excep-
tions: (
page 78).
Failure to follow these instructions in-
creases the risk of accidents.

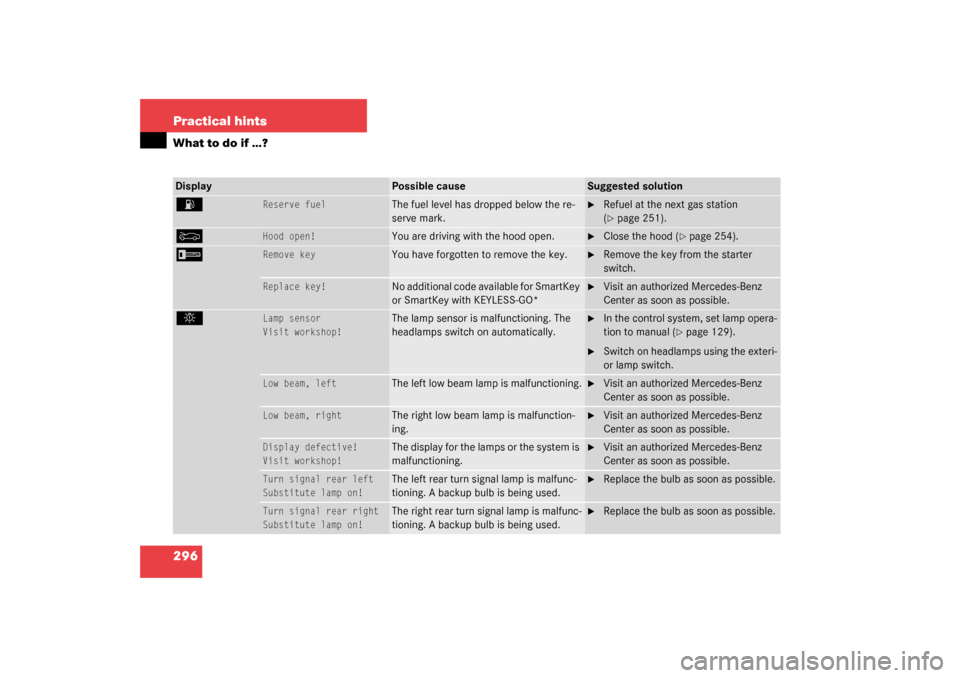

Page 296 of 394
296 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
A
Reserve fuel
The fuel level has dropped below the re-
serve mark.
Refuel at the next gas station
(page 251).
Y
Hood open!
You are driving with the hood open.
Close the hood (
page 254).
I
Remove key
You have forgotten to remove the key.
Remove the key from the starter
switch.
Replace key!
No additional code available for SmartKey
or SmartKey with KEYLESS-GO*
Visit an authorized Mercedes-Benz
Center as soon as possible.
.
Lamp sensor
Visit workshop!
The lamp sensor is malfunctioning. The
headlamps switch on automatically.
In the control system, set lamp opera-
tion to manual (
page 129).
Switch on headlamps using the exteri-
or lamp switch.
Low beam, left
The left low beam lamp is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Low beam, right
The right low beam lamp is malfunction-
ing.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Display defective!
Visit workshop!
The display for the lamps or the system is
malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn signal rear left
Substitute lamp on!
The left rear turn signal lamp is malfunc-
tioning. A backup bulb is being used.
Replace the bulb as soon as possible.
Turn signal rear right
Substitute lamp on!
The right rear turn signal lamp is malfunc-
tioning. A backup bulb is being used.
Replace the bulb as soon as possible.

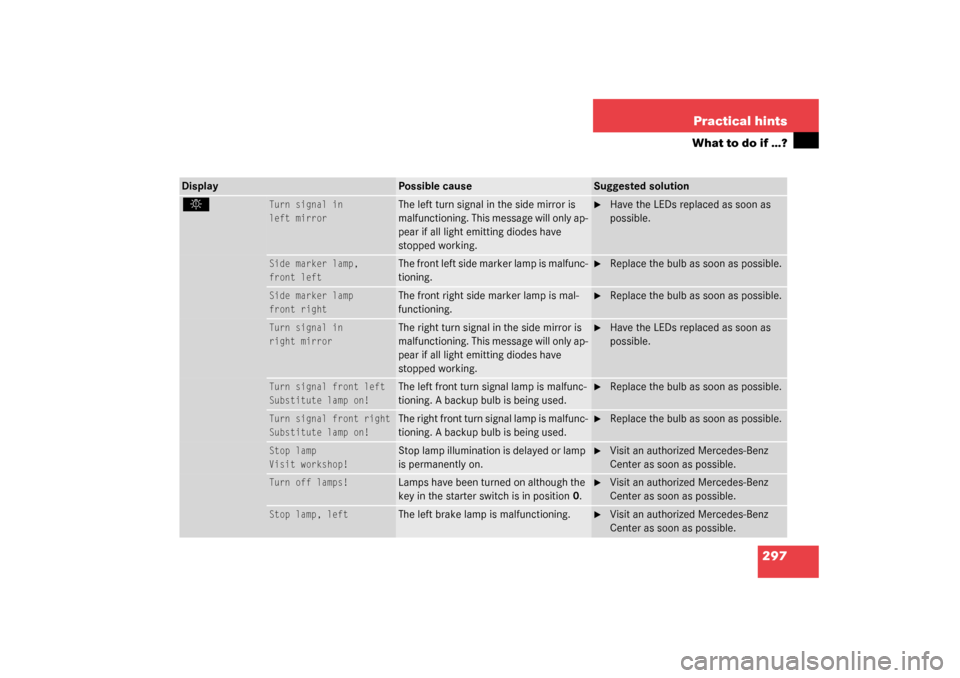

Page 297 of 394
297 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
.
Turn signal in
left mirror
The left turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.
Have the LEDs replaced as soon as
possible.
Side marker lamp,
front left
T h e f r o n t l e f t s i d e m a r k e r l a m p i s m a l f u n c-
tioning.
Replace the bulb as soon as possible.
Side marker lamp
front right
The front right side marker lamp is mal-
functioning.
Replace the bulb as soon as possible.
Turn signal in
right mirror
The right turn signal in the side mirror is
malfunctioning. This message will only ap-
pear if all light emitting diodes have
stopped working.
Have the LEDs replaced as soon as
possible.
Turn signal front left
Substitute lamp on!
The left front turn signal lamp is malfunc-
tioning. A backup bulb is being used.
Replace the bulb as soon as possible.
Turn signal front right
Substitute lamp on!
The right front turn signal lamp is malfunc-
tioning. A backup bulb is being used.
Replace the bulb as soon as possible.
Stop lamp
Visit workshop!
Stop lamp illumination is delayed or lamp
is permanently on.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Turn off lamps!
Lamps have been turned on although the
key in the starter switch is in position 0.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Stop lamp, left
The left brake lamp is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.

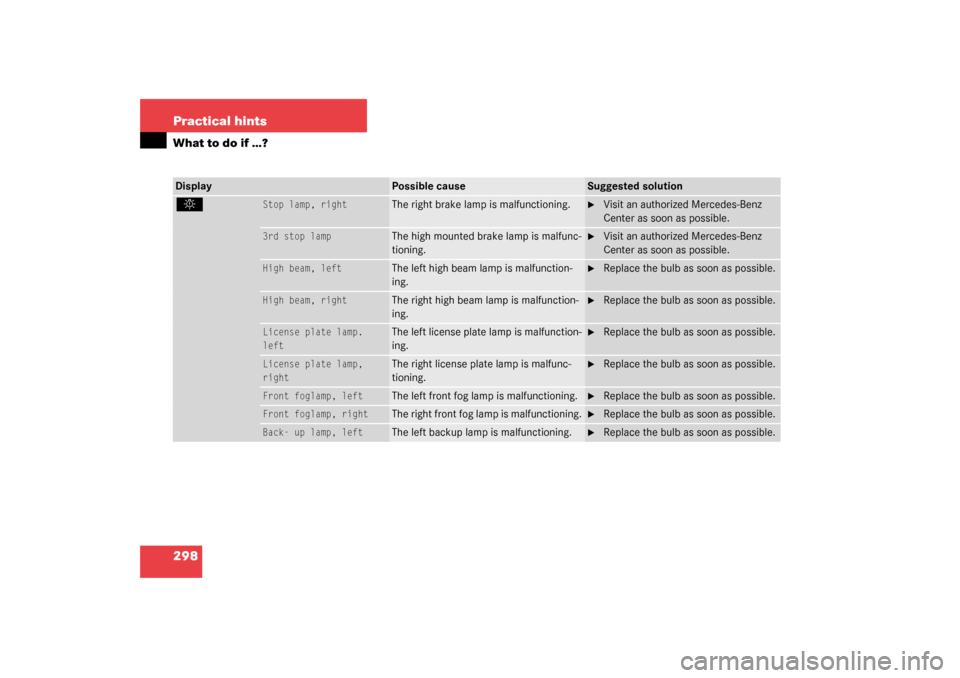

Page 298 of 394
298 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
.
Stop lamp, right
The right brake lamp is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
3rd stop lamp
The high mounted brake lamp is malfunc-
tioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
High beam, left
The left high beam lamp is malfunction-
ing.
Replace the bulb as soon as possible.
High beam, right
The right high beam lamp is malfunction-
ing.
Replace the bulb as soon as possible.
License plate lamp.
left
The left license plate lamp is malfunction-
ing.
Replace the bulb as soon as possible.
License plate lamp,
right
The right license plate lamp is malfunc-
tioning.
Replace the bulb as soon as possible.
Front foglamp, left
The left front fog lamp is malfunctioning.
Replace the bulb as soon as possible.
Front foglamp, right
The right front fog lamp is malfunctioning.
Replace the bulb as soon as possible.
Back- up lamp, left
The left backup lamp is malfunctioning.
Replace the bulb as soon as possible.

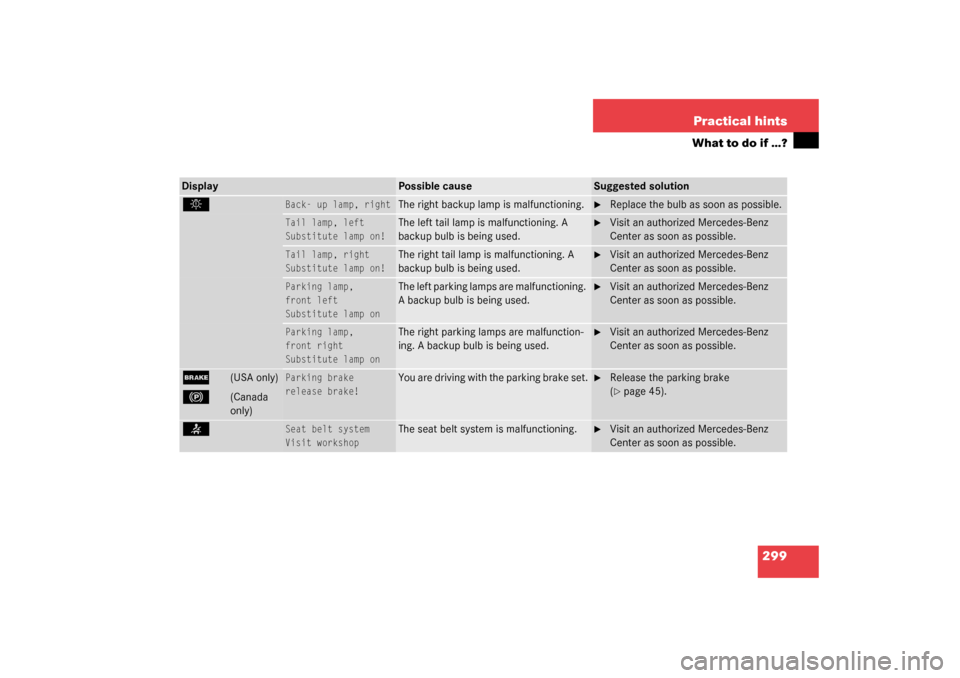

Page 299 of 394
299 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
.
Back- up lamp, right
The right backup lamp is malfunctioning.
Replace the bulb as soon as possible.
Tail lamp, left
Substitute lamp on!
The left tail lamp is malfunctioning. A
backup bulb is being used.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Tail lamp, right
Substitute lamp on!
The right tail lamp is malfunctioning. A
backup bulb is being used.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp,
front left
Substitute lamp on
The left parking lamps are malfunctioning.
A backup bulb is being used.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Parking lamp,
front right
Substitute lamp on
The right parking lamps are malfunction-
ing. A backup bulb is being used.
Visit an authorized Mercedes-Benz
Center as soon as possible.
;
(USA only)
!
(Canada
only)
Parking brake
release brake!
You are driving with the parking brake set.
Release the parking brake
(page 45).
<
Seat belt system
Visit workshop
The seat belt system is malfunctioning.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Page 316 of 394
316 Practical hintsReplacing bulbs
Replacing bulbsSafe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp as-
semblies are in good working order at all
times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See your autho-
rized Mercedes-Benz Center for headlamp
adjustment.
Bulbs
iIf the headlamps are fogged up on the
inside as a result of high humidity, driv-
ing the vehicle a distance should clear
up the fogging.
iBackup bulbs will be brought into use
when the following lamps malfunction:
Turn signal lamps
Brake lamps
Parking lamps
Tail lamps
Page 317 of 394
317 Practical hints
Replacing bulbs
Front lamps Rear lamps Notes on bulb replacement
Lamp
Type
1
Low beam
1
1Vehicles with Bi-Xenon headlamps* do not replace
the Bi-Xenon bulbs yourself.
H7 (55 W)
Bi-Xenon*
D2S-35 W
2
High beam
H7 (55 W)
Parking and stand-
ing lamps
W 5 W
3
Additional turn sig-
nal lamps
LED
4
Turn signal lamp
1156 NA
5
Side marker lamp
W 5 W
6
Fog lamp
HB4/9006
(55 W)
Lamp
Type
7
Rear fog lamp, driv-
er’s side
P 21/4 W
Turn signal lamp
P 21 W
Brake lamp
P 21 W
Backup lamp
P 21 W
Tail, parking and
standing lamp, side
marker
P 21/4 W
W 5 W
8
High mounted brake
lamp
LED
9
License plate lamps
C 5 W
Warning!
G
Keep bulbs out of reach of children.
Bulbs and bulb sockets can be very hot. Al-
low the lamp to cool down before changing
a bulb.
Halogen lamps contain pressurized gas. A
bulb can explode if you:
touch or move it when hot
drop the bulb
scratch the bulb
Wear eye and hand protection.
Because of high voltage in xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.
