Practical hints................................. 275
What to do if …?................................. 276
Lamps in instrument cluster ........ 276
Lamp in center console................ 282
Messages in the display ............... 283
Where will I find...? ............................ 305
First aid kit ................................... 305
Vehicle tool kit ............................. 305
Minispare wheel ........................... 307
Unlocking/locking in an emergency .. 310
Unlocking the vehicle ................... 310
Locking the vehicle ...................... 311
Changing batteries ....................... 312
Fuel filler flap ............................... 313
Manually unlocking the
transmission selector lever .......... 313
Opening/closing in an emergency..... 314
Sliding/pop-up roof ..................... 314
Replacing bulbs ................................. 316
Bulbs ............................................ 316
Replacing bulbs for front lamps ... 318
Side marker lamp bulb ................. 321
Replacing bulbs for rear lamps..... 322Replacing wiper blades....................... 323
Removing ...................................... 323
Installing ....................................... 323
Flat tire ............................................... 324
Preparing the vehicle .................... 324
Mounting the Minispare wheel ...... 324
Battery................................................ 329
Disconnecting the battery............. 330
Removing the batteries ................. 330
Charging and
reinstalling batteries ..................... 330
Reconnecting the batteries ........... 331
Jump starting ...................................... 332
Towing the vehicle .............................. 334
Towing the vehicle ........................ 334
Installing towing eye bolt .............. 336
Fuses .................................................. 337
Fuse box in
passenger compartment ............... 337
Fuse box in engine compartment.. 337
Auxiliary fuse box in trunk............. 338
Technical data.................................. 339
Spare parts service ............................ 340
Warranty coverage ............................. 341
Loss of Service and Warranty
Information Booklet ...................... 341
Identification labels ............................ 342
Layout of poly-V-belt drive.................. 343
CLK320 / CLK500 /
CLK 55 AMG ................................. 343
Engine ................................................ 344
Rims and tires .................................... 345
Same size tires ............................. 345
Mixed size tires ............................. 346
Minispare wheel............................ 347
Electrical system ................................ 348
Main dimensions ................................ 349
Weights .............................................. 350

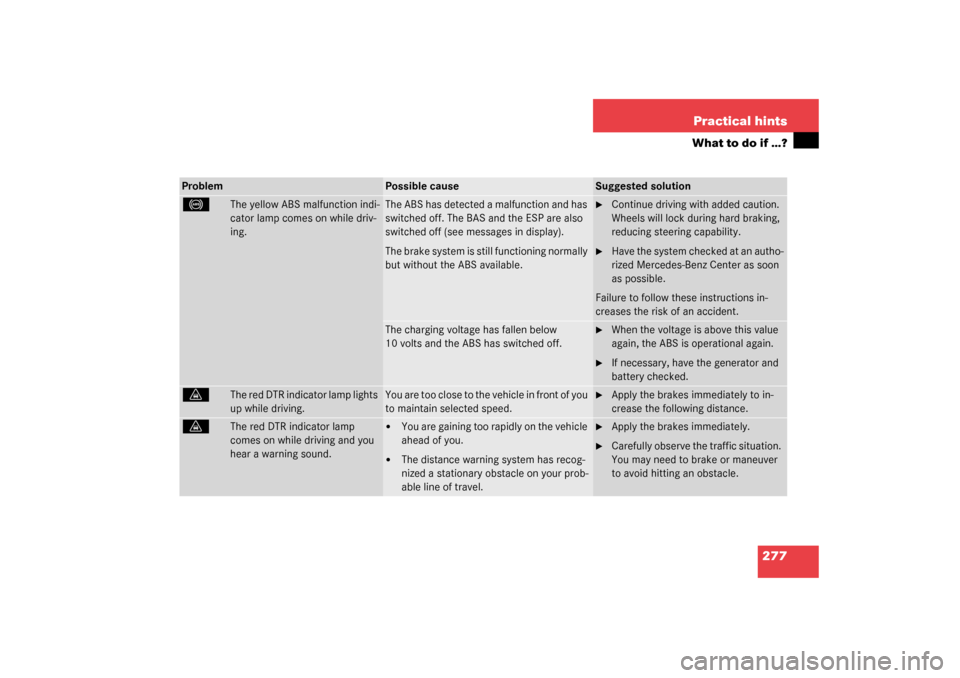

Page 277 of 394
277 Practical hints
What to do if …?
Problem
Possible cause
Suggested solution
-
The yellow ABS malfunction indi-
cator lamp comes on while driv-
ing.
The ABS has detected a malfunction and has
switched off. The BAS and the ESP are also
switched off (see messages in display).
The brake system is still functioning normally
but without the ABS available.
Continue driving with added caution.
Wheels will lock during hard braking,
reducing steering capability.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of an accident.
The charging voltage has fallen below
10 volts and the ABS has switched off.
When the voltage is above this value
again, the ABS is operational again.
If necessary, have the generator and
battery checked.
l
The red DTR indicator lamp lights
up while driving.
You are too close to the vehicle in front of you
to maintain selected speed.
Apply the brakes immediately to in-
crease the following distance.
l
The red DTR indicator lamp
comes on while driving and you
hear a warning sound.
You are gaining too rapidly on the vehicle
ahead of you.
The distance warning system has recog-
nized a stationary obstacle on your prob-
able line of travel.
Apply the brakes immediately.
Carefully observe the traffic situation.
You may need to brake or maneuver
to avoid hitting an obstacle.

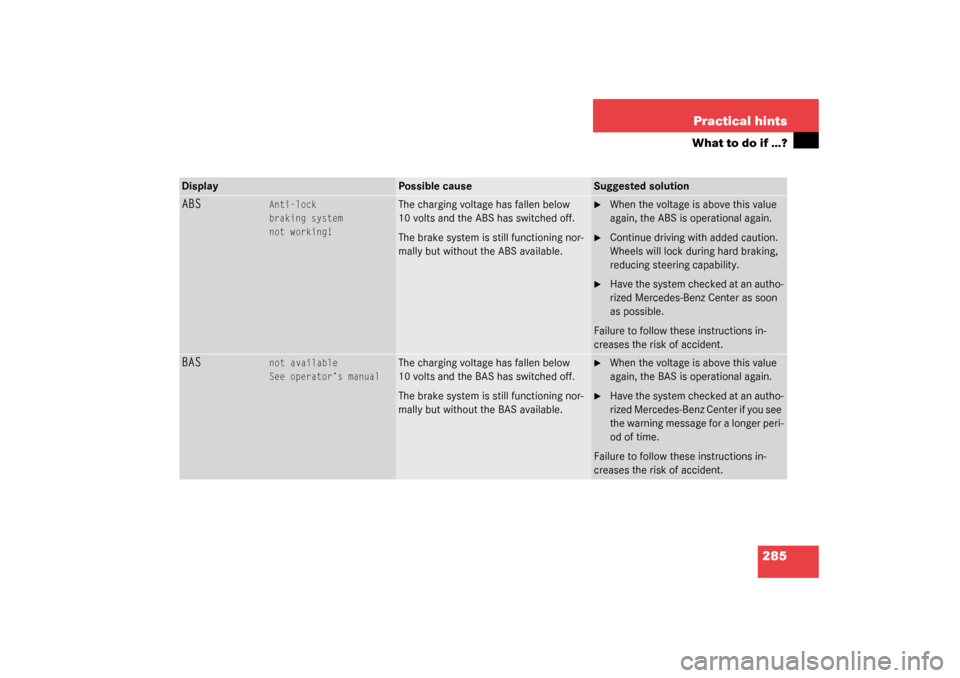

Page 285 of 394
285 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
ABS
Anti-lock
braking system
not working!
The charging voltage has fallen below
10 volts and the ABS has switched off.
The brake system is still functioning nor-
mally but without the ABS available.
When the voltage is above this value
again, the ABS is operational again.
Continue driving with added caution.
Wheels will lock during hard braking,
reducing steering capability.
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
Failure to follow these instructions in-
creases the risk of accident.
BAS
not available
See operator’s manual
The charging voltage has fallen below
10 volts and the BAS has switched off.
The brake system is still functioning nor-
mally but without the BAS available.
When the voltage is above this value
again, the BAS is operational again.
Have the system checked at an autho-
rized Mercedes-Benz Center if you see
the warning message for a longer peri-
od of time.
Failure to follow these instructions in-
creases the risk of accident.

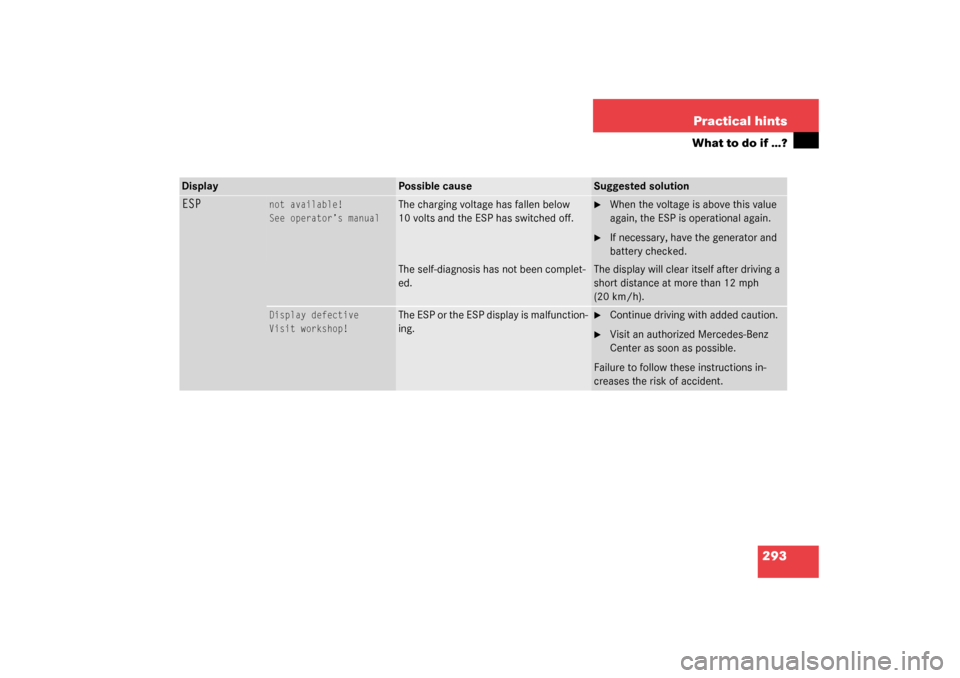

Page 293 of 394
293 Practical hints
What to do if …?
Display
Possible cause
Suggested solution
ESP
not available!
See operator’s manual
The charging voltage has fallen below
10 volts and the ESP has switched off.
When the voltage is above this value
again, the ESP is operational again.
If necessary, have the generator and
battery checked.
The self-diagnosis has not been complet-
ed.
The display will clear itself after driving a
short distance at more than 12 mph
(20 km/h).
Display defective
Visit workshop!
The ESP or the ESP display is malfunction-
ing.
Continue driving with added caution.
Visit an authorized Mercedes-Benz
Center as soon as possible.
Failure to follow these instructions in-
creases the risk of accident.
Page 302 of 394
302 Practical hintsWhat to do if …?Display
Possible cause
Suggested solution
#
VISIT WORKSHOP!
The battery was charged with a battery
charger or jump started.
Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:
alternator malfunctioning
broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be oper-
ating with restricted capability.
Considerably greater brake pedal force is
required and the stopping distance is in-
creased.
Stop immediately and check the
poly-V-belt.
If it is broken:
Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify an
authorized Mercedes-Benz Center.
If it is intact:
Drive immediately to the nearest au-
thorized Mercedes-Benz Center. Ad-
just driving to be consistent with
reduced braking responsiveness.
Page 330 of 394
330 Practical hintsBattery1Negative terminal
2Cover over positive terminal
Disconnecting the battery
Turn off all electrical consumers.
Open the hood (
page 253).
Remove the filter box.
Disconnect battery negative lead1.
Remove cover 2 from the positive ter-
minal.
Disconnect the battery positive lead.
Removing the batteries
Remove the screw securing the bat-
tery.
Remove the battery support and brack-
et. Take out the battery.
Charging and reinstalling batteries
Charge battery in accordance with the
instructions of the battery charger
manufacturer.
Reinstall the charged battery. Follow
the previously described steps in re-
verse order.
Warning!
G
With a disconnected battery
y o u w i l l n o l o n g e r b e a b l e t o t u r n t h e k e y
in the starter switch and pressing the
KEYLESS-GO* start/stop button (if so
equipped) on the selector lever will have
no effect
the selector lever will remain locked in
positionP
Warning!
G
Never charge a battery while still installed in
the vehicle. Gases may escape during charg-
ing and cause explosions that may result in
paint damage, corrosion or personal injury.
Page 369 of 394
369 Index
Automatic lighting control
Activating 109
Deactivating 109
Automatic locking when driving 95
Automatic transmission 141
Accelerator position 146
Activating steering wheel gearshift
control 147
Deactivating steering wheel gearshift
control 148
Emergency operation (Limp Home
Mode) 146
Fluid level 256
Gear ranges 143
Gear selector lever position 144
Gear shifting malfunctions 146
Kickdown 146
Manual shift program, CLK 55 AMG
146
One-touch gearshifting 142
Program mode selector switch 145
Selector lever position 141
Speedshift, CLK 55 AMG 146
Starting the engine 43
Steering wheel gearshift control
(Speedshift), CLK 55 AMG 146Transmission fluid 256
Winter program mode 145, 147
Auxiliary fuse box 338
B
BabySmart
TM
Airbag deactivation system 68
Compatible child seats 68, 361
Self-test 68
BabySmart
TM airbag deactivation system
361
Backrest
Folding forward 216
Folding rearward 217
Backup lamps 317, 322
Bulbs 317
BAS 76, 361
Messages in display 285
Batteries, SmartKey
Changing 312
Check lamp 85
Checking 86
Batteries, SmartKey with KEYLESS-GO*
Changing 312
Checking 86
Battery discharged
Jump starting 332Battery, vehicle 258, 329
Charging 330
Disconnecting 330
Messages in display 303
Reconnecting 331
Reinstalling 330
Removing 330
Bi-Xenon headlamps* 361
Block heater* 265
Blocking
Rear window operation 72
Bolts
For Minispare wheel 309
Brake assist system (BAS) 361
Brake fluid 353
Brake lamp bulbs 317
Brake lamp, high mounted 317
Brake pads
Message in display 286
Brakes 242
Warning lamp 279
Break-in period 240
Page 370 of 394
370 IndexBulbs, replacing 316
Additional turn signals 317
Backup lamps 317
Brake lamps 317
Fog lamps 317
Front lamps 317
High beam 317
High mounted brake lamp 317
License plate lamps 317, 322
Low beam 317
Parking lamps 317, 319, 321
Rear fog lamp 317
Rear fog lamps 322
Side marker lamps 317, 321
Standing lamps 317, 319, 321
Tail lamp assemblies 317, 322
Turn signal lamps 317
Button
Audio system 168C
CAC (Customer Assistance Center) 362
Calling up
Distronic* settings 121
Range (distance to empty) 137
Service indicator 267
CAN system 362
Capacities
Fuels, coolants, lubricants, etc. 351
Cargo tie-down rings 218
Casette mode
Playing cassettes 174
Cassette player
Operating 121
Catalytic converter 248
CD changer* 178
CD mode 178
CD player
Operating 120
Center console 25
AIRBAG OFF indicator lamp 282
Lower part 26
Upper part 25
Centigrade
Setting temperature units 126Central locking
Automatic 95
From inside 95
Switch 95
Switching on/off (control system) 133
Unlocking from inside 95
Central locking switch 95
Changing
Batteries (SmartKey with KEY-
LESS-GO*) 312
Batteries (SmartKey) 312
Key setting 133
Changing CDs 178
Charcoal filter 161
Activating 161
Deactivating 161
Charging
Vehicle battery 330
CHECK ENGINE malfunction indicator
lamp 280
Checking
Coolant level 256
Oil level 252, 254
Tire inflate pressure 252
Vehicle lighting 252
