MERCEDES-BENZ CLK320 COUPE 2005 C209 Owner's Manual

139 Controls in detail
Control system
It is helpful to think of the menus, and the
functions within each menu, as being
arranged in a circular pattern.

If you press buttonè orÿ
repeatedly, you will pass through each
menu one after the other.


If you press buttonk orj
repeatedly, you will pass through each
function display, one after the other, in
the current menu.In the
Settings
menu, instead of functions
you will find a number of submenus for
calling up and changing settings. For
instructions on using these submenus, see
“Submenus in the Settings menu”
(
page 147).
The number of menus available in the sys-
tem depends on which optional equipment
is installed in your vehicle.
The menus are described on the following
pages.

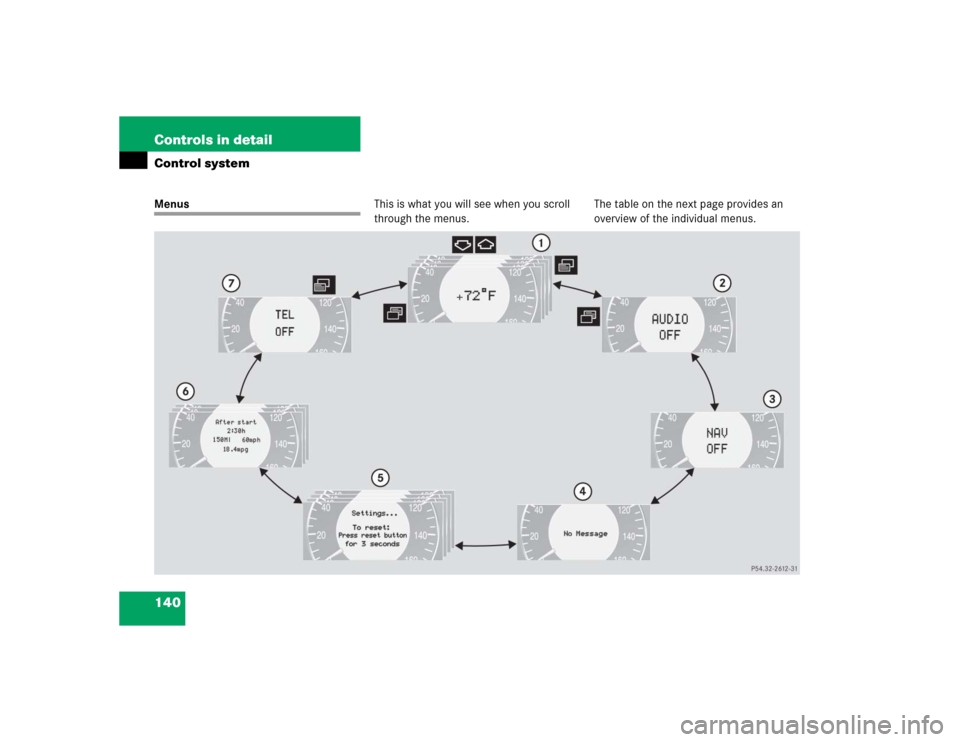

140 Controls in detailControl systemMenusThis is what you will see when you scroll
through the menus.The table on the next page provides an
overview of the individual menus.

141 Controls in detail
Control system

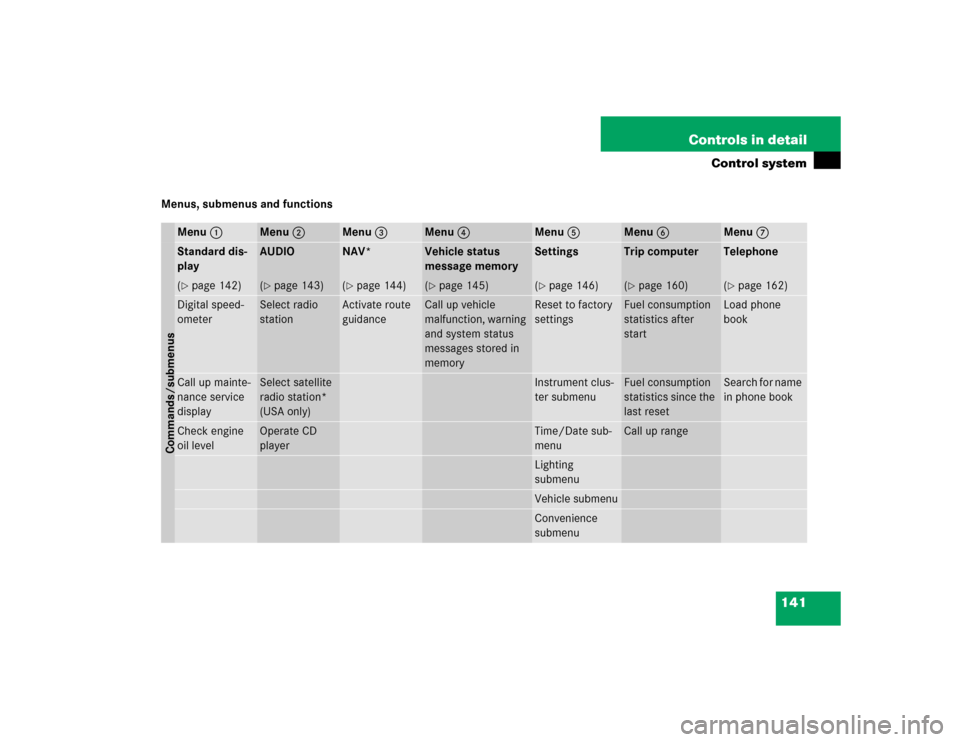

Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Commands/submenusStandard dis-
play
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone
(page 142)
(page 143)
(page 144)
(page 145)
(page 146)
(page 160)
(page 162)
Digital speed-
ometer
Select radio
station
Activate route
guidance
Call up vehicle
malfunction, warning
and system status
messages stored in
memory
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Call up mainte-
nance service
display
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consumption
statistics since the
last reset
Search for name
in phone book
Check engine
oil level
Operate CD
player
Time/Date sub-
menu
Call up range
Lighting
submenuVehicle submenuConvenience
submenu

142 Controls in detailControl systemStandard display menu
In the standard display, the outside tem-
perature and the trip odometer are shown
in the multifunction display.1Outside temperature
2Trip odometer
If you see another display, press
buttonè orÿ repeatedly until the
standard display appears.
You can select the functions in the stan-
dard display menu with buttonk
orj.
The following functions are available:Display digital speedometer

Press buttonj ork repeatedly
until the digital speedometer appears
in the multifunction display.
The current vehicle speed is shown in
the multifunction display and the sta-
tus line appears.
1Digital Speedometer
2Status line with outside temperature
3Trip odometer
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.iYou can have the digital speedometer
displayed instead of the outside tem-
perature in the standard display. You
can select the setting in the submenu Instr. cluster
via the function
Basic
display
(page 151).
Function
Page
Call up digital speedometer
142
Call up maintenance service
display
345
Check engine oil level
310
iYou can have the digital speedometer
displayed instead of the outside tem-
perature in the status line. You can se-
lect the setting in the submenu
Instr.
cluster
via the function
Status line
display
(page 150).

143 Controls in detail
Control system
AUDIO menu
The functions in the
Audio
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
Audio off
is shown in the
multifunction display.
The following functions are available:
Select radio station

Turn on the radio (
page 210).
Vehicles with COMAND*: Refer to
separate operating instructions.

Press buttonè orÿ repeatedly
until the currently tuned station
appears in the multifunction display.1Waveband setting
2Station frequency

Press buttonk orj repeatedly
until the desired station is found.Select satellite radio station*
(USA only)
The satellite radio is treated as a radio
application.

Select satellite radio with the
corresponding soft key (SAT) in the
radio menu.
1SAT mode and preset number
2Setting for station selection using
memory
3Channel name or number

Press buttonk orj repeatedly
until the desired channel is found.
Function
Page
Select radio station
143
Select satellite radio station*
(USA only)
143
Operate CD player
144
iYou can only store new stations using
the corresponding feature on the radio
(page 218).
Vehicles with COMAND*: Refer to
separate operating instructions.
You can also operate the radio in the
usual manner.

144 Controls in detailControl systemOperate the CD player
Turn on the radio and select the
CD player (
page 227). Vehicles with
COMAND*: Refer to separate
operating instructions.

Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the multifunc-
tion display.
1Current CD (for CD changer*)
2Current track

Press buttonk orj repeatedly
until the desired track is selected.
NAV* menu
The
Nav
menu contains the functions
needed to operate your navigation system.

Press buttonè orÿ repeatedly
until the message
Nav
appears in the
multifunction display.


If the navigation system is switched off,
the message
Nav off
appears in the
multifunction display.


If the navigation system is on, different
messages, depending on the current
state of the navigation system, appear
in the multifunction display.
Please refer to the COMAND* manual for
instructions on how to activate the route
guidance system*.
iFor more information on satellite radio
operation, see “Introduction to satellite
radio* (USA only)” (
page 220).
Vehicles with COMAND*: Refer to
separate operating instructions.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.

145 Controls in detail
Control system
Vehicle status message memory menu
Use the vehicle status message memory
menu to scan malfunction and warning
messages that may be stored in the
system. Such messages appear in the
multifunction display and are based on
conditions or system status the vehicle’s
system recorded.

Press buttonè orÿ repeatedly
until the vehicle status message
memory appears in the multifunction
display.
No vehicle status messages
If no conditions are recorded in memory,
the message in the multifunction display
is: No Message
Vehicle status messages have been
recorded
If conditions have occurred causing status
messages to be recorded, the number of
messages appears in the multifunction
display:
1Number of messages

Press buttonk orj.
The stored messages will now be
displayed in the order in which they
have occurred. For malfunction and
warning messages, see “Vehicle status
messages in the multifunction display”
(page 362).
Should the vehicle’s system record any
conditions while driving, the number of
messages will reappear in the multifunc-
tion display when the SmartKey in the
starter switch is turned to position0 or re-
moved from the starter switch. With
KEYLESS-GO*, turn off the engine by
pressing the KEYLESS-GO* start/stop but-
ton and open the driver’s door.
Warning!
G
Malfunction and warning messages are only
indicated for certain systems and are inten-
tionally not very detailed. The malfunction
and warning messages are simply a remind-
er with respect to the operation of certain
systems and do not replace the owner’s
and/or driver’s responsibility to maintain
the vehicle’s operating safety by having all
required maintenance and safety checks
performed on the vehicle and by bringing
the vehicle to an authorized Mercedes-Benz
Center to address the malfunction and
warning messages (
page 362).
iThe vehicle status message memory
will be cleared when you switch on igni-
tion. You will then only see high-priority
messages in the multifunction display
(page 362).

146 Controls in detailControl systemSettings menu
In the
Settings
menu there are two
functions:


The function
Reset to factory
settings?
, with which you can reset all
the settings to the original factory
settings.


A collection of submenus with which
you can make individual settings for
your vehicle.

Press buttonè orÿ repeatedly
until the
Settings
menu appears in the
display.Resetting all settings
You can reset all the functions of all
submenus to the factory settings.

Press the reset button in the
instrument cluster (
page 134) for
approximately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.

Press the reset button once more.
The functions of all the submenus will
reset to factory settings.
iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time. After approximately five seconds,
the
Settings...
menu reappears in
the multifunction display.
For safety reasons, the following
functions are not reset while driving:


the
Lamp circuit headlamp
func-
tion in the
Lighting
submenu


the
Key-dependent
function in the
Convenience
submenu

147 Controls in detail
Control system
Submenus in the Settings menu
Press buttonk orj.
The collection of the submenus
appears in the multifunction display.

Press buttonç.
The selection marker moves to the next
submenu.The submenus are arranged by hierarchy.
Scroll down with buttonç, scroll up
with buttonæ.
Move within the submenus with
buttonk orj to the individual
functions.
The settings themselves are made with
buttonæ orç.Resetting the functions of a submenu
For each submenu you can reset all the
functions to the factory settings.

Move to a function in the submenu.

Press the reset button (
page 134) in
the instrument cluster for approxi-
mately three seconds.
The request to press the reset button
once more to confirm appears in the
multifunction display.

Press the reset button once more.
All functions of the submenu will reset
to factory settings.iThe settings you have changed will not
be reset unless you confirm the action
by pressing the reset button a second
time. After approximately five seconds,
the
Settings
menu reappears in the
multifunction display.

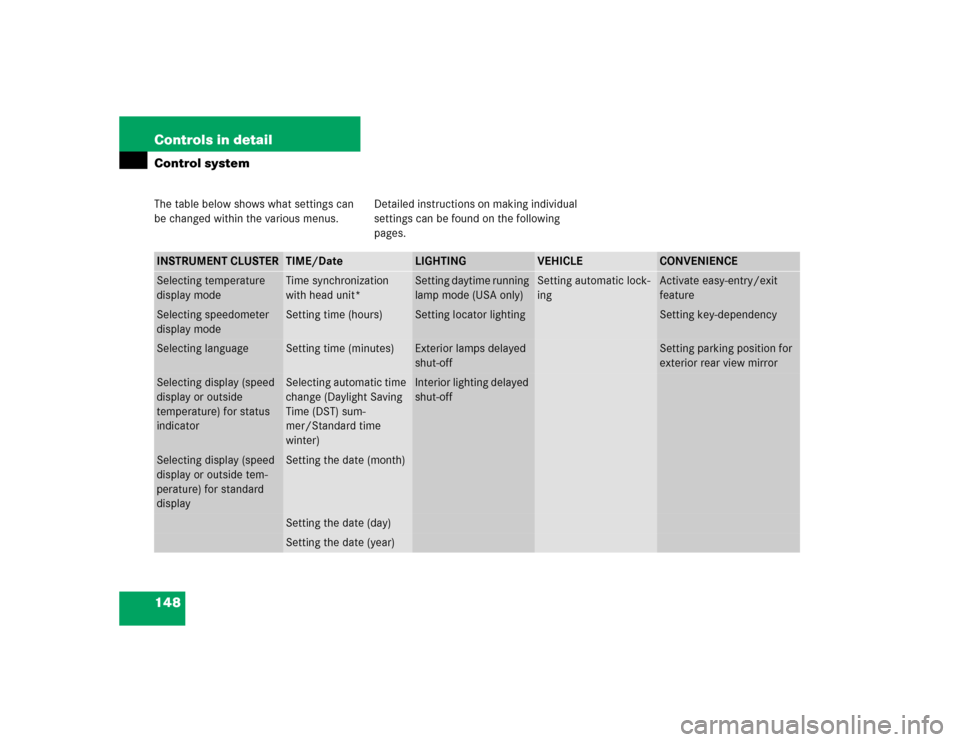

148 Controls in detailControl systemThe table below shows what settings can
be changed within the various menus. Detailed instructions on making individual
settings can be found on the following
pages.INSTRUMENT CLUSTER
TIME/Date
LIGHTING
VEHICLE
CONVENIENCE
Selecting temperature
display mode
Time synchronization
with head unit*
Setting daytime running
lamp mode (USA only)
Setting automatic lock-
ing
Activate easy-entry/exit
feature
Selecting speedometer
display mode
Setting time (hours)
Setting locator lighting
Setting key-dependency
Selecting language
Setting time (minutes)
Exterior lamps delayed
shut-off
Setting parking position for
exterior rear view mirror
Selecting display (speed
display or outside
temperature) for status
indicator
Selecting automatic time
change (Daylight Saving
Time (DST) sum-
mer/Standard time
winter)
Interior lighting delayed
shut-off
Selecting display (speed
display or outside tem-
perature) for standard
display
Setting the date (month)Setting the date (day)Setting the date (year)
