Page 9 of 505
Contents
Replacing SmartKey batteries............ 425
SmartKey / SmartKey with
KEYLESS-GO*............................... 426
Replacing bulbs ................................. 427
Bulbs ............................................ 428
Replacing bulbs for front lamps.... 430
Replacing bulbs for rear lamps ..... 432
Replacing wiper blades ...................... 434
Removing and
installing wiper blades .................. 434
Flat tire .............................................. 436
Preparing the vehicle.................... 436
Sealing tires with TIREFIT
(CLK 63 AMG only) ....................... 436
Mounting the Minispare wheel ..... 441
MOExtended system*................... 446
Battery ............................................... 447
Disconnecting the battery ............ 448
Removing the battery ................... 448
Charging and
reinstalling the battery ................. 449
Reconnecting the battery ............. 449
Jump starting ..................................... 450
Towing the vehicle ............................. 452
Towing the vehicle........................ 452
Installing towing eye bolt.............. 454Fuses ................................................. 456
Mainfuse box
in passenger compartment .......... 457
Fuse box
in engine compartment ................ 457
Fuse box
in trunk ........................................ 458
Technical data................................. 459
Parts service ...................................... 460
Warranty coverage............................. 461
Loss of Service and Warranty
Information Booklet ..................... 461
Identification labels ........................... 462
Layout of poly-V-belt drive ................. 464
CLK 350 / CLK 550 ..................... 464
CLK 63 AMG ................................ 464
Engine................................................ 465
Rims and tires.................................... 466
Same size tires ............................. 467
Mixed size tires ............................ 468
Minispare wheel ........................... 469
Electrical system ............................... 470Main dimensions and weights ........... 471
Main dimensions .......................... 471
Weights ........................................ 471
Fuels, coolants, lubricants, etc. ......... 472
Capacities .................................... 472
Engine oils ................................... 474
Engine oil additives ...................... 474
Air conditioning refrigerant .......... 474
Brake fluid.................................... 475
Premium unleaded gasoline ......... 475
Fuel requirements ........................ 476
Gasoline additives ........................ 476
Coolants ...................................... 477
Windshield washer system and
headlamp cleaning system*......... 479
Index................................................. 481
Page 12 of 505

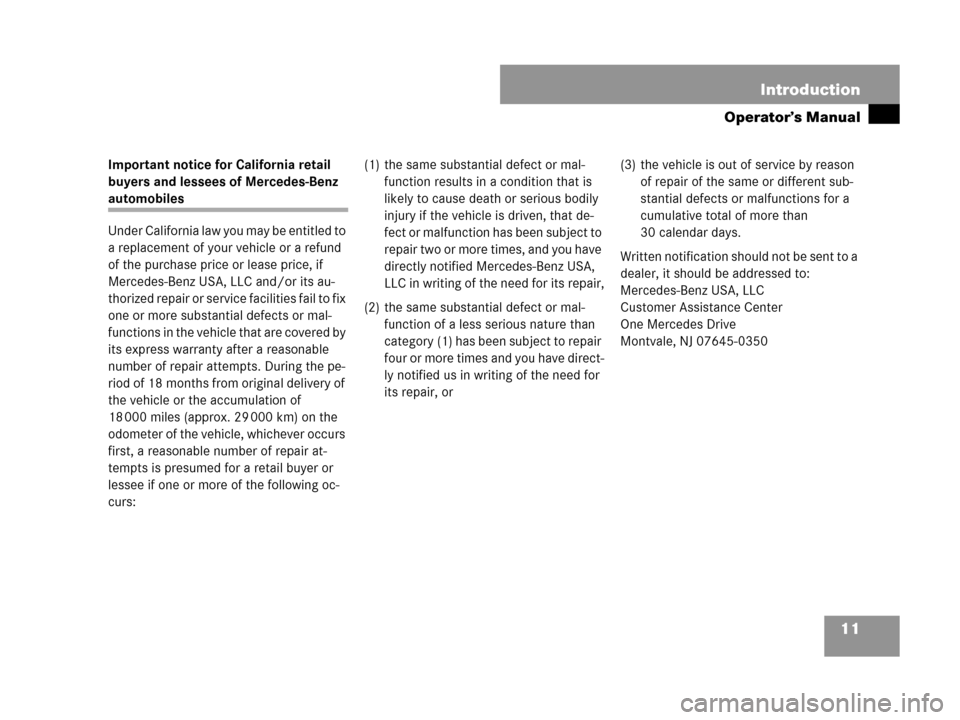

11 Introduction
Operator’s Manual
Important notice for California retail
buyers and lessees of Mercedes-Benz
automobiles
Under California law you may be entitled to
a replacement of your vehicle or a refund
of the purchase price or lease price, if
Mercedes-Benz USA, LLC and/or its au-
thorized repair or service facilities fail to fix
one or more substantial defects or mal-
functions in the vehicle that are covered by
its express warranty after a reasonable
number of repair attempts. During the pe-
riod of 18 months from original delivery of
the vehicle or the accumulation of
18 000 miles (approx. 29 000 km) on the
odometer of the vehicle, whichever occurs
first, a reasonable number of repair at-
tempts is presumed for a retail buyer or
lessee if one or more of the following oc-
curs: (1) the same substantial defect or mal-
function results in a condition that is
likely to cause death or serious bodily
injury if the vehicle is driven, that de-
fect or malfunction has been subject to
repair two or more times, and you have
directly notified Mercedes-Benz USA,
LLC in writing of the need for its repair,
(2) the same substantial defect or mal-
function of a less serious nature than
category (1) has been subject to repair
four or more times and you have direct-
ly notified us in writing of the need for
its repair, or(3) the vehicle is out of service by reason
of repair of the same or different sub-
stantial defects or malfunctions for a
cumulative total of more than
30 calendar days.
Written notification should not be sent to a
dealer, it should be addressed to:
Mercedes-Benz USA, LLC
Customer Assistance Center
One Mercedes Drive
Montvale, NJ 07645-0350
Page 48 of 505
47 Getting started
Driving
Driving

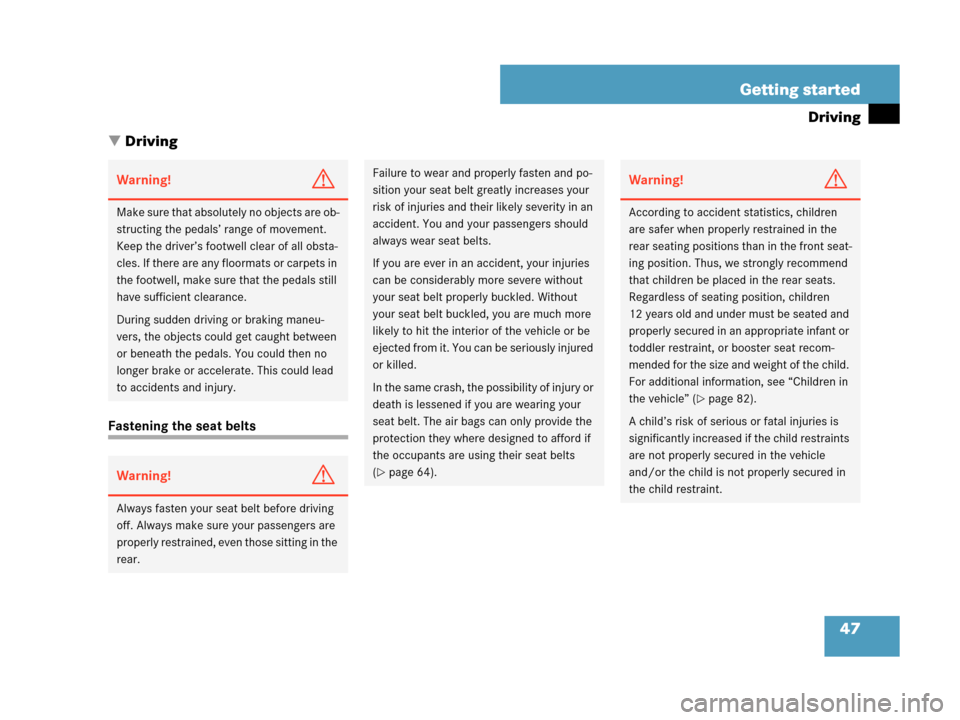

Fastening the seat belts
Warning!G
Make sure that absolutely no objects are ob-
structing the pedals’ range of movement.
Keep the driver’s footwell clear of all obsta-
cles. If there are any floormats or carpets in
the footwell, make sure that the pedals still
have sufficient clearance.
During sudden driving or braking maneu-
vers, the objects could get caught between
or beneath the pedals. You could then no
longer brake or accelerate. This could lead
to accidents and injury.
Warning!G
Always fasten your seat belt before driving
off. Always make sure your passengers are
properly restrained, even those sitting in the
rear.
Failure to wear and properly fasten and po-
sition your seat belt greatly increases your
risk of injuries and their likely severity in an
accident. You and your passengers should
always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are wearing your
seat belt. The air bags can only provide the
protection they where designed to afford if
the occupants are using their seat belts
(
page 64).
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats.
Regardless of seating position, children
12 years old and under must be seated and
properly secured in an appropriate infant or
toddler restraint, or booster seat recom-
mended for the size and weight of the child.
For additional information, see “Children in
the vehicle” (
page 82).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.
Page 50 of 505
49 Getting started
Driving

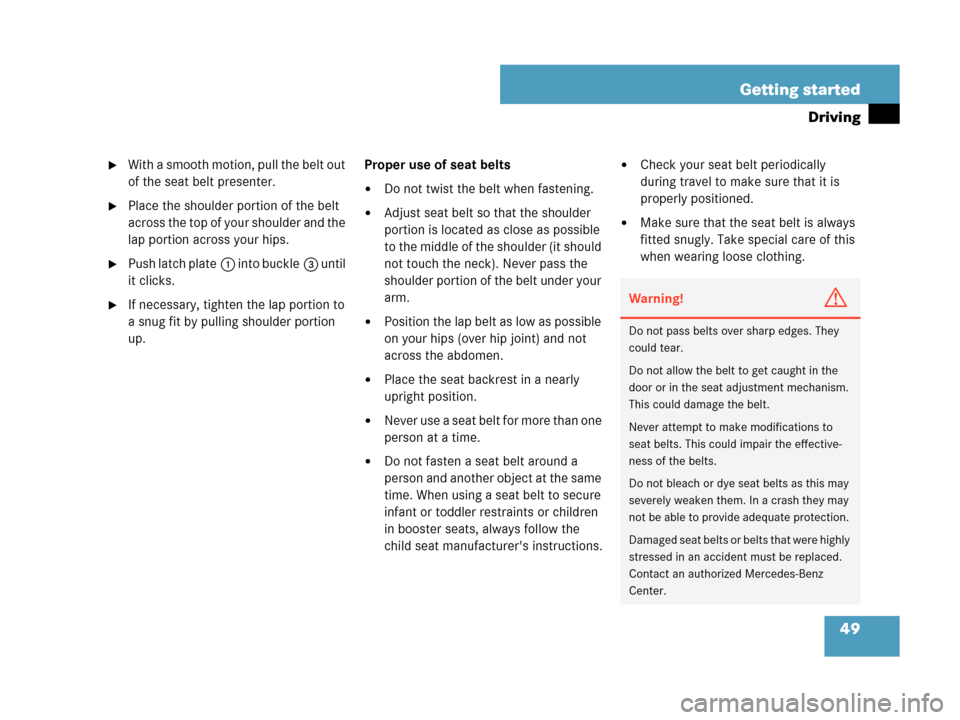

With a smooth motion, pull the belt out
of the seat belt presenter.
Place the shoulder portion of the belt
across the top of your shoulder and the
lap portion across your hips.
Push latch plate1 into buckle3 until
it clicks.
If necessary, tighten the lap portion to
a snug fit by pulling shoulder portion
up.Proper use of seat belts
Do not twist the belt when fastening.
Adjust seat belt so that the shoulder
portion is located as close as possible
to the middle of the shoulder (it should
not touch the neck). Never pass the
shoulder portion of the belt under your
arm.
Position the lap belt as low as possible
on your hips (over hip joint) and not
across the abdomen.
Place the seat backrest in a nearly
upright position.
Never use a seat belt for more than one
person at a time.
Do not fasten a seat belt around a
person and another object at the same
time. When using a seat belt to secure
infant or toddler restraints or children
in booster seats, always follow the
child seat manufacturer's instructions.
Check your seat belt periodically
during travel to make sure that it is
properly positioned.
Make sure that the seat belt is always
fitted snugly. Take special care of this
when wearing loose clothing.
Warning!G
Do not pass belts over sharp edges. They
could tear.
Do not allow the belt to get caught in the
door or in the seat adjustment mechanism.
This could damage the belt.
Never attempt to make modifications to
seat belts. This could impair the effective-
ness of the belts.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Damaged seat belts or belts that were highly
stressed in an accident must be replaced.
Contact an authorized Mercedes-Benz
Center.
Page 58 of 505
57 Getting started
Driving

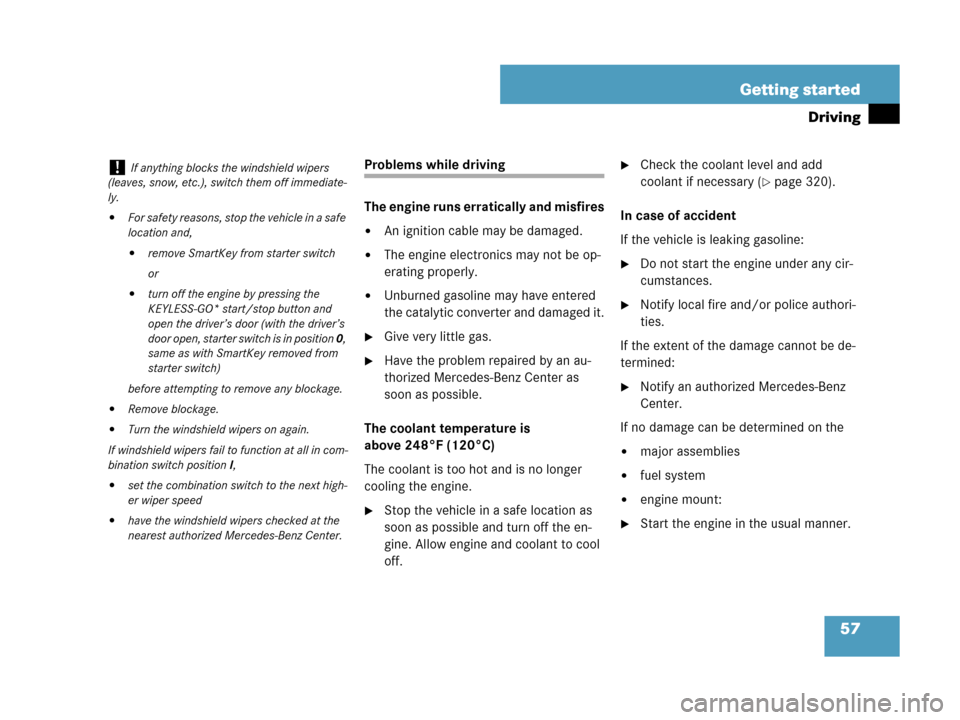

Problems while driving
The engine runs erratically and misfires
An ignition cable may be damaged.
The engine electronics may not be op-
erating properly.
Unburned gasoline may have entered
the catalytic converter and damaged it.
Give very little gas.
Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
The coolant temperature is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle in a safe location as
soon as possible and turn off the en-
gine. Allow engine and coolant to cool
off.
Check the coolant level and add
coolant if necessary (
page 320).
In case of accident
If the vehicle is leaking gasoline:
Do not start the engine under any cir-
cumstances.
Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:
Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the
major assemblies
fuel system
engine mount:
Start the engine in the usual manner.
!If anything blocks the windshield wipers
(leaves, snow, etc.), switch them off immediate-
ly.
For safety reasons, stop the vehicle in a safe
location and,
remove SmartKey from starter switch
or
turn off the engine by pressing the
KEYLESS-GO* start/stop button and
open the driver’s door (with the driver’s
door open, starter switch is in position 0,
same as with SmartKey removed from
starter switch)
before attempting to remove any blockage.
Remove blockage.
Turn the windshield wipers on again.
If windshield wipers fail to function at all in com-
bination switch positionI,
set the combination switch to the next high-
er wiper speed
have the windshield wipers checked at the
nearest authorized Mercedes-Benz Center.
Page 61 of 505
60 Getting started
Parking and locking

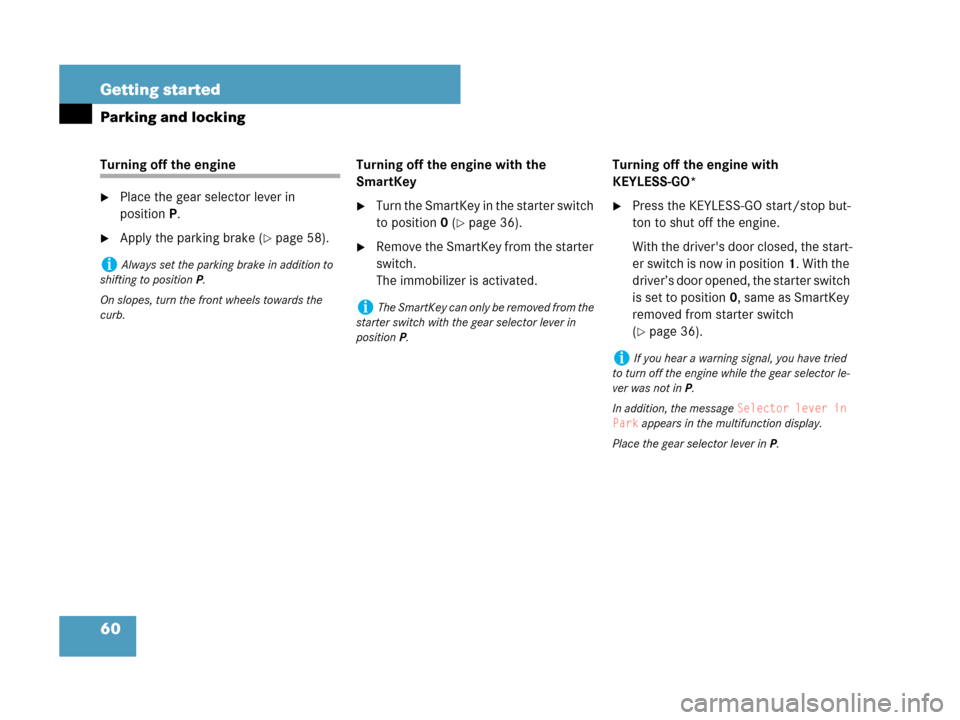

Turning off the engine
Place the gear selector lever in
positionP.
Apply the parking brake (page 58).Turning off the engine with the
SmartKey
Turn the SmartKey in the starter switch
to position0 (
page 36).
Remove the SmartKey from the starter
switch.
The immobilizer is activated.Turning off the engine with
KEYLESS-GO*
Press the KEYLESS-GO start/stop but-
ton to shut off the engine.
With the driver's door closed, the start-
er switch is now in position1. With the
driver’s door opened, the starter switch
is set to position0, same as SmartKey
removed from starter switch
(
page 36).
iAlways set the parking brake in addition to
shifting to positionP.
On slopes, turn the front wheels towards the
curb.
iThe SmartKey can only be removed from the
starter switch with the gear selector lever in
positionP.
iIf you hear a warning signal, you have tried
to turn off the engine while the gear selector le-
ver was not inP.
In addition, the message
Selector lever in
Park
appears in the multifunction display.
Place the gear selector lever inP.
Page 75 of 505
74 Safety and Security
Occupant safety

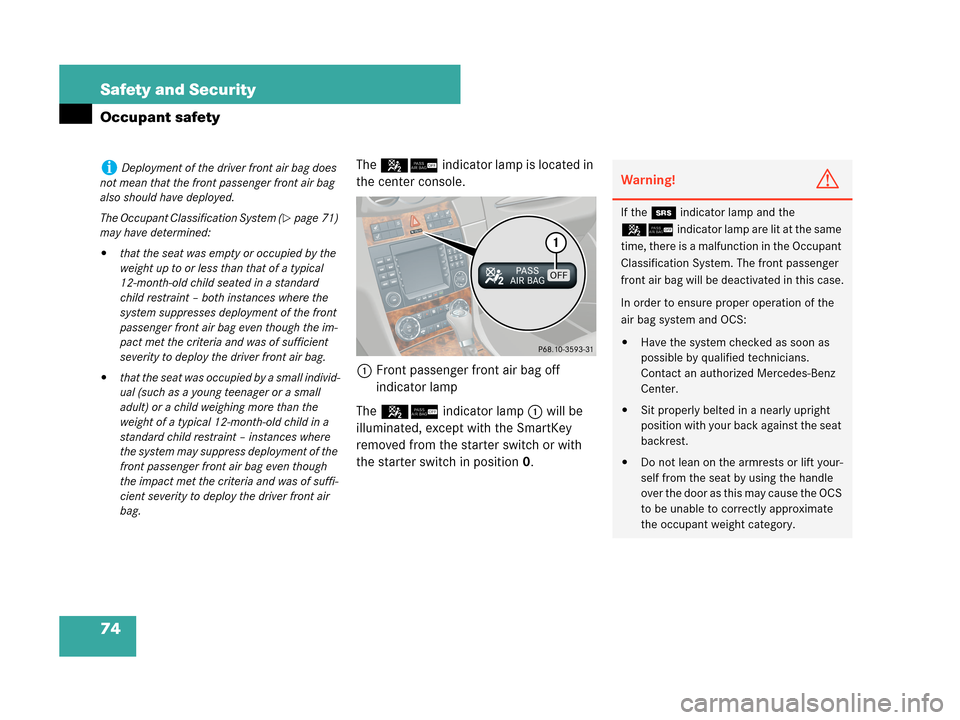

The 56indicator lamp is located in
the center console.
1Front passenger front air bag off
indicator lamp
The 56indicator lamp1 will be
illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0.iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 71)
may have determined:
that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag.
that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag.
Warning!G
If the 1indicator lamp and the
56indicator lamp are lit at the same
time, there is a malfunction in the Occupant
Classification System. The front passenger
front air bag will be deactivated in this case.
In order to ensure proper operation of the
air bag system and OCS:
Have the system checked as soon as
possible by qualified technicians.
Contact an authorized Mercedes-Benz
Center.
Sit properly belted in a nearly upright
position with your back against the seat
backrest.
Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.
Page 77 of 505
76 Safety and Security
Occupant safety

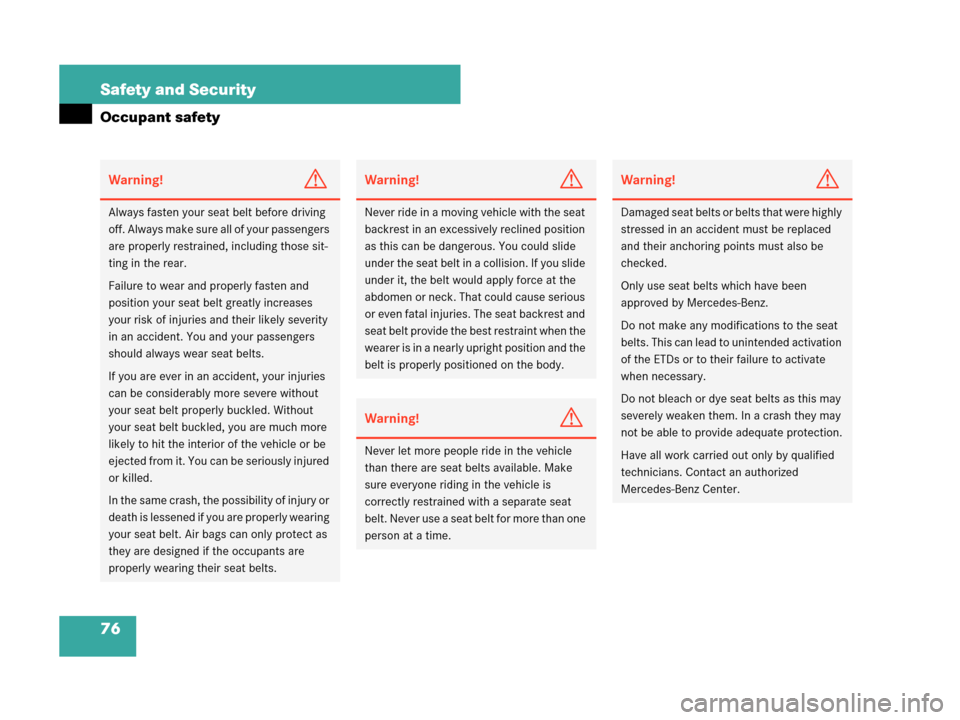

Warning!G
Always fasten your seat belt before driving
off. Always make sure all of your passengers
are properly restrained, including those sit-
ting in the rear.
Failure to wear and properly fasten and
position your seat belt greatly increases
your risk of injuries and their likely severity
in an accident. You and your passengers
should always wear seat belts.
If you are ever in an accident, your injuries
can be considerably more severe without
your seat belt properly buckled. Without
your seat belt buckled, you are much more
likely to hit the interior of the vehicle or be
ejected from it. You can be seriously injured
or killed.
In the same crash, the possibility of injury or
death is lessened if you are properly wearing
your seat belt. Air bags can only protect as
they are designed if the occupants are
properly wearing their seat belts.
Warning!G
Never ride in a moving vehicle with the seat
backrest in an excessively reclined position
as this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck. That could cause serious
or even fatal injuries. The seat backrest and
seat belt provide the best restraint when the
wearer is in a nearly upright position and the
belt is properly positioned on the body.
Warning!G
Never let more people ride in the vehicle
than there are seat belts available. Make
sure everyone riding in the vehicle is
correctly restrained with a separate seat
belt. Never use a seat belt for more than one
person at a time.
Warning!G
Damaged seat belts or belts that were highly
stressed in an accident must be replaced
and their anchoring points must also be
checked.
Only use seat belts which have been
approved by Mercedes-Benz.
Do not make any modifications to the seat
belts. This can lead to unintended activation
of the ETDs or to their failure to activate
when necessary.
Do not bleach or dye seat belts as this may
severely weaken them. In a crash they may
not be able to provide adequate protection.
Have all work carried out only by qualified
technicians. Contact an authorized
Mercedes-Benz Center.
Page 198 of 505
197 Controls in detail
Climate control

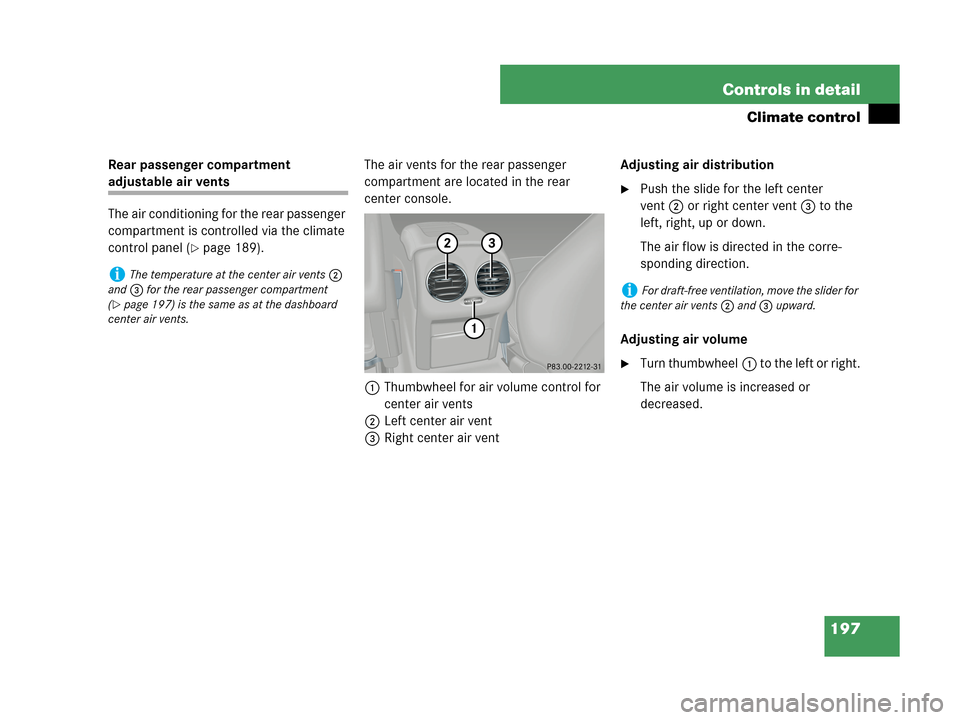

Rear passenger compartment
adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the climate
control panel (
page 189).The air vents for the rear passenger
compartment are located in the rear
center console.
1Thumbwheel for air volume control for
center air vents
2Left center air vent
3Right center air ventAdjusting air distribution
Push the slide for the left center
vent2 or right center vent3 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume
Turn thumbwheel1 to the left or right.
The air volume is increased or
decreased.
iThe temperature at the center air vents2
and3 for the rear passenger compartment
(
page 197) is the same as at the dashboard
center air vents.iFor draft-free ventilation, move the slider for
the center air vents2 and3 upward.
Page 211 of 505
210 Controls in detail

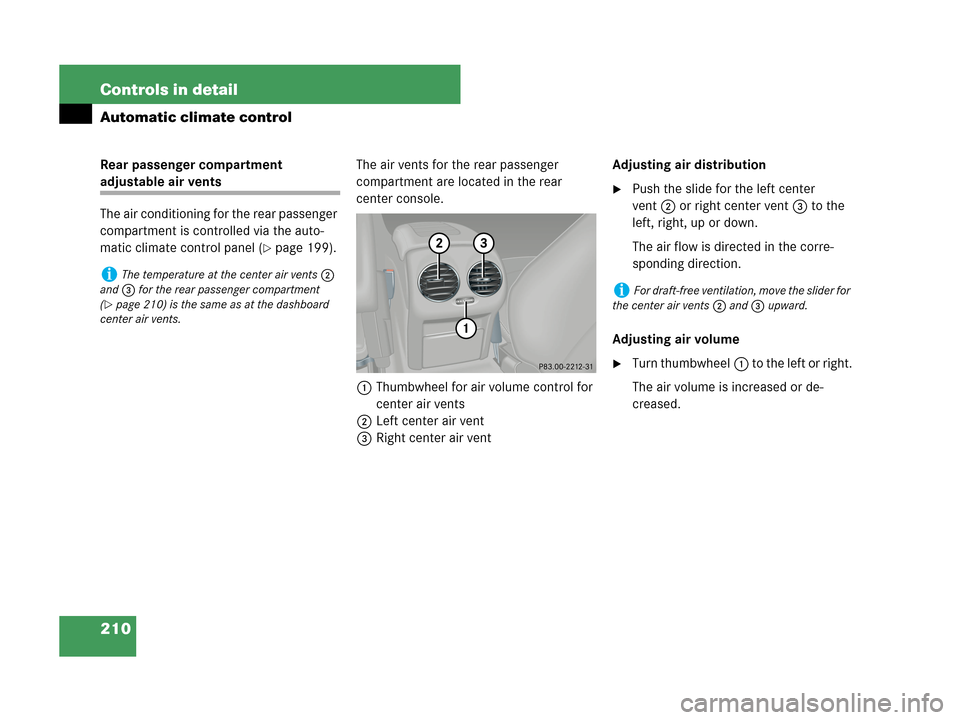

Automatic climate control
Rear passenger compartment
adjustable air vents
The air conditioning for the rear passenger
compartment is controlled via the auto-
matic climate control panel (
page 199).The air vents for the rear passenger
compartment are located in the rear
center console.
1Thumbwheel for air volume control for
center air vents
2Left center air vent
3Right center air ventAdjusting air distribution
Push the slide for the left center
vent2 or right center vent3 to the
left, right, up or down.
The air flow is directed in the corre-
sponding direction.
Adjusting air volume
Turn thumbwheel1 to the left or right.
The air volume is increased or de-
creased.
iThe temperature at the center air vents2
and3 for the rear passenger compartment
(
page 210) is the same as at the dashboard
center air vents.iFor draft-free ventilation, move the slider for
the center air vents2 and3 upward.
