MERCEDES-BENZ CLK350 2008 C209 Owner's Manual

220 Controls in detail
Audio system
Calling up AUX mode
Press and hold Q button until AUX
appears in the display.
The device connected with the external
audio source cinch-connector is heard,
provided it is switched to playback.
You can adjust the volume (
page 216),
the sound settings (
page 216) and the
volume distribution (
page 218) for the
AUX input.
The following settings can be made in the
audio AUX mode:

Volume (page 216)

Sound settings (page 216)

Volume distribution (page 218)Canceling AUX mode
Press any audio source button.
The AUX mode is canceled.
Warning!G
Only operate an external audio source (AUX)
when the vehicle is stationary. There is a risk
of accident by being distracted from road
and traffic conditions if you operate an ex-
ternal audio source (AUX) while the vehicle
is in motion.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car is
covering a distance of 44 feet
(approximately 14 m) every second.
Warning!G
Due to the different volumes of the external
audio sources, system messages (e.g. traffic
and navigation announcements) may be
much louder. You may need to disable these
system messages or adjust the volume of
these messages manually.
iPlease refer to the relevant manufacturers
operating instruction for the external audio
source device.
iThe volume of external audio sources is ex-
tremely variable. It is possible that a device con-
nected as an external audio source will sound
quieter or louder in the vehicle or that the usual
maximum volume cannot be achieved. On cer-
tain devices the volume can be set separately. In
this case, start at a moderate volume and in-
crease it slowly. In this way, you can determine
whether the system is capable of playback with-
out distortion, even at high volume.

221 Controls in detail
Audio system
Radio operation
Selecting radio mode
Press b button.
Calling up wavebands
You can choose from among the FM, AM
and WB wavebands.
Weather band (
page 224).Calling up wavebands for radios without
SAT*
Press FM or AM soft key to switch be-
tween FM and AM.
The FM and AM wavebands are called
up one after another.
or
Press WB soft key.
The weather band menu is called up.
The waveband currently selected
appears in the upper left-hand corner
of the display.
Calling up wavebands for radios with
SAT*
Press FM, AM or WB soft key repeatedly
until desired waveband has been se-
lected.
The FM, AM and WB wavebands are
called up one after another.The waveband currently selected
appears in the upper left-hand corner
of the display.
Selecting a station
The following options are available for se-
lecting a station:

Direct frequency input (page 222)

Manual tuning (page 222)

Automatic seek tuning (page 222)

Scan search (page 222)

Station memory (page 223)

Automatic station memory (Autostore)
(
page 223)
The station search proceeds in the follow-
ing frequency increments:

200 kHz in FM range

10 kHz in AM range
iFM waveband: 87.7......107.9 MHz
AM waveband: 530......1 710 KHz

222 Controls in detail
Audio system
Direct frequency input
Select desired waveband.
Press * button.
Enter desired frequency with buttons
1to R.Manual tuning
Select desired waveband.
Press S or Tbutton for approx-
imately three seconds.
Press button repeatedly until desired
frequency has been reached.
Step-by-step station tuning takes place
in ascending or descending order. Each
time the button is pressed, the radio
tunes further by 0.2 MHz. During man-
ual tuning, the radio is muted.
Automatic seek tuning
Select desired waveband.
Press S or T button briefly.
The radio will tune to the next highest
or next lowest receivable frequency.Scan search

Starting scan search
Select desired waveband.
Press SC soft key.
SC will appear in the display. The ra-
dio briefly tunes in all receivable
stations on the waveband selected.

Ending scan search
Press SC soft key or S or T.
The station last played will be se-
lected and
SC disappears from the
display.
iYou can only enter frequencies within the re-
spective waveband.
If a button is not pressed within four seconds,
the radio will return to the last station tuned.
iIf no station is received after two
consecutive scans of the complete frequency
range, then the scan stops at the frequency from
which it began.

223 Controls in detail
Audio system
Station memory
You can store ten AM and ten FM stations
in the memory.

Storing stations
Tune in desired station.
Press and hold desired station
button1 to R until a brief
signal tone is heard.
The frequency is stored on the se-
lected station button.

Calling up stations
Press desired station button1
to R briefly.Autostore – automatic station memory
The Autostore memory function provides
an additional memory level. The station
memory for manually stored stations is not
overwritten.

Calling up Autostore memory level and
storing stations
Press AS soft key briefly.
The radio switches to the Autostore
memory level.
AS and SEARCH ap-
pear in the display and the radio
finds the ten stations with the
strongest signals. These stations
are stored on the station buttons
1 to R in order of signal
strength.

Calling up stations
Press desired station button1
to R.

Leaving the Autostore memory level
Press FM or AMsoft key briefly.

224 Controls in detail
Audio system
Interrupting radio mode
The radio mode is interrupted by an incom-
ing call on the telephone* (
page 240)

Mute on
Press U button.
The radio mode is interrupted and
MUTED appears in the display.

Mute off
Press U button.
The radio mode is again active.
Weather band
Press WB soft key.
The weather band station last received
is tuned in.Selecting a weather band station
directly
Select desired weather band station
with buttons 1 to 7.
If a station cannot be tuned in, a search
is automatically started.
Search
Press S or T button to tune in
the next receivable weather band sta-
tion.Scan search

Starting scan search
Press SC soft key.
SC will appear in the display. The ra-
dio briefly tunes in all receivable
weather band stations.

Ending scan search
Press SC soft key or S or T.
The weather band station last
played will be selected and
SC dis-
appears from the display.
iIf no weather band station is received after
three consecutive scans of the complete fre-
quency range, then the scan stops at the chan-
nel with which it began and
NO WB FOUND
appears in the display.
If this happens, switch back to standard radio
mode.

225 Controls in detail
Audio system
Satellite radio*
SIRIUS satellite radio provides over 100
channels of digital-quality radio. That in-
cludes music, sports, news, and entertain-
ment, free of commercials. SIRIUS satellite
radio uses three high-orbit satellites to
broadcast 24 hours per day, coast to
coast.
This diverse, satellite-delivered program-
ming is available for a monthly subscrip-
tion fee.
For more information and service
availability, call the SIRIUS Service Center
(1-888-539-7474), or contact
www.siriusradio.com for USA or
www.siriuscanada.ca for Canada.Program categories
The channels are categorized. Categories
allow you to tune to stations broadcasting
a certain type of program (category mode)
(
page 227).
Calling up the SAT main menu
Press SAT soft key.
SAT is displayed in the upper left-hand
corner of the display.
Prior to activation of the satellite radio
service (
page 226).
After activation of satellite radio ser-
vice (
page 226).
iAdditional satellite radio equipment and a
subscription to a satellite radio service provider
are required for the satellite radio operation de-
scribed here.
Contact an authorized Mercedes-Benz Center
for details and availability for your vehicle.
Note that categories and channels shown in illus-
trations are dependent on programming content
delivered by the service provider. Programming
content is subject to change. Therefore, chan-
nels and categories shown in illustrations and
descriptions contained in this manual may differ
from the channels and categories delivered by
the service provider.
iSatellite radio service may be unavailable or
interrupted from time to time for a variety of rea-
sons, such as environmental or topographic con-
ditions and other things beyond the service
provider’s or our control. Service might also not
be available in certain places (e.g., in tunnels,
parking garages, or within or next to buildings) or
near other technologies.

226 Controls in detail
Audio system
Prior to activation of the satellite radio
service
The telephone number of the SIRIUS
Service Center (888-539-7474) is dis-
played.
Press ESN soft key.
The twelve-digit electronic serial num-
ber (ESN) of the SAT tuner* installed in
your vehicle is displayed.
This information is required to call the
SIRIUS Service Center for an activation re-
quest.After activation of the satellite radio
service
The satellite radio main menu appears.
The radio station selected last is audible,
provided it can be received.
The first channel 001 is called up and the
PTY system changes to All categories.
If no station can be received,
ACQUIRING
appears in the display.
If the Satellite radio service is not
activated,
ACQUIRING will also appear in the
radio display and
NO SAT will appear in the
multifunction display.Selecting a station
The following options are available:

Selecting a station using the selected
category (
page 227),

Tuning via station presets
(
page 226),

Tuning via scan search (page 228),

Tuning via manual channel input
(
page 227),

Tuning via the program category list
(
page 227).
Tuning via station presets
Ten satellite radio station presets are avail-
able.
You can access the presets via number
keys.
iCredit card information may also be re-
quired for your application.
The activation process takes approximately five
to ten minutes after calling the SIRIUS Service
Center.
iThe system will tune to a default station if no
station had been selected previously.

227 Controls in detail
Audio system
Accessing via number keys
Enter number of preset you wish to se-
lect, e.g. 1.
The radio plays the station stored un-
der this number and the PTY function
changes to the category corresponding
to the station.
Tuning via manual channel input
Example: tuning in channel 16
Press *.
Input line appears in the main radio
menu.
Use number keys to enter desired
channel within eight seconds,
e.g.1 6.The system tunes to channel 16.
The station you have selected begins to
play.
Tuning via the program category list
The category list contains all currently re-
ceivable categories of programs. It is
arranged alphabetically.

Selecting a category
Press PTY soft key.
The current PTY category of the sta-
tion is displayed.
Press <<< or >>> soft key.
This switches between the individu-
al categories.
When changing the category, the chan-
nel selected last in the new category
becomes audible.
The system will automatically switch to
a station of the selected category if the
currently selected station is not of the
selected category. Otherwise, the cur-
rently selected station remains tuned.

Tuning a station within the selected
category
The channels identified for the current-
ly selected category are arranged
numerically. Only one entry is visible at
a time.
Press S or T button briefly.
The next station within the category
is started.
or
iYou can only enter available channel num-
bers.


228 Controls in detail
Audio system
Press and hold S or T but-
ton for approximately three sec-
onds until desired station has been
reached.
Tuning via scan search
Scan search is characterized as follows:

Scan search plays a channel for ap-
proximately eight seconds and then
skips to the next channel within the
current category.

Scan search can be terminated manu-
ally.
Press SC soft key.
The search starts. SC appears in the
display.
Press SC soft key again.
The search stops.Obtaining additional text information
Additional text information (artist, title) re-
lated to the current channel can be dis-
played.
Press INF soft key.
The title being played is displayed.
Press INF soft key again.
The name of the artist performing the
title being played is displayed.
Storing stations
Tune in desired station.
Press and hold desired station button
1 to R until a brief signal tone is
heard.
The frequency is stored on the selected
station button.The radio saves the current station at
the memory preset selected. The mem-
ory preset selected appears in the sta-
tus line, e.g. S3.
Calling up the ESN information menu
Press INF soft key.
Press ESN soft key.
The twelve-digit electronic serial num-
ber (ESN) of the SAT tuner* installed in
your vehicle is displayed.
Press RET soft key to exit the menu.
iIf a button is not pressed within
four seconds, the radio will return to the stan-
dard display.
iThere are ten presets available.
An existing entry is overwritten in the memory
list when a new entry is given.

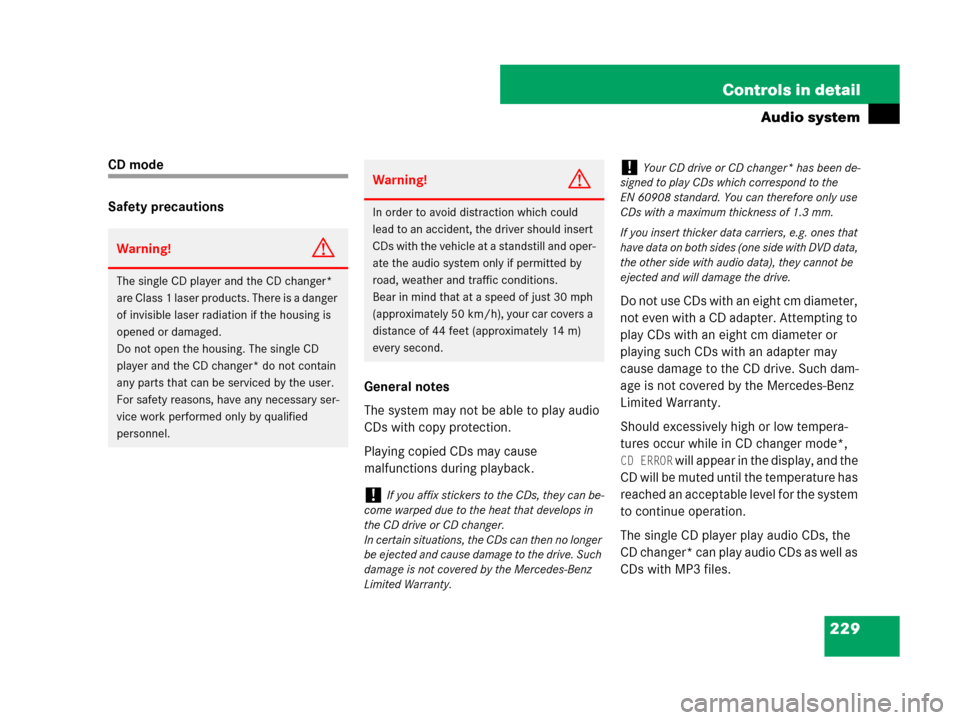

229 Controls in detail
Audio system
CD mode
Safety precautions
General notes
The system may not be able to play audio
CDs with copy protection.
Playing copied CDs may cause
malfunctions during playback.Do not use CDs with an eight cm diameter,
not even with a CD adapter. Attempting to
play CDs with an eight cm diameter or
playing such CDs with an adapter may
cause damage to the CD drive. Such dam-
age is not covered by the Mercedes-Benz
Limited Warranty.
Should excessively high or low tempera-
tures occur while in CD changer mode*,
CD ERROR will appear in the display, and the
CD will be muted until the temperature has
reached an acceptable level for the system
to continue operation.
The single CD player play audio CDs, the
CD changer* can play audio CDs as well as
CDs with MP3 files.
Warning!G
The single CD player and the CD changer*
are Class 1 laser products. There is a danger
of invisible laser radiation if the housing is
opened or damaged.
Do not open the housing. The single CD
player and the CD changer* do not contain
any parts that can be serviced by the user.
For safety reasons, have any necessary ser-
vice work performed only by qualified
personnel.
Warning!G
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and oper-
ate the audio system only if permitted by
road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m)
every second.
!If you affix stickers to the CDs, they can be-
come warped due to the heat that develops in
the CD drive or CD changer.
In certain situations, the CDs can then no longer
be ejected and cause damage to the drive. Such
damage is not covered by the Mercedes-Benz
Limited Warranty.
!Your CD drive or CD changer* has been de-
signed to play CDs which correspond to the
EN 60908 standard. You can therefore only use
CDs with a maximum thickness of 1.3 mm.
If you insert thicker data carriers, e.g. ones that
have data on both sides (one side with DVD data,
the other side with audio data), they cannot be
ejected and will damage the drive.
