oil level MERCEDES-BENZ CLK350 2008 C209 Owner's Manual

Contents
At the gas station .............................. 320
Refueling ...................................... 320
Check regularly
and before a long trip................... 322
Engine compartment ......................... 323
Hood ............................................ 323
Engine oil ..................................... 325
Transmission fluid level ................ 327
Coolant ........................................ 328
Battery ......................................... 329
Windshield washer system and
headlamp cleaning system* ......... 330
Tires and wheels ................................ 331
Important guidelines .................... 331
Tire care and maintenance........... 332
Direction of rotation ..................... 334
Loading the vehicle ...................... 334
Recommended
tire inflation pressure ................... 339
Checking tire inflation pressure ... 341
MOExtended system* .................. 348
Tire labeling.................................. 348
Load identification ....................... 352
DOT,
Tire Identification Number (TIN) ... 353
Maximum tire load ....................... 354Maximum tire inflation pressure ... 355
Uniform Tire Quality Grading
Standards (U.S. vehicles) .............. 356
Tire ply material ............................ 357
Tire and loading terminology......... 358
Rotating tires ................................ 361
Winter driving ..................................... 362
Winter tires ................................... 362
Block heater (Canada only) ........... 363
Snow chains.................................. 363
Maintenance....................................... 364
Maintenance service
indicator message......................... 364
Clearing the maintenance
service indicator message ............ 365
Maintenance
service term exceeded.................. 365
Calling up the maintenance
service indicator display ............... 366
Resetting the maintenance
service indicator ........................... 366
Vehicle care........................................ 367
Cleaning and care of vehicle ......... 367
Practical hints.................................. 377
What to do if …? ................................. 378
Lamps in instrument cluster ......... 378
Lamp in center console ................ 390
Vehicle status messages
in the multifunction display .......... 392
Where will I find...? ............................. 421
First aid kit.................................... 421
Storage compartment
underneath the trunk floor............ 421
TIREFIT (CLK 63 AMG only)........... 422
Vehicle tool kit.............................. 422
Minispare wheel............................ 425
Spare wheel bolts ......................... 426
Unlocking/locking in an emergency .. 427
Unlocking the vehicle ................... 427
Locking the vehicle ....................... 428
Manually unlocking
the gear selector lever .................. 429
Opening/closing
in an emergency (Cabriolet) ............... 430
Operating roll bars manually ......... 430
Soft top emergency operation ...... 432

322 Operation
At the gas station
Check regularly and before a long trip
Engine compartment (CLK 550, example)
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*Coolant
For normal replenishing, use water (pota-
ble water quality). For more information,
see “Coolant” (
page 328) and see “Fu-
els, coolants, lubricants, etc.”
(
page 489).
Brake fluid
Removing fuse box cover,
see (
page 473).Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(
page 330).
Engine oil level
For more information on engine oil, see
“Engine oil” (
page 325).
Vehicle lighting
Check function and cleanliness. For more
information on replacing light bulbs, see
“Replacing bulbs” (
page 443).
For more information, see “Exterior lamp
switch” (
page 55).
Tire inflation pressure
For more information, see “Checking tire
inflation pressure” (
page 341).
iOpening the hood, see (page 323).
!If you find that the brake fluid in the brake
fluid reservoir has fallen to the minimum mark or
below, have the brake system checked for brake
pad thickness and leaks immediately. Notify an
authorized Mercedes-Benz Center immediately.
Do not add brake fluid as this will not solve the
problem. For more information, see also “Practi-
cal hints” (
page 380).

325 Operation
Engine compartment
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new

the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.Checking engine oil level
When checking the oil level

the vehicle must be parked on level
ground.

with the engine at operating tempera-
ture yet, the vehicle must have been
stationary for at least 5 minutes with
the engine turned off.

with the engine not at operating tem-
perature, the vehicle must have been
stationary for at least 30 minutes with
the engine turned off.CLK 350 / CLK 550
1Oil dipstick
2Upper (max) mark
3Lower (min) mark
!Do not use any special lubricant additives,
as these may damage the drive assemblies. Us-
ing special additives not approved by
Mercedes-Benz may cause damage not covered
by the Mercedes-Benz Limited Warranty. More
information on this subject is available at any
Mercedes-Benz Center.

326 Operation
Engine compartment
CLK 63 AMG
1Oil dipstick
2Upper (max) mark
3Lower (min) markTo check the engine oil level with the oil
dipstick, do the following:
Open the hood (page 323).
Pull out oil dipstick1.
Wipe oil dipstick1 clean.
Fully insert oil dipstick1 into the
dipstick guide tube.
Pull out oil dipstick1 again after
approximately 3 seconds to obtain ac-
curate reading.
The oil level is correct when it is be-
tween the lower (min) mark3 and
upper (max) mark2 of oil dipstick1.
If necessary, add engine oil.
For adding engine oil, see “Adding en-
gine oil” (
page 327).
For more information on engine oil, see
“Fuels, coolants, lubricants, etc.”
(
page 489).
For more information on messages in the
multifunction display concerning engine
oil, see the “Practical hints” section
(
page 409).
iCLK 350:
The filling quantity between the upper and lower
marks on the oil dipstick is approximately
2.1 US qt. (2.0 l).
CLK 550 / CLK 63 AMG:
The filling quantity between the upper and lower
marks on the oil dipstick is approximately
1.6 US qt. (1.5 l).

327 Operation
Engine compartment
Adding engine oil
CLK 350 / CLK 550
1Filler cap
CLK 63 AMG
1Filler cap
Unscrew filler cap1 from filler neck.
Add engine oil as required. Be careful
not to overfill with oil.
Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.
Screw filler cap1 back on filler neck.
More information on engine oil can be
found in the “Technical data” section
(
page 489) and (page 491).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the automatic transmission.
!Only use approved engine oils and oil filters
required for vehicles with Maintenance System.
For a listing of approved engine oils and oil fil-
ters, refer to the Factory Approved Service Prod-
ucts pamphlet (USA only) in your vehicle
literature portfolio, or contact an authorized
Mercedes-Benz Center.
Using engine oils and oil filters of specification
other than those expressly required for the
Maintenance System, or changing of oil and oil
filter at change intervals longer than those called
for by the Maintenance System will result in
engine or emission control system damage not
covered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained off.
It could cause damage to the engine and emis-
sion control system not covered by the
Mercedes-Benz Limited Warranty.

333 Operation
Tires and wheels
Tread depth
Do not allow your tires to wear down too
far. Adhesion properties on wet roads are
sharply reduced at tread depths of less
than
1/8in (3 mm).
Treadwear indicators (TWI) are required by
law. These indicators are located in six
places on the tread circumference and
become visible at a tread depth of approx-
imately
1/16in (1.6 mm), at which point the
tire is considered worn and should be
replaced.
Recommended minimum tire tread depth:

Summer tires 1/8in (3 mm)

Winter tires 1/6in (4 mm)
1TWI (T
read Wear Indicator)
The treadwear indicator appears as a solid
band across the tread.Storing tires
Cleaning tiresWarning!G
Although the applicable federal motor safety
laws consider a tire to be worn when the
treadwear indicators (TWI) become visible at
approximately
1/16in (1.6 mm), we recom-
mend that you do not allow your tires
to wear down to that level. As tread depth
approaches 1/8in (3 mm), the adhesion
properties on a wet road are sharply
reduced.
Depending upon the weather and/or road
surface (conditions), the tire traction varies
widely.!Keep unmounted tires in a cool, dry place
with as little exposure to light as possible. Pro-
tect tires from contact with oil, grease and
gasoline.
!Never use a round nozzle to power wash
tires. The intense jet of water can result in
damage to the tire.
Always replace a damaged tire.

366 Operation
Maintenance
Calling up the maintenance service
indicator display
You can call up the maintenance service in-
dicator display at any time to check when
the next maintenance service is due.
Switch on the ignition (page 40).
Press buttonè orÿ on the
multifunction steering wheel
repeatedly until the standard display
appears in the multifunction display
(
page 147).
Press buttonkorjuntil the
maintenance service indicator display
with the service symbol9or½
and the service deadline appears in the
multifunction display.Resetting the maintenance service
indicator
In the event that the maintenance service
on your vehicle is not carried out at an au-
thorized Mercedes-Benz Center, you can
have the maintenance service indicator
reset. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the
maintenance service indicator in the
maintenance-relevant information for your
vehicle. Such information is available from
any authorized Mercedes-Benz Center or
directly from Mercedes-Benz.iIf the battery is disconnected, the days of
disconnection will not be included in the count
shown by the maintenance service indicator. To
arrive at the true maintenance service deadline,
you will need to subtract these days from the
days shown in the maintenance service indicator
message or maintenance service indicator
display.
Do not confuse the maintenance service indica-
tor with the engine oil level indicator:.
iIf the maintenance service indicator was in-
advertently reset, have an authorized
Mercedes-Benz Center correct it.
Only reset if the proper maintenance service has
been performed. Resetting the system without
performing the proper service as called for by
the maintenance service indicator will result in
engine damage and/or other vehicle damage not
covered by the Mercedes-Benz Limited
Warranty.

409 Practical hints
What to do if …?
When the message Check oil level at
next refueling.
appears while the engine
is running and at operating temperature,
the engine oil level has dropped to
approximately the minimum level.When this occurs, the warning is at first in-
termittent and then remains on if the oil
level drops further.
Visually check for oil leaks. If there are no
obvious oil leaks, drive to the nearest ser-
vice station to refill the engine oil to the re-
quired level.
For information on approved engine oils,
refer to the Factory Approved Service
Products pamphlet (USA only) or contact
an authorized Mercedes-Benz Center.
Display symbolDisplay messagePossible cause/consequencePossible solution
:Check oil level
at next refueling
.
The engine oil level has dropped to a
critical level.Check the engine oil level
(
page 325) and add oil as required
(
page 327).
If you must add engine oil frequently,
have the engine checked for possible
leaks.
!Engine oil level warnings should not be ig-
nored. Extended driving with the symbol dis-
played could result in serious engine damage
that is not covered by the Mercedes-Benz Limit-
ed Warranty.

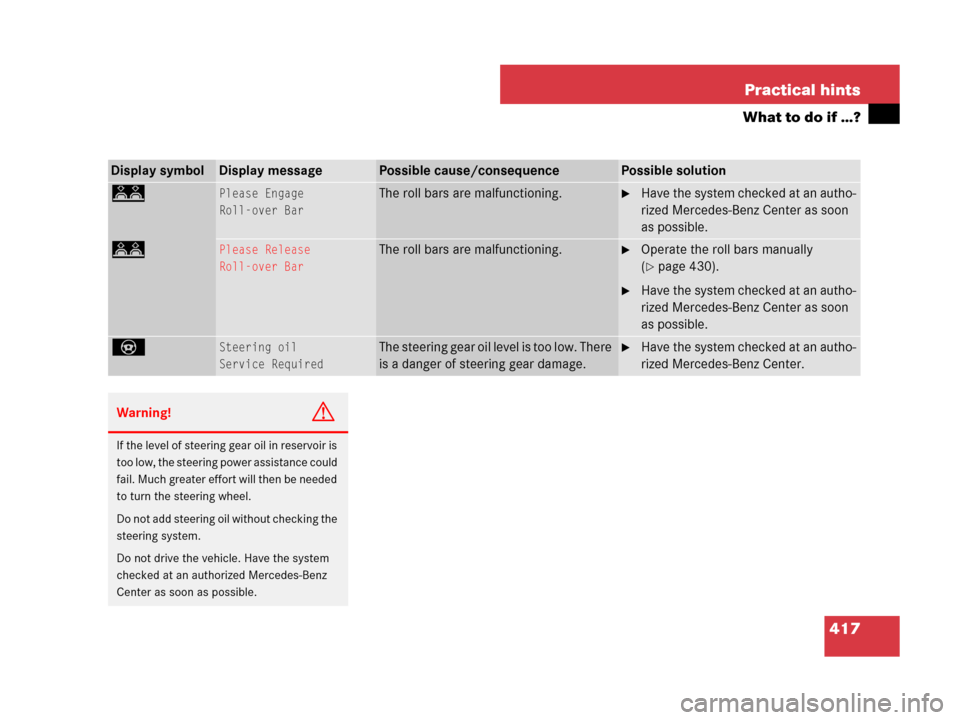

417 Practical hints
What to do if …?
Display symbolDisplay messagePossible cause/consequencePossible solution
\Please Engage
Roll-over BarThe roll bars are malfunctioning.Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
[Please Release
Roll-over BarThe roll bars are malfunctioning.Operate the roll bars manually
(
page 430).
Have the system checked at an autho-
rized Mercedes-Benz Center as soon
as possible.
_ Steering oil
Service RequiredThe steering gear oil level is too low. There
is a danger of steering gear damage.Have the system checked at an autho-
rized Mercedes-Benz Center.
Warning!G
If the level of steering gear oil in reservoir is
too low, the steering power assistance could
fail. Much greater effort will then be needed
to turn the steering wheel.
Do not add steering oil without checking the
steering system.
Do not drive the vehicle. Have the system
checked at an authorized Mercedes-Benz
Center as soon as possible.

494 Technical data
Fuels, coolants, lubricants, etc.
Coolants
The engine coolant is a mixture of water
and anticorrosion / antifreeze, which
provides:

Corrosion protection

Freeze protection

Boiling protection (by increasing the
boiling point)
The cooling system was filled at the factory
with a coolant providing freeze protection
to approximately -35°F (-37°C) and
corrosion protection.
If the antifreeze mixture is effective
to -35°F (-37°C), the boiling point of the
coolant in the pressurized cooling system
is reached at
approximately 266°F (130°C).The coolant solution must be used year
round to provide the necessary corrosion
protection and increase boil-over protec-
tion. Refer to Maintenance Booklet for re-
placement interval.
Coolant system design and coolant used
determine the replacement interval. The
replacement interval published in the
Maintenance Booklet is only applicable if
MB 325.0 Anticorrosion/Antifreeze solu-
tion or other Mercedes-Benz approved
products of equal specification are used to
renew the coolant concentration or bring it
back up to the proper level.
For information on other Mercedes-Benz
approved products of equal specification,
refer to the Factory Approved Service
Products pamphlet (USA only) or contact
an authorized Mercedes-Benz Center.To provide important corrosion protection,
the solution must be at least 50% anticor-
rosion/antifreeze (equivalent to freeze
protection to approximately -35°F
[-37°C]). If you use a solution that is more
than 55% anticorrosion/antifreeze (freeze
protection to approximately -49°F
[-45°C]), the engine temperature will in-
crease due to the lower heat transfer capa-
bility of the solution. Therefore, do not use
more than this amount of anticorro-
sion/antifreeze.
If the coolant level is low, water and
MB 325.0 Anticorrosion /Antifreeze
should be used to bring it up to the proper
level (have cooling system checked for
signs of leakage). Please make sure the
mixture is in accordance with label instruc-
tions.
The water in the cooling system must meet
minimum requirements, which are usually
satisfied by normal drinking water. If you
are not sure about the water quality,
consult an authorized Mercedes-Benz
Center.
!Add premixed coolant solution only. Adding
water and MB 325.0 Anticorrosion/Antifreeze
separately from each other, could cause engine
damage not covered by the Mercedes-Benz
Limited Warranty
