MERCEDES-BENZ CLK430 2000 C208 Owner's Manual

Exterior lamps
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index High mounted stop lamp,
Additional turn signals on the exterior mirror
The high mounted stop lamp (3rd brake lamp), and the
additional turn signals on the exterior mirrors are
equipped with LEDs.
Have the system checked at an authorized
Mercedes-Benz Center if a fault or defect occurs.Adjusting headlamp aim
Correct headlamp adjustment is extremely important.
To check and readjust a headlamp, follow steps 1
through 5.
Please note:
•Low beam adjustments simultaneously aim the high
beam.
•Vehicle should have a normal trunk load.
1. Park vehicle on level surface approximately 25 ft.
(7.6 m) from a vertical test screen or wall. The
centerline of the vehicle must be at a 90° angle to
the test screen.
261

286 Exterior lamps
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

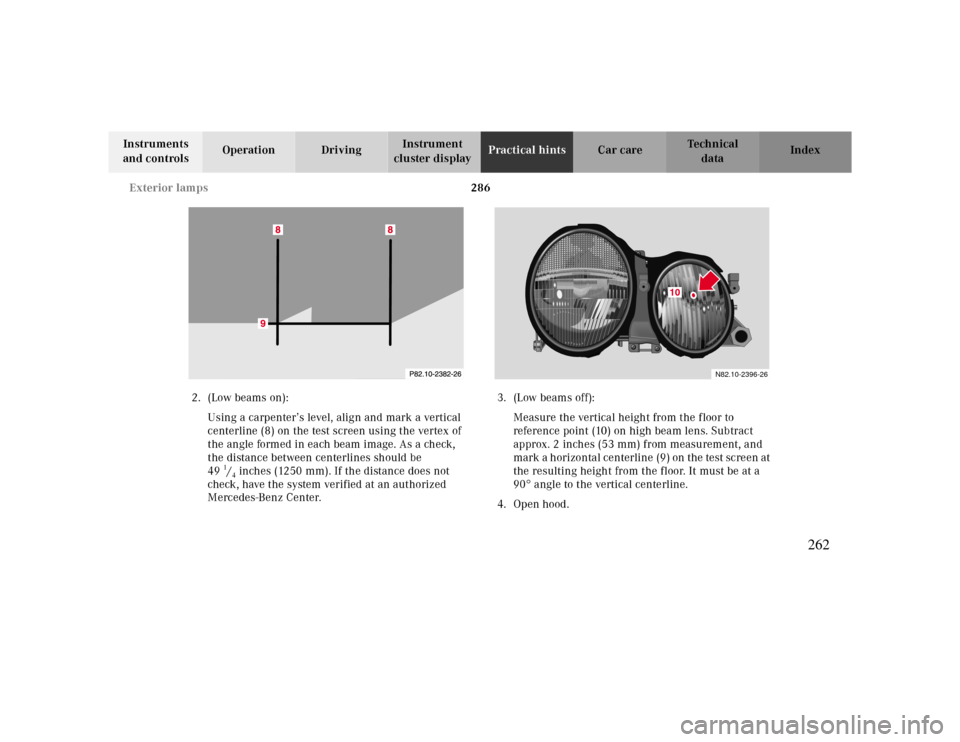

2. (Low beams on):
Using a carpenter’s level, align and mark a vertical
centerline (8) on the test screen using the vertex of
the angle formed in each beam image. As a check,
the distance between centerlines should be
49
1/4 inches (1250 mm). If the distance does not
check, have the system verified at an authorized
Mercedes-Benz Center.3. (Low beams off):
Measure the vertical height from the floor to
reference point (10) on high beam lens. Subtract
approx. 2 inches (53 mm) from measurement, and
mark a horizontal centerline (9) on the test screen at
the resulting height from the floor. It must be at a
90°angle to the vertical centerline.
4. Open hood.
10
N82.10-2396-26
262

Exterior lamps
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

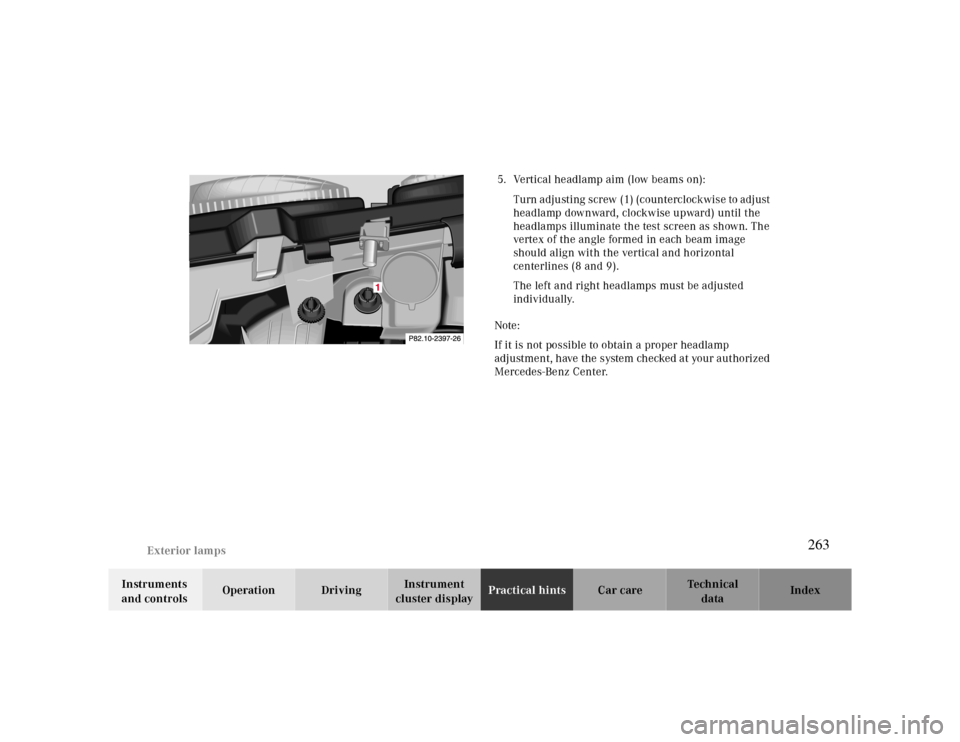

cluster displayPractical hintsCar care Index 5. Vertical headlamp aim (low beams on):
Turn adjusting screw (1) (counterclockwise to adjust
headlamp downward, clockwise upward) until the
headlamps illuminate the test screen as shown. The
vertex of the angle formed in each beam image
should align with the vertical and horizontal
centerlines (8 and 9).
The left and right headlamps must be adjusted
individually.
Note:
If it is not possible to obtain a proper headlamp
adjustment, have the system checked at your aut horized
Mercedes-Benz Center.
263

Electronic main key
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

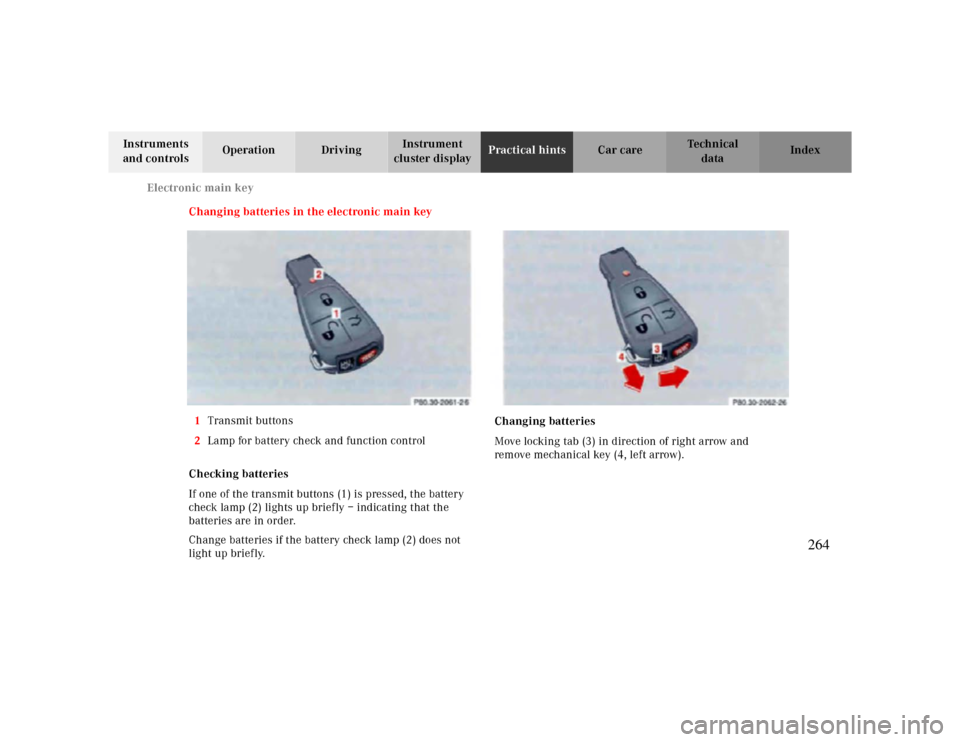

Changing batteries in the electronic main key
1Transmit buttons
2Lamp for battery check and function control
Checking batteries
If one of the transmit buttons (1) is pressed, the battery
check lamp (2) lights up briefly – indicating that the
batteries are in order.
Change batteries if the battery check lamp (2) does not
light up briefly.Changing batteries
Move locking tab (3) in direction of right arrow and
remove mechanical key (4, left arrow).
264

Electronic main key
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

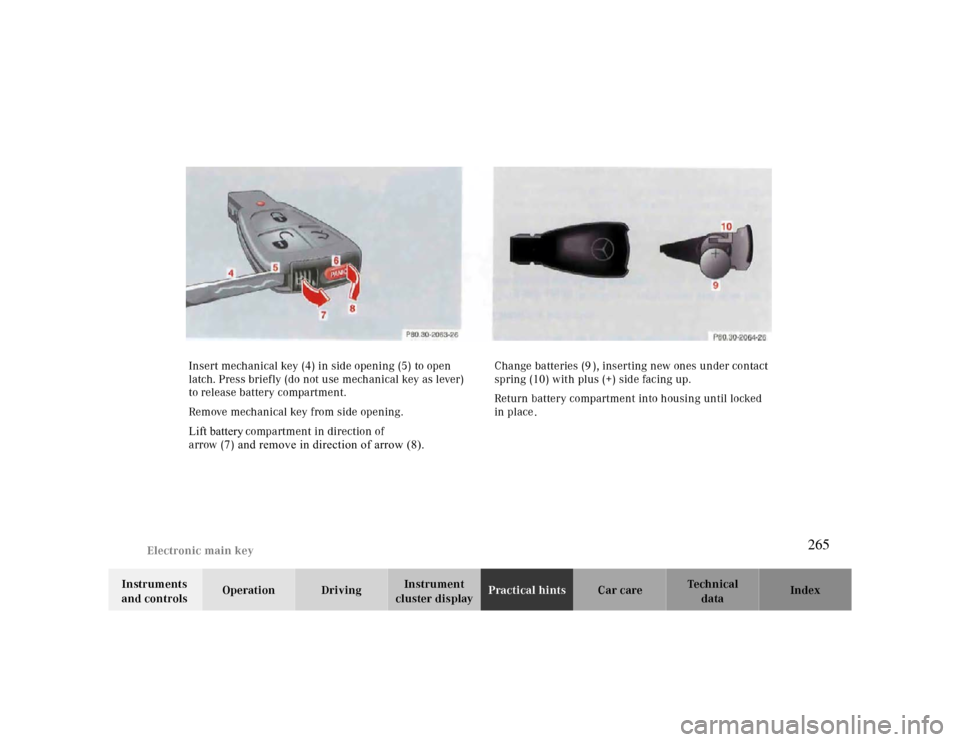

cluster displayPractical hintsCar care Index Insert mechanical key (4) in side opening (5) to open
latch. Press briefly (do not use mechanical key as lever)
to release battery compartment.
Rem ove mechanical key from side opening.
Lift battery compartment in direction of
arrow (7) and remove in direction of arrow (8).Change batteries (9), inserting new ones under contact
spring (10) with plus (+) side facing up.
Return battery compartment into housing until locked
in place
.
265

Electronic main key
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Important!
Batteries contain materials that can harm the
environment if disposed of improperly. Recycling of
batteries is the preferred method of disposal. For
disposal, please follow manufacturer’s recommendation
on battery package.
Replacement Battery:
Lithium, type CR 2025 or equivalent.Synchronizing remote control
The remote control may have to be resynchronized, if
the vehicle cannot be locked or unlocked.
To synchronize insert electronic key in steering lock.
The remote control should once again be operational.
266

Emergency operation of sliding/pop-up roof
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

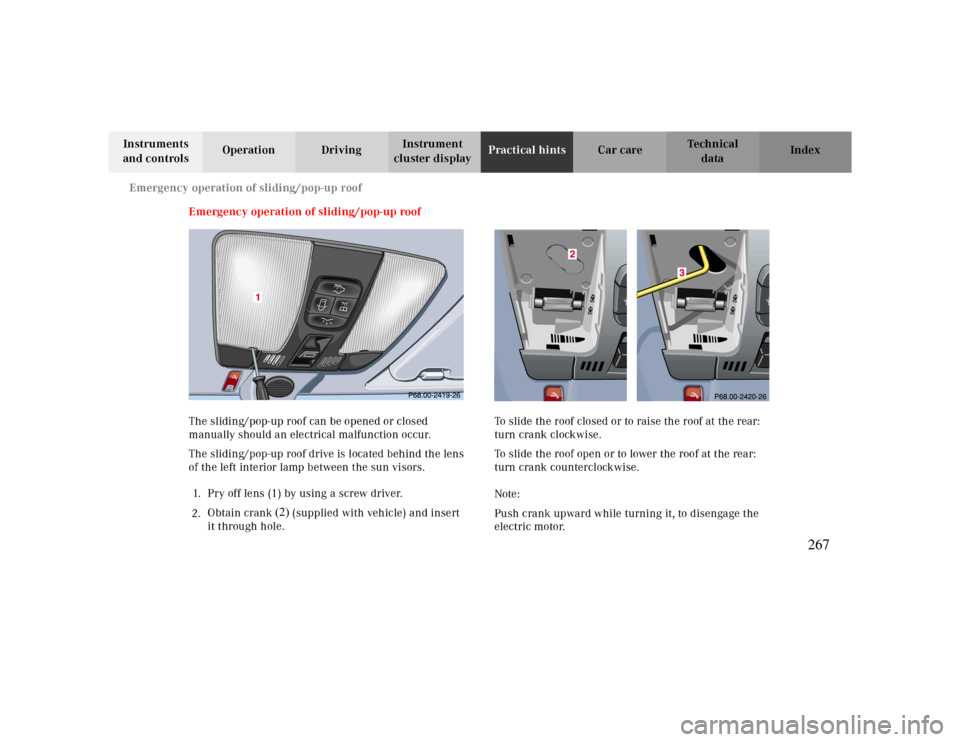

Emergency operation of sliding/pop-up roof
The sliding/pop-up roof can be opened or closed
manually should an electrical malfunction occur.
The sliding/pop-up roof drive is located behind the lens
of the left interior lamp between the sun visors.
1. Pry off lens (1) by using a screw driver.
2.
(2)
Obtain crank (supplied with vehicle) and insert
it through hole.To slide the roof closed or to raise the roof at the rear:
turn crank clockwise.
To slide the roof open or to lower the roof at the rear:
turn crank counterclockwise.
Note:
Push crank upward while turning it, to disengage the
electric motor.
267

Manual release for fuel filler flap
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

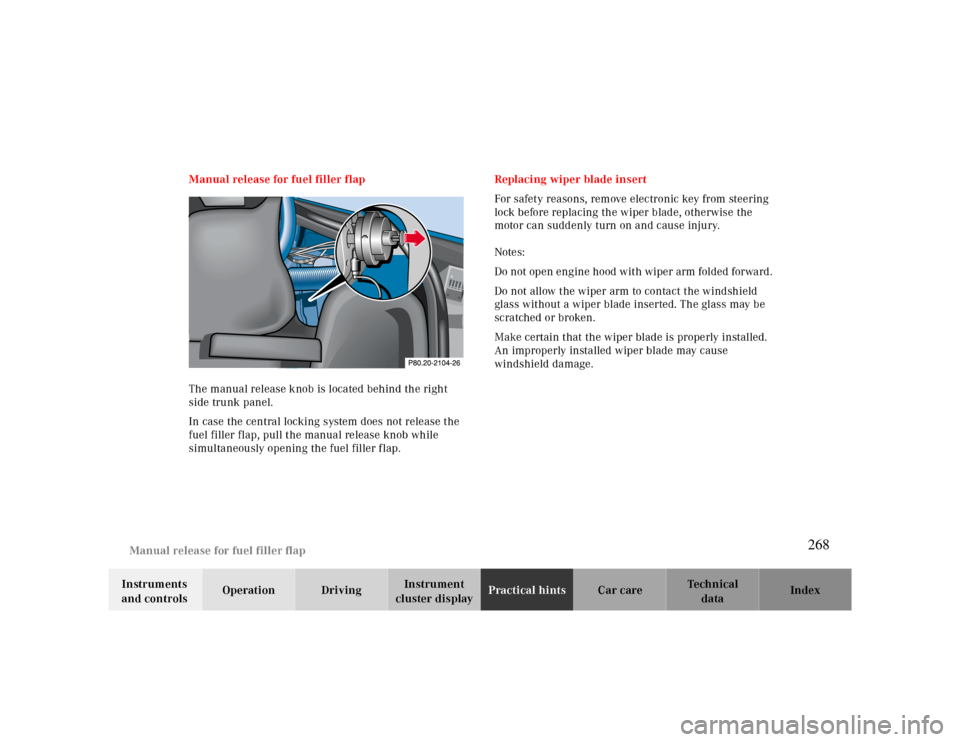

cluster displayPractical hintsCar care Index Manual release for fuel filler flap
The manual release knob is located behind the right
side trunk panel.
In case the central locking system does not release the
fuel filler flap, pull the manual release knob while
simultaneously opening the fuel filler flap.Replacing wiper blade insert
For safety reasons, remove electronic key from steering
lock before replacing the wiper blade, otherwise the
motor can suddenly turn on and cause injury.
Notes:
Do not open engine hood with wiper arm folded forward.
Do not allow the wiper arm to contact the windshield
glass without a wiper blade inserted. The glass may be
scratched or broken.
Make certain that the wiper blade is properly installed.
An improperly installed wiper blade may cause
windshield damage.
268

Replacing wiper blade insert
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

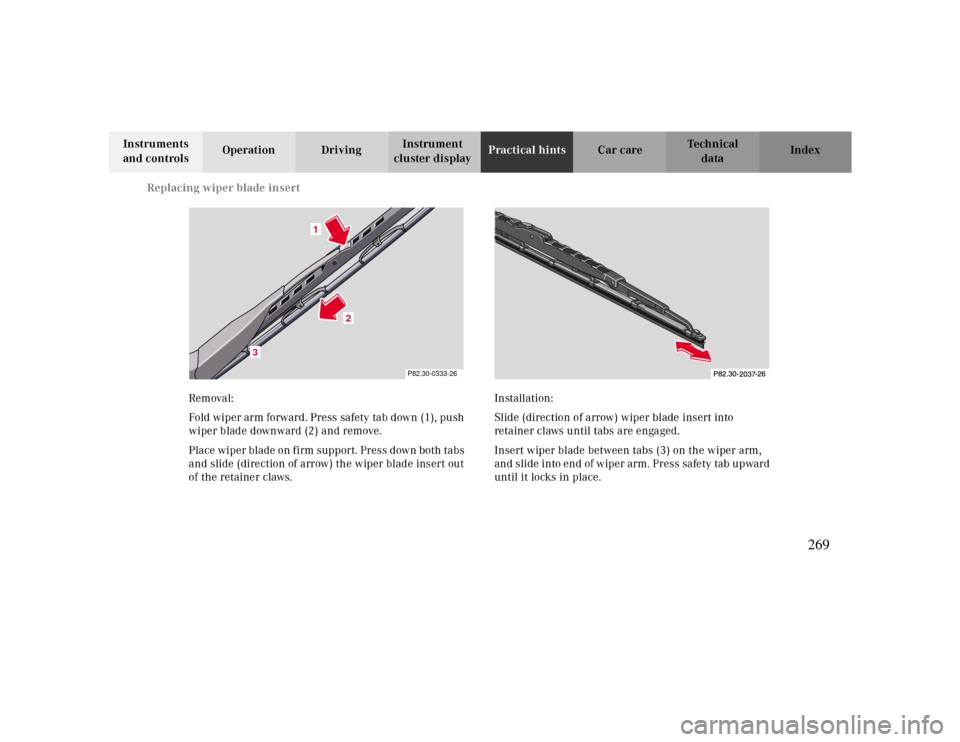

Removal:
Fold wiper arm forward. Press safety tab down (1), push
wiper blade downward (2) and remove.
Place wiper blade on firm support. Press down both tabs
and slide (direction of arrow) the wiper blade insert out
of the retainer claws.Installation:
Slide (direction of arrow) wiper blade insert into
retainer claws until tabs are engaged.
Insert wiper blade between tabs (3) on the wiper arm,
and slide into end of wiper arm. Press safety tab upward
until it locks in place.
3
2
1
P82.30-0333-26
269

Trunk lamp
Te ch n ica l
data Instruments
and controlsOperation DrivingInstrument

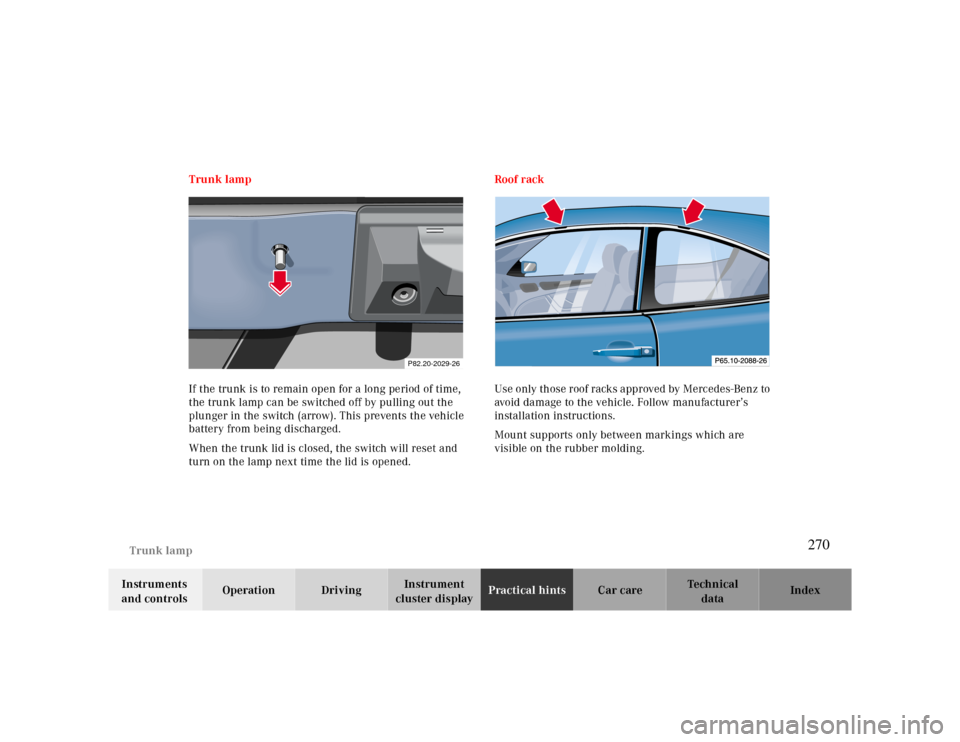

cluster displayPractical hintsCar care Index Trunk lamp
If the trunk is to remain open for a long period of time,
the trunk lamp can be switched off by pulling out the
plunger in the switch (arrow). This prevents the vehicle
battery from being discharged.
When the trunk lid is closed, the switch will reset and
turn on the lamp next time the lid is opened.Roof rack
Use only those roof racks approved by Mercedes-Benz to
avoid damage to the vehicle. Follow manufacturer’s
installation instructions.
Mount supports only between markings which are
visible on the rubber molding.
P82.20-2029-26
