5 Contents Emergency operation of
sliding/pop-up roof ...................286
Manual release for
fuel filler flap .............................287
Replacing wiper
blade insert ................................287
Roof rack .........................................289
Vehicle careCleaning and care
of the vehicle .............................292
Power washer ..............................293
Tar stains .....................................293
Paintwork, painted body
components .................................293
Engine cleaning ..........................294
Vehicle washing .........................294
Ornamental moldings ................294
Headlamps, taillamps,
turn signal lenses ......................294Window cleaning ....................... 295
Wiper blade ................................ 295
Light alloy wheels ..................... 295
Instrument cluster ..................... 295
Steering wheel and
gear selector lever ..................... 295
Cup holder .................................. 296
Seat belts ..................................... 296
Hard plastic trim items ............. 296
Headliner and shelf
below rear window .................... 296
Upholstery .................................. 296
Plastic and rubber parts ........... 296
Technical dataSpare parts service ....................... 298
Warranty coverage ........................ 298
Identification labels ...................... 299
Layout of poly-V-belt drive ........... 300
Technical data ................................ 301Fuels, coolants, lubricants etc. –
capacities ...................................305
Engine oils ......................................307
Engine oil additives .......................307
Air conditioner refrigerant ...........307
Brake fluid ......................................307
Premium unleaded gasoline ........308
Fuel requirements .........................308
Gasoline additives .........................309
Coolants ...........................................309
Consumer information ...................311
IndexIndex ................................................ 313
J_C208_II.book Seite 5 Donnerstag, 31. Mai 2001 10:13 10

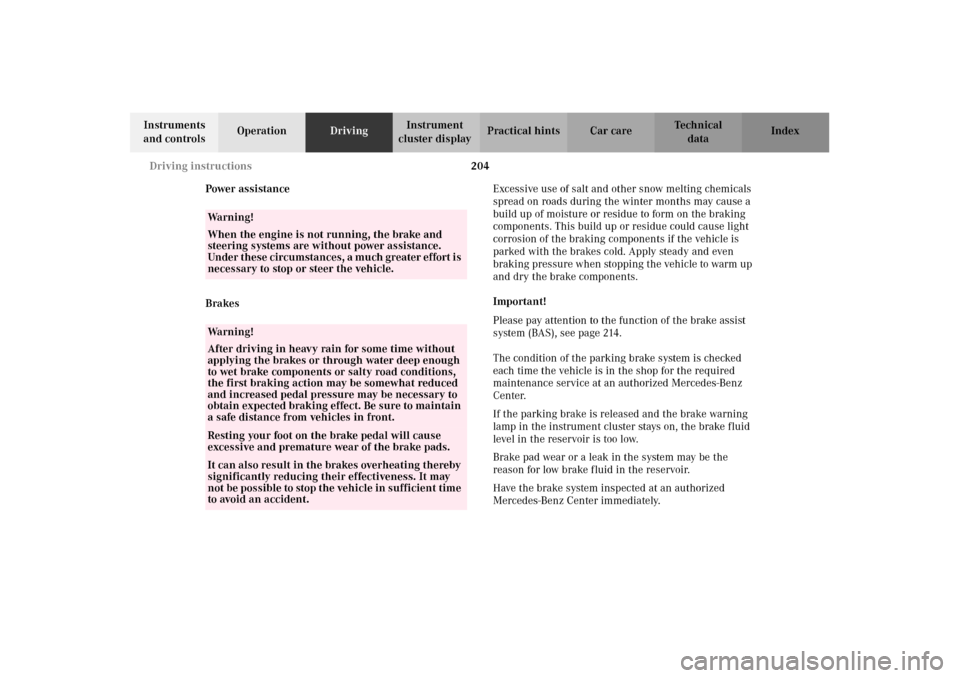

204 Driving instructions
Technical
data Instruments
and controlsOperationDrivingInstrument
cluster displayPractical hints Car care Index
Power assistance
BrakesExcessive use of salt and other snow melting chemicals
spread on roads during the winter months may cause a
build up of moisture or residue to form on the braking
components. This build up or residue could cause light
corrosion of the braking components if the vehicle is
parked with the brakes cold. Apply steady and even
braking pressure when stopping the vehicle to warm up
and dry the brake components.
Important!
Please pay attention to the function of the brake assist
system (BAS), see page 214.
The condition of the parking brake system is checked
each time the vehicle is in the shop for the required
maintenance service at an authorized Mercedes-Benz
Center.
If the parking brake is released and the brake warning
lamp in the instrument cluster stays on, the brake fluid
level in the reservoir is too low.
Brake pad wear or a leak in the system may be the
reason for low brake fluid in the reservoir.
Have the brake system inspected at an authorized
Mercedes-Benz Center immediately.
Wa r n i n g !
When the engine is not running, the brake and
steering systems are without power assistance.
Under these circumstances, a much greater effort is
necessary to stop or steer the vehicle.Wa r n i n g !
After driving in heavy rain for some time without
applying the brakes or through water deep enough
to wet brake components or salty road conditions,
the first braking action may be somewhat reduced
and increased pedal pressure may be necessary to
obtain expected braking effect. Be sure to maintain
a safe distance from vehicles in front.Resting your foot on the brake pedal will cause
excessive and premature wear of the brake pads.It can also result in the brakes overheating thereby
significantly reducing their effectiveness. It may
not be possible to stop the vehicle in sufficient time
to avoid an accident.
J_C208_II.book Seite 204 Donnerstag, 31. Mai 2001 10:13 10

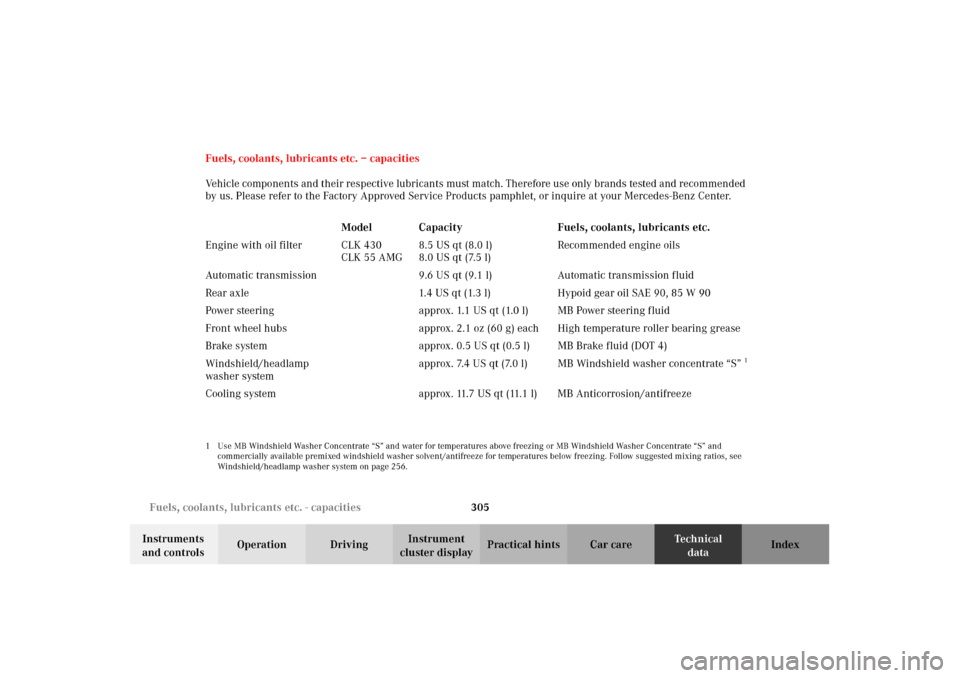

305 Fuels, coolants, lubricants etc. - capacities
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Fuels, coolants, lubricants etc. – capacities
Vehicle components and their respective lubricants must match. Therefore use only brands tested and recommended
by us. Please refer to the Factory Approved Service Products pamphlet, or inquire at your Mercedes-Benz Center.
Model Capacity Fuels, coolants, lubricants etc.
Engine with oil filter CLK 430
CLK 55 AMG8.5 US qt (8.0 l)
8.0 US qt (7.5 l)Recommended engine oils
Automatic transmission 9.6 US qt (9.1 l) Automatic transmission fluid
Rear axle 1.4 US qt (1.3 l) Hypoid gear oil SAE 90, 85 W 90
Power steering approx. 1.1 US qt (1.0 l) MB Power steering fluid
Front wheel hubs approx. 2.1 oz (60 g) each High temperature roller bearing grease
Brake system approx. 0.5 US qt (0.5 l) MB Brake fluid (DOT 4)
Windshield/headlamp
washer systemapprox. 7.4 US qt (7.0 l) MB Windshield washer concentrate “S”
1
Cooling system approx. 11.7 US qt (11.1 l) MB Anticorrosion/antifreeze1 Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing or MB Windshield Washer Concentrate “S” and
commercially available premixed windshield washer solvent/antifreeze for temperatures below freezing. Follow suggested mixing ratios, see
Windshield/headlamp washer system on page 256.
J_C208_II.book Seite 305 Donnerstag, 31. Mai 2001 10:13 10

320 Index
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car careIndex
PARKING BRAKE ......................................................237
REMOVE KEY ............................................................243
STEER. WHEEL ADJUST. ......................................... 241
TELE AID .................................................................... 245
WASHER FLUID ........................................................ 244
Malfunction message memory .................................... 106
Manual operation of sliding/pop-up roof ................... 286
Mechanical keys ........................................................ 25, 32
Memory ............................................................................. 48
Recalling ....................................................................... 49
Storing ................................................................... 48, 82
Mirror, exterior, adjusting .............................................. 81
Mirror, exterior, rear view .............................................. 81
Mirror, inside, rear view ................................................. 80
Multicontour seat ............................................................ 55
Multifunction display ...................................................... 90
Engine oil level indicator ........................................... 94
FSS (Flexible service system) ................................... 94
Setting the audio volume ..........................................110
Trip and main odometer ............................................ 94
Vehicle speed ............................................................... 94
Multifunction steering wheel ........................................ 90
NNavigation system - Multifunction display ................ 103
Night security illumination .......................................... 117OOn-board diagnostic system ........................................ 226
Operator’s Manual ............................................................. 8
Outside temperature indicator ....................................... 88
Overhead control panel ................................................... 21PPanic button ......................................................................32
Parcel net in front passenger footwell ........................ 164
Parking ........................................................................... 206
Parking brake ......................157, 192, 202, 206, 227, 262
PA R K I N G B R A K E - m a l f u n c t i o n
and warning messages ............................................ 237
Power assistance ........................................................... 204
Power seats, front ............................................................. 45
Backrest ........................................................................ 54
