Soft top
Clean soft top with soft top raised and locked. Lower the
soft top into the storage compartment only if the soft top
is completely dry. If the soft top is kept in the storage
compartment for a lengthy period, raise it and air out
with the windows open about every 4 months.
Dry cleaning:
Brush top (always from front to rear) with a soft-bristled
brush.
We t c l e a n i n g :
Brush the dry top. Wash with a mild detergent and an
ample supply of lukewarm water by wiping with a soft-
bristled brush or sponge from front to rear. Then rinse
thoroughly with clear water.
If only parts of the top have been washed, wet the entire
top and allow it to air-dry before lowering it into the
storage compartment.
Do not use sharp-edged instruments for the removal of
ice and snow. Notes:
When you run the vehicle through an automatic car
wash, never use hot-wax for conservation.
Depending on the operation mode of the car wash, there
is the possibility of water drops entering the vehicle’s
interior.
Never use a power washer to clean the soft top, as you
may damage the soft top material.
Remove bird droppings immediately. The organic acid
damages the material and causes the soft top to leak.
In general, regular spraying or cleansing with clear
water is sufficient to keep the top clean.
Wash the top only when heavily soiled.
Light colored soft tops should be cleaned frequently to
prevent spots and dirt from setting in, which could stain
and discolor the soft top material permanently.
Caution!
Never use any gasoline, thinner, tar and stain removers,
glass cleaner, or similar organic solvents to clean the
soft top or wind screen. They will cause damage which
is not covered by the Mercedes-Benz Limited Warranty.
J_A208.book Seite 308 Donnerstag, 31. Mai 2001 9:35 09

309 Contents – Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Technical dataSpare parts service ........................ 310
Warranty coverage ......................... 310
Identification labels ....................... 311
Layout of poly-V-belt drive ............ 312
Technical data ................................ 313
Fuels, coolants, lubricants etc. –
capacities ................................... 318
Engine oils ......................................320Engine oil additives ...................... 320
Air conditioner
refrigerant ................................. 320
Brake fluid ...................................... 320
Premium unleaded
gasoline ...................................... 321
Fuel requirements ........................ 321
Gasoline additives ......................... 322
Coolants .......................................... 322
Consumer information ................. 324
J_A208.book Seite 309 Donnerstag, 31. Mai 2001 9:35 09

310 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Spare parts service
All authorized Mercedes-Benz Centers maintain a stock
of original spare parts required for maintenance and
repair work. In addition, strategically located parts
distribution centers provide quick and reliable parts
service.
More than 300 000 different spare parts, for
Mercedes-Benz models, are available.
Mercedes-Benz original spare parts are subjected to
stringent quality inspections. Each part has been
specifically developed, manufactured or selected for and
adapted to Mercedes-Benz vehicles.
Therefore, Mercedes-Benz original spare parts should
be installed.
Important!
The use of non-genuine parts and accessories not
authorized by Mercedes-Benz could damage the vehicle
which damage is not covered by the Mercedes-Benz
Limited Warranty or compromise its durability or safety.Wa r r a n t y c o v e r a g e
Your vehicle is covered under the terms of the
“warranties” printed in the Service and Warranty
Information booklet and your authorized
Mercedes-Benz Center will exchange or repair any
defective parts originally installed on the vehicle in
accordance with the terms of the following warranties:
1. New vehicle limited warranty
2. Emission system warranty
3. Emission performance warranty
4. California, Massachusetts, and Vermont emission
control systems warranty
Replacement parts and accessories are covered by the
Mercedes-Benz Spare Parts and Accessories warranties,
copies of which are available at any Mercedes-Benz
Center.
Loss of Service and Warranty Information Booklet
Should you lose your Service and Warranty Information
booklet, have your authorized Mercedes-Benz Center
arrange for a replacement. It will be mailed to you.
J_A208.book Seite 310 Donnerstag, 31. Mai 2001 9:35 09

311 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Identification labels

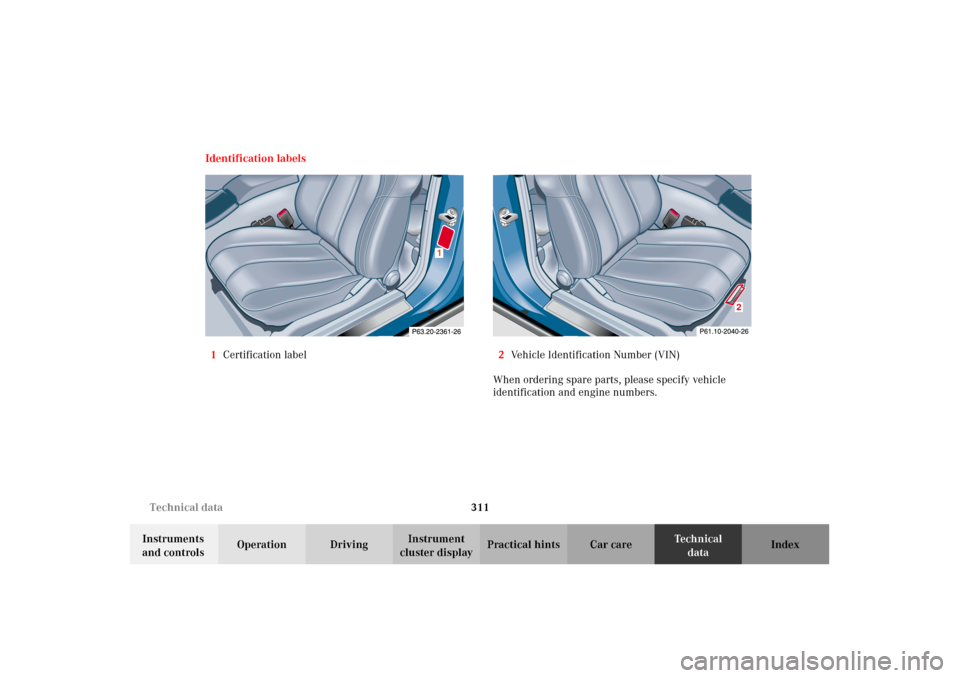

1Certification label2Vehicle Identification Number (VIN)
When ordering spare parts, please specify vehicle
identification and engine numbers.
1
X
X
X
X
X
X
X
X
X2
J_A208.book Seite 311 Donnerstag, 31. Mai 2001 9:35 09

312 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
CLK 320 shown
3VIN, visible (lower edge of windshield)
4Engine number
5Body number and paintwork number
6Emission control label
7Information label, California version

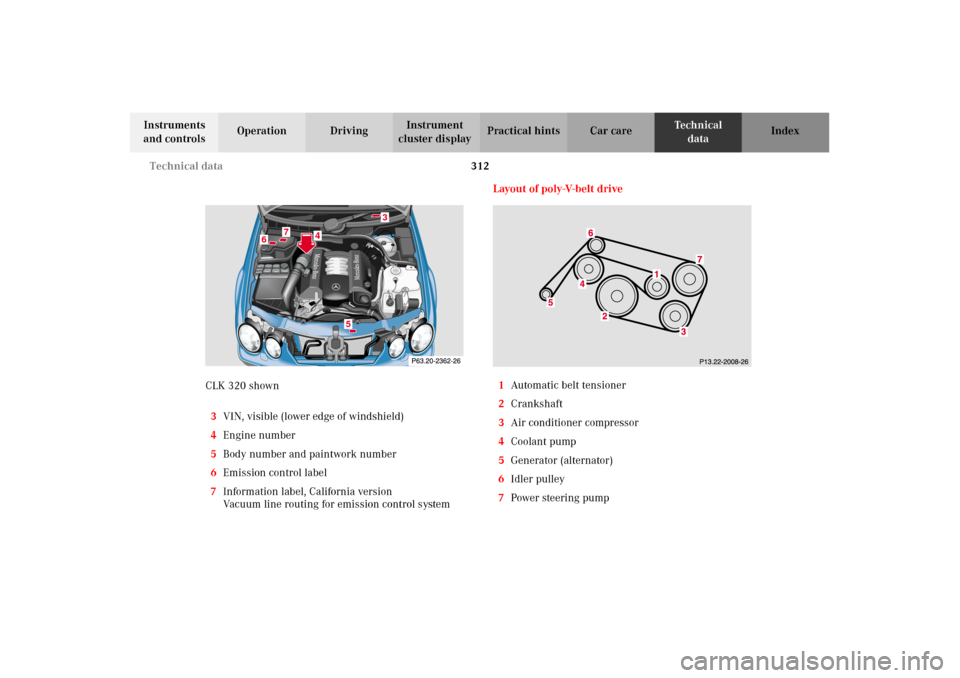

Vacuum line routing for emission control systemLayout of poly-V-belt drive
1Automatic belt tensioner
2Crankshaft
3Air conditioner compressor
4Coolant pump
5Generator (alternator)
6Idler pulley
7Power steering pump
6
5
7
3
4
J_A208.book Seite 312 Donnerstag, 31. Mai 2001 9:35 09

313 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index Technical data
Model CLK 320 (208 465)
1
CLK 430 (208 470)
1
CLK 55 AMG (208 474)
1
Engine11 2 113 113
Mode of operation 4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection4-stroke engine,
gasoline injection
No. of cylinders688
Bore 3.54 in (89.90 mm) 3.54 in (89.90 mm) 3.82 in (97.00 mm)
Stroke 3.31 in (84.00 mm) 3.31 in (84.00 mm) 3.60 in (92.00 mm)
Total piston displacement 195.2 cu.in. (3199 cm
3) 260.3 cu.in. (4265 cm
3) 322.0 cu.in. (5439 cm
3)
Compression ratio 10:1 10:1 10.5:1
Output acc. to SAE J 1349 215 hp/5700 rpm
(160 kW/5700 rpm)275 hp/5750 rpm
(205 kW/5750 rpm)342 hp/5500 rpm
(255 kW/5500 rpm)
Maximum torque acc. to SAE J 1349 232 ft.lb/3000 rpm
(315 Nm/3000 rpm)295 ft.lb/3200 rpm
(400 Nm/3200 rpm)376 ft.lb/3000 rpm
(510 Nm/3000 rpm)
Maximum engine speed 6000 rpm 6000 rpm 6000 rpm
Firing order 1-4-3-6-2-5 1-5-4-2-6-3-7-8 1-5-4-2-6-3-7-8
Poly-V-belt 2390 mm 2390 mm 2390 mm
1 The quoted data apply only to the standard vehicle. See an authorized Mercedes-Benz Center for the
corresponding data of all special bodies and special equipment.
J_A208.book Seite 313 Donnerstag, 31. Mai 2001 9:35 09

314 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Rims – Tires (except Sport Package) Rims – Tires (Sport Package)
1 Also permissible 225/45 ZR 17.
2 Also permissible 245/40 ZR 17.
3
3 Must not be used with snow chains.
4 Also permissible 225/45 ZR 17 91 Y.
5 Also permissible 245/40 ZR 17 91 Y.
3
Model CLK 320
Rims (light alloy)
Wheel offset7 J x 16 H 2
1.46 in (37 mm)
All season tires:
Radial-ply tires 205/55 R 16 91 H
Winter tires:
Radial-ply tires 205/55 R 16 91 H M+S
Spare wheel
Rim (light alloy)
Wheel offset:7 J x 16 H 2
1.46 in (37 mm)
All season tire:
Radial-ply tire 205/55 R 16 91 HModel CLK 320
Rims front axle
(AMG light alloy)
Wheel offset7
1/2 J x 17 H 2
1.46 in (37 mm)
Rims rear axle
(AMG light alloy)
Wheel offset8
1/2 J x 17 H 2
1.18 in (30 mm)
Radial-ply tires
Summer tires, front axle:
Summer tires, rear axle:225/45 R 17 91 Y
1, 4
245/40 R 17 91 Y
2, 3, 5
J_A208.book Seite 314 Donnerstag, 31. Mai 2001 9:35 09

315 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
1 Also permissible 225/45 ZR 17
2 Also permissible 245/40 ZR 17
3
3 Must not be used with snow chains.4 Also permissible 225/45 ZR 17 91 Y.
5 Also permissible 245/40 ZR 17 91 Y.
3
Model CLK 430 CLK 55 AMG
Rims front axle
(AMG light alloy)
Wheel offset:7
1/2 J x 17 H 2
1.46 in (37 mm)7
1/2 J x 17 H 2
1.46 in (37 mm)
Rims rear axle
(AMG light alloy)
Wheel offset:8
1/2 J x 17 H 2
1.18 in (30 mm)8
1/2 J x 17 H 2
1.34 in (34 mm)
Radial-ply tires:
summer tires, front axle
summer tires, rear axle225/45 R 17 91 W
1
245/40 R 17 91 W
2, 3, 5
225/45 R 17 91 Y
1, 4
245/40 R 17 91 Y
2, 3, 5
Spare wheel
Rim (light alloy)
Wheel offset:7
1/2 J x 17 H 2
1.46 in (37 mm)7
1/2 J x 17 H 2
1.46 in (37 mm)
Summer tire:
Radial-ply tire 225/45 R 17 91 W
1
225/45 R 17 91 W
1
J_A208.book Seite 315 Donnerstag, 31. Mai 2001 9:35 09

316 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index
Rims – Winter tires
Electrical system Model CLK 430 CLK 55 AMG
Rim (light alloy)
Wheel offset7 J x 16 H 2
1.46 in (37 mm)7
1/2 J x 17 H 2
1.46 in (37 mm)
Winter tires:
Radial-ply tires 205/55 R 16 91 H M+S 225/45 R 17 91 W M+S
Model CLK 320 CLK 430 CLK 55 AMG
Generator (alternator) 14 V/115 A 14 V/150 A 14 V/150 A
Starter motor 12V/1.7 kW 12V/1.7 kW 12V/1.7 kW
B a t t e r y 12 V / 10 0 A h 12 V / 10 0 A h 12 V / 10 0 A h
Spark plugs
Electrode gap
Tightening torqueBosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5 R-11
0.039 in (1.0 mm)
15–22ft.lb (20–30Nm)Bosch F 8 DPER
Beru 14 FGH 8 DPUR X 2
NGK PFR 5 R-11
0.039 in (1.0 mm)
15–22ft.lb (20–30Nm)NGK PFR 5-11
0.039 in (1.0 mm)
15–22ft.lb (20–30Nm)
J_A208.book Seite 316 Donnerstag, 31. Mai 2001 9:35 09

317 Technical data
Technical
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hints Car care Index We i g h t s (see certification tag)
Main dimensions Trunk load max. 220 lb (100 kg)
Model CLK 320 CLK 430 CLK 55 AMG
Overall vehicle length 180.2 in (4577 mm) 179.8 in (4567 mm) 179.8 in (4567 mm)
Overall vehicle width 67.8 in (1722 mm) 67.8 in (1722 mm) 67.8 in (1722 mm)
Overall height 54.3 in (1380 mm) 54.3 in (1380 mm) 54.6 in (1386 mm)
Wheel base 105.9 in (2690 mm) 105.9 in (2690 mm) 105.9 in (2690 mm)
Track, front 59.3 in (1505 mm) 59.3 in (1505 mm) 59.3 in (1505 mm)
Track, rear 58.0 in (1474 mm) 58.6 in (1488 mm) 58.6 in (1488 mm)
